0-10 — CYLINDER HEAD COVER (#1017) — 76 parça

75 68 27 4 1 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	COVER; CYL HD AUSTRALIA EQUIPMENT(RR3)	1-11171-378-0	01	1	9202-9405	●
1	COVER; CYL HD EXC. AUSTRALIA EQUIPMENT(RR3)	1-11171-391-0	01	1	9202-9405	●
1	COVER; CYL HD	1-11171-391-0	01	1	9406-9410	●
1	COVER; CYL HD EXC. HONG KONG EQUIPMENT(PQ1)	1-11171-391-0	01	1	9411-	●
1	COVER; CYL HD HONG KONG EQUIPMENT(PQ1)	1-11171-378-0	01	1	9411-	●
1	COVER; CYL HD	1-11171-392-0	01	1	9202-		●
1	COVER; CYL HD	8-94393-712-4	01	1	9202-			●
4	CAP; OIL FILLER	1-11750-020-0	01	1	9202-	●	●
4	CAP; OIL FILLER	8-94399-723-0	01	1	9202-			●
27	GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AUSTRALIA EQUIPMENT(RR3) (A)	1-19389-004-0	08	1	9202-9405	●
27	GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AUSTRALIA EQUIPMENT(RR3) (C)	9-11179-105-0	08	1	9202-9405	●
27	GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) HONG KONG EQUIPMENT(PQ1) (A)	1-19389-004-0	08	1	9411-	●
27	GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) HONG KONG EQUIPMENT(PQ1) (C)	9-11179-105-0	08	1	9411-	●
27	GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AUSTRALIA EQUIPMENT(RR3) (B)	1-09639-032-0	08	1	9202-9405	●
27	GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	1-09639-032-0	08	1	9406-9410	●	●
27	GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. HONG KONG EQUIPMENT(PQ1) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	1-09639-032-0	08	1	9411-	●
27	GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	1-09639-032-0	08	1	9411-		●
68	WASHER; CAP NUT,HD COVER	9-11179-105-0	08	1	9202-	●	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11173-078-0	01	1	9202-	●	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-383-0	01	1	9202-			●
75	NUT; CAP,HD COVER M8 CAP NUT OD=22	8-94340-192-0	08	1	9202-	●	●

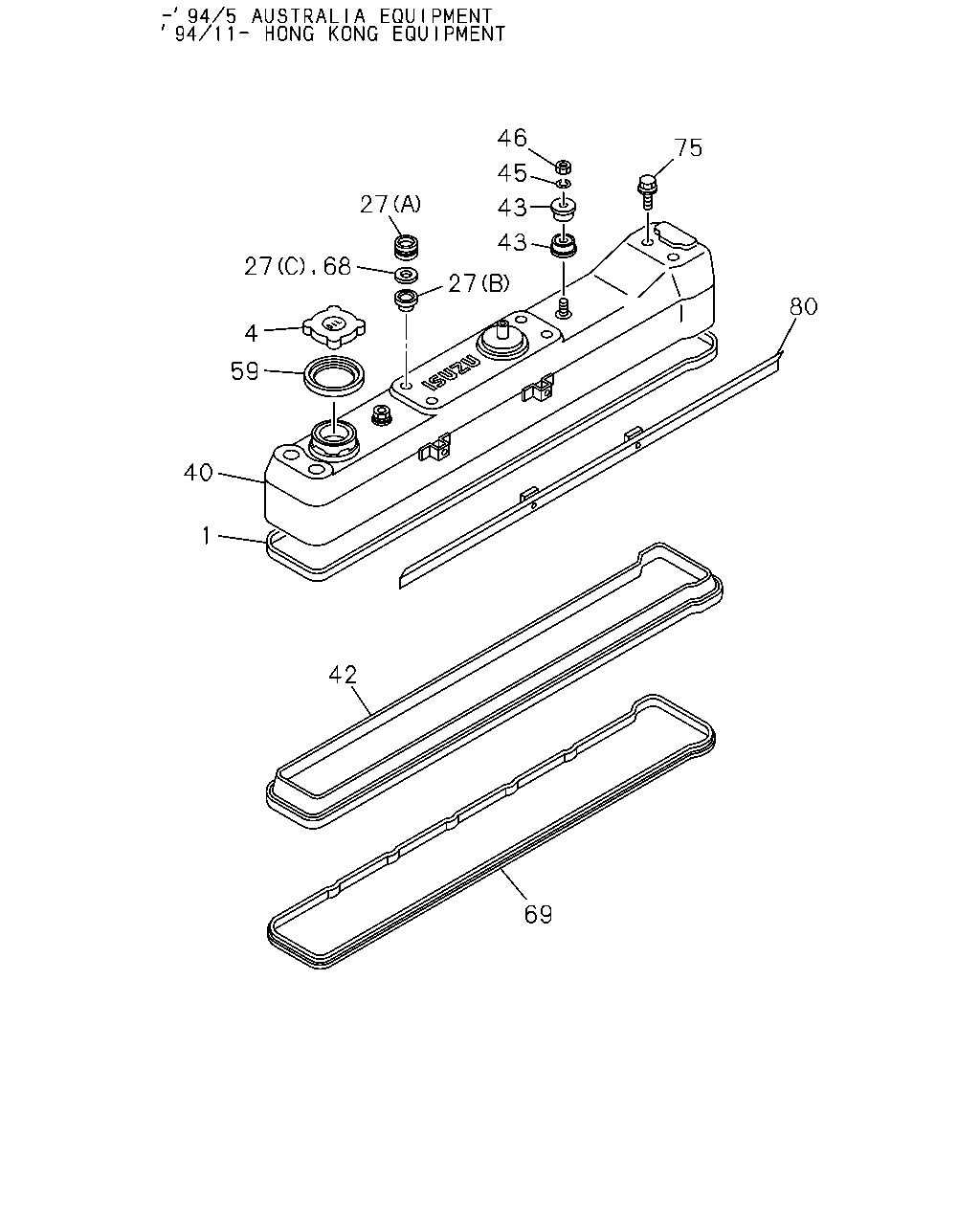

46 75 45 27 43 43 27 80 4 59 40 1 42 69 27 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	COVER; CYL HD AUSTRALIA EQUIPMENT(RR3)	1-11171-378-0	01	1	9202-9405	●
1	COVER; CYL HD EXC. AUSTRALIA EQUIPMENT(RR3)	1-11171-391-0	01	1	9202-9405	●
1	COVER; CYL HD	1-11171-391-0	01	1	9406-9410	●
1	COVER; CYL HD EXC. HONG KONG EQUIPMENT(PQ1)	1-11171-391-0	01	1	9411-	●
1	COVER; CYL HD HONG KONG EQUIPMENT(PQ1)	1-11171-378-0	01	1	9411-	●
1	COVER; CYL HD	1-11171-392-0	01	1	9202-		●
1	COVER; CYL HD	8-94393-712-4	01	1	9202-			●
4	CAP; OIL FILLER	1-11750-020-0	01	1	9202-	●	●
4	CAP; OIL FILLER	8-94399-723-0	01	1	9202-			●
27	GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AUSTRALIA EQUIPMENT(RR3) (A)	1-19389-004-0	08	1	9202-9405	●
27	GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AUSTRALIA EQUIPMENT(RR3) (C)	9-11179-105-0	08	1	9202-9405	●
27	GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) HONG KONG EQUIPMENT(PQ1) (A)	1-19389-004-0	08	1	9411-	●
27	GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) HONG KONG EQUIPMENT(PQ1) (C)	9-11179-105-0	08	1	9411-	●
27	GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AUSTRALIA EQUIPMENT(RR3) (B)	1-09639-032-0	08	1	9202-9405	●
27	GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	1-09639-032-0	08	1	9406-9410	●	●
27	GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. HONG KONG EQUIPMENT(PQ1) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	1-09639-032-0	08	1	9411-	●
27	GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	1-09639-032-0	08	1	9411-		●
40	COVER AUSTRALIA EQUIPMENT(RR3)	1-19381-293-1	01	1	9202-9405	●
40	COVER HONG KONG EQUIPMENT(PQ1)	1-19381-293-1	01	1	9411-	●
42	SEAL; RUBBER,HD COVER,OUTER AUSTRALIA EQUIPMENT(RR3) L=2075	1-19387-036-0	01	1	9202-9405	●
42	SEAL; RUBBER,HD COVER,OUTER HONG KONG EQUIPMENT(PQ1) L=2075	1-19387-036-0	01	1	9411-	●
43	RUBBER; MTG,HD COVER,OUTER AUSTRALIA EQUIPMENT(RR3)	8-94463-775-0	04	1	9202-9307	●
43	RUBBER; MTG,HD COVER,OUTER AUSTRALIA EQUIPMENT(RR3)	1-09337-027-0	04	1	9308-9405	●
43	RUBBER; MTG,HD COVER,OUTER HONG KONG EQUIPMENT(PQ1)	1-09337-027-0	04	1	9411-	●
45	WASHER; LK,HD COVER,OUTER AUSTRALIA EQUIPMENT(RR3) ID=8.2	9-09150-508-0	02	1	9202-9405	●
45	WASHER; LK,HD COVER,OUTER HONG KONG EQUIPMENT(PQ1) ID=8.2	9-09150-508-0	02	1	9411-	●
46	NUT; HD COVER,OUTER AUSTRALIA EQUIPMENT(RR3) M8	9-09110-408-0	02	1	9202-9405	●
46	NUT; HD COVER,OUTER HONG KONG EQUIPMENT(PQ1) M8	9-09110-408-0	02	1	9411-	●
59	GROMMET; OIL FILLER AUSTRALIA EQUIPMENT(RR3)	1-09333-108-1	01	1	9202-9405	●
59	GROMMET; OIL FILLER HONG KONG EQUIPMENT(PQ1)	1-09333-108-1	01	1	9411-	●
68	WASHER; CAP NUT,HD COVER	9-11179-105-0	08	1	9202-	●	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11173-078-0	01	1	9202-	●	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-383-0	01	1	9202-			●
75	NUT; CAP,HD COVER M8 CAP NUT OD=22	8-94340-192-0	08	1	9202-	●	●
80	PROTECTOR; HEAT,SEAL RUBBER AUSTRALIA EQUIPMENT(RR3)	1-11179-082-1	01	1	9202-9405	●
80	PROTECTOR; HEAT,SEAL RUBBER HONG KONG EQUIPMENT(PQ1)	1-11179-082-1	01	1	9411-	●

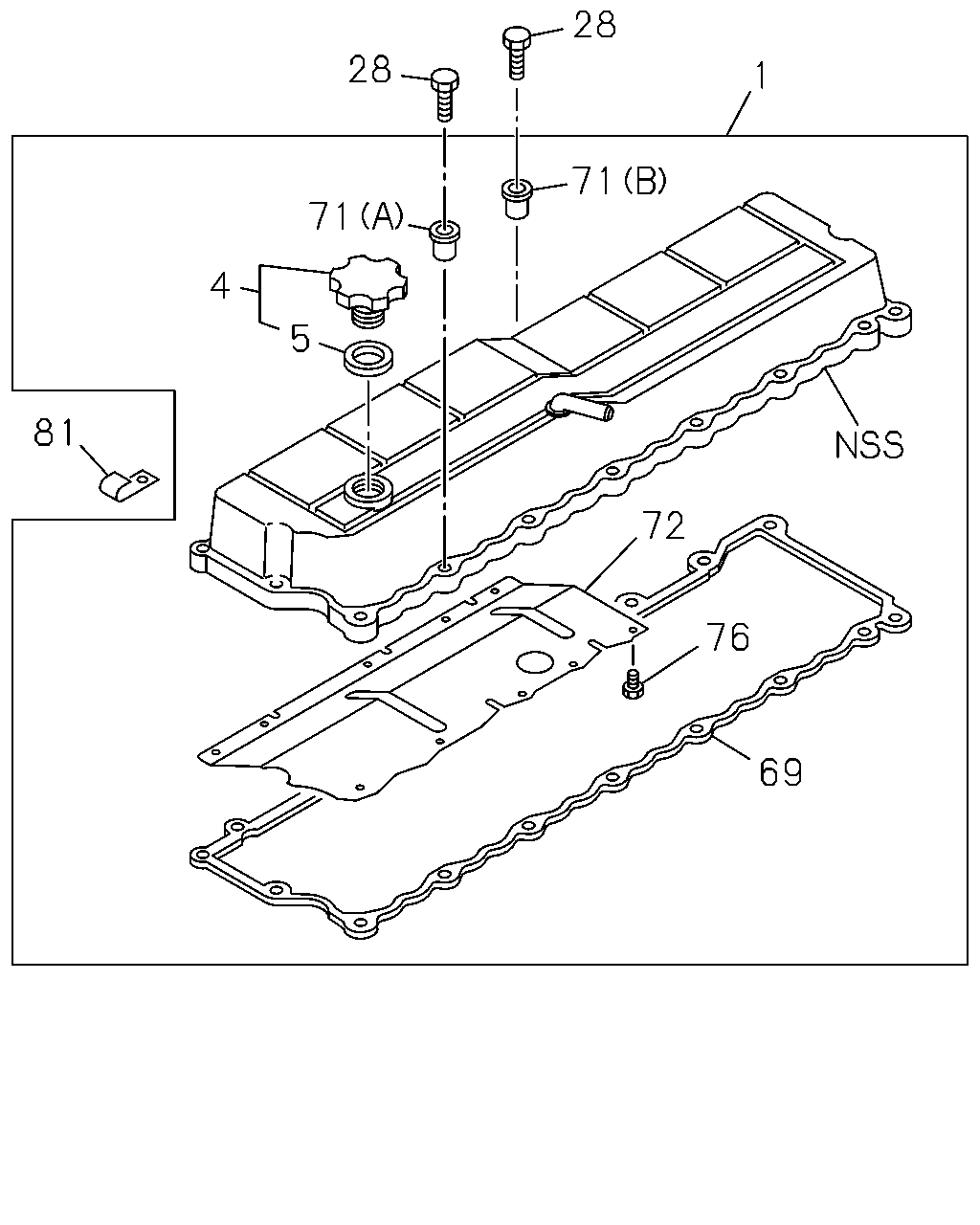

28 28 1 71 71 4 5 81 72 76 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	COVER; CYL HD AUSTRALIA EQUIPMENT(RR3)	1-11171-378-0	01	1	9202-9405	●
1	COVER; CYL HD EXC. AUSTRALIA EQUIPMENT(RR3)	1-11171-391-0	01	1	9202-9405	●
1	COVER; CYL HD	1-11171-391-0	01	1	9406-9410	●
1	COVER; CYL HD EXC. HONG KONG EQUIPMENT(PQ1)	1-11171-391-0	01	1	9411-	●
1	COVER; CYL HD HONG KONG EQUIPMENT(PQ1)	1-11171-378-0	01	1	9411-	●
1	COVER; CYL HD	1-11171-392-0	01	1	9202-		●
1	COVER; CYL HD	8-94393-712-4	01	1	9202-			●
4	CAP; OIL FILLER	1-11750-020-0	01	1	9202-	●	●
4	CAP; OIL FILLER	8-94399-723-0	01	1	9202-			●
5	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58	8-94399-689-0	01	1	9202-			●
28	BOLT; HD COVER M8X35 FLANGE	0-28280-835-0	19	1	9202-			●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11173-078-0	01	1	9202-	●	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-383-0	01	1	9202-			●
71	COLLAR; HD COVER (A) OD=12.3	8-94396-971-1	18	1	9202-			●
71	COLLAR; HD COVER (B) OD=11	8-94396-972-1	01	1	9202-			●
72	PLATE; INNER HD COVER	8-94393-247-2	01	1	9202-			●
76	SCREW; INNER PLATE M4X12 TAPPING	0-71180-412-0	11	1	9202-9501			●
76	SCREW; INNER PLATE M4X12 TAPPING	0-71180-412-0	07	1	9502-			●
81	CLIP; HARNESS ID=18 L=44	8-94225-185-0	01	1	9202-			●
