2-53B — TRANSMISSION OIL COOLER SYSTEM (#10166) — 51 parça

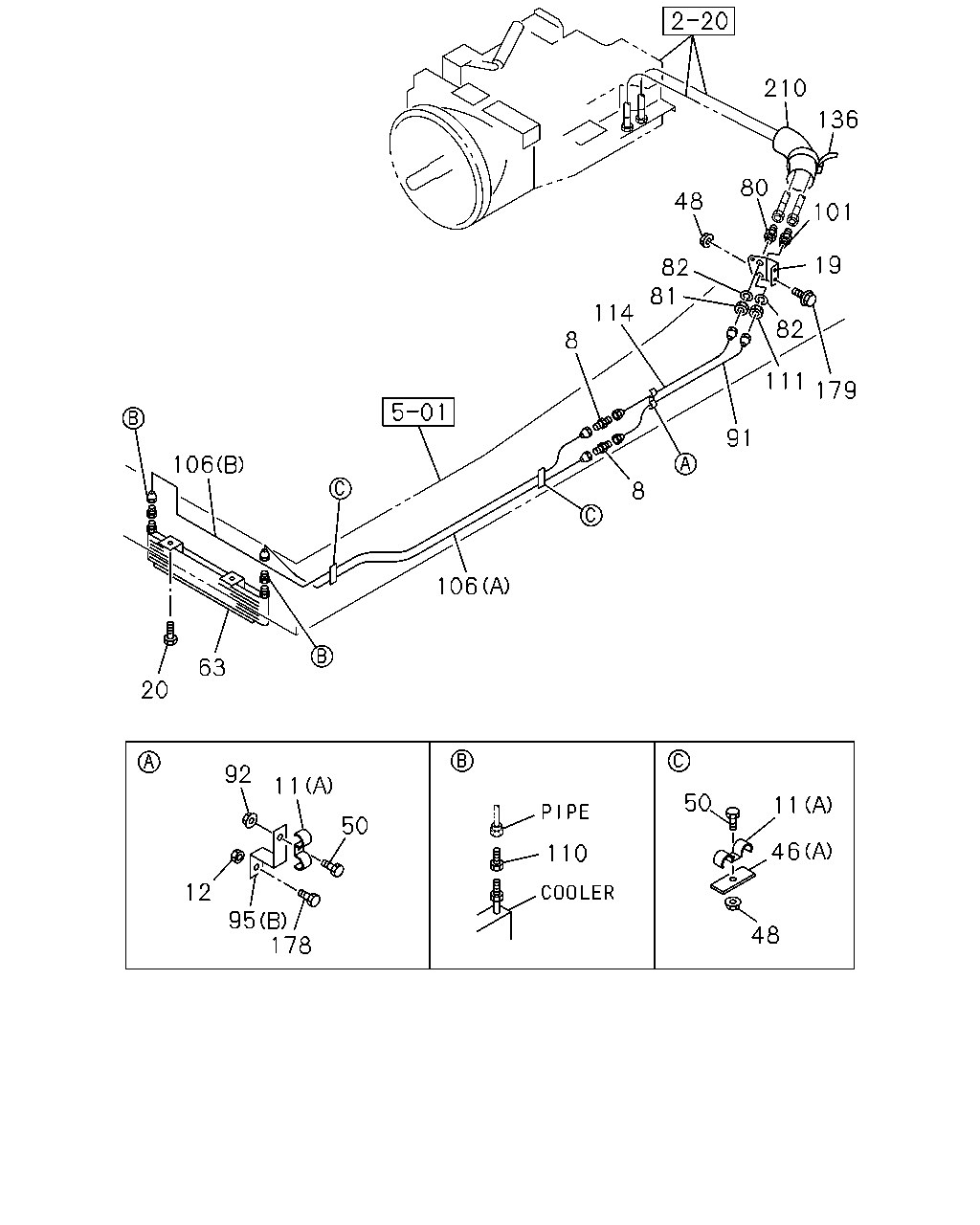

çizim 80703
210 136 80 48 101 19 82 81 114 82 8 111 179 91 8 106 63 20 92 11 50 11 50 46 110 12 178 48 95
BalonParca AdiParca NoAdetTipApplied Date
8 UNION
M22 		9-09233-015-1 02 1 0105-0106
8 UNION
M22 		9-09233-015-1 02 1 0107-
11 CLIP; PIPE
(A) ID=16 & 16 L=21.5 & 21.5 		1-09700-674-0 01 1 0105-0106
11 CLIP; PIPE
(A) ID=16 & 16 L=21.5 & 21.5 		1-09700-674-0 01 1 0107-
11 CLIP; PIPE
(A) ID=16 & 16 L=21.5 & 21.5 		1-09700-674-0 02 1 0105-0106
11 CLIP; PIPE
(A) ID=16 & 16 L=21.5 & 21.5 		1-09700-674-0 02 1 0107-
12 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0105-0106
12 NUT; BRKT
MJD7 M/T<X9J> M8 FLANGE 		0-91150-108-0 01 1 0107-
12 NUT; BRKT
ZF M/T<X9E> M8 FLANGE 		0-91150-108-0 01 1 0107-
12 NUT; BRKT
MJD7 M/T<X9J> M8 FLANGE 		0-91150-108-0 01 1 0107-
19 BRACKET; FLEX HOSE 1-47478-566-0 01 1 0105-0106
19 BRACKET; FLEX HOSE 1-47478-566-0 01 1 0107-
20 BOLT; COOLER TO BRKT
M10X20 FLANGE 		0-28081-020-0 02 1 0105-
46 BRACKET; OIL PIPE
(A) L=50 		1-47475-299-2 02 1 0105-0106
46 BRACKET; OIL PIPE
(A) L=50 		1-47475-299-2 02 1 0107-
48 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0105-0106
48 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0105-0106
48 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0107-
50 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0105-0106
50 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 02 1 0105-0106
50 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 02 1 0107-
63 COOLER; OIL 1-21700-290-0 01 1 0105-
80 UNION; FLEX HOSE
M22 & M30 STRAIGHT 		1-09664-237-0 01 1 0105-
81 NUT; UNION
M22 		9-09111-422-0 01 1 0105-0106
81 NUT; UNION
M22 		9-09111-422-0 01 1 0107-
82 WASHER; LK,UNION
ID=22.5 		9-09150-522-0 02 1 0105-0106
82 WASHER; LK,UNION
ID=22.5 		9-09150-522-0 02 1 0107-
91 PIPE; OIL,FLEX HOSE TO UNION
L=911 		1-49163-072-0 01 1 0105-0106
91 PIPE; OIL,FLEX HOSE TO UNION 1-49166-215-0 01 1 0107-
92 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0107-
95 BRACKET; CLIP
(B) 		1-47475-881-0 01 1 0105-0106
95 BRACKET; CLIP
(B) 		1-47477-669-1 01 1 0107-
101 UNION; FLEX HOSE
M22 & M30 STRAIGHT 		1-09664-237-0 01 1 0105-
106 PIPE ASM; OIL,COOLER TO UNION
(B) L=2317 		1-49164-311-0 01 1 0105-0106
106 PIPE ASM; OIL,COOLER TO UNION
(A) L=2324 		1-49166-216-0 01 1 0107-0206
106 PIPE ASM; OIL,COOLER TO UNION
(A) L=2305 		1-49166-669-0 01 1 0207-
106 PIPE ASM; OIL,COOLER TO UNION
(A) L=1703 		1-49164-312-0 01 1 0105-0106
106 PIPE ASM; OIL,COOLER TO UNION
(B) L=1695 		1-49166-217-0 01 1 0107-
110 UNION; OIL PIPE 1-09654-398-0 02 1 0105-0106
110 UNION; OIL PIPE 1-09654-398-0 02 1 0107-
111 NUT; UNION
M22 		9-09111-422-0 01 1 0105-0106
111 NUT; UNION
M22 		9-09111-422-0 01 1 0107-
114 PIPE; OIL,UNION TO FLEX HOSE
L=1071 		1-49163-073-0 01 1 0105-0106
114 PIPE; OIL,UNION TO FLEX HOSE
L=1073 		1-49166-218-0 01 1 0107-
136 CLIP; FLEX HOSE
L=250 		1-09707-126-0 01 1 0105-0108
136 CLIP; FLEX HOSE
L=250 		1-09707-126-0 01 1 0109-0109
178 BOLT; BRKT,CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 0105-0106
178 BOLT; BRKT,CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 0107-
179 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 0105-
210 BAND; FLEX HOSE
L=175 		1-09707-178-0 01 1 0105-0108
210 BAND; FLEX HOSE
L=175 		1-09707-178-0 01 1 0109-0109
