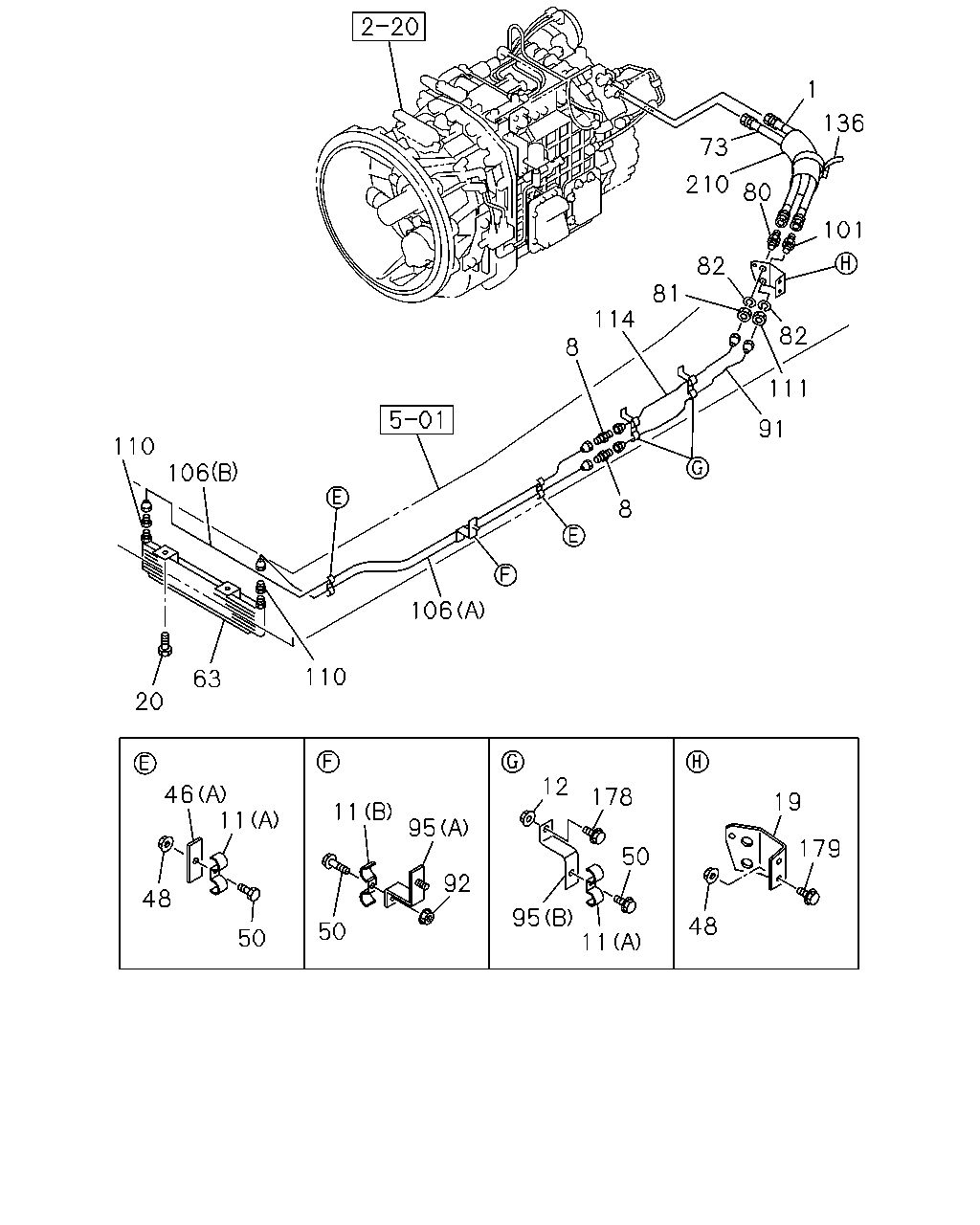

2-53A — TRANSMISSION OIL COOLER SYSTEM (#10165) — 163 parça

1 136 73 210 80 101 82 81 114 82 8 111 91 110 106 8 106 110 63 20 12 46 11 178 19 11 95 179 50 92 48 95 48 50 50 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; ATF L=450	1-09364-625-0	01	1	0105-	●
1	HOSE; ATF L=460	1-09365-008-0	01	1	0107-0107		●
1	HOSE; ATF L=570	1-09365-197-0	01	1	0107-0112		●
1	HOSE; ATF L=550	1-09365-223-0	01	1	0201-		●
8	UNION M16 L=42	9-09233-010-1	01	1	0105-	●
8	UNION M16 L=42	9-09233-010-1	01	1	0105-	●
8	UNION M22	9-09233-015-1	02	1	0107-		●
11	CLIP; PIPE (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	01	1	0105-	●
11	CLIP; PIPE (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	03	1	0105-	●
11	CLIP; PIPE (A) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	0105-	●
11	CLIP; PIPE (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0105-	●
11	CLIP; PIPE (C) ID=11 L=20	9-09525-035-0	01	1	0105-0106	●
11	CLIP; PIPE (C) ID=11 L=20	9-09525-035-0	02	1	0107-	●
11	CLIP; PIPE (B) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0107-		●
11	CLIP; PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0107-		●
11	CLIP; PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	02	1	0107-		●
12	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0105-0106	●
12	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0105-0106	●
12	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0105-0106	●
12	NUT; BRKT MJD7 M/T<X9J> M8 FLANGE	0-91150-108-0	01	1	0107-	●	●
12	NUT; BRKT ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	0107-	●	●
12	NUT; BRKT MJD7 M/T<X9J> M8 FLANGE	0-91150-108-0	01	1	0107-	●	●
12	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0107-		●
12	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0107-	●
19	BRACKET; FLEX HOSE	1-47478-344-0	01	1	0105-	●
19	BRACKET; FLEX HOSE	1-47478-566-0	01	1	0107-		●
20	BOLT; COOLER TO BRKT M10X20 FLANGE	0-28081-020-0	02	1	0105-	●	●
46	BRACKET; OIL PIPE (A) L=50	1-47475-299-2	04	1	0105-	●
46	BRACKET; OIL PIPE (B)	1-47475-519-0	01	1	0105-	●
46	BRACKET; OIL PIPE (A) L=50	1-47475-299-2	02	1	0107-		●
48	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	0105-	●
48	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0105-0106	●	●
48	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0107-	●	●
48	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0107-		●
50	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	04	1	0105-	●
50	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0105-0106	●	●
50	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	01	1	0107-		●
50	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0107-		●
63	COOLER; OIL	1-21700-290-0	01	1	0105-	●	●
73	HOSE; FLEX,TRANS L=450	1-09364-625-0	01	1	0105-	●
73	HOSE; FLEX,TRANS L=520	1-09365-009-0	01	1	0107-0107		●
73	HOSE; FLEX,TRANS	1-09365-220-0	01	1	0107-		●
80	UNION; FLEX HOSE M22 & M22 STRAIGHT	1-09654-204-1	01	1	0107-0107		●
81	NUT; UNION M22	9-09111-422-0	01	1	0107-		●
82	WASHER; LK,UNION ID=22.5	9-09150-522-0	02	1	0107-		●
91	PIPE; OIL,FLEX HOSE TO UNION L=901 SERVICED BY L=900	1-47428-873-0	01	1	0105-0106	●
91	PIPE; OIL,FLEX HOSE TO UNION L=902 SERVICED BY L=900	1-47428-873-0	01	1	0107-	●
91	PIPE; OIL,FLEX HOSE TO UNION	1-49166-215-0	01	1	0107-		●
92	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0107-	●	●
92	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0105-0106	●
92	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0107-	●	●
95	BRACKET; CLIP (A)	1-47477-235-0	01	1	0105-0106	●
95	BRACKET; CLIP (A)	1-47479-172-0	01	1	0107-0402	●
95	BRACKET; CLIP (A)	1-47479-994-0	01	1	0403-	●
95	BRACKET; CLIP (B)	1-47475-881-0	01	1	0105-0106	●	●
95	BRACKET; CLIP (B)	1-47477-669-1	01	1	0107-	●	●
95	BRACKET; CLIP (B)	1-47477-669-1	01	1	0107-	●	●
101	UNION; FLEX HOSE M22 & M22 STRAIGHT	1-09654-204-1	01	1	0107-0107		●
106	PIPE ASM; OIL,COOLER TO UNION (A) L=677	1-49163-119-0	01	1	0105-	●
106	PIPE ASM; OIL,COOLER TO UNION (B)	1-49164-314-0	01	1	0105-0106	●
106	PIPE ASM; OIL,COOLER TO UNION (B) L=774	1-49166-229-0	01	1	0107-	●
106	PIPE ASM; OIL,COOLER TO UNION (A) L=2324	1-49166-216-0	01	1	0107-0206		●
106	PIPE ASM; OIL,COOLER TO UNION (A) L=2305	1-49166-669-0	01	1	0207-		●
106	PIPE ASM; OIL,COOLER TO UNION (B) L=1695	1-49166-217-0	01	1	0107-		●
110	UNION; OIL PIPE	1-09654-398-0	02	1	0107-		●
111	NUT; UNION M22	9-09111-422-0	01	1	0107-		●
114	PIPE; OIL,UNION TO FLEX HOSE L=739 SERVICED BY L=800	1-47428-872-0	01	1	0105-0106	●
114	PIPE; OIL,UNION TO FLEX HOSE L=733 SERVICED BY L=800	1-47428-872-0	01	1	0107-	●
114	PIPE; OIL,UNION TO FLEX HOSE L=1073	1-49166-218-0	01	1	0107-		●
136	CLIP; FLEX HOSE L=250	1-09707-126-0	01	1	0105-0108	●	●
136	CLIP; FLEX HOSE L=250	1-09707-126-0	01	1	0109-		●
178	BOLT; BRKT,CLIP M8X25 FLANGE	0-28680-825-0	01	1	0105-0106	●
178	BOLT; BRKT,CLIP M8X25 FLANGE	0-28680-825-0	01	1	0107-	●	●
179	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	0105-	●	●
210	BAND; FLEX HOSE L=175	1-09707-178-0	01	1	0105-0108	●	●
210	BAND; FLEX HOSE L=175	1-09707-178-0	01	1	0109-		●

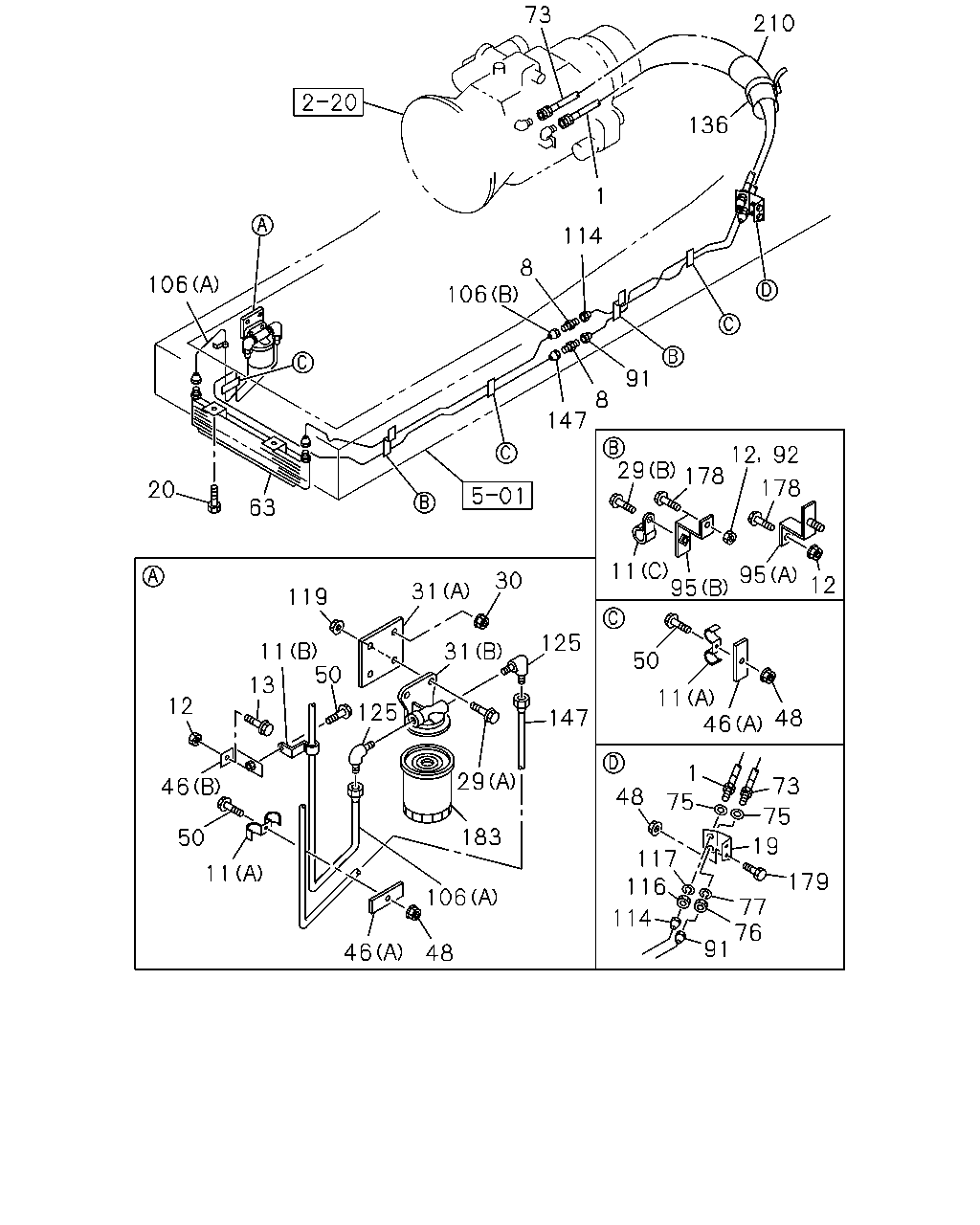

73 210 136 1 114 8 106 106 91 8 147 29 12 178 92 178 20 63 11 95 95 30 12 31 119 125 11 50 31 50 13 11 46 125 12 48 147 1 29 73 46 48 75 75 183 50 19 117 116 11 179 106 77 76 91 114 46 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; ATF L=450	1-09364-625-0	01	1	0105-	●
1	HOSE; ATF L=460	1-09365-008-0	01	1	0107-0107		●
1	HOSE; ATF L=570	1-09365-197-0	01	1	0107-0112		●
1	HOSE; ATF L=550	1-09365-223-0	01	1	0201-		●
8	UNION M16 L=42	9-09233-010-1	01	1	0105-	●
8	UNION M16 L=42	9-09233-010-1	01	1	0105-	●
8	UNION M22	9-09233-015-1	02	1	0107-		●
11	CLIP; PIPE (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	01	1	0105-	●
11	CLIP; PIPE (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	03	1	0105-	●
11	CLIP; PIPE (A) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	0105-	●
11	CLIP; PIPE (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0105-	●
11	CLIP; PIPE (C) ID=11 L=20	9-09525-035-0	01	1	0105-0106	●
11	CLIP; PIPE (C) ID=11 L=20	9-09525-035-0	02	1	0107-	●
11	CLIP; PIPE (B) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0107-		●
11	CLIP; PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0107-		●
11	CLIP; PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	02	1	0107-		●
12	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0105-0106	●
12	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0105-0106	●
12	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0105-0106	●
12	NUT; BRKT MJD7 M/T<X9J> M8 FLANGE	0-91150-108-0	01	1	0107-	●	●
12	NUT; BRKT ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	0107-	●	●
12	NUT; BRKT MJD7 M/T<X9J> M8 FLANGE	0-91150-108-0	01	1	0107-	●	●
12	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0107-		●
12	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0107-	●
13	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	0105-	●
19	BRACKET; FLEX HOSE	1-47478-344-0	01	1	0105-	●
19	BRACKET; FLEX HOSE	1-47478-566-0	01	1	0107-		●
20	BOLT; COOLER TO BRKT M10X20 FLANGE	0-28081-020-0	02	1	0105-	●	●
29	BOLT; FILTER TO BRKT (B) M8X25 FLANGE	0-28680-825-0	01	1	0105-0106	●
29	BOLT; FILTER TO BRKT (B) M8X25 FLANGE	0-28680-825-0	02	1	0107-	●
29	BOLT; FILTER TO BRKT (A) M10X30 FLANGE	0-28681-030-0	02	1	0105-	●
30	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0105-	●
31	BRACKET; OIL FILTER (B)	1-33119-222-0	01	1	0105-	●
31	BRACKET; OIL FILTER (A)	1-47478-329-0	01	1	0105-	●
46	BRACKET; OIL PIPE (A) L=50	1-47475-299-2	04	1	0105-	●
46	BRACKET; OIL PIPE (B)	1-47475-519-0	01	1	0105-	●
46	BRACKET; OIL PIPE (A) L=50	1-47475-299-2	02	1	0107-		●
48	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	0105-	●
48	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0105-0106	●	●
48	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0107-	●	●
48	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0107-		●
50	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	04	1	0105-	●
50	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0105-0106	●	●
50	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	01	1	0107-		●
50	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0107-		●
63	COOLER; OIL	1-21700-290-0	01	1	0105-	●	●
73	HOSE; FLEX,TRANS L=450	1-09364-625-0	01	1	0105-	●
73	HOSE; FLEX,TRANS L=520	1-09365-009-0	01	1	0107-0107		●
73	HOSE; FLEX,TRANS	1-09365-220-0	01	1	0107-		●
75	GASKET; FLEX HOSE,TRANS ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	0105-0108	●
76	NUT; FLEX HOSE M16	9-99111-416-0	01	1	0105-	●
77	WASHER; LK ID=16.2	9-09150-516-0	01	1	0105-	●
91	PIPE; OIL,FLEX HOSE TO UNION L=901 SERVICED BY L=900	1-47428-873-0	01	1	0105-0106	●
91	PIPE; OIL,FLEX HOSE TO UNION L=902 SERVICED BY L=900	1-47428-873-0	01	1	0107-	●
91	PIPE; OIL,FLEX HOSE TO UNION	1-49166-215-0	01	1	0107-		●
92	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0107-	●	●
92	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0105-0106	●
92	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0107-	●	●
95	BRACKET; CLIP (A)	1-47477-235-0	01	1	0105-0106	●
95	BRACKET; CLIP (A)	1-47479-172-0	01	1	0107-0402	●
95	BRACKET; CLIP (A)	1-47479-994-0	01	1	0403-	●
95	BRACKET; CLIP (B)	1-47475-881-0	01	1	0105-0106	●	●
95	BRACKET; CLIP (B)	1-47477-669-1	01	1	0107-	●	●
95	BRACKET; CLIP (B)	1-47477-669-1	01	1	0107-	●	●
106	PIPE ASM; OIL,COOLER TO UNION (A) L=677	1-49163-119-0	01	1	0105-	●
106	PIPE ASM; OIL,COOLER TO UNION (B)	1-49164-314-0	01	1	0105-0106	●
106	PIPE ASM; OIL,COOLER TO UNION (B) L=774	1-49166-229-0	01	1	0107-	●
106	PIPE ASM; OIL,COOLER TO UNION (A) L=2324	1-49166-216-0	01	1	0107-0206		●
106	PIPE ASM; OIL,COOLER TO UNION (A) L=2305	1-49166-669-0	01	1	0207-		●
106	PIPE ASM; OIL,COOLER TO UNION (B) L=1695	1-49166-217-0	01	1	0107-		●
114	PIPE; OIL,UNION TO FLEX HOSE L=739 SERVICED BY L=800	1-47428-872-0	01	1	0105-0106	●
114	PIPE; OIL,UNION TO FLEX HOSE L=733 SERVICED BY L=800	1-47428-872-0	01	1	0107-	●
114	PIPE; OIL,UNION TO FLEX HOSE L=1073	1-49166-218-0	01	1	0107-		●
116	NUT; BRKT,FLEX HOSE M16	9-99111-416-0	01	1	0105-	●
117	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	01	1	0105-	●
119	NUT; FILTER TO BRKT M10 FLANGE	0-91150-210-0	02	1	0105-	●
125	CONNECTOR; OIL FILTER M16 & PT1/4 ELBOW	1-09650-434-0	02	1	0105-	●
136	CLIP; FLEX HOSE L=250	1-09707-126-0	01	1	0105-0108	●	●
136	CLIP; FLEX HOSE L=250	1-09707-126-0	01	1	0109-		●
147	PIPE; OIL,UNION TO FILTER	1-49164-313-0	01	1	0105-0106	●
147	PIPE; OIL,UNION TO FILTER	1-49166-228-0	01	1	0107-	●
178	BOLT; BRKT,CLIP M8X25 FLANGE	0-28680-825-0	01	1	0105-0106	●
178	BOLT; BRKT,CLIP M8X25 FLANGE	0-28680-825-0	01	1	0107-	●	●
179	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	0105-	●	●
183	CARTRIDGE; OIL FILTER	8-94459-700-1	01	1	0105-	●
210	BAND; FLEX HOSE L=175	1-09707-178-0	01	1	0105-0108	●	●
210	BAND; FLEX HOSE L=175	1-09707-178-0	01	1	0109-		●
