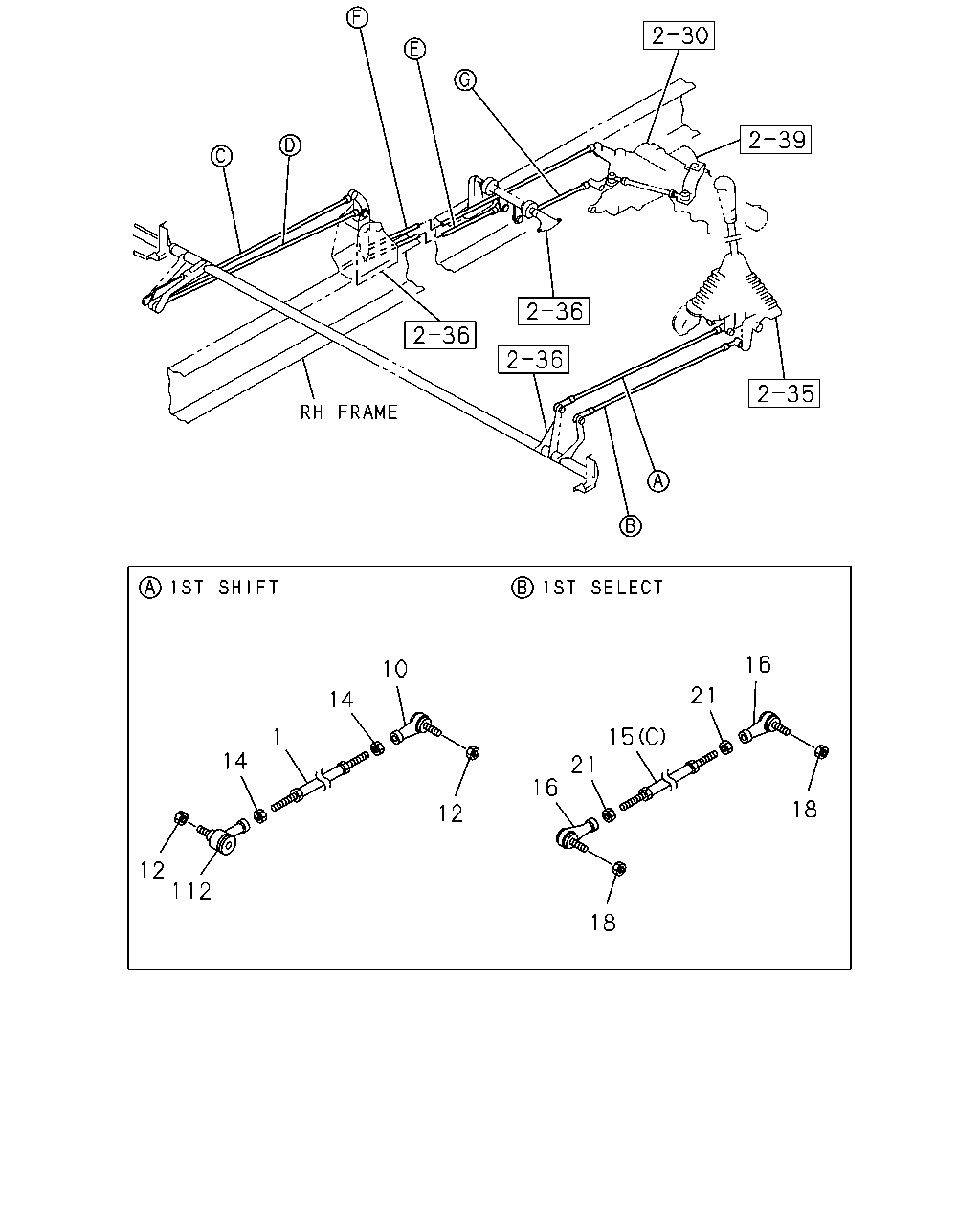

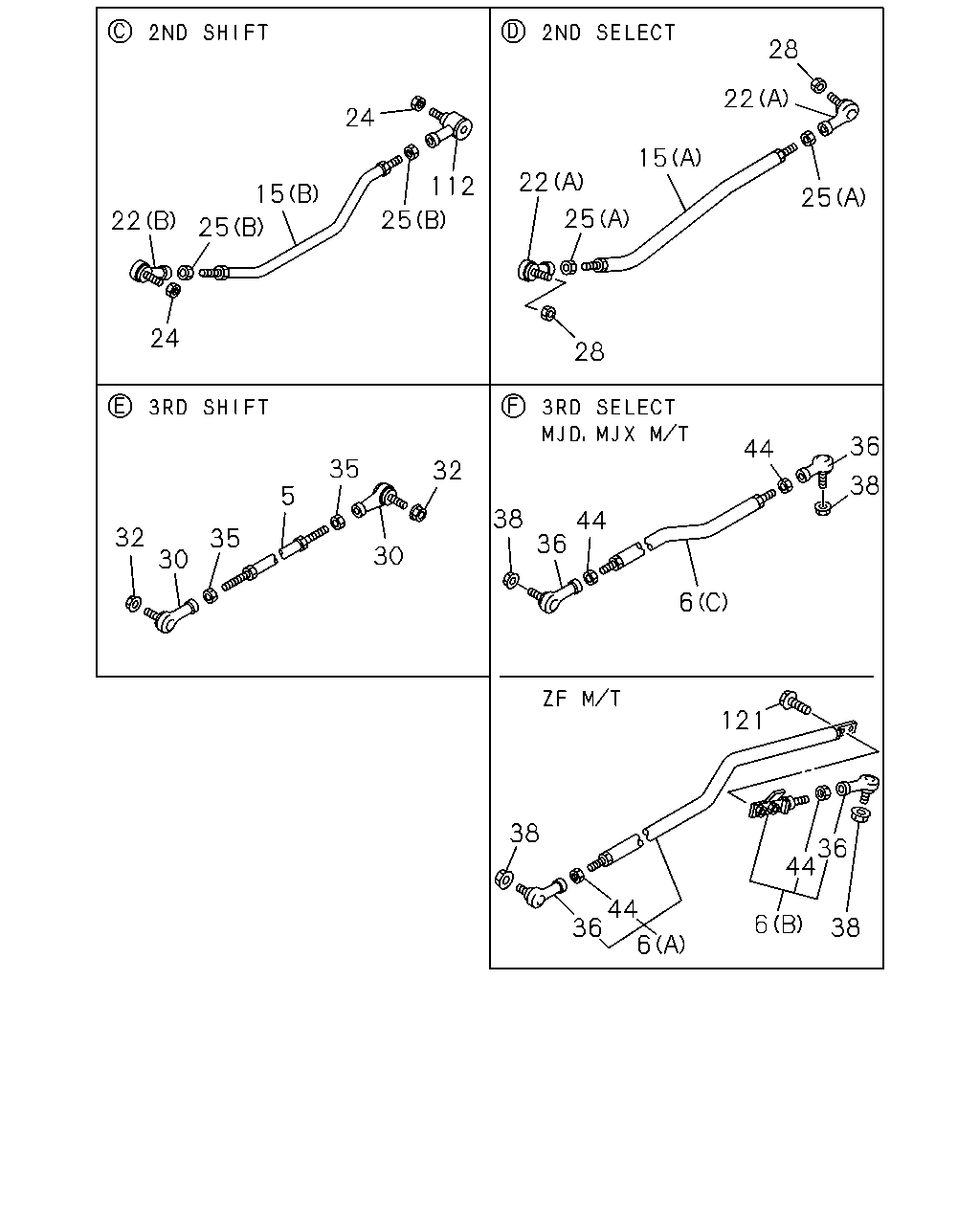

2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE (#10162) — 50 parça

57 39 58 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	GASKET; FLEX HOSE MJD7S M/T(Y2Y) ID=11 OD=18	9-09572-510-0	02	1	0105-0112
57	NIPPLE; POWER ASSISTOR MJD7S M/T(Y2Y) M20 & PT1/4 ELBOW	1-09660-681-0	01	1	0105-0112
58	HOSE; FLEX,POWER ASSISTOR MJD7S M/T(Y2Y) L=360	0-07150-360-0	01	1	0105-0112

28 22 24 15 22 112 15 25 25 25 22 25 24 28 36 44 35 32 38 5 38 44 36 32 35 30 30 6 121 38 36 44 44 36 6 38 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	ROD; LINK,3RD SHIFT L=1120	1-33652-603-0	01	1	0105-
6	ROD; LINK,3RD SELECT MJD7S M/T(Y2Y) (C) L=1656	1-33652-954-1	01	1	0105-
6	ROD; LINK,3RD SELECT MJX16P M/T(Y3Z) (C) L=1698	1-33652-946-1	01	1	0107-
6	ROD; LINK,3RD SELECT TRANSMISSION-ZF 16S151 OD(Y2N) (A) L=1399	1-33652-914-1	01	1	0105-
6	ROD; LINK,3RD SELECT TRANSMISSION-ZF 16S151 OD(Y2N) (B) L=125	1-33671-570-0	01	1	0105-
15	ROD; LINK 1ST SHIFT (C) L=556	1-33652-744-0	01	1	0105-
15	ROD; LINK 1ST SHIFT (B) L=474	1-33652-803-1	01	1	0105-
15	ROD; LINK 1ST SHIFT (A) L=423	1-33652-804-2	01	1	0105-
22	JOINT; BALL,SCREW,LINK ROD (A)	1-09760-109-0	02	1	0105-
22	JOINT; BALL,SCREW,LINK ROD (B)	1-09760-125-0	01	1	0105-
24	NUT; 2ND LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	0105-
25	NUT; LK,RIGHT SCREW,LINK ROD (A) M10	9-09111-410-0	02	1	0105-
25	NUT; LK,RIGHT SCREW,LINK ROD (B) M12	9-99111-412-0	02	1	0105-
28	NUT; 2ND LINK ROD M8 FLANGE	1-09440-062-1	02	1	0105-
30	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-124-0	02	1	0105-
32	NUT; 3RD LINK ROD M10 FLANGE	1-09440-061-0	02	1	0105-
35	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	02	1	0105-
36	JOINT; BALL,RIGHT SCREW,LINK ROD MJD7S M/T(Y2Y)	1-09760-124-0	02	1	0105-0106
36	JOINT; BALL,RIGHT SCREW,LINK ROD MJD7S M/T(Y2Y),MJX16P M/T(Y3Z)	1-09760-124-0	02	1	0107-
36	JOINT; BALL,RIGHT SCREW,LINK ROD TRANSMISSION-ZF 16S151 OD(Y2N)	1-09760-124-0	01	1	0105-
36	JOINT; BALL,RIGHT SCREW,LINK ROD TRANSMISSION-ZF 16S151 OD(Y2N)	1-09760-124-0	01	1	0105-
38	NUT; 3RD LINK ROD M10 FLANGE	1-09440-061-0	02	1	0105-
44	NUT; LK,RIGHT SCREW,LINK ROD MJD7S M/T(Y2Y) M10	9-09111-410-0	02	1	0105-0106
44	NUT; LK,RIGHT SCREW,LINK ROD MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) M10	9-09111-410-0	02	1	0107-
44	NUT; LK,RIGHT SCREW,LINK ROD TRANSMISSION-ZF 16S151 OD(Y2N) M10	9-09111-410-0	01	1	0105-
44	NUT; LK,RIGHT SCREW,LINK ROD TRANSMISSION-ZF 16S151 OD(Y2N) M10	9-09111-410-0	01	1	0105-
112	JOINT; RUBBER	1-33670-413-1	01	1	0105-
112	JOINT; RUBBER	1-33670-413-1	01	1	0105-
121	BOLT; LINK ROD TRANSMISSION-ZF 16S151 OD(Y2N)	1-09044-103-0	02	1	0105-

16 10 21 14 15 1 14 21 16 18 12 12 112 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	ROD; LINK,1ST SHIFT L=480	9-08401-248-0	01	1	0105-
10	JOINT ASM; BALL,SELECT ROD	1-09760-125-0	01	1	0105-
12	NUT; 1ST LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	0105-
14	NUT; LK,RIGHT SCREW,LINK ROD M12	9-99111-412-0	02	1	0105-
15	ROD; LINK 1ST SHIFT (C) L=556	1-33652-744-0	01	1	0105-
15	ROD; LINK 1ST SHIFT (B) L=474	1-33652-803-1	01	1	0105-
15	ROD; LINK 1ST SHIFT (A) L=423	1-33652-804-2	01	1	0105-
16	JOINT ASM; BALL,CONT ROD	1-09760-108-0	02	1	0105-
18	NUT; 1ST LINK ROD M8 FLANGE	1-09440-062-1	02	1	0105-
21	NUT; LK,RIGHT SCREW,LINK ROD M8	9-09111-408-0	02	1	0105-
112	JOINT; RUBBER	1-33670-413-1	01	1	0105-
112	JOINT; RUBBER	1-33670-413-1	01	1	0105-

45 49 45 47 49 47 49 47 47 49 45 8 8 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	ROD; LINK,4TH SHIFT MJD7S M/T(Y2Y) (A) L=370	1-33652-654-1	01	1	0105-
8	ROD; LINK,4TH SHIFT MJX16P M/T(Y3Z) (A) L=410	1-33652-947-0	01	1	0107-
8	ROD; LINK,4TH SHIFT TRANSMISSION-ZF 16S151 OD(Y2N) (B) L=485	1-33652-859-1	01	1	0105-
45	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-125-0	02	1	0105-
47	NUT; 4TH LINK ROD M10 FLANGE	1-09440-061-0	02	1	0105-
49	NUT; LK,RIGHT SCREW,LINK ROD M12	9-99111-412-0	02	1	0105-
