Sayfa 2-36 - Isuzu EPC

2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#10161) — 168 parça

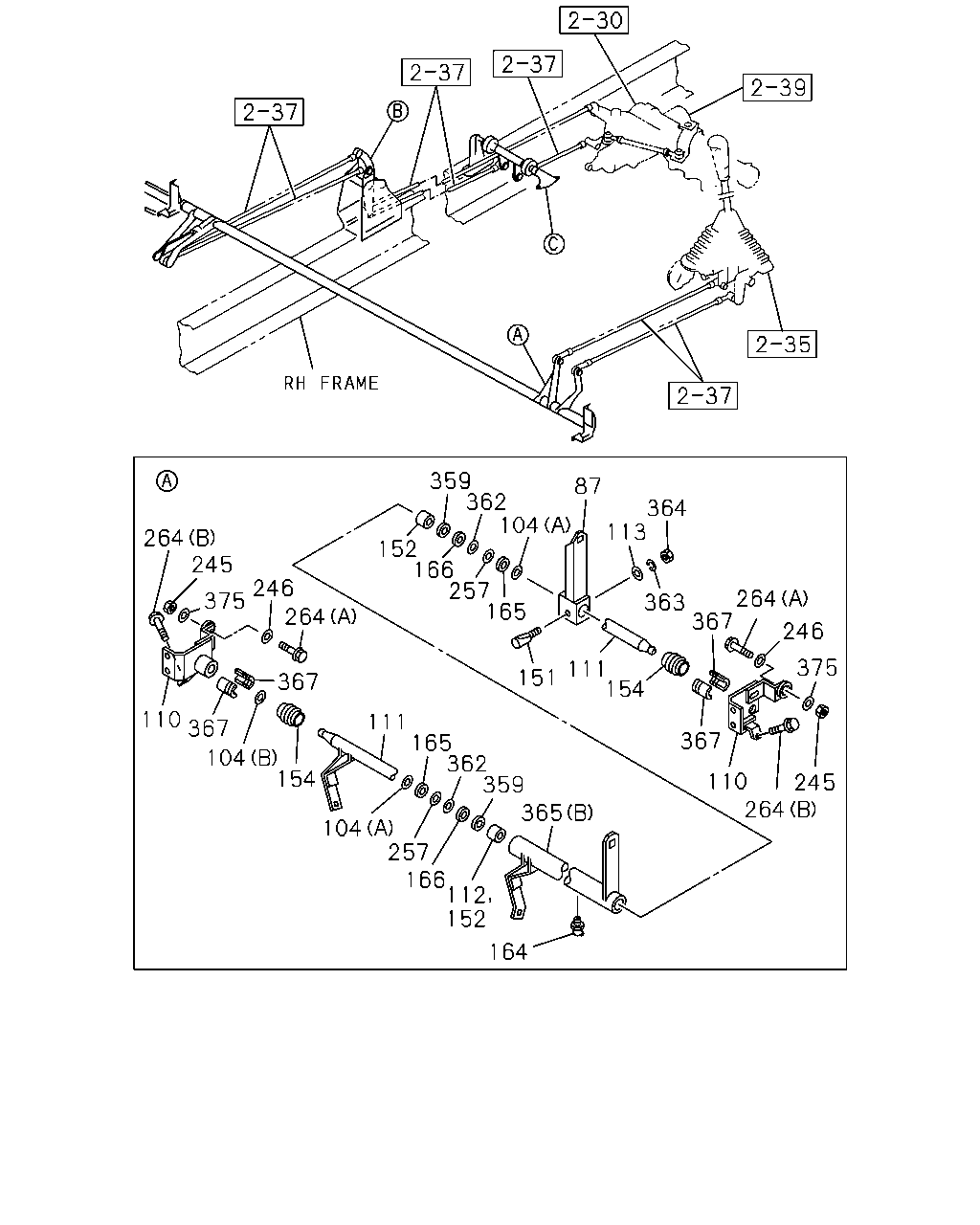

359 362 104 87 364 113 264 245 152 166 257 165 246 375 363 264 367 264 246 375 111 154 151 367 367 110 367 111 165 362 359 365 104 154 110 245 264 104 257 166 112 152 164

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
87	LEVER; RELAY,SELECT	1-33651-666-0	01	1	0105-
104	RING; SNAP (A) ID=32.2	9-09180-035-0	02	1	0105-
104	RING; SNAP (B) OD=23.5	9-09180-122-0	01	1	0105-
110	BRACKET; RELAY LEVER,1ST	1-33657-617-0	01	1	0105-
110	BRACKET; RELAY LEVER,1ST	1-33657-618-0	01	1	0105-
111	SHAFT; RELAY LEVER,1ST	1-33659-200-0	01	1	0105-0307
111	SHAFT; RELAY LEVER,1ST	1-33659-239-0	01	1	0308-
112	BUSHING; RELAY LEVER	1-09330-143-0	02	1	0308-
113	WASHER; RELAY LEVER ID=10.5 OD=26	9-09160-710-0	01	1	0105-
151	BOLT; KEY,RELAY LEVER	1-33659-063-0	01	1	0105-
152	BEARING; NEEDLE,RELAY LEVER	1-09811-328-0	02	1	0105-0307
154	COVER; DUST,RELAY LEVER	1-33659-068-0	02	1	0105-
164	NIPPLE; GREASE,RELAY LEVER,SHIFT ROD PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	0105-
165	WASHER; RELAY LEVER	1-09503-148-0	AR	1	0105-
166	WASHER; NYLON,RELAY LEVER	1-09509-040-0	02	1	0105-
245	NUT; BRKT,RELAY LEVER M10	1-09984-142-0	02	1	0105-
246	WASHER; LK,BRKT,RELAY LEVER ID=10	1-09985-185-0	02	1	0105-
257	PIECE; DIST,RELAY LEVER	1-09503-198-0	AR	1	0105-
264	BOLT; BRKT,RELAY LEVER (A) M10X30 FLANGE	0-28681-030-0	02	1	0105-
264	BOLT; BRKT,RELAY LEVER (B) M10X100	1-09980-547-0	02	1	0105-0301
264	BOLT; BRKT,RELAY LEVER (B) M10X105	1-79198-008-1	02	1	0302-
359	SEAL; RUBBER,RELAY LEVER	1-09625-005-1	02	1	0105-
362	SHIM	1-09503-172-0	AR	1	0105-
363	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	01	1	0105-
364	NUT; KEY BOLT M10	9-09111-410-0	01	1	0105-
365	LEVER; RELAY,SELECT (B)	1-33651-665-0	01	1	0105-0307
365	LEVER; RELAY,SELECT (B)	1-33651-819-1	01	1	0308-
365	LEVER; RELAY,SELECT (A)	1-33651-771-1	01	1	0105-
367	SEAT; BALL,CONT SHAFT	1-33659-053-0	04	1	0105-
375	WASHER; PL,BRKT,RELAY LEVER ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0105-

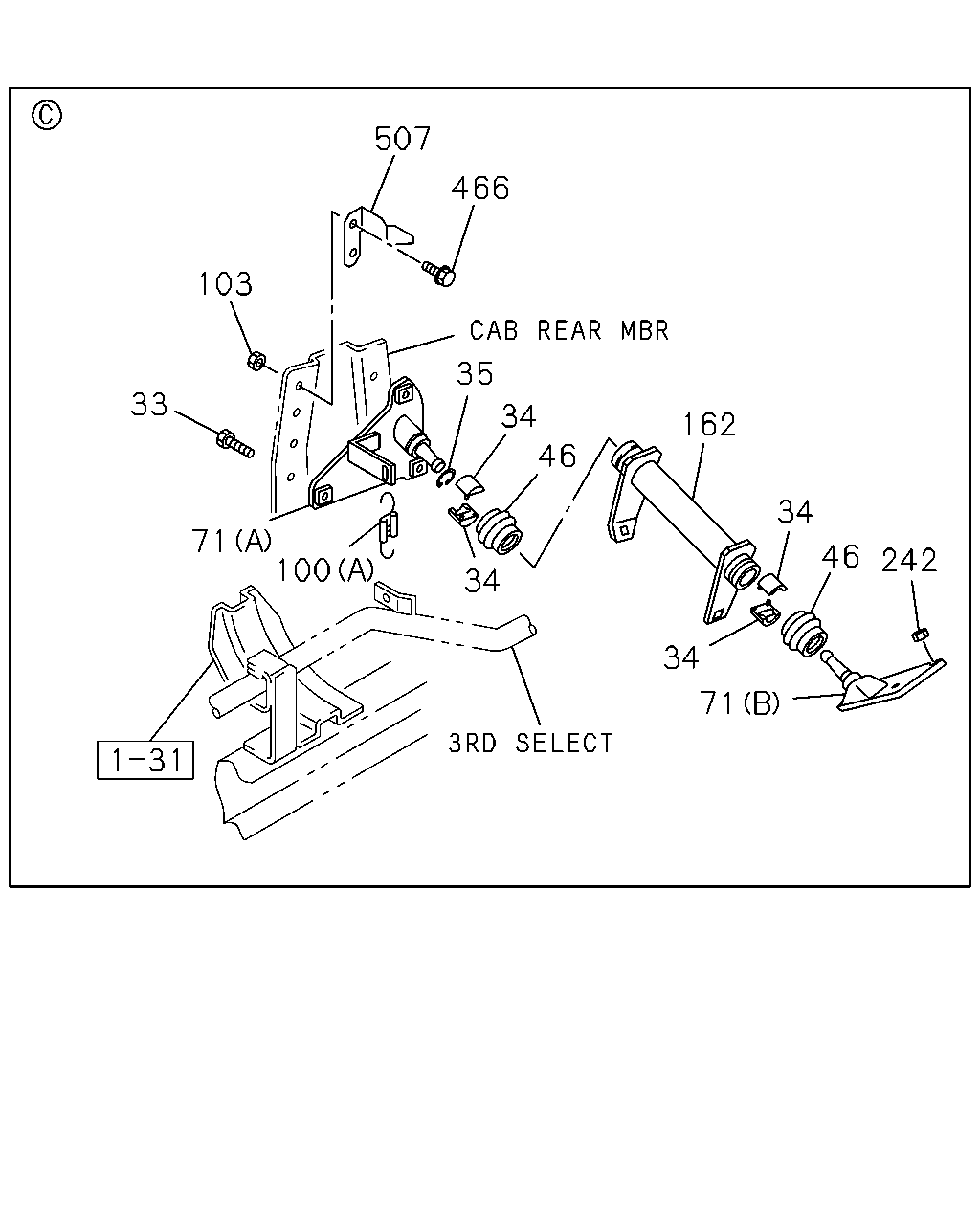

507 466 103 35 33 34 162 46 34 71 100 46 242 34 34 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	BOLT; BRKT,3RD RELAY LEVER M10X30 FLANGE	0-28681-030-0	03	1	0105-
34	SEAT; BALL,RELAY LEVER	1-33659-165-0	04	1	0105-
35	RING; SNAP,RELAY LEVER OD=34.4	9-09180-132-0	01	1	0105-
46	SEAL; DUST,RELAY LEVER	1-33659-166-0	02	1	0105-
71	BRACKET; 3RD RELAY LEVER,FRAME (B)	1-33657-481-0	01	1	0105-
71	BRACKET; 3RD RELAY LEVER,FRAME (A)	1-33657-584-0	01	1	0105-
100	SPRING (A)	1-09583-319-0	01	1	0105-
100	SPRING (B)	1-09583-351-0	01	1	0105-
103	NUT M8 FLANGE	0-91150-108-0	01	1	0105-
162	LEVER; RELAY MJD7S M/T(Y2Y),MJX16P M/T(Y3Z)	1-33651-625-1	01	1	0105-
162	LEVER; RELAY TRANSMISSION-ZF 16S151 OD(Y2N)	1-33651-679-1	01	1	0105-
242	NUT; FLANGE 3RD RELAY LEVER M12 FLANGE	0-91150-212-0	03	1	0105-
466	BOLT; FIX M8X20 FLANGE	0-28680-820-0	02	1	0105-
507	PROTECTOR; HEAT	1-14181-313-0	01	1	0105-

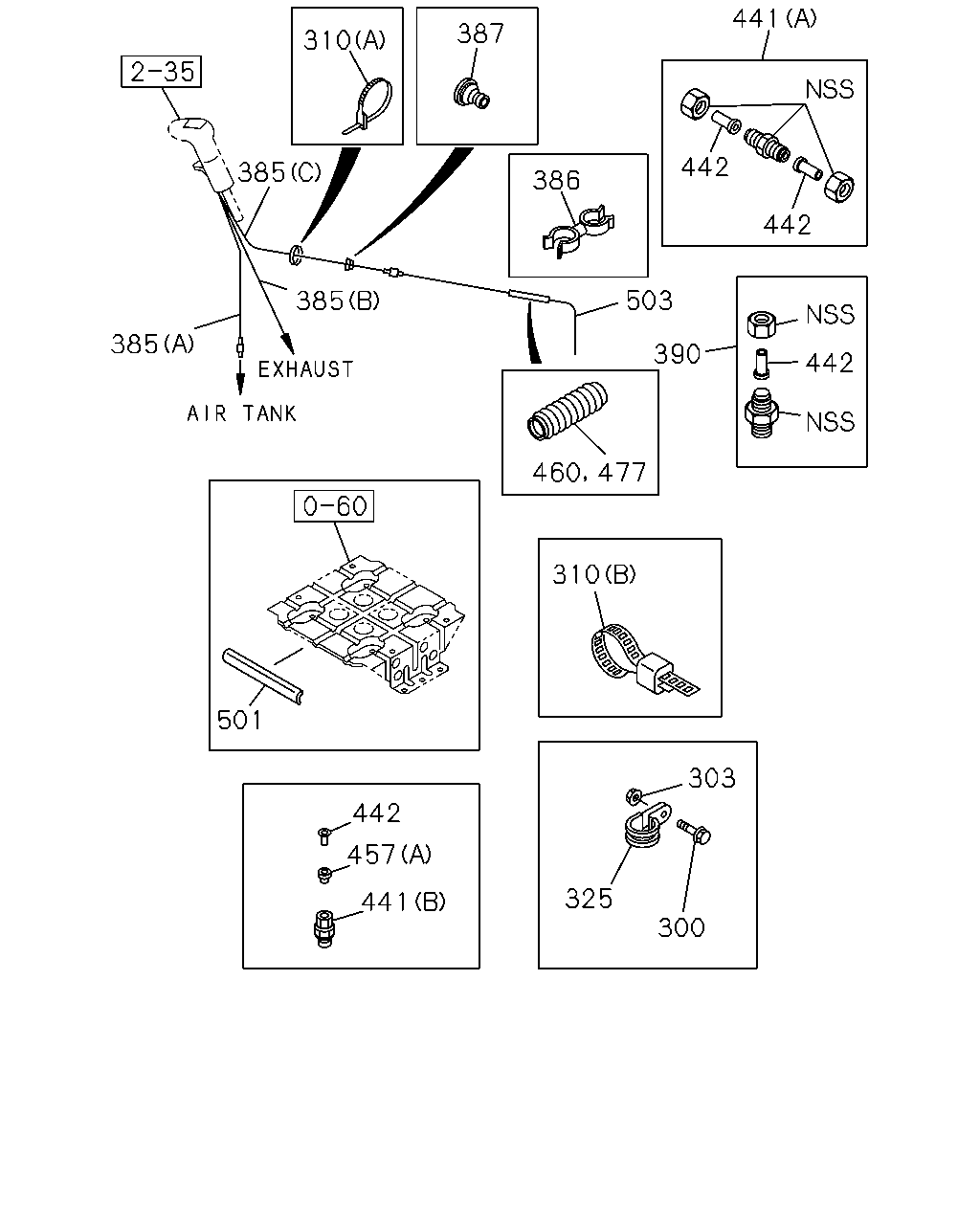

441 387 310 385 442 386 442 503 385 385 390 442 310 501 303 442 457 325 441 300 460 477

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
300	BOLT; CLIP MJX16P M/T(Y3Z) M8X20 FLANGE	0-28680-820-0	01	1	0107-
303	NUT; CLIP MJX16P M/T(Y3Z) M8 FLANGE	0-91150-108-0	01	1	0107-
310	CLIP; TUBE TRANSMISSION-ZF 16S151 OD(Y2N) (B) L=250	1-09707-126-0	17	1	0105-0106
310	CLIP; TUBE TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (B) L=250	1-09707-126-0	17	1	0107-
310	CLIP; TUBE TRANSMISSION-ZF 16S151 OD(Y2N) (A) L=140	5-09707-031-1	04	1	0105-0105
310	CLIP; TUBE TRANSMISSION-ZF 16S151 OD(Y2N) (A) L=140	5-09707-031-1	05	1	0106-0106
310	CLIP; TUBE TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (A) L=140	5-09707-031-1	05	1	0107-
325	CLIP; NYLON TUBE MJX16P M/T(Y3Z) L=250	1-09707-126-0	07	1	0107-
325	CLIP; NYLON TUBE MJX16P M/T(Y3Z) ID=18 L=28	1-09701-067-0	01	1	0107-
385	TUBE; NYLON TRANSMISSION-ZF 16S151 OD(Y2N) (B) L=150 SERVICED BY L=8000	1-09369-762-0	01	1	0105-0106
385	TUBE; NYLON TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (B) L=150 SERVICED BY L=8000	1-09369-762-0	01	1	0107-
385	TUBE; NYLON TRANSMISSION-ZF 16S151 OD(Y2N) (A) L=1500 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	0105-0106
385	TUBE; NYLON TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (A) L=1500 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	0107-
385	TUBE; NYLON TRANSMISSION-ZF 16S151 OD(Y2N) AIR BAG(TFQ) (C) L=1440 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	0105-0106
385	TUBE; NYLON TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) AIR BAG(TFQ) (C) L=1440 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	0107-
385	TUBE; NYLON TRANSMISSION-ZF 16S151 OD(Y2N) EXC. AIR BAG(TFQ) (C) L=1340 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	0105-0106
385	TUBE; NYLON TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. AIR BAG(TFQ) (C) L=1340 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	0107-
386	CLIP; CONT CABLE & TUBE TRANSMISSION-ZF 16S151 OD(Y2N) ID=8.3 & 8.3	8-94426-175-0	01	1	0105-0106
386	CLIP; CONT CABLE & TUBE TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) ID=8.3 & 8.3	8-94426-175-0	01	1	0107-
387	GROMMET; CONT TUBE,FULLER TRANSMISSION-ZF 16S151 OD(Y2N)	1-09332-102-0	01	1	0105-0106
387	GROMMET; CONT TUBE,FULLER TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z)	1-09332-102-0	01	1	0107-
390	CONNECTOR; STRAIGHT,TRANS SIDE TRANSMISSION-ZF 16S151 OD(Y2N) AIR BAG(TFQ)	1-09661-174-0	01	1	0105-0106
390	CONNECTOR; STRAIGHT,TRANS SIDE TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) AIR BAG(TFQ)	1-09661-174-0	01	1	0107-
390	CONNECTOR; STRAIGHT,TRANS SIDE TRANSMISSION-ZF 16S151 OD(Y2N) EXC. AIR BAG(TFQ) DIN4 & PT1/8 STRAIGHT	1-09660-765-0	01	1	0105-0106
390	CONNECTOR; STRAIGHT,TRANS SIDE TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. AIR BAG(TFQ) DIN4 & PT1/8 STRAIGHT	1-09660-765-0	01	1	0107-
441	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) (B)	1-09660-466-0	01	1	0105-0106
441	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (B)	1-09660-466-0	01	1	0107-
441	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) (A) DIN4 STRAIGHT	1-09660-512-0	02	1	0105-0106
441	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (A) DIN4 STRAIGHT	1-09660-512-0	02	1	0107-
442	INSERT; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) ID=1.4 OD=2.0 L=18	1-09669-100-0	05	1	0105-0106
442	INSERT; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) ID=1.4 OD=2.0 L=18	1-09669-100-0	05	1	0107-
442	INSERT; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) EXC. AIR BAG(TFQ) ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	0105-0106
442	INSERT; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. AIR BAG(TFQ) ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	0107-
457	GASKET (B)	1-09623-594-0	04	1	0105-
457	GASKET TRANSMISSION-ZF 16S151 OD(Y2N) (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	0105-0106
457	GASKET TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	0107-
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S151 OD(Y2N) L=250 ID=7 SERVICED BY L=800	1-83129-031-1	01	1	0105-0106
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) L=250 ID=7 SERVICED BY L=800	1-83129-031-1	01	1	0107-
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S151 OD(Y2N) L=900 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0105-0106
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) L=900 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0107-0204
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) L=900 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0205-
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) AIR BAG(TFQ) L=900 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0205-
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S151 OD(Y2N) L=1300 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0105-0106
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) L=1300 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0107-0204
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. AIR BAG(TFQ) L=250 ID=7 SERVICED BY L=800	1-83129-031-1	01	1	0205-
477	TUBE; CORRUGATE MJX16P M/T(Y3Z) SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0107-
477	TUBE; CORRUGATE TRANSMISSION-ZF 16S151 OD(Y2N) SERVICED BY L=2000 ID=7	1-87410-085-0	01	1	0105-
477	TUBE; CORRUGATE TRANSMISSION-ZF 16S151 OD(Y2N) SERVICED BY L=6000 ID=7	1-87410-087-0	01	1	0105-0106
477	TUBE; CORRUGATE TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) SERVICED BY L=6000 ID=7	1-87410-087-0	01	1	0107-
501	SEAL; HARNESS PROTECTOR TRANSMISSION-ZF 16S151 OD(Y2N) 100X40	1-72498-022-0	04	1	0105-0106
501	SEAL; HARNESS PROTECTOR TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) 100X40	1-72498-022-0	04	1	0107-
503	TUBE; NYLON TRANSMISSION-ZF 16S151 OD(Y2N) SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	0105-0106
503	TUBE; NYLON TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	0107-
503	TUBE; NYLON TRANSMISSION-ZF 16S151 OD(Y2N) SERVICED BY L=6000 OD=4	1-87410-079-0	01	1	0105-0106
503	TUBE; NYLON TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) SERVICED BY L=6000 OD=4	1-87410-079-0	01	1	0107-

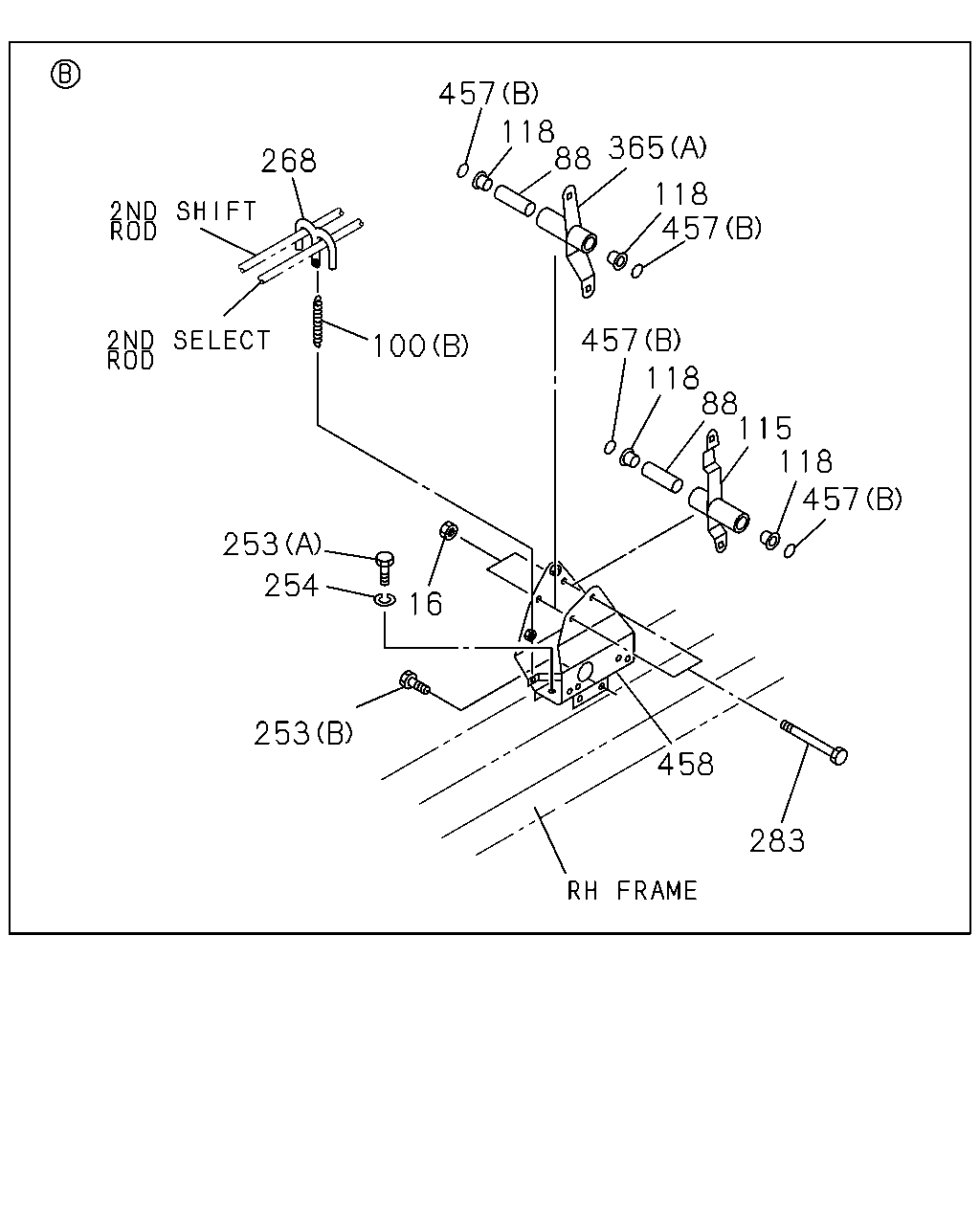

457 118 88 365 268 118 457 457 118 88 115 118 457 100 253 254 16 253 458 283

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	NUT; RELAY LEVER M10 FLANGE	0-91150-110-0	02	1	0105-
88	COLLAR; RELAY LEVER	1-33659-191-1	02	1	0105-
100	SPRING (A)	1-09583-319-0	01	1	0105-
100	SPRING (B)	1-09583-351-0	01	1	0105-
115	LEVER; RELAY,2ND SHIFT	1-33651-769-1	01	1	0105-
118	BUSHING; RELAY LEVER	1-09330-119-0	04	1	0105-
253	BOLT; BRKT,2ND RELAY LEVER (A) M14X45	0-20801-445-0	02	1	0105-
253	BOLT; BRKT,2ND RELAY LEVER (B) M10X35 FLANGE	0-28681-035-0	02	1	0105-
254	WASHER; LK,RELAY LEVER ID=14.2	9-09150-614-0	02	1	0105-
268	BRACKET; LINK ROD	1-33657-216-0	01	1	0105-
283	BOLT; RELAY LEVER M10X110	9-09801-316-1	02	1	0105-
365	LEVER; RELAY,SELECT (B)	1-33651-665-0	01	1	0105-0307
365	LEVER; RELAY,SELECT (B)	1-33651-819-1	01	1	0308-
365	LEVER; RELAY,SELECT (A)	1-33651-771-1	01	1	0105-
457	GASKET (B)	1-09623-594-0	04	1	0105-
457	GASKET TRANSMISSION-ZF 16S151 OD(Y2N) (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	0105-0106
457	GASKET TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	0107-
458	BRACKET; 2ND RELAY LEVER	1-33657-664-1	01	1	0105-

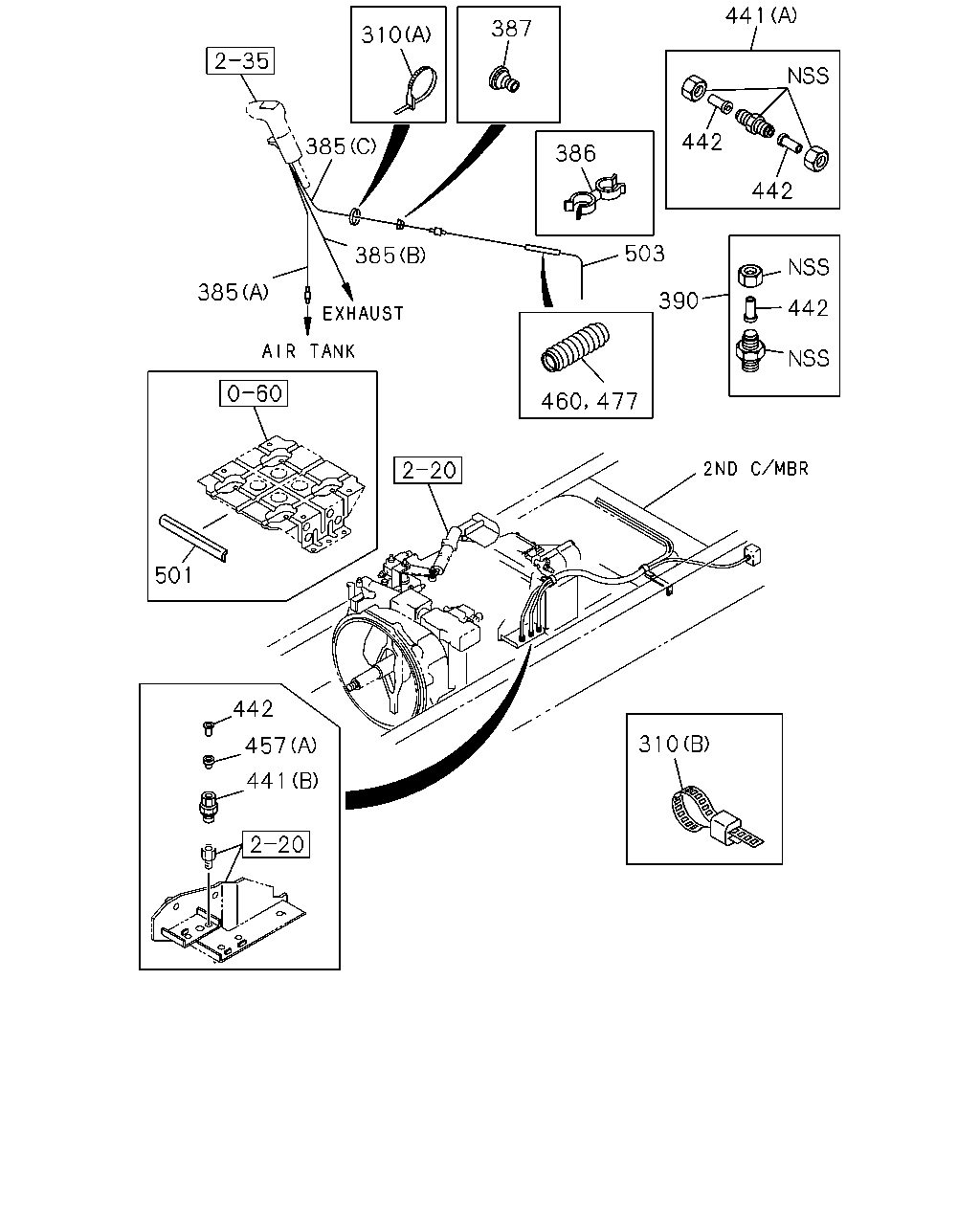

441 387 310 385 442 386 442 503 385 385 390 442 501 442 310 457 441 460 477

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
310	CLIP; TUBE TRANSMISSION-ZF 16S151 OD(Y2N) (B) L=250	1-09707-126-0	17	1	0105-0106
310	CLIP; TUBE TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (B) L=250	1-09707-126-0	17	1	0107-
310	CLIP; TUBE TRANSMISSION-ZF 16S151 OD(Y2N) (A) L=140	5-09707-031-1	04	1	0105-0105
310	CLIP; TUBE TRANSMISSION-ZF 16S151 OD(Y2N) (A) L=140	5-09707-031-1	05	1	0106-0106
310	CLIP; TUBE TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (A) L=140	5-09707-031-1	05	1	0107-
385	TUBE; NYLON TRANSMISSION-ZF 16S151 OD(Y2N) (B) L=150 SERVICED BY L=8000	1-09369-762-0	01	1	0105-0106
385	TUBE; NYLON TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (B) L=150 SERVICED BY L=8000	1-09369-762-0	01	1	0107-
385	TUBE; NYLON TRANSMISSION-ZF 16S151 OD(Y2N) (A) L=1500 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	0105-0106
385	TUBE; NYLON TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (A) L=1500 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	0107-
385	TUBE; NYLON TRANSMISSION-ZF 16S151 OD(Y2N) AIR BAG(TFQ) (C) L=1440 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	0105-0106
385	TUBE; NYLON TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) AIR BAG(TFQ) (C) L=1440 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	0107-
385	TUBE; NYLON TRANSMISSION-ZF 16S151 OD(Y2N) EXC. AIR BAG(TFQ) (C) L=1340 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	0105-0106
385	TUBE; NYLON TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. AIR BAG(TFQ) (C) L=1340 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	0107-
386	CLIP; CONT CABLE & TUBE TRANSMISSION-ZF 16S151 OD(Y2N) ID=8.3 & 8.3	8-94426-175-0	01	1	0105-0106
386	CLIP; CONT CABLE & TUBE TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) ID=8.3 & 8.3	8-94426-175-0	01	1	0107-
387	GROMMET; CONT TUBE,FULLER TRANSMISSION-ZF 16S151 OD(Y2N)	1-09332-102-0	01	1	0105-0106
387	GROMMET; CONT TUBE,FULLER TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z)	1-09332-102-0	01	1	0107-
390	CONNECTOR; STRAIGHT,TRANS SIDE TRANSMISSION-ZF 16S151 OD(Y2N) AIR BAG(TFQ)	1-09661-174-0	01	1	0105-0106
390	CONNECTOR; STRAIGHT,TRANS SIDE TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) AIR BAG(TFQ)	1-09661-174-0	01	1	0107-
390	CONNECTOR; STRAIGHT,TRANS SIDE TRANSMISSION-ZF 16S151 OD(Y2N) EXC. AIR BAG(TFQ) DIN4 & PT1/8 STRAIGHT	1-09660-765-0	01	1	0105-0106
390	CONNECTOR; STRAIGHT,TRANS SIDE TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. AIR BAG(TFQ) DIN4 & PT1/8 STRAIGHT	1-09660-765-0	01	1	0107-
441	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) (B)	1-09660-466-0	01	1	0105-0106
441	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (B)	1-09660-466-0	01	1	0107-
441	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) (A) DIN4 STRAIGHT	1-09660-512-0	02	1	0105-0106
441	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (A) DIN4 STRAIGHT	1-09660-512-0	02	1	0107-
442	INSERT; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) ID=1.4 OD=2.0 L=18	1-09669-100-0	05	1	0105-0106
442	INSERT; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) ID=1.4 OD=2.0 L=18	1-09669-100-0	05	1	0107-
442	INSERT; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) EXC. AIR BAG(TFQ) ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	0105-0106
442	INSERT; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. AIR BAG(TFQ) ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	0107-
457	GASKET (B)	1-09623-594-0	04	1	0105-
457	GASKET TRANSMISSION-ZF 16S151 OD(Y2N) (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	0105-0106
457	GASKET TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	0107-
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S151 OD(Y2N) L=250 ID=7 SERVICED BY L=800	1-83129-031-1	01	1	0105-0106
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) L=250 ID=7 SERVICED BY L=800	1-83129-031-1	01	1	0107-
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S151 OD(Y2N) L=900 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0105-0106
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) L=900 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0107-0204
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) L=900 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0205-
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) AIR BAG(TFQ) L=900 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0205-
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S151 OD(Y2N) L=1300 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0105-0106
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) L=1300 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0107-0204
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. AIR BAG(TFQ) L=250 ID=7 SERVICED BY L=800	1-83129-031-1	01	1	0205-
477	TUBE; CORRUGATE MJX16P M/T(Y3Z) SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0107-
477	TUBE; CORRUGATE TRANSMISSION-ZF 16S151 OD(Y2N) SERVICED BY L=2000 ID=7	1-87410-085-0	01	1	0105-
477	TUBE; CORRUGATE TRANSMISSION-ZF 16S151 OD(Y2N) SERVICED BY L=6000 ID=7	1-87410-087-0	01	1	0105-0106
477	TUBE; CORRUGATE TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) SERVICED BY L=6000 ID=7	1-87410-087-0	01	1	0107-
501	SEAL; HARNESS PROTECTOR TRANSMISSION-ZF 16S151 OD(Y2N) 100X40	1-72498-022-0	04	1	0105-0106
501	SEAL; HARNESS PROTECTOR TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) 100X40	1-72498-022-0	04	1	0107-
503	TUBE; NYLON TRANSMISSION-ZF 16S151 OD(Y2N) SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	0105-0106
503	TUBE; NYLON TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	0107-
503	TUBE; NYLON TRANSMISSION-ZF 16S151 OD(Y2N) SERVICED BY L=6000 OD=4	1-87410-079-0	01	1	0105-0106
503	TUBE; NYLON TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) SERVICED BY L=6000 OD=4	1-87410-079-0	01	1	0107-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
