Sayfa 2-20A - Isuzu EPC

2-20A — MANUAL TRANSMISSION ASM AND CASE (#10152) — 231 parça

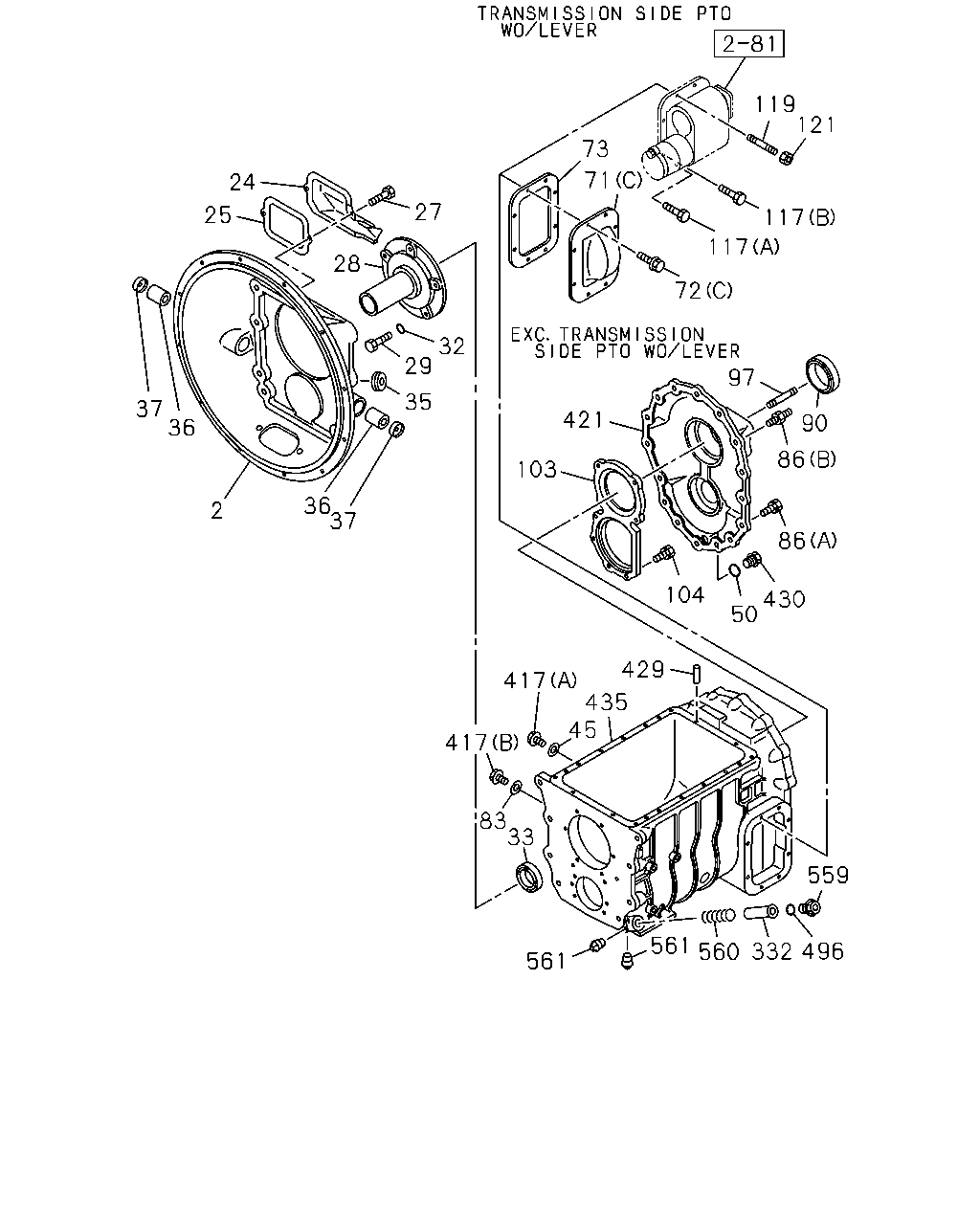

119 121 117 117 72 71 73 27 28 24 25 37 36 2 36 37 35 29 32 103 421 97 90 86 86 430 50 104 429 435 45 417 417 83 33 561 561 560 332 496 559

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOUSING; CLU	1-31111-203-0	01	1	0105-	●
2	HOUSING; CLU	1-31111-204-5	01	1	0107-		●
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	0105-0106	●
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	0107-	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	0105-0106	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	0107-	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	04	1	0105-0105	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	04	1	0106-	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	04	1	0107-		●
28	COVER; FRT,TRANS CASE	1-33121-161-1	01	1	0105-	●
28	COVER; FRT,TRANS CASE	1-33121-153-0	01	1	0107-		●
29	BOLT; FRT COVER M10X40	0-28191-040-0	06	1	0107-		●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	06	1	0105-	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	06	1	0105-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-562-0	01	1	0105-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-624-0	01	1	0107-		●
35	GROMMET; CLU HSG	9-09575-796-0	01	1	0105-0106	●
35	GROMMET; CLU HSG	9-09575-796-0	01	1	0107-	●	●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	0105-0106	●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	0107-	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	0105-0106	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	0107-	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0105-0106	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0107-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0105-	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-33141-044-1	01	1	0105-	●
71	COVER; SIDE,TRANS CASE (B)	1-33141-057-1	01	1	0107-		●
71	COVER; SIDE,TRANS CASE (A)	1-33141-060-0	01	1	0107-0212		●
71	COVER; SIDE,TRANS CASE (A)	1-33141-066-0	01	1	0301-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12X20 FLANGE	0-28181-220-0	08	1	0105-	●
72	BOLT; SIDE COVER (A) M10X35 FLANGE	0-28781-035-0	08	1	0107-		●
72	BOLT; SIDE COVER (B) M12X30 FLANGE	1-09044-086-0	08	1	0107-		●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-041-0	01	1	0105-	●
83	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=22.5	9-09571-422-0	01	1	0105-0106	●
86	BOLT; RR COVER (A) M12X30 FLANGE	0-28181-230-0	14	1	0105-	●
86	BOLT; RR COVER (B) M10X16,M12X30 L=57.7	1-09049-018-0	02	1	0105-	●
86	BOLT; RR COVER (C) M17X35	1-09044-076-0	06	1	0107-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-577-1	01	1	0105-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-625-0	01	1	0107-		●
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	0105-	●
103	RETAINER; BRG	1-33151-059-0	01	1	0105-	●
103	RETAINER; BRG	1-33151-058-1	01	1	0107-0204		●
103	RETAINER; BRG	1-33151-063-0	01	1	0205-		●
104	BOLT; BRG RET M10X30 FLANGE	0-28181-030-0	01	1	0105-	●
104	BOLT; BRG RET M10X38 FLANGE	1-09049-029-1	07	1	0105-	●
104	BOLT; BRG RET M10X38 FLANGE	1-09049-029-1	08	1	0107-		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M12X25 FLANGE	0-28181-225-0	02	1	0105-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M12X120 FLANGE	0-28186-212-0	02	1	0105-	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X25 L=43	9-94411-225-0	04	1	0105-	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 FLANGE	0-91150-212-0	04	1	0105-	●
332	FILTER; OIL	1-41383-003-0	01	1	0105-	●
417	PLUG; OIL FILLER,TRANS (B) M22X12	1-09604-035-0	01	1	0105-0106	●
417	PLUG; OIL FILLER,TRANS (B) M22X12	1-09604-035-0	01	1	0107-	●	●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-064-1	01	1	0105-0106	●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-064-1	01	1	0107-0201	●	●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-022-0	01	1	0202-	●	●
421	COVER; RR,TRANS	1-33131-201-1	01	1	0105-	●
421	COVER; RR,TRANS	1-33131-238-0	01	1	0107-		●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	04	1	0105-	●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	06	1	0107-		●
429	PIN; STRAIGHT OD=12 L=32	9-08161-232-0	01	1	0107-		●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0105-	●
435	CASE; TRANS	1-33111-321-0	01	1	0105-	●
435	CASE; TRANS	1-33111-319-6	01	1	0107-		●
496	GASKET; OIL FILTER ID=26.8	1-09623-058-0	01	1	0105-	●
559	PLUG; OIL M24X17 FLANGE	1-09604-023-0	01	1	0105-	●
560	SPRING; OIL	1-09580-504-0	01	1	0105-	●
561	PLUG PT1/4	9-99204-513-0	02	1	0105-	●

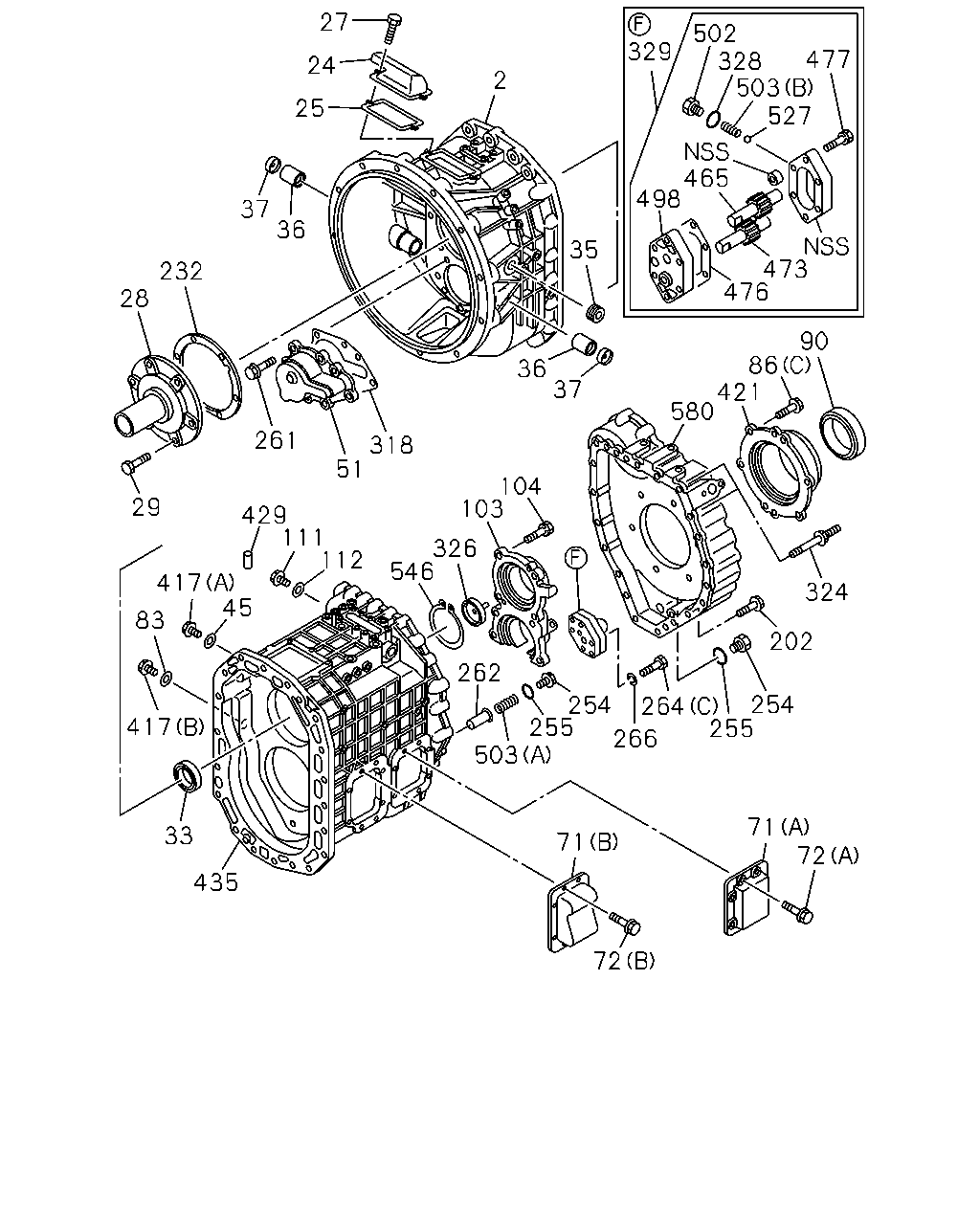

2 27 24 25 36 37 232 28 29 261 51 318 37 36 35 498 465 329 502 328 503 477 527 473 476 90 86 42 580 104 103 326 546 112 111 429 45 417 83 417 33 435 503 262 255 254 266 264 255 254 202 324 72 71 71 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOUSING; CLU	1-31111-203-0	01	1	0105-	●
2	HOUSING; CLU	1-31111-204-5	01	1	0107-		●
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	0105-0106	●
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	0107-	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	0105-0106	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	0107-	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	04	1	0105-0105	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	04	1	0106-	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	04	1	0107-		●
28	COVER; FRT,TRANS CASE	1-33121-161-1	01	1	0105-	●
28	COVER; FRT,TRANS CASE	1-33121-153-0	01	1	0107-		●
29	BOLT; FRT COVER M10X40	0-28191-040-0	06	1	0107-		●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	06	1	0105-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-562-0	01	1	0105-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-624-0	01	1	0107-		●
35	GROMMET; CLU HSG	9-09575-796-0	01	1	0105-0106	●
35	GROMMET; CLU HSG	9-09575-796-0	01	1	0107-	●	●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	0105-0106	●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	0107-	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	0105-0106	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	0107-	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0105-0106	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0107-	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-200-1	01	1	0107-		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-33141-044-1	01	1	0105-	●
71	COVER; SIDE,TRANS CASE (B)	1-33141-057-1	01	1	0107-		●
71	COVER; SIDE,TRANS CASE (A)	1-33141-060-0	01	1	0107-0212		●
71	COVER; SIDE,TRANS CASE (A)	1-33141-066-0	01	1	0301-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12X20 FLANGE	0-28181-220-0	08	1	0105-	●
72	BOLT; SIDE COVER (A) M10X35 FLANGE	0-28781-035-0	08	1	0107-		●
72	BOLT; SIDE COVER (B) M12X30 FLANGE	1-09044-086-0	08	1	0107-		●
83	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=22.5	9-09571-422-0	01	1	0105-0106	●
86	BOLT; RR COVER (A) M12X30 FLANGE	0-28181-230-0	14	1	0105-	●
86	BOLT; RR COVER (B) M10X16,M12X30 L=57.7	1-09049-018-0	02	1	0105-	●
86	BOLT; RR COVER (C) M17X35	1-09044-076-0	06	1	0107-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-577-1	01	1	0105-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-625-0	01	1	0107-		●
103	RETAINER; BRG	1-33151-059-0	01	1	0105-	●
103	RETAINER; BRG	1-33151-058-1	01	1	0107-0204		●
103	RETAINER; BRG	1-33151-063-0	01	1	0205-		●
104	BOLT; BRG RET M10X30 FLANGE	0-28181-030-0	01	1	0105-	●
104	BOLT; BRG RET M10X38 FLANGE	1-09049-029-1	07	1	0105-	●
104	BOLT; BRG RET M10X38 FLANGE	1-09049-029-1	08	1	0107-		●
111	PLUG; DRAIN FILLER M24X17 FLANGE	1-09604-064-1	01	1	0107-0201		●
111	PLUG; DRAIN FILLER M24X17 FLANGE	1-09604-022-0	01	1	0202-		●
112	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0107-		●
202	BOLT; PLATE M12X35 FLANGE	0-28781-235-0	09	1	0107-		●
232	GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33142-051-1	01	1	0107-		●
254	PLUG; DRAIN,OIL M24X17 FLANGE	1-09604-023-0	02	1	0107-		●
255	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	02	1	0107-		●
261	BOLT; COVER M10X30 FLANGE	0-28181-030-0	07	1	0107-		●
262	STRAINER; OIL PUMP	1-41383-003-0	01	1	0107-		●
264	BOLT; OIL PUMP (A) M10X30 FLANGE	0-28181-030-0	05	1	0105-	●
264	BOLT; OIL PUMP (B) M10X40 FLANGE	0-28181-040-0	02	1	0105-	●
264	BOLT; OIL PUMP (C) M8X50	0-10805-850-0	02	1	0107-		●
264	BOLT; OIL PUMP (C) M8X65	0-10805-865-0	02	1	0107-		●
266	WASHER; LK ID=8.2	9-09150-508-0	04	1	0107-		●
318	GASKET; COVER	1-34142-033-0	01	1	0107-0204		●
318	GASKET; COVER	1-34142-034-0	01	1	0205-		●
324	STUD; RR COVER M10X18,M12X110 L=139.5	1-09049-033-1	02	1	0107-		●
326	NOZZLE; OIL,OUTLET	1-33219-067-0	01	1	0107-0204		●
326	NOZZLE; OIL,OUTLET	1-33219-272-0	01	1	0205-		●
328	GASKET; PLUG	8-94244-656-0	01	1	0105-	●
328	GASKET; PLUG	1-34159-100-0	01	1	0107-		●
329	PUMP ASM; OIL	1-34150-098-0	01	1	0105-	●
329	PUMP ASM; OIL	1-34150-109-0	01	1	0107-0204		●
329	PUMP ASM; OIL	1-34150-117-0	01	1	0205-		●
417	PLUG; OIL FILLER,TRANS (B) M22X12	1-09604-035-0	01	1	0105-0106	●
417	PLUG; OIL FILLER,TRANS (B) M22X12	1-09604-035-0	01	1	0107-	●	●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-064-1	01	1	0105-0106	●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-064-1	01	1	0107-0201	●	●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-022-0	01	1	0202-	●	●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	04	1	0105-	●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	06	1	0107-		●
429	PIN; STRAIGHT OD=12 L=32	9-08161-232-0	01	1	0107-		●
435	CASE; TRANS	1-33111-321-0	01	1	0105-	●
435	CASE; TRANS	1-33111-319-6	01	1	0107-		●
465	GEAR; IDLE,OIL PUMP	1-34151-010-0	01	1	0107-0204		●
465	GEAR; IDLE,OIL PUMP	1-34151-013-0	01	1	0205-		●
473	GEAR; OUTPUT,OIL PUMP	1-34151-009-0	01	1	0107-0204		●
473	GEAR; OUTPUT,OIL PUMP	1-34151-012-0	01	1	0205-		●
476	GASKET; COVER,OIL PUMP	1-34159-099-0	01	1	0107-		●
477	BOLT; OIL PUMP M8X32 W/LK WASHER	9-01900-832-0	02	1	0107-		●
498	COVER; ROTER,OIL PUMP	1-34159-067-1	01	1	0105-	●
498	COVER; ROTER,OIL PUMP	1-34159-098-0	01	1	0107-0204		●
502	PLUG; OIL PUMP	8-94244-655-0	01	1	0105-	●
502	PLUG; OIL PUMP	1-34159-101-0	01	1	0107-		●
503	SPRING; OIL PUMP (C)	5-09580-098-0	01	1	0105-	●
503	SPRING; OIL PUMP (A)	1-09580-504-0	01	1	0107-		●
503	SPRING; OIL PUMP (B)	1-34159-102-0	01	1	0107-		●
527	BALL; OIL PUMP	9-00097-531-0	01	1	0105-0106	●
527	BALL; OIL PUMP	9-00097-531-0	01	1	0107-	●	●
546	RING; SNAP,BRG T=2.00	1-09588-150-1	01	1	0107-		●
580	CASE; RANGE	1-33115-051-2	01	1	0107-		●

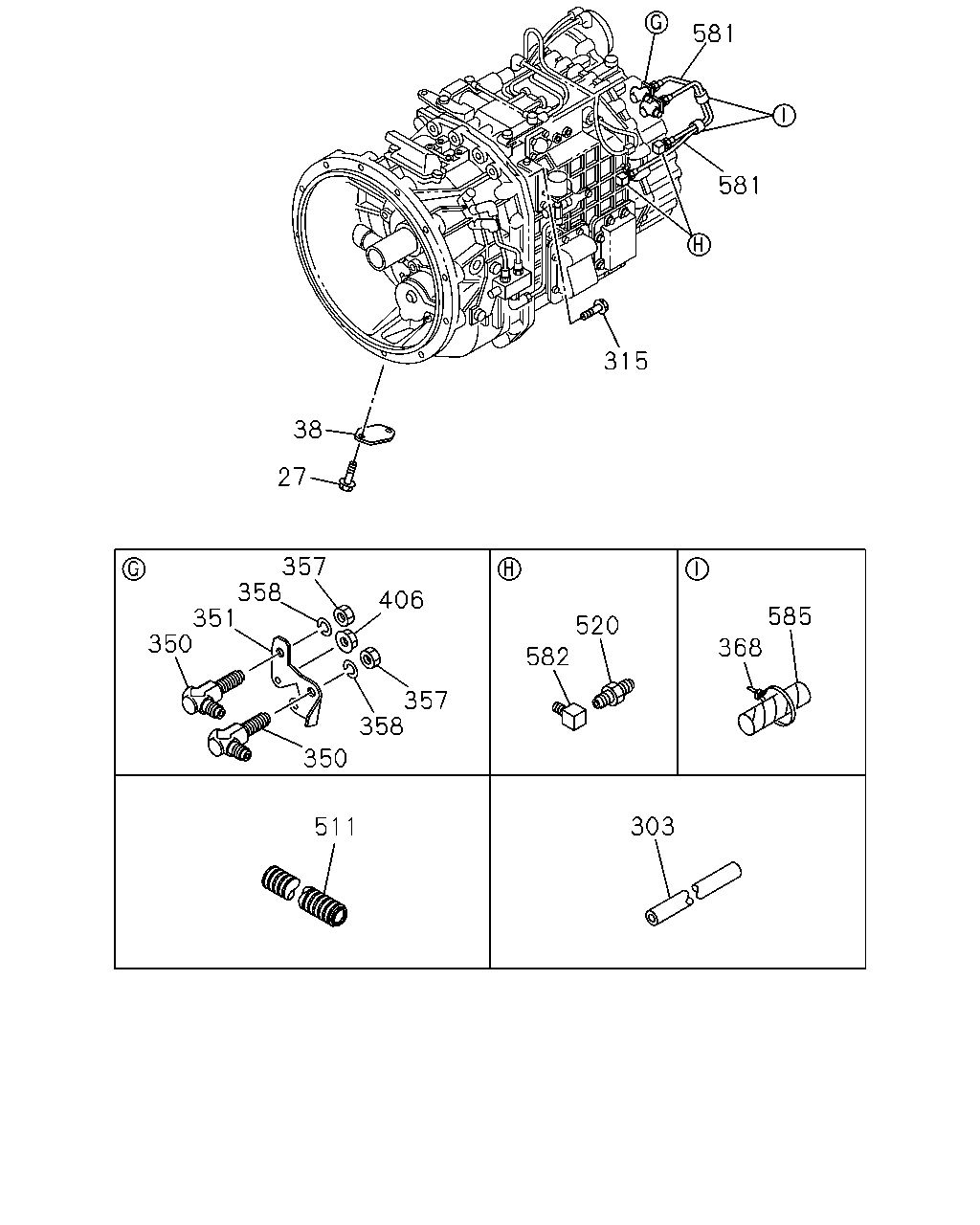

581 581 315 38 27 357 358 351 350 406 585 520 368 582 357 358 350 303 511

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	04	1	0105-0105	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	04	1	0106-	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	04	1	0107-		●
38	COVER; CHECK HOLE,LWR	1-31131-003-0	01	1	0107-		●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0301-		●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0107-0212		●
303	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	01	1	0107-		●
315	BOLT; CASE M12X50 FLANGE	0-28181-250-0	11	1	0107-		●
315	BOLT; CASE M12X110	0-28186-211-0	05	1	0107-		●
315	BOLT; CASE M12X35 FLANGE	0-28781-235-0	02	1	0107-		●
350	UNION; FLEX HOSE,BRKT	1-09664-257-0	02	1	0107-		●
351	BRACKET; UNION,FLEX HOSE	1-46147-302-0	01	1	0107-		●
357	NUT; UNION,FLEX HOSE M22	9-09111-422-0	02	1	0107-		●
358	WASHER; LK,UNION ID=22.5	9-09150-522-0	02	1	0107-		●
368	CLIP; BAND,CABLE L=250	1-09707-126-0	02	1	0107-		●
406	NUT; BRKT M10 FLANGE	0-91150-110-0	02	1	0107-		●
511	TUBE; CORRUGATE SERVICED BY L=4000 ID=10	1-87410-089-0	01	1	0107-		●
520	CONNECTOR M20	9-99220-610-0	02	1	0107-		●
581	HOSE; OIL COOLER OUTLET L=520	1-09365-144-0	01	1	0107-		●
581	HOSE; OIL COOLER INLET L=650	1-09365-145-0	01	1	0107-		●
582	NIPPLE; ELBOW R1/4 & RC1/4 ELBOW	1-09660-501-0	02	1	0107-		●
585	BAND; FLEX HOSE L=175	1-09707-178-0	02	1	0107-		●

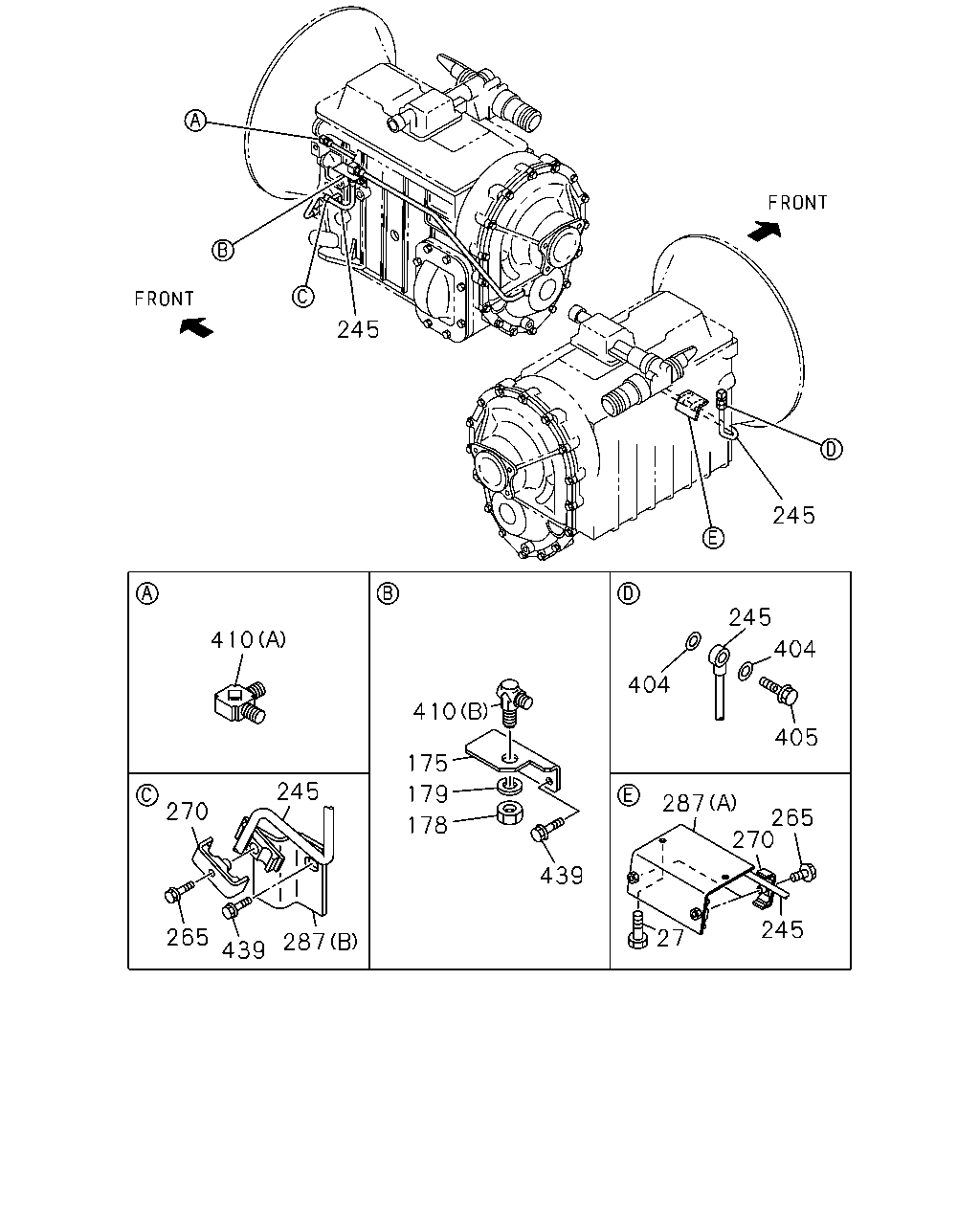

245 245 245 410 404 404 410 405 175 245 179 287 270 265 270 178 439 27 245 265 287 439

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	04	1	0105-0105	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	04	1	0106-	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	04	1	0107-		●
175	BRACKET; UNION	1-46147-216-2	01	1	0105-	●
178	NUT; UNION M16	9-99111-516-0	01	1	0105-	●
179	WASHER; LK,UNION ID=16.2	9-09150-516-0	01	1	0105-	●
245	PIPE; OIL L=738	1-32571-147-0	01	1	0105-	●
265	BOLT; CLIP M6X35 FLANGE	0-28680-635-0	03	1	0105-	●
270	CLIP; OIL PIPE ID=9 & 9 L=25	1-09701-212-2	03	1	0105-	●
287	BRACKET; CLIP,OIL PIPE (A)	1-32579-014-1	01	1	0105-	●
287	BRACKET; CLIP,OIL PIPE (B)	1-32579-015-2	01	1	0105-	●
404	GASKET; OIL PIPE ID=14.2 OD=19.2	1-09630-085-0	02	1	0105-	●
405	BOLT; EYE,OIL PIPE M14X27 FLANGE	1-09675-086-0	01	1	0105-	●
410	UNION; OIL PIPE (B)	1-09654-371-0	01	1	0105-	●
410	UNION; OIL PIPE (A) R1/4 & M16 ELBOW	1-09660-800-1	01	1	0105-	●
439	BOLT; BRKT M10X16 FLANGE	0-28181-016-0	03	1	0105-	●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

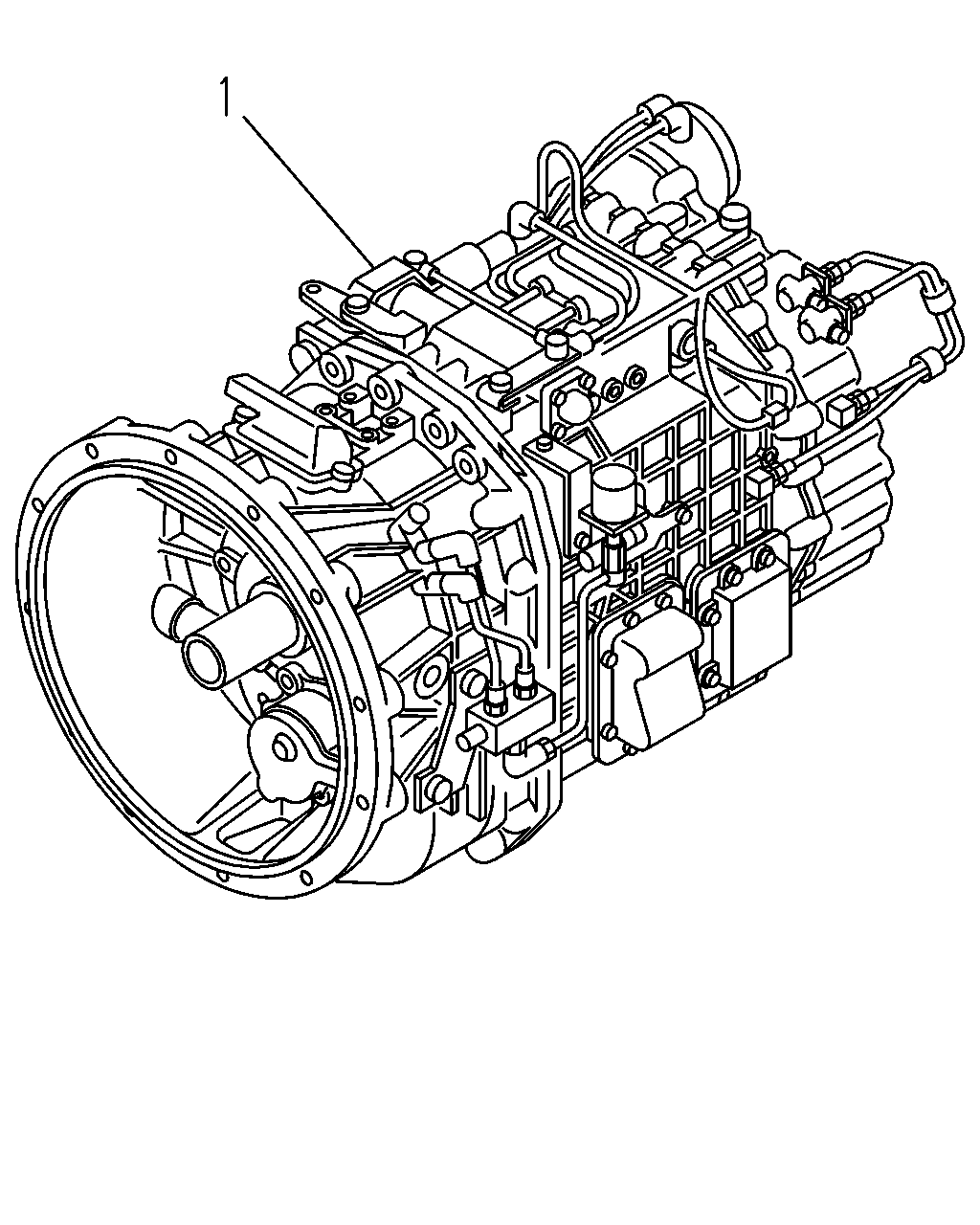

1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-202-0	01	1	0105-	●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-202-0	01	1	0105-	●
1	TRANSMISSION ASM; MANUAL	1-33043-196-0	01	1	0107-		●

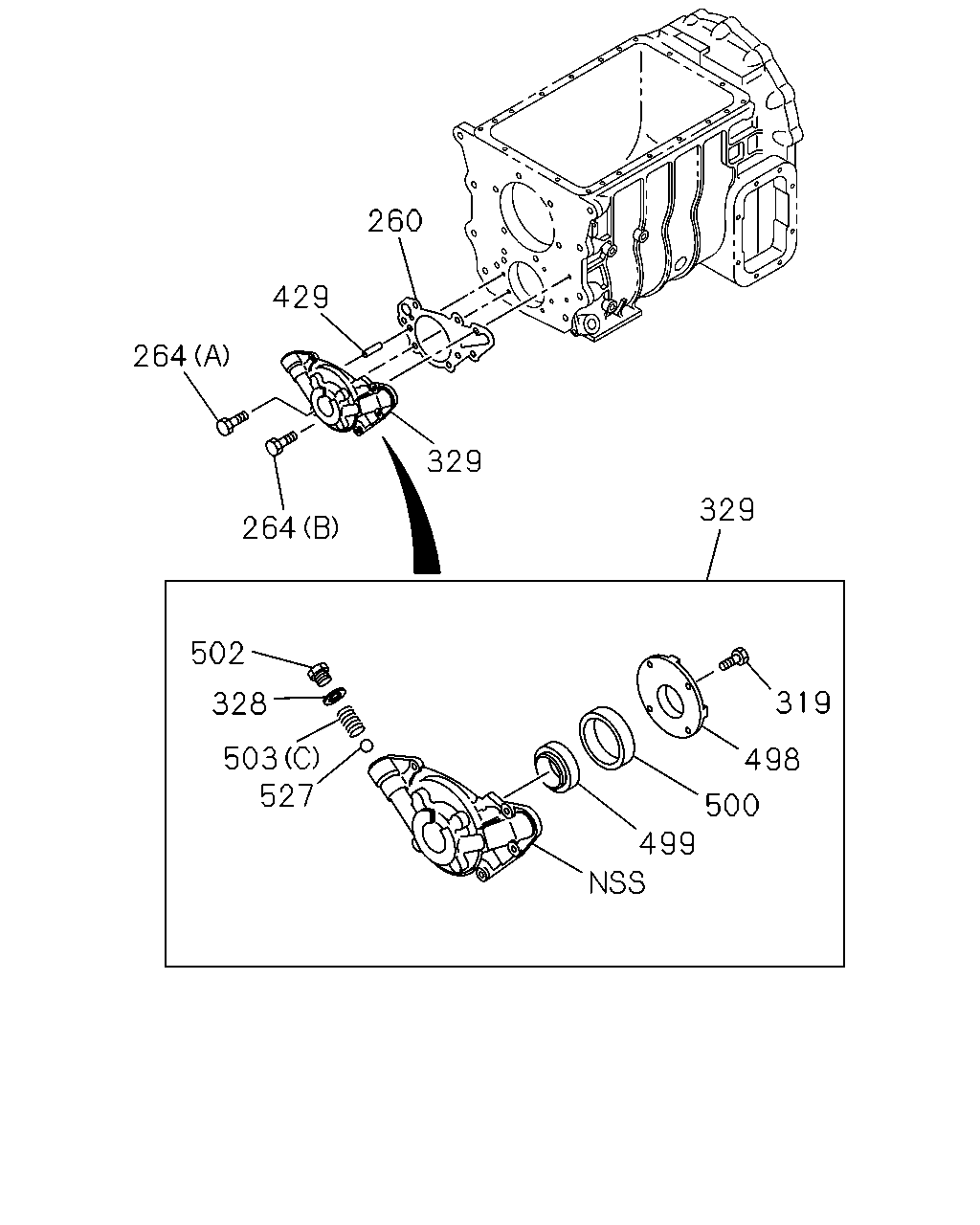

260 429 264 329 329 264 502 319 328 503 527 498 500 499

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
260	GASKET; OIL PUMP	1-34142-026-0	01	1	0105-	●
264	BOLT; OIL PUMP (A) M10X30 FLANGE	0-28181-030-0	05	1	0105-	●
264	BOLT; OIL PUMP (B) M10X40 FLANGE	0-28181-040-0	02	1	0105-	●
264	BOLT; OIL PUMP (C) M8X50	0-10805-850-0	02	1	0107-		●
264	BOLT; OIL PUMP (C) M8X65	0-10805-865-0	02	1	0107-		●
319	BOLT; COVER	1-34159-075-0	04	1	0105-	●
328	GASKET; PLUG	8-94244-656-0	01	1	0105-	●
328	GASKET; PLUG	1-34159-100-0	01	1	0107-		●
329	PUMP ASM; OIL	1-34150-098-0	01	1	0105-	●
329	PUMP ASM; OIL	1-34150-109-0	01	1	0107-0204		●
329	PUMP ASM; OIL	1-34150-117-0	01	1	0205-		●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	04	1	0105-	●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	06	1	0107-		●
429	PIN; STRAIGHT OD=12 L=32	9-08161-232-0	01	1	0107-		●
498	COVER; ROTER,OIL PUMP	1-34159-067-1	01	1	0105-	●
498	COVER; ROTER,OIL PUMP	1-34159-098-0	01	1	0107-0204		●
499	ROTOR; INNER,OIL PUMP	1-34159-053-0	01	1	0105-	●
500	ROTOR; OUTER,OIL PUMP	1-34159-054-0	01	1	0105-	●
502	PLUG; OIL PUMP	8-94244-655-0	01	1	0105-	●
502	PLUG; OIL PUMP	1-34159-101-0	01	1	0107-		●
503	SPRING; OIL PUMP (C)	5-09580-098-0	01	1	0105-	●
503	SPRING; OIL PUMP (A)	1-09580-504-0	01	1	0107-		●
503	SPRING; OIL PUMP (B)	1-34159-102-0	01	1	0107-		●
527	BALL; OIL PUMP	9-00097-531-0	01	1	0105-0106	●
527	BALL; OIL PUMP	9-00097-531-0	01	1	0107-	●	●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

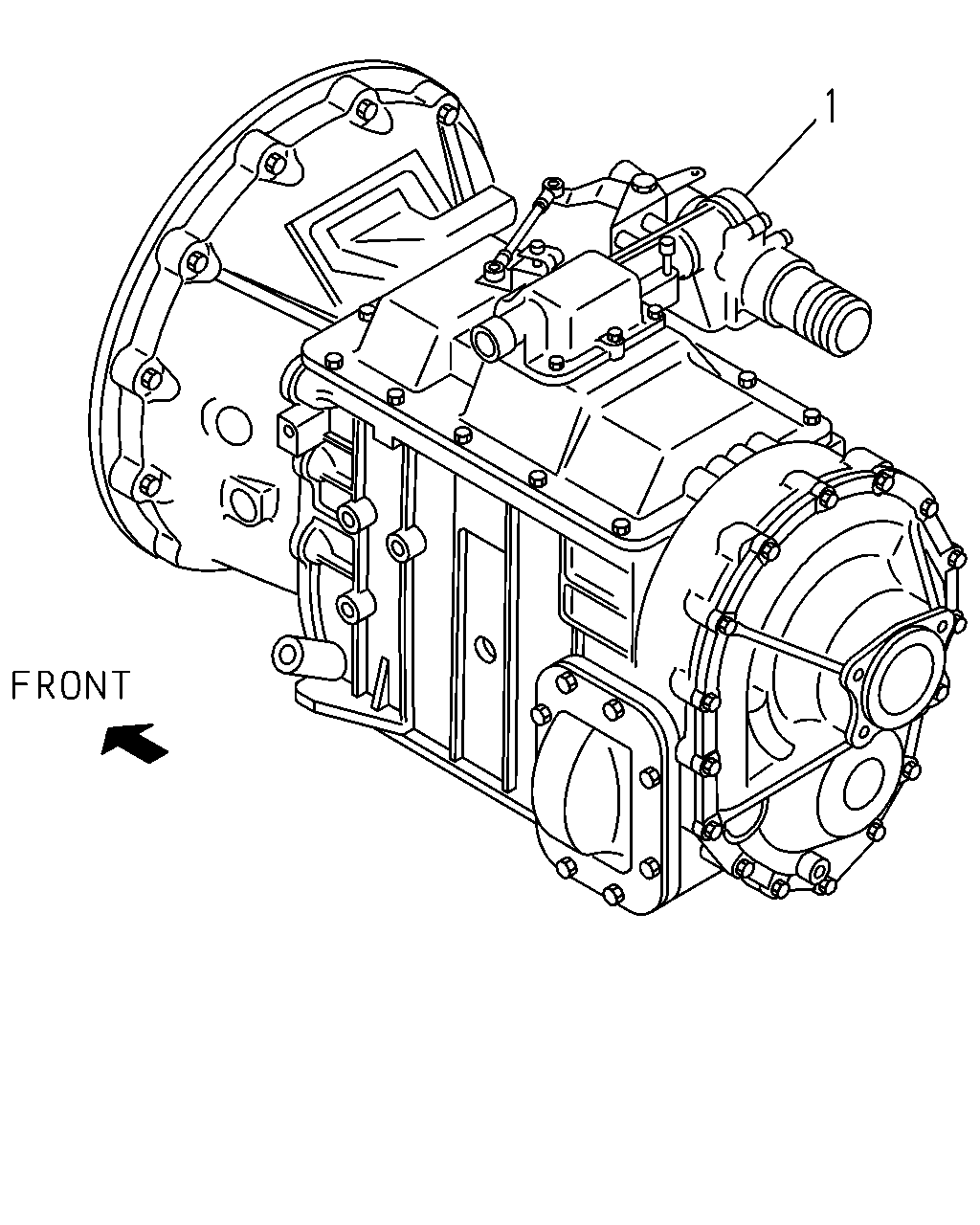

1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-202-0	01	1	0105-	●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-202-0	01	1	0105-	●
1	TRANSMISSION ASM; MANUAL	1-33043-196-0	01	1	0107-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
