Sayfa 2-05 - Isuzu EPC

2-05 — CLUTCH PIPING (#10147) — 232 parça

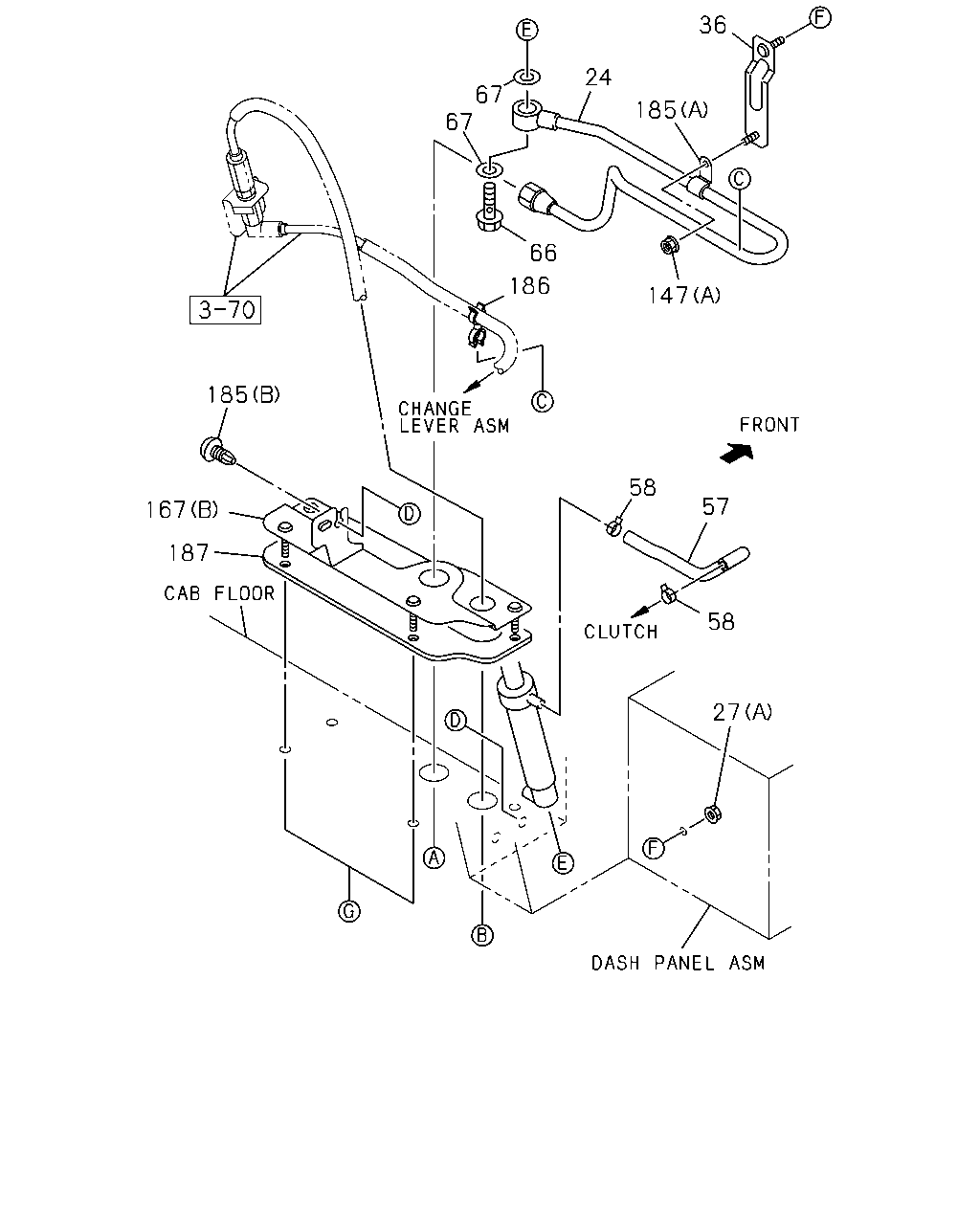

36 24 67 67 185 66 186 147 185 58 57 167 187 58 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	PIPE ASM; CLU,M/CYL TO UNION ISUZU M/T<X9A> L=621	1-47428-362-1	01	1	0105-
24	PIPE ASM; CLU,M/CYL TO UNION ZF M/T<X9E> L=628	1-47428-381-1	01	1	0105-
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	0105-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0105-
27	NUT; BRKT (C) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0105-
27	NUT; BRKT ZF M/T<X9E> (D) M8 FLANGE	0-91150-108-0	01	1	0105-
36	BRACKET; CLIP	1-71117-191-1	01	1	0105-
57	HOSE; CLU M/CYL TO OIL TANK	1-47427-312-0	01	1	0105-
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0105-
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	0105-
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0105-
147	NUT; CLIP FIX (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0105-
147	NUT; CLIP FIX TRANSMISSION-ZF 16S151 OD(Y2N) (B) M8 FLANGE	0-91150-208-0	01	1	0105-
167	BRACKET; UNION (B)	1-71117-207-1	01	1	0105-
167	BRACKET; UNION (A)	1-71907-376-1	01	1	0105-
185	CLIP; BRKT (B) D8X13.5	1-09987-248-1	01	1	0105-
185	CLIP; BRKT (A) ID=9 L=20	9-09545-108-0	01	1	0105-0205
185	CLIP; BRKT (A) ID=11 L=16	9-09525-025-0	01	1	0206-
186	HOLDER; CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.3 & 8.3	8-94426-175-0	01	1	0105-
187	SEAL; BRKT	1-71117-209-2	01	1	0105-

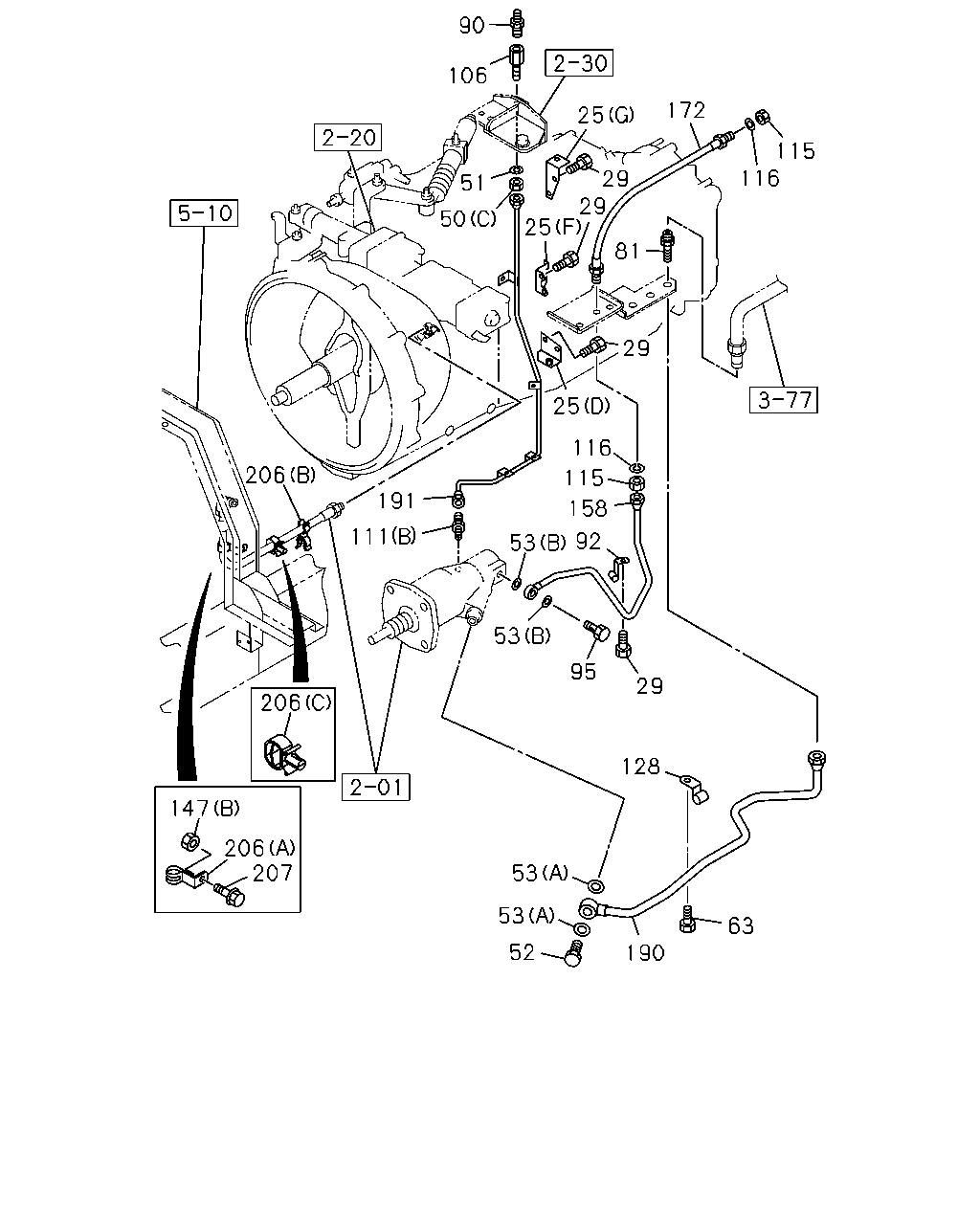

90 106 172 25 115 116 29 29 25 51 50 81 29 25 116 115 158 206 191 111 53 95 29 206 128 147 206 207 53 53 63 52 190 53 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BRACKET; OIL PIPE (A)	1-47478-582-1	01	1	0105-
25	BRACKET; OIL PIPE (B)	1-71907-627-2	01	1	0105-
25	BRACKET; OIL PIPE ISUZU M/T<X9A> (C) L=50	1-47475-299-2	02	1	0105-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (D)	1-47477-498-1	01	1	0105-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (F)	1-47477-499-1	01	1	0105-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (G)	1-47478-406-0	01	1	0105-
25	BRACKET; OIL PIPE ZF M/T<X9E> (C) L=50	1-47475-299-2	01	1	0105-
25	BRACKET; OIL PIPE ZF M/T<X9E> (E)	1-47475-881-0	01	1	0105-0106
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (E)	1-47477-669-1	01	1	0107-
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A> M8X20 FLANGE	0-28680-820-0	02	1	0105-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) M8X16 FLANGE	0-28080-816-0	05	1	0105-
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> M8X20 FLANGE	0-28680-820-0	01	1	0105-
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	01	1	0105-0106
50	NUT; UNION (A) M14	9-99111-414-0	01	1	0105-
50	NUT; UNION TRANSMISSION-ZF 16S151 OD(Y2N) (C) M12	9-09840-280-0	01	1	0105-
50	NUT; UNION ZF M/T<X9E> (B) M12 FLANGE	0-91150-212-0	01	1	0105-
51	WASHER; LK TRANSMISSION-ZF 16S151 OD(Y2N) ID=12.2	9-09150-512-0	01	1	0105-
52	BOLT; EYE,AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N) M16X30	1-09675-026-0	01	1	0105-
53	GASKET; JOINT BOLT TRANSMISSION-ZF 16S151 OD(Y2N) (A) ID=16.2	1-09630-086-0	02	1	0105-
53	GASKET; JOINT BOLT TRANSMISSION-ZF 16S151 OD(Y2N) (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	0105-
63	BOLT; CLIP,PIPE TRANSMISSION-ZF 16S151 OD(Y2N) M8X16 FLANGE	0-28080-816-0	01	1	0105-
81	UNION; AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N)	1-09664-233-0	01	1	0105-
90	NIPPLE; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N)	1-31829-485-0	01	1	0105-
92	CLIP; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) ID=9 L=32	9-09524-865-0	01	1	0105-
95	BOLT; EYE,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) M14X27 FLANGE	1-09675-086-0	01	1	0105-
106	UNION; OIL PIPE ISUZU M/T<X9A> M14 STRAIGHT	9-09223-008-1	02	1	0105-
106	UNION; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N)	1-09654-384-0	01	1	0105-
111	UNION; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (B) M8 & M12 STRAIGHT	1-09654-383-0	01	1	0105-
111	UNION; OIL PIPE ZF M/T<X9E> (A) M14 2WAY	1-09654-176-2	01	1	0105-
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0105-
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) M14	9-99111-414-0	01	1	0105-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0105-
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) ID=14.2	9-09150-514-0	01	1	0105-
128	CLIP; AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N) ID=13	1-09701-030-1	01	1	0105-
147	NUT; CLIP FIX (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0105-
147	NUT; CLIP FIX TRANSMISSION-ZF 16S151 OD(Y2N) (B) M8 FLANGE	0-91150-208-0	01	1	0105-
158	PIPE; OIL,FLEX HOSE TO CLU BOOSTER TRANSMISSION-ZF 16S151 OD(Y2N)	1-49119-466-2	01	1	0105-
172	HOSE; FLEX,CLU BOOSTER TRANSMISSION-ZF 16S151 OD(Y2N) L=470	1-09364-929-0	01	1	0105-
190	PIPE; AIR,UNION TO MINIPAC TRANSMISSION-ZF 16S151 OD(Y2N)	1-49119-465-1	01	1	0105-
191	PIPE; OIL,UNION TO MINIPAC TRANSMISSION-ZF 16S151 OD(Y2N)	1-49163-427-0	01	1	0105-
206	CLIP; TUBE TRANSMISSION-ZF 16S151 OD(Y2N) (A) ID=18 L=28 H=30	1-09701-110-0	01	1	0105-
206	CLIP; TUBE TRANSMISSION-ZF 16S151 OD(Y2N) (B) ID=13 & 12	8-94178-797-0	01	1	0105-
206	CLIP; TUBE ZF M/T<X9E> (C) ID=13-18 L=14.5	1-09709-290-0	01	1	0105-
207	BOLT; CLIP MJX16P M/T(Y3Z) M10X16 FLANGE	0-28181-016-0	02	1	0107-
207	BOLT; CLIP TRANSMISSION-ZF 16S151 OD(Y2N) M8X20 FLANGE	0-28680-820-0	01	1	0105-

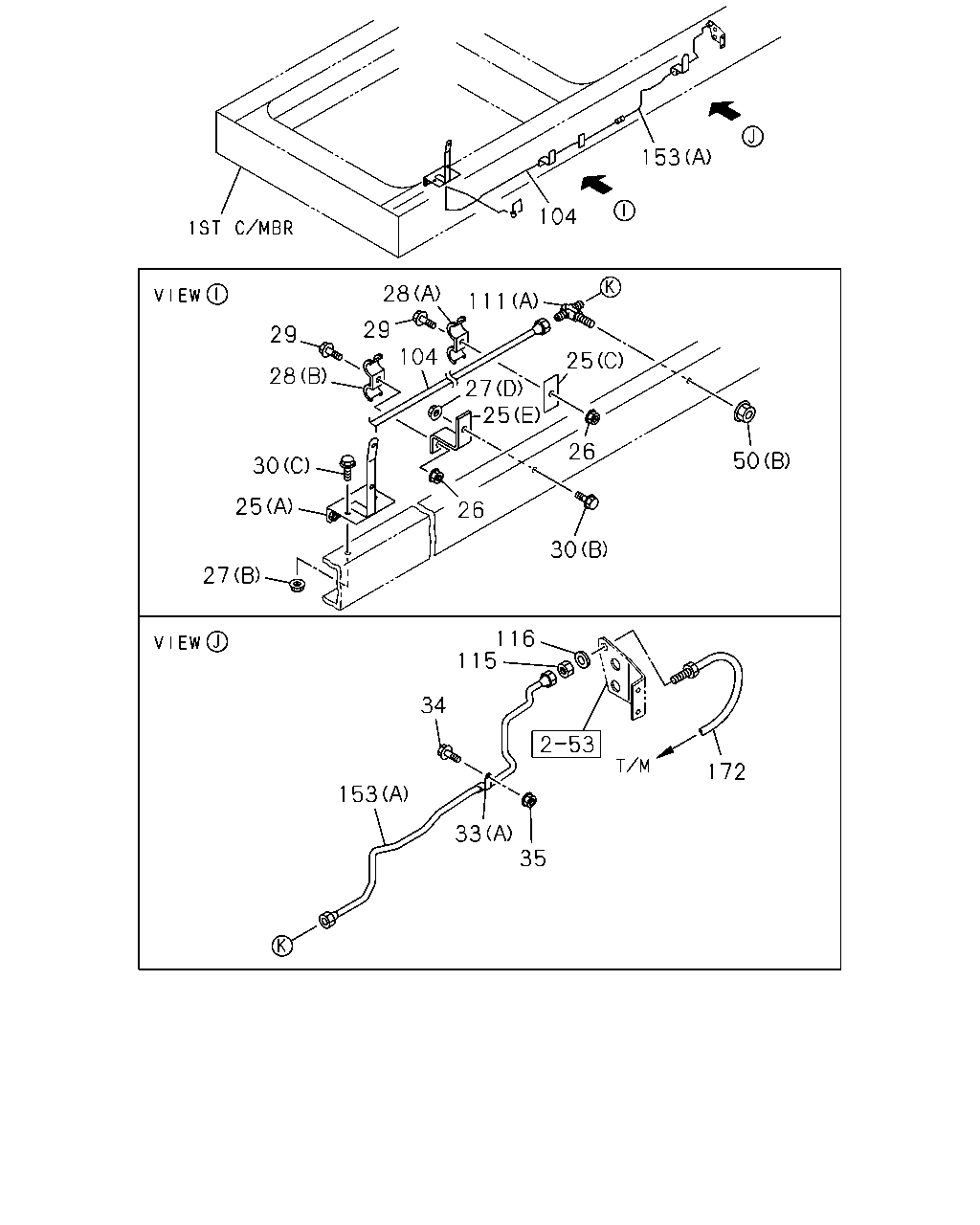

153 104 28 111 29 29 25 104 28 27 25 26 50 30 25 26 30 27 116 115 34 172 153 33 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BRACKET; OIL PIPE (A)	1-47478-582-1	01	1	0105-
25	BRACKET; OIL PIPE (B)	1-71907-627-2	01	1	0105-
25	BRACKET; OIL PIPE ISUZU M/T<X9A> (C) L=50	1-47475-299-2	02	1	0105-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (D)	1-47477-498-1	01	1	0105-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (F)	1-47477-499-1	01	1	0105-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (G)	1-47478-406-0	01	1	0105-
25	BRACKET; OIL PIPE ZF M/T<X9E> (C) L=50	1-47475-299-2	01	1	0105-
25	BRACKET; OIL PIPE ZF M/T<X9E> (E)	1-47475-881-0	01	1	0105-0106
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (E)	1-47477-669-1	01	1	0107-
26	NUT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) M8 FLANGE	0-91150-108-0	03	1	0107-
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0105-0106
26	NUT; CLIP,OIL PIPE ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	02	1	0107-
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	0105-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0105-
27	NUT; BRKT (C) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0105-
27	NUT; BRKT ZF M/T<X9E> (D) M8 FLANGE	0-91150-108-0	01	1	0105-
28	CLIP; OIL PIPE ISUZU M/T<X9A> (A) ID=16 & 9 L=21 & 18	1-09700-676-0	02	1	0105-
28	CLIP; OIL PIPE ZF M/T<X9E> (B) ID=16 & 9 L=18 & 17	1-09700-669-0	01	1	0105-
28	CLIP; OIL PIPE ZF M/T<X9E> (A) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0105-
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A> M8X20 FLANGE	0-28680-820-0	02	1	0105-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) M8X16 FLANGE	0-28080-816-0	05	1	0105-
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> M8X20 FLANGE	0-28680-820-0	01	1	0105-
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	01	1	0105-0106
30	BOLT; BRKT (B) M8X30 FLANGE	0-28680-830-0	01	1	0105-
30	BOLT; BRKT (C) M8X35 FLANGE	0-28680-835-0	02	1	0105-
30	BOLT; BRKT (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0105-
33	CLIP; OIL PIPE ISUZU M/T<X9A> (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0105-
33	CLIP; OIL PIPE ISUZU M/T<X9A> (A) ID=8 H=20 L=20	1-09700-604-0	04	1	0105-
33	CLIP; OIL PIPE ISUZU M/T<X9A> (B) ID=9 L=20	9-09524-835-0	01	1	0105-
33	CLIP; OIL PIPE ZF M/T<X9E> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0105-
34	BOLT; PIPE CLIP ISUZU M/T<X9A> M8X30 FLANGE	0-28680-830-0	02	1	0105-
34	BOLT; PIPE CLIP ISUZU M/T<X9A> M8X30 FLANGE	0-28680-830-0	04	1	0105-
34	BOLT; PIPE CLIP ZF M/T<X9E> M8X30 FLANGE	0-28680-830-0	01	1	0105-
35	NUT; PIPE CLIP ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	03	1	0105-
35	NUT; PIPE CLIP ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	04	1	0105-
35	NUT; PIPE CLIP ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	0105-
50	NUT; UNION (A) M14	9-99111-414-0	01	1	0105-
50	NUT; UNION TRANSMISSION-ZF 16S151 OD(Y2N) (C) M12	9-09840-280-0	01	1	0105-
50	NUT; UNION ZF M/T<X9E> (B) M12 FLANGE	0-91150-212-0	01	1	0105-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ISUZU M/T<X9A> L=2284 SERVICED BY L=2400	1-47426-395-0	01	1	0105-0106
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ISUZU M/T<X9A> L=2296	1-49166-267-0	01	1	0107-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E> L=2143	1-49164-307-0	01	1	0105-0106
104	PIPE; OIL,FLEX HOSE TO CONNECTOR TRANSMISSION-ZF 16S151 OD(Y2N) L=2138 SERVICED BY L=2150	1-47426-394-0	01	1	0107-0108
104	PIPE; OIL,FLEX HOSE TO CONNECTOR TRANSMISSION-ZF 16S151 OD(Y2N) L=2144 SERVICED BY L=2150	1-47426-394-0	01	1	0109-
111	UNION; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (B) M8 & M12 STRAIGHT	1-09654-383-0	01	1	0105-
111	UNION; OIL PIPE ZF M/T<X9E> (A) M14 2WAY	1-09654-176-2	01	1	0105-
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0105-
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) M14	9-99111-414-0	01	1	0105-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0105-
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) ID=14.2	9-09150-514-0	01	1	0105-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=490	1-47428-363-0	01	1	0105-0106
153	PIPE ASM; CLU,UNION TO FLEX (B) L=395	1-49166-204-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (A) L=1633 SERVICED BY L=1700	1-47426-391-0	01	1	0105-0105
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (A) L=1639 SERVICED BY L=1700	1-47426-391-0	01	1	0105-0106
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (A) L=1637 SERVICED BY L=1700	1-47426-391-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX ZF M/T<X9E> (A) L=955	1-49163-430-0	01	1	0105-
172	HOSE; FLEX,CLU BOOSTER TRANSMISSION-ZF 16S151 OD(Y2N) L=470	1-09364-929-0	01	1	0105-

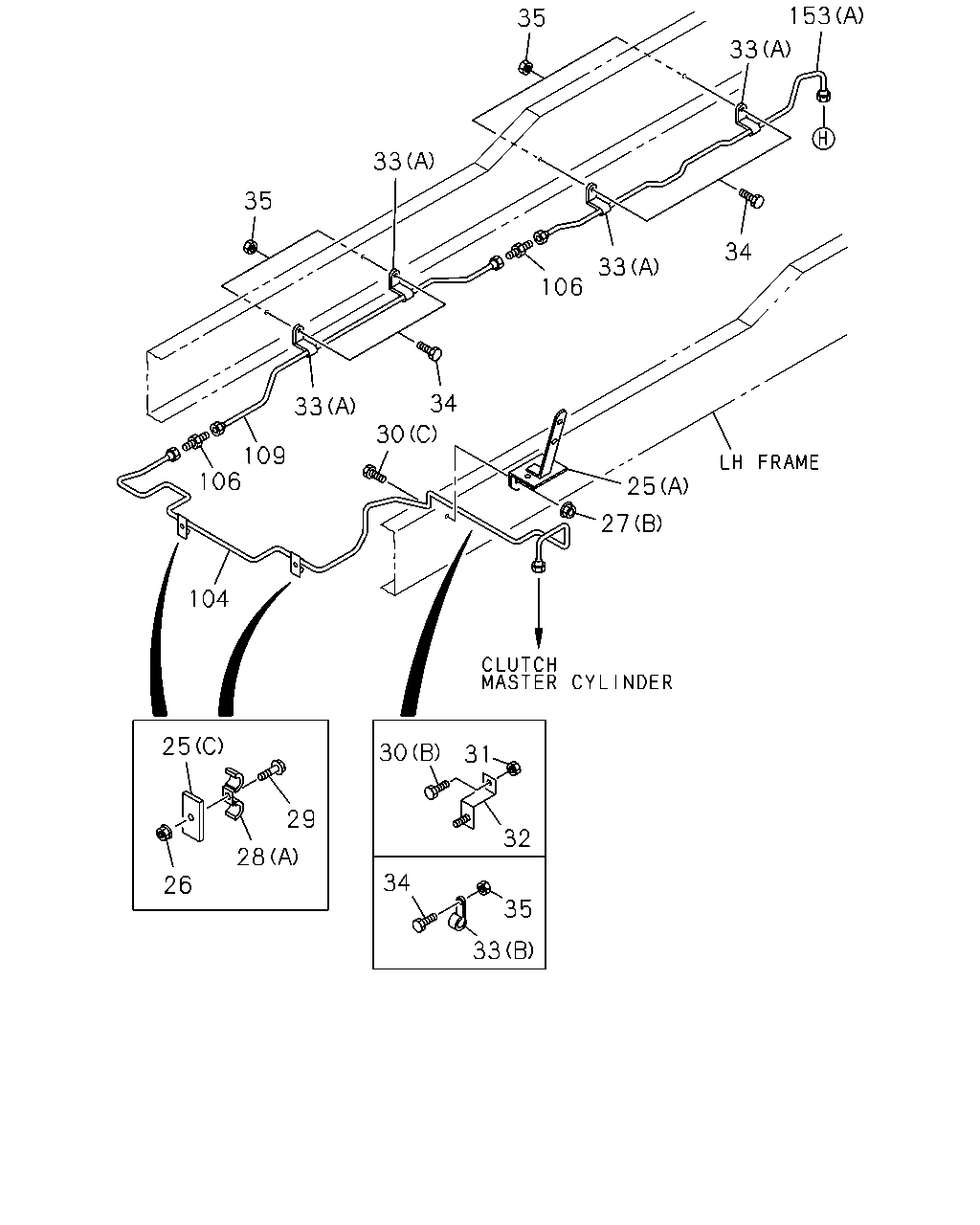

153 35 33 33 35 34 33 106 34 33 30 109 106 25 27 104 25 30 31 29 32 28 34 26 35 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BRACKET; OIL PIPE (A)	1-47478-582-1	01	1	0105-
25	BRACKET; OIL PIPE (B)	1-71907-627-2	01	1	0105-
25	BRACKET; OIL PIPE ISUZU M/T<X9A> (C) L=50	1-47475-299-2	02	1	0105-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (D)	1-47477-498-1	01	1	0105-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (F)	1-47477-499-1	01	1	0105-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (G)	1-47478-406-0	01	1	0105-
25	BRACKET; OIL PIPE ZF M/T<X9E> (C) L=50	1-47475-299-2	01	1	0105-
25	BRACKET; OIL PIPE ZF M/T<X9E> (E)	1-47475-881-0	01	1	0105-0106
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (E)	1-47477-669-1	01	1	0107-
26	NUT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) M8 FLANGE	0-91150-108-0	03	1	0107-
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0105-0106
26	NUT; CLIP,OIL PIPE ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	02	1	0107-
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	0105-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0105-
27	NUT; BRKT (C) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0105-
27	NUT; BRKT ZF M/T<X9E> (D) M8 FLANGE	0-91150-108-0	01	1	0105-
28	CLIP; OIL PIPE ISUZU M/T<X9A> (A) ID=16 & 9 L=21 & 18	1-09700-676-0	02	1	0105-
28	CLIP; OIL PIPE ZF M/T<X9E> (B) ID=16 & 9 L=18 & 17	1-09700-669-0	01	1	0105-
28	CLIP; OIL PIPE ZF M/T<X9E> (A) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0105-
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A> M8X20 FLANGE	0-28680-820-0	02	1	0105-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) M8X16 FLANGE	0-28080-816-0	05	1	0105-
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> M8X20 FLANGE	0-28680-820-0	01	1	0105-
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	01	1	0105-0106
30	BOLT; BRKT (B) M8X30 FLANGE	0-28680-830-0	01	1	0105-
30	BOLT; BRKT (C) M8X35 FLANGE	0-28680-835-0	02	1	0105-
30	BOLT; BRKT (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0105-
31	NUT; BRKT ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	01	1	0105-
32	BRACKET; CLIP OIL PIPE ISUZU M/T<X9A>	1-47477-235-0	01	1	0105-
33	CLIP; OIL PIPE ISUZU M/T<X9A> (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0105-
33	CLIP; OIL PIPE ISUZU M/T<X9A> (A) ID=8 H=20 L=20	1-09700-604-0	04	1	0105-
33	CLIP; OIL PIPE ISUZU M/T<X9A> (B) ID=9 L=20	9-09524-835-0	01	1	0105-
33	CLIP; OIL PIPE ZF M/T<X9E> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0105-
34	BOLT; PIPE CLIP ISUZU M/T<X9A> M8X30 FLANGE	0-28680-830-0	02	1	0105-
34	BOLT; PIPE CLIP ISUZU M/T<X9A> M8X30 FLANGE	0-28680-830-0	04	1	0105-
34	BOLT; PIPE CLIP ZF M/T<X9E> M8X30 FLANGE	0-28680-830-0	01	1	0105-
35	NUT; PIPE CLIP ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	03	1	0105-
35	NUT; PIPE CLIP ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	04	1	0105-
35	NUT; PIPE CLIP ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	0105-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ISUZU M/T<X9A> L=2284 SERVICED BY L=2400	1-47426-395-0	01	1	0105-0106
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ISUZU M/T<X9A> L=2296	1-49166-267-0	01	1	0107-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E> L=2143	1-49164-307-0	01	1	0105-0106
104	PIPE; OIL,FLEX HOSE TO CONNECTOR TRANSMISSION-ZF 16S151 OD(Y2N) L=2138 SERVICED BY L=2150	1-47426-394-0	01	1	0107-0108
104	PIPE; OIL,FLEX HOSE TO CONNECTOR TRANSMISSION-ZF 16S151 OD(Y2N) L=2144 SERVICED BY L=2150	1-47426-394-0	01	1	0109-
106	UNION; OIL PIPE ISUZU M/T<X9A> M14 STRAIGHT	9-09223-008-1	02	1	0105-
106	UNION; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N)	1-09654-384-0	01	1	0105-
109	PIPE; AIR,UNION TO UNION ISUZU M/T<X9A> L=1015 SERVICED BY L=1100	1-47426-387-0	01	1	0105-0205
109	PIPE; AIR,UNION TO UNION ISUZU M/T<X9A> L=1015 SERVICED BY L=1100	1-47434-409-0	01	1	0206-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=490	1-47428-363-0	01	1	0105-0106
153	PIPE ASM; CLU,UNION TO FLEX (B) L=395	1-49166-204-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (A) L=1633 SERVICED BY L=1700	1-47426-391-0	01	1	0105-0105
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (A) L=1639 SERVICED BY L=1700	1-47426-391-0	01	1	0105-0106
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (A) L=1637 SERVICED BY L=1700	1-47426-391-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX ZF M/T<X9E> (A) L=955	1-49163-430-0	01	1	0105-

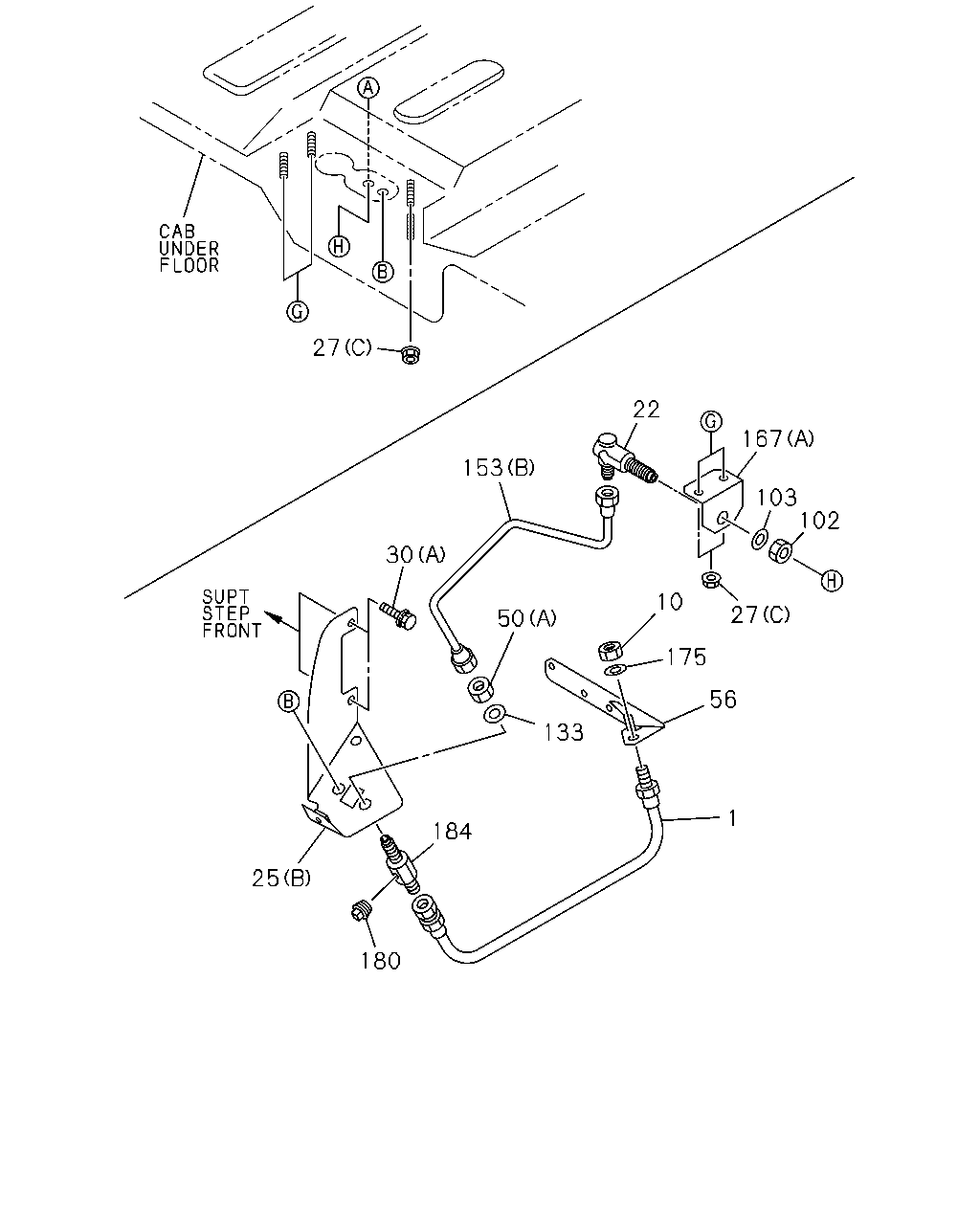

27 22 167 153 103 102 30 10 27 50 175 56 133 1 184 25 180

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,CLU CONT L=520	1-09364-948-1	01	1	0105-
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0105-
22	UNION; CLU PIPE M14	9-09225-208-1	01	1	0105-
25	BRACKET; OIL PIPE (A)	1-47478-582-1	01	1	0105-
25	BRACKET; OIL PIPE (B)	1-71907-627-2	01	1	0105-
25	BRACKET; OIL PIPE ISUZU M/T<X9A> (C) L=50	1-47475-299-2	02	1	0105-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (D)	1-47477-498-1	01	1	0105-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (F)	1-47477-499-1	01	1	0105-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (G)	1-47478-406-0	01	1	0105-
25	BRACKET; OIL PIPE ZF M/T<X9E> (C) L=50	1-47475-299-2	01	1	0105-
25	BRACKET; OIL PIPE ZF M/T<X9E> (E)	1-47475-881-0	01	1	0105-0106
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (E)	1-47477-669-1	01	1	0107-
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	0105-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0105-
27	NUT; BRKT (C) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0105-
27	NUT; BRKT ZF M/T<X9E> (D) M8 FLANGE	0-91150-108-0	01	1	0105-
30	BOLT; BRKT (B) M8X30 FLANGE	0-28680-830-0	01	1	0105-
30	BOLT; BRKT (C) M8X35 FLANGE	0-28680-835-0	02	1	0105-
30	BOLT; BRKT (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0105-
50	NUT; UNION (A) M14	9-99111-414-0	01	1	0105-
50	NUT; UNION TRANSMISSION-ZF 16S151 OD(Y2N) (C) M12	9-09840-280-0	01	1	0105-
50	NUT; UNION ZF M/T<X9E> (B) M12 FLANGE	0-91150-212-0	01	1	0105-
56	BRACKET; FLEX HOSE	1-47477-603-1	01	1	0105-
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0105-
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0105-
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	0105-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=490	1-47428-363-0	01	1	0105-0106
153	PIPE ASM; CLU,UNION TO FLEX (B) L=395	1-49166-204-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (A) L=1633 SERVICED BY L=1700	1-47426-391-0	01	1	0105-0105
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (A) L=1639 SERVICED BY L=1700	1-47426-391-0	01	1	0105-0106
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (A) L=1637 SERVICED BY L=1700	1-47426-391-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX ZF M/T<X9E> (A) L=955	1-49163-430-0	01	1	0105-
167	BRACKET; UNION (B)	1-71117-207-1	01	1	0105-
167	BRACKET; UNION (A)	1-71907-376-1	01	1	0105-
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0105-
180	PLUG; PIPE	9-09204-510-0	01	1	0105-
184	UNION; FLEX HOSE 3WAY	1-09656-679-0	01	1	0105-

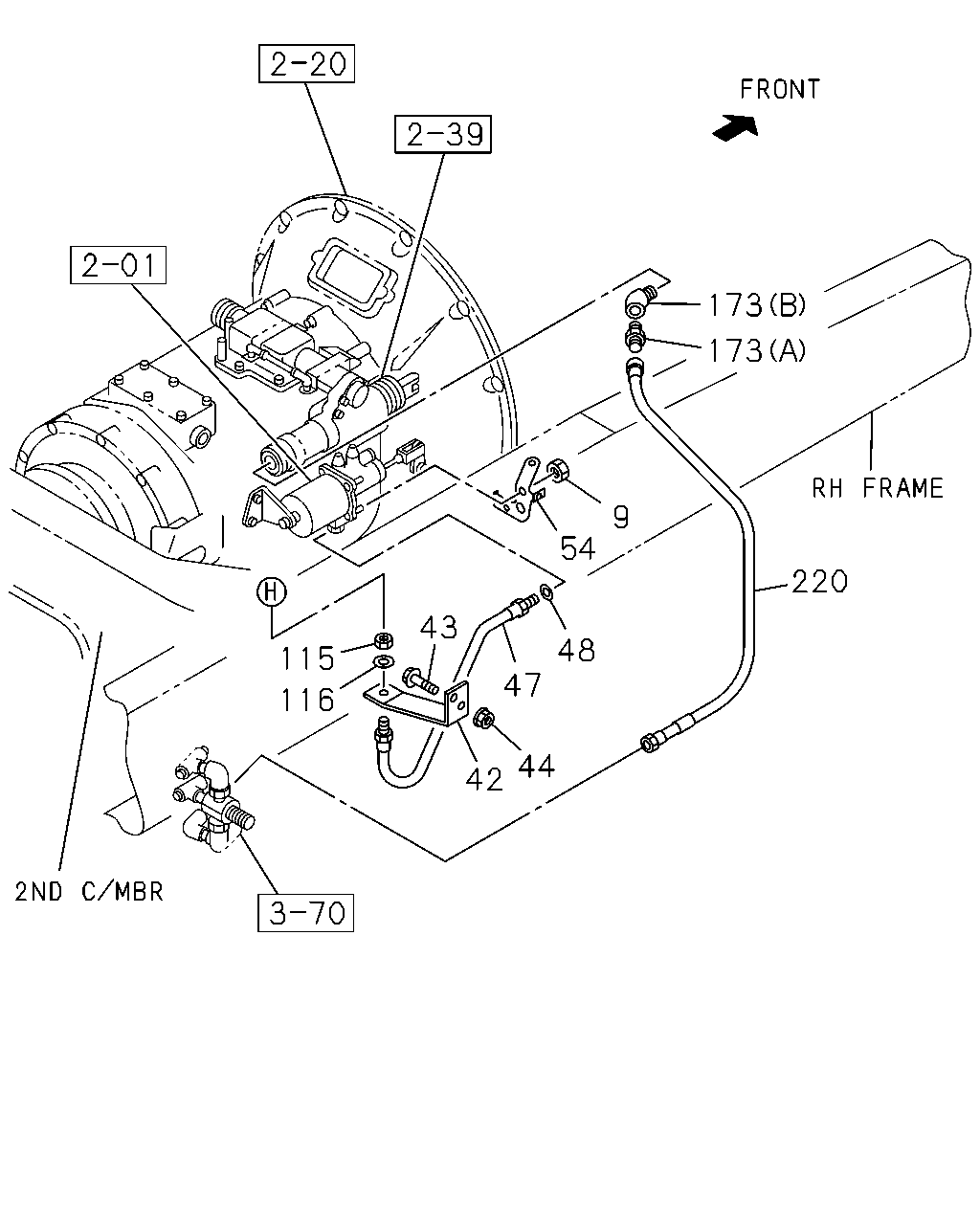

173 173 9 54 220 43 48 115 47 116 44 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	NUT; BRKT,FLEX HOSE MJD7S M/T(Y2Y) M10 FLANGE	0-91150-210-0	02	1	0105-
42	BRACKET; FLEX HOSE,CLU CONT ISUZU M/T<X9A>	1-47479-099-0	01	1	0105-0105
42	BRACKET; FLEX HOSE,CLU CONT ISUZU M/T<X9A>	1-47479-261-0	01	1	0106-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> M8X30 FLANGE	0-28680-830-0	02	1	0105-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	02	1	0105-
47	HOSE; FLEX,CLU CONT MJD7S M/T(Y2Y) L=390	1-09364-475-0	01	1	0105-0105
47	HOSE; FLEX,CLU CONT MJD7S M/T(Y2Y) L=500	1-09364-329-0	01	1	0106-
47	HOSE; FLEX,CLU CONT MJX16P M/T(Y3Z) L=370	1-09364-646-0	01	1	0107-
48	GASKET; FLEX HOSE,CLU CONT ISUZU M/T<X9A> ID=10.2 OD=16.0	9-09571-410-0	01	1	0105-
54	BRACKET; AIR,FLEX HOSE MJD7S M/T(Y2Y)	1-47477-284-1	01	1	0105-
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0105-
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) M14	9-99111-414-0	01	1	0105-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0105-
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) ID=14.2	9-09150-514-0	01	1	0105-
173	CONNECTOR ISUZU M/T<X9A> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0105-
173	CONNECTOR ISUZU M/T<X9A> (B) R1/4 & RC1/4	1-09664-211-0	01	1	0105-0204
173	CONNECTOR MJX16P M/T(Y3Z) (B) R1/4 & RC1/4	1-09664-211-0	01	1	0205-
220	HOSE; FLEX,POWER ASSIST MJD7S M/T(Y2Y) L=340	1-09363-617-0	01	1	0105-0204
220	HOSE; FLEX,POWER ASSIST MJD7S M/T(Y2Y) L=300	1-09363-611-0	01	1	0205-
220	HOSE; FLEX,POWER ASSIST MJX16P M/T(Y3Z) L=270	1-09363-687-0	01	1	0107-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
