1-56 — EXHAUST BRAKE SYSTEM (#10143) — 16 parça

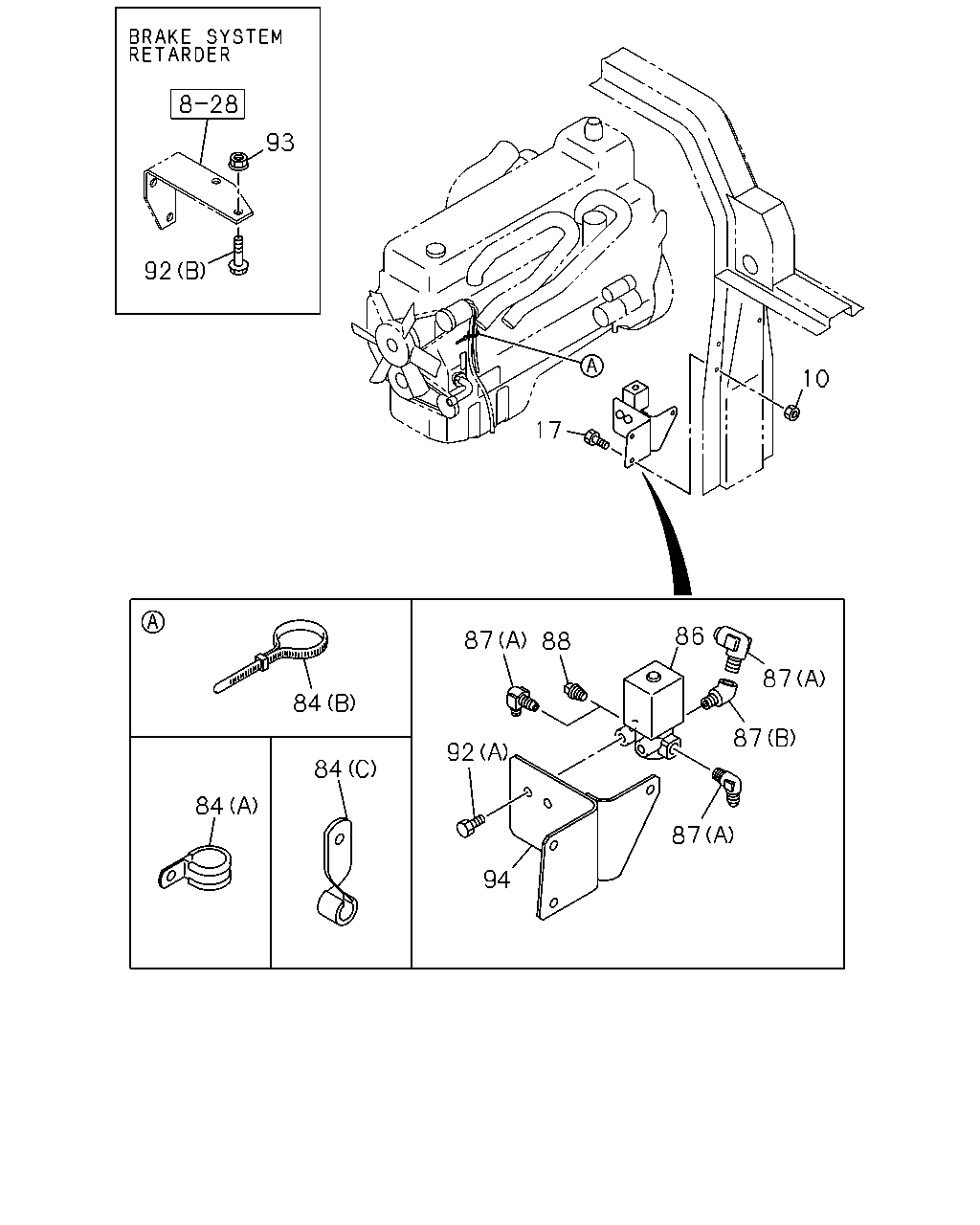

çizim 77836
93 92 10 17 86 87 88 87 84 87 92 84 84 87 94
BalonParca AdiParca NoAdetTipApplied Date
10 NUT; BRKT,EXH BRAKE
M8 FLANGE 		0-91150-108-0 03 1 0105-
17 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 03 1 0105-
84 CLIP; HARNESS
(A) ID=19 L=50 		9-09525-886-0 01 1 0201-
84 CLIP; HARNESS
(A) ID=22 L=32 		1-09700-126-1 02 1 0105-0112
84 CLIP; HARNESS
(A) ID=22 L=32 		1-09700-126-1 01 1 0201-
84 CLIP; HARNESS
(C) ID=20 L=50 		1-09700-679-1 01 1 0105-
84 CLIP; HARNESS
(B) L=140 		5-09707-031-1 01 1 0105-
86 VALVE; MAG,EXH BRK 1-82563-871-2 01 1 0105-
87 CONNECTOR
(B) R1/4 & RC1/4 		1-09664-211-0 01 1 0201-
87 CONNECTOR
FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 03 1 0105-
87 CONNECTOR
EXC. FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0105-
88 PLUG
EXC. FULL FLOATING CAB(W16) PT1/4 		9-99204-513-0 01 1 0105-
92 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0105-
92 BOLT; MAG VLV
BRAKE SYSTEM RETARDER<RE2> (B) M8X70 FLANGE 		0-28080-870-0 02 1 0105-
93 NUT; MAG VLV
BRAKE SYSTEM RETARDER<RE2> M8 FLANGE 		0-91150-108-0 02 1 0105-
94 BRACKET; MAG VLV,EXH BRAKE 1-82569-273-0 01 1 0105-
