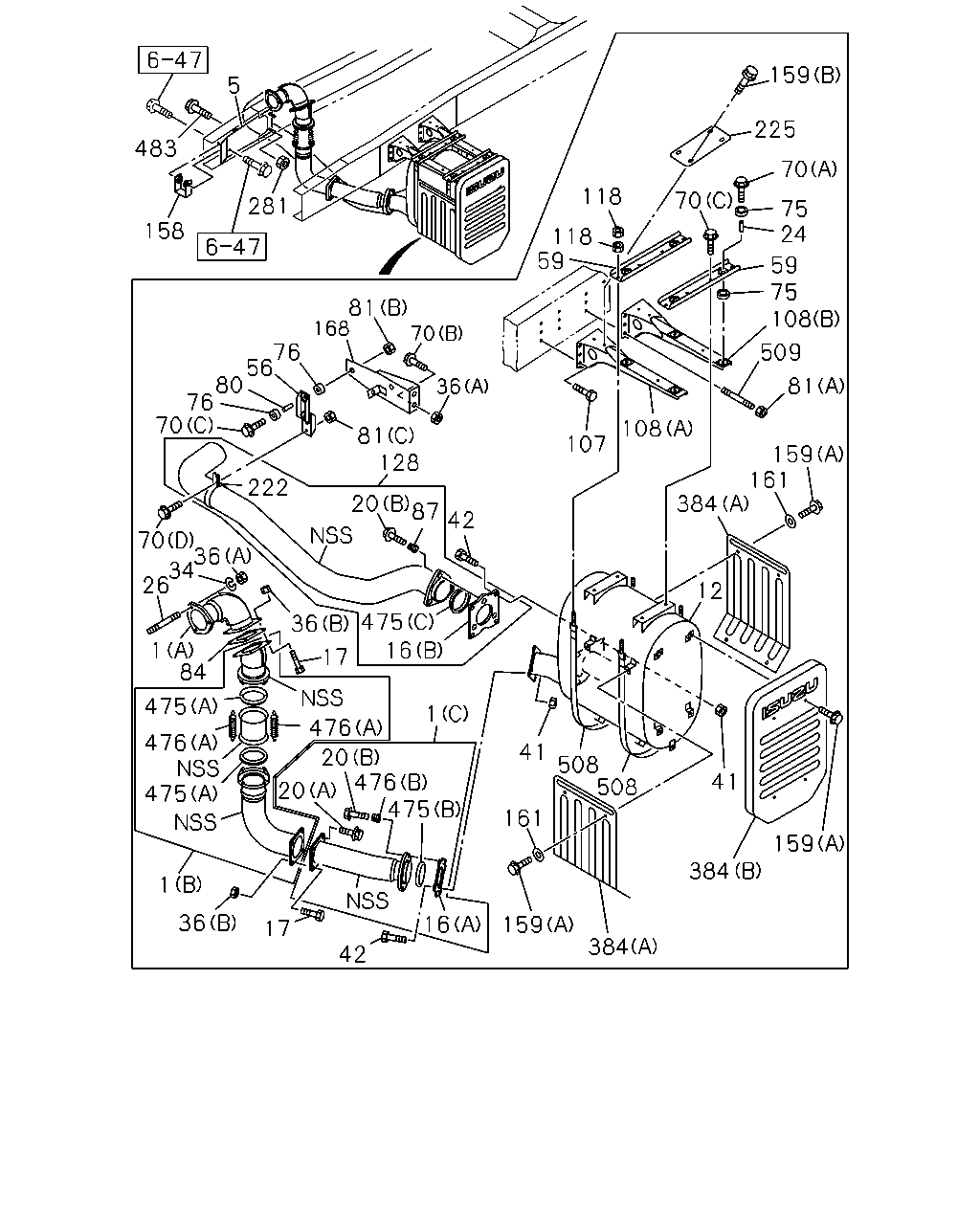

1 |
PIPE; EXH
(A)
|
1-22122-227-1 |
01 |
1 |
0105- |
| |
1 |
PIPE; EXH
(B)
|
1-22122-818-0 |
01 |
1 |
0105- |
| |
1 |
PIPE; EXH
(C)
|
1-22123-421-1 |
01 |
1 |
0105- |
| |
5 |
PROTECTOR; HEAT
|
1-22119-405-0 |
01 |
1 |
0105- |
| |
12 |
SILENCER ASM; EXH
|
1-22140-968-3 |
01 |
1 |
0105- |
| |
16 |
FLANGE; EXH PIPE
(B)
|
1-22115-194-0 |
01 |
1 |
0105- |
| |
16 |
FLANGE; EXH PIPE
(A)
|
1-22115-148-1 |
01 |
1 |
0105- |
| |
17 |
BOLT; EXH PIPE
M12X25 FLANGE
|
1-09000-604-0 |
07 |
1 |
0105- |
| |
20 |
BOLT; FLANGE,EXH PIPE
(B)
M10X51.4
|
1-09009-167-0 |
05 |
1 |
0105- |
| |
20 |
BOLT; FLANGE,EXH PIPE
(A)
M12X30 FLANGE
|
0-28691-230-0 |
01 |
1 |
0105- |
| |
24 |
COLLAR; DIST,CLAMP
L=22
|
9-22159-024-0 |
04 |
1 |
0105- |
| |
26 |
STUD; EXH MANIF
M12X140 L=160
|
1-09302-163-0 |
03 |
1 |
0105- |
| |
34 |
WASHER; EXH PIPE
ID=13 OD=24 DISH
|
1-09556-020-0 |
03 |
1 |
0105- |
| |
36 |
NUT; EXH PIPE
(A)
M12
|
1-09400-131-0 |
03 |
1 |
0105- |
| |
36 |
NUT; EXH PIPE
(B)
M12
|
9-99110-512-0 |
08 |
1 |
0105- |
| |
41 |
NUT; EXH PIPE TO EXH SILENCER
M12
|
9-99110-512-0 |
08 |
1 |
0105- |
| |
42 |
BOLT; EXH PIPE TO EXH SILENCER
M12X25 FLANGE
|
1-09000-604-0 |
08 |
1 |
0105- |
| |
56 |
BRACKET; CLAMP,EXH PIPE
|
1-22151-812-0 |
01 |
1 |
0105-0312 |
| |
56 |
BRACKET; CLAMP,EXH PIPE
|
1-22152-070-0 |
01 |
1 |
0401- |
| |
59 |
BRACKET; EXH SILENCER,FRT
|
1-22151-710-1 |
02 |
1 |
0105- |
| |
70 |
BOLT; BRKT
(A)
M10X25 FLANGE
|
0-28081-025-0 |
04 |
1 |
0105-0406 |
| |
70 |
BOLT; BRKT
(A)
M10X20 FLANGE
|
0-28681-020-0 |
04 |
1 |
0407- |
| |
70 |
BOLT; BRKT
(C)
M10X50 FLANGE
|
0-28081-050-0 |
05 |
1 |
0105- |
| |
70 |
BOLT; BRKT
(B)
M10X30 FLANGE
|
0-28681-030-0 |
02 |
1 |
0105- |
| |
70 |
BOLT; BRKT
(D)
M8X40 FLANGE
|
0-28680-840-0 |
02 |
1 |
0105- |
| |
75 |
RUBBER; SUPPORT,BRKT
OD=40
|
1-22159-094-0 |
08 |
1 |
0105- |
| |
76 |
SUPPORT; BRKT
OD=40
|
1-22159-094-0 |
02 |
1 |
0105- |
| |
80 |
COLLAR; DIST,SUPPORT RUBBER
L=22
|
9-22159-024-0 |
01 |
1 |
0105- |
| |
81 |
NUT; BRKT
(A)
M12 FLANGE
|
0-91150-212-0 |
08 |
1 |
0105- |
| |
81 |
NUT; BRKT
(C)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0105- |
| |
81 |
NUT; BRKT
(B)
M10 FLANGE
|
0-91150-210-0 |
01 |
1 |
0105- |
| |
84 |
GASKET; EXH PIPE
|
1-22116-030-0 |
01 |
1 |
0105- |
| |
87 |
SPRING; PRE SILENCER
|
8-94141-851-0 |
03 |
1 |
0105- |
| |
107 |
BOLT; BRKT
M12X40 FLANGE
|
0-28681-240-0 |
04 |
1 |
0105- |
| |
108 |
BRACKET; BRKT TO FRAME,EXH SILENCER,FR
(A)
|
1-22131-774-3 |
01 |
1 |
0105- |
| |
108 |
BRACKET; BRKT TO FRAME,EXH SILENCER,FR
(B)
|
1-22131-775-3 |
01 |
1 |
0105- |
| |
118 |
NUT; SILENCER MTG BRKT
M10
|
9-09110-510-0 |
08 |
1 |
0105- |
| |
128 |
PIPE; EXH,RR
|
1-22122-841-2 |
01 |
1 |
0105- |
| |
158 |
BRACKET; HEAT PROTECTOR
|
1-22119-368-0 |
01 |
1 |
0105- |
| |
159 |
BOLT; HEAT PROTECTOR
(B)
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
0105- |
| |
159 |
BOLT; HEAT PROTECTOR
(A)
M8X22 W/LK&PL WASHER
|
1-09030-042-0 |
12 |
1 |
0105- |
| |
161 |
WASHER; PL,HEAT PROTECTOR
ID=10.5 OD=26
|
9-09160-710-0 |
08 |
1 |
0105- |
| |
168 |
BRACKET; EXH PIPE,FRT
|
1-22131-847-0 |
01 |
1 |
0105- |
| |
222 |
CLAMP; EXH PIPE
|
1-22133-276-0 |
01 |
1 |
0105- |
| |
225 |
PROTECTOR; HEAT
|
1-22119-489-0 |
01 |
1 |
0105-0105 |
| |
225 |
PROTECTOR; HEAT
|
1-22119-515-0 |
01 |
1 |
0106- |
| |
281 |
NUT; HEAT PROTECTOR
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0105- |
| |
384 |
PROTECTOR; HEAT SILENCER MTG
(B)
|
1-22119-378-3 |
01 |
1 |
0105- |
| |
384 |
PROTECTOR; HEAT SILENCER MTG
(A)
|
1-22119-379-1 |
02 |
1 |
0105- |
| |
475 |
BEARING; SEAL,VIBNON,EXH PIPE
(C)
OD=122
|
1-22119-297-0 |
01 |
1 |
0105- |
| |
475 |
BEARING; SEAL,VIBNON,EXH PIPE
(B)
OD=112
|
1-22119-294-0 |
01 |
1 |
0105- |
| |
475 |
BEARING; SEAL,VIBNON,EXH PIPE
(A)
OD=122
|
1-22119-297-0 |
02 |
1 |
0105- |
| |
476 |
SPRING; VIBNON,EXH PIPE
(A)
|
1-09583-298-0 |
04 |
1 |
0105- |
| |
476 |
SPRING; VIBNON,EXH PIPE
(B)
|
8-94141-851-0 |
02 |
1 |
0105- |
| |
483 |
BOLT; BRKT,HEAT PROTECTOR
M8X30 FLANGE
|
0-28680-830-0 |
01 |
1 |
0105- |
| |
508 |
BAND; EXHAUST SILENCER
|
1-22159-264-1 |
02 |
1 |
0105- |
| |
509 |
STUD; BRKT
M12X32 L=54
|
1-09300-096-0 |
04 |
1 |
0105-0303 |
| |
509 |
STUD; BRKT
M12X40 L=56
|
1-09300-123-0 |
04 |
1 |
0304- |
