Isuzu WW
▶
TRUCKS
▶
EXR
▶
10868 - EXR LHD FUEL TANK 400L
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-41 - FUEL PIPING; CHASSIS
▶

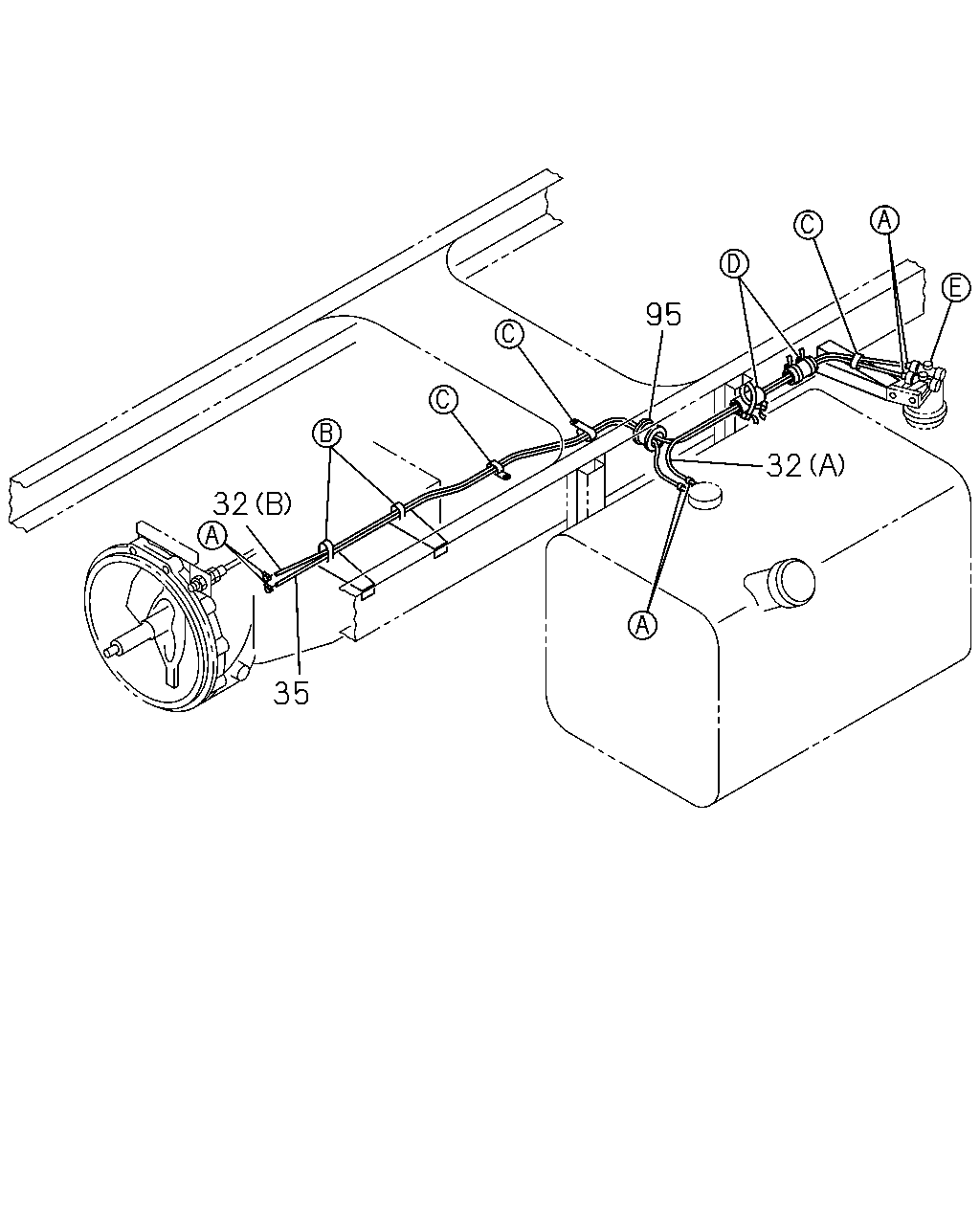

1-41 — FUEL PIPING; CHASSIS
(#10139) — 22 parça
◀
[141A] PIPE;FUEL TANK (4 parça)
[141A] BRACKET AND CLIP (18 parça)
▶
95
32
32
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
32
PIPE; DELIVERY,FUEL TANK
(A) L=900 SERVICED BY L=3000
0-01260-300-0
01
1
0105-
32
PIPE; DELIVERY,FUEL TANK
(B) L=2000 SERVICED BY L=3000
0-01260-300-0
01
1
0105-
35
PIPE; FUEL TANK,RETURN
L=1750 SERVICED BY L=3000
0-01260-300-0
01
1
0105-
95
BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=25
1-09332-011-1
01
1
0105-
102
32
100
41
35
102
97
101
100
227
38
101
229
102
228
100
289
102
228
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
32
PIPE; DELIVERY,FUEL TANK
(A) L=900 SERVICED BY L=3000
0-01260-300-0
01
1
0105-
32
PIPE; DELIVERY,FUEL TANK
(B) L=2000 SERVICED BY L=3000
0-01260-300-0
01
1
0105-
35
PIPE; FUEL TANK,RETURN
L=1750 SERVICED BY L=3000
0-01260-300-0
01
1
0105-
38
SLEEVE; RUBBER,RUBBER HOSE
L=150
1-09360-677-1
02
1
0105-
41
CLIP; FUEL PIPE,FUEL TANK
ID=14
1-09704-102-0
06
1
0105-
97
BRACKET; CLIP
1-47479-247-0
02
1
0105-
100
CLIP; FUEL PIPE
(A) ID=14X29 H=15 L=20
1-09700-744-0
03
1
0105-
100
CLIP; FUEL PIPE
(B) ID=15
1-09700-845-1
02
1
0105-0106
100
CLIP; FUEL PIPE
(B)
1-09701-299-0
02
1
0107-
101
BOLT; CLIP,FUEL PIPE
M8X25 FLANGE
0-28680-825-0
03
1
0105-
102
NUT; CLIP,FUEL PIPE
M8 FLANGE
0-91150-108-0
05
1
0112-
102
NUT; CLIP,FUEL PIPE
M8 FLANGE
0-91150-108-0
07
1
0105-0111
102
NUT; CLIP,FUEL PIPE
M8 FLANGE
0-91150-108-0
02
1
0112-
227
BRACKET; FUEL SEDIMENTER
1-22518-179-0
01
1
0105-
228
BOLT; BRKT,SEDIMENTER
(A) M10X30 FLANGE
0-28681-030-0
02
1
0105-
228
BOLT; BRKT,SEDIMENTER
(B) M10X35 FLANGE
0-28681-035-0
02
1
0105-
229
NUT; BRKT,FUEL FILTER
M10 FLANGE
0-91150-210-0
04
1
0105-
289
CLIP; BAND,HOSE
L=250
5-09707-030-1
04
1
0105-
