Isuzu WW
▶
TRUCKS
▶
EXR
▶
10868 - EXR LHD FUEL TANK 400L
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-30 - AIR CLEANER
▶
1-30 — AIR CLEANER
(#10135) — 21 parça
◀
[130A] COMPONENT;AIR CLEANER (7 parça)
[130A] INSULATOR AND COVER (14 parça)
▶
1
6
8
94
1
27
26
94
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date

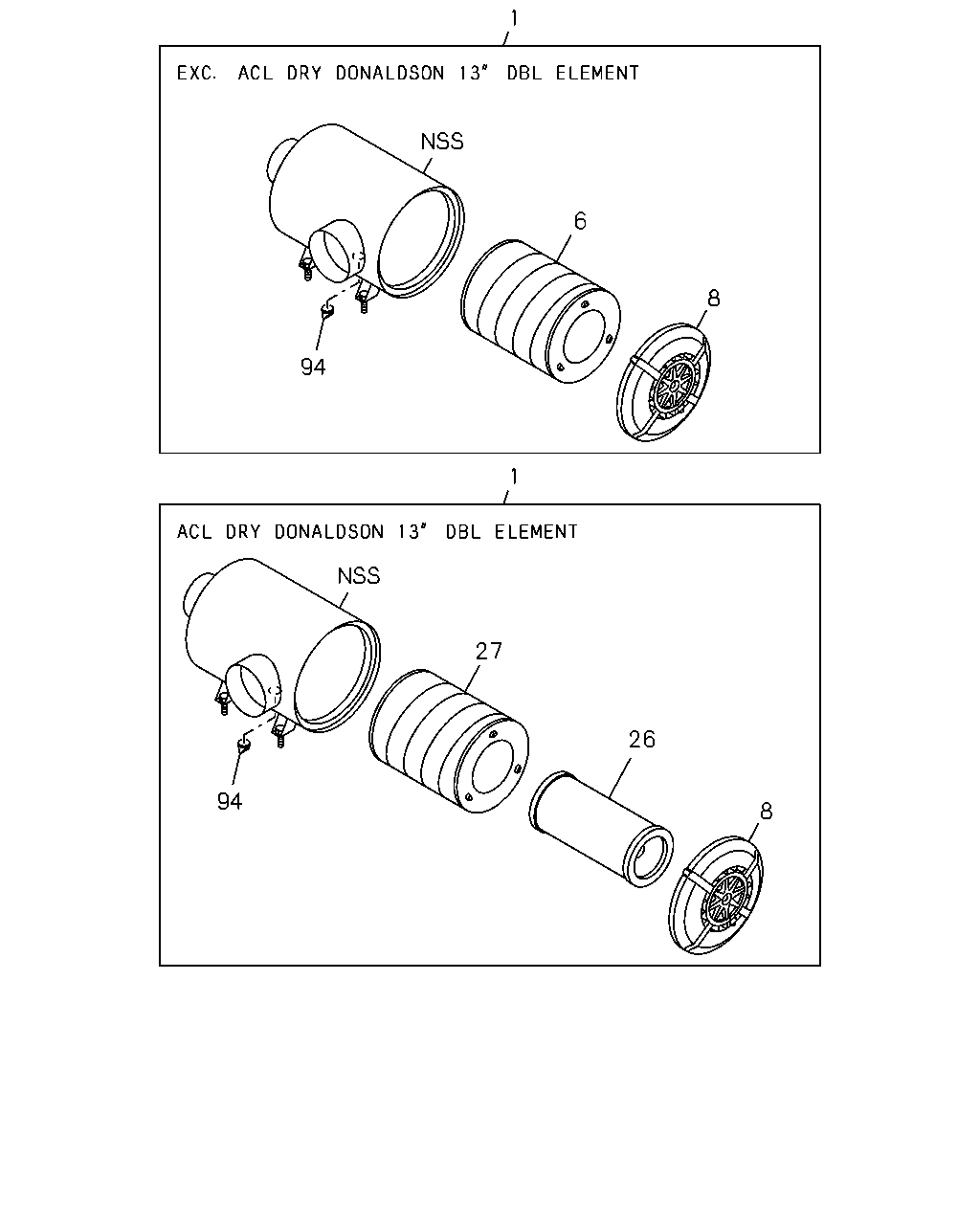

1
CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>
1-14210-821-0
01
1
0105-
1
CLEANER ASM; AIR
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>
1-14210-787-3
01
1
0105-
6
FILTER; ACL
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>
1-14215-213-0
01
1
0105-
8
COVER ASM; ACL
1-14212-132-0
01
1
0105-
26
FILTER; ACL,INNER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>
1-14215-220-0
01
1
0105-
27
FILTER; ACL,OUTER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>
1-14215-213-0
01
1
0105-
94
VALVE; VACUATOR
1-14219-192-0
01
1
0105-
56
1
67
210
66
66
172
211
212
212
65
66
211
64
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date

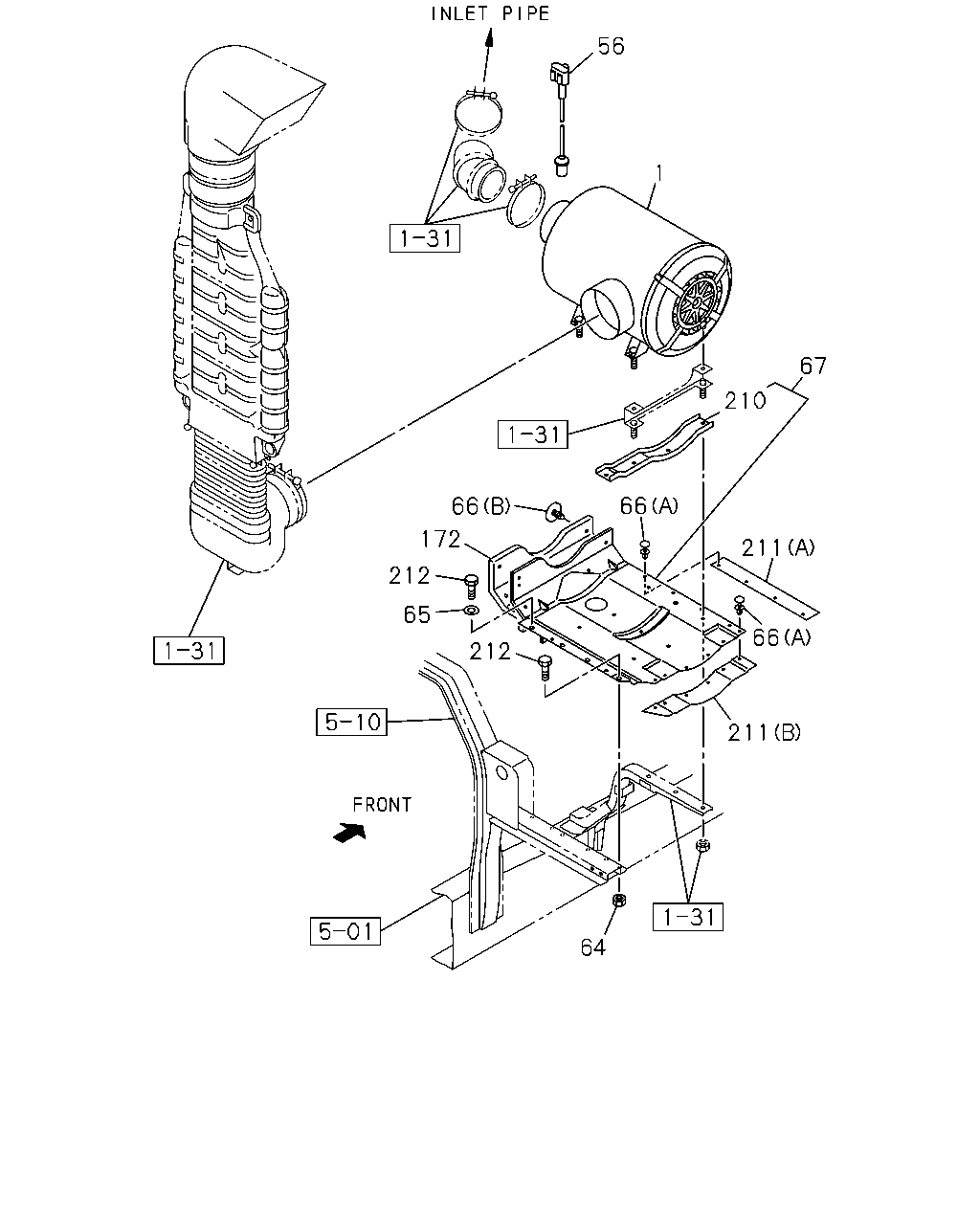

1
CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>
1-14210-821-0
01
1
0105-
1
CLEANER ASM; AIR
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>
1-14210-787-3
01
1
0105-
56
SWITCH; ACL
1-81530-016-0
01
1
0105-
64
NUT; BAND BRKT
M10 FLANGE
0-91150-210-0
04
1
0105-
65
WASHER; PL
ID=10.5 OD=26
9-09160-710-0
03
1
0105-0402
65
WASHER; PL
ID=10.5 OD=26
9-09160-710-0
04
1
0403-
66
CLIP; ACL
(A)
5-09987-033-0
09
1
0105-
66
CLIP; ACL
(B)
8-94279-048-0
07
1
0105-
67
COVER; ACL
1-53419-304-0
01
1
0105-
172
INSULATOR; NOISE
1-53446-780-1
01
1
0105-
210
BRACKET; ACL MTG
1-53419-283-0
02
1
0105-
211
RUBBER; SEAL
(A)
1-79931-007-0
01
1
0105-
211
RUBBER; SEAL
(B)
1-79931-008-2
01
1
0105-
212
BOLT; MUD COVER
M10X25 FLANGE
0-28681-025-0
04
1
0105-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
