Isuzu WW
▶
TRUCKS
▶
EXR
▶
10868 - EXR LHD FUEL TANK 400L
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-11 - RADIATOR HOSE AND SUB TANK
▶

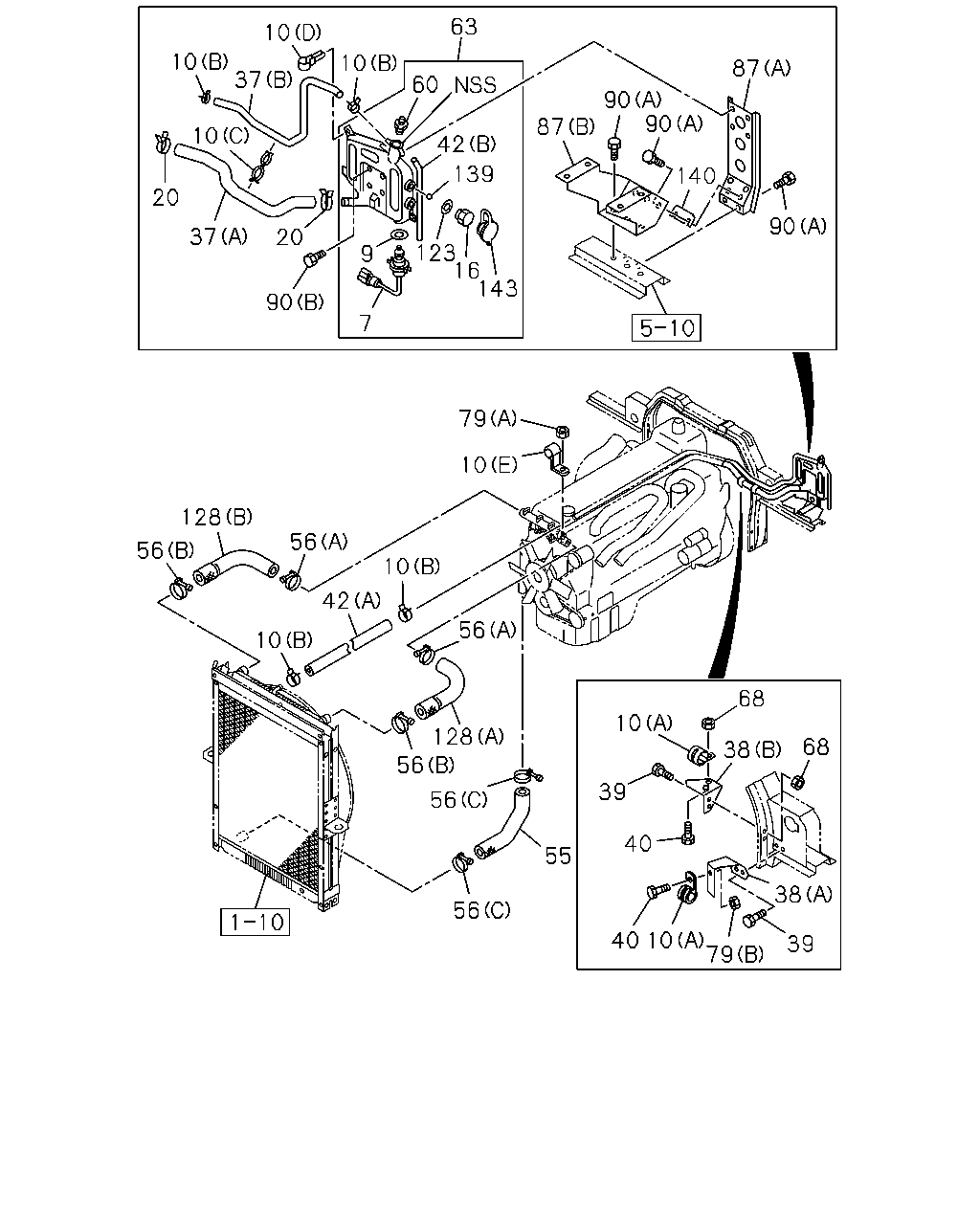

1-11 — RADIATOR HOSE AND SUB TANK
(#10134) — 37 parça
63
10
10
37
10
87
60
90
87
90
140
42
10
139
20
90
37
20
123
16
143
9
90
7
79
10
128
56
56
10
42
56
10
68
10
128
68
38
56
39
56
40
55
38
56
40
10
79
39
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
7
SWITCH ASM; TANK
1-82480-093-1
01
1
0105-
9
GASKET; SWITCH
ID=28 T=2.5
1-09630-126-0
01
1
0105-
10
CLIP; RUBBER HOSE
(E) ID=15 H=24 L=20
1-09700-606-0
01
1
0105-
10
CLIP; RUBBER HOSE
(A) ID=43 L=40
1-09700-624-2
02
1
0105-
10
CLIP; RUBBER HOSE
(B) ID=14
1-09704-102-0
04
1
0105-
10
CLIP; RUBBER HOSE
(C) ID=44 & 16
1-09709-125-0
04
1
0105-
10
CLIP; RUBBER HOSE
(D) ID=14 L=44
9-09917-427-0
02
1
0105-
16
PLUG; TANK
1-21464-514-0
02
1
0105-0205
20
CLIP; HOSE,RAD
ID=31
1-09707-093-1
02
1
0105-
37
HOSE; RUBBER
(B) L=1450 SERVICED BY L=3000
0-03559-300-0
01
1
0105-
37
HOSE; RUBBER
(A)
1-21437-568-1
01
1
0105-
38
BRACKET; RUBBER HOSE
(A)
1-21489-158-2
01
1
0105-
38
BRACKET; RUBBER HOSE
(B)
1-21489-165-1
01
1
0105-
39
BOLT; BRKT FIX
M8X20 FLANGE
0-28680-820-0
04
1
0105-
40
BOLT; CLIP
M10X25 FLANGE
0-28681-025-0
02
1
0105-
42
HOSE; RUBBER
(A) L=560 SERVICED BY L=3000
0-03559-300-0
01
1
0105-
42
HOSE; RUBBER
(B) L=850
1-21489-154-0
01
1
0105-
55
HOSE; WATER,RAD OUTLET
1-21437-615-1
01
1
0105-
56
CLIP; WATER HOSE,RAD
(A) ID=57
1-09704-066-0
02
1
0105-
56
CLIP; WATER HOSE,RAD
(B) ID=63
1-09704-067-0
02
1
0105-
56
CLIP; WATER HOSE,RAD
(C) ID=72
1-09704-068-0
02
1
0105-
60
CAP; SUB TANK
1-21450-137-0
01
1
0105-
63
TANK ASM; SUB
1-21481-144-0
01
1
0105-0205
63
TANK ASM; SUB
1-21481-146-0
01
1
0206-
68
NUT; BRKT
M8 FLANGE
0-91150-108-0
04
1
0105-
79
NUT; CLIP,HOSE
(A) M8 FLANGE
0-91150-108-0
01
1
0105-
79
NUT; CLIP,HOSE
(B) M10 FLANGE
0-91150-210-0
01
1
0105-
87
BRACKET; SUB TANK
(B)
1-21489-155-0
01
1
0105-
87
BRACKET; SUB TANK
(A)
1-21489-162-0
01
1
0105-
90
BOLT; SUB TANK TO BRKT
(A) M8X20 FLANGE
0-28680-820-0
06
1
0105-
90
BOLT; SUB TANK TO BRKT
(B) M8X25 W/LK&PL WASHER
1-09030-027-0
04
1
0105-
123
GASKET
ID=26.2
8-94399-716-1
02
1
0105-0205
128
HOSE; WATER,RAD INL
(A)
1-21437-617-0
01
1
0105-
128
HOSE; WATER,RAD INL
(B)
1-21437-618-1
01
1
0105-
139
FLOAT
1-21489-161-0
02
1
0105-0205
140
SHIM
T=0.8
1-53458-716-0
AR
1
0105-
143
COVER; PLUG
1-82389-017-0
02
1
0105-0205
