Isuzu WW
▶
TRUCKS
▶
EXR
▶
10868 - EXR LHD FUEL TANK 400L
▶
0 - Engine, Emission, Engine Electrical
▶
0-50 - OIL COOLER AND OIL FILTER
▶
0-50 — OIL COOLER AND OIL FILTER
(#10121) — 132 parça
◀

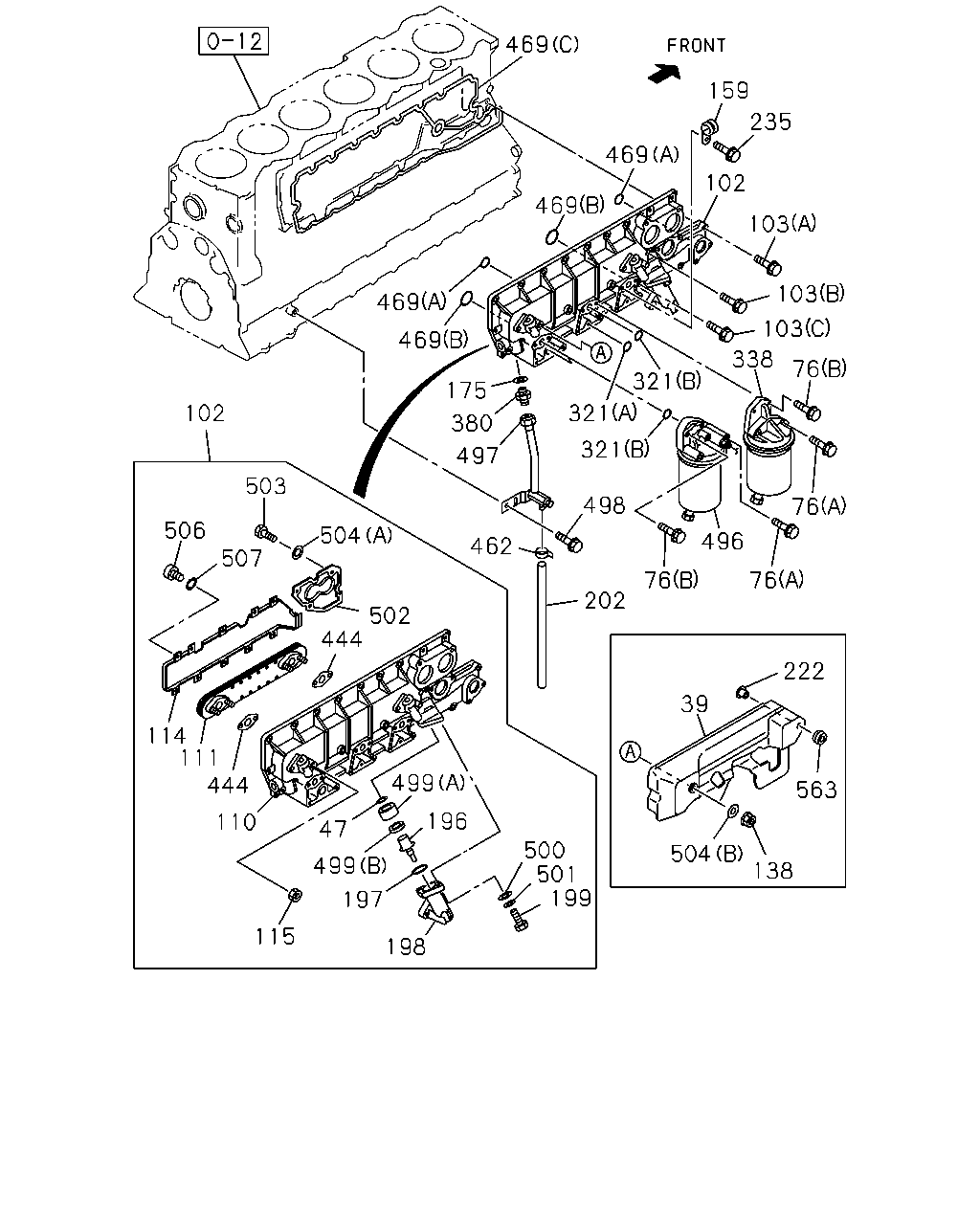

[050A] OIL COOLER ASM AND OTHER PARTS (55 parça)
[050A] MAIN FILTER (39 parça)
[050A] PARTIAL FILTER (38 parça)
▶
469
159
235
469
102
469
103
103
469
103
469
338
76
321
175
321
102
380
321
497
503
498
76
506
504
496
462
507
76
76
202
502
444
222
39
114
111
499
444
563
196
110
47
500
501
199
504
499
138
197
115
198
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
39
COVER; OIL COOLER
1-19380-151-1
01
1
0105-
47
RING; SEAL,THERMO VLV
1-21779-001-0
01
1
0105-
76
BOLT; OIL FILTER
(B) M10X50 FLANGE
0-28181-050-0
04
1
0105-
76
BOLT; OIL FILTER
(A) M10X90 FLANGE
0-28181-090-0
04
1
0105-0303
76
BOLT; OIL FILTER
(A) M10X100 FLANGE
0-28181-000-0
04
1
0304-
102
COOLER ASM; OIL
1-21700-353-2
01
1
0105-0106
102
COOLER ASM; OIL
1-21700-325-1
01
1
0107-
103
BOLT; OIL COOLER
(A) M10X30 FLANGE
0-28181-030-0
17
1
0105-
103
BOLT; OIL COOLER
(C) M10X110 FLANGE
0-28186-011-0
01
1
0105-
103
BOLT; OIL COOLER
(B) M10X65 FLANGE
8-94344-540-1
08
1
0105-
110
BODY; CASE,OIL COOLER
1-21721-092-2
01
1
0105-0106
110
BODY; CASE,OIL COOLER
1-21721-091-2
01
1
0107-
111
CORE; OIL COOLER
1-21723-053-1
01
1
0105-
114
PLATE; BAFFLE,OIL COOLER
1-21729-086-1
01
1
0105-
115
NUT; ELEMENT
M10 FLANGE
0-91150-110-0
04
1
0105-0106
115
NUT; ELEMENT
M10 FLANGE
0-91250-110-0
04
1
0107-
138
NUT
M10 FLANGE
0-91150-110-0
02
1
0105-
159
CLIP; CABLE HARNESS,OIL COOLER
L=20 H=31
1-09700-770-0
01
1
0105-
175
GASKET; DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.2 OD=24.4
1-09630-087-0
01
1
0105-
196
THERMOSTAT; OIL COOLER
1-21770-010-0
01
1
0105-
197
GASKET; THERMOSTAT
1-09623-419-0
01
1
0105-
198
JOINT; THERMOSTAT
1-21726-053-2
01
1
0105-
199
BOLT; JOINT,THERMOSTAT
M10X35
0-20801-035-0
02
1
0105-
202
HOSE; WATER,WATER DRAIN
L=310 SERVICED BY L=3000
0-03259-300-0
01
1
0105-0206
202
HOSE; WATER,WATER DRAIN
L=310 SERVICED BY L=3000
0-03559-300-0
01
1
0207-0401
222
RUBBER; MTG,OIL COOLER
1-09337-020-0
02
1
0105-
235
BOLT; CLIP TO OIL COOLER
M10X20 FLANGE
0-28181-020-0
01
1
0105-
321
GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8
1-09623-478-0
01
1
0105-
321
GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=31.2
1-09623-479-0
03
1
0105-
338
FILTER ASM; OIL PARTIAL
1-13200-863-4
01
1
0105-0303
338
FILTER ASM; OIL PARTIAL
1-13200-990-1
01
1
0304-
380
CONNECTOR; WATER
1-09660-011-1
01
1
0105-
444
GASKET; ELEMENT TO BODY
1-21729-093-1
02
1
0105-
462
CLIP; HOSE,DRAIN
ID=14
5-09707-004-1
01
1
0105-0401
469
GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8
1-09623-478-0
02
1
0105-
469
GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=31.2
1-09623-479-0
02
1
0105-
469
GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (C)
1-11219-186-0
01
1
0105-0109
469
GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (C)
1-11219-205-0
01
1
0110-
496
FILTER ASM; OIL
1-13200-862-7
01
1
0105-0303
496
FILTER ASM; OIL
1-13200-989-4
01
1
0304-
497
PIPE; WATER DRAIN
W/COCK
1-13721-496-3
01
1
0105-
498
BOLT; WATER PIPE
M10X20 FLANGE
0-28181-020-0
01
1
0105-
499
SUPPORT; THERMOSTAT
(A)
1-21729-085-4
01
1
0105-
499
SUPPORT; THERMOSTAT
(B)
1-21729-094-1
01
1
0105-
500
WASHER; PL,JOINT
ID=10.5 OD=22
9-09160-610-0
02
1
0105-
501
WASHER; LK,JOINT
ID=10.2
9-09150-510-0
02
1
0105-
502
COVER; THERMOSTAT
1-21722-041-0
01
1
0105-0106
502
COVER; THERMOSTAT
1-21722-040-0
01
1
0107-
503
BOLT; COVER
1-21729-089-0
04
1
0105-
504
WASHER; PL,COVER
(A)
1-21729-090-0
04
1
0105-
504
WASHER; PL,COVER
(B) ID=10.5 OD=26
9-09160-710-0
02
1
0105-
506
SCREW; BAFFLE
M6X10
9-03486-608-0
10
1
0105-
507
WASHER; LK,BAFFLE
1-21729-092-0
10
1
0105-
563
TUBE; DISTANCE
1-19389-134-1
02
1
0105-0207
563
TUBE; DISTANCE
1-19389-329-0
02
1
0208-
496
2
265
71
292
282
509
508
282
292
281
280
290
290
287
288
290
287
284
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
ELEMENT; OIL FILTER
(A) MAIN TSUCHIYA
1-13240-165-0
01
1
0105-0303
2
ELEMENT; OIL FILTER
(A) MAIN
1-13240-233-0
01
1
0304-
2
ELEMENT; OIL FILTER
(B) PARTIAL TSUCHIYA
1-13240-200-0
01
1
0105-0303
2
ELEMENT; OIL FILTER
(B) PARTIAL
1-13240-234-0
01
1
0304-0402
2
ELEMENT; OIL FILTER
(B) PARTIAL
1-13240-241-0
01
1
0403-
71
VALVE ASM; RELIEF,OIL FILTER
1-13262-005-0
01
1
0105-0303
265
BODY; OIL FILTER
1-13211-216-1
01
1
0105-0303
280
CASE ASM; OIL FILTER
(B)
1-13211-283-0
01
1
0304-
280
CASE ASM; OIL FILTER
(A)
1-13210-038-2
01
1
0105-0303
280
CASE ASM; OIL FILTER
(A)
1-13211-282-0
01
1
0304-
281
COVER; OIL FILTER
1-13211-206-1
01
1
0105-0303
282
GASKET; BODY TO CASE
(A)
1-09623-548-0
01
1
0105-0303
282
GASKET; BODY TO CASE
(A)
1-09623-643-0
01
1
0304-
282
GASKET; BODY TO CASE
(B)
1-09623-552-0
01
1
0105-0303
282
GASKET; BODY TO CASE
(B)
1-09623-644-0
01
1
0304-
284
BOLT; CENTER,OIL FILTER
(A)
1-13219-281-1
01
1
0105-0303
284
BOLT; CENTER,OIL FILTER
(A)
1-13219-348-0
01
1
0304-
284
BOLT; CENTER,OIL FILTER
(B)
1-13231-075-0
01
1
0105-0303
284
BOLT; CENTER,OIL FILTER
(B)
1-13219-349-0
01
1
0304-
287
GASKET; CENTER BOLT
(A)
1-09623-549-0
01
1
0105-0303
287
GASKET; CENTER BOLT
(A)
1-09623-647-0
01
1
0304-
287
GASKET; CENTER BOLT
(B)
1-09623-551-0
01
1
0105-0303
287
GASKET; CENTER BOLT
(B)
1-09623-648-0
01
1
0304-
288
PLUG; OIL DRAIN
1-13219-272-0
01
1
0105-0303
288
PLUG; OIL DRAIN
1-13219-346-0
01
1
0304-
290
GASKET; PLUG,OIL DRAIN
(B)
1-09623-646-0
01
1
0304-
290
GASKET; PLUG,OIL DRAIN
(A)
1-09623-550-0
02
1
0105-0303
290
GASKET; PLUG,OIL DRAIN
(C)
1-09623-645-0
01
1
0304-
292
SPRING; ELEMENT
(A)
1-09580-387-0
01
1
0105-0303
292
SPRING; ELEMENT
(A)
1-09580-563-0
01
1
0304-
292
SPRING; ELEMENT
(B)
1-09580-484-0
01
1
0105-0303
292
SPRING; ELEMENT
(B)
1-09580-562-0
01
1
0304-
292
SPRING; ELEMENT
(C)
1-13263-007-0
01
1
0105-0303
496
FILTER ASM; OIL
1-13200-862-7
01
1
0105-0303
496
FILTER ASM; OIL
1-13200-989-4
01
1
0304-
508
CHAMBER ASM; SW,FILTER
1-13260-107-1
01
1
0105-0303
508
CHAMBER ASM; SW,FILTER
1-13260-113-1
01
1
0304-
509
GASKET; SW
8-98013-480-0
01
1
0304-
509
GASKET; SW
1-09630-114-0
01
1
0105-0303
2
338
390
282
282
269
292
280
390
290
290
287
290
132
287
284
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
ELEMENT; OIL FILTER
(A) MAIN TSUCHIYA
1-13240-165-0
01
1
0105-0303
2
ELEMENT; OIL FILTER
(A) MAIN
1-13240-233-0
01
1
0304-
2
ELEMENT; OIL FILTER
(B) PARTIAL TSUCHIYA
1-13240-200-0
01
1
0105-0303
2
ELEMENT; OIL FILTER
(B) PARTIAL
1-13240-234-0
01
1
0304-0402
2
ELEMENT; OIL FILTER
(B) PARTIAL
1-13240-241-0
01
1
0403-
132
PLUG; PARTIAL OIL FILTER
1-13219-272-0
01
1
0105-0303
132
PLUG; PARTIAL OIL FILTER
1-13219-347-0
01
1
0304-
269
WASHER; ELEMENT,OIL FILTER
1-13234-005-0
01
1
0105-0303
269
WASHER; ELEMENT,OIL FILTER
1-13234-007-0
01
1
0304-
280
CASE ASM; OIL FILTER
(B)
1-13211-283-0
01
1
0304-
280
CASE ASM; OIL FILTER
(A)
1-13210-038-2
01
1
0105-0303
280
CASE ASM; OIL FILTER
(A)
1-13211-282-0
01
1
0304-
282
GASKET; BODY TO CASE
(A)
1-09623-548-0
01
1
0105-0303
282
GASKET; BODY TO CASE
(A)
1-09623-643-0
01
1
0304-
282
GASKET; BODY TO CASE
(B)
1-09623-552-0
01
1
0105-0303
282
GASKET; BODY TO CASE
(B)
1-09623-644-0
01
1
0304-
284
BOLT; CENTER,OIL FILTER
(A)
1-13219-281-1
01
1
0105-0303
284
BOLT; CENTER,OIL FILTER
(A)
1-13219-348-0
01
1
0304-
284
BOLT; CENTER,OIL FILTER
(B)
1-13231-075-0
01
1
0105-0303
284
BOLT; CENTER,OIL FILTER
(B)
1-13219-349-0
01
1
0304-
287
GASKET; CENTER BOLT
(A)
1-09623-549-0
01
1
0105-0303
287
GASKET; CENTER BOLT
(A)
1-09623-647-0
01
1
0304-
287
GASKET; CENTER BOLT
(B)
1-09623-551-0
01
1
0105-0303
287
GASKET; CENTER BOLT
(B)
1-09623-648-0
01
1
0304-
290
GASKET; PLUG,OIL DRAIN
(B)
1-09623-646-0
01
1
0304-
290
GASKET; PLUG,OIL DRAIN
(A)
1-09623-550-0
02
1
0105-0303
290
GASKET; PLUG,OIL DRAIN
(C)
1-09623-645-0
01
1
0304-
292
SPRING; ELEMENT
(A)
1-09580-387-0
01
1
0105-0303
292
SPRING; ELEMENT
(A)
1-09580-563-0
01
1
0304-
292
SPRING; ELEMENT
(B)
1-09580-484-0
01
1
0105-0303
292
SPRING; ELEMENT
(B)
1-09580-562-0
01
1
0304-
292
SPRING; ELEMENT
(C)
1-13263-007-0
01
1
0105-0303
338
FILTER ASM; OIL PARTIAL
1-13200-863-4
01
1
0105-0303
338
FILTER ASM; OIL PARTIAL
1-13200-990-1
01
1
0304-
390
BODY; OIL FILTER,PARTIAL
(A)
1-13211-217-1
01
1
0105-0303
390
BODY; OIL FILTER,PARTIAL
(A)
1-13211-284-2
01
1
0304-
390
BODY; OIL FILTER,PARTIAL
(B)
1-13211-218-1
01
1
0105-0303
390
BODY; OIL FILTER,PARTIAL
(B)
1-13211-285-0
01
1
0304-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
