◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10868 - EXR LHD FUEL TANK 400L ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-42 - FUEL PUMP AND PIPE ▶
0-42 — FUEL PUMP AND PIPE (#10120) — 23 parça

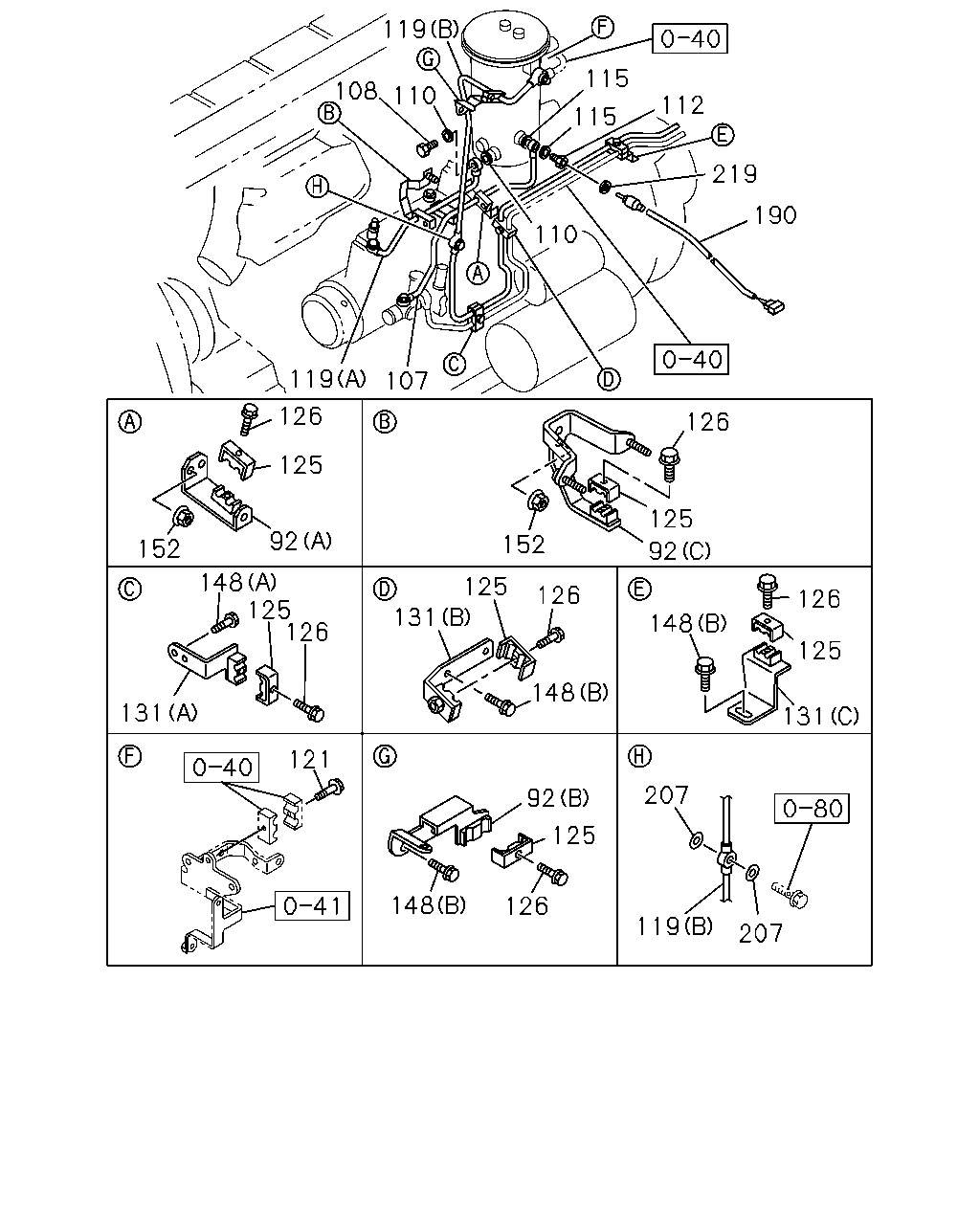

çizim 20066
119 115 108 110 112 115 219 110 190 119 126 107 126 125 125 92 152 92 152 148 125 126 125 131 148 126 126 125 148 131 131 121 207 92 125 148 126 119 207
BalonParca AdiParca NoAdetTipApplied Date
92 BRACKET; FUEL PIPE
(A) 		1-15419-425-0 01 1 0105-
92 BRACKET; FUEL PIPE
(B) 		1-15419-474-1 01 1 0105-
92 BRACKET; FUEL PIPE
(C) 		1-15419-592-0 01 1 0105-
107 PIPE; FUEL,FEED PUMP TO FUEL FILTER 1-15415-731-0 01 1 0105-
108 BOLT; JOINT,FUEL FILTER
M14X27 FLANGE 		1-09675-086-0 01 1 0105-
110 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0105-
112 BOLT; JOINT,FUEL FILTER 1-09675-156-1 01 1 0105-
115 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0105-
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP
(A) 		1-15415-539-1 01 1 0105-
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP
(B) 		1-15416-402-0 01 1 0105-
121 BOLT; CLIP
M6X30 FLANGE 		0-28080-630-0 01 1 0105-
125 CLIP; FUEL PIPE
ID=10 & 10 L=25 		8-94393-280-2 06 1 0105-
126 BOLT; CLIP,FUEL PIPE
M6X30 FLANGE 		0-28080-630-0 06 1 0105-
131 BRACKET; FUEL PIPE CLIP
(A) 		1-15419-336-0 01 1 0105-
131 BRACKET; FUEL PIPE CLIP
(B) 		1-15419-372-0 01 1 0105-
131 BRACKET; FUEL PIPE CLIP
(C) 		1-15419-423-1 01 1 0105-
148 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 02 1 0105-
148 BOLT; BRKT
(B) M10X20 FLANGE 		0-28181-020-0 05 1 0105-
152 NUT; BRKT
M8 FLANGE 		0-91150-108-0 04 1 0105-
190 SENSOR; FUEL TEMP 1-81535-036-7 01 1 0105-
207 GASKET; EYE BOLT
ID=14.2 OD=19.2 		1-09630-085-0 02 1 0105-
219 GASKET; SENSOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 01 1 0105-

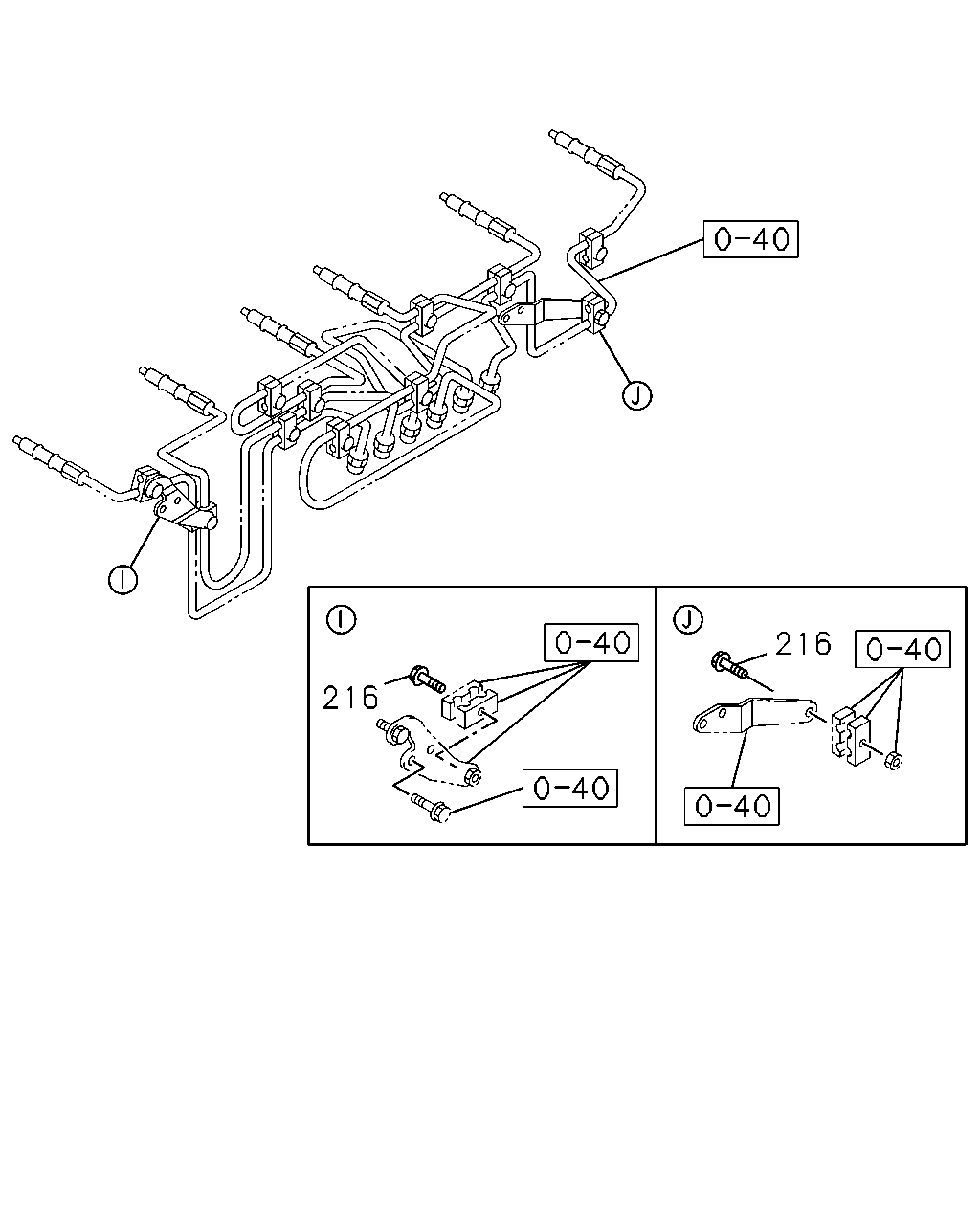

çizim 20067
216 216
BalonParca AdiParca NoAdetTipApplied Date
216 BOLT; CLIP,FUEL PIPE
M6X40 FLANGE 		0-28080-640-0 02 1 0105-
