Isuzu WW
▶
TRUCKS
▶
EXR
▶
10868 - EXR LHD FUEL TANK 400L
▶
0 - Engine, Emission, Engine Electrical
▶
0-39 - AIR COMPRESSOR; BRAKE
▶
0-39 — AIR COMPRESSOR; BRAKE
(#10117) — 32 parça
◀

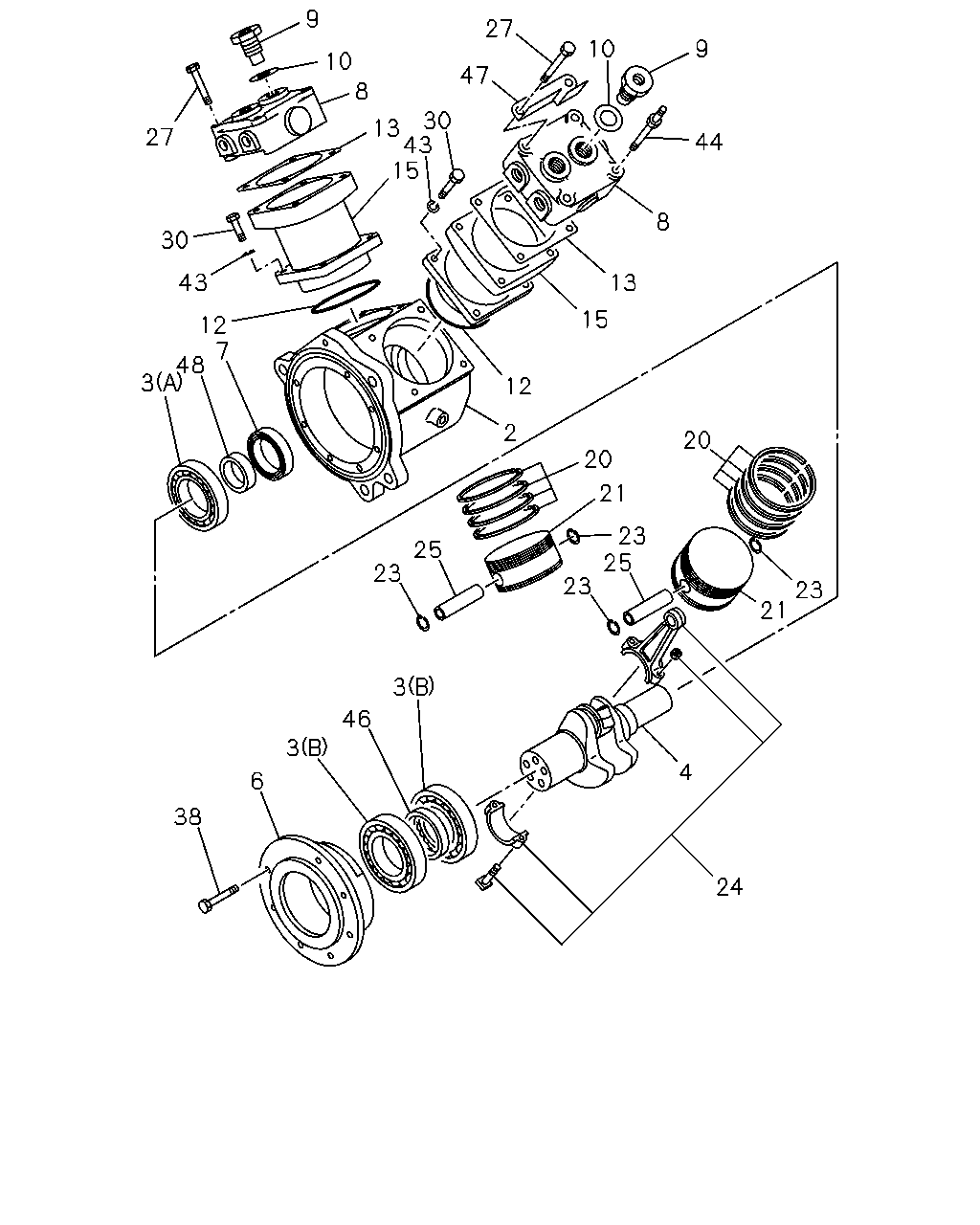

[039A] COMPONENT (26 parça)

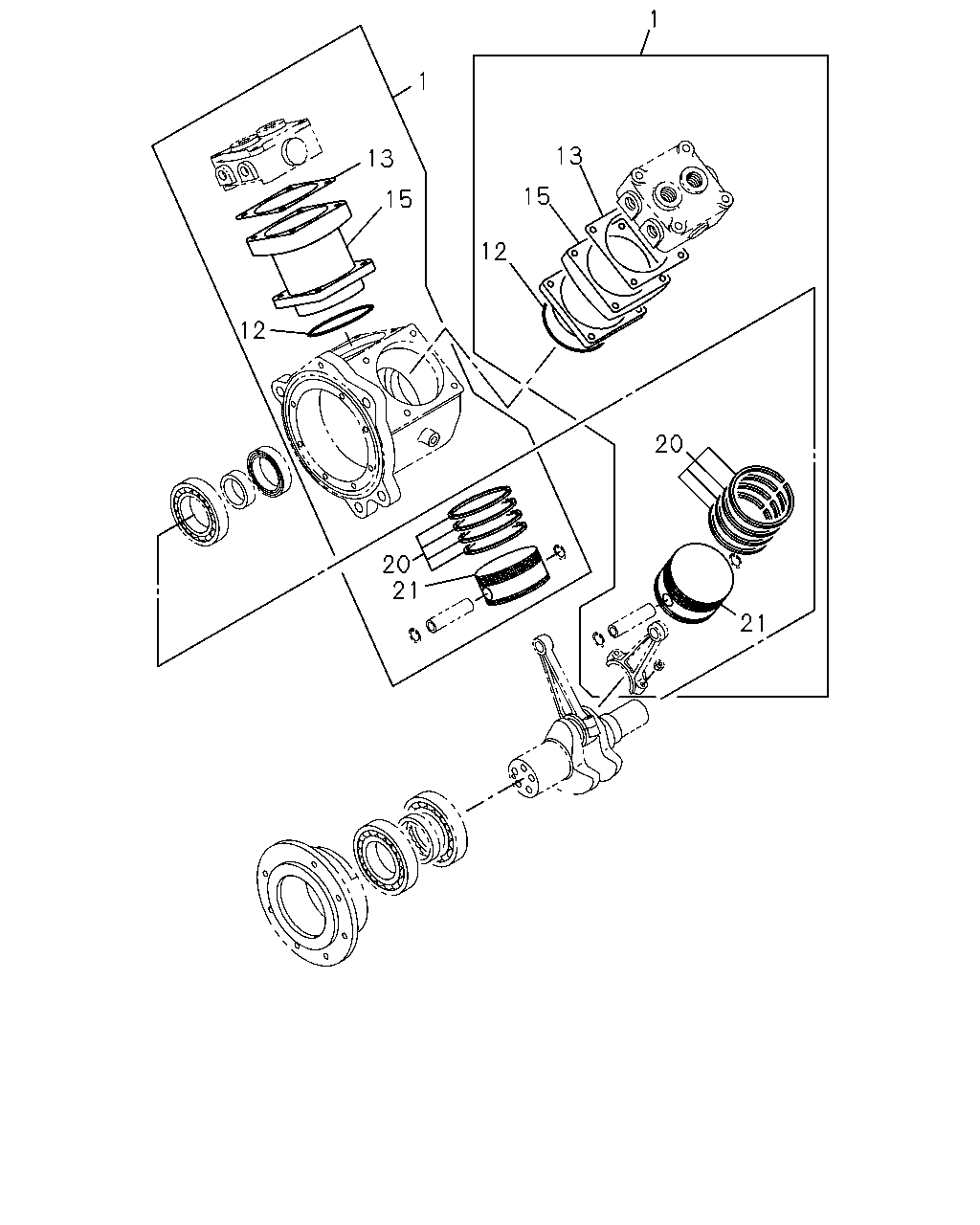

[039A] LINER KIT (6 parça)
▶
9
27
10
9
10
8
47
30
13
43
15
27
44
8
30
43
13
15
12
7
48
3
12
2
20
20
21
23
25
23
25
23
23
21
3
46
3
4
6
38
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
CRANKCASE; AIR CMPR
1-19151-269-6
01
1
0105-
3
BEARING; AIR CMPR
(A)
1-09800-232-0
01
1
0105-
3
BEARING; AIR CMPR
(B)
1-09800-246-0
02
1
0105-
4
CRANKSHAFT; AIR CMPR
1-19171-068-0
01
1
0105-0301
4
CRANKSHAFT; AIR CMPR
1-19171-088-0
01
1
0302-
6
COVER ASM; BRG,AIR CMPR
1-19156-068-1
01
1
0105-
7
SEAL; OIL,BRG COVER,AIR CMPR
1-09625-534-0
01
1
0105-
8
HEAD ASM; CYL,AIR CMPR
1-19110-016-0
02
1
0105-
9
VALVE ASM; UNLOADER,AIR CMPR
1-19120-021-1
02
1
0105-
10
SHIM; AIR CMPR
9-19139-021-0
02
1
0105-
12
GASKET; AIR CMPR
1-19623-539-0
02
1
0105-
13
GASKET; AIR CMPR
1-19139-017-1
02
1
0105-
15
CYLINDER; AIR CMPR
1-19151-251-0
02
1
0105-
20
RING KIT; PISTON,AIR CMPR
1-19163-051-1
02
1
0105-
21
PISTON; AIR CMPR
1-19161-016-0
02
1
0105-
23
RING; SNAP,PISTON,AIR CMPR
9-19168-003-0
04
1
0105-
24
ROD ASM; CONN,AIR CMPR
1-19173-006-0
02
1
0105-
25
PIN; PISTON,AIR CMPR
9-19167-003-0
02
1
0105-
27
BOLT; HD
M10X60
9-01066-060-0
07
1
0105-
30
BOLT; CYL TO CRANKCASE
M10X25
9-02051-025-0
08
1
0105-
38
BOLT; COVER FIX
1-19159-016-0
07
1
0105-
43
WASHER; LK,CYL TO CRANKCASE,AIR CMPR
ID=10.2
9-09150-610-0
08
1
0105-
44
STUD; CYL HD,AIR CMPR
1-19119-019-1
01
1
0105-
46
SPACER; BRG
1-19179-016-0
01
1
0105-
47
BRACKET; PIPE
1-19119-028-0
02
1
0105-
48
SLEEVE; CR/SHF
1-19179-018-0
01
1
0105-
1
1
13
13
15
15
12
12
20
20
21
21
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LINER KIT; CYL,AIR CMPR
1-19163-060-1
02
1
0105-
12
GASKET; AIR CMPR
1-19623-539-0
02
1
0105-
13
GASKET; AIR CMPR
1-19139-017-1
02
1
0105-
15
CYLINDER; AIR CMPR
1-19151-251-0
02
1
0105-
20
RING KIT; PISTON,AIR CMPR
1-19163-051-1
02
1
0105-
21
PISTON; AIR CMPR
1-19161-016-0
02
1
0105-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
