0-31 — THERMOSTAT AND HOUSING (#10110) — 24 parça

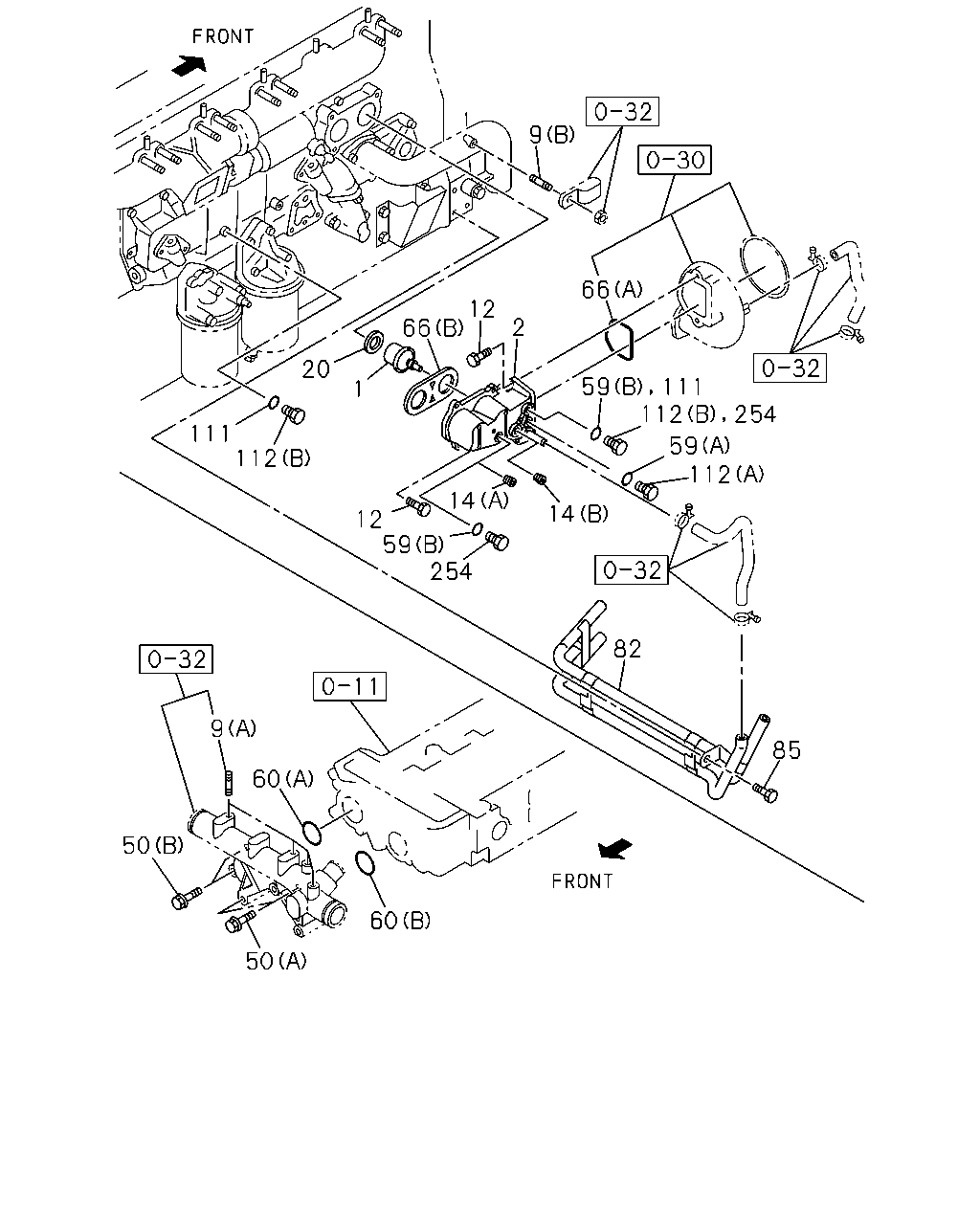

çizim 78455
9 66 12 66 2 20 59 111 1 111 112 59 112 14 14 12 59 254 82 9 85 60 50 60 50 112 254
BalonParca AdiParca NoAdetTipApplied Date
1 THERMOSTAT
82 CELSIUS 		8-98271-161-0 02 1 0105-
2 HOUSING; THERMOSTAT 1-13710-530-0 01 1 0105-0105
2 HOUSING; THERMOSTAT 1-13710-577-0 01 1 0106-0303
2 HOUSING; THERMOSTAT 1-13710-550-0 01 1 0304-
9 STUD; WATER PIPE
(A) M8X20 L=32 		9-04110-820-0 04 1 0105-
9 STUD; WATER PIPE
(B) M10X20 L=35 		9-04411-020-0 01 1 0105-
12 BOLT; HSG
M10X25 FLANGE 		0-28181-025-0 05 1 0105-
14 PLUG; SW
(A) PT1/4 		1-09605-019-0 01 1 0105-0105
14 PLUG; SW
(B) PT3/8 		8-94475-259-0 01 1 0105-
20 RING; SEAL 1-13779-011-0 02 1 0105-
50 BOLT; OUTLET PIPE
(B) M10X50 FLANGE 		0-28181-050-0 02 1 0105-
50 BOLT; OUTLET PIPE
(A) M10X85 FLANGE 		8-94397-359-1 01 1 0105-
59 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 01 1 0105-
59 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2 		1-09630-086-0 02 1 0106-
60 GASKET; OUTLET PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=55.6 		1-09623-452-0 01 1 0105-
60 GASKET; OUTLET PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=62.6 		1-09623-505-0 01 1 0105-
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=105.6 		1-09623-247-0 01 1 0105-
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) 		1-13743-036-1 01 1 0105-
82 PIPE; WATER,HTR 1-13721-670-0 01 1 0105-
85 BOLT; CLIP
M14X20 FLANGE 		0-28981-420-0 01 1 0105-
111 GASKET; PLUG,WATER PIPE HOLE
ID=14.2 OD=25 		1-09630-141-0 02 1 0105-0105
112 PLUG
(A) M12X9 		1-09604-095-0 01 1 0105-
112 PLUG
(B) M14X9 		9-99202-314-0 02 1 0105-0105
254 PLUG; HSG
M16X12 		9-99202-316-0 02 1 0106-
