Isuzu WW
▶
TRUCKS
▶
EXR
▶
10868 - EXR LHD FUEL TANK 400L
▶
0 - Engine, Emission, Engine Electrical
▶
0-10 - CYLINDER HEAD COVER
▶

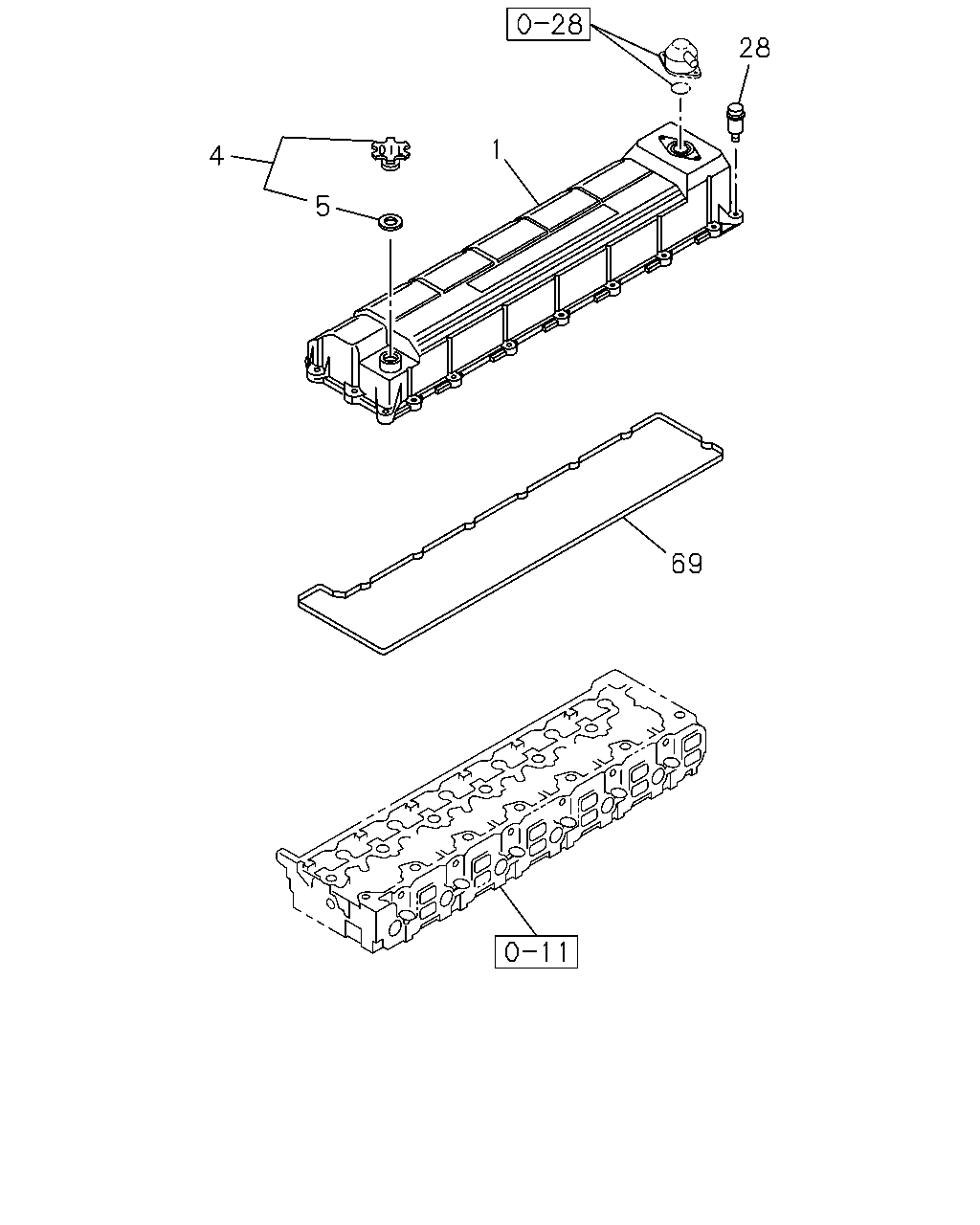

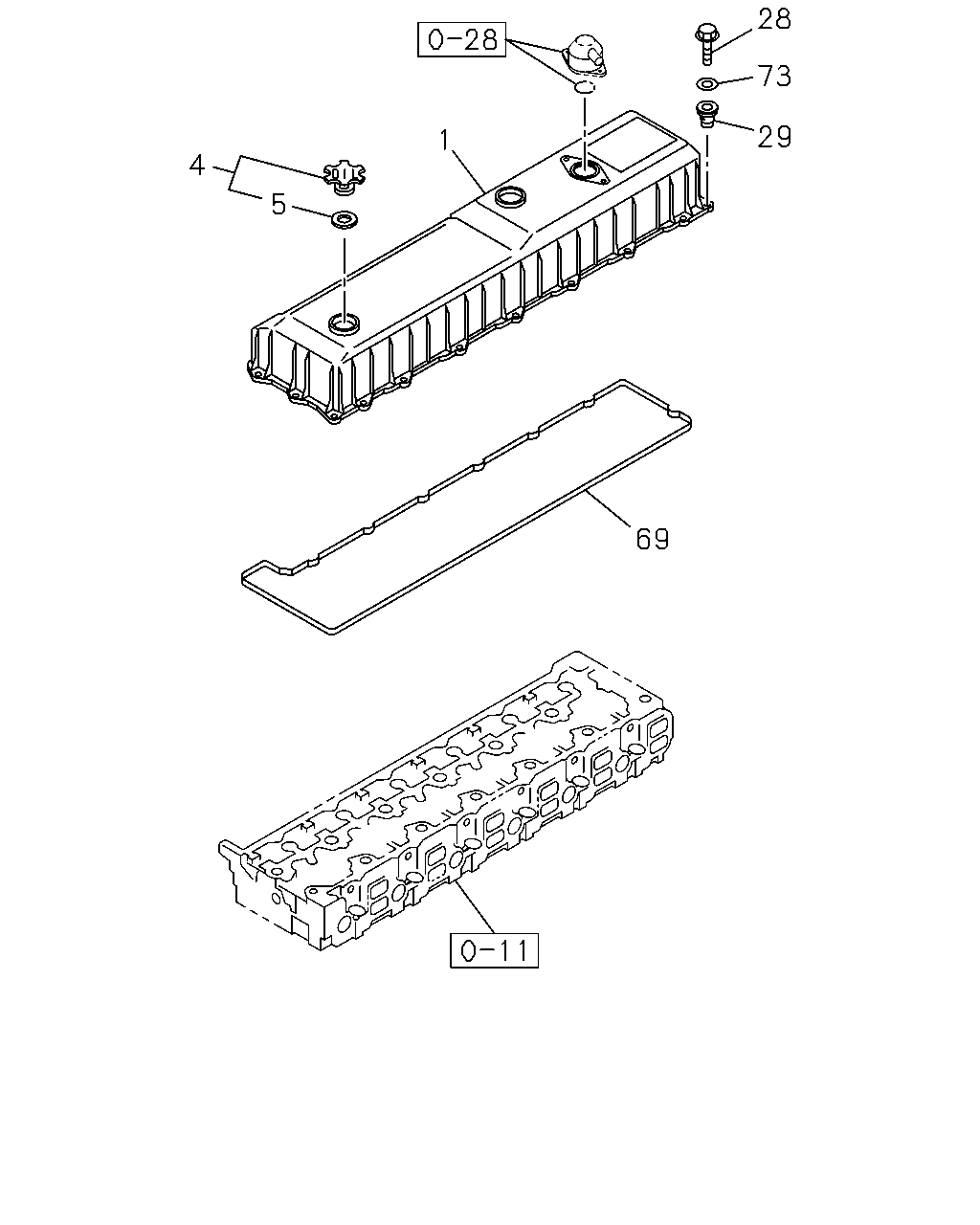

0-10 — CYLINDER HEAD COVER
(#10098) — 18 parça
◀
[010A] '01/7- (10 parça)
[010A] -'01/6 (8 parça)
▶
28
73
29
1
4
5
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COVER; CYL HD
1-11180-416-0
01
1
0105-0106
1
COVER; CYL HD
1-11180-464-0
01
1
0107-
4
CAP; OIL FILLER
8-94399-723-0
01
1
0105-
5
GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58
8-94399-689-0
01
1
0105-
28
BOLT; HD COVER
1-09040-103-0
20
1
0105-0106
28
BOLT; HD COVER
M8X35 FLANGE
0-28080-835-0
20
1
0107-
29
RUBBER; MTG,HD COVER
8-97601-849-1
20
1
0107-
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-11173-080-0
01
1
0105-0106
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-11173-110-2
01
1
0107-
73
WASHER; PL,HD COVER
ID=8.4 OD=22
9-09160-708-0
20
1
0107-
28
1
4
5
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COVER; CYL HD
1-11180-416-0
01
1
0105-0106
1
COVER; CYL HD
1-11180-464-0
01
1
0107-
4
CAP; OIL FILLER
8-94399-723-0
01
1
0105-
5
GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58
8-94399-689-0
01
1
0105-
28
BOLT; HD COVER
1-09040-103-0
20
1
0105-0106
28
BOLT; HD COVER
M8X35 FLANGE
0-28080-835-0
20
1
0107-
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-11173-080-0
01
1
0105-0106
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-11173-110-2
01
1
0107-
