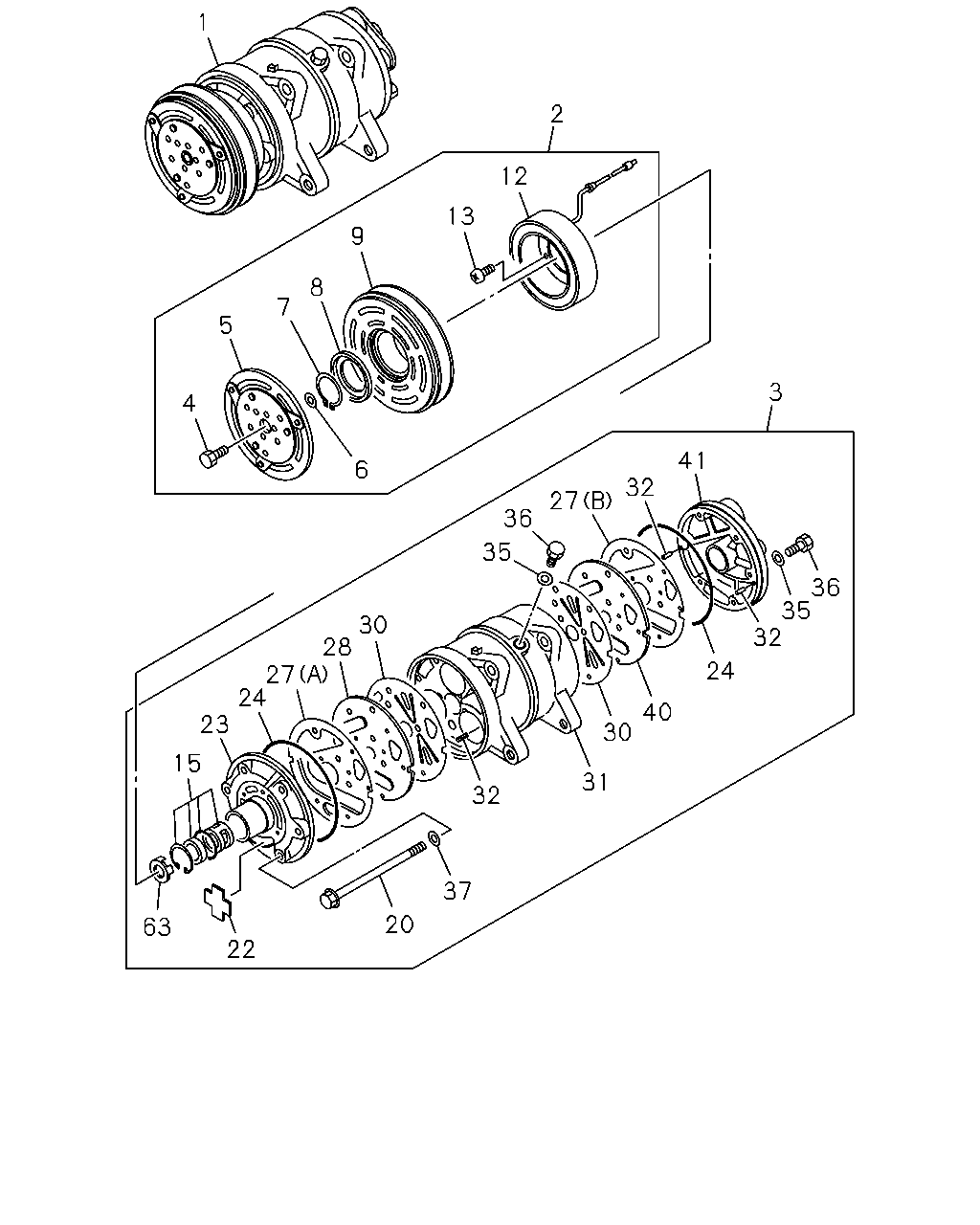

8-71 — COMPRESSOR; AIR CONDITIONING (#1009) — 165 parça

1 2 12 13 9 8 7 5 4 6 3 41 36 35 32 24 40 30 31 32 37 20 22 63 32 27 36 35 30 28 27 24 23 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COMPRESSOR ASM; A/C AIR CON MANUAL CONTROL(C60)	1-83532-181-0	01	1	9202-9301	●	●
1	COMPRESSOR ASM; A/C AIR CON MANUAL CONTROL(C60)	1-83532-227-0	01	1	9302-9506	●	●
1	COMPRESSOR ASM; A/C AIR CON MANUAL CONTROL(C60)	1-83532-249-0	01	1	9507-	●	●
2	CLUTCH; MAGNET,A/C AIR CON MANUAL CONTROL(C60)	1-83533-021-0	01	1	9202-9301	●	●
2	CLUTCH; MAGNET,A/C AIR CON MANUAL CONTROL(C60)	1-83533-032-0	01	1	9302-9506	●	●
2	CLUTCH; MAGNET,A/C AIR CON MANUAL CONTROL(C60)	1-83533-037-0	01	1	9507-	●	●
3	COMPRESSOR ASM; A/C AIR CON MANUAL CONTROL(C60)	8-94466-671-0	01	1	9202-9301	●	●
3	COMPRESSOR ASM; A/C AIR CON MANUAL CONTROL(C60)	1-83532-233-0	01	1	9302-9506	●	●
3	COMPRESSOR ASM; A/C AIR CON MANUAL CONTROL(C60)	8-97138-168-0	01	1	9507-	●	●
4	BOLT; MAGNET CLU AIR CON MANUAL CONTROL(C60)	8-94164-439-0	01	1	9202-	●	●
5	ARMATURE ASM; MAGNET CLU,A/C AIR CON MANUAL CONTROL(C60)	8-94466-701-0	01	1	9202-9301	●	●
5	ARMATURE ASM; MAGNET CLU,A/C AIR CON MANUAL CONTROL(C60)	8-97034-788-0	01	1	9302-	●	●
6	SHIM; MAGNET CLU AIR CON MANUAL CONTROL(C60) T=0.1	8-94120-721-0	AR	1	9202-	●	●
6	SHIM; MAGNET CLU AIR CON MANUAL CONTROL(C60) T=0.3	8-94120-722-0	AR	1	9202-	●	●
6	SHIM; MAGNET CLU AIR CON MANUAL CONTROL(C60) T=0.5	8-94120-723-0	AR	1	9202-	●	●
7	RING; SNAP,PULLEY AIR CON MANUAL CONTROL(C60)	8-94120-724-0	01	1	9202-	●	●
8	COVER; PULLEY AIR CON MANUAL CONTROL(C60)	8-94120-725-0	01	1	9202-9506	●	●
9	PULLEY; MAGNET CLU AIR CON MANUAL CONTROL(C60)	1-83579-282-0	01	1	9202-9301	●	●
9	PULLEY; MAGNET CLU AIR CON MANUAL CONTROL(C60)	1-83579-609-0	01	1	9302-	●	●
12	COIL; FIELD,MAGNET CLU AIR CON MANUAL CONTROL(C60)	1-83579-474-0	01	1	9202-9301	●	●
12	COIL; FIELD,MAGNET CLU AIR CON MANUAL CONTROL(C60)	1-83579-593-0	01	1	9302-	●	●
13	SCREW; COIL FIELD AIR CON MANUAL CONTROL(C60)	8-94120-727-0	03	1	9202-	●	●
15	SEAL; SHAFT AIR CON MANUAL CONTROL(C60)	8-94466-697-0	01	1	9202-9301	●	●
15	SEAL; SHAFT AIR CON MANUAL CONTROL(C60)	8-97081-397-0	01	1	9302-9506	●	●
15	SEAL; SHAFT AIR CON MANUAL CONTROL(C60) "R-134A"	8-97114-217-1	01	1	9507-	●	●
20	BOLT; CMPR AIR CON MANUAL CONTROL(C60)	8-94466-676-0	06	1	9202-9301	●	●
20	BOLT; CMPR AIR CON MANUAL CONTROL(C60)	8-97081-394-0	06	1	9302-	●	●
22	FELT; CYL HD,FRT AIR CON MANUAL CONTROL(C60)	8-94441-396-0	01	1	9202-9506	●	●
23	HEAD; CYL,FRT AIR CON MANUAL CONTROL(C60)	8-94466-683-0	01	1	9202-9301	●	●
23	HEAD; CYL,FRT AIR CON MANUAL CONTROL(C60)	8-97034-782-0	01	1	9302-9506	●	●
23	HEAD; CYL,FRT AIR CON MANUAL CONTROL(C60) "R-134A"	8-97114-215-0	01	1	9507-	●	●
24	GASKET; CMPR AIR CON MANUAL CONTROL(C60)	8-94466-681-0	02	1	9202-9301	●	●
24	GASKET; CMPR AIR CON MANUAL CONTROL(C60)	8-97081-396-0	02	1	9302-	●	●
27	GASKET; CYL HD AIR CON MANUAL CONTROL(C60) (A)	8-94466-685-0	01	1	9202-9301	●	●
27	GASKET; CYL HD AIR CON MANUAL CONTROL(C60) (A)	8-97085-777-0	01	1	9302-	●	●
27	GASKET; CYL HD AIR CON MANUAL CONTROL(C60) (B)	8-94466-693-0	01	1	9202-9301	●	●
27	GASKET; CYL HD AIR CON MANUAL CONTROL(C60) (B)	8-97085-779-0	01	1	9302-	●	●
28	PLATE; VLV,CMPR AIR CON MANUAL CONTROL(C60)	8-94466-687-0	01	1	9202-9506	●	●
28	PLATE; VLV,CMPR AIR CON MANUAL CONTROL(C60)	8-97135-796-0	01	1	9507-	●	●
30	VALVE; SUCTION AIR CON MANUAL CONTROL(C60)	8-94466-689-0	02	1	9202-9301	●	●
30	VALVE; SUCTION AIR CON MANUAL CONTROL(C60)	8-97081-404-0	02	1	9302-9506	●	●
30	VALVE; SUCTION AIR CON MANUAL CONTROL(C60)	8-97134-755-0	02	1	9507-	●	●
31	CYLINDER & SHAFT ASM; AIR CMPR AIR CON MANUAL CONTROL(C60)	8-94466-673-0	01	1	9202-9301	●	●
31	CYLINDER & SHAFT ASM; AIR CMPR AIR CON MANUAL CONTROL(C60)	8-97081-389-0	01	1	9302-9506	●	●
31	CYLINDER & SHAFT ASM; AIR CMPR AIR CON MANUAL CONTROL(C60)	8-97138-175-0	01	1	9507-	●	●
32	PIN; CMPR AIR CON MANUAL CONTROL(C60)	8-94154-711-0	04	1	9202-	●	●
35	GASKET; PLUG,CYL AIR CON MANUAL CONTROL(C60)	8-94113-333-0	02	1	9202-9301	●	●
35	GASKET; PLUG,CYL AIR CON MANUAL CONTROL(C60)	8-97081-395-0	01	1	9302-	●	●
36	PLUG; CYL AIR CON MANUAL CONTROL(C60)	8-94164-473-0	02	1	9202-9301	●	●
36	PLUG; CYL AIR CON MANUAL CONTROL(C60)	8-94164-473-0	01	1	9302-	●	●
37	GASKET; CMPR AIR CON MANUAL CONTROL(C60)	8-94466-678-0	06	1	9202-	●	●
40	PLATE; VLV,RR AIR CON MANUAL CONTROL(C60)	8-94466-691-0	01	1	9202-9506	●	●
40	PLATE; VLV,RR AIR CON MANUAL CONTROL(C60)	8-97135-797-0	01	1	9507-	●	●
41	HEAD; CYL,RR AIR CON MANUAL CONTROL(C60)	8-94466-695-0	01	1	9202-9301	●	●
41	HEAD; CYL,RR AIR CON MANUAL CONTROL(C60)	8-97034-784-0	01	1	9302-	●	●
63	COVER; CMPR AIR CON MANUAL CONTROL(C60)	8-94441-395-0	01	1	9202-9506	●	●

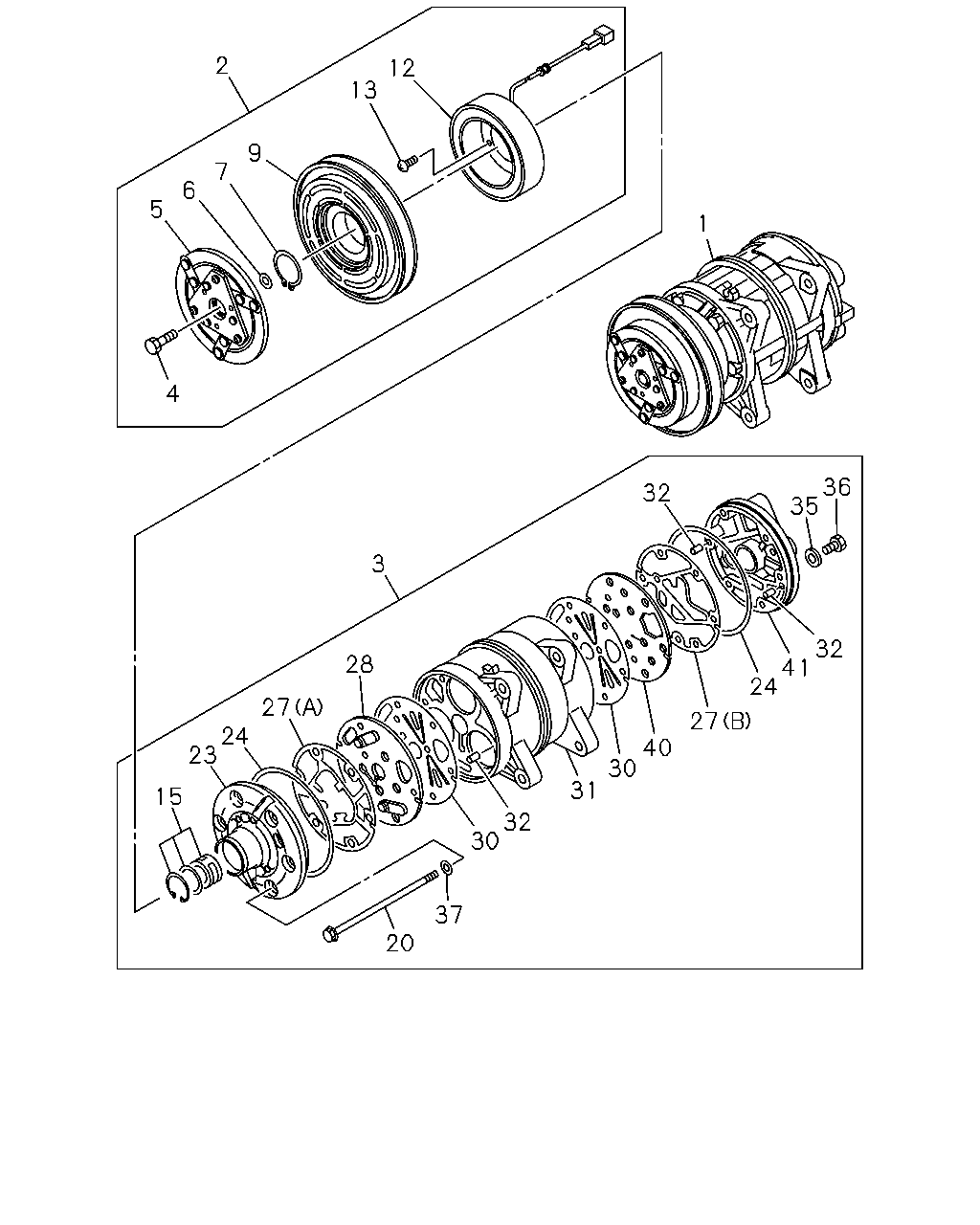

2 12 13 9 7 6 5 4 3 1 32 36 35 32 41 24 27 40 30 31 32 30 37 20 28 27 24 23 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COMPRESSOR ASM; A/C AIR CON MANUAL CONTROL(C60)	1-83532-181-0	01	1	9202-9301	●	●
1	COMPRESSOR ASM; A/C AIR CON MANUAL CONTROL(C60)	1-83532-227-0	01	1	9302-9506	●	●
1	COMPRESSOR ASM; A/C AIR CON MANUAL CONTROL(C60)	1-83532-249-0	01	1	9507-	●	●
2	CLUTCH; MAGNET,A/C AIR CON MANUAL CONTROL(C60)	1-83533-021-0	01	1	9202-9301	●	●
2	CLUTCH; MAGNET,A/C AIR CON MANUAL CONTROL(C60)	1-83533-032-0	01	1	9302-9506	●	●
2	CLUTCH; MAGNET,A/C AIR CON MANUAL CONTROL(C60)	1-83533-037-0	01	1	9507-	●	●
3	COMPRESSOR ASM; A/C AIR CON MANUAL CONTROL(C60)	8-94466-671-0	01	1	9202-9301	●	●
3	COMPRESSOR ASM; A/C AIR CON MANUAL CONTROL(C60)	1-83532-233-0	01	1	9302-9506	●	●
3	COMPRESSOR ASM; A/C AIR CON MANUAL CONTROL(C60)	8-97138-168-0	01	1	9507-	●	●
4	BOLT; MAGNET CLU AIR CON MANUAL CONTROL(C60)	8-94164-439-0	01	1	9202-	●	●
5	ARMATURE ASM; MAGNET CLU,A/C AIR CON MANUAL CONTROL(C60)	8-94466-701-0	01	1	9202-9301	●	●
5	ARMATURE ASM; MAGNET CLU,A/C AIR CON MANUAL CONTROL(C60)	8-97034-788-0	01	1	9302-	●	●
6	SHIM; MAGNET CLU AIR CON MANUAL CONTROL(C60) T=0.1	8-94120-721-0	AR	1	9202-	●	●
6	SHIM; MAGNET CLU AIR CON MANUAL CONTROL(C60) T=0.3	8-94120-722-0	AR	1	9202-	●	●
6	SHIM; MAGNET CLU AIR CON MANUAL CONTROL(C60) T=0.5	8-94120-723-0	AR	1	9202-	●	●
7	RING; SNAP,PULLEY AIR CON MANUAL CONTROL(C60)	8-94120-724-0	01	1	9202-	●	●
9	PULLEY; MAGNET CLU AIR CON MANUAL CONTROL(C60)	1-83579-282-0	01	1	9202-9301	●	●
9	PULLEY; MAGNET CLU AIR CON MANUAL CONTROL(C60)	1-83579-609-0	01	1	9302-	●	●
12	COIL; FIELD,MAGNET CLU AIR CON MANUAL CONTROL(C60)	1-83579-474-0	01	1	9202-9301	●	●
12	COIL; FIELD,MAGNET CLU AIR CON MANUAL CONTROL(C60)	1-83579-593-0	01	1	9302-	●	●
13	SCREW; COIL FIELD AIR CON MANUAL CONTROL(C60)	8-94120-727-0	03	1	9202-	●	●
15	SEAL; SHAFT AIR CON MANUAL CONTROL(C60)	8-94466-697-0	01	1	9202-9301	●	●
15	SEAL; SHAFT AIR CON MANUAL CONTROL(C60)	8-97081-397-0	01	1	9302-9506	●	●
15	SEAL; SHAFT AIR CON MANUAL CONTROL(C60) "R-134A"	8-97114-217-1	01	1	9507-	●	●
20	BOLT; CMPR AIR CON MANUAL CONTROL(C60)	8-94466-676-0	06	1	9202-9301	●	●
20	BOLT; CMPR AIR CON MANUAL CONTROL(C60)	8-97081-394-0	06	1	9302-	●	●
23	HEAD; CYL,FRT AIR CON MANUAL CONTROL(C60)	8-94466-683-0	01	1	9202-9301	●	●
23	HEAD; CYL,FRT AIR CON MANUAL CONTROL(C60)	8-97034-782-0	01	1	9302-9506	●	●
23	HEAD; CYL,FRT AIR CON MANUAL CONTROL(C60) "R-134A"	8-97114-215-0	01	1	9507-	●	●
24	GASKET; CMPR AIR CON MANUAL CONTROL(C60)	8-94466-681-0	02	1	9202-9301	●	●
24	GASKET; CMPR AIR CON MANUAL CONTROL(C60)	8-97081-396-0	02	1	9302-	●	●
27	GASKET; CYL HD AIR CON MANUAL CONTROL(C60) (A)	8-94466-685-0	01	1	9202-9301	●	●
27	GASKET; CYL HD AIR CON MANUAL CONTROL(C60) (A)	8-97085-777-0	01	1	9302-	●	●
27	GASKET; CYL HD AIR CON MANUAL CONTROL(C60) (B)	8-94466-693-0	01	1	9202-9301	●	●
27	GASKET; CYL HD AIR CON MANUAL CONTROL(C60) (B)	8-97085-779-0	01	1	9302-	●	●
28	PLATE; VLV,CMPR AIR CON MANUAL CONTROL(C60)	8-94466-687-0	01	1	9202-9506	●	●
28	PLATE; VLV,CMPR AIR CON MANUAL CONTROL(C60)	8-97135-796-0	01	1	9507-	●	●
30	VALVE; SUCTION AIR CON MANUAL CONTROL(C60)	8-94466-689-0	02	1	9202-9301	●	●
30	VALVE; SUCTION AIR CON MANUAL CONTROL(C60)	8-97081-404-0	02	1	9302-9506	●	●
30	VALVE; SUCTION AIR CON MANUAL CONTROL(C60)	8-97134-755-0	02	1	9507-	●	●
31	CYLINDER & SHAFT ASM; AIR CMPR AIR CON MANUAL CONTROL(C60)	8-94466-673-0	01	1	9202-9301	●	●
31	CYLINDER & SHAFT ASM; AIR CMPR AIR CON MANUAL CONTROL(C60)	8-97081-389-0	01	1	9302-9506	●	●
31	CYLINDER & SHAFT ASM; AIR CMPR AIR CON MANUAL CONTROL(C60)	8-97138-175-0	01	1	9507-	●	●
32	PIN; CMPR AIR CON MANUAL CONTROL(C60)	8-94154-711-0	04	1	9202-	●	●
35	GASKET; PLUG,CYL AIR CON MANUAL CONTROL(C60)	8-94113-333-0	02	1	9202-9301	●	●
35	GASKET; PLUG,CYL AIR CON MANUAL CONTROL(C60)	8-97081-395-0	01	1	9302-	●	●
36	PLUG; CYL AIR CON MANUAL CONTROL(C60)	8-94164-473-0	02	1	9202-9301	●	●
36	PLUG; CYL AIR CON MANUAL CONTROL(C60)	8-94164-473-0	01	1	9302-	●	●
37	GASKET; CMPR AIR CON MANUAL CONTROL(C60)	8-94466-678-0	06	1	9202-	●	●
40	PLATE; VLV,RR AIR CON MANUAL CONTROL(C60)	8-94466-691-0	01	1	9202-9506	●	●
40	PLATE; VLV,RR AIR CON MANUAL CONTROL(C60)	8-97135-797-0	01	1	9507-	●	●
41	HEAD; CYL,RR AIR CON MANUAL CONTROL(C60)	8-94466-695-0	01	1	9202-9301	●	●
41	HEAD; CYL,RR AIR CON MANUAL CONTROL(C60)	8-97034-784-0	01	1	9302-	●	●

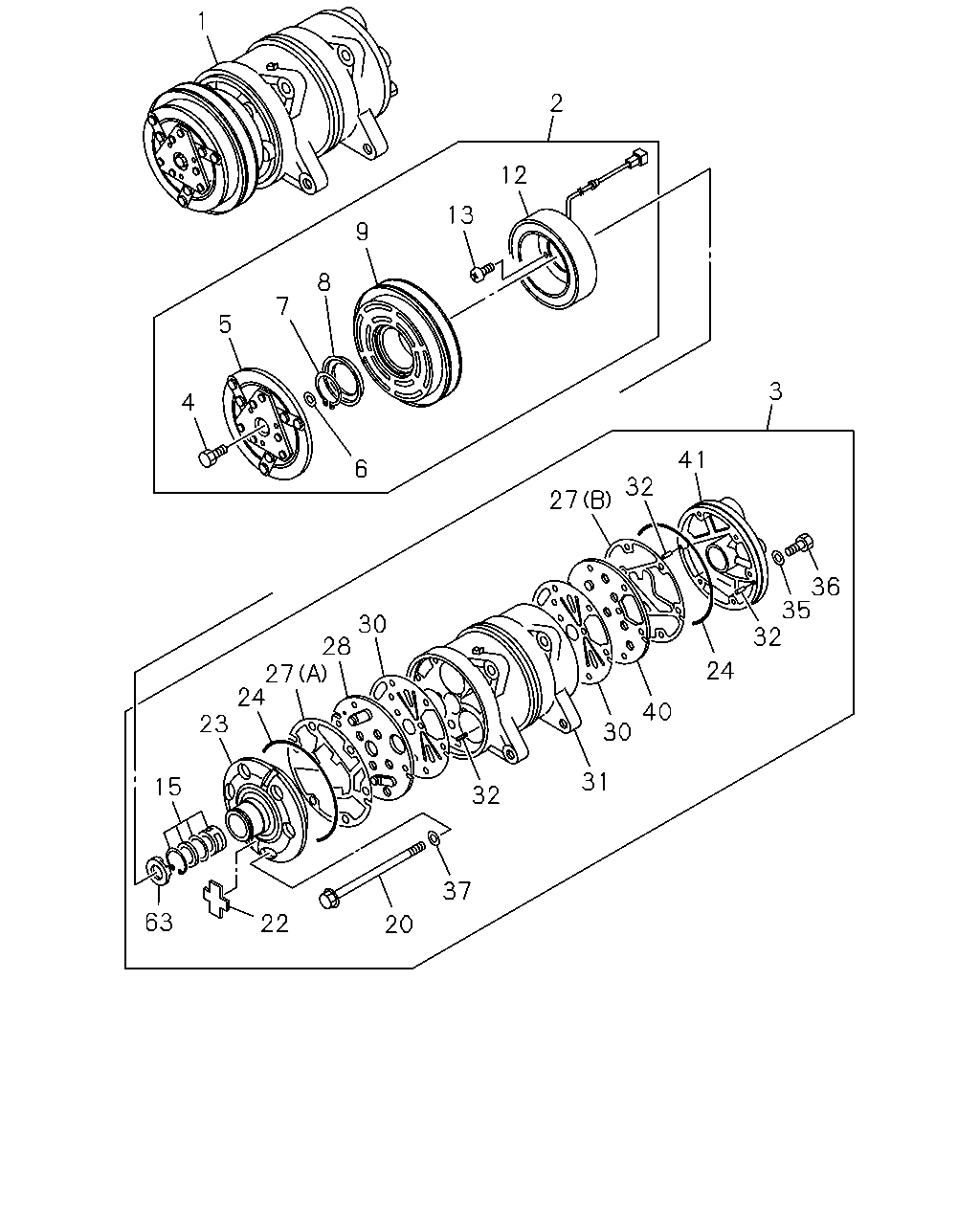

1 2 12 13 9 8 7 6 5 4 3 41 27 32 30 28 27 24 23 15 36 35 32 24 40 30 31 32 37 20 22 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COMPRESSOR ASM; A/C AIR CON MANUAL CONTROL(C60)	1-83532-181-0	01	1	9202-9301	●	●
1	COMPRESSOR ASM; A/C AIR CON MANUAL CONTROL(C60)	1-83532-227-0	01	1	9302-9506	●	●
1	COMPRESSOR ASM; A/C AIR CON MANUAL CONTROL(C60)	1-83532-249-0	01	1	9507-	●	●
2	CLUTCH; MAGNET,A/C AIR CON MANUAL CONTROL(C60)	1-83533-021-0	01	1	9202-9301	●	●
2	CLUTCH; MAGNET,A/C AIR CON MANUAL CONTROL(C60)	1-83533-032-0	01	1	9302-9506	●	●
2	CLUTCH; MAGNET,A/C AIR CON MANUAL CONTROL(C60)	1-83533-037-0	01	1	9507-	●	●
3	COMPRESSOR ASM; A/C AIR CON MANUAL CONTROL(C60)	8-94466-671-0	01	1	9202-9301	●	●
3	COMPRESSOR ASM; A/C AIR CON MANUAL CONTROL(C60)	1-83532-233-0	01	1	9302-9506	●	●
3	COMPRESSOR ASM; A/C AIR CON MANUAL CONTROL(C60)	8-97138-168-0	01	1	9507-	●	●
4	BOLT; MAGNET CLU AIR CON MANUAL CONTROL(C60)	8-94164-439-0	01	1	9202-	●	●
5	ARMATURE ASM; MAGNET CLU,A/C AIR CON MANUAL CONTROL(C60)	8-94466-701-0	01	1	9202-9301	●	●
5	ARMATURE ASM; MAGNET CLU,A/C AIR CON MANUAL CONTROL(C60)	8-97034-788-0	01	1	9302-	●	●
6	SHIM; MAGNET CLU AIR CON MANUAL CONTROL(C60) T=0.1	8-94120-721-0	AR	1	9202-	●	●
6	SHIM; MAGNET CLU AIR CON MANUAL CONTROL(C60) T=0.3	8-94120-722-0	AR	1	9202-	●	●
6	SHIM; MAGNET CLU AIR CON MANUAL CONTROL(C60) T=0.5	8-94120-723-0	AR	1	9202-	●	●
7	RING; SNAP,PULLEY AIR CON MANUAL CONTROL(C60)	8-94120-724-0	01	1	9202-	●	●
8	COVER; PULLEY AIR CON MANUAL CONTROL(C60)	8-94120-725-0	01	1	9202-9506	●	●
9	PULLEY; MAGNET CLU AIR CON MANUAL CONTROL(C60)	1-83579-282-0	01	1	9202-9301	●	●
9	PULLEY; MAGNET CLU AIR CON MANUAL CONTROL(C60)	1-83579-609-0	01	1	9302-	●	●
12	COIL; FIELD,MAGNET CLU AIR CON MANUAL CONTROL(C60)	1-83579-474-0	01	1	9202-9301	●	●
12	COIL; FIELD,MAGNET CLU AIR CON MANUAL CONTROL(C60)	1-83579-593-0	01	1	9302-	●	●
13	SCREW; COIL FIELD AIR CON MANUAL CONTROL(C60)	8-94120-727-0	03	1	9202-	●	●
15	SEAL; SHAFT AIR CON MANUAL CONTROL(C60)	8-94466-697-0	01	1	9202-9301	●	●
15	SEAL; SHAFT AIR CON MANUAL CONTROL(C60)	8-97081-397-0	01	1	9302-9506	●	●
15	SEAL; SHAFT AIR CON MANUAL CONTROL(C60) "R-134A"	8-97114-217-1	01	1	9507-	●	●
20	BOLT; CMPR AIR CON MANUAL CONTROL(C60)	8-94466-676-0	06	1	9202-9301	●	●
20	BOLT; CMPR AIR CON MANUAL CONTROL(C60)	8-97081-394-0	06	1	9302-	●	●
22	FELT; CYL HD,FRT AIR CON MANUAL CONTROL(C60)	8-94441-396-0	01	1	9202-9506	●	●
23	HEAD; CYL,FRT AIR CON MANUAL CONTROL(C60)	8-94466-683-0	01	1	9202-9301	●	●
23	HEAD; CYL,FRT AIR CON MANUAL CONTROL(C60)	8-97034-782-0	01	1	9302-9506	●	●
23	HEAD; CYL,FRT AIR CON MANUAL CONTROL(C60) "R-134A"	8-97114-215-0	01	1	9507-	●	●
24	GASKET; CMPR AIR CON MANUAL CONTROL(C60)	8-94466-681-0	02	1	9202-9301	●	●
24	GASKET; CMPR AIR CON MANUAL CONTROL(C60)	8-97081-396-0	02	1	9302-	●	●
27	GASKET; CYL HD AIR CON MANUAL CONTROL(C60) (A)	8-94466-685-0	01	1	9202-9301	●	●
27	GASKET; CYL HD AIR CON MANUAL CONTROL(C60) (A)	8-97085-777-0	01	1	9302-	●	●
27	GASKET; CYL HD AIR CON MANUAL CONTROL(C60) (B)	8-94466-693-0	01	1	9202-9301	●	●
27	GASKET; CYL HD AIR CON MANUAL CONTROL(C60) (B)	8-97085-779-0	01	1	9302-	●	●
28	PLATE; VLV,CMPR AIR CON MANUAL CONTROL(C60)	8-94466-687-0	01	1	9202-9506	●	●
28	PLATE; VLV,CMPR AIR CON MANUAL CONTROL(C60)	8-97135-796-0	01	1	9507-	●	●
30	VALVE; SUCTION AIR CON MANUAL CONTROL(C60)	8-94466-689-0	02	1	9202-9301	●	●
30	VALVE; SUCTION AIR CON MANUAL CONTROL(C60)	8-97081-404-0	02	1	9302-9506	●	●
30	VALVE; SUCTION AIR CON MANUAL CONTROL(C60)	8-97134-755-0	02	1	9507-	●	●
31	CYLINDER & SHAFT ASM; AIR CMPR AIR CON MANUAL CONTROL(C60)	8-94466-673-0	01	1	9202-9301	●	●
31	CYLINDER & SHAFT ASM; AIR CMPR AIR CON MANUAL CONTROL(C60)	8-97081-389-0	01	1	9302-9506	●	●
31	CYLINDER & SHAFT ASM; AIR CMPR AIR CON MANUAL CONTROL(C60)	8-97138-175-0	01	1	9507-	●	●
32	PIN; CMPR AIR CON MANUAL CONTROL(C60)	8-94154-711-0	04	1	9202-	●	●
35	GASKET; PLUG,CYL AIR CON MANUAL CONTROL(C60)	8-94113-333-0	02	1	9202-9301	●	●
35	GASKET; PLUG,CYL AIR CON MANUAL CONTROL(C60)	8-97081-395-0	01	1	9302-	●	●
36	PLUG; CYL AIR CON MANUAL CONTROL(C60)	8-94164-473-0	02	1	9202-9301	●	●
36	PLUG; CYL AIR CON MANUAL CONTROL(C60)	8-94164-473-0	01	1	9302-	●	●
37	GASKET; CMPR AIR CON MANUAL CONTROL(C60)	8-94466-678-0	06	1	9202-	●	●
40	PLATE; VLV,RR AIR CON MANUAL CONTROL(C60)	8-94466-691-0	01	1	9202-9506	●	●
40	PLATE; VLV,RR AIR CON MANUAL CONTROL(C60)	8-97135-797-0	01	1	9507-	●	●
41	HEAD; CYL,RR AIR CON MANUAL CONTROL(C60)	8-94466-695-0	01	1	9202-9301	●	●
41	HEAD; CYL,RR AIR CON MANUAL CONTROL(C60)	8-97034-784-0	01	1	9302-	●	●
63	COVER; CMPR AIR CON MANUAL CONTROL(C60)	8-94441-395-0	01	1	9202-9506	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
