8-52 — PIPING; AIR CONDITIONING (#10088) — 67 parça

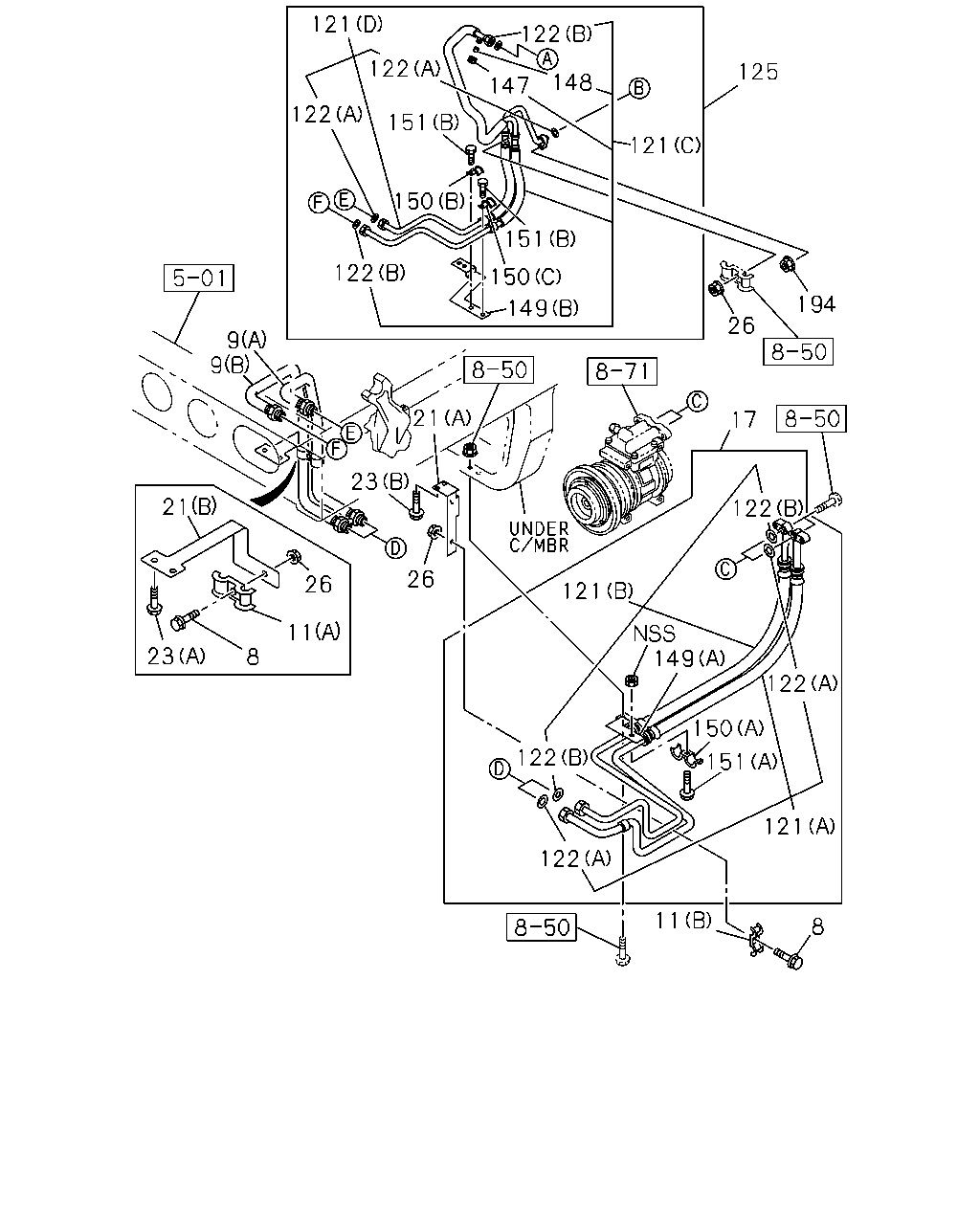

çizim 21488
125 121 148 122 147 151 122 121 122 150 122 151 149 150 26 194 17 122 121 149 122 150 151 121 8 11 122 122 26 23 26 8 23 21 21 9 9 11
BalonParca AdiParca NoAdetTipApplied Date
8 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X18 FLANGE 		0-28080-818-0 01 1 0107-
8 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X18 FLANGE 		0-28080-818-0 01 1 0107-
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83567-643-0 01 1 0107-
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83567-645-0 01 1 0107-
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=12.2 & 16.2 		1-83574-190-0 01 1 0107-
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20 & 20 		1-83574-195-1 01 1 0107-
17 HOSE; FLEX,CMPR TO PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-623-1 01 1 0107-
21 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83571-777-1 01 1 0107-
21 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83571-998-0 01 1 0107-
23 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X25 FLANGE 		0-28680-825-0 02 1 0107-0512
23 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
23 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X30 FLANGE 		0-28680-830-0 02 1 0107-0512
23 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X30 FLANGE 		0-28650-830-0 02 1 0601-
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 0107-0602
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 0107-0602
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 0107-0602
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91180-108-0 01 1 0603-
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91180-108-0 01 1 0603-
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91180-108-0 01 1 0603-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (E) 		1-83567-723-0 01 1 0107-0206
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (E) 		1-83567-863-1 01 1 0207-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-394-1 01 1 0107-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-698-0 01 1 0107-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83572-706-0 01 1 0107-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83572-707-0 01 1 0107-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=11.7 		1-83539-317-0 02 1 0107-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=11.7 		1-83539-317-0 02 1 0107-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5 		1-83539-324-0 02 1 0107-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5 		1-83539-324-0 02 1 0107-
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-484-0 01 1 0107-
147 CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L 		1-83539-331-0 01 1 0107-
148 VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-330-0 01 1 0107-
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83573-017-0 01 1 0107-
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83573-045-0 01 1 0107-
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83574-246-0 01 1 0107-
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83574-254-0 01 1 0107-
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83574-255-0 01 1 0107-
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83539-328-0 01 1 0107-
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83539-336-0 02 1 0107-
194 NUT; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M6 FLANGE 		0-91150-106-0 01 1 0107-0602
194 NUT; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M6 FLANGE 		0-91180-106-0 01 1 0603-
çizim 76006
15 189
BalonParca AdiParca NoAdetTipApplied Date
15 HOSE; DRAIN
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-635-0 01 1 0107-
15 HOSE; DRAIN
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83572-412-0 01 1 0107-
189 GROMMET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		9-09575-397-0 01 1 0107-

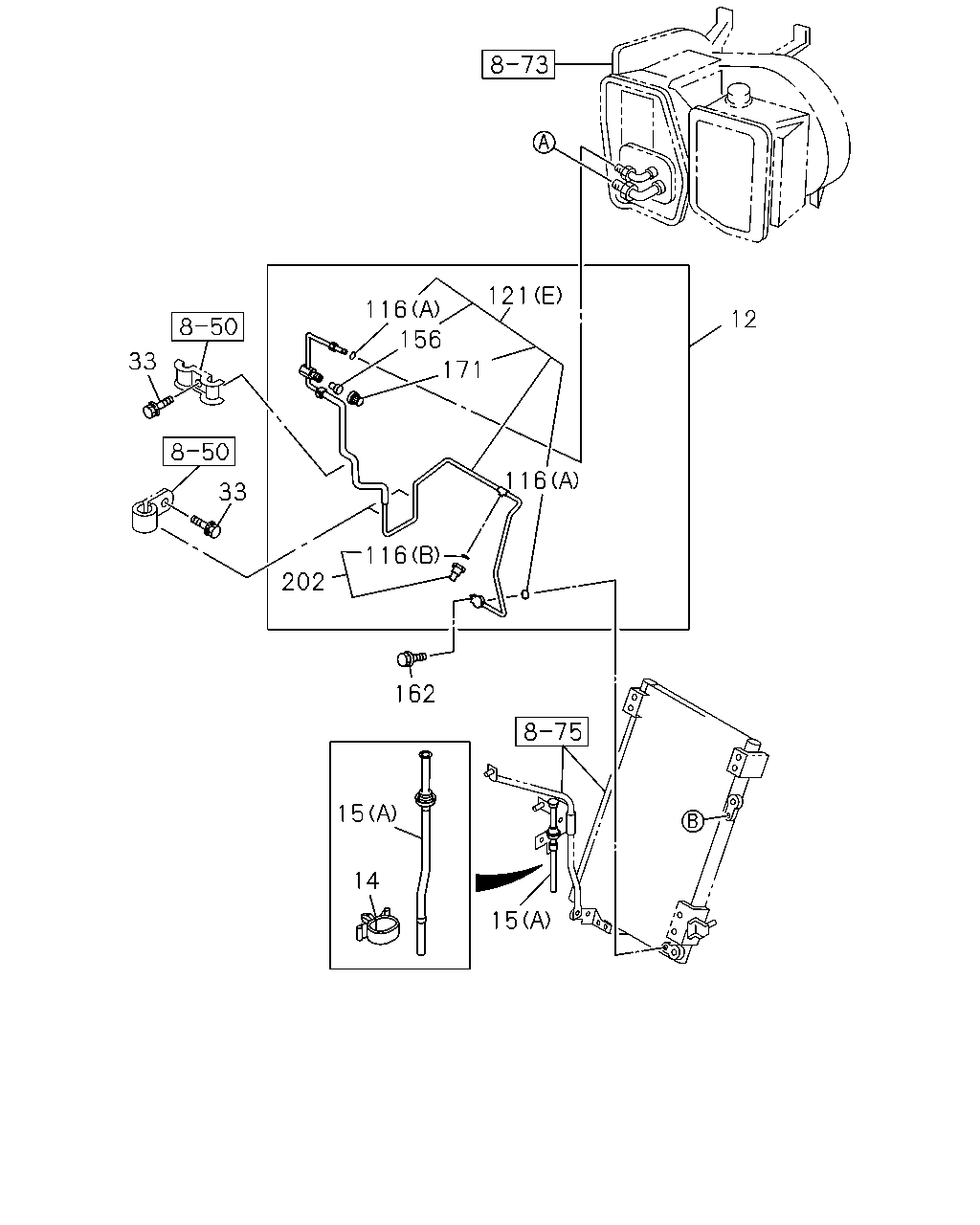

çizim 78913
12 121 171 156 116 33 33 202 116 116 162 15 14 15
BalonParca AdiParca NoAdetTipApplied Date
12 PIPE; COOLER,EVAP TO TANK
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83567-658-1 01 1 0107-0206
12 PIPE; COOLER,EVAP TO TANK
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83567-852-2 01 1 0207-
14 CLIP; BAND,EVAP DRAIN HOSE
AIR CONDITIONER MANUAL CONTROL(C60) ID=20 		8-94410-200-0 01 1 0107-
15 HOSE; DRAIN
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-635-0 01 1 0107-
15 HOSE; DRAIN
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83572-412-0 01 1 0107-
33 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0107-0206
33 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0207-
116 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=7.5 		1-83539-316-0 02 1 0107-0206
116 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=7.4 		8-97095-906-0 02 1 0207-
116 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-97178-772-0 01 1 0107-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (E) 		1-83567-723-0 01 1 0107-0206
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (E) 		1-83567-863-1 01 1 0207-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-394-1 01 1 0107-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-698-0 01 1 0107-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83572-706-0 01 1 0107-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83572-707-0 01 1 0107-
156 VALVE; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-330-0 01 1 0107-0206
156 VALVE; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97095-909-0 01 1 0207-
162 BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE 		0-28680-625-0 02 1 0107-0409
162 BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE 		0-28080-625-0 02 1 0410-0512
162 BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE 		0-28050-625-0 02 1 0601-
171 CAP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H 		8-97095-911-0 01 1 0107-
202 SWITCH; PRESSURE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-392-1 01 1 0107-
