Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#10084) — 210 parça

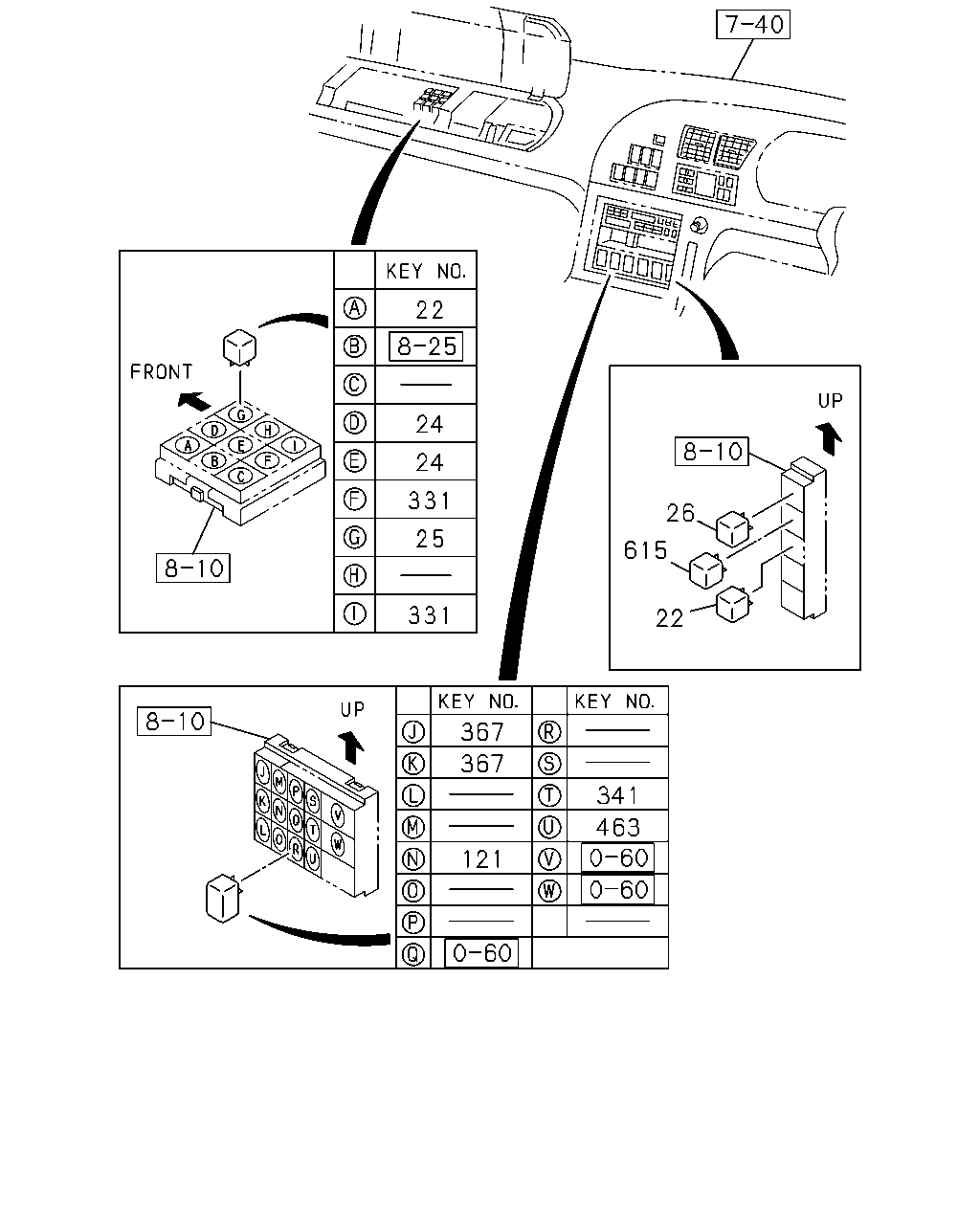

22 615 26 22 24 24 331 25 331 367 367 121 341 463

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	RELAY; STOP LAMP 24V 12.5A MITUBA	8-97062-815-1	02	1	0107-0111
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	02	1	0112-
24	RELAY; LIGHTING 24V 12.5A MITUBA	8-97062-815-1	02	1	0107-0111
24	RELAY; LIGHTING 24V 12.5A PANASONIC	8-97262-933-0	02	1	0112-
25	RELAY; TAIL LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	0107-0111
25	RELAY; TAIL LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-
26	RELAY; CONSENT 24V 12.5A MITUBA	8-97062-815-1	01	1	0107-0111
26	RELAY; CONSENT 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-
121	RELAY; PARKING BRK 24V 10A PANASONIC	8-97173-035-1	01	1	0107-
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A MITUBA	8-97062-815-1	02	1	0107-0111
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A PANASONIC	8-97262-933-0	02	1	0112-
341	RELAY FULL FLOATING CAB(W16) 24V 10A PANASONIC	8-97173-035-1	01	1	0107-
367	RELAY; NEUTRAL 24V 10A PANASONIC	8-97173-035-1	01	1	0107-
367	RELAY; NEUTRAL AUTO CAB TILT<WV2> 24V 10A PANASONIC	8-97173-035-1	01	1	0107-
463	RELAY; ABS SIGNAL ANTILOCK BRAKE SYSTEM(BFA) 24V 10A PANASONIC	8-97173-035-1	01	1	0107-
615	RELAY; TRAILER 24V 12.5A MITUBA	8-97062-815-1	01	1	0107-0111
615	RELAY; TRAILER 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-

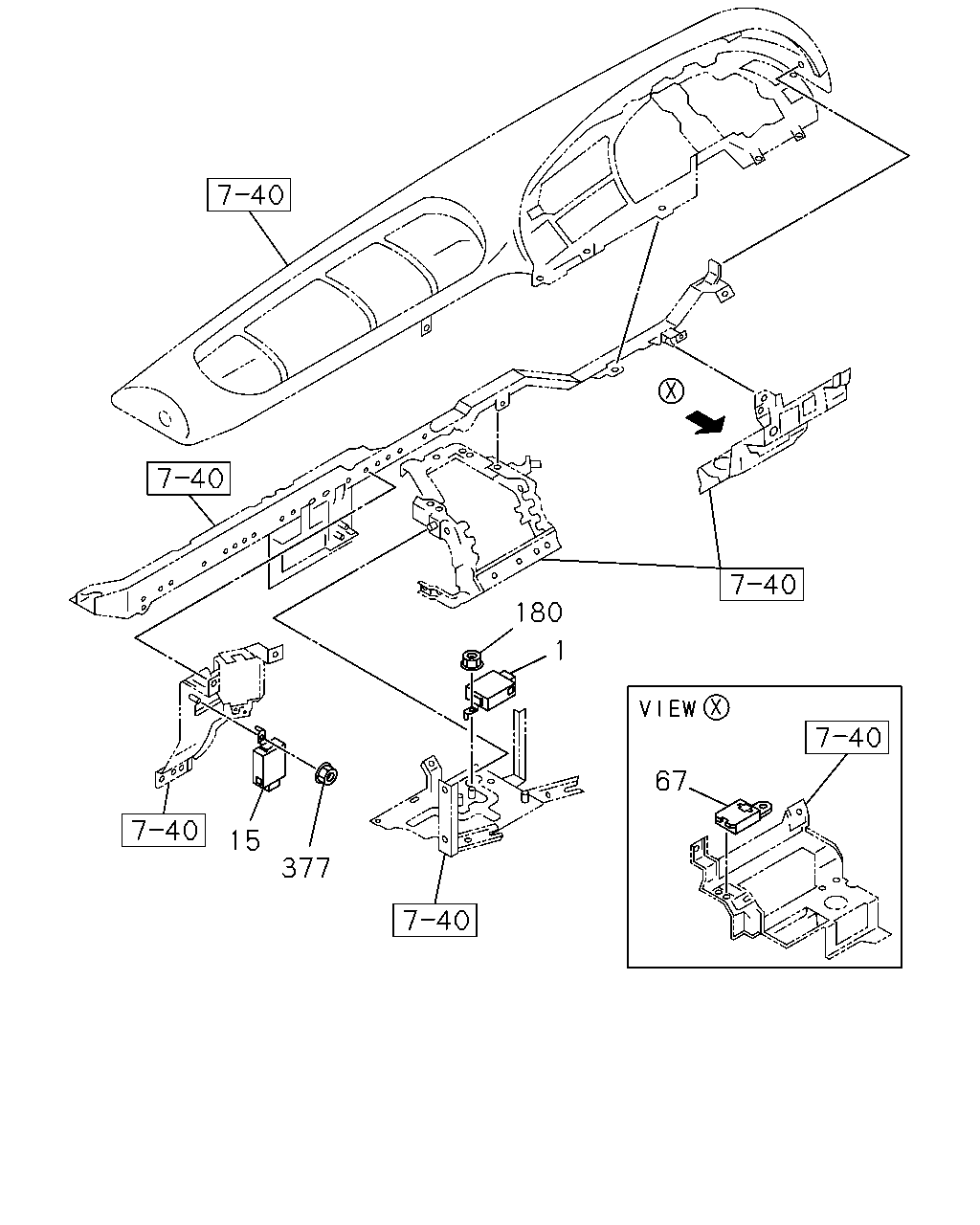

67 377 15 1 180

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	UNIT; FLASHER	1-83470-062-1	01	1	0107-
15	RELAY; STOP & TAIL WARNING 24V,25WX2,10WX2	1-82550-299-0	01	1	0107-
67	BUZZER; ENG OVERRUN	1-83460-051-1	01	1	0107-
180	NUT; FLASHER UNIT M6 FLANGE	0-91150-106-0	01	1	0107-0602
180	NUT; FLASHER UNIT M6 FLANGE	0-91180-106-0	01	1	0603-
377	NUT; RELAY M6 FLANGE	0-91150-106-0	01	1	0107-0602
377	NUT; RELAY M6 FLANGE	0-91180-106-0	01	1	0603-

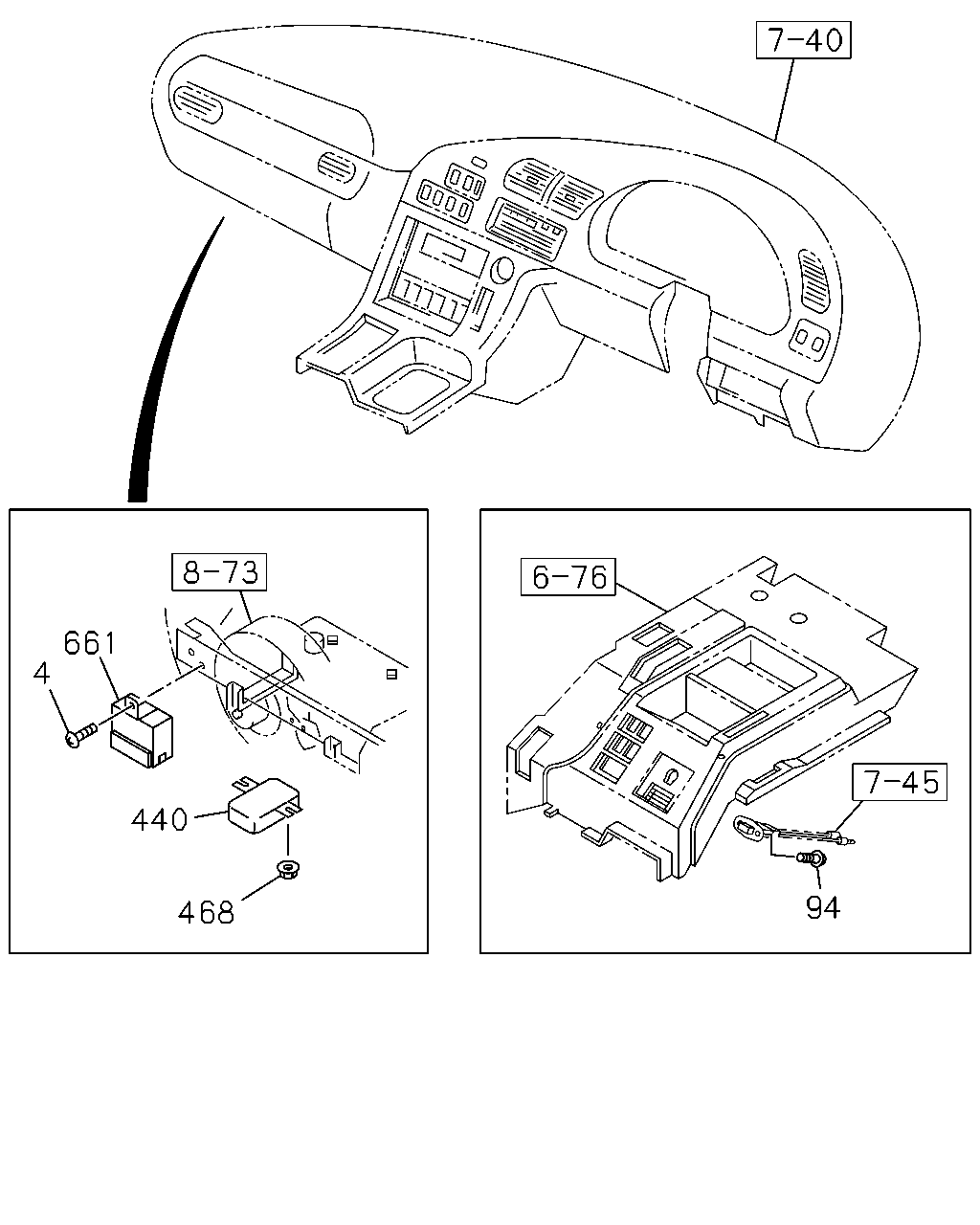

661 4 440 468 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	SCREW; FLASHER UNIT M5X14	8-94279-325-0	01	1	0107-
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74110-510-0	02	1	0107-0604
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74160-510-0	02	1	0605-
440	MODULE; INFORMATION,ABS	1-81510-701-0	01	1	0107-
468	NUT; MODULE ANTILOCK BRAKE SYSTEM(BFA) M6 FLANGE	0-91150-106-0	02	1	0107-0301
468	NUT; MODULE M6 FLANGE	0-91150-106-0	02	1	0302-0602
468	NUT; MODULE M6 FLANGE	0-91180-106-0	02	1	0603-
661	CONTROL UNIT; FLASHER	1-83470-066-1	01	1	0107-

65 299 66 65 64 64 65 59 58 312 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> METRO DENSO	1-83460-088-1	01	1	0107-
58	BUZZER; AIR PRESSURE WARNING METRO DENSO	1-83460-074-1	01	1	0107-
59	SCREW; BUZZER M5X14	8-94279-325-0	01	1	0107-
64	SOCKET; TRAILER ANTILOCK BRAKE SYSTEM(BFA) (B) ABS L=860	1-82699-449-2	01	1	0107-
64	SOCKET; TRAILER (A) 7P	1-82523-014-0	01	1	0107-
65	BOLT; SOCKET FIX ANTILOCK BRAKE SYSTEM(BFA) (C) M8X20 W/LK&PL WASHER	0-50140-820-0	04	1	0107-0504
65	BOLT; SOCKET FIX ANTILOCK BRAKE SYSTEM(BFA) (C) M8X25 FLANGE	0-28680-825-0	04	1	0505-0512
65	BOLT; SOCKET FIX ANTILOCK BRAKE SYSTEM(BFA) (C) M8X25 FLANGE	0-28650-825-0	04	1	0601-
65	BOLT; SOCKET FIX FULL FLOATING CAB(W16) (A) M6X16 FLANGE	0-28080-616-0	02	1	0107-0512
65	BOLT; SOCKET FIX FULL FLOATING CAB(W16) (A) M6X16 FLANGE	0-28050-616-0	02	1	0601-
65	BOLT; SOCKET FIX (B) M8X25 FLANGE	0-28680-825-0	02	1	0107-0512
65	BOLT; SOCKET FIX (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-
66	NUT; SOCKET FIX M8 FLANGE	0-91180-108-0	02	1	0605-
299	SOCKET; PARKING ANTILOCK BRAKE SYSTEM(BFA)	1-82699-396-1	01	1	0107-
312	BOLT; BUZZER M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0107-0305

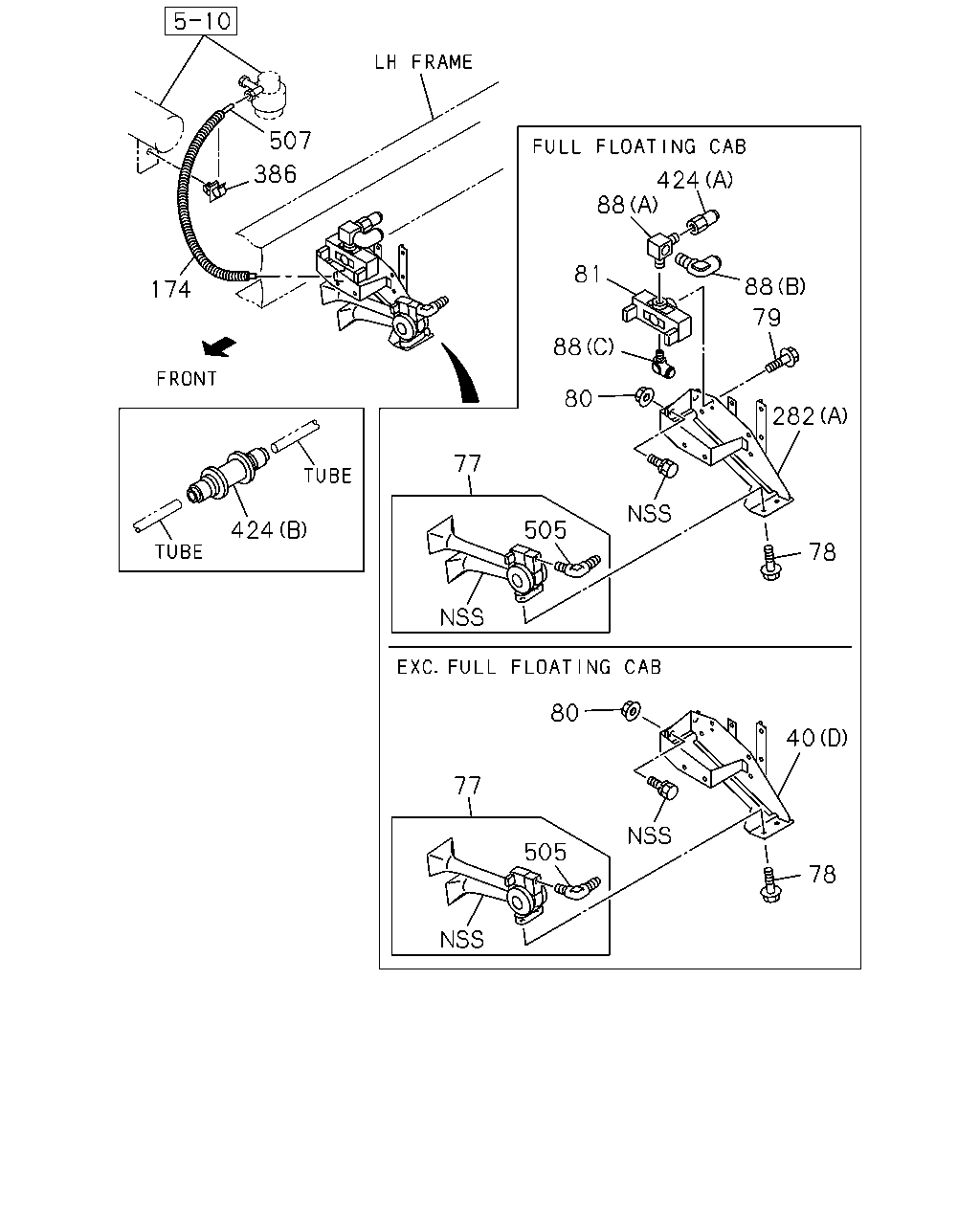

78 40 78 282 79 88 81 88 80 88 424 507 386 174 77 505 424 77 505 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-82569-279-0	01	1	0107-
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-380-0	01	1	0107-
40	BRACKET; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U) (C)	1-82569-339-0	01	1	0107-
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB(W16) (D)	1-53458-994-0	01	1	0107-0110
77	HORN ASM	1-83430-041-1	01	1	0107-0209
77	HORN ASM	1-83430-039-3	01	1	0210-
78	BOLT; AIR HORN M8X20 FLANGE	0-28680-820-0	02	1	0107-0512
78	BOLT; AIR HORN M8X20 FLANGE	0-28650-820-0	02	1	0601-
79	BOLT; MAG VLV FULL FLOATING CAB(W16) M8X12 FLANGE	0-28080-812-0	01	1	0107-0512
79	BOLT; MAG VLV FULL FLOATING CAB(W16) M8X12 FLANGE	0-28050-812-0	01	1	0601-
80	NUT; MAG VLV M12 FLANGE	0-91150-212-0	04	1	0107-0602
80	NUT; MAG VLV M12 FLANGE	0-91180-212-0	04	1	0603-
81	VALVE; MAG,HORN FULL FLOATING CAB(W16)	1-53458-378-2	01	1	0107-
88	CONNECTOR; MAG VLV EURO3 SPECIFICATION<NJX> (G) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0107-
88	CONNECTOR; MAG VLV EURO3 SPECIFICATION<NJX> (E) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0107-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0107-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	0107-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (F) TRI LC6X4-R1/8	1-09660-760-1	01	1	0107-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0107-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0107-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (D) PT1/8 ELBOW	8-94338-418-1	01	1	0107-
174	COVER L=700 SERVICED BY L=800	1-83129-031-1	01	1	0107-0108
174	COVER FULL FLOATING CAB(W16) L=700 SERVICED BY L=800	1-83129-031-1	01	1	0109-
282	BRACKET; MAG VLV EURO3 SPECIFICATION<NJX> (B)	1-82569-290-0	01	1	0107-
282	BRACKET; MAG VLV BRAKE SYSTEM RETARDER<RE2> (C)	1-82569-248-0	01	1	0107-
282	BRACKET; MAG VLV FULL FLOATING CAB(W16) (A)	1-53458-994-0	01	1	0107-
386	CLIP; HARNESS FULL FLOATING CAB(W16) ID=9.5	5-09709-020-0	01	1	0107-0206
386	CLIP; HARNESS FULL FLOATING CAB(W16) ID=9.5	5-09709-020-0	01	1	0207-0605
386	CLIP; HARNESS FULL FLOATING CAB(W16) ID=9.5	5-09709-020-0	01	1	0207-0605
386	CLIP; HARNESS FULL FLOATING CAB(W16) ID=9.5	5-09709-020-0	01	1	0606-
424	ADAPTER FULL FLOATING CAB(W16) (A) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0107-
424	ADAPTER EXC. FULL FLOATING CAB(W16) (B)	1-09661-310-0	01	1	0107-0311
505	JOINT; AIR HORN	1-83439-006-0	01	1	0107-
507	TUBE; NYLON FULL FLOATING CAB(W16) L=800 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0107-0212
507	TUBE; NYLON FULL FLOATING CAB(W16) SERVICED BY L=2000 OD=6	1-87410-081-0	01	1	0301-

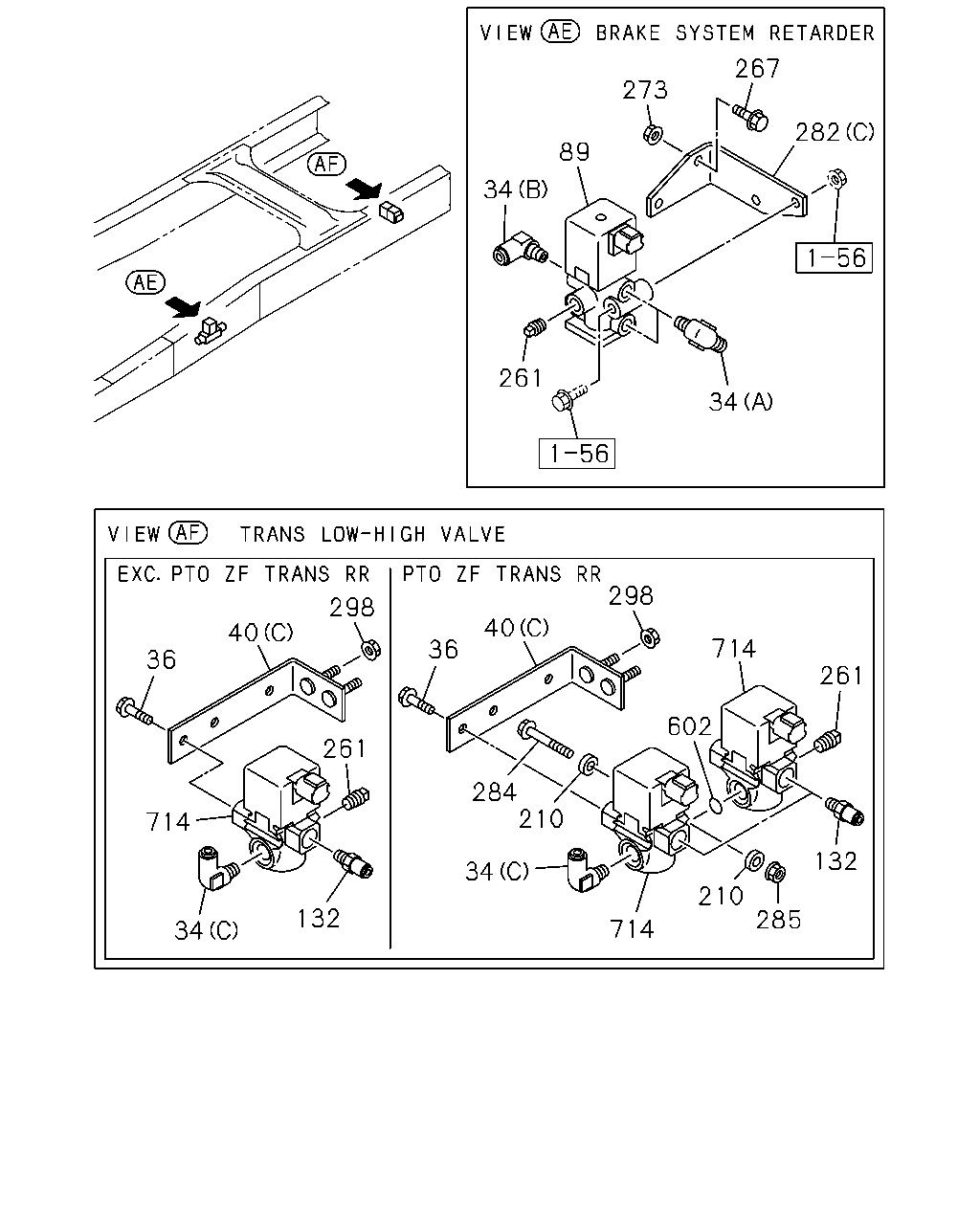

282 267 273 89 34 261 34 261 714 298 40 36 602 132 285 210 714 34 284 210 261 132 34 714 36 40 298

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0107-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0107-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0107-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0107-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U) (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0107-
36	BOLT; MAG VLV,PTO CONT TRANSMISSION-ZF 16S221 OD(Y1U) M8X20 FLANGE	0-28680-820-0	02	1	0107-0512
36	BOLT; MAG VLV,PTO CONT TRANSMISSION-ZF 16S221 OD(Y1U) M8X20 FLANGE	0-28650-820-0	02	1	0601-
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-82569-279-0	01	1	0107-
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-380-0	01	1	0107-
40	BRACKET; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U) (C)	1-82569-339-0	01	1	0107-
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB(W16) (D)	1-53458-994-0	01	1	0107-0110
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER<RE2>	1-82563-597-5	01	1	0107-
132	CONNECTOR; OUTLET,MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U) PTO ZF TRANS RR(BDM) DIN8 R1/4 STRAIGHT	1-09660-963-0	02	1	0107-
132	CONNECTOR; OUTLET,MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U) EXC. PTO ZF TRANS RR(BDM) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0107-
210	WASHER; PL,BRKT EURO3 SPECIFICATION<NJX>	1-82569-266-0	02	1	0107-
210	WASHER; PL,BRKT TRANSMISSION-ZF 16S221 OD(Y1U) PTO ZF TRANS RR(BDM)	1-82569-266-0	02	1	0107-
261	PLUG; MAG VLV EURO3 SPECIFICATION<NJX> PT1/4	9-99204-513-0	01	1	0107-
261	PLUG; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	0107-
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER<RE2> PT1/4	9-99204-513-0	01	1	0107-
261	PLUG; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U) PT1/4	9-99204-513-0	01	1	0107-
267	BOLT; VLV TO BRKT BRAKE SYSTEM RETARDER<RE2> M8X30 FLANGE	0-28680-830-0	02	1	0107-0512
267	BOLT; VLV TO BRKT BRAKE SYSTEM RETARDER<RE2> M8X30 FLANGE	0-28650-830-0	02	1	0601-
273	NUT; MAG VLV BRAKE SYSTEM RETARDER<RE2> M8 FLANGE	0-91150-108-0	02	1	0107-0602
273	NUT; MAG VLV BRAKE SYSTEM RETARDER<RE2> M8 FLANGE	0-91180-108-0	02	1	0603-
282	BRACKET; MAG VLV EURO3 SPECIFICATION<NJX> (B)	1-82569-290-0	01	1	0107-
282	BRACKET; MAG VLV BRAKE SYSTEM RETARDER<RE2> (C)	1-82569-248-0	01	1	0107-
282	BRACKET; MAG VLV FULL FLOATING CAB(W16) (A)	1-53458-994-0	01	1	0107-
284	BOLT; MAG VLV EURO3 SPECIFICATION<NJX> M6X50 FLANGE	0-28080-650-0	01	1	0107-0512
284	BOLT; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U) PTO ZF TRANS RR(BDM) M6X50 FLANGE	0-28080-650-0	01	1	0107-0512
284	BOLT; MAG VLV EURO3 SPECIFICATION<NJX> M6X50 FLANGE	0-28050-650-0	01	1	0601-
284	BOLT; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U) PTO ZF TRANS RR(BDM) M6X50 FLANGE	0-28050-650-0	01	1	0601-
285	NUT; MAG VLV EURO3 SPECIFICATION<NJX> M6 FLANGE	0-91150-106-0	01	1	0107-0602
285	NUT; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U) PTO ZF TRANS RR(BDM) M6 FLANGE	0-91150-106-0	01	1	0107-0602
285	NUT; MAG VLV EURO3 SPECIFICATION<NJX> M6 FLANGE	0-91180-106-0	01	1	0603-
285	NUT; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U) PTO ZF TRANS RR(BDM) M6 FLANGE	0-91180-106-0	01	1	0603-
298	NUT; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U) M8 FLANGE	0-91150-108-0	02	1	0107-0602
298	NUT; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U) M8 FLANGE	0-91180-108-0	02	1	0603-
602	GASKET; MAG VLV EURO3 SPECIFICATION<NJX> ID=16.8	9-09565-117-0	01	1	0107-
602	GASKET; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U) PTO ZF TRANS RR(BDM) ID=16.8	9-09565-117-0	01	1	0107-
714	VALVE; MAG,TRANS,LOW TO HIGH TRANSMISSION-ZF 16S221 OD(Y1U) PTO ZF TRANS RR(BDM)	1-82563-871-2	02	1	0107-
714	VALVE; MAG,TRANS,LOW TO HIGH TRANSMISSION-ZF 16S221 OD(Y1U) EXC. PTO ZF TRANS RR(BDM)	1-82563-871-2	01	1	0107-

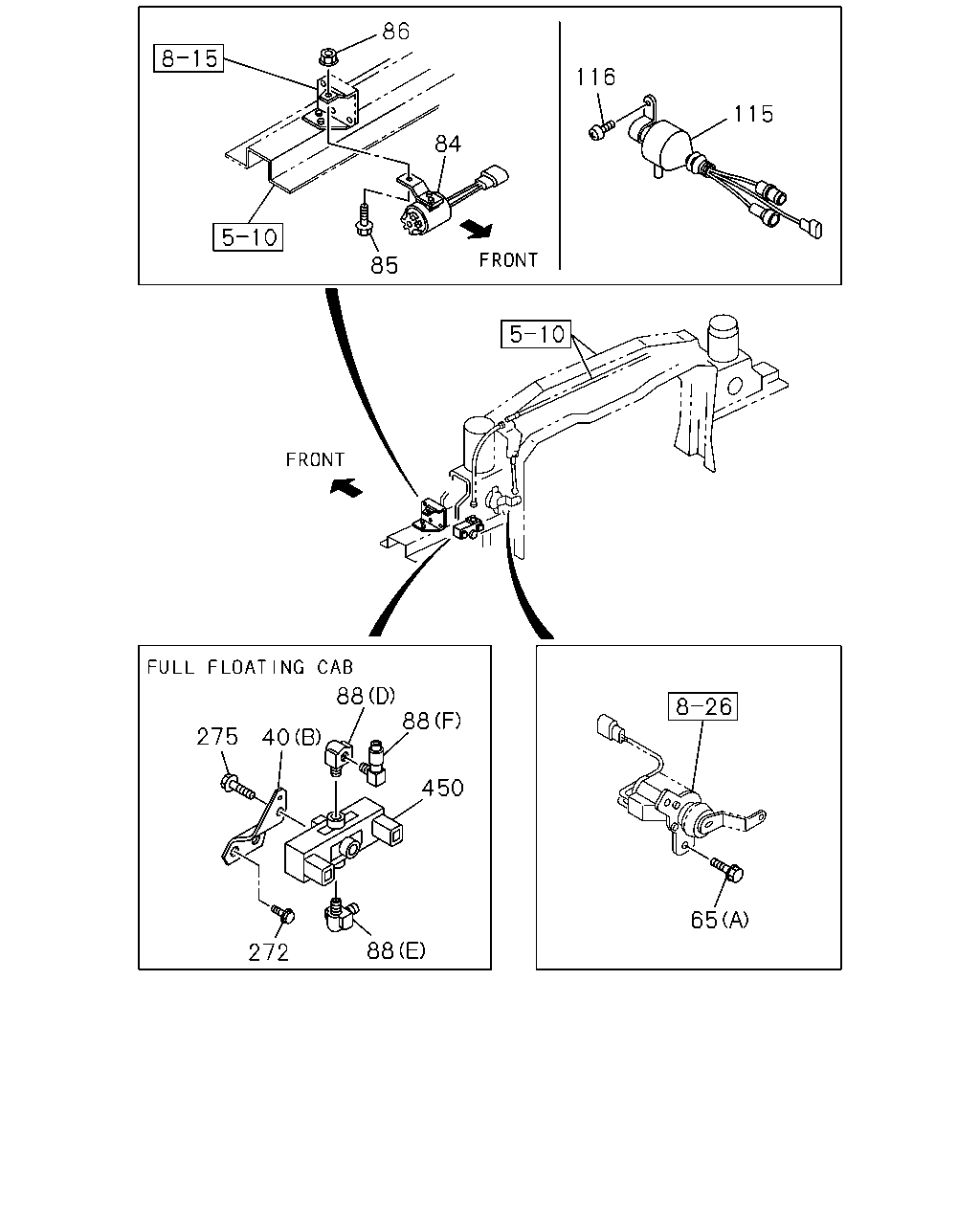

115 116 84 86 85 65 450 88 88 275 40 88 272

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-82569-279-0	01	1	0107-
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-380-0	01	1	0107-
40	BRACKET; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U) (C)	1-82569-339-0	01	1	0107-
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB(W16) (D)	1-53458-994-0	01	1	0107-0110
65	BOLT; SOCKET FIX ANTILOCK BRAKE SYSTEM(BFA) (C) M8X20 W/LK&PL WASHER	0-50140-820-0	04	1	0107-0504
65	BOLT; SOCKET FIX ANTILOCK BRAKE SYSTEM(BFA) (C) M8X25 FLANGE	0-28680-825-0	04	1	0505-0512
65	BOLT; SOCKET FIX ANTILOCK BRAKE SYSTEM(BFA) (C) M8X25 FLANGE	0-28650-825-0	04	1	0601-
65	BOLT; SOCKET FIX FULL FLOATING CAB(W16) (A) M6X16 FLANGE	0-28080-616-0	02	1	0107-0512
65	BOLT; SOCKET FIX FULL FLOATING CAB(W16) (A) M6X16 FLANGE	0-28050-616-0	02	1	0601-
65	BOLT; SOCKET FIX (B) M8X25 FLANGE	0-28680-825-0	02	1	0107-0512
65	BOLT; SOCKET FIX (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-
84	BUZZER; POWER CAB TILT METRO DENSO	1-83460-096-2	01	1	0107-
85	BOLT; BUZZER,POWER CAB TILT M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	0107-0201
85	BOLT; BUZZER,POWER CAB TILT M8X16 FLANGE	0-28080-816-0	01	1	0202-0512
85	BOLT; BUZZER,POWER CAB TILT M8X16 FLANGE	0-28050-816-0	01	1	0601-
86	NUT; BUZZER M8 FLANGE	0-91150-108-0	01	1	0107-0602
86	NUT; BUZZER M8 FLANGE	0-91180-108-0	01	1	0603-
88	CONNECTOR; MAG VLV EURO3 SPECIFICATION<NJX> (G) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0107-
88	CONNECTOR; MAG VLV EURO3 SPECIFICATION<NJX> (E) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0107-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0107-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	0107-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (F) TRI LC6X4-R1/8	1-09660-760-1	01	1	0107-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0107-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0107-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (D) PT1/8 ELBOW	8-94338-418-1	01	1	0107-
115	RELAY; POWER CAB TILT UNIT AUTO CAB TILT<WV2> HITACHI	1-81171-087-0	01	1	0107-0210
115	RELAY; POWER CAB TILT UNIT AUTO CAB TILT<WV2> NIKKO	1-81171-075-1	01	1	0211-
116	BOLT; RELAY FIX AUTO CAB TILT<WV2> M8X16 FLANGE	0-28080-816-0	02	1	0107-0512
116	BOLT; RELAY FIX AUTO CAB TILT<WV2> M8X16 FLANGE	0-28050-816-0	02	1	0601-
272	BOLT; MAG VLV FULL FLOATING CAB(W16) M10X30 FLANGE	0-28681-030-0	02	1	0107-0201
272	BOLT; MAG VLV FULL FLOATING CAB(W16) M10X20 FLANGE	0-28681-020-0	02	1	0202-0512
272	BOLT; MAG VLV FULL FLOATING CAB(W16) M10X20 FLANGE	0-28651-020-0	02	1	0601-
275	BOLT; BRKT FULL FLOATING CAB(W16) M8X14 FLANGE	0-28080-814-0	01	1	0107-
450	VALVE; MAG FULL FLOATING CAB(W16)	1-53458-378-2	01	1	0107-

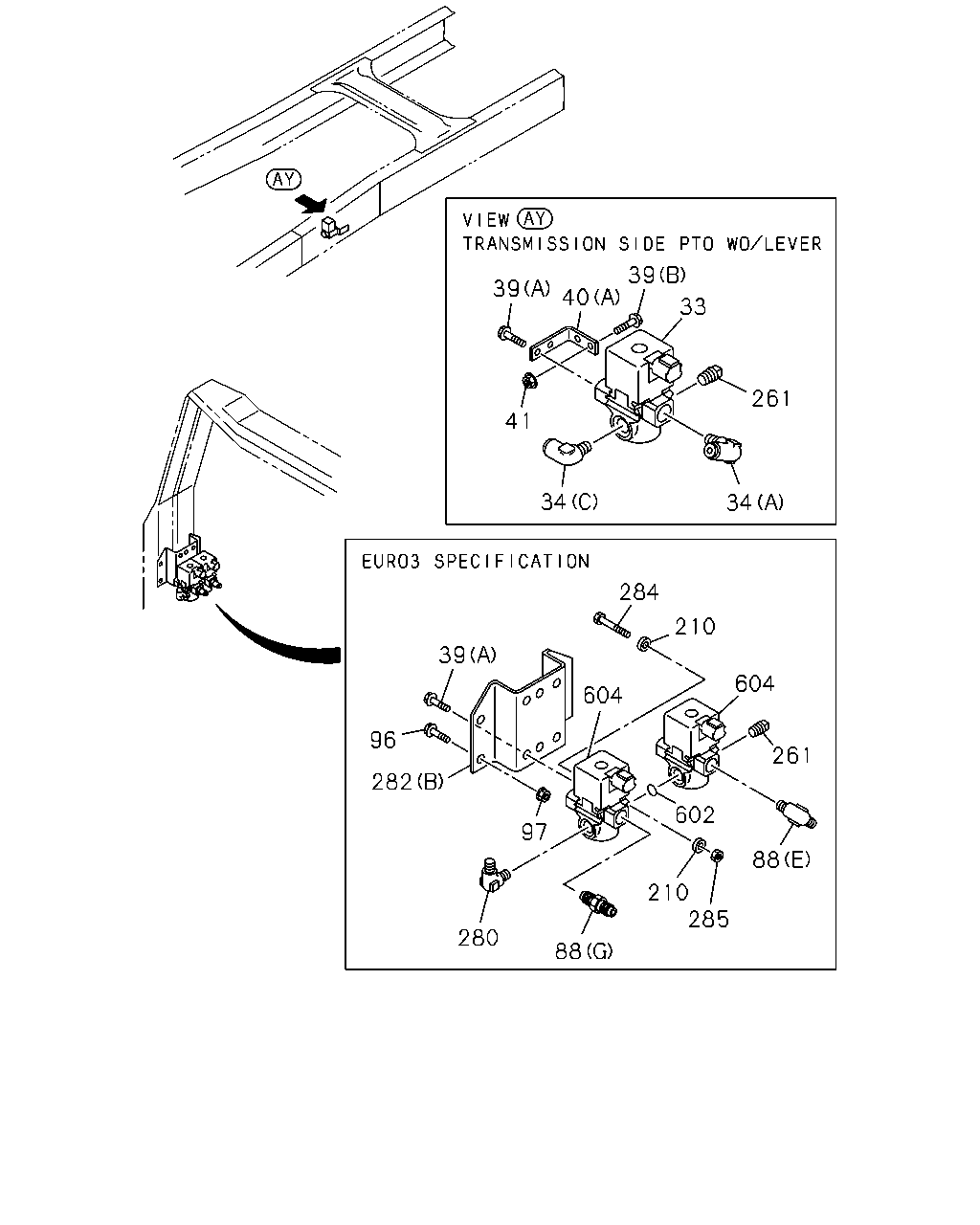

261 34 34 41 33 39 40 39 284 210 604 261 88 285 210 602 604 39 96 282 97 280 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	VALVE; MAG,PTO CONT TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82563-871-2	01	1	0107-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0107-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0107-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0107-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0107-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U) (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0107-
39	BOLT; BRKT,MAG VLV EURO3 SPECIFICATION<NJX> (A) M8X20 FLANGE	0-28680-820-0	02	1	0107-0512
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X20 FLANGE	0-28680-820-0	02	1	0107-0512
39	BOLT; BRKT,MAG VLV EURO3 SPECIFICATION<NJX> (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X30 FLANGE	0-28680-830-0	02	1	0107-0512
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X30 FLANGE	0-28650-830-0	02	1	0601-
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-82569-279-0	01	1	0107-
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-380-0	01	1	0107-
40	BRACKET; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U) (C)	1-82569-339-0	01	1	0107-
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB(W16) (D)	1-53458-994-0	01	1	0107-0110
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE	0-91150-108-0	02	1	0107-0602
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE	0-91180-108-0	02	1	0603-
88	CONNECTOR; MAG VLV EURO3 SPECIFICATION<NJX> (G) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0107-
88	CONNECTOR; MAG VLV EURO3 SPECIFICATION<NJX> (E) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0107-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0107-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	0107-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (F) TRI LC6X4-R1/8	1-09660-760-1	01	1	0107-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0107-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0107-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (D) PT1/8 ELBOW	8-94338-418-1	01	1	0107-
96	BOLT; BRKT FIX EURO3 SPECIFICATION<NJX> M8X20 FLANGE	0-28680-820-0	04	1	0107-0108
96	BOLT; BRKT FIX EURO3 SPECIFICATION<NJX> M8X20 FLANGE	0-28680-820-0	02	1	0109-0512
96	BOLT; BRKT FIX EURO3 SPECIFICATION<NJX> M8X20 FLANGE	0-28650-820-0	02	1	0601-
97	NUT; BRKT FIX EURO3 SPECIFICATION<NJX> M8 FLANGE	0-91150-108-0	04	1	0107-0108
97	NUT; BRKT FIX EURO3 SPECIFICATION<NJX> M8 FLANGE	0-91150-108-0	02	1	0109-0602
97	NUT; BRKT FIX EURO3 SPECIFICATION<NJX> M8 FLANGE	0-91180-108-0	02	1	0603-
210	WASHER; PL,BRKT EURO3 SPECIFICATION<NJX>	1-82569-266-0	02	1	0107-
210	WASHER; PL,BRKT TRANSMISSION-ZF 16S221 OD(Y1U) PTO ZF TRANS RR(BDM)	1-82569-266-0	02	1	0107-
261	PLUG; MAG VLV EURO3 SPECIFICATION<NJX> PT1/4	9-99204-513-0	01	1	0107-
261	PLUG; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	0107-
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER<RE2> PT1/4	9-99204-513-0	01	1	0107-
261	PLUG; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U) PT1/4	9-99204-513-0	01	1	0107-
280	CONNECTOR; IN,MAG VLV EURO3 SPECIFICATION<NJX> M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0107-
282	BRACKET; MAG VLV EURO3 SPECIFICATION<NJX> (B)	1-82569-290-0	01	1	0107-
282	BRACKET; MAG VLV BRAKE SYSTEM RETARDER<RE2> (C)	1-82569-248-0	01	1	0107-
282	BRACKET; MAG VLV FULL FLOATING CAB(W16) (A)	1-53458-994-0	01	1	0107-
284	BOLT; MAG VLV EURO3 SPECIFICATION<NJX> M6X50 FLANGE	0-28080-650-0	01	1	0107-0512
284	BOLT; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U) PTO ZF TRANS RR(BDM) M6X50 FLANGE	0-28080-650-0	01	1	0107-0512
284	BOLT; MAG VLV EURO3 SPECIFICATION<NJX> M6X50 FLANGE	0-28050-650-0	01	1	0601-
284	BOLT; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U) PTO ZF TRANS RR(BDM) M6X50 FLANGE	0-28050-650-0	01	1	0601-
285	NUT; MAG VLV EURO3 SPECIFICATION<NJX> M6 FLANGE	0-91150-106-0	01	1	0107-0602
285	NUT; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U) PTO ZF TRANS RR(BDM) M6 FLANGE	0-91150-106-0	01	1	0107-0602
285	NUT; MAG VLV EURO3 SPECIFICATION<NJX> M6 FLANGE	0-91180-106-0	01	1	0603-
285	NUT; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U) PTO ZF TRANS RR(BDM) M6 FLANGE	0-91180-106-0	01	1	0603-
602	GASKET; MAG VLV EURO3 SPECIFICATION<NJX> ID=16.8	9-09565-117-0	01	1	0107-
602	GASKET; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U) PTO ZF TRANS RR(BDM) ID=16.8	9-09565-117-0	01	1	0107-
604	VALVE; MAG,ENG CONT EURO3 SPECIFICATION<NJX>	1-82563-871-2	02	1	0107-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
