8-20 — METER CABLE (#10080) — 50 parça

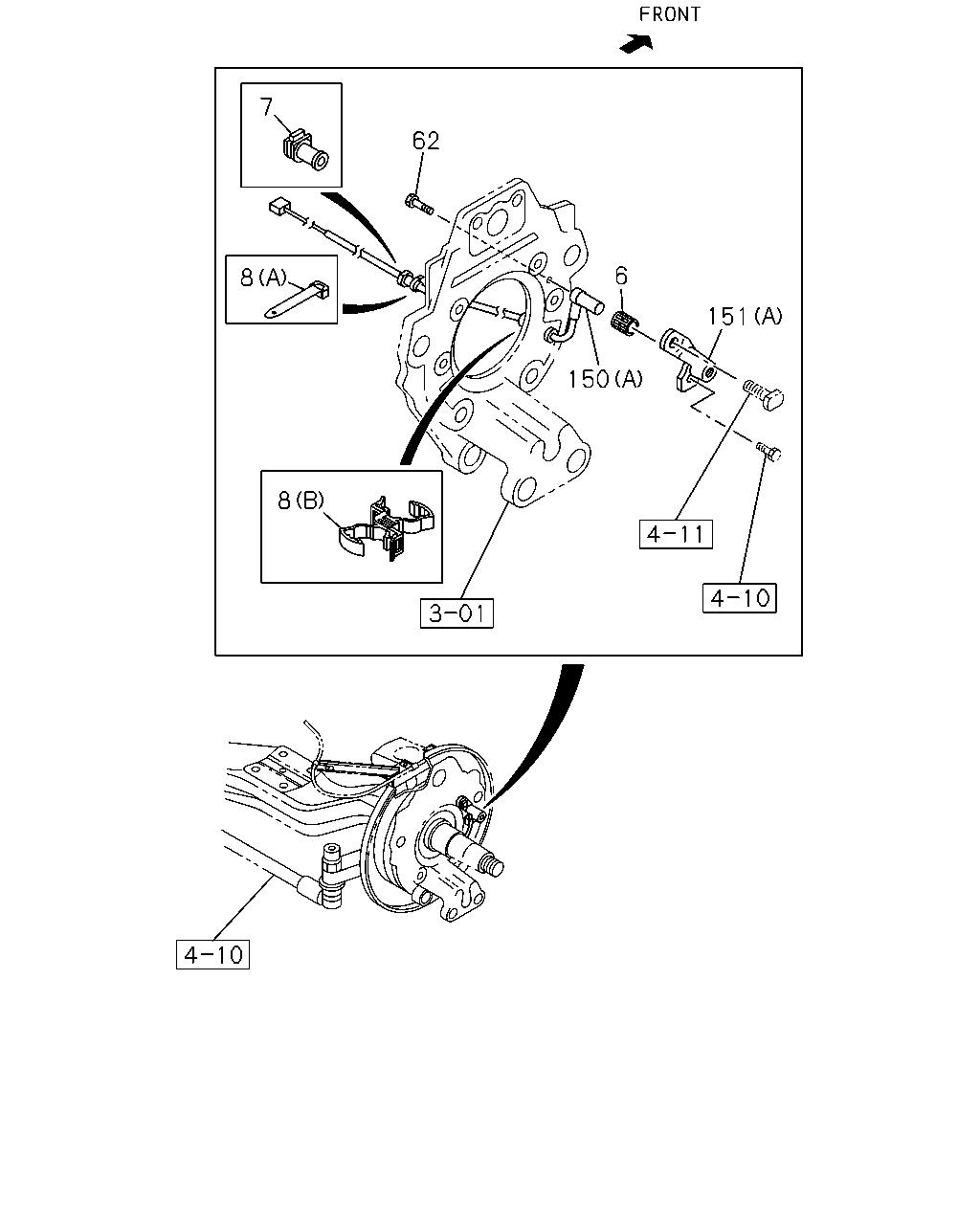

62 8 7 8 150 6 151

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HOLDER; SPD SENSOR ANTILOCK BRAKE SYSTEM(BFA) EXC. DISC WHEEL AL<SDM>	1-83129-260-1	02	1	0107-
6	HOLDER; SPD SENSOR ANTILOCK BRAKE SYSTEM(BFA)	1-83129-260-1	02	1	0107-
7	GROMMET; SPD SENSOR ANTILOCK BRAKE SYSTEM(BFA) ID=8	1-82699-740-1	01	1	0107-
7	GROMMET; SPD SENSOR ANTILOCK BRAKE SYSTEM(BFA) ID=8	1-82699-740-1	02	1	0107-
8	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (A) L=140	5-09707-031-1	01	1	0107-
8	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) EXC. DISC WHEEL AL<SDM> (B) ID=6-10 & 6-10	1-09709-192-1	01	1	0107-
8	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (B) ID=6-10 & 6-10	1-09709-192-1	01	1	0107-
8	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (A) L=140	5-09707-031-1	02	1	0107-
62	BOLT; SENSOR ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE SYSTEM RETARDER<RE2> M8X16	9-05820-816-0	02	1	0107-
150	SENSOR; SPEED,ABS ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE SYSTEM RETARDER<RE2> (B)	1-83127-803-0	01	1	0107-0107
150	SENSOR; SPEED,ABS ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE SYSTEM RETARDER<RE2> (B)	1-83127-806-0	01	1	0107-0307
150	SENSOR; SPEED,ABS ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE SYSTEM RETARDER<RE2> (B)	1-83127-804-0	01	1	0107-0107
150	SENSOR; SPEED,ABS ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE SYSTEM RETARDER<RE2> (B)	1-83127-807-0	01	1	0107-0307
150	SENSOR; SPEED,ABS ANTILOCK BRAKE SYSTEM(BFA) BRAKE SYSTEM RETARDER<RE2> (B)	1-83127-644-1	01	1	0107-0107
150	SENSOR; SPEED,ABS ANTILOCK BRAKE SYSTEM(BFA) BRAKE SYSTEM RETARDER<RE2> (B)	1-83127-808-0	01	1	0107-0307
150	SENSOR; SPEED,ABS ANTILOCK BRAKE SYSTEM(BFA) (B)	1-83127-849-1	02	1	0308-
150	SENSOR; SPEED,ABS ANTILOCK BRAKE SYSTEM(BFA) BRAKE SYSTEM RETARDER<RE2> (B)	1-83127-645-1	01	1	0107-0107
150	SENSOR; SPEED,ABS ANTILOCK BRAKE SYSTEM(BFA) BRAKE SYSTEM RETARDER<RE2> (B)	1-83127-809-0	01	1	0107-0307
150	SENSOR; SPEED,ABS ANTILOCK BRAKE SYSTEM(BFA) (A)	1-83127-517-1	02	1	0107-0107
150	SENSOR; SPEED,ABS ANTILOCK BRAKE SYSTEM(BFA) (A)	1-83127-805-1	02	1	0107-
151	BRACKET; SPD SENSOR ANTILOCK BRAKE SYSTEM(BFA) (B)	1-83129-403-0	01	1	0107-
151	BRACKET; SPD SENSOR ANTILOCK BRAKE SYSTEM(BFA) (B)	1-83129-404-0	01	1	0107-
151	BRACKET; SPD SENSOR ANTILOCK BRAKE SYSTEM(BFA) (A)	1-83129-421-0	01	1	0107-
151	BRACKET; SPD SENSOR ANTILOCK BRAKE SYSTEM(BFA) (A)	1-83129-422-0	01	1	0107-

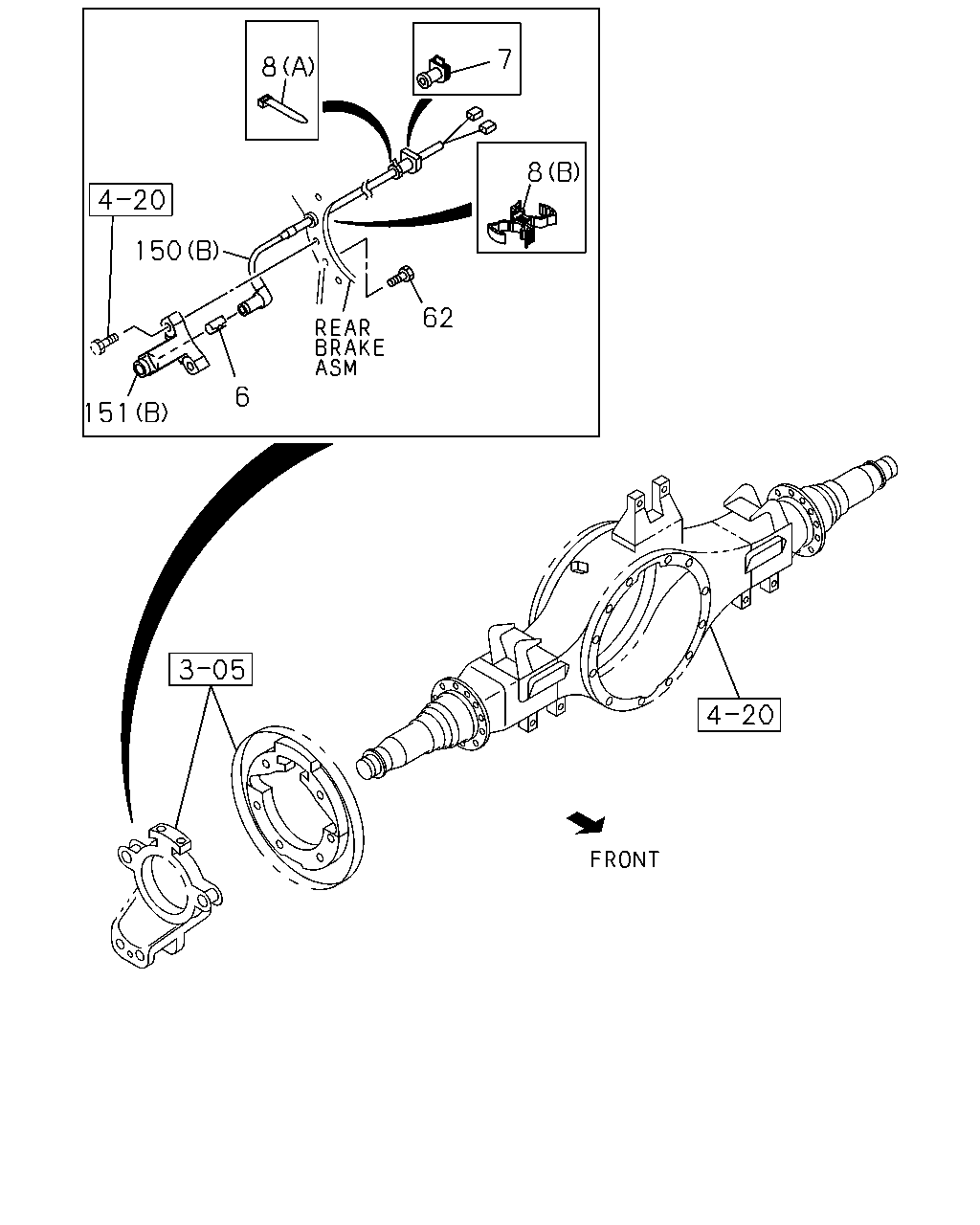

151 6 62 7 8 8 150

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HOLDER; SPD SENSOR ANTILOCK BRAKE SYSTEM(BFA) EXC. DISC WHEEL AL<SDM>	1-83129-260-1	02	1	0107-
6	HOLDER; SPD SENSOR ANTILOCK BRAKE SYSTEM(BFA)	1-83129-260-1	02	1	0107-
7	GROMMET; SPD SENSOR ANTILOCK BRAKE SYSTEM(BFA) ID=8	1-82699-740-1	01	1	0107-
7	GROMMET; SPD SENSOR ANTILOCK BRAKE SYSTEM(BFA) ID=8	1-82699-740-1	02	1	0107-
8	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (A) L=140	5-09707-031-1	01	1	0107-
8	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) EXC. DISC WHEEL AL<SDM> (B) ID=6-10 & 6-10	1-09709-192-1	01	1	0107-
8	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (B) ID=6-10 & 6-10	1-09709-192-1	01	1	0107-
8	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (A) L=140	5-09707-031-1	02	1	0107-
62	BOLT; SENSOR ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE SYSTEM RETARDER<RE2> M8X16	9-05820-816-0	02	1	0107-
150	SENSOR; SPEED,ABS ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE SYSTEM RETARDER<RE2> (B)	1-83127-803-0	01	1	0107-0107
150	SENSOR; SPEED,ABS ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE SYSTEM RETARDER<RE2> (B)	1-83127-806-0	01	1	0107-0307
150	SENSOR; SPEED,ABS ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE SYSTEM RETARDER<RE2> (B)	1-83127-804-0	01	1	0107-0107
150	SENSOR; SPEED,ABS ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE SYSTEM RETARDER<RE2> (B)	1-83127-807-0	01	1	0107-0307
150	SENSOR; SPEED,ABS ANTILOCK BRAKE SYSTEM(BFA) BRAKE SYSTEM RETARDER<RE2> (B)	1-83127-644-1	01	1	0107-0107
150	SENSOR; SPEED,ABS ANTILOCK BRAKE SYSTEM(BFA) BRAKE SYSTEM RETARDER<RE2> (B)	1-83127-808-0	01	1	0107-0307
150	SENSOR; SPEED,ABS ANTILOCK BRAKE SYSTEM(BFA) (B)	1-83127-849-1	02	1	0308-
150	SENSOR; SPEED,ABS ANTILOCK BRAKE SYSTEM(BFA) BRAKE SYSTEM RETARDER<RE2> (B)	1-83127-645-1	01	1	0107-0107
150	SENSOR; SPEED,ABS ANTILOCK BRAKE SYSTEM(BFA) BRAKE SYSTEM RETARDER<RE2> (B)	1-83127-809-0	01	1	0107-0307
150	SENSOR; SPEED,ABS ANTILOCK BRAKE SYSTEM(BFA) (A)	1-83127-517-1	02	1	0107-0107
150	SENSOR; SPEED,ABS ANTILOCK BRAKE SYSTEM(BFA) (A)	1-83127-805-1	02	1	0107-
151	BRACKET; SPD SENSOR ANTILOCK BRAKE SYSTEM(BFA) (B)	1-83129-403-0	01	1	0107-
151	BRACKET; SPD SENSOR ANTILOCK BRAKE SYSTEM(BFA) (B)	1-83129-404-0	01	1	0107-
151	BRACKET; SPD SENSOR ANTILOCK BRAKE SYSTEM(BFA) (A)	1-83129-421-0	01	1	0107-
151	BRACKET; SPD SENSOR ANTILOCK BRAKE SYSTEM(BFA) (A)	1-83129-422-0	01	1	0107-

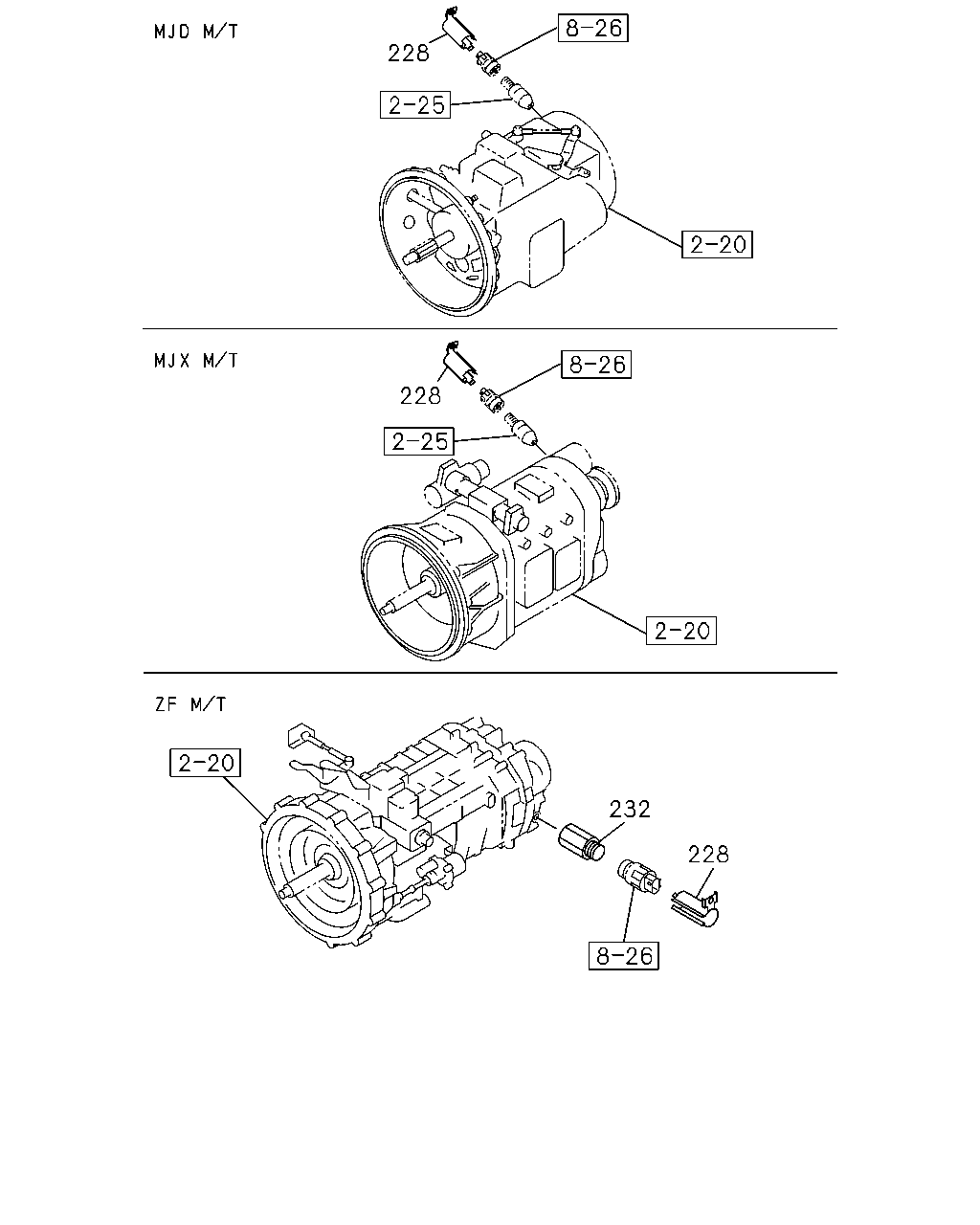

228 228 232 228

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	228	PROTECTOR; SENSOR	8-97168-308-0	01	1	0107-
	232	ADAPTER; SPEED SENSOR ZF M/T<X9E>	1-80249-006-0	01	1	0107-
