8-65 — CONTROL LEVER; HEATER AND AIR CON (#1008) — 40 parça

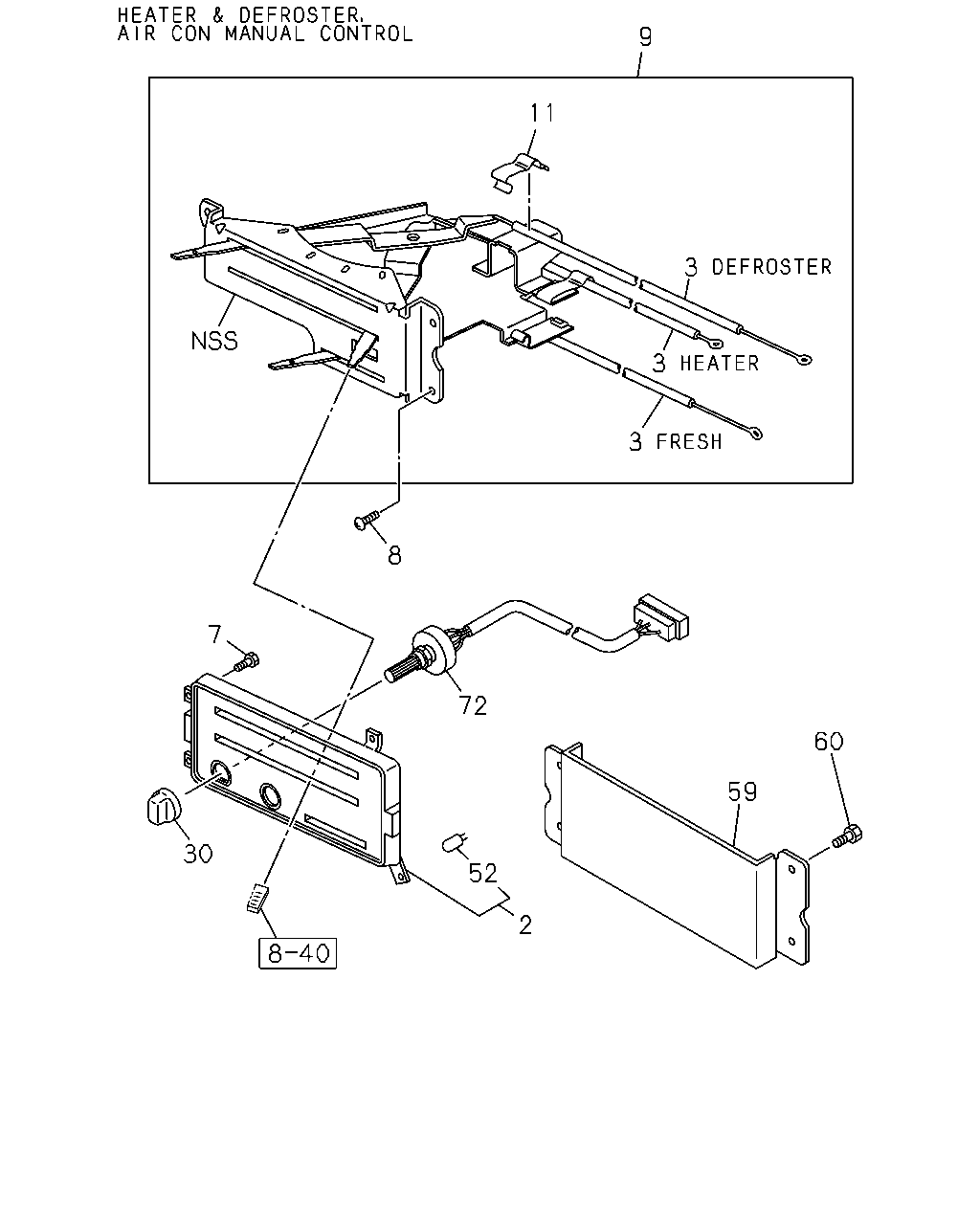

9 11 3 3 3 8 72 7 30 52 2 59 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	PANEL ASM; CONT,ILLUMINATION HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60)	1-72410-153-4	01	1	9202-	●	●
2	PANEL ASM; CONT,ILLUMINATION VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-72410-157-1	01	1	9202-	●	●
3	CABLE; HTR CONT LVR HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) HEATER L=498	1-83579-229-3	01	1	9202-	●	●
3	CABLE; HTR CONT LVR HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) FRESH L=536	1-83579-146-3	01	1	9202-	●	●
3	CABLE; HTR CONT LVR HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) DEFROSTER L=536	1-83579-228-2	01	1	9202-	●	●
7	SCREW; ILLUMINATION PNL HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 W/PL WASHER	5-09981-050-0	04	1	9202-	●	●
8	SCREW; CONT LVR TO INST PNL HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 W/PL WASHER	5-09981-050-0	03	1	9202-	●	●
9	LEVER ASM; HTR & A/C CONT HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60)	1-83513-087-5	01	1	9202-	●	●
9	LEVER ASM; HTR & A/C CONT VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83513-090-4	01	1	9202-	●	●
11	CLIP; CABLE,HTR CONT LVR HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60)	1-83574-127-0	03	1	9202-	●	●
11	CLIP; CABLE,HTR CONT LVR VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83574-127-0	02	1	9202-	●	●
30	KNOB; FAN SW HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-82336-006-0	01	1	9202-	●	●
52	BULB; PANEL ILLUMINATION HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 24V 1.2W	1-82194-045-0	02	1	9202-	●	●
59	PANEL; BLIND,HTR CONT EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-72437-012-2	01	1	9202-	●	●
60	SCREW; BLIND PANEL EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 W/PL WASHER	5-09981-050-0	04	1	9202-	●	●
72	SWITCH; FAN MOTOR HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-82380-082-1	01	1	9202-	●	●

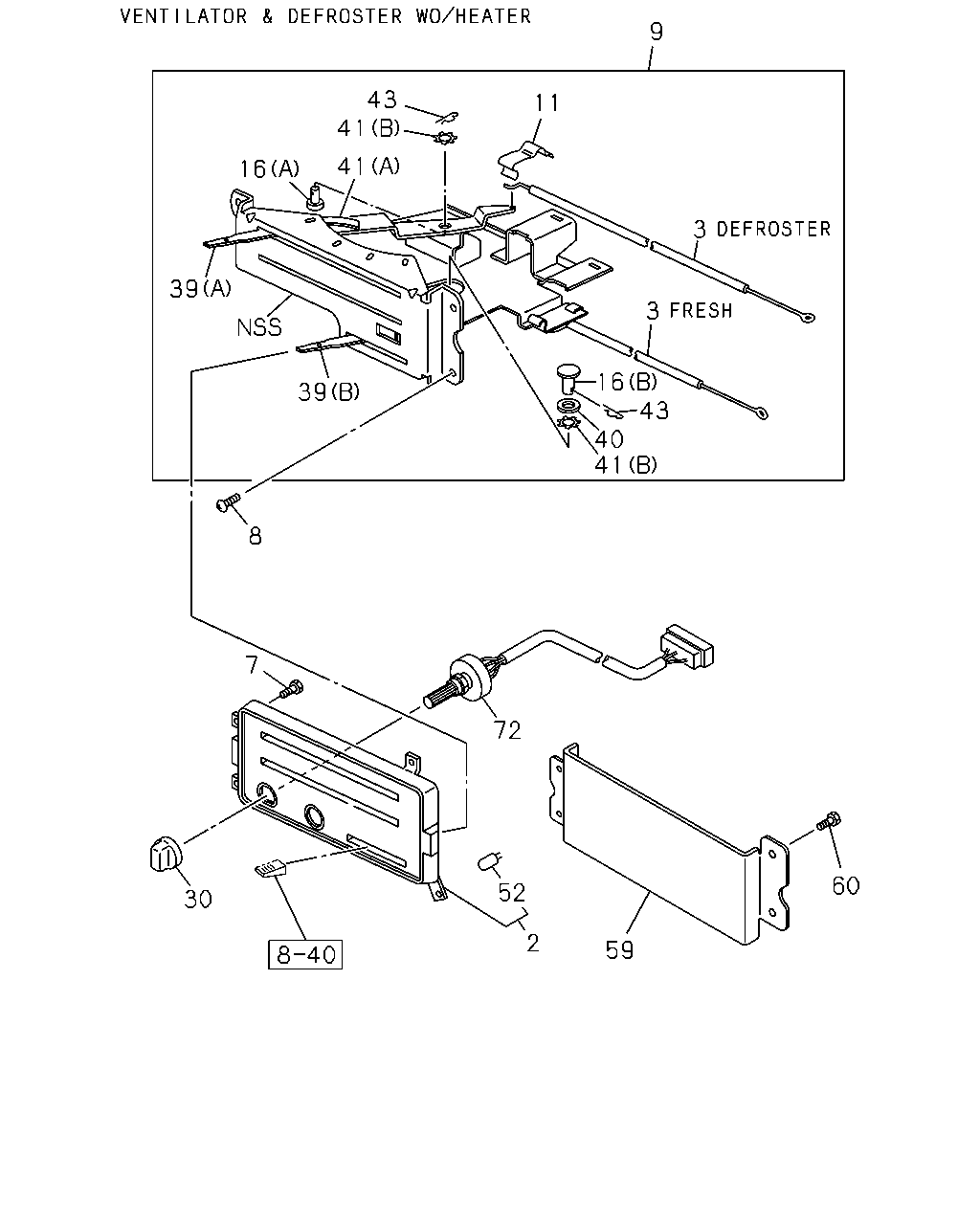

9 11 43 41 41 16 39 39 8 7 3 3 16 43 41 40 72 60 59 52 2 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	PANEL ASM; CONT,ILLUMINATION HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60)	1-72410-153-4	01	1	9202-	●	●
2	PANEL ASM; CONT,ILLUMINATION VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-72410-157-1	01	1	9202-	●	●
3	CABLE; HTR CONT LVR HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) HEATER L=498	1-83579-229-3	01	1	9202-	●	●
3	CABLE; HTR CONT LVR HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) FRESH L=536	1-83579-146-3	01	1	9202-	●	●
3	CABLE; HTR CONT LVR HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) DEFROSTER L=536	1-83579-228-2	01	1	9202-	●	●
7	SCREW; ILLUMINATION PNL HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 W/PL WASHER	5-09981-050-0	04	1	9202-	●	●
8	SCREW; CONT LVR TO INST PNL HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 W/PL WASHER	5-09981-050-0	03	1	9202-	●	●
9	LEVER ASM; HTR & A/C CONT HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60)	1-83513-087-5	01	1	9202-	●	●
9	LEVER ASM; HTR & A/C CONT VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83513-090-4	01	1	9202-	●	●
11	CLIP; CABLE,HTR CONT LVR HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60)	1-83574-127-0	03	1	9202-	●	●
11	CLIP; CABLE,HTR CONT LVR VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83574-127-0	02	1	9202-	●	●
16	PIN; HTR CONT LVR VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-459-0	01	1	9202-	●	●
16	PIN; HTR CONT LVR VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-460-0	01	1	9202-	●	●
30	KNOB; FAN SW HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-82336-006-0	01	1	9202-	●	●
39	LEVER; HTR CONT LVR VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83564-288-0	01	1	9202-	●	●
39	LEVER; HTR CONT LVR VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83564-289-0	01	1	9202-	●	●
40	COLLAR; HTR CONT LVR VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-461-0	01	1	9202-	●	●
41	SPRING; HTR CONT LVR VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-118-0	02	1	9202-	●	●
41	SPRING; HTR CONT LVR VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-463-0	02	1	9202-	●	●
43	PIN; HTR CONT LEVER VENTILATOR & DEFROSTER WO/HEATER(SAZ)	5-83519-020-0	02	1	9202-	●	●
52	BULB; PANEL ILLUMINATION HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 24V 1.2W	1-82194-045-0	02	1	9202-	●	●
59	PANEL; BLIND,HTR CONT EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-72437-012-2	01	1	9202-	●	●
60	SCREW; BLIND PANEL EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 W/PL WASHER	5-09981-050-0	04	1	9202-	●	●
72	SWITCH; FAN MOTOR HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-82380-082-1	01	1	9202-	●	●
