◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10867 - EXR RHD FUEL TANK 400L ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#10078) — 150 parça
çizim 19879
201 218
BalonParca AdiParca NoAdetTipApplied Date
201 HARNESS; AIR TANK 1-82673-731-0 01 1 0107-
218 CABLE; JUMPER,ABS
ANTILOCK BRAKE SYSTEM(BFA) L=4000 		1-82659-187-3 01 1 0107-

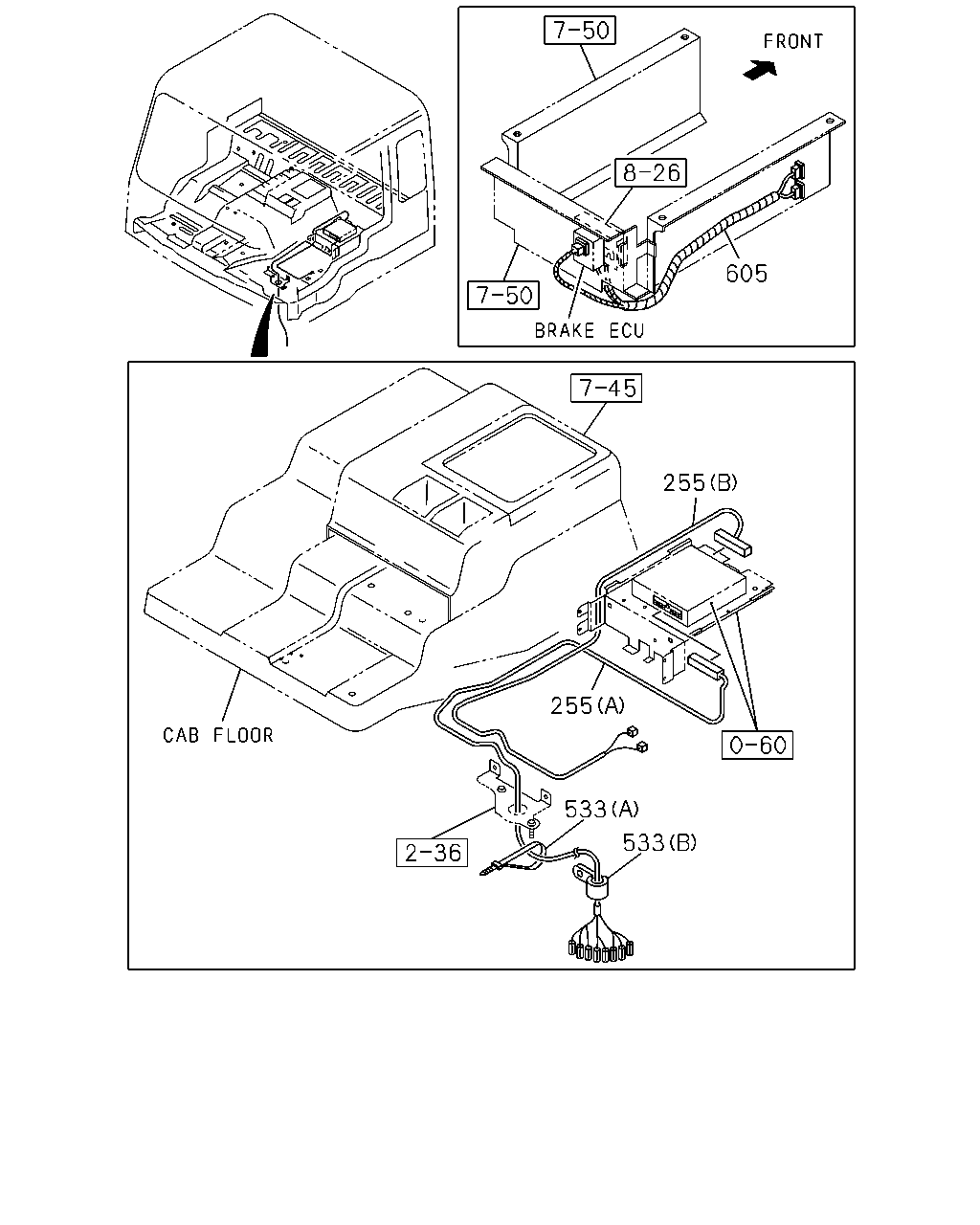

çizim 19880
533 533 255 255 605
BalonParca AdiParca NoAdetTipApplied Date
255 HARNESS; ELEC GOV
(A) 		1-82660-377-1 01 1 0107-0201
255 HARNESS; ELEC GOV
(A) 		1-82661-355-2 01 1 0202-
255 HARNESS; ELEC GOV
(B) 		1-82660-383-2 01 1 0107-
533 CLIP
(B) ID=19 L=32 		1-09701-235-0 01 1 0107-0109
533 CLIP
(B) ID=21 L=24 		8-94176-807-1 01 1 0110-
533 CLIP
(A) L=250 		5-09707-030-1 03 1 0107-0205
533 CLIP
(A) L=180 		1-09707-162-1 03 1 0206-
605 HARNESS; SEAT
ELEC OUTLET 12V<TAW> 		1-82660-399-0 01 1 0107-0604
605 HARNESS; SEAT
ELEC OUTLET 12V<TAW> 		1-82662-916-0 01 1 0605-
605 HARNESS; SEAT
EXC. ELEC OUTLET 12V<TAW> 		1-82660-398-0 01 1 0107-

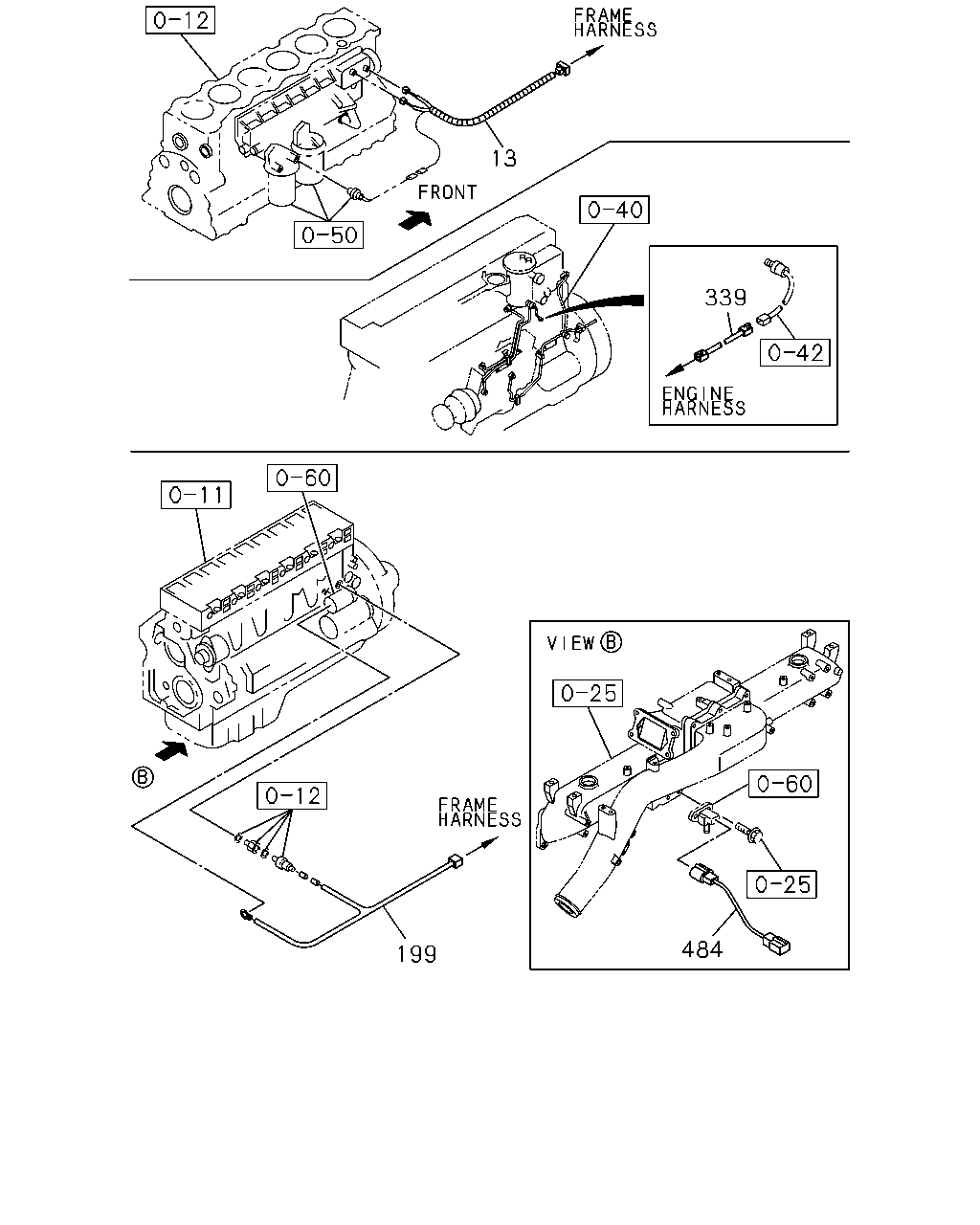

çizim 20301
13 339 199 484
BalonParca AdiParca NoAdetTipApplied Date
13 HARNESS; ENG 1-82640-553-4 01 1 0107-
199 HARNESS; STARTER 1-82641-024-1 01 1 0107-
339 HARNESS; EXT,FUEL 1-82641-316-0 01 1 0311-
484 HARNESS; BOOST SENSOR 1-82641-149-0 01 1 0107-

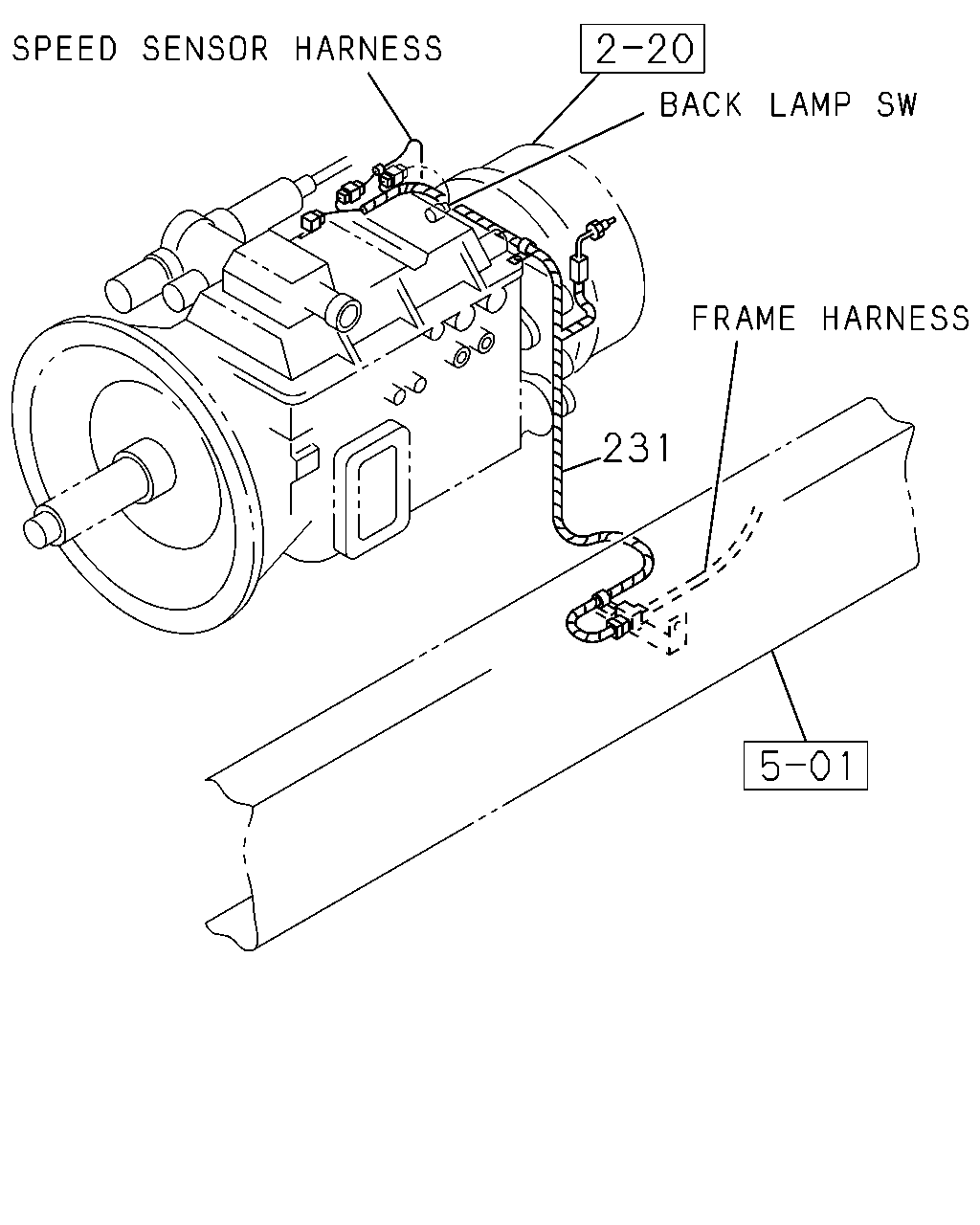

çizim 20778
231
BalonParca AdiParca NoAdetTipApplied Date
231 HARNESS; TRANS
ZF M/T<X9E> 		1-82674-852-0 01 1 0107-0107
231 HARNESS; TRANS
ZF M/T<X9E> 		1-82675-056-0 01 1 0108-
231 HARNESS; TRANS
MJD7S M/T(Y2Y) 		1-82674-849-1 01 1 0107-
231 HARNESS; TRANS
MJX16P M/T(Y3Z) 		1-82674-246-2 01 1 0107-

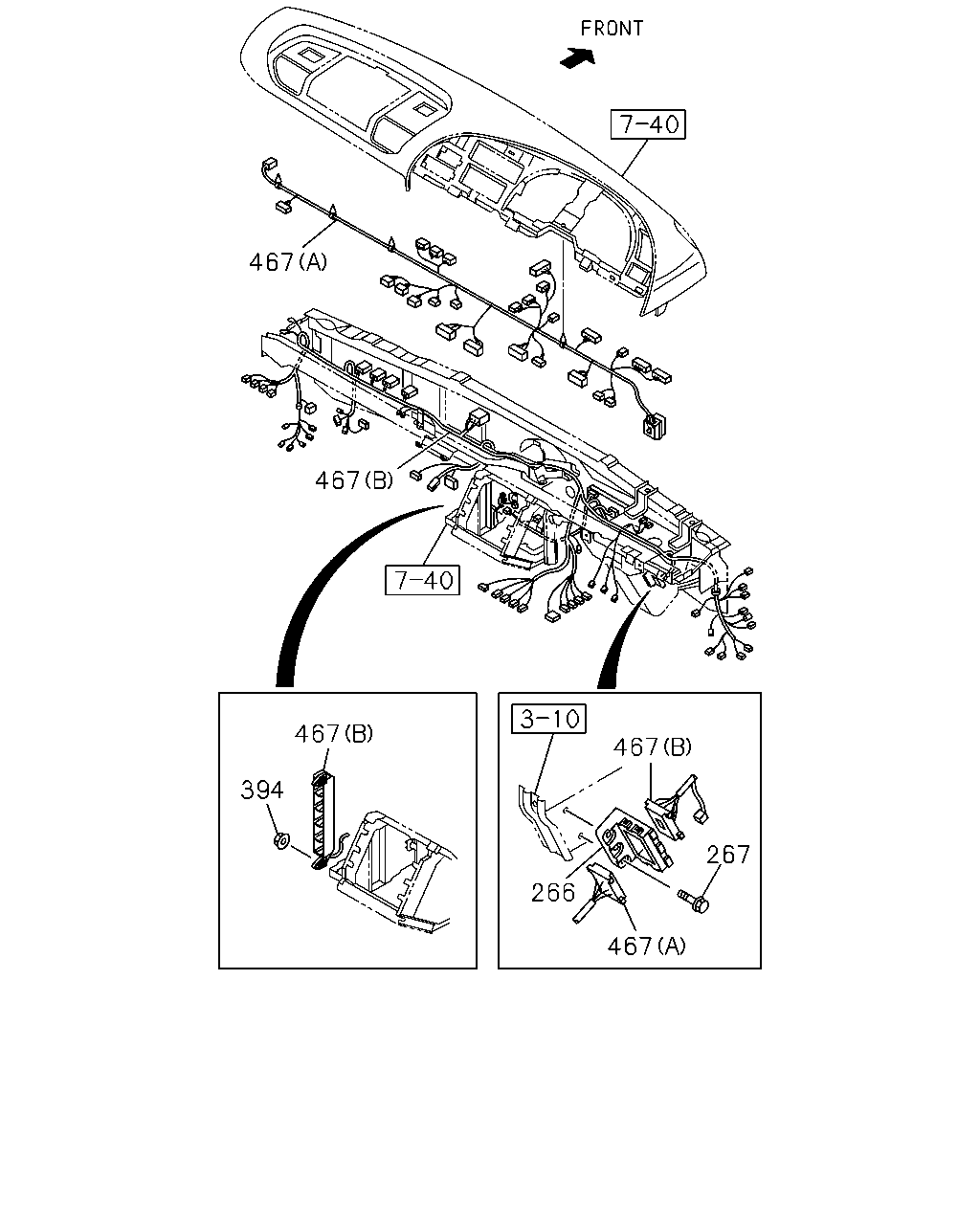

çizim 75863
467 267 467 266 467 394 467 467
BalonParca AdiParca NoAdetTipApplied Date
266 BRACKET; CONN BOX 1-82699-580-0 01 1 0107-
267 BOLT; BRKT
M6X16 W/PL WASHER 		1-09981-438-0 02 1 0107-
394 NUT; RELAY BOX TO BODY
M6 FLANGE 		0-91150-106-0 01 1 0401-0602
394 NUT; RELAY BOX TO BODY
M6 FLANGE 		0-91180-106-0 01 1 0603-
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) CORNERING LAMP<TDS> DELUXE CAB(W14) (B) LOWER 		1-82660-457-3 01 1 0107-
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) DELUXE CAB(W14) EXC. CORNERING LAMP<TDS> (B) LOWER 		1-82660-458-3 01 1 0107-
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER 		1-82660-459-3 01 1 0107-
467 HARNESS; FACIA
CORNERING LAMP<TDS> DELUXE CAB(W14) EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) LOWER 		1-82660-454-3 01 1 0107-
467 HARNESS; FACIA
DELUXE CAB(W14) EXC. ANTILOCK BRAKE SYSTEM(BFA),CORNERING LAMP<TDS> (B) LOWER 		1-82660-455-3 01 1 0107-
467 HARNESS; FACIA
EXC. ANTILOCK BRAKE SYSTEM(BFA),CORNERING LAMP<TDS> ,DELUXE CAB(W14) (B) LOWER 		1-82660-456-3 01 1 0107-
467 HARNESS; FACIA
(A) UPPER 		1-82629-926-2 01 1 0107-

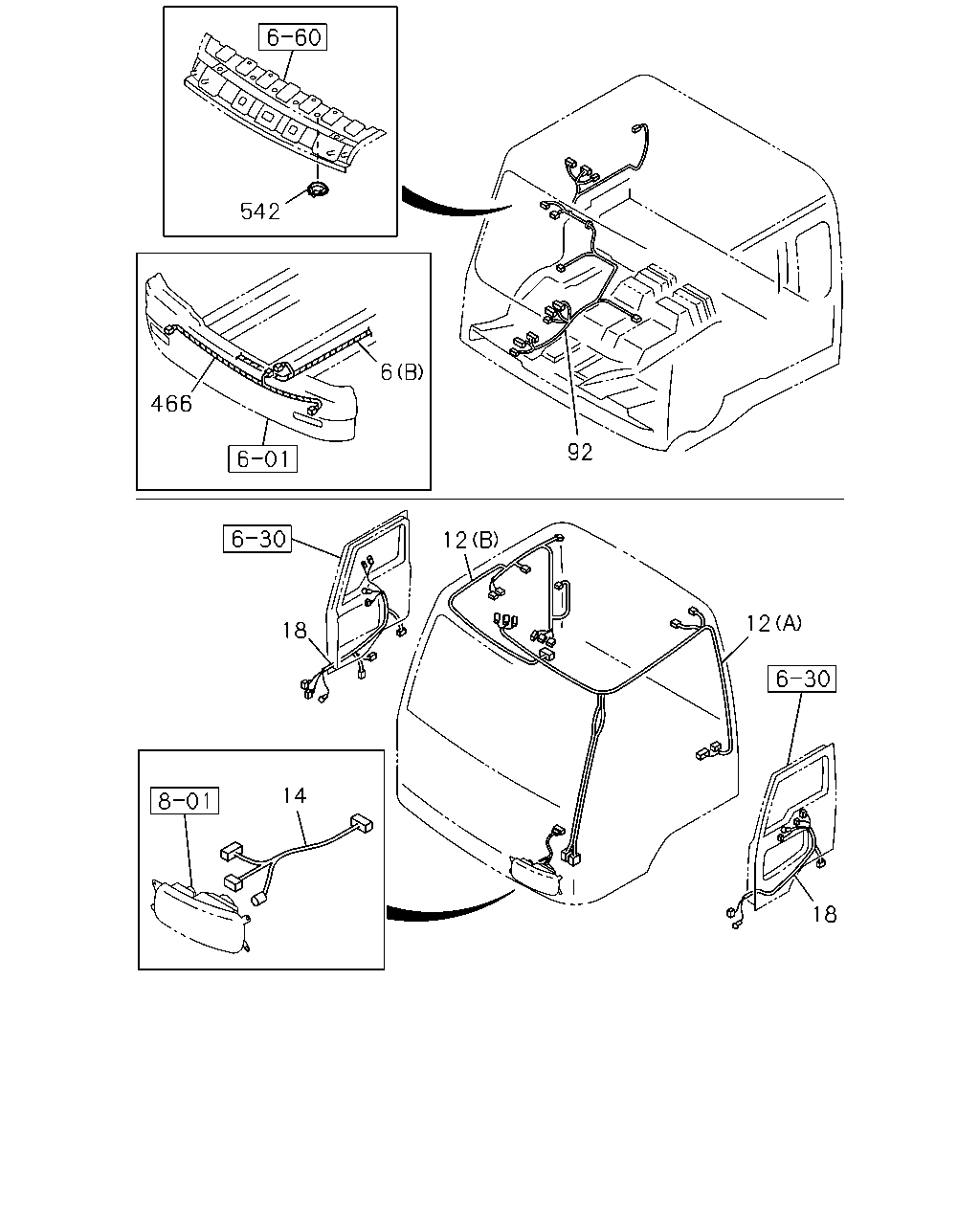

çizim 75865
18 12 92 12 18 14 6 542 466
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
WHEEL BASE 3200MM(32W) ANTILOCK BRAKE SYSTEM(BFA) EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82674-984-1 01 1 0107-0109
6 HARNESS; FRAME
WHEEL BASE 3200MM(32W) ANTILOCK BRAKE SYSTEM(BFA) EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82675-548-1 01 1 0110-
6 HARNESS; FRAME
WHEEL BASE 3200MM(32W) FULL FLOATING CAB(W16) EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) FRAME 		1-82674-983-1 01 1 0107-0109
6 HARNESS; FRAME
WHEEL BASE 3200MM(32W) FULL FLOATING CAB(W16) EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) FRAME 		1-82675-547-1 01 1 0110-
6 HARNESS; FRAME
WHEEL BASE 3200MM(32W) EXC. ANTILOCK BRAKE SYSTEM(BFA),FULL FLOATING CAB(W16) (B) FRAME 		1-82674-982-1 01 1 0107-0109
6 HARNESS; FRAME
WHEEL BASE 3200MM(32W) EXC. ANTILOCK BRAKE SYSTEM(BFA),FULL FLOATING CAB(W16) (B) FRAME 		1-82675-546-1 01 1 0110-
6 HARNESS; FRAME
WHEEL BASE 3800MM(38W) ANTILOCK BRAKE SYSTEM(BFA) FULL FLOATING CAB(W16) (B) FRAME 		1-82674-989-1 01 1 0107-0109
6 HARNESS; FRAME
WHEEL BASE 3800MM(38W) ANTILOCK BRAKE SYSTEM(BFA) FULL FLOATING CAB(W16) (B) FRAME 		1-82675-553-1 01 1 0110-
6 HARNESS; FRAME
WHEEL BASE 3800MM(38W) ANTILOCK BRAKE SYSTEM(BFA) EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82674-988-1 01 1 0107-0109
6 HARNESS; FRAME
WHEEL BASE 3800MM(38W) ANTILOCK BRAKE SYSTEM(BFA) EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82675-552-1 01 1 0110-
6 HARNESS; FRAME
WHEEL BASE 3800MM(38W) FULL FLOATING CAB(W16) EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) FRAME 		1-82674-987-1 01 1 0107-0109
6 HARNESS; FRAME
WHEEL BASE 3800MM(38W) FULL FLOATING CAB(W16) EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) FRAME 		1-82675-551-1 01 1 0110-
6 HARNESS; FRAME
WHEEL BASE 3200MM(32W) ANTILOCK BRAKE SYSTEM(BFA) FULL FLOATING CAB(W16) (B) FRAME 		1-82674-985-1 01 1 0107-0109
6 HARNESS; FRAME
WHEEL BASE 3200MM(32W) ANTILOCK BRAKE SYSTEM(BFA) FULL FLOATING CAB(W16) (B) FRAME 		1-82675-549-1 01 1 0110-
6 HARNESS; FRAME
WHEEL BASE 3800MM(38W) EXC. ANTILOCK BRAKE SYSTEM(BFA),FULL FLOATING CAB(W16) (B) FRAME 		1-82674-986-1 01 1 0107-0109
6 HARNESS; FRAME
WHEEL BASE 3800MM(38W) EXC. ANTILOCK BRAKE SYSTEM(BFA),FULL FLOATING CAB(W16) (B) FRAME 		1-82675-550-1 01 1 0110-
6 HARNESS; FRAME
AUTO CAB TILT<WV2> FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-830-1 01 1 0107-
6 HARNESS; FRAME
AUTO CAB TILT<WV2> EXC. FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-829-1 01 1 0107-
6 HARNESS; FRAME
EXC. AUTO CAB TILT<WV2>,FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-828-1 01 1 0107-
12 HARNESS; ROOF
SPEAKER SYSTEM 4 SPEAKER<NBV> (B) 		1-82628-107-0 01 1 0107-
12 HARNESS; ROOF
HIGH ROOF<S2F> (A) 		1-82629-922-2 01 1 0107-
12 HARNESS; ROOF
EXC. HIGH ROOF<S2F> (A) 		1-82629-918-2 01 1 0107-
14 HARNESS; HEADLAMP 1-82670-022-2 02 1 0107-
18 HARNESS; DOOR
POWER WINDOW<A30> 		1-82628-582-0 01 1 0107-
18 HARNESS; DOOR
POWER WINDOW<A30> 		1-82628-588-0 01 1 0107-
18 HARNESS; DOOR
EXC. POWER WINDOW<A30> 		1-82628-581-0 01 1 0107-
18 HARNESS; DOOR
EXC. POWER WINDOW<A30> 		1-82628-589-0 01 1 0107-
92 HARNESS; FLOOR
DRIVER ISRINGHAUSEN SEAT(SJA) DRIVER SIDE 		1-82660-392-3 01 1 0107-
92 HARNESS; FLOOR
EXC. DRIVER ISRINGHAUSEN SEAT(SJA) DRIVER SIDE 		1-82660-390-3 01 1 0107-
466 HARNESS; BUMPER 1-82639-281-0 01 1 0107-
542 GROMMET; HARNESS
HIGH ROOF<S2F> ID=36 		8-94178-685-0 03 1 0107-

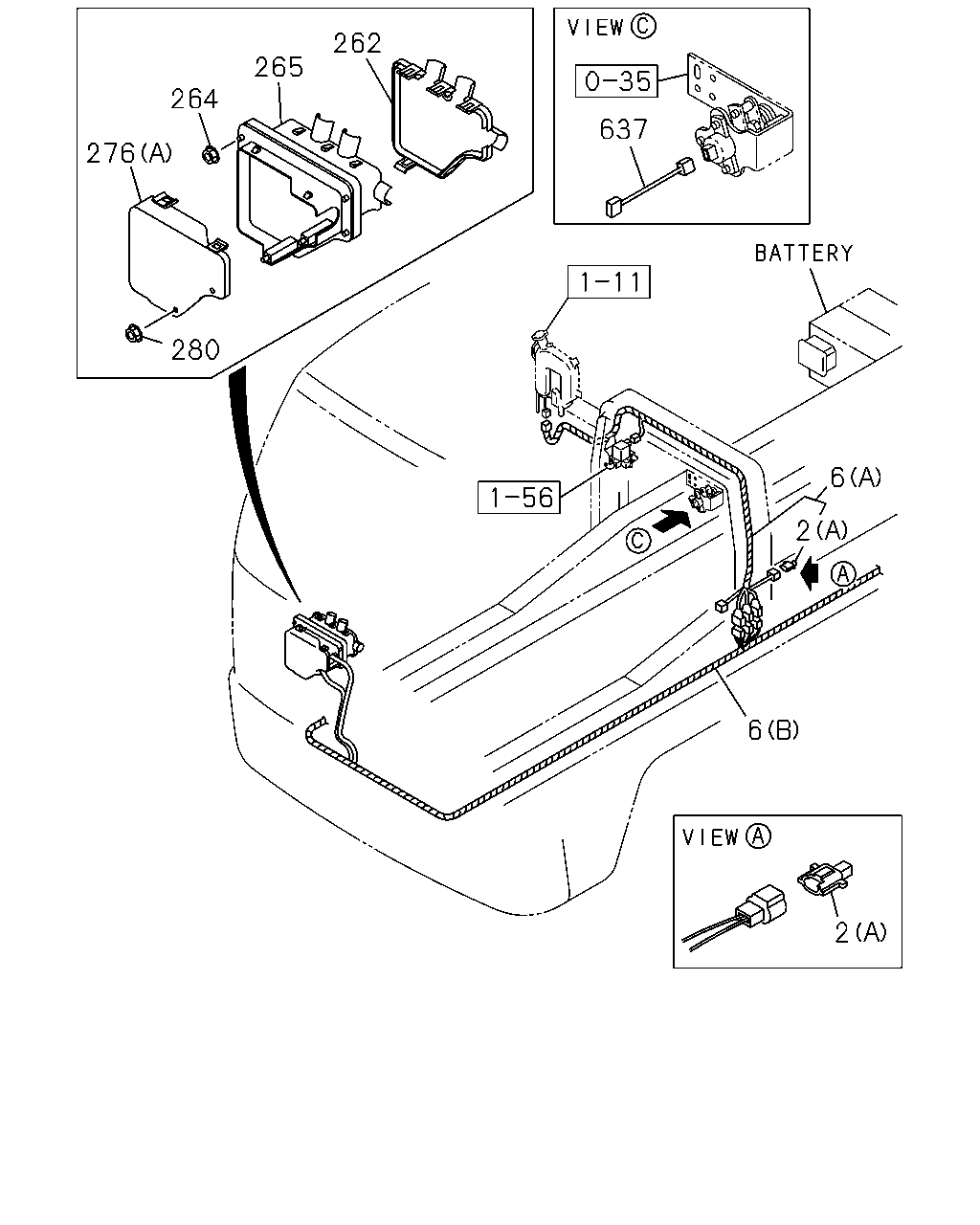

çizim 78269
2 6 2 6 637 262 265 264 276 280
BalonParca AdiParca NoAdetTipApplied Date
2 DIODE; CABLE HARNESS
AUTO CAB TILT<WV2> FULL FLOATING CAB(W16) (A) GRAY 2P-1.3A 		1-81514-015-0 01 1 0107-
2 DIODE; CABLE HARNESS
EXC. FULL FLOATING CAB(W16) (A) GRAY 2P-1.3A 		1-81514-015-0 01 1 0107-
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 01 1 0107-
6 HARNESS; FRAME
WHEEL BASE 3200MM(32W) ANTILOCK BRAKE SYSTEM(BFA) EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82674-984-1 01 1 0107-0109
6 HARNESS; FRAME
WHEEL BASE 3200MM(32W) ANTILOCK BRAKE SYSTEM(BFA) EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82675-548-1 01 1 0110-
6 HARNESS; FRAME
WHEEL BASE 3200MM(32W) FULL FLOATING CAB(W16) EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) FRAME 		1-82674-983-1 01 1 0107-0109
6 HARNESS; FRAME
WHEEL BASE 3200MM(32W) FULL FLOATING CAB(W16) EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) FRAME 		1-82675-547-1 01 1 0110-
6 HARNESS; FRAME
WHEEL BASE 3200MM(32W) EXC. ANTILOCK BRAKE SYSTEM(BFA),FULL FLOATING CAB(W16) (B) FRAME 		1-82674-982-1 01 1 0107-0109
6 HARNESS; FRAME
WHEEL BASE 3200MM(32W) EXC. ANTILOCK BRAKE SYSTEM(BFA),FULL FLOATING CAB(W16) (B) FRAME 		1-82675-546-1 01 1 0110-
6 HARNESS; FRAME
WHEEL BASE 3800MM(38W) ANTILOCK BRAKE SYSTEM(BFA) FULL FLOATING CAB(W16) (B) FRAME 		1-82674-989-1 01 1 0107-0109
6 HARNESS; FRAME
WHEEL BASE 3800MM(38W) ANTILOCK BRAKE SYSTEM(BFA) FULL FLOATING CAB(W16) (B) FRAME 		1-82675-553-1 01 1 0110-
6 HARNESS; FRAME
WHEEL BASE 3800MM(38W) ANTILOCK BRAKE SYSTEM(BFA) EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82674-988-1 01 1 0107-0109
6 HARNESS; FRAME
WHEEL BASE 3800MM(38W) ANTILOCK BRAKE SYSTEM(BFA) EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82675-552-1 01 1 0110-
6 HARNESS; FRAME
WHEEL BASE 3800MM(38W) FULL FLOATING CAB(W16) EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) FRAME 		1-82674-987-1 01 1 0107-0109
6 HARNESS; FRAME
WHEEL BASE 3800MM(38W) FULL FLOATING CAB(W16) EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) FRAME 		1-82675-551-1 01 1 0110-
6 HARNESS; FRAME
WHEEL BASE 3200MM(32W) ANTILOCK BRAKE SYSTEM(BFA) FULL FLOATING CAB(W16) (B) FRAME 		1-82674-985-1 01 1 0107-0109
6 HARNESS; FRAME
WHEEL BASE 3200MM(32W) ANTILOCK BRAKE SYSTEM(BFA) FULL FLOATING CAB(W16) (B) FRAME 		1-82675-549-1 01 1 0110-
6 HARNESS; FRAME
WHEEL BASE 3800MM(38W) EXC. ANTILOCK BRAKE SYSTEM(BFA),FULL FLOATING CAB(W16) (B) FRAME 		1-82674-986-1 01 1 0107-0109
6 HARNESS; FRAME
WHEEL BASE 3800MM(38W) EXC. ANTILOCK BRAKE SYSTEM(BFA),FULL FLOATING CAB(W16) (B) FRAME 		1-82675-550-1 01 1 0110-
6 HARNESS; FRAME
AUTO CAB TILT<WV2> FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-830-1 01 1 0107-
6 HARNESS; FRAME
AUTO CAB TILT<WV2> EXC. FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-829-1 01 1 0107-
6 HARNESS; FRAME
EXC. AUTO CAB TILT<WV2>,FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-828-1 01 1 0107-
262 COVER; CONNECTOR BOX,FRT PNL 1-82699-582-1 01 1 0107-
264 NUT; CONNECTOR BOX
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 0107-
265 BOX; CONN,FRT PNL 1-82699-581-3 01 1 0107-
276 COVER; BOX,FRAME HARNESS
(B) 		1-82699-475-2 01 1 0107-
276 COVER; BOX,FRAME HARNESS
(A) 		1-82699-585-2 01 1 0107-
280 NUT; BOX ASM FIX
M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0107-
637 HARNESS; EXT,S/SENSOR
PTO CONTROL OPERATION CAB BACK<TBZ> 		1-82675-934-0 01 1 0207-

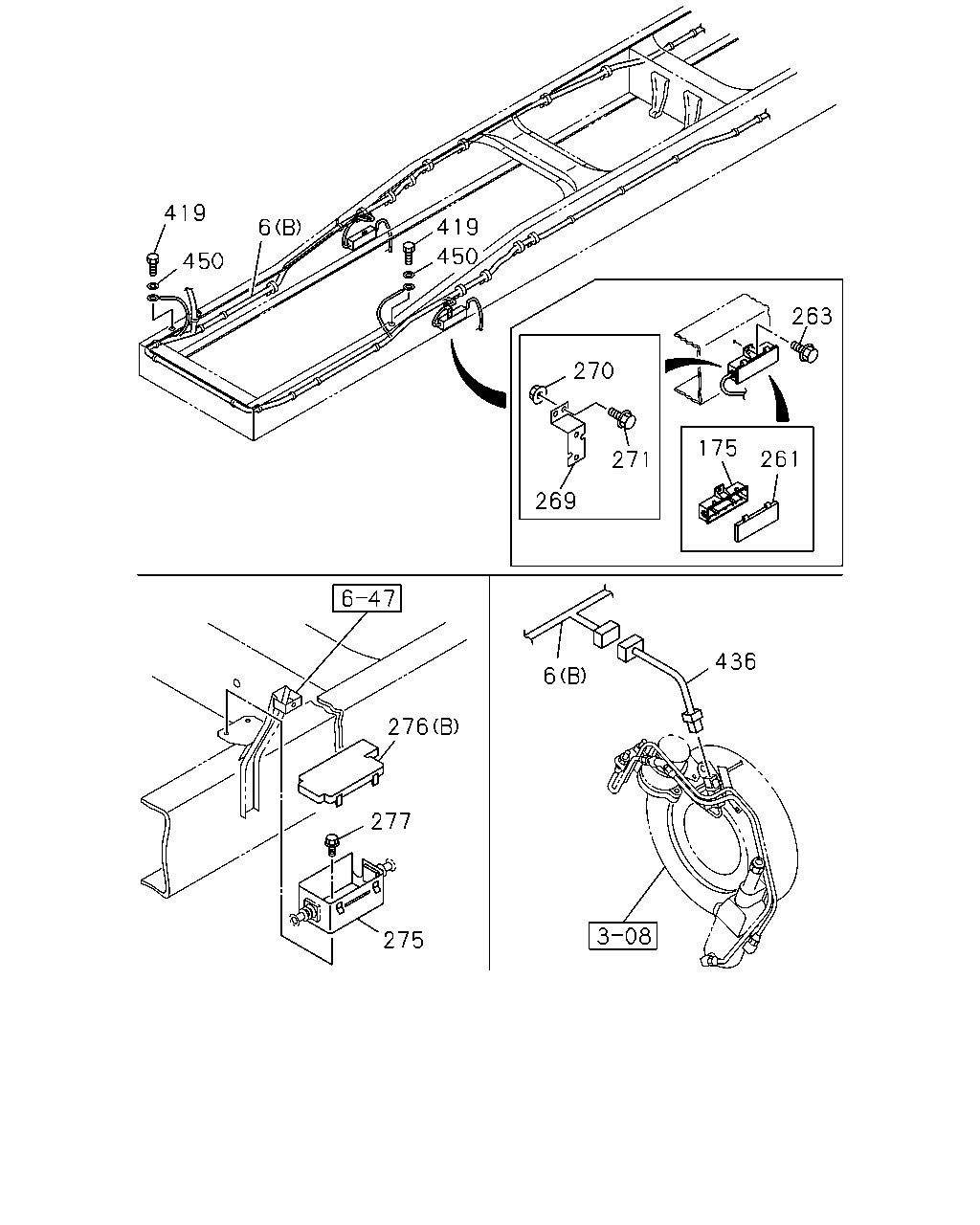

çizim 78302
6 436 175 261 263 271 269 270 276 277 275 450 419 6 419 450
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
WHEEL BASE 3200MM(32W) ANTILOCK BRAKE SYSTEM(BFA) EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82674-984-1 01 1 0107-0109
6 HARNESS; FRAME
WHEEL BASE 3200MM(32W) ANTILOCK BRAKE SYSTEM(BFA) EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82675-548-1 01 1 0110-
6 HARNESS; FRAME
WHEEL BASE 3200MM(32W) FULL FLOATING CAB(W16) EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) FRAME 		1-82674-983-1 01 1 0107-0109
6 HARNESS; FRAME
WHEEL BASE 3200MM(32W) FULL FLOATING CAB(W16) EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) FRAME 		1-82675-547-1 01 1 0110-
6 HARNESS; FRAME
WHEEL BASE 3200MM(32W) EXC. ANTILOCK BRAKE SYSTEM(BFA),FULL FLOATING CAB(W16) (B) FRAME 		1-82674-982-1 01 1 0107-0109
6 HARNESS; FRAME
WHEEL BASE 3200MM(32W) EXC. ANTILOCK BRAKE SYSTEM(BFA),FULL FLOATING CAB(W16) (B) FRAME 		1-82675-546-1 01 1 0110-
6 HARNESS; FRAME
WHEEL BASE 3800MM(38W) ANTILOCK BRAKE SYSTEM(BFA) FULL FLOATING CAB(W16) (B) FRAME 		1-82674-989-1 01 1 0107-0109
6 HARNESS; FRAME
WHEEL BASE 3800MM(38W) ANTILOCK BRAKE SYSTEM(BFA) FULL FLOATING CAB(W16) (B) FRAME 		1-82675-553-1 01 1 0110-
6 HARNESS; FRAME
WHEEL BASE 3800MM(38W) ANTILOCK BRAKE SYSTEM(BFA) EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82674-988-1 01 1 0107-0109
6 HARNESS; FRAME
WHEEL BASE 3800MM(38W) ANTILOCK BRAKE SYSTEM(BFA) EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82675-552-1 01 1 0110-
6 HARNESS; FRAME
WHEEL BASE 3800MM(38W) FULL FLOATING CAB(W16) EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) FRAME 		1-82674-987-1 01 1 0107-0109
6 HARNESS; FRAME
WHEEL BASE 3800MM(38W) FULL FLOATING CAB(W16) EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) FRAME 		1-82675-551-1 01 1 0110-
6 HARNESS; FRAME
WHEEL BASE 3200MM(32W) ANTILOCK BRAKE SYSTEM(BFA) FULL FLOATING CAB(W16) (B) FRAME 		1-82674-985-1 01 1 0107-0109
6 HARNESS; FRAME
WHEEL BASE 3200MM(32W) ANTILOCK BRAKE SYSTEM(BFA) FULL FLOATING CAB(W16) (B) FRAME 		1-82675-549-1 01 1 0110-
6 HARNESS; FRAME
WHEEL BASE 3800MM(38W) EXC. ANTILOCK BRAKE SYSTEM(BFA),FULL FLOATING CAB(W16) (B) FRAME 		1-82674-986-1 01 1 0107-0109
6 HARNESS; FRAME
WHEEL BASE 3800MM(38W) EXC. ANTILOCK BRAKE SYSTEM(BFA),FULL FLOATING CAB(W16) (B) FRAME 		1-82675-550-1 01 1 0110-
6 HARNESS; FRAME
AUTO CAB TILT<WV2> FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-830-1 01 1 0107-
6 HARNESS; FRAME
AUTO CAB TILT<WV2> EXC. FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-829-1 01 1 0107-
6 HARNESS; FRAME
EXC. AUTO CAB TILT<WV2>,FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-828-1 01 1 0107-
175 BOX; CONNECTOR
ANTILOCK BRAKE SYSTEM(BFA) 		1-82699-467-0 03 1 0107-
261 COVER; CONNECTOR BOX
ANTILOCK BRAKE SYSTEM(BFA) 		1-82699-320-0 03 1 0107-
263 BOLT; CONNECTOR BOX
ANTILOCK BRAKE SYSTEM(BFA) M8X20 W/LK&PL WASHER 		1-09980-622-0 01 1 0107-
263 BOLT; CONNECTOR BOX
ANTILOCK BRAKE SYSTEM(BFA) M8X20 W/LK&PL WASHER 		1-09980-622-0 02 1 0107-
269 BRACKET; CONNECTOR BOX
ANTILOCK BRAKE SYSTEM(BFA) 		1-82699-547-0 01 1 0107-
269 BRACKET; CONNECTOR BOX
ANTILOCK BRAKE SYSTEM(BFA) 		1-82699-547-0 02 1 0107-
270 NUT; BRKT,CONNECTOR BOX
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91150-108-0 06 1 0107-0602
270 NUT; BRKT,CONNECTOR BOX
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 06 1 0603-
271 BOLT; BRKT CONNECTOR BOX
ANTILOCK BRAKE SYSTEM(BFA) M8X30 FLANGE 		0-28680-830-0 06 1 0107-0512
271 BOLT; BRKT CONNECTOR BOX
ANTILOCK BRAKE SYSTEM(BFA) M8X30 FLANGE 		0-28650-830-0 06 1 0601-
275 BOX ASM; FRAME HARNESS 1-82699-474-1 01 1 0107-
276 COVER; BOX,FRAME HARNESS
(B) 		1-82699-475-2 01 1 0107-
276 COVER; BOX,FRAME HARNESS
(A) 		1-82699-585-2 01 1 0107-
277 BOLT; BOX ASM FIX
M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 0107-
419 BOLT; CAB EARTH
M8X16 W/LK&PL WASHER 		8-97087-055-0 02 1 0107-
436 HARNESS; RETARDER
BRAKE SYSTEM RETARDER<RE2> 		1-82671-549-2 01 1 0107-
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 02 1 0107-

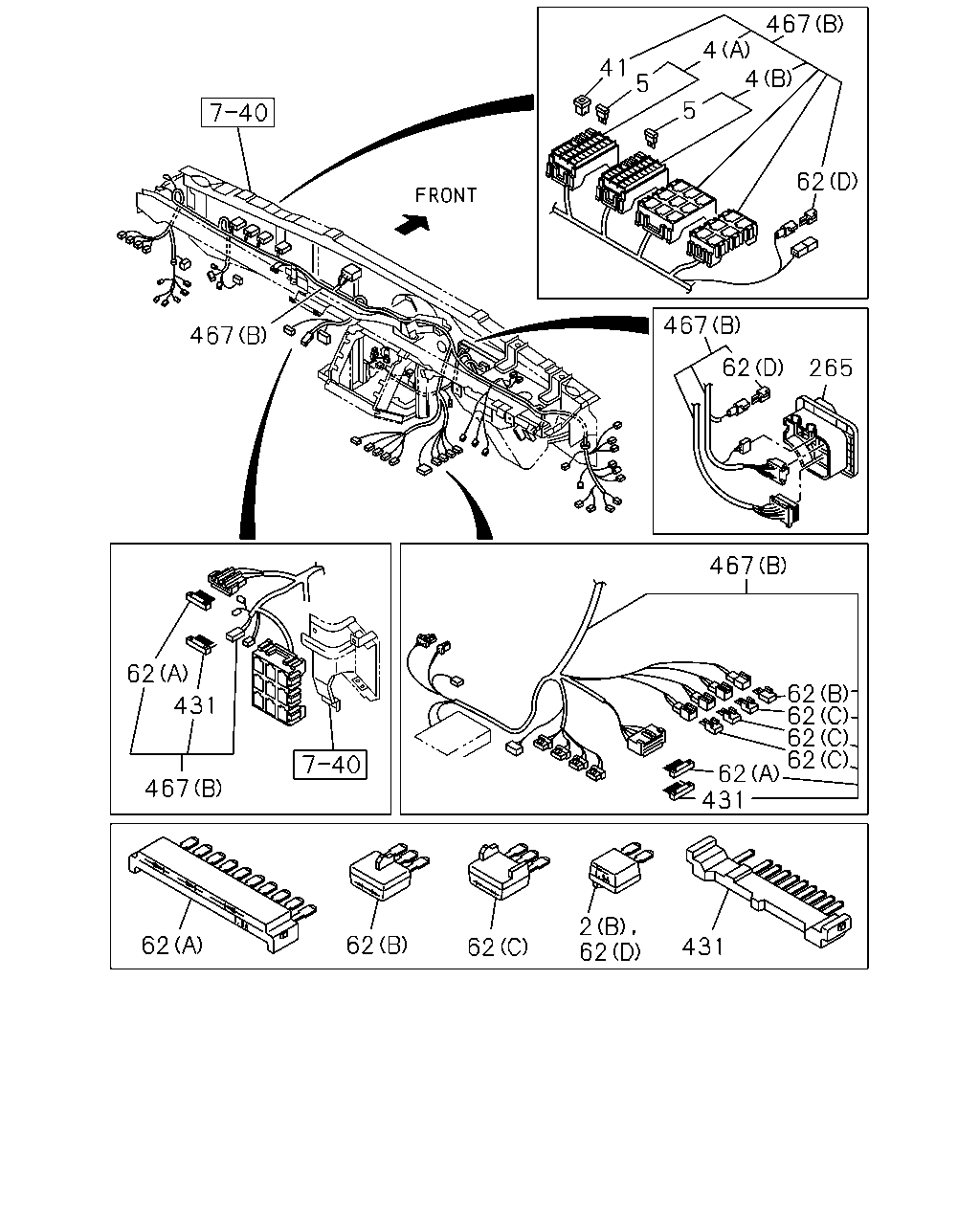

çizim 78932
431 62 2 62 62 62 467 431 62 431 62 62 62 62 62 467 265 62 467 62 467 4 4 5 5 41 467
BalonParca AdiParca NoAdetTipApplied Date
2 DIODE; CABLE HARNESS
AUTO CAB TILT<WV2> FULL FLOATING CAB(W16) (A) GRAY 2P-1.3A 		1-81514-015-0 01 1 0107-
2 DIODE; CABLE HARNESS
EXC. FULL FLOATING CAB(W16) (A) GRAY 2P-1.3A 		1-81514-015-0 01 1 0107-
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 01 1 0107-
4 BOX ASM; FUSE,HARNESS
(B) 15AX24 25AX2 		1-82510-601-0 01 1 0107-
4 BOX ASM; FUSE,HARNESS
(A) 7.5AX25 		1-82510-418-0 01 1 0107-
5 FUSE; FACIA HARNESS
15A BLUE 		5-82516-003-0 24 1 0107-
5 FUSE; FACIA HARNESS
7.5A BROWN 		8-94159-007-0 25 1 0107-
5 FUSE; FACIA HARNESS
25A CLEAR 		5-82516-005-0 02 1 0107-
41 PULLER; FUSE
L=25.3 B=11.5 		8-94121-482-0 01 1 0107-
62 DIODE; HARNESS
(C) BLACK 3P-1.5A 		8-94416-438-1 05 1 0107-
62 DIODE; HARNESS
(D) BLACK 2P-1.5A 		8-94422-639-1 05 1 0107-0402
62 DIODE; HARNESS
(D) BLACK 2P-1.5A 		8-94422-639-1 03 1 0403-
62 DIODE; HARNESS
(A) BLACK 10P 		1-82699-703-0 02 1 0107-
62 DIODE; HARNESS
(B) BLACK 3P-1.5A 		8-94422-640-1 01 1 0107-
265 BOX; CONN,FRT PNL 1-82699-581-3 01 1 0107-
431 CONNECTOR; JOINT
10P BROWN 		1-82699-601-0 02 1 0107-
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) CORNERING LAMP<TDS> DELUXE CAB(W14) (B) LOWER 		1-82660-457-3 01 1 0107-
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) DELUXE CAB(W14) EXC. CORNERING LAMP<TDS> (B) LOWER 		1-82660-458-3 01 1 0107-
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER 		1-82660-459-3 01 1 0107-
467 HARNESS; FACIA
CORNERING LAMP<TDS> DELUXE CAB(W14) EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) LOWER 		1-82660-454-3 01 1 0107-
467 HARNESS; FACIA
DELUXE CAB(W14) EXC. ANTILOCK BRAKE SYSTEM(BFA),CORNERING LAMP<TDS> (B) LOWER 		1-82660-455-3 01 1 0107-
467 HARNESS; FACIA
EXC. ANTILOCK BRAKE SYSTEM(BFA),CORNERING LAMP<TDS> ,DELUXE CAB(W14) (B) LOWER 		1-82660-456-3 01 1 0107-
467 HARNESS; FACIA
(A) UPPER 		1-82629-926-2 01 1 0107-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
