◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10867 - EXR RHD FUEL TANK 400L ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#10073) — 13 parça

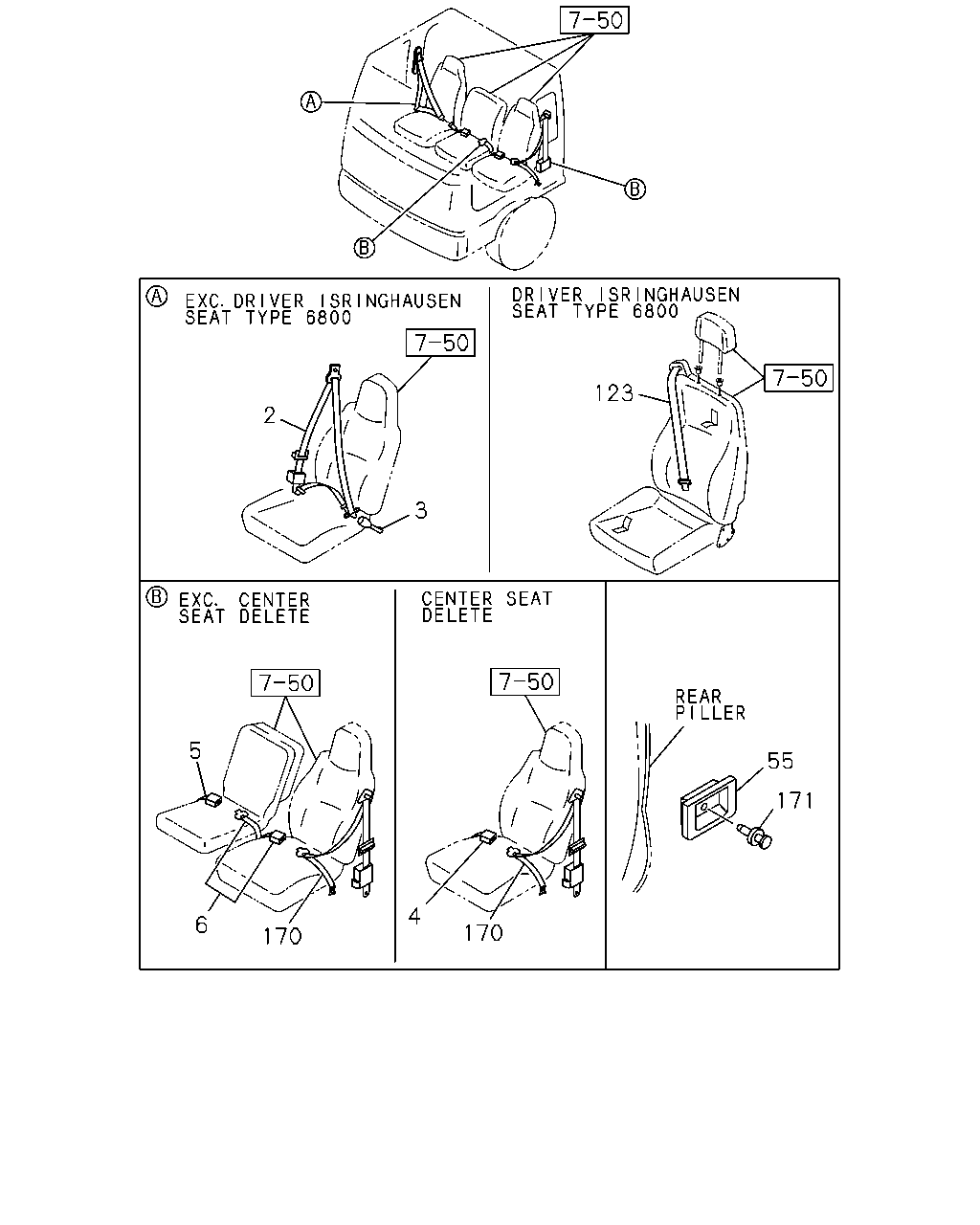

çizim 20324
171 55 170 4 170 6 5 2 3 123
BalonParca AdiParca NoAdetTipApplied Date
2 BELT; SEAT,TONGUE SIDE
EXC. DRIVER ISRINGHAUSEN SEAT(SJA) 		1-75618-938-3 01 1 0107-
3 BELT; SEAT,BUCKLE SIDE
EXC. DRIVER ISRINGHAUSEN SEAT(SJA) 		1-75618-914-0 01 1 0107-
4 BELT; PASSENGER SEAT,BUCKLE SIDE
CENTER SEAT DELETE(SP9) 		1-75617-546-1 01 1 0107-
5 BELT; CENTER SEAT,BUCKLE SIDE
EXC. CENTER SEAT DELETE(SP9) 		1-75617-553-1 01 1 0107-
6 BELT; CENTER SEAT,TONGUE SIDE
DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9) 		1-75618-926-1 01 1 0107-
6 BELT; CENTER SEAT,TONGUE SIDE
EXC. DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9) 		1-75617-547-4 01 1 0107-
55 GUIDE; SEAT BELT
DRIVER ISRINGHAUSEN SEAT(SJA) 		1-75617-556-0 01 1 0107-
123 BELT ASM; SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) 		1-75617-570-0 01 1 0107-
170 BELT; PASSENGER SEAT,TONGUE SIDE
DRIVER ISRINGHAUSEN SEAT(SJA) 		1-75618-924-2 01 1 0107-
170 BELT; PASSENGER SEAT,TONGUE SIDE
EXC. DRIVER ISRINGHAUSEN SEAT(SJA) 		1-75617-550-4 01 1 0107-
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 0107-

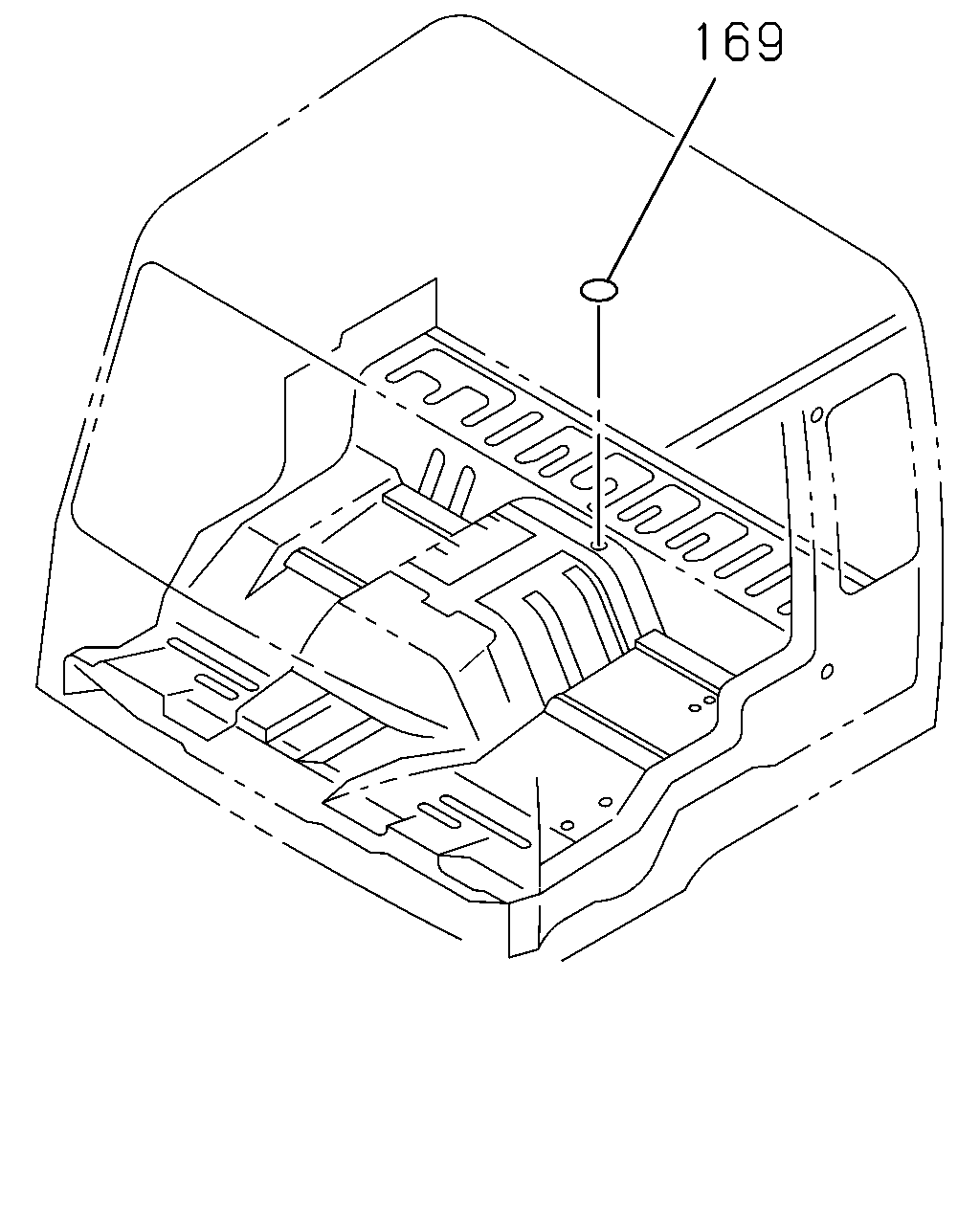

çizim 22443
169
BalonParca AdiParca NoAdetTipApplied Date
169 SEAL
DRIVER ISRINGHAUSEN SEAT(SJA) OD=25 BLACK 		1-76798-019-0 02 1 0107-
169 SEAL
CENTER SEAT DELETE(SP9) OD=25 BLACK 		1-76798-019-0 01 1 0107-
