Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#10072) — 233 parça

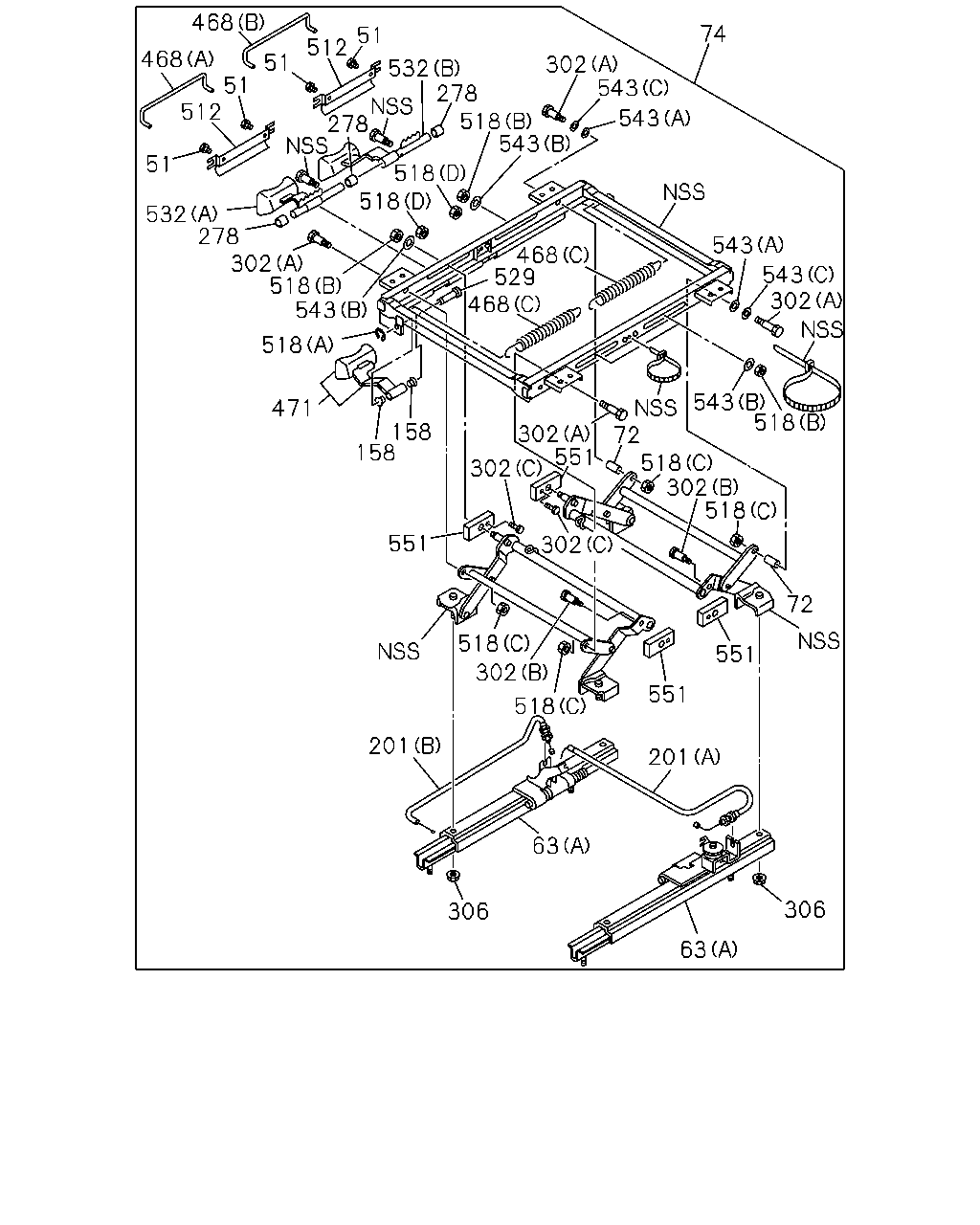

63 306 63 306 201 518 302 551 201 551 72 518 551 302 518 302 518 72 543 518 302 551 158 158 468 529 468 543 74 543 302 543 518 518 543 518 471 518 302 278 532 51 512 51 51 512 51 532 278 518 278 543 543 302 302 468 468

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
51	SCREW; COVER EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75518-325-1	04	1	0107-
63	ADJUSTER; SEAT SLIDE EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (A)	1-75518-199-1	01	1	0107-
63	ADJUSTER; SEAT SLIDE EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (A)	1-75518-323-0	01	1	0107-
63	ADJUSTER; SEAT SLIDE DRIVER ISRINGHAUSEN SEAT(SJA) (B)	1-75517-953-0	01	1	0107-
72	SPACER; SEAT ADJ EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75518-334-1	02	1	0107-
74	ADJUSTER; FRT SEAT,HEIGHT CONT EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75518-330-1	01	1	0107-
158	BUSHING; LINK ARM EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75518-209-0	02	1	0107-
201	CABLE; ADJ EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (A) L=667	1-75518-288-0	01	1	0107-
201	CABLE; ADJ EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (B) L=605	1-75518-289-1	01	1	0107-
278	COLLAR; FRT SEAT EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75518-244-0	03	1	0107-
302	BOLT; ADJ,HEIGHT CONT EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (C)	1-75518-266-2	02	1	0107-
302	BOLT; ADJ,HEIGHT CONT EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (A)	1-75518-270-1	04	1	0107-
302	BOLT; ADJ,HEIGHT CONT EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (B)	1-75518-336-1	02	1	0107-
306	NUT; SEAT ADJ EXC. DRIVER ISRINGHAUSEN SEAT(SJA) M8 FLANGE	1-75538-207-0	06	1	0107-
468	SPRING; RETURN FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D)	1-75538-132-0	01	1	0107-
468	SPRING; RETURN EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (A)	1-75518-206-0	01	1	0107-
468	SPRING; RETURN EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (B)	1-75518-207-0	01	1	0107-
468	SPRING; RETURN EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (C)	1-75518-208-0	02	1	0107-
471	LEVER; SEAT ADJ EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75518-291-0	01	1	0107-
512	COVER; LEVER EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75518-243-1	02	1	0107-
518	NUT; TILT ADJ EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (A)	1-75518-263-0	01	1	0107-
518	NUT; TILT ADJ EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (C) M8	1-75518-264-0	04	1	0107-
518	NUT; TILT ADJ EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (D) M6 LOCK NUT	5-09984-020-0	02	1	0107-
518	NUT; TILT ADJ EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (B) M8 FLANGE	8-94152-886-0	04	1	0107-
529	PIN; LINK EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75518-262-0	01	1	0107-
532	LEVER ASM; TILT EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (A)	1-75518-203-0	01	1	0107-
532	LEVER ASM; TILT EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (B)	1-75518-204-1	01	1	0107-
543	WASHER; HEIGHT ADJUSTER EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (C)	1-75518-335-0	02	1	0107-
543	WASHER; HEIGHT ADJUSTER EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (A)	1-75518-337-0	02	1	0107-0406
543	WASHER; HEIGHT ADJUSTER EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (B) ID=6.4	9-09160-506-0	04	1	0107-
551	SLIDER; HEIGHT ADJ EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75518-265-0	04	1	0107-

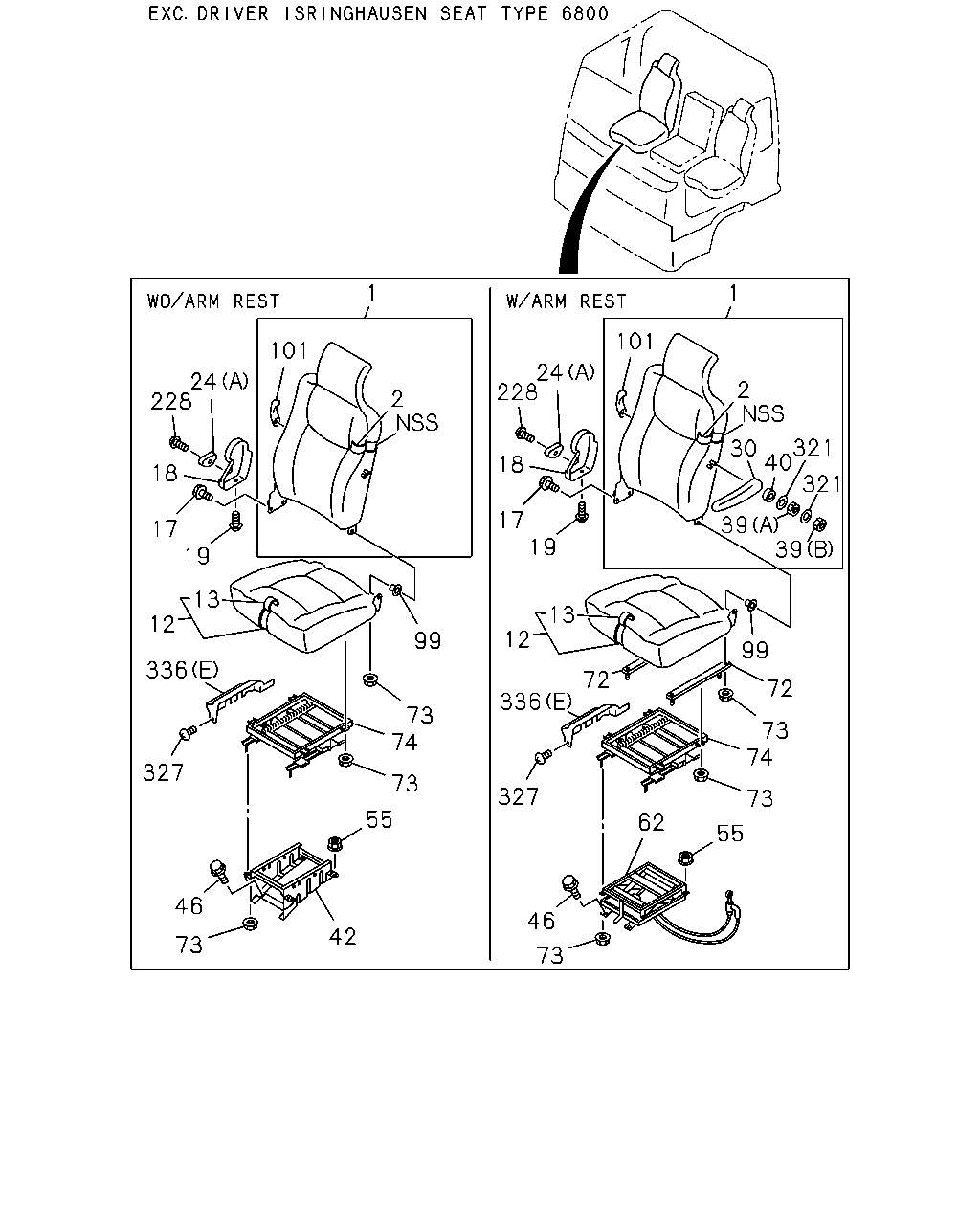

73 46 62 55 73 74 73 72 99 72 336 327 12 13 19 17 18 228 24 101 1 2 321 321 39 39 99 73 74 73 55 42 73 46 327 336 12 13 19 17 18 228 24 101 1 2 30 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-292-4	01	1	0107-
1	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-294-3	01	1	0107-
1	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT(SJA)	1-75027-941-0	01	1	0107-
1	BACK ASM; SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9)	1-75207-293-3	01	1	0107-
2	COVER; TRIM,FRT SEAT,BACK FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-045-1	01	1	0107-
2	COVER; TRIM,FRT SEAT,BACK FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-119-1	01	1	0107-
2	COVER; TRIM,FRT SEAT,BACK EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9)	1-75127-118-1	01	1	0107-
2	COVER; TRIM,FRT SEAT,BACK DRIVER ISRINGHAUSEN SEAT(SJA)	1-75117-965-0	01	1	0107-
12	CUSHION; SEAT,FRT FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75207-153-2	01	1	0107-
12	CUSHION; SEAT,FRT DRIVER ISRINGHAUSEN SEAT(SJA)	1-75027-939-0	01	1	0107-
12	CUSHION; SEAT,FRT EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9)	1-75207-154-2	01	1	0107-
13	COVER; TRIM,FRT SEAT,CUSHION FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75127-101-1	01	1	0107-
13	COVER; TRIM,FRT SEAT,CUSHION DRIVER ISRINGHAUSEN SEAT(SJA)	1-75117-964-0	01	1	0107-
13	COVER; TRIM,FRT SEAT,CUSHION EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9)	1-75127-102-1	01	1	0107-
17	BOLT; RECLINING EXC. DRIVER ISRINGHAUSEN SEAT(SJA) M8X20	8-97255-906-0	02	1	0107-
18	COVER; RECLINING EXC. DRIVER ISRINGHAUSEN SEAT(SJA) DARK GRAY	8-97867-020-0	01	1	0107-
19	SCREW; COVER EXC. DRIVER ISRINGHAUSEN SEAT(SJA) M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0107-
24	KNOB; RECLINING,FRT,SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (B) DARK GRAY	8-97859-019-0	01	1	0107-
24	KNOB; RECLINING,FRT,SEAT EXC. DRIVER ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) (B) DARK GRAY	8-97859-019-0	01	1	0107-
24	KNOB; RECLINING,FRT,SEAT EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (A) DARK GRAY	8-97867-021-0	01	1	0107-
30	REST ASM; ARM,FRT SEAT FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-121-1	01	1	0107-
39	NUT; ARM REST FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8	1-75147-657-0	01	1	0107-
39	NUT; ARM REST FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M10	9-09110-410-0	01	1	0107-
40	SPACER; ARM REST FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-94285-921-0	02	1	0107-
42	STAND; DRIVER SEAT EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75558-604-1	01	1	0107-
46	BOLT; STAND TO FLOOR M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0107-
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	1-09984-153-0	02	1	0107-

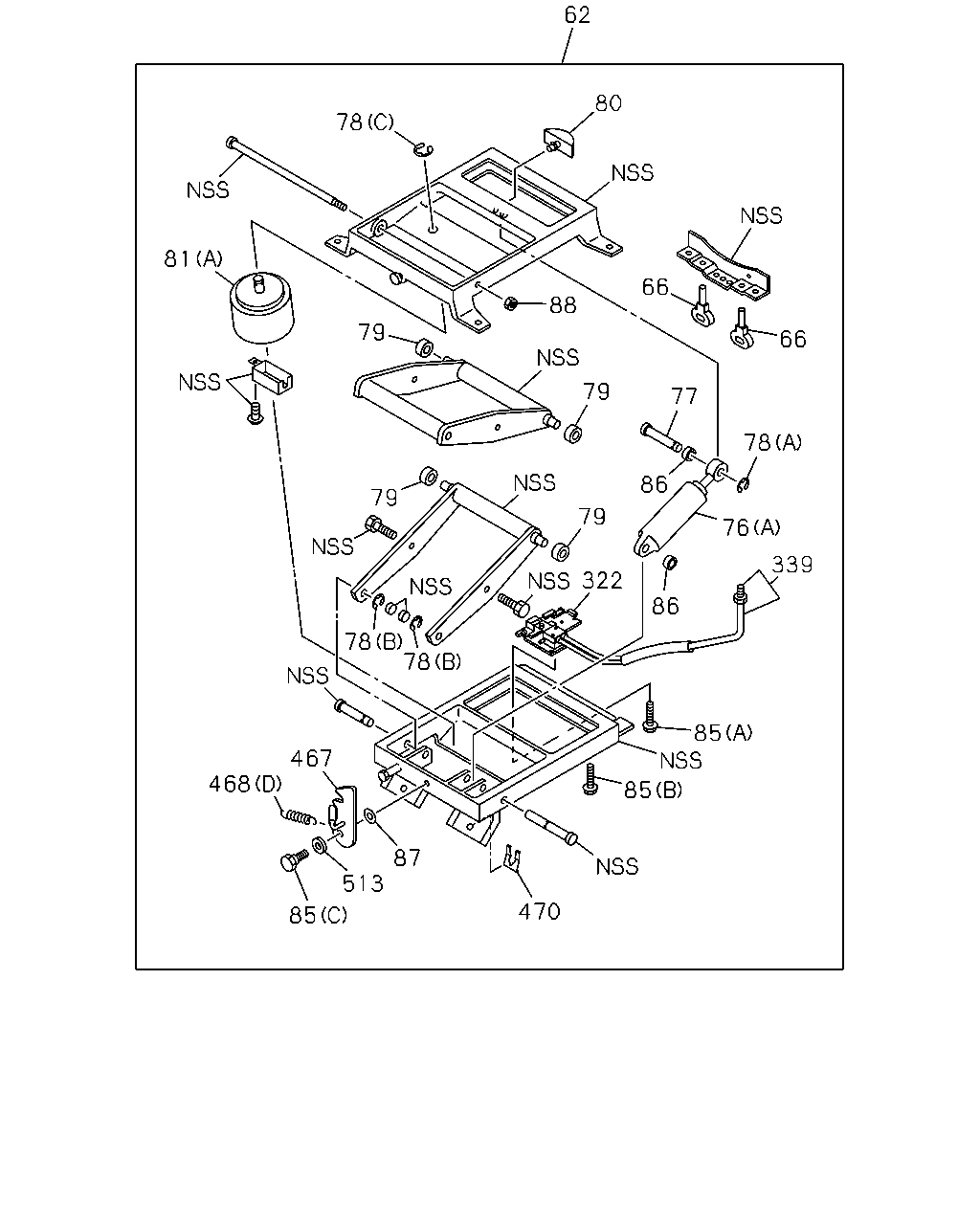

62	DAMPER ASM; SEAT SUSP FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-262-6	01	1	0107-
72	SPACER; SEAT ADJ EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75518-334-1	02	1	0107-
73	NUT; ADJ,HEIGHT CONT EXC. DRIVER ISRINGHAUSEN SEAT(SJA) M8 FLANGE	1-75538-207-0	08	1	0107-
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	04	1	0107-
74	ADJUSTER; FRT SEAT,HEIGHT CONT EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75518-330-1	01	1	0107-
99	BUSHING; SEAT BACK EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	8-97854-087-0	01	1	0107-
101	LEVER ASM; LUMBAR EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	5-75190-138-0	01	1	0107-
228	SCREW; KNOB FABRIC SEAT W/RECLINING(SFQ) EXC. DRIVER ISRINGHAUSEN SEAT(SJA) M4X6	8-97042-273-0	01	1	0107-
321	WASHER; PL,ARM REST FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.5 OD=22	9-09160-610-0	01	1	0107-
321	WASHER; PL,ARM REST FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.4 OD=22	9-09164-708-0	01	1	0107-
327	CLIP; COVER PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-09987-249-0	02	1	0301-0302
327	CLIP; COVER	1-09987-273-0	02	1	0107-0212
327	CLIP; COVER FABRIC SEAT W/RECLINING(SFQ) EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-09987-273-0	02	1	0301-0302
327	CLIP; COVER	1-09987-273-0	02	1	0303-
336	COVER; DRIVER SEAT EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (E)	1-75518-303-0	01	1	0107-
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (A)	1-72537-208-0	01	1	0107-
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (B)	1-72537-210-0	01	1	0107-
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (C)	1-72537-212-0	01	1	0107-
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (D)	1-72537-213-0	01	1	0107-

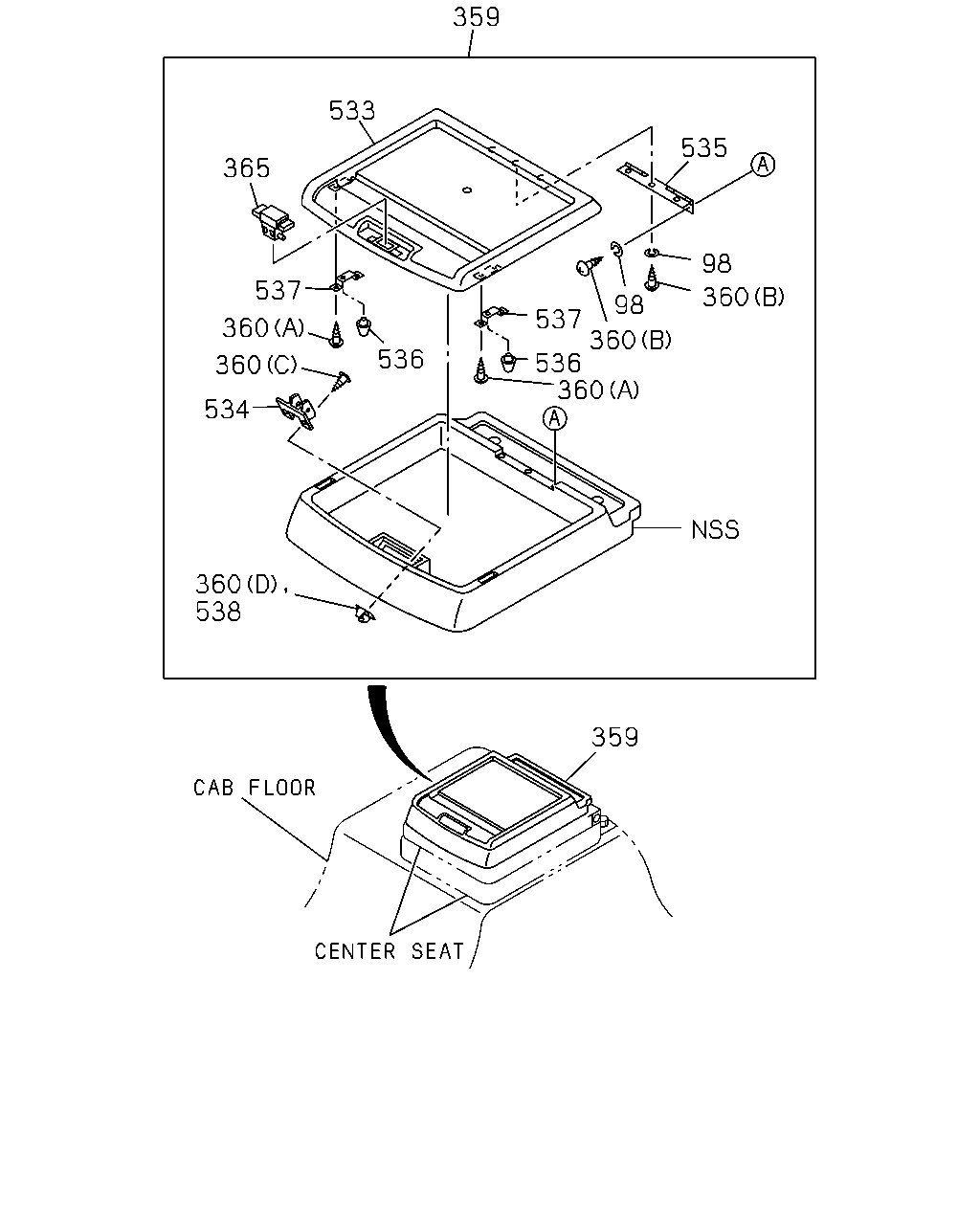

359 538 360 534 360 360 537 365 533 536 360 536 537 360 98 360 98 535 359

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
98	WASHER; HINGE EXC. CENTER SEAT DELETE(SP9) ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	0107-0211
98	WASHER; HINGE EXC. CENTER SEAT DELETE(SP9),PASSENGER SEAT MULTI USED(WX9) ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	0212-0310
98	WASHER; HINGE EXC. CENTER SEAT DELETE(SP9) ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	0311-
359	BOX; PARCEL EXC. CENTER SEAT DELETE(SP9)	1-72538-275-3	01	1	0107-
360	SCREW; PARCEL FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	0212-0310
360	SCREW; PARCEL FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9) (C) M5X20	9-09829-324-1	02	1	0212-0310
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	0107-
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (B) M4X16	0-70080-416-0	06	1	0107-
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0107-0211
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9),PASSENGER SEAT MULTI USED(WX9) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0212-0310
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (D)	1-09983-165-0	02	1	0107-0310
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0311-
365	LOCK ASM; SEAT EXC. CENTER SEAT DELETE(SP9)	1-72538-180-0	01	1	0107-
533	LID; PARCEL BOX EXC. CENTER SEAT DELETE(SP9)	1-72538-277-0	01	1	0107-
534	STRIKER; PARCEL BOX EXC. CENTER SEAT DELETE(SP9)	1-72538-181-0	01	1	0107-
535	HINGE; PARCEL BOX EXC. CENTER SEAT DELETE(SP9)	1-72447-391-1	01	1	0107-
536	RUBBER; CUSHION EXC. CENTER SEAT DELETE(SP9)	5-09983-002-1	02	1	0107-
537	BRACKET; RUBBER EXC. CENTER SEAT DELETE(SP9)	1-72548-057-1	02	1	0107-
538	GROMMET; SCREW EXC. CENTER SEAT DELETE(SP9)	1-09983-165-0	02	1	0311-

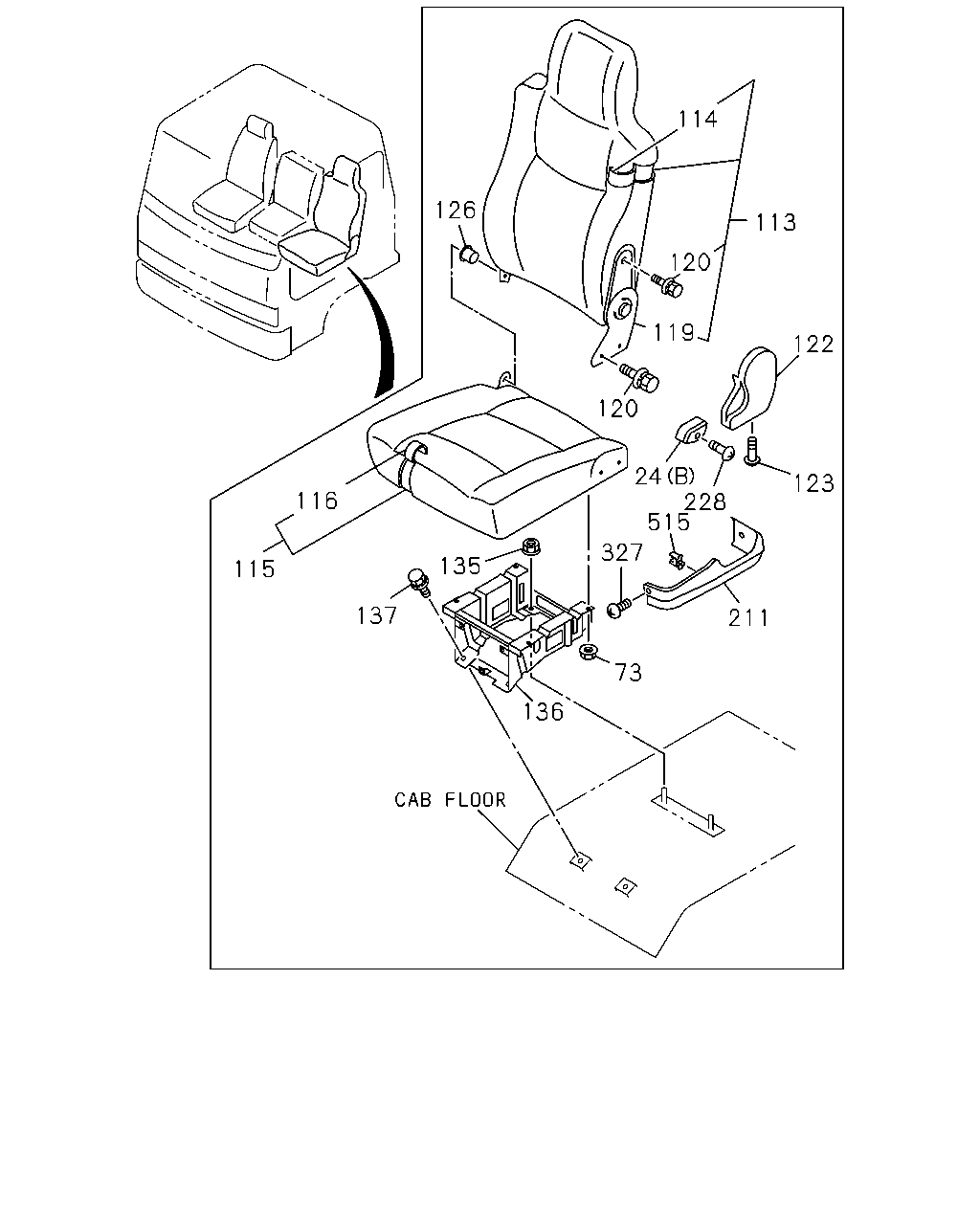

136 73 211 123 122 113 119 120 120 24 137 135 327 515 228 115 116 126 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	KNOB; RECLINING,FRT,SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (B) DARK GRAY	8-97859-019-0	01	1	0107-
24	KNOB; RECLINING,FRT,SEAT EXC. DRIVER ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) (B) DARK GRAY	8-97859-019-0	01	1	0107-
24	KNOB; RECLINING,FRT,SEAT EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (A) DARK GRAY	8-97867-021-0	01	1	0107-
73	NUT; ADJ,HEIGHT CONT EXC. DRIVER ISRINGHAUSEN SEAT(SJA) M8 FLANGE	1-75538-207-0	08	1	0107-
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	04	1	0107-
113	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT(SJA)	1-75208-191-4	01	1	0107-
113	BACK ASM; SEAT PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75207-549-1	01	1	0107-
113	BACK ASM; SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9)	1-75208-074-3	01	1	0107-
113	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ) EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75207-302-4	01	1	0107-
114	COVER; TRIM,PASSENGER SEAT,BACK EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9)	1-75116-592-1	01	1	0107-
114	COVER; TRIM,PASSENGER SEAT,BACK FABRIC SEAT W/RECLINING(SFQ) EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75127-126-1	01	1	0107-
114	COVER; TRIM,PASSENGER SEAT,BACK DRIVER ISRINGHAUSEN SEAT(SJA)	1-75116-709-2	01	1	0107-
114	COVER; TRIM,PASSENGER SEAT,BACK PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75127-059-1	01	1	0107-
115	CUSHION ASM; PASSENGER SEAT FABRIC SEAT W/RECLINING(SFQ) EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75207-299-1	01	1	0107-
115	CUSHION ASM; PASSENGER SEAT DRIVER ISRINGHAUSEN SEAT(SJA)	1-75026-784-2	01	1	0107-
115	CUSHION ASM; PASSENGER SEAT PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75207-215-2	01	1	0107-
115	CUSHION ASM; PASSENGER SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9)	1-75207-300-1	01	1	0107-
116	COVER; TRIM,PASSENGER SEAT,CUSHION FABRIC SEAT W/RECLINING(SFQ) EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75127-123-1	01	1	0107-
116	COVER; TRIM,PASSENGER SEAT,CUSHION EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9)	1-75127-124-1	01	1	0107-
116	COVER; TRIM,PASSENGER SEAT,CUSHION DRIVER ISRINGHAUSEN SEAT(SJA)	1-75116-691-2	01	1	0107-
116	COVER; TRIM,PASSENGER SEAT,CUSHION PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75127-093-1	01	1	0107-
119	ADJ; SEAT RECLINING,ASSIST SIDE PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75417-597-0	01	1	0107-
120	BOLT; RECLINING ADJ DRIVER ISRINGHAUSEN SEAT(SJA) M8X20	8-97255-906-0	02	1	0107-
120	BOLT; RECLINING ADJ EXC. DRIVER ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) M8X20	8-97255-906-0	02	1	0107-
120	BOLT; RECLINING ADJ PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA) M8X20	8-97255-906-0	04	1	0107-
122	COVER; ADJ,RECLINING DRIVER ISRINGHAUSEN SEAT(SJA) DARK GRAY	8-97859-018-0	01	1	0107-
122	COVER; ADJ,RECLINING EXC. DRIVER ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) DARK GRAY	8-97859-018-0	01	1	0107-
122	COVER; ADJ,RECLINING PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75417-598-0	01	1	0107-
123	SCREW; COVER,RECLINING DRIVER ISRINGHAUSEN SEAT(SJA) M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0107-
123	SCREW; COVER,RECLINING EXC. DRIVER ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0107-
123	SCREW; COVER,RECLINING PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA) M6X12	9-03490-612-0	01	1	0107-
126	BUSHING; HINGE,RECLINING	8-97854-087-0	01	1	0107-
135	NUT; SEAT STAND M10 FLANGE	1-09984-153-0	02	1	0107-
136	STAND; PASSENGER SEAT	1-75558-602-3	01	1	0107-
137	BOLT; STAND M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0107-
211	COVER; FRT SEAT	1-72538-274-0	01	1	0107-
228	SCREW; KNOB FABRIC SEAT W/RECLINING(SFQ) EXC. DRIVER ISRINGHAUSEN SEAT(SJA) M4X6	8-97042-273-0	01	1	0107-
327	CLIP; COVER PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-09987-249-0	02	1	0301-0302
327	CLIP; COVER	1-09987-273-0	02	1	0107-0212
327	CLIP; COVER FABRIC SEAT W/RECLINING(SFQ) EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-09987-273-0	02	1	0301-0302
327	CLIP; COVER	1-09987-273-0	02	1	0303-
515	CLIP; PIPE BLACK	8-94227-248-1	01	1	0107-

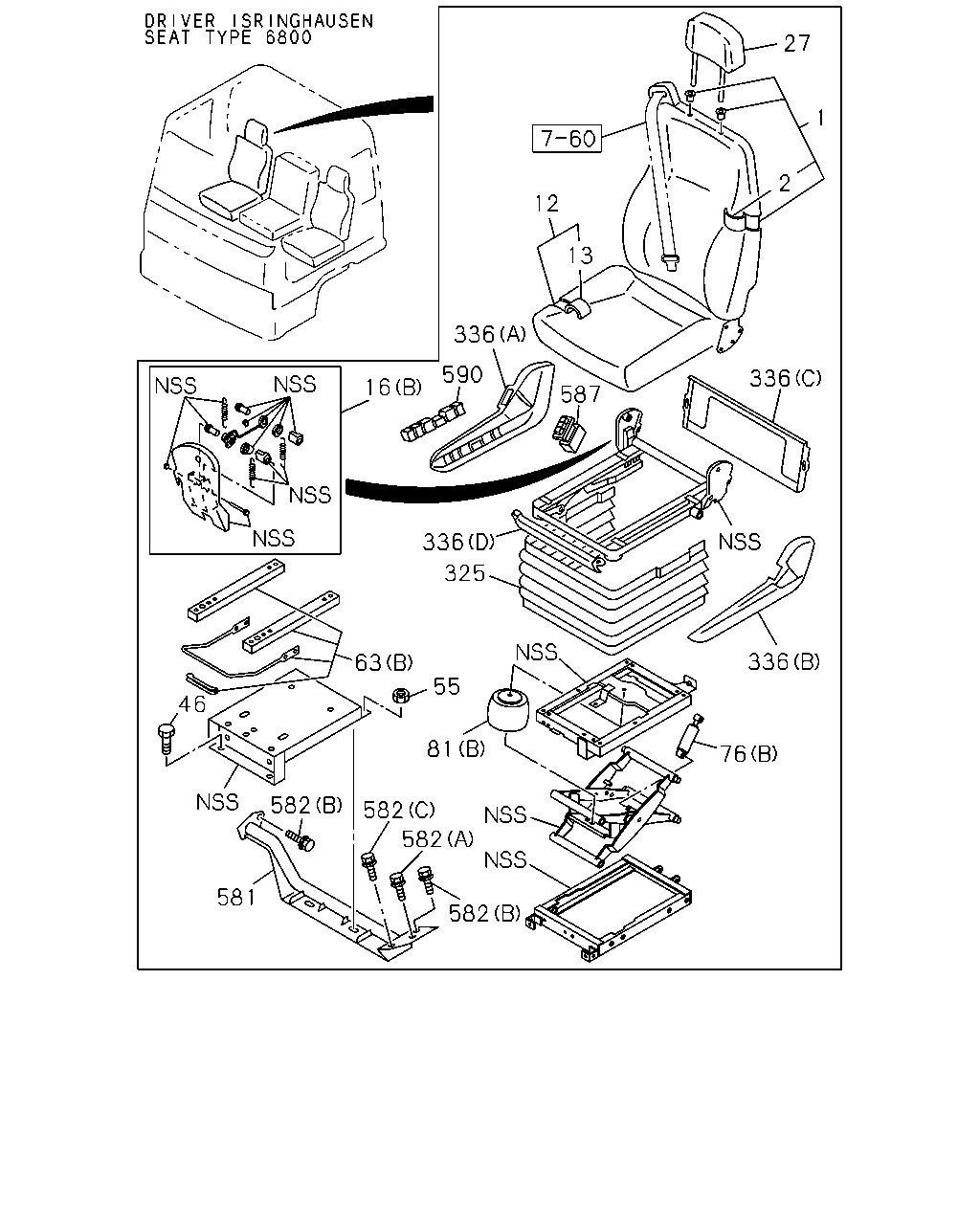

76 336 336 12 13 336 590 587 1 2 27 16 336 325 55 81 582 582 582 582 581 46 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-292-4	01	1	0107-
1	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-294-3	01	1	0107-
1	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT(SJA)	1-75027-941-0	01	1	0107-
1	BACK ASM; SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9)	1-75207-293-3	01	1	0107-
2	COVER; TRIM,FRT SEAT,BACK FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-045-1	01	1	0107-
2	COVER; TRIM,FRT SEAT,BACK FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-119-1	01	1	0107-
2	COVER; TRIM,FRT SEAT,BACK EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9)	1-75127-118-1	01	1	0107-
2	COVER; TRIM,FRT SEAT,BACK DRIVER ISRINGHAUSEN SEAT(SJA)	1-75117-965-0	01	1	0107-
12	CUSHION; SEAT,FRT FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75207-153-2	01	1	0107-
12	CUSHION; SEAT,FRT DRIVER ISRINGHAUSEN SEAT(SJA)	1-75027-939-0	01	1	0107-
12	CUSHION; SEAT,FRT EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9)	1-75207-154-2	01	1	0107-
13	COVER; TRIM,FRT SEAT,CUSHION FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75127-101-1	01	1	0107-
13	COVER; TRIM,FRT SEAT,CUSHION DRIVER ISRINGHAUSEN SEAT(SJA)	1-75117-964-0	01	1	0107-
13	COVER; TRIM,FRT SEAT,CUSHION EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9)	1-75127-102-1	01	1	0107-
16	ADJUSTER ASM; RECLINING DRIVER ISRINGHAUSEN SEAT(SJA) (B)	1-75417-602-0	01	1	0107-
16	ADJUSTER ASM; RECLINING EXC. CENTER SEAT DELETE(SP9) (A)	1-75418-062-1	01	1	0107-
27	REST; HD,FRT SEAT DRIVER ISRINGHAUSEN SEAT(SJA)	1-75657-029-0	01	1	0107-
46	BOLT; STAND TO FLOOR M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0107-
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	1-09984-153-0	02	1	0107-
63	ADJUSTER; SEAT SLIDE EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (A)	1-75518-199-1	01	1	0107-
63	ADJUSTER; SEAT SLIDE EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (A)	1-75518-323-0	01	1	0107-
63	ADJUSTER; SEAT SLIDE DRIVER ISRINGHAUSEN SEAT(SJA) (B)	1-75517-953-0	01	1	0107-
76	DAMPER; AIR SUSP FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75537-230-2	01	1	0107-
76	DAMPER; AIR SUSP DRIVER ISRINGHAUSEN SEAT(SJA) (B)	1-75537-276-0	01	1	0107-
81	SPRING; AIR FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75538-151-2	01	1	0107-
81	SPRING; AIR DRIVER ISRINGHAUSEN SEAT(SJA) (B)	1-75537-275-0	01	1	0107-
325	COVER; SUSPENSION DEVICE DRIVER ISRINGHAUSEN SEAT(SJA)	1-75537-274-0	01	1	0107-
336	COVER; DRIVER SEAT EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (E)	1-75518-303-0	01	1	0107-
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (A)	1-72537-208-0	01	1	0107-
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (B)	1-72537-210-0	01	1	0107-
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (C)	1-72537-212-0	01	1	0107-
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (D)	1-72537-213-0	01	1	0107-
581	PIPE; SEAT DRIVER ISRINGHAUSEN SEAT(SJA)	1-73907-605-2	01	1	0107-
582	BOLT; PIPE,SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (B)	1-09980-619-1	02	1	0107-
582	BOLT; PIPE,SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0107-
582	BOLT; PIPE,SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (C) M8X30 W/LK&PL WASHER	8-94279-210-0	01	1	0107-
587	VALVE; LUMBAR SUPPORT DRIVER ISRINGHAUSEN SEAT(SJA)	1-75197-007-0	01	1	0107-
590	KNOB KIT; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT(SJA)	1-75417-600-0	01	1	0107-

403 359 189 360 506 175 176 16 188 188 179 182 403

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	ADJUSTER ASM; RECLINING DRIVER ISRINGHAUSEN SEAT(SJA) (B)	1-75417-602-0	01	1	0107-
16	ADJUSTER ASM; RECLINING EXC. CENTER SEAT DELETE(SP9) (A)	1-75418-062-1	01	1	0107-
175	BACK ASM; PASSENGER CENTER SEAT FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9)	1-75207-258-2	01	1	0107-
175	BACK ASM; PASSENGER CENTER SEAT DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9)	1-75026-857-3	01	1	0107-
175	BACK ASM; PASSENGER CENTER SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9),PASSENGER SEATMULTI USED(WX9)	1-75026-855-0	01	1	0107-0406
175	BACK ASM; PASSENGER CENTER SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9),PASSENGER SEATMULTI USED(WX9)	1-75026-856-2	01	1	0407-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9)	1-75127-078-1	01	1	0107-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9)	1-75116-711-2	01	1	0107-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9),PASSENGER SEATMULTI USED(WX9)	1-75116-651-0	01	1	0107-0406
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9),PASSENGER SEATMULTI USED(WX9)	1-75116-710-1	01	1	0407-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9)	1-75127-128-1	01	1	0107-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9)	1-75116-694-2	01	1	0107-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9),PASSENGER SEATMULTI USED(WX9)	1-75116-696-1	01	1	0107-
182	CUSHION ASM; CENTER SEAT FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9)	1-75207-306-2	01	1	0107-
182	CUSHION ASM; CENTER SEAT DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9)	1-75026-843-3	01	1	0107-
182	CUSHION ASM; CENTER SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9),PASSENGER SEATMULTI USED(WX9)	1-75026-845-2	01	1	0107-
188	BOLT; BACK TO CUSHION EXC. CENTER SEAT DELETE(SP9) M10X16 FLANGE	1-75198-053-0	04	1	0107-
189	BUSHING; HINGE,CENTER SEAT BACK EXC. CENTER SEAT DELETE(SP9)	8-97854-900-0	01	1	0107-
359	BOX; PARCEL EXC. CENTER SEAT DELETE(SP9)	1-72538-275-3	01	1	0107-
360	SCREW; PARCEL FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	0212-0310
360	SCREW; PARCEL FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9) (C) M5X20	9-09829-324-1	02	1	0212-0310
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	0107-
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (B) M4X16	0-70080-416-0	06	1	0107-
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0107-0211
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9),PASSENGER SEAT MULTI USED(WX9) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0212-0310
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (D)	1-09983-165-0	02	1	0107-0310
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0311-
403	NUT; CENTER SEAT EXC. CENTER SEAT DELETE(SP9) M8 FLANGE	8-94279-518-0	04	1	0107-0312
403	NUT; CENTER SEAT EXC. CENTER SEAT DELETE(SP9) M8 FLANGE	1-75538-207-0	04	1	0401-
506	CAP; PARCEL BOX EXC. CENTER SEAT DELETE(SP9)	1-09983-180-2	04	1	0107-

470 85 85 339 76 78 66 66 80 62 78 81 79 88 79 77 86 79 86 322 78 78 467 468 87 513 85 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
62	DAMPER ASM; SEAT SUSP FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-262-6	01	1	0107-
66	RUBBER; LWR STOPPER FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-145-0	02	1	0107-
76	DAMPER; AIR SUSP FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75537-230-2	01	1	0107-
76	DAMPER; AIR SUSP DRIVER ISRINGHAUSEN SEAT(SJA) (B)	1-75537-276-0	01	1	0107-
77	PIN; DAMPER FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-138-2	01	1	0107-
78	RING; SNAP FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=8	9-09185-408-0	01	1	0107-
78	RING; SNAP FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=10	9-09185-410-0	02	1	0107-0406
78	RING; SNAP FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=15	9-09185-415-0	01	1	0107-
79	ROLLER ASM; AIR SUSP FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-159-0	04	1	0107-
80	RUBBER; STOPPER FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09987-123-0	01	1	0107-
81	SPRING; AIR FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75538-151-2	01	1	0107-
81	SPRING; AIR DRIVER ISRINGHAUSEN SEAT(SJA) (B)	1-75537-275-0	01	1	0107-
85	BOLT; AIR SUSP FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-09980-577-0	01	1	0107-
85	BOLT; AIR SUSP FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M6X12	1-75538-208-0	02	1	0107-
85	BOLT; AIR SUSP FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8X22 W/LK&PL WASHER	1-75538-209-0	03	1	0107-
86	BUSHING; GUIDE FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	0107-
87	WASHER; AIR SUSP FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.2	9-09150-508-0	01	1	0107-
88	NUT; AIR SUSP FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10	1-75537-273-1	01	1	0107-
322	VALVE; AIR SPRING FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-186-2	01	1	0107-
339	UNION; DRIVER SEAT FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-131-2	01	1	0107-
467	LEVER; LOCK FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-134-0	01	1	0107-
468	SPRING; RETURN FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D)	1-75538-132-0	01	1	0107-
468	SPRING; RETURN EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (A)	1-75518-206-0	01	1	0107-
468	SPRING; RETURN EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (B)	1-75518-207-0	01	1	0107-
468	SPRING; RETURN EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (C)	1-75518-208-0	02	1	0107-
470	CLIP; HOSE FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-137-0	01	1	0107-
513	SPACER; LEVER FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-133-0	01	1	0107-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
