7-45 — CONSOLE BOX (#10071) — 72 parça

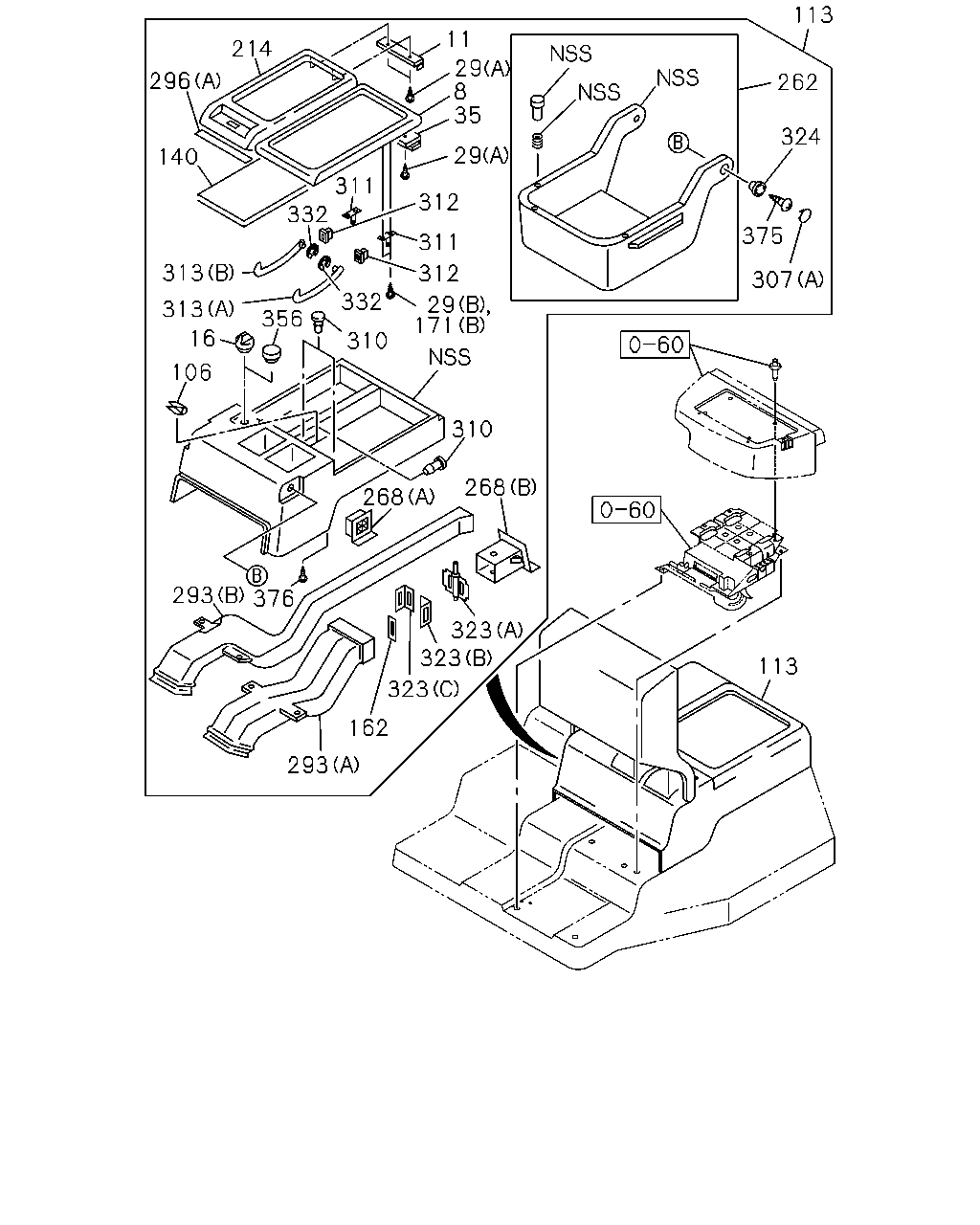

113 323 323 323 162 293 293 376 268 268 310 307 375 324 262 113 11 29 8 35 29 312 311 312 29 171 310 332 311 332 313 313 140 293 214 106 16 356

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	LID; CENTER CONSOLE CENTER SEAT DELETE(SP9)	1-72537-185-0	01	1	0107-
11	HINGE; CONSOLE LID CENTER SEAT DELETE(SP9)	1-72537-070-2	01	1	0107-
16	KNOB ASM CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU>	1-72537-189-0	01	1	0107-
29	SCREW; HINGE CENTER SEAT DELETE(SP9) (A) M5X14 BINDING HEAD	1-72537-168-0	08	1	0107-
29	SCREW; HINGE CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> (B) M5X14 FLAT HEAD	1-72537-169-0	06	1	0107-
35	HINGE; CENTER CONSOLE CENTER SEAT DELETE(SP9)	1-72538-182-1	01	1	0107-
106	LOCK; CONSOLE LID CENTER SEAT DELETE(SP9)	1-72537-079-0	02	1	0107-
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU>	1-72537-180-0	01	1	0107-0404
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU>	1-72537-240-3	01	1	0405-0507
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU>	1-72537-285-3	01	1	0508-0609
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU>	1-72537-323-1	01	1	0610-
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> EXC. COOL & HOT BOX<TMU>	1-72537-220-0	01	1	0107-0404
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> EXC. COOL & HOT BOX<TMU>	1-72537-252-2	01	1	0405-0507
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> EXC. COOL & HOT BOX<TMU>	1-72537-291-3	01	1	0508-0609
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> EXC. COOL & HOT BOX<TMU>	1-72537-321-1	01	1	0610-
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU>	1-72537-181-0	01	1	0107-0404
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU>	1-72537-251-2	01	1	0405-0507
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU>	1-72537-294-2	01	1	0508-0609
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU>	1-72537-330-1	01	1	0610-
140	SHEET CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL>	1-72537-093-1	01	1	0107-
162	CUSHION; PARCEL BOX CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU>	1-72537-128-0	03	1	0107-
171	SCREW; CONSOLE BOX CENTER SEAT DELETE(SP9) (A) M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	0107-
171	SCREW; CONSOLE BOX CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (B) M5X14 FLAT HEAD	1-72537-169-0	06	1	0107-
214	LID; CONSOLE CENTER SEAT DELETE(SP9)	1-72537-186-0	01	1	0107-
262	TABLE ASM CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL>	1-72537-187-1	01	1	0107-
268	COVER; DUCT CENTER SEAT DELETE(SP9) (B)	1-72537-183-0	01	1	0107-
268	COVER; DUCT CENTER SEAT DELETE(SP9) (A)	1-72537-184-0	01	1	0107-
293	DUCT CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A)	1-72537-081-3	01	1	0107-
293	DUCT CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B)	1-72537-083-2	01	1	0107-
307	COVER; HOLE,CTR CONSOLE CENTER SEAT DELETE(SP9) (B)	1-76337-461-0	04	1	0107-
307	COVER; HOLE,CTR CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (A)	1-72537-188-0	02	1	0107-
310	CUSHION; CTR CONSOLE CENTER SEAT DELETE(SP9)	1-72538-187-0	02	1	0107-
311	HOLDER; CONSOLE CENTER SEAT DELETE(SP9)	1-72538-188-2	03	1	0107-
312	STOPPER; CONSOLE CENTER SEAT DELETE(SP9)	1-72538-186-1	03	1	0107-
313	ARM; CTR CONSOLE CENTER SEAT DELETE(SP9) (A)	1-72538-184-3	01	1	0107-
313	ARM; CTR CONSOLE CENTER SEAT DELETE(SP9) (B)	1-72538-185-3	02	1	0107-
323	SHUTTER CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (B)	1-72537-126-0	01	1	0107-
323	SHUTTER CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A)	1-72537-084-1	01	1	0107-
323	SHUTTER CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (C)	1-72537-127-0	01	1	0107-
324	BUSHING CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL>	1-72537-116-0	02	1	0107-
332	RING; SNAP,CONSOLE BOX CENTER SEAT DELETE(SP9)	1-72537-170-0	03	1	0107-
356	COVER; KNOB CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU>	1-72537-155-0	01	1	0107-
375	SCREW; TAP BUSHING CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> M6X20	1-72537-319-0	02	1	0610-
376	SCREW; TAP DUCT CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> M4X14	1-72537-320-0	03	1	0610-

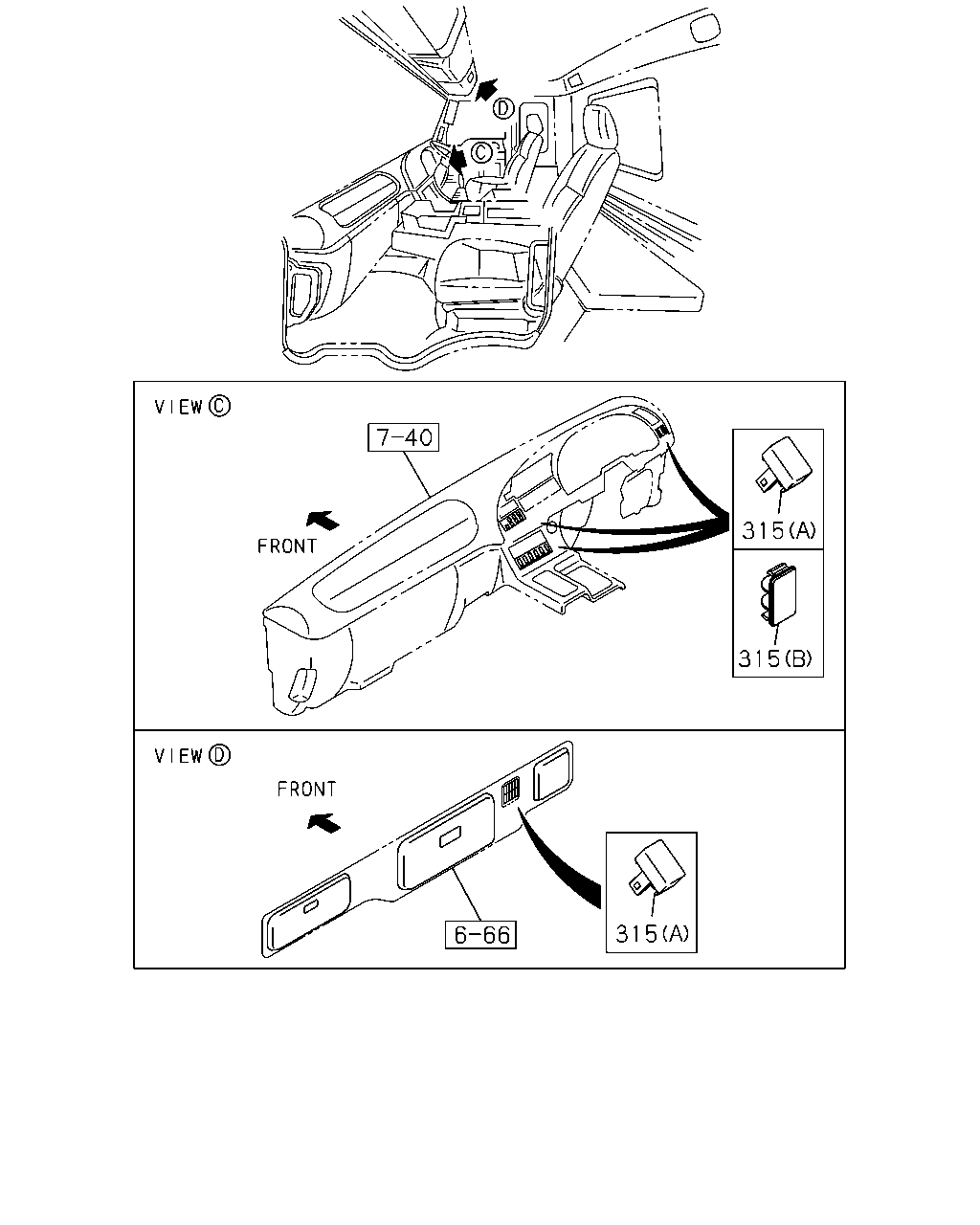

315 315 315

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	315	COVER; HOLE,SW (A)	1-82359-069-2	AR	1	0107-
	315	COVER; HOLE,SW (B)	8-97043-732-1	AR	1	0107-

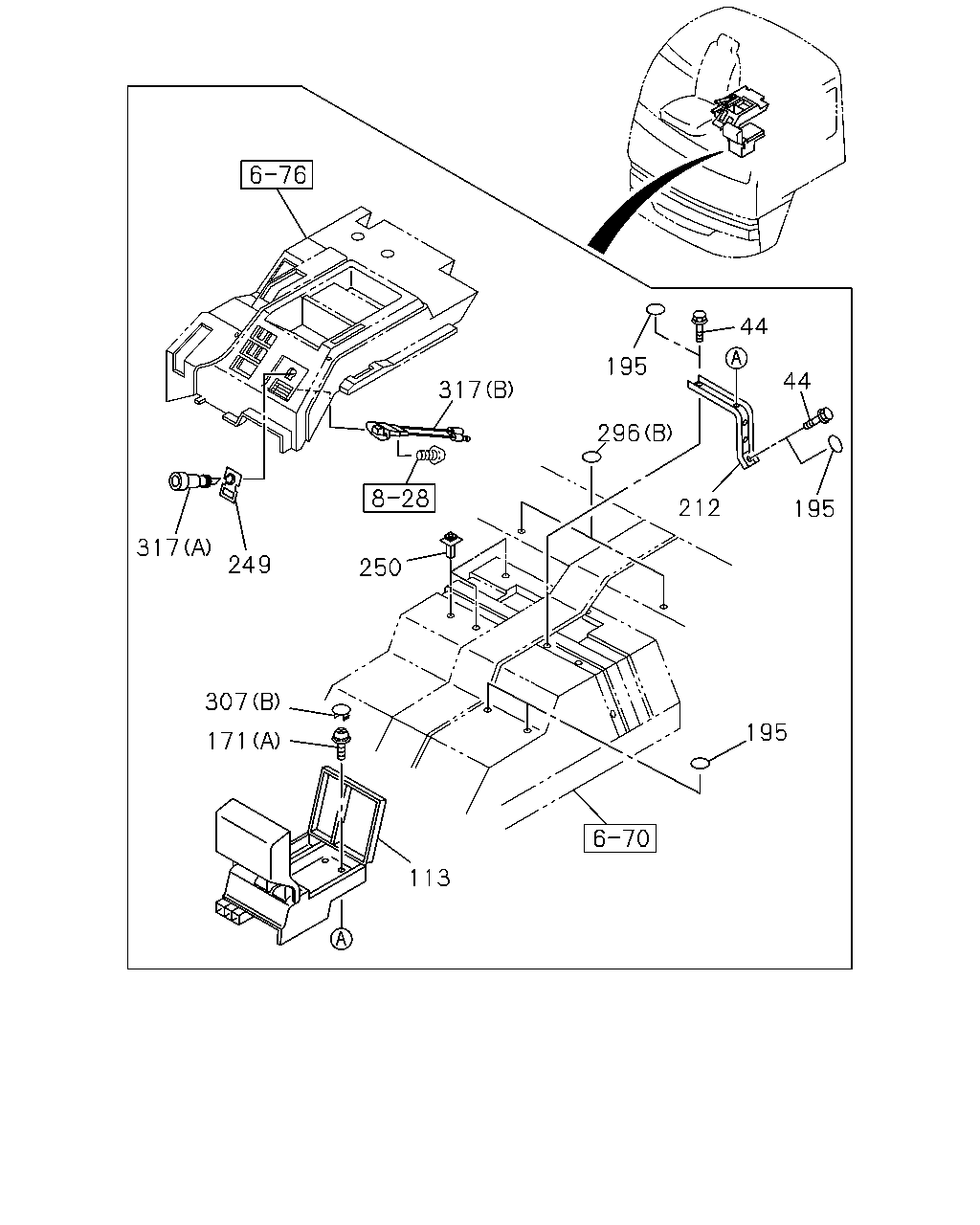

195 195 44 44 195 296 212 113 171 307 249 317 250 317

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	BOLT; SUPPORT,CTR CONSOLE CENTER SEAT DELETE(SP9) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0107-
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU>	1-72537-180-0	01	1	0107-0404
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU>	1-72537-240-3	01	1	0405-0507
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU>	1-72537-285-3	01	1	0508-0609
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU>	1-72537-323-1	01	1	0610-
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> EXC. COOL & HOT BOX<TMU>	1-72537-220-0	01	1	0107-0404
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> EXC. COOL & HOT BOX<TMU>	1-72537-252-2	01	1	0405-0507
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> EXC. COOL & HOT BOX<TMU>	1-72537-291-3	01	1	0508-0609
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> EXC. COOL & HOT BOX<TMU>	1-72537-321-1	01	1	0610-
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU>	1-72537-181-0	01	1	0107-0404
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU>	1-72537-251-2	01	1	0405-0507
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU>	1-72537-294-2	01	1	0508-0609
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU>	1-72537-330-1	01	1	0610-
171	SCREW; CONSOLE BOX CENTER SEAT DELETE(SP9) (A) M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	0107-
171	SCREW; CONSOLE BOX CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (B) M5X14 FLAT HEAD	1-72537-169-0	06	1	0107-
195	SEAL; CENTER CONSOLE EXC. CENTER SEAT DELETE(SP9) OD=25 BLACK	1-76798-019-0	05	1	0107-
212	SUPPORT; CONSOLE TO COMPT CENTER SEAT DELETE(SP9)	1-72537-095-1	01	1	0107-
249	COVER ELEC OUTLET 12V<TAW>	1-82529-001-0	01	1	0107-
250	GROMMET; CONSOLE BOX D=7.8X7.8 L=18 NATURAL	8-94279-043-0	03	1	0107-
296	SEAL CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (A)	1-72537-094-1	01	1	0107-
296	SEAL (B) OD=25 BLACK	1-76798-019-0	02	1	0107-0303
296	SEAL (B) OD=25 BLACK	1-76798-019-0	01	1	0304-
307	COVER; HOLE,CTR CONSOLE CENTER SEAT DELETE(SP9) (B)	1-76337-461-0	04	1	0107-
307	COVER; HOLE,CTR CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (A)	1-72537-188-0	02	1	0107-
317	CONSENT ELEC OUTLET 12V<TAW> (A)	8-94382-451-1	01	1	0107-
317	CONSENT (B)	1-82523-020-2	01	1	0107-
