◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10867 - EXR RHD FUEL TANK 400L ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#10068) — 126 parça

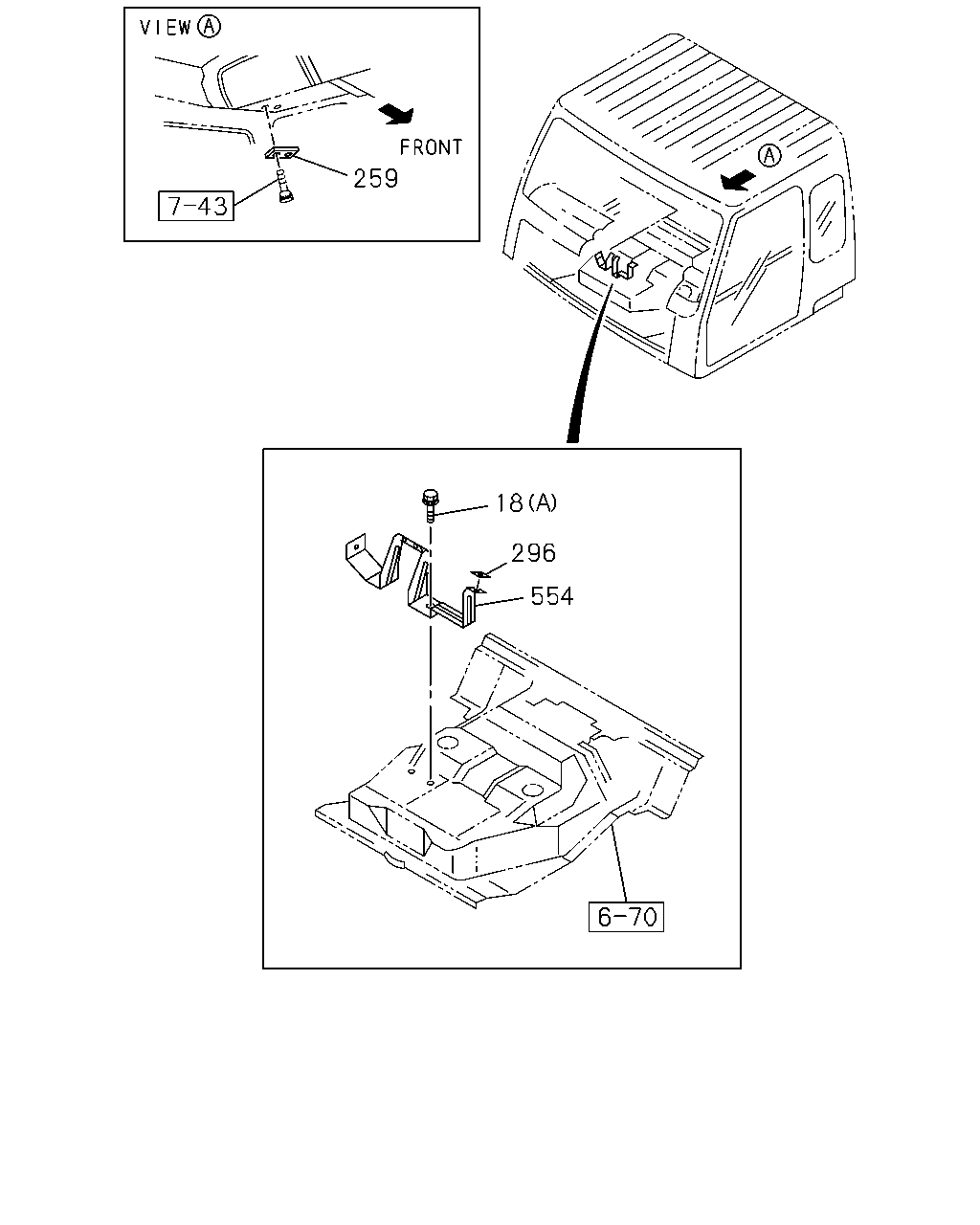

çizim 21598
554 296 18 259
BalonParca AdiParca NoAdetTipApplied Date
18 BOLT; BRKT
ISUZU M/T<X9A> DELUXE CAB(W14) (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0107-
18 BOLT; BRKT
ZF M/T<X9E> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0107-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 09 1 0107-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0107-
259 PLATE; STUFF,SUN VISOR
EXC. SUN VISOR PASSENGER<D20> 		1-73317-410-0 01 1 0107-
296 SEAL; INST CENTER BEZEL
EXC. CENTER SEAT DELETE(SP9) 		8-97856-616-0 01 1 0107-
554 BRACKET; CENTER BEZEL 1-65671-535-2 01 1 0107-

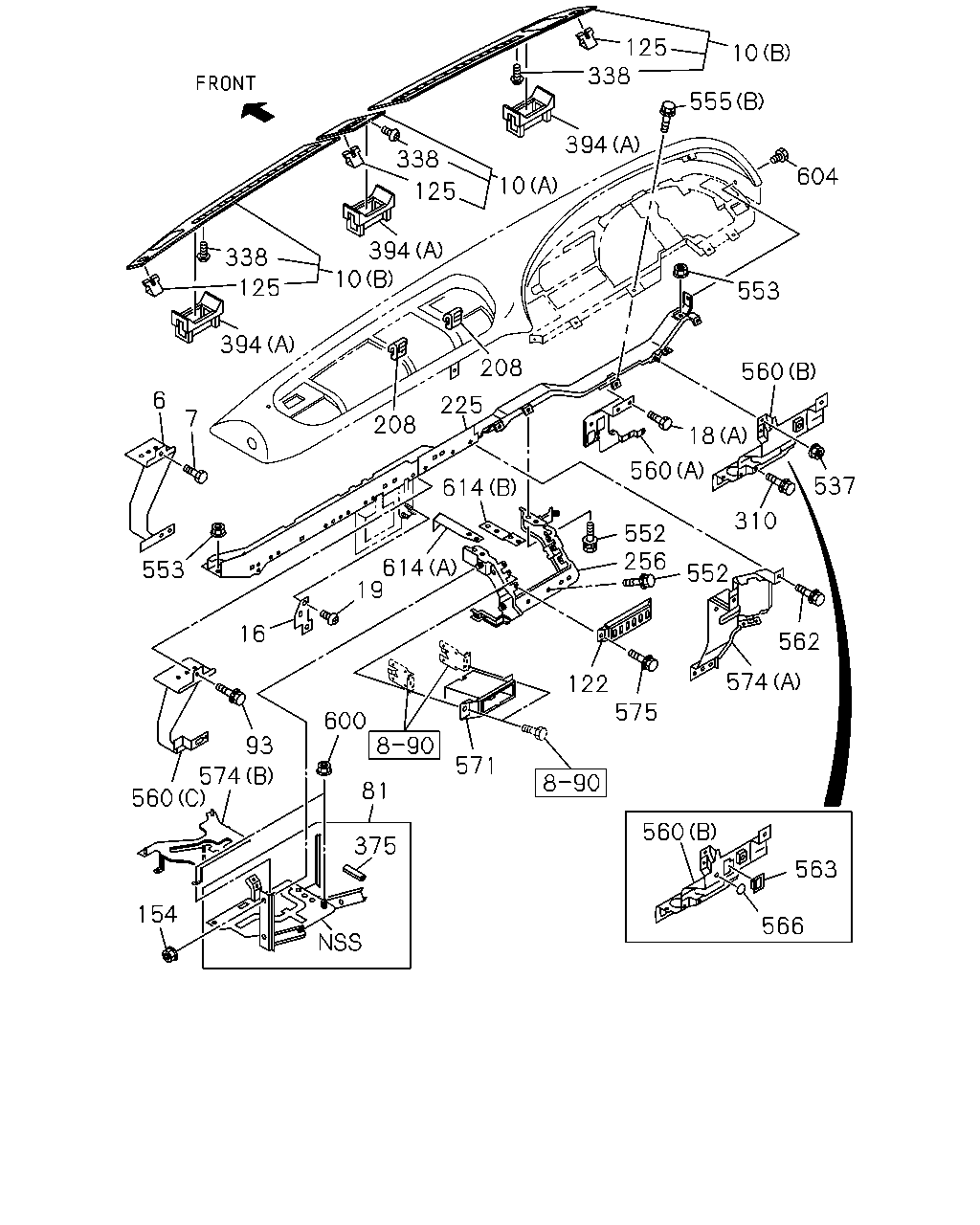

çizim 21599
566 563 560 375 81 574 560 154 93 600 571 575 574 562 552 310 537 560 552 256 122 19 614 16 553 6 7 394 125 338 394 10 125 338 394 10 338 125 555 10 604 553 560 18 208 225 208 614
BalonParca AdiParca NoAdetTipApplied Date
6 SUPPORT; INST PANEL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-65681-063-3 01 1 0107-
6 SUPPORT; INST PANEL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-65681-064-2 01 1 0107-
7 BOLT; SUPPORT,INST PNL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0107-
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) W/SPEAKER NET 		1-72437-601-6 01 1 0107-
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-72437-540-6 01 1 0107-
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) W/SPEAKER NET 		1-72437-600-6 01 1 0107-
10 PANEL ASM; GARNISH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A) 		1-72437-592-1 01 1 0107-
10 PANEL ASM; GARNISH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) 		1-72438-157-1 01 1 0107-
10 PANEL ASM; GARNISH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) 		1-72438-158-1 01 1 0107-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-73908-023-2 01 1 0107-
18 BOLT; BRKT
ISUZU M/T<X9A> DELUXE CAB(W14) (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0107-
18 BOLT; BRKT
ZF M/T<X9E> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0107-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 09 1 0107-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0107-
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 02 1 0107-
81 BRACKET; ELEC CONT UNIT 1-73907-649-2 01 1 0107-0110
81 BRACKET; ELEC CONT UNIT 1-73907-548-7 01 1 0111-
93 BOLT; PANEL BRKT
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0107-
122 PANEL; CENTER CLUSTER 1-65671-550-5 01 1 0107-
125 CLIP; INST PANEL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		8-97217-066-0 10 1 0310-0405
125 CLIP; INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ), HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		8-97217-066-0 10 1 0107-0309
125 CLIP; INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-97217-066-0 18 1 0310-0405
125 CLIP; INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ), HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		8-97217-066-0 10 1 0406-
125 CLIP; INST PANEL 8-97217-066-0 01 1 0107-
154 NUT
M6 FLANGE 		0-91150-106-0 04 1 0107-0602
154 NUT
M6 FLANGE 		0-91180-106-0 04 1 0603-
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 0107-
225 FRAME; FACIA 1-65671-725-8 01 1 0107-
256 BEZEL ASM; CENTER
COOL & HOT BOX<TMU> 		1-65671-523-8 01 1 0107-0210
256 BEZEL ASM; CENTER 1-65671-523-9 01 1 0211-
256 BEZEL ASM; CENTER
EXC. COOL & HOT BOX<TMU> 		1-65671-765-1 01 1 0107-0210
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0107-
338 SCREW; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 12 1 0107-0208
338 SCREW; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94148-576-1 12 1 0209-0309
338 SCREW; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 22 1 0310-0405
338 SCREW; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 12 1 0406-
375 FINISHER; BRKT,CONT UNIT
L=80 		5-71997-133-0 01 1 0403-
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 0107-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0107-
537 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 0107-0602
537 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 0603-
552 BOLT; FRAME
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0107-
553 NUT; FRAME
M8 FLANGE 		0-91150-108-0 04 1 0107-0602
553 NUT; FRAME
M8 FLANGE 		0-91180-108-0 04 1 0603-
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 08 1 0107-0512
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28251-025-0 08 1 0601-0604
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 08 1 0605-
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0107-
560 BRACKET
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (C) 		1-65671-751-0 01 1 0107-
560 BRACKET
(B) 		1-65671-760-4 01 1 0107-
560 BRACKET
(A) 		1-65680-976-3 01 1 0107-
562 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0107-
563 BEZEL; BRKT 1-72448-410-3 01 1 0107-
566 PLUG; HOLE
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0107-
571 BEZEL; POCKET 1-72438-151-3 01 1 0107-
571 BEZEL; POCKET
EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) 		1-72438-151-3 01 1 0107-
574 PANEL; RELAY BOX
ANTILOCK BRAKE SYSTEM(BFA) (B) 		1-73907-647-3 01 1 0107-
574 PANEL; RELAY BOX
(A) 		1-73907-365-9 01 1 0107-
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0107-
600 NUT; PANEL
ANTILOCK BRAKE SYSTEM(BFA) M6 FLANGE 		0-91150-106-0 03 1 0107-0602
600 NUT; PANEL
ANTILOCK BRAKE SYSTEM(BFA) M6 FLANGE 		0-91180-106-0 03 1 0603-
604 CLIP; INST PAD 1-09983-123-0 01 1 0107-
614 BRACKET; HARNESS
(A) 		1-65671-745-1 01 1 0107-
614 BRACKET; HARNESS
(B) 		1-65671-746-1 01 1 0107-

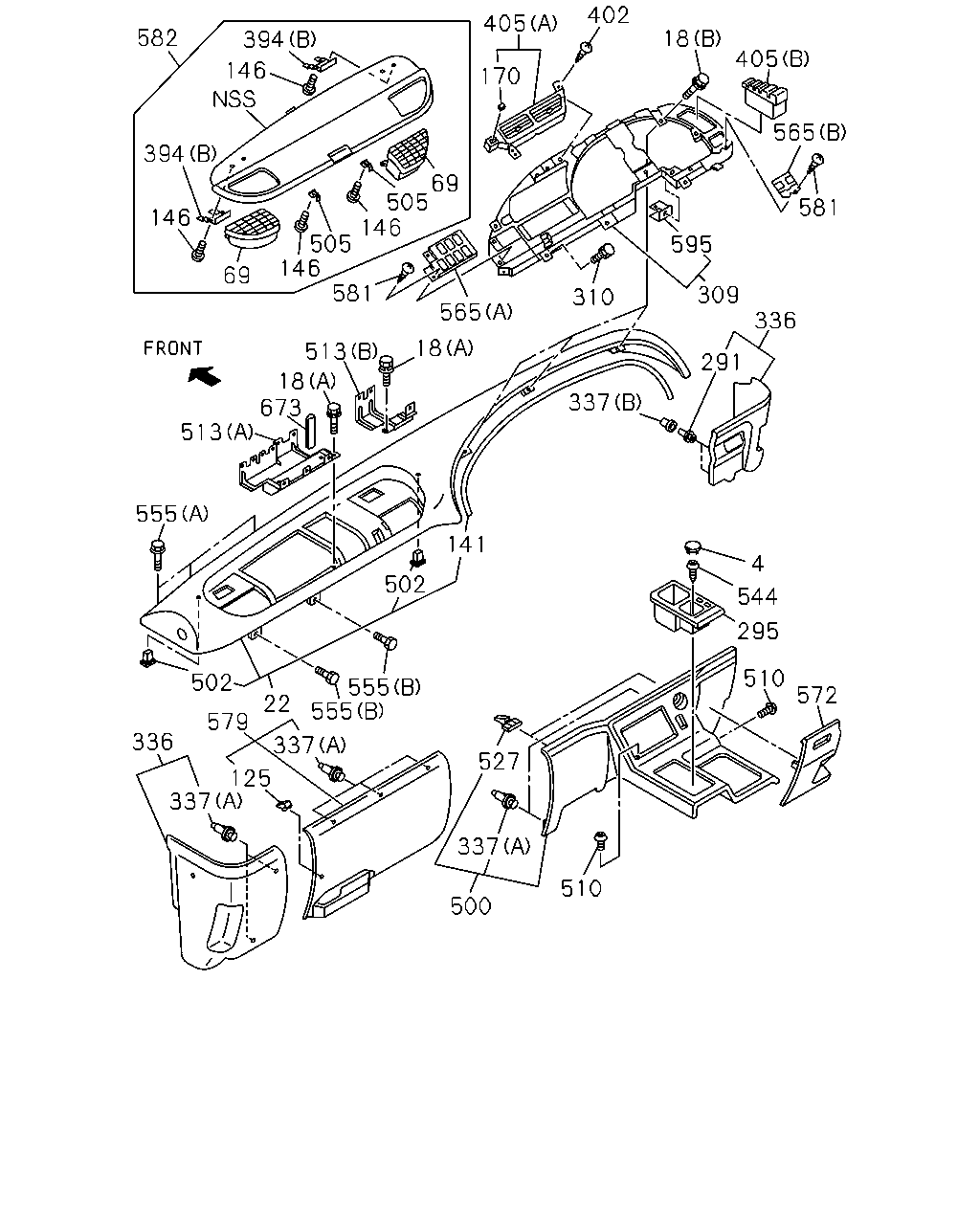

çizim 21622
510 500 337 527 555 555 337 125 579 22 502 336 337 555 513 673 18 513 18 565 581 146 505 146 505 69 69 146 394 146 394 582 405 170 402 18 405 565 581 595 309 336 291 310 337 4 544 295 510 572 141 502
BalonParca AdiParca NoAdetTipApplied Date
4 COVER; INST PNL 1-72537-106-0 01 1 0107-
18 BOLT; BRKT
ISUZU M/T<X9A> DELUXE CAB(W14) (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0107-
18 BOLT; BRKT
ZF M/T<X9E> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0107-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 09 1 0107-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0107-
22 PAD; INST 1-72317-347-2 01 1 0107-
69 GRILLE; SIDE,AIR OUTLET 1-76367-069-0 01 1 0107-
69 GRILLE; SIDE,AIR OUTLET 1-76367-070-0 01 1 0107-
125 CLIP; INST PANEL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		8-97217-066-0 10 1 0310-0405
125 CLIP; INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ), HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		8-97217-066-0 10 1 0107-0309
125 CLIP; INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-97217-066-0 18 1 0310-0405
125 CLIP; INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ), HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		8-97217-066-0 10 1 0406-
125 CLIP; INST PANEL 8-97217-066-0 01 1 0107-
141 PROTECTOR; EDGE 1-72318-430-0 01 1 0107-
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 0107-
170 COVER; HOLE 1-76367-068-0 01 1 0107-
291 FASTENER; INST CLUSTER 1-72438-137-0 06 1 0107-
295 TRAY; CTR CLUSTER 1-72437-543-1 01 1 0107-
309 PANEL; SW,INST 1-72418-009-6 01 1 0107-
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0107-
336 COVER; INST PANEL SIDE 1-72437-622-0 01 1 0107-
336 COVER; INST PANEL SIDE 1-72437-624-0 01 1 0107-
337 FASTENER; COVER
(A) 		1-72438-124-2 12 1 0107-
337 FASTENER; COVER
(A) 		1-72438-124-2 02 1 0107-
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 0107-
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 0107-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0107-
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 0107-0604
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0605-
405 GRILLE ASM; METER VENT
(B) 		1-76367-059-3 01 1 0107-
405 GRILLE ASM; METER VENT
(A) 		1-76367-062-2 01 1 0107-
500 CLUSTER; INST CENTER
CENTER SEAT DELETE(SP9) 		1-72437-619-0 01 1 0107-
500 CLUSTER; INST CENTER
EXC. CENTER SEAT DELETE(SP9) 		1-72437-648-0 01 1 0107-
502 GROMMET; SCREW,CENTER,CLUSTER
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 0107-
505 LOCK; LID 1-72558-024-2 02 1 0107-
510 SCREW; CENTER CLUSTER
M6X16 		8-94479-534-0 02 1 0107-
513 BRACKET; RELAY
ISUZU M/T<X9A> DELUXE CAB(W14) (B) 		1-73907-327-3 01 1 0107-
513 BRACKET; RELAY
ZF M/T<X9E> (B) 		1-73907-327-3 01 1 0107-
513 BRACKET; RELAY
(A) 		1-73908-009-9 01 1 0107-0205
513 BRACKET; RELAY
(A) 		1-73908-425-0 01 1 0206-
527 CLIP; INST CLUSTER 8-97217-066-0 04 1 0107-
544 SCREW; TRAY
M6X16 		8-94479-534-0 01 1 0107-
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 08 1 0107-0512
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28251-025-0 08 1 0601-0604
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 08 1 0605-
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0107-
565 BEZEL; SW PANEL
(A) 		1-72418-010-2 01 1 0107-
565 BEZEL; SW PANEL
(B) 		1-72418-011-3 01 1 0107-
572 COVER; INSPECTION 1-72437-634-0 01 1 0107-
579 COVER; INST PNL 1-72437-626-0 01 1 0107-
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 0107-0604
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0605-
582 LID; FUSE & RELAY 1-72547-124-0 01 1 0107-
595 NUT; HOOK 1-72418-013-0 11 1 0107-
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 0107-
