Sayfa 7-20 - Isuzu EPC

7-20 — MIRROR AND MIRROR STAY (#10066) — 271 parça

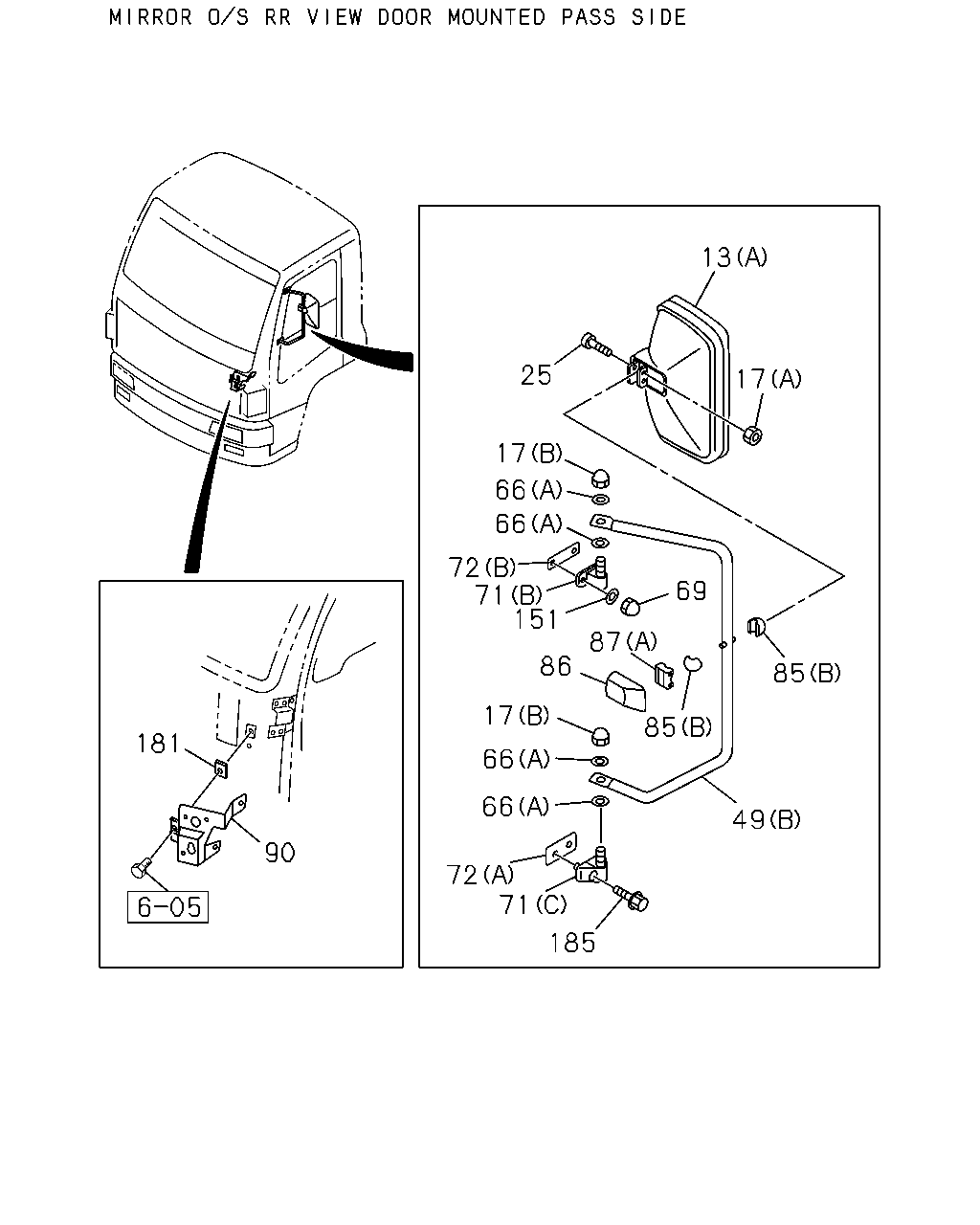

185 71 72 66 66 17 85 49 85 87 86 69 151 71 72 66 66 17 25 17 13 181 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-918-3	01	1	0107-
13	MIRROR ASM; OUTSIDE RR VIEW (A)	1-71737-918-3	01	1	0107-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-918-3	01	1	0107-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-917-3	01	1	0107-
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) M10 CAP NUT	1-09984-134-0	04	1	0107-
17	NUT; CAP,MIRROR STAY (A) M5	1-09984-124-0	02	1	0107-
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) M5	1-09984-124-0	02	1	0107-
17	NUT; CAP,MIRROR STAY MIRROR O/S UNDER VIEW<RR9> (A) M5	1-09984-124-0	04	1	0107-
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) M5	1-09984-124-0	06	1	0107-
17	NUT; CAP,MIRROR STAY EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) M10 CAP NUT	1-09984-134-0	02	1	0107-
25	SCREW; OUTSIDE MIRROR M5X50	1-09981-444-0	02	1	0107-0404
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M5X50	1-09981-444-0	02	1	0107-0404
25	SCREW; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> M5X50	1-09981-444-0	02	1	0107-0404
25	SCREW; OUTSIDE MIRROR	1-09981-541-0	02	1	0405-
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	1-09981-541-0	02	1	0405-
25	SCREW; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-09981-541-0	02	1	0405-
49	STAY; MIRROR SIDE MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-491-3	01	1	0107-
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> (D)	1-71797-856-2	01	1	0107-
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	1-71797-896-2	01	1	0107-
49	STAY; MIRROR SIDE (A)	1-71798-490-3	01	1	0107-
66	WASHER; PL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0107-
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0107-
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0107-
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	03	1	0107-
69	NUT; CAP MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8	1-09984-187-0	04	1	0107-
69	NUT; CAP EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8	1-09984-187-0	02	1	0107-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-484-1	02	1	0107-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C)	1-71798-486-2	02	1	0107-
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-484-1	01	1	0107-
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C)	1-71798-486-2	01	1	0107-
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71798-581-3	01	1	0107-
72	SHEET MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-487-3	02	1	0107-
72	SHEET MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71798-488-1	02	1	0107-
72	SHEET HIGH ROOF<S2F> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C)	1-71797-799-1	01	1	0107-
72	SHEET EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-487-3	01	1	0107-
72	SHEET EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71798-488-1	01	1	0107-
85	PIVOT; MAIN MIRROR (B) ID=19.1	1-71737-633-2	02	1	0107-
85	PIVOT; MAIN MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) ID=19.1	1-71737-633-2	02	1	0107-
85	PIVOT; MAIN MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) ID=22.2	1-71736-489-2	02	1	0107-
86	COVER; STAY,OUTSIDE MIRROR BLACK	1-71737-760-1	01	1	0107-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> BLACK	1-71737-760-1	01	1	0107-
86	COVER; STAY,OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK	1-71737-760-1	01	1	0107-
87	SPACER (A)	1-71737-704-0	01	1	0107-
87	SPACER MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-704-0	01	1	0107-
87	SPACER MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-704-0	01	1	0107-
87	SPACER MIRROR O/S UNDER VIEW<RR9> (B)	1-71737-646-2	01	1	0107-
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-646-2	02	1	0107-
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0107-
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0107-
151	WASHER; PL,MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	0107-
151	WASHER; PL,MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0107-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0107-
185	BOLT; BRKT MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8X35 FLANGE	0-28690-835-0	04	1	0107-0512
185	BOLT; BRKT MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8X35 FLANGE	0-28660-835-0	04	1	0601-0605
185	BOLT; BRKT MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8X35 FLANGE	8-98046-876-0	04	1	0606-
185	BOLT; BRKT EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8X35 FLANGE	0-28690-835-0	02	1	0107-0512
185	BOLT; BRKT EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8X35 FLANGE	0-28660-835-0	02	1	0601-0605
185	BOLT; BRKT EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8X35 FLANGE	8-98046-876-0	02	1	0606-

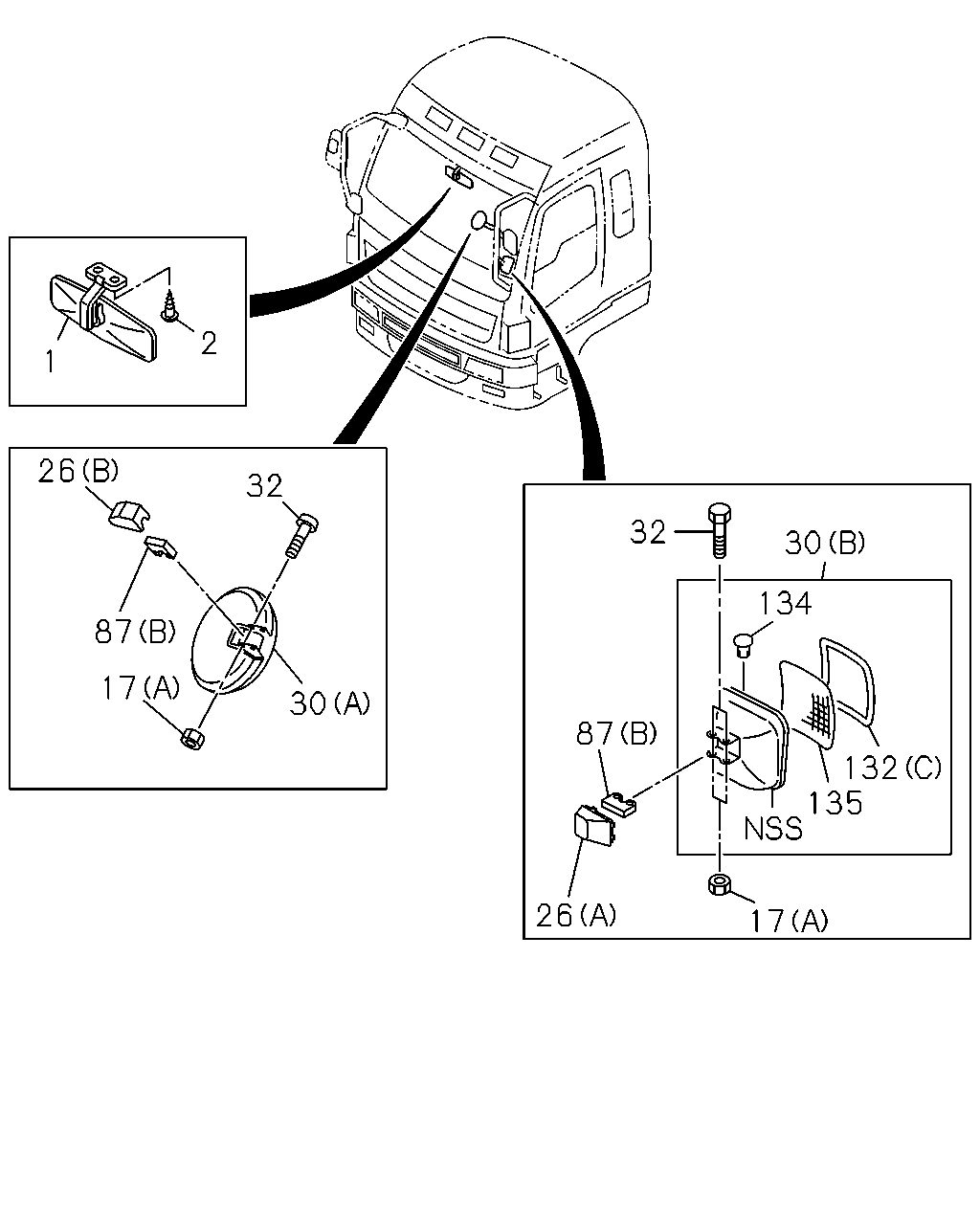

17 135 132 134 30 32 87 26 30 17 87 32 26 2 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	MIRROR; ROOM	1-73117-033-1	01	1	0107-
2	SCREW; MIRROR TO BODY M6X20	1-09981-310-0	02	1	0107-
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) M10 CAP NUT	1-09984-134-0	04	1	0107-
17	NUT; CAP,MIRROR STAY (A) M5	1-09984-124-0	02	1	0107-
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) M5	1-09984-124-0	02	1	0107-
17	NUT; CAP,MIRROR STAY MIRROR O/S UNDER VIEW<RR9> (A) M5	1-09984-124-0	04	1	0107-
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) M5	1-09984-124-0	06	1	0107-
17	NUT; CAP,MIRROR STAY EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) M10 CAP NUT	1-09984-134-0	02	1	0107-
26	COVER; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) BLACK	1-71737-649-1	01	1	0107-
26	COVER; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) BLACK	1-71737-652-1	01	1	0107-
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71798-591-1	01	1	0107-
30	MIRROR; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-592-1	01	1	0107-
32	SCREW; UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> M5X40 W/PL WASHER	1-71737-797-0	02	1	0107-
32	SCREW; UNDER MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> M5X40 W/PL WASHER	1-71737-797-0	04	1	0107-
87	SPACER (A)	1-71737-704-0	01	1	0107-
87	SPACER MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-704-0	01	1	0107-
87	SPACER MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-704-0	01	1	0107-
87	SPACER MIRROR O/S UNDER VIEW<RR9> (B)	1-71737-646-2	01	1	0107-
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-646-2	02	1	0107-
132	RING; MIRROR MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-934-0	01	1	0107-
132	RING; MIRROR (A)	1-71737-934-0	01	1	0107-
132	RING; MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-934-0	01	1	0107-
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-933-0	01	1	0107-
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	1-71737-935-0	01	1	0107-
134	CLIP; MIRROR LENS MIRROR O/S UNDER VIEW<RR9>	1-71737-936-0	01	1	0107-
134	CLIP; MIRROR LENS	1-71737-936-0	01	1	0107-
134	CLIP; MIRROR LENS MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	1-71737-936-0	01	1	0107-
134	CLIP; MIRROR LENS MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-936-0	02	1	0107-
135	LENS; MIRROR,SIDE UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-929-0	01	1	0107-

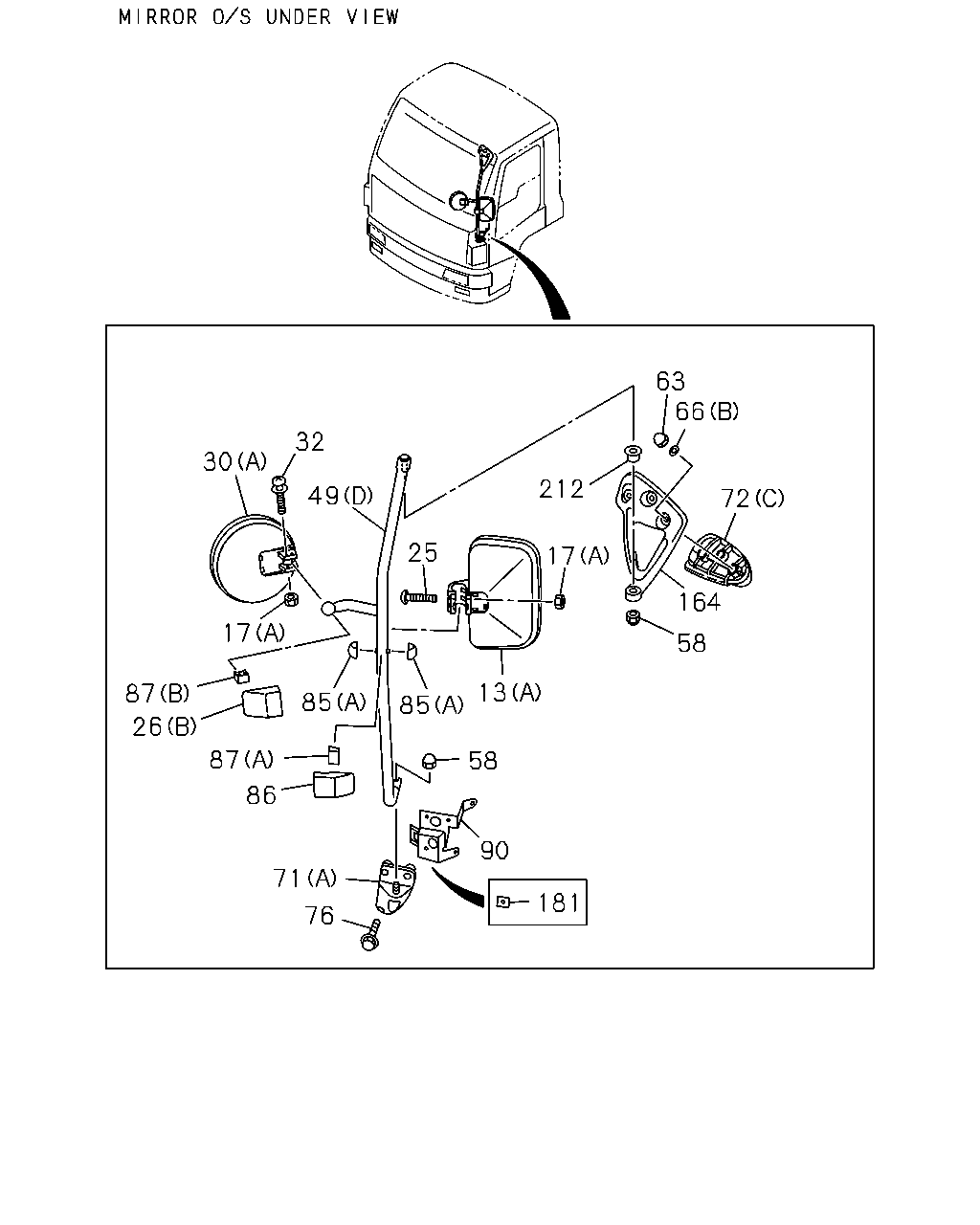

90 181 76 71 86 87 26 87 17 30 32 49 25 85 58 13 85 212 17 164 58 72 66 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-918-3	01	1	0107-
13	MIRROR ASM; OUTSIDE RR VIEW (A)	1-71737-918-3	01	1	0107-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-918-3	01	1	0107-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-917-3	01	1	0107-
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) M10 CAP NUT	1-09984-134-0	04	1	0107-
17	NUT; CAP,MIRROR STAY (A) M5	1-09984-124-0	02	1	0107-
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) M5	1-09984-124-0	02	1	0107-
17	NUT; CAP,MIRROR STAY MIRROR O/S UNDER VIEW<RR9> (A) M5	1-09984-124-0	04	1	0107-
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) M5	1-09984-124-0	06	1	0107-
17	NUT; CAP,MIRROR STAY EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) M10 CAP NUT	1-09984-134-0	02	1	0107-
25	SCREW; OUTSIDE MIRROR M5X50	1-09981-444-0	02	1	0107-0404
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M5X50	1-09981-444-0	02	1	0107-0404
25	SCREW; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> M5X50	1-09981-444-0	02	1	0107-0404
25	SCREW; OUTSIDE MIRROR	1-09981-541-0	02	1	0405-
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	1-09981-541-0	02	1	0405-
25	SCREW; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-09981-541-0	02	1	0405-
26	COVER; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) BLACK	1-71737-649-1	01	1	0107-
26	COVER; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) BLACK	1-71737-652-1	01	1	0107-
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71798-591-1	01	1	0107-
30	MIRROR; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-592-1	01	1	0107-
32	SCREW; UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> M5X40 W/PL WASHER	1-71737-797-0	02	1	0107-
32	SCREW; UNDER MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> M5X40 W/PL WASHER	1-71737-797-0	04	1	0107-
49	STAY; MIRROR SIDE MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-491-3	01	1	0107-
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> (D)	1-71797-856-2	01	1	0107-
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	1-71797-896-2	01	1	0107-
49	STAY; MIRROR SIDE (A)	1-71798-490-3	01	1	0107-
58	NUT; MIRROR STAY EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M10	1-09985-342-0	02	1	0107-
63	NUT; STAY EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8	1-09984-187-0	03	1	0107-
66	WASHER; PL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0107-
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0107-
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0107-
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	03	1	0107-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-484-1	02	1	0107-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C)	1-71798-486-2	02	1	0107-
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-484-1	01	1	0107-
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C)	1-71798-486-2	01	1	0107-
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71798-581-3	01	1	0107-
72	SHEET MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-487-3	02	1	0107-
72	SHEET MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71798-488-1	02	1	0107-
72	SHEET HIGH ROOF<S2F> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C)	1-71797-799-1	01	1	0107-
72	SHEET EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-487-3	01	1	0107-
72	SHEET EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71798-488-1	01	1	0107-
76	BOLT; STAY BRKT EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8X30 W/LK WASHER	8-94279-183-1	03	1	0107-
85	PIVOT; MAIN MIRROR (B) ID=19.1	1-71737-633-2	02	1	0107-
85	PIVOT; MAIN MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) ID=19.1	1-71737-633-2	02	1	0107-
85	PIVOT; MAIN MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) ID=22.2	1-71736-489-2	02	1	0107-
86	COVER; STAY,OUTSIDE MIRROR BLACK	1-71737-760-1	01	1	0107-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> BLACK	1-71737-760-1	01	1	0107-
86	COVER; STAY,OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK	1-71737-760-1	01	1	0107-
87	SPACER (A)	1-71737-704-0	01	1	0107-
87	SPACER MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-704-0	01	1	0107-
87	SPACER MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-704-0	01	1	0107-
87	SPACER MIRROR O/S UNDER VIEW<RR9> (B)	1-71737-646-2	01	1	0107-
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-646-2	02	1	0107-
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0107-
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0107-
164	STAY; ROOF EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	1-71798-299-4	01	1	0107-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0107-
212	BUSHING; MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	1-09983-175-1	01	1	0107-

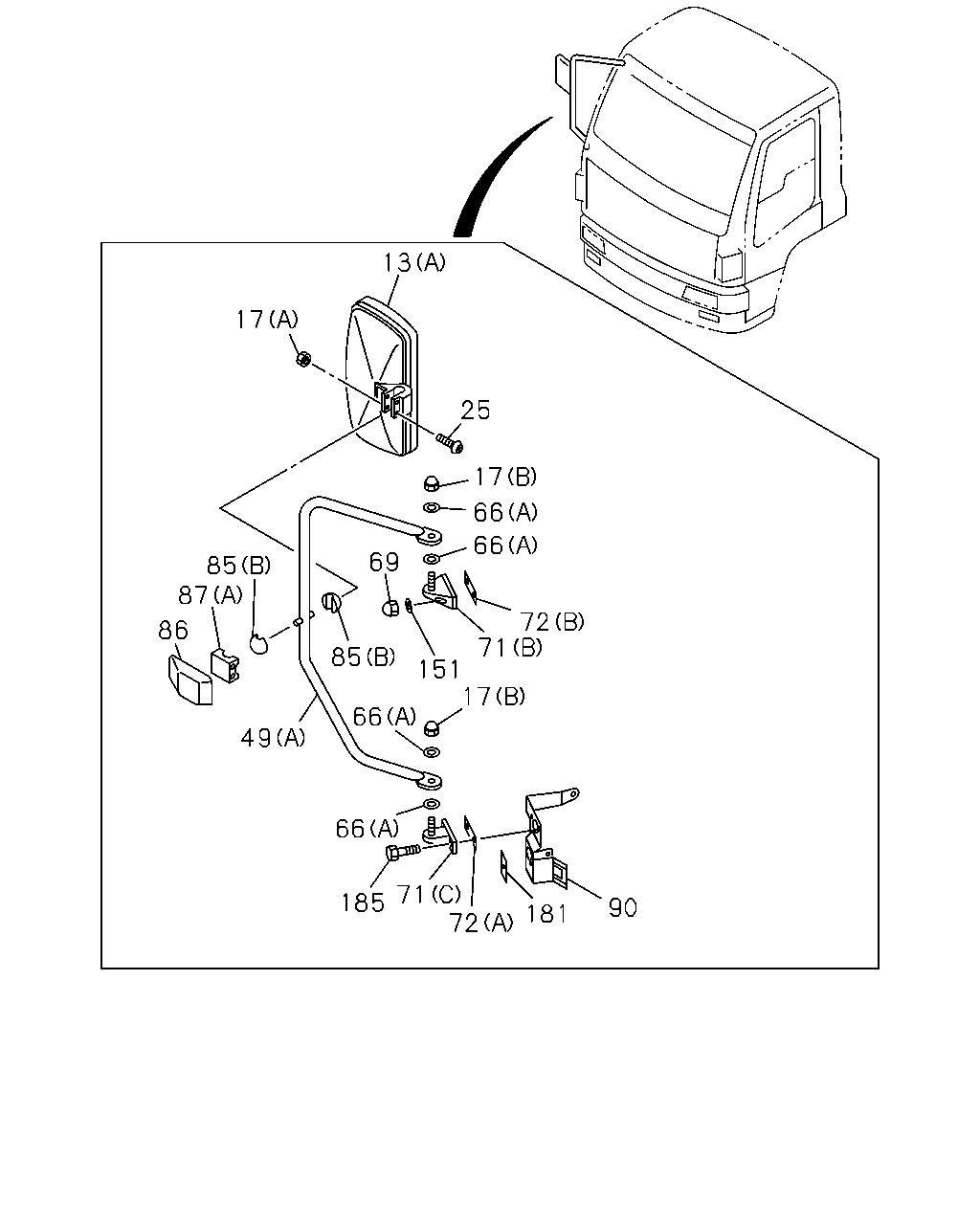

72 181 90 185 71 66 66 49 85 151 17 71 72 66 66 17 25 69 85 87 86 17 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-918-3	01	1	0107-
13	MIRROR ASM; OUTSIDE RR VIEW (A)	1-71737-918-3	01	1	0107-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-918-3	01	1	0107-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-917-3	01	1	0107-
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) M10 CAP NUT	1-09984-134-0	04	1	0107-
17	NUT; CAP,MIRROR STAY (A) M5	1-09984-124-0	02	1	0107-
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) M5	1-09984-124-0	02	1	0107-
17	NUT; CAP,MIRROR STAY MIRROR O/S UNDER VIEW<RR9> (A) M5	1-09984-124-0	04	1	0107-
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) M5	1-09984-124-0	06	1	0107-
17	NUT; CAP,MIRROR STAY EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) M10 CAP NUT	1-09984-134-0	02	1	0107-
25	SCREW; OUTSIDE MIRROR M5X50	1-09981-444-0	02	1	0107-0404
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M5X50	1-09981-444-0	02	1	0107-0404
25	SCREW; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> M5X50	1-09981-444-0	02	1	0107-0404
25	SCREW; OUTSIDE MIRROR	1-09981-541-0	02	1	0405-
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	1-09981-541-0	02	1	0405-
25	SCREW; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-09981-541-0	02	1	0405-
49	STAY; MIRROR SIDE MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-491-3	01	1	0107-
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> (D)	1-71797-856-2	01	1	0107-
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	1-71797-896-2	01	1	0107-
49	STAY; MIRROR SIDE (A)	1-71798-490-3	01	1	0107-
66	WASHER; PL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0107-
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0107-
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0107-
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	03	1	0107-
69	NUT; CAP MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8	1-09984-187-0	04	1	0107-
69	NUT; CAP EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8	1-09984-187-0	02	1	0107-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-484-1	02	1	0107-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C)	1-71798-486-2	02	1	0107-
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-484-1	01	1	0107-
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C)	1-71798-486-2	01	1	0107-
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71798-581-3	01	1	0107-
72	SHEET MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-487-3	02	1	0107-
72	SHEET MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71798-488-1	02	1	0107-
72	SHEET HIGH ROOF<S2F> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C)	1-71797-799-1	01	1	0107-
72	SHEET EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-487-3	01	1	0107-
72	SHEET EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71798-488-1	01	1	0107-
85	PIVOT; MAIN MIRROR (B) ID=19.1	1-71737-633-2	02	1	0107-
85	PIVOT; MAIN MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) ID=19.1	1-71737-633-2	02	1	0107-
85	PIVOT; MAIN MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) ID=22.2	1-71736-489-2	02	1	0107-
86	COVER; STAY,OUTSIDE MIRROR BLACK	1-71737-760-1	01	1	0107-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> BLACK	1-71737-760-1	01	1	0107-
86	COVER; STAY,OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK	1-71737-760-1	01	1	0107-
87	SPACER (A)	1-71737-704-0	01	1	0107-
87	SPACER MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-704-0	01	1	0107-
87	SPACER MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-704-0	01	1	0107-
87	SPACER MIRROR O/S UNDER VIEW<RR9> (B)	1-71737-646-2	01	1	0107-
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-646-2	02	1	0107-
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0107-
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0107-
151	WASHER; PL,MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	0107-
151	WASHER; PL,MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0107-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0107-
185	BOLT; BRKT MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8X35 FLANGE	0-28690-835-0	04	1	0107-0512
185	BOLT; BRKT MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8X35 FLANGE	0-28660-835-0	04	1	0601-0605
185	BOLT; BRKT MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8X35 FLANGE	8-98046-876-0	04	1	0606-
185	BOLT; BRKT EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8X35 FLANGE	0-28690-835-0	02	1	0107-0512
185	BOLT; BRKT EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8X35 FLANGE	0-28660-835-0	02	1	0601-0605
185	BOLT; BRKT EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8X35 FLANGE	8-98046-876-0	02	1	0606-

90 76 71 66 66 58 86 87 85 30 85 30 17 58 66 164 13 212 66 63 66 49 25 181

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-918-3	01	1	0107-
13	MIRROR ASM; OUTSIDE RR VIEW (A)	1-71737-918-3	01	1	0107-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-918-3	01	1	0107-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-917-3	01	1	0107-
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) M10 CAP NUT	1-09984-134-0	04	1	0107-
17	NUT; CAP,MIRROR STAY (A) M5	1-09984-124-0	02	1	0107-
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) M5	1-09984-124-0	02	1	0107-
17	NUT; CAP,MIRROR STAY MIRROR O/S UNDER VIEW<RR9> (A) M5	1-09984-124-0	04	1	0107-
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) M5	1-09984-124-0	06	1	0107-
17	NUT; CAP,MIRROR STAY EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) M10 CAP NUT	1-09984-134-0	02	1	0107-
25	SCREW; OUTSIDE MIRROR M5X50	1-09981-444-0	02	1	0107-0404
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M5X50	1-09981-444-0	02	1	0107-0404
25	SCREW; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> M5X50	1-09981-444-0	02	1	0107-0404
25	SCREW; OUTSIDE MIRROR	1-09981-541-0	02	1	0405-
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	1-09981-541-0	02	1	0405-
25	SCREW; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-09981-541-0	02	1	0405-
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71798-591-1	01	1	0107-
30	MIRROR; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-592-1	01	1	0107-
49	STAY; MIRROR SIDE MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-491-3	01	1	0107-
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> (D)	1-71797-856-2	01	1	0107-
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	1-71797-896-2	01	1	0107-
49	STAY; MIRROR SIDE (A)	1-71798-490-3	01	1	0107-
58	NUT; MIRROR STAY EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M10	1-09985-342-0	02	1	0107-
63	NUT; STAY EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8	1-09984-187-0	03	1	0107-
66	WASHER; PL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0107-
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0107-
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0107-
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	03	1	0107-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-484-1	02	1	0107-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C)	1-71798-486-2	02	1	0107-
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-484-1	01	1	0107-
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C)	1-71798-486-2	01	1	0107-
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71798-581-3	01	1	0107-
76	BOLT; STAY BRKT EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8X30 W/LK WASHER	8-94279-183-1	03	1	0107-
85	PIVOT; MAIN MIRROR (B) ID=19.1	1-71737-633-2	02	1	0107-
85	PIVOT; MAIN MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) ID=19.1	1-71737-633-2	02	1	0107-
85	PIVOT; MAIN MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) ID=22.2	1-71736-489-2	02	1	0107-
86	COVER; STAY,OUTSIDE MIRROR BLACK	1-71737-760-1	01	1	0107-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> BLACK	1-71737-760-1	01	1	0107-
86	COVER; STAY,OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK	1-71737-760-1	01	1	0107-
87	SPACER (A)	1-71737-704-0	01	1	0107-
87	SPACER MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-704-0	01	1	0107-
87	SPACER MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-704-0	01	1	0107-
87	SPACER MIRROR O/S UNDER VIEW<RR9> (B)	1-71737-646-2	01	1	0107-
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-646-2	02	1	0107-
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0107-
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0107-
164	STAY; ROOF EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	1-71798-299-4	01	1	0107-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0107-
212	BUSHING; MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	1-09983-175-1	01	1	0107-

133 132 13 134 134 133 132 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-918-3	01	1	0107-
13	MIRROR ASM; OUTSIDE RR VIEW (A)	1-71737-918-3	01	1	0107-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-918-3	01	1	0107-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-917-3	01	1	0107-
132	RING; MIRROR MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-934-0	01	1	0107-
132	RING; MIRROR (A)	1-71737-934-0	01	1	0107-
132	RING; MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-934-0	01	1	0107-
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-933-0	01	1	0107-
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	1-71737-935-0	01	1	0107-
133	LENS; MIRROR,OUTSIDE MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-927-0	01	1	0107-
133	LENS; MIRROR,OUTSIDE (A)	1-71737-927-0	01	1	0107-
133	LENS; MIRROR,OUTSIDE MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-927-0	01	1	0107-
133	LENS; MIRROR,OUTSIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-926-0	01	1	0107-
134	CLIP; MIRROR LENS MIRROR O/S UNDER VIEW<RR9>	1-71737-936-0	01	1	0107-
134	CLIP; MIRROR LENS	1-71737-936-0	01	1	0107-
134	CLIP; MIRROR LENS MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	1-71737-936-0	01	1	0107-
134	CLIP; MIRROR LENS MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-936-0	02	1	0107-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
