7-10 — CAUTION PLATE AND LABEL (#10065) — 15 parça

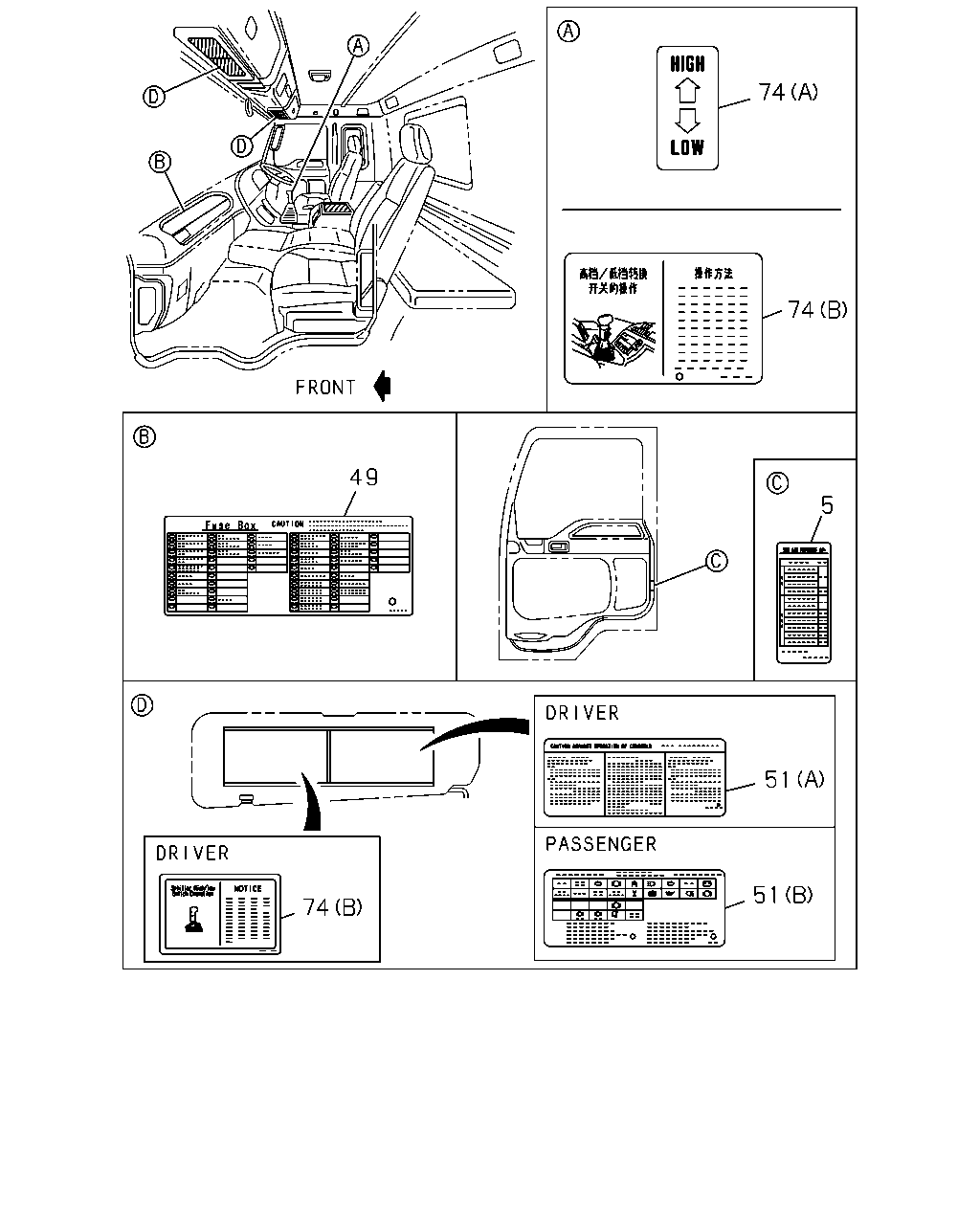

çizim 21597

51 51 49 5 74 74 74

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	5	LABEL; TIRE AIR PRESSURE	1-85880-764-0	01	1	0107-0405
	5	LABEL; TIRE AIR PRESSURE	1-85880-780-0	01	1	0406-0410
	5	LABEL; TIRE AIR PRESSURE	1-85880-778-0	01	1	0411-
	49	PLATE; CAUTION,FUSE BOX	1-85878-359-0	01	1	0107-
	51	PLATE; CAUTION,WARNING (B)	1-85878-334-1	01	1	0107-
	51	PLATE; CAUTION,WARNING (A)	1-85880-727-0	01	1	0107-
	74	PLATE; CAUTION,CHANGE LEV TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (A)	1-85881-666-2	01	1	0107-
	74	PLATE; CAUTION,CHANGE LEV MJX16P M/T(Y3Z) (B)	1-85881-849-0	01	1	0107-

çizim 21621

228 144 144

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	144	PLATE; CAUTION,CLU MJX16P M/T(Y3Z) CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. TRANS SELECT DETENT HEAVY<BFU> (B)	1-85878-345-0	01	1	0107-
	144	PLATE; CAUTION,CLU TRANSMISSION-ZF 16S221 OD(Y1U) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) (A)	1-85888-690-0	01	1	0107-
	228	PLATE; CAUTION,AIR DRYER	1-85887-934-0	01	1	0107-

çizim 79344

6 58 60

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME SIDE<P13>	1-85883-113-0	01	1	0107-
	58	PLATE; CAUTION,ENG START	1-85887-536-0	01	1	0107-
	60	PLATE; CAUTION,CAB TILT	1-85883-175-0	01	1	0107-

çizim 79455

181

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	181	PLATE; CAUTION,AIR CLEANER	1-85886-796-1	01	1	0107-
