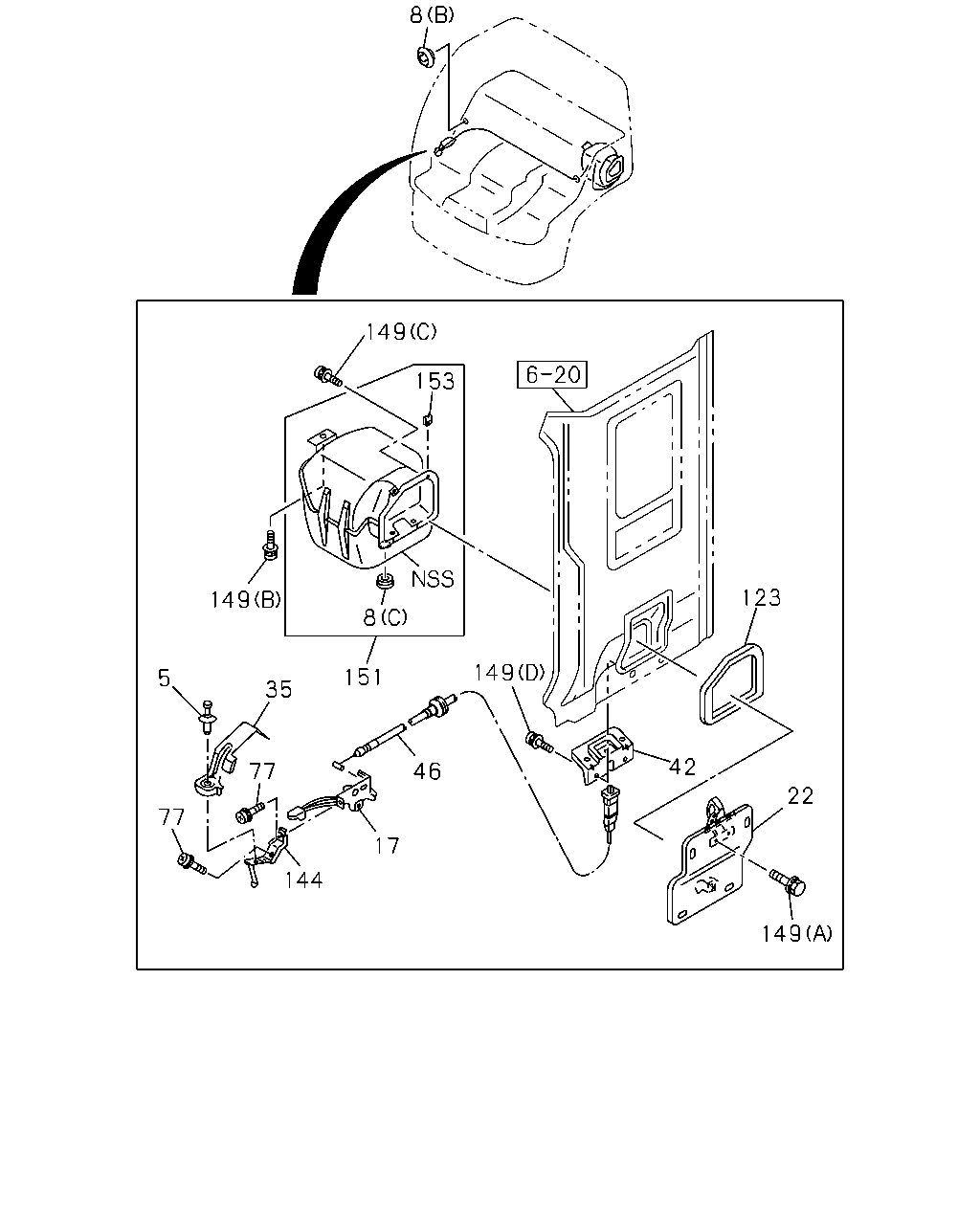

6-87 — TRUNK ROOM PACKAGE AND REAR PARCEL
(#10062) — 21 parça
◀
[687A] BAGGAGE BOX CAB RR SIDE (18 parça)
[687A] EXC.BAGGAGE BOX CAB RR SIDE (3 parça)
▶
149
22
42
123
149
151
46
17
144
77
35
5
77
149
8
149
153
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
FASTENER
BAGGAGE BOX CAB RR SIDE<TBM> ID=6X6 OD=8
1-09987-194-0
01
1
0107-
8
GROMMET; BOARD FIX
BAGGAGE BOX CAB RR SIDE<TBM> (C) OD=44
8-94279-727-0
01
1
0110-
8
GROMMET; BOARD FIX
BAGGAGE BOX CAB RR SIDE<TBM> (B) OD=28
8-94279-720-0
01
1
0107-
8
GROMMET; BOARD FIX
EXC. BAGGAGE BOX CAB RR SIDE<TBM> (A) OD=28
8-94279-720-0
02
1
0107-
17
KNOB; LUGGAGE SIDE
BAGGAGE BOX CAB RR SIDE<TBM>
1-73328-018-0
01
1
0107-
22
LID; LUGGAGE SIDE
BAGGAGE BOX CAB RR SIDE<TBM>
1-71707-063-0
01
1
0107-
35
COVER; LUGGAGE
BAGGAGE BOX CAB RR SIDE<TBM>
1-79517-005-1
01
1
0107-
42
BRACKET ASM; HOOK
BAGGAGE BOX CAB RR SIDE<TBM>
1-71797-068-1
01
1
0107-
46
LOCK; RR COMPT LID
BAGGAGE BOX CAB RR SIDE<TBM> L=2842
1-79517-008-0
01
1
0107-
77
SCREW; BRKT
BAGGAGE BOX CAB RR SIDE<TBM> M6X20 W/LK&PL WASHER
8-94279-403-0
02
1
0107-
123
SEAL; REAR
BAGGAGE BOX CAB RR SIDE<TBM>
1-71797-061-1
01
1
0107-
144
BRACKET
BAGGAGE BOX CAB RR SIDE<TBM>
1-73907-267-2
01
1
0107-
149
SCREW; BRKT
BAGGAGE BOX CAB RR SIDE<TBM> (D) M6X12 W/LK&PL WASHER
8-94279-200-0
02
1
0107-
149
SCREW; BRKT
BAGGAGE BOX CAB RR SIDE<TBM> (B) M8X24.5 W/LK&PL WASHER
8-94279-208-0
01
1
0107-
149
SCREW; BRKT
BAGGAGE BOX CAB RR SIDE<TBM> (A) M6X16 W/LK&PL WASHER
8-94279-402-0
02
1
0107-
149
SCREW; BRKT
BAGGAGE BOX CAB RR SIDE<TBM> (C) M6X20 W/LK&PL WASHER
8-94279-403-0
04
1
0107-
151
BOX ASM
BAGGAGE BOX CAB RR SIDE<TBM>
1-71797-951-2
01
1
0107-
153
J-NUT
BAGGAGE BOX CAB RR SIDE<TBM>
8-94279-056-0
02
1
0110-
8
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
GROMMET; BOARD FIX
BAGGAGE BOX CAB RR SIDE<TBM> (C) OD=44
8-94279-727-0
01
1
0110-
8
GROMMET; BOARD FIX
BAGGAGE BOX CAB RR SIDE<TBM> (B) OD=28
8-94279-720-0
01
1
0107-
8
GROMMET; BOARD FIX
EXC. BAGGAGE BOX CAB RR SIDE<TBM> (A) OD=28
8-94279-720-0
02
1
0107-
