8-52 — PIPING; AIR CONDITIONING (#1006) — 34 parça

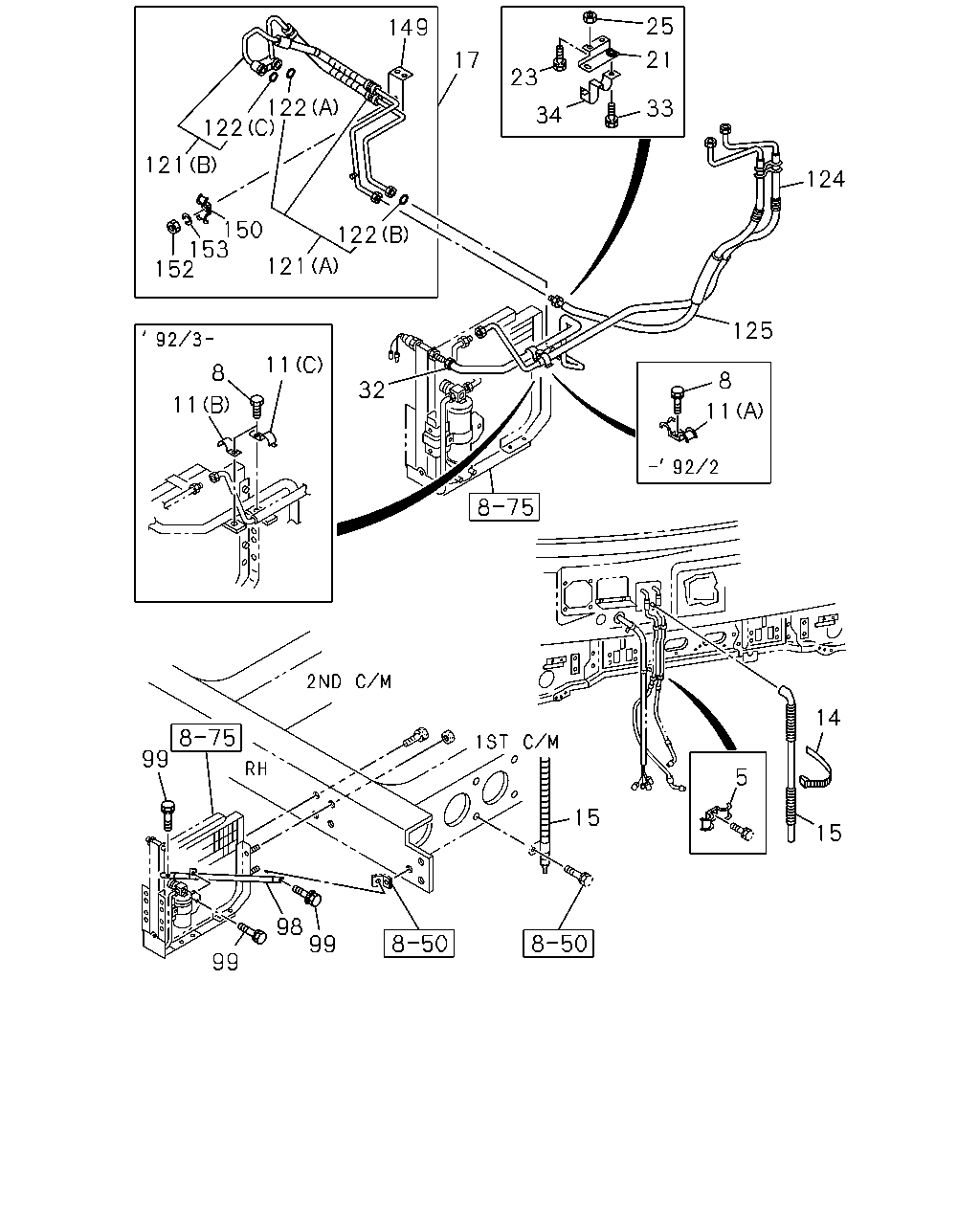

çizim 93996
149 17 122 122 121 150 153 152 121 122 34 23 33 21 25 124 125 8 11 32 11 8 11 99 98 99 99 15 5 14 15
BalonParca AdiParca NoAdetTipApplied Date A B
5 CLIP; FLEX HOSE,A/C
AIR CON MANUAL CONTROL(C60) 		1-83574-194-0 01 1 9202- ● ●
8 BOLT; CLIP
AIR CON MANUAL CONTROL(C60) M8X25 FLANGE 		0-28080-825-0 01 1 9202-9202 ● ●
8 BOLT; CLIP
AIR CON MANUAL CONTROL(C60) M8X25 FLANGE 		0-28080-825-0 02 1 9203- ● ●
11 CLIP; COOLER PIPE
AIR CON MANUAL CONTROL(C60) (A) 		1-83574-193-0 01 1 9202-9202 ● ●
11 CLIP; COOLER PIPE
AIR CON MANUAL CONTROL(C60) (B) 		1-83574-182-0 01 1 9203- ● ●
11 CLIP; COOLER PIPE
AIR CON MANUAL CONTROL(C60) (C) 		1-83574-203-0 01 1 9203- ● ●
14 CLIP; BAND,EVAP DRAIN HOSE
AIR CON MANUAL CONTROL(C60) L=250 		5-09707-030-0 01 1 9202- ● ●
15 HOSE; DRAIN
AIR CON MANUAL CONTROL(C60) 		1-83566-376-2 01 1 9202- ● ●
17 HOSE; FLEX,CMPR TO PIPE
AIR CON MANUAL CONTROL(C60) 		1-83566-770-1 01 1 9202-9301 ● ●
17 HOSE; FLEX,CMPR TO PIPE
AIR CON MANUAL CONTROL(C60) 		1-83566-980-0 01 1 9302- ● ●
21 BRACKET; COOLER HOSE
AIR CON MANUAL CONTROL(C60) 		1-83571-768-1 01 1 9202- ● ●
23 BOLT; BRKT
AIR CON MANUAL CONTROL(C60) M8X20 FLANGE 		0-28080-820-0 02 1 9202- ● ●
25 NUT; BRKT
AIR CON MANUAL CONTROL(C60) M8 		9-09110-408-0 02 1 9202- ● ●
32 PIPE; COOLER,HOSE TO CONDENSER
AIR CON MANUAL CONTROL(C60) 		1-83567-432-2 01 1 9202-9301 ● ●
32 PIPE; COOLER,HOSE TO CONDENSER
AIR CON MANUAL CONTROL(C60) 		1-83567-490-0 01 1 9302- ● ●
33 BOLT; CLIP
AIR CON MANUAL CONTROL(C60) M8X20 FLANGE 		0-28080-820-0 01 1 9202- ● ●
34 CLIP; COOLER PIPE
AIR CON MANUAL CONTROL(C60) 		1-83574-166-1 01 1 9202- ● ●
98 STAY; CONDENSER
AIR CON MANUAL CONTROL(C60) 		1-83571-427-2 01 1 9202- ● ●
99 BOLT; STAY FIX
AIR CON MANUAL CONTROL(C60) M8X20 FLANGE 		0-28080-820-0 02 1 9202- ● ●
99 BOLT; STAY FIX
AIR CON MANUAL CONTROL(C60) M10X25 W/LK&PL WASHER 		9-01961-025-0 01 1 9202-9204 ● ●
99 BOLT; STAY FIX
AIR CON MANUAL CONTROL(C60) M10X25 W/LK&PL WASHER 		0-50141-025-0 01 1 9205- ● ●
121 HOSE; COOLER
AIR CON MANUAL CONTROL(C60) (A) 		1-83566-986-0 01 1 9302- ● ●
121 HOSE; COOLER
AIR CON MANUAL CONTROL(C60) (B) 		1-83566-987-0 01 1 9302- ● ●
122 GASKET
AIR CON MANUAL CONTROL(C60) (A) 		1-09623-514-0 01 1 9202- ● ●
122 GASKET
AIR CON MANUAL CONTROL(C60) (C) 		1-09623-515-0 01 1 9202- ● ●
122 GASKET
AIR CON MANUAL CONTROL(C60) (B) 		1-09623-517-0 01 1 9202- ● ●
124 HOSE; FLEX,TANK TO UNIT
AIR CON MANUAL CONTROL(C60) 		1-83566-777-1 01 1 9202-9301 ● ●
124 HOSE; FLEX,TANK TO UNIT
AIR CON MANUAL CONTROL(C60) 		1-83566-998-1 01 1 9302- ● ●
125 HOSE; FLEX,UNIT TO CMPR
AIR CON MANUAL CONTROL(C60) 		1-83566-778-0 01 1 9202-9301 ● ●
125 HOSE; FLEX,UNIT TO CMPR
AIR CON MANUAL CONTROL(C60) 		1-83572-003-0 01 1 9302- ● ●
149 BRACKET; COOLER HOSE
AIR CON MANUAL CONTROL(C60) 		1-83571-600-1 01 1 9202- ● ●
150 CLIP; HOSE
AIR CON MANUAL CONTROL(C60) 		1-83574-165-0 01 1 9202- ● ●
152 NUT; CLIP
AIR CON MANUAL CONTROL(C60) M6 		9-09110-406-0 01 1 9202- ● ●
153 WASHER
AIR CON MANUAL CONTROL(C60) ID=6.1 		9-09150-506-0 01 1 9202- ● ●
