◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10867 - EXR RHD FUEL TANK 400L ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#10055) — 22 parça

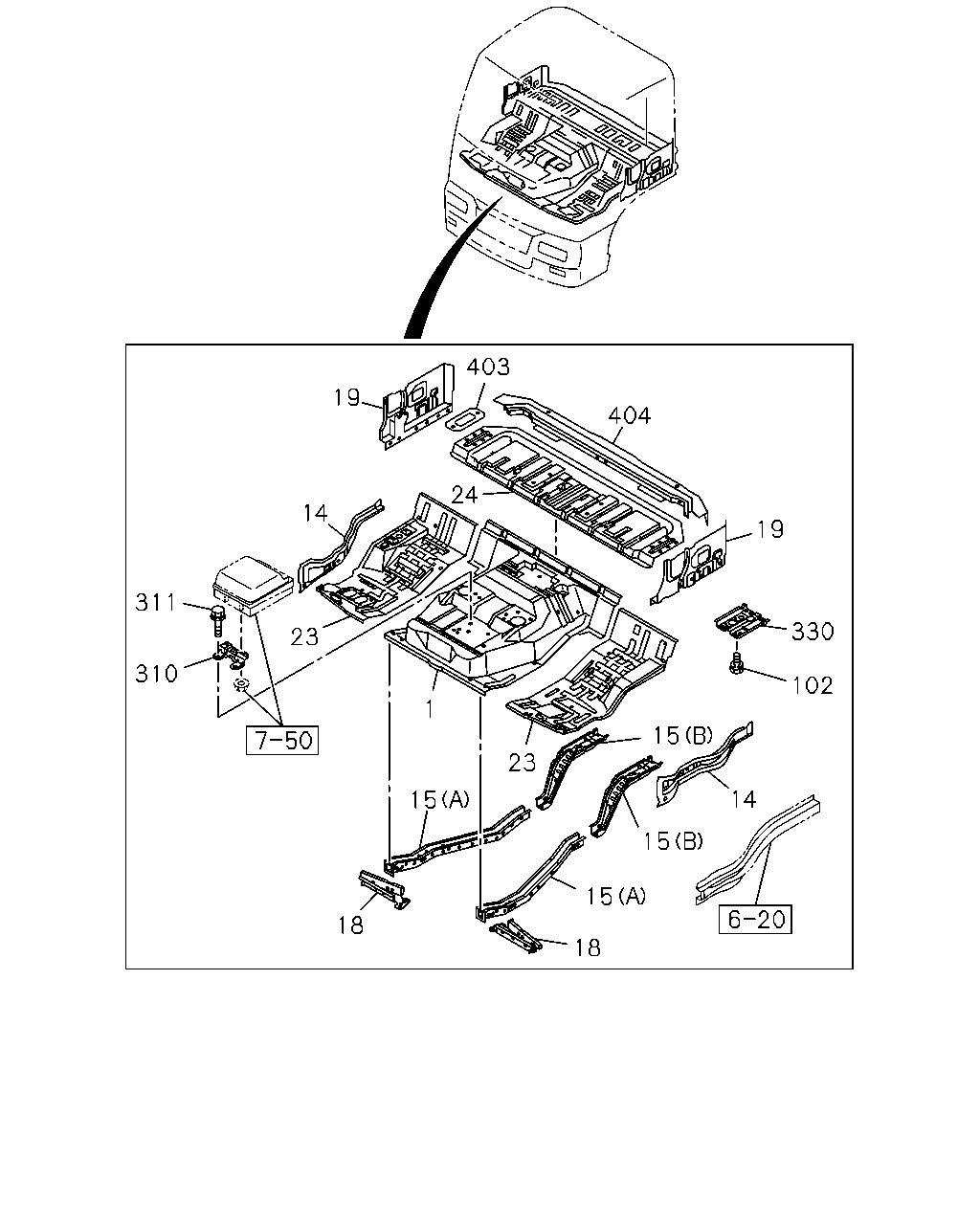

çizim 77340
18 15 15 14 15 102 330 19 23 15 1 18 23 310 311 14 19 403 24 404
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; FLOOR
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) 		1-62172-603-4 01 1 0107-
1 PANEL; FLOOR
MJD7S M/T(Y2Y) 		1-62172-610-4 01 1 0107-
14 PANEL; FLOOR SIDE,FRT 1-62482-917-6 01 1 0107-
14 PANEL; FLOOR SIDE,FRT 1-62482-918-6 01 1 0107-
15 FRAME; UNDER
(A) 		1-62472-766-1 01 1 0107-
15 FRAME; UNDER
(B) 		1-62472-598-6 01 1 0107-
15 FRAME; UNDER
(A) 		1-62472-603-9 01 1 0107-
15 FRAME; UNDER
(B) 		1-62472-680-1 01 1 0107-
18 FRAME; FLOOR,CENTER SIDE 1-62482-997-6 01 1 0107-
18 FRAME; FLOOR,CENTER SIDE 1-62483-168-3 01 1 0107-
19 PANEL; FLOOR SIDE,REAR
BAGGAGE BOX CAB RR SIDE<TBM> 		1-62472-615-4 01 1 0107-
19 PANEL; FLOOR SIDE,REAR 1-62472-659-2 01 1 0107-
19 PANEL; FLOOR SIDE,REAR
EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-62472-660-2 01 1 0107-
23 PANEL; FLOOR,SIDE 1-62172-791-0 01 1 0107-
23 PANEL; FLOOR,SIDE 1-62172-798-0 01 1 0107-
24 PANEL; BED PAN 1-62172-540-9 01 1 0107-
102 BOLT; FLOOR BOARD
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0107-
310 BRACKET; SEAT STAND
EXC. CENTER SEAT DELETE(SP9) 		1-76397-015-0 01 1 0107-
311 BOLT; BRKT
EXC. CENTER SEAT DELETE(SP9) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0107-
330 REINFORCEMENT; FLOOR 1-62172-585-5 01 1 0107-
403 PATCH; FIRE EXTINGUSHER 1-62172-569-0 01 1 0107-
404 RAIL ASM; MTG,RR 1-62472-596-8 01 1 0107-
