◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10867 - EXR RHD FUEL TANK 400L ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-47 - MUD GUARD AND INSULATOR ▶
6-47 — MUD GUARD AND INSULATOR (#10052) — 137 parça

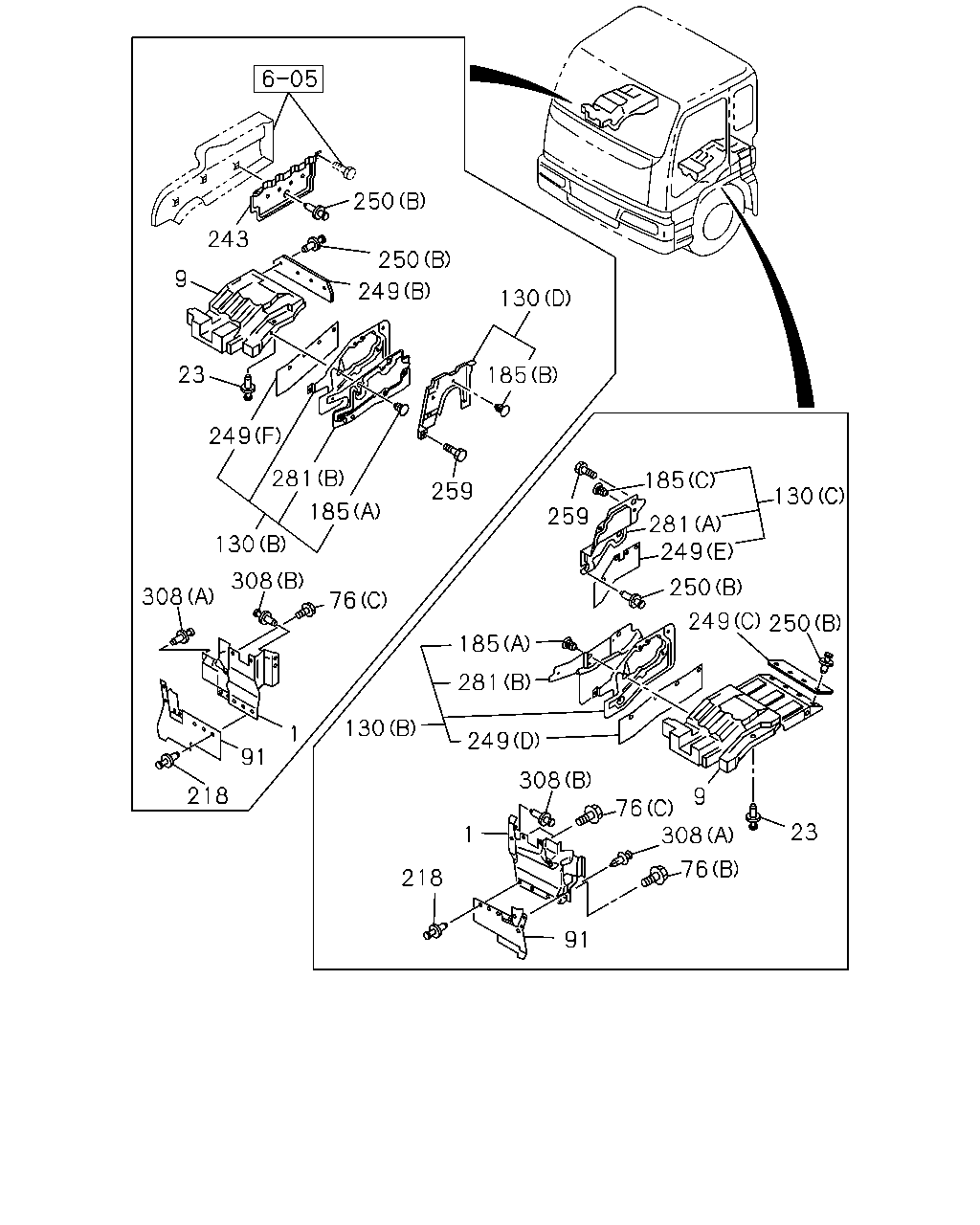

çizim 21486
76 308 23 76 9 91 218 1 308 249 281 185 249 250 250 249 281 130 185 259 130 218 91 1 76 308 130 308 185 281 249 259 185 130 249 250 250 243 9 23
BalonParca AdiParca NoAdetTipApplied Date
1 GUARD; MUD,FRT 1-79937-894-6 01 1 0107-
1 GUARD; MUD,FRT 1-79937-895-5 01 1 0107-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-907-4 01 1 0107-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-908-4 01 1 0107-
23 FASTENER; MUD COVER
D8X13.5 		1-09987-248-1 21 1 0107-
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0107-
76 BOLT; MUD GUARD
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0107-
76 BOLT; MUD GUARD
(C) M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 0107-
91 COVER; MUD,FRT 1-79931-203-1 01 1 0107-
91 COVER; MUD,FRT 1-79931-204-1 01 1 0107-
130 PANEL; SHUTTER NOISE
(A) 		1-53192-782-7 01 1 0107-
130 PANEL; SHUTTER NOISE
(A) 		1-53192-790-5 01 1 0107-
130 PANEL; SHUTTER NOISE
(D) 		1-79937-919-2 01 1 0107-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-959-2 01 1 0107-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-960-4 01 1 0107-
130 PANEL; SHUTTER NOISE
(C) 		1-79937-969-3 01 1 0107-
185 CLIP; HEAT INSULATOR
(B) ID=6.2 L=11.4 		8-97808-623-0 06 1 0401-
185 CLIP; HEAT INSULATOR
(C) ID=6.2 L=11.4 		8-97808-623-0 09 1 0107-0202
185 CLIP; HEAT INSULATOR
(C) ID=6.2 L=11.4 		8-97808-623-0 10 1 0203-
185 CLIP; HEAT INSULATOR
(A) ID=6.2 L=11.4 		8-97808-623-0 19 1 0107-
185 CLIP; HEAT INSULATOR
(B) ID=6.2 L=11.4 		8-97808-623-0 06 1 0107-0312
185 CLIP; HEAT INSULATOR
(B) ID=6.2 L=11.4 		8-97808-623-0 06 1 0107-0312
185 CLIP; HEAT INSULATOR
(B) ID=6.2 L=11.4 		8-97808-623-0 05 1 0401-
218 FASTENER; RUBBER
ID=6X6 OD=8 		1-09987-194-0 08 1 0107-0511
218 FASTENER; RUBBER
D8X13.5 		1-09987-248-1 08 1 0512-
243 PROTECTOR; NOISE SHUT PANEL 1-79937-906-2 01 1 0107-
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 0107-
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 0107-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0107-
249 RUBBER; SHUTTER
(F) 		1-79937-965-1 01 1 0107-
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 0107-
249 RUBBER; SHUTTER
(E) 		1-79937-967-1 01 1 0107-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0107-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 07 1 0107-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 01 1 0107-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 04 1 0107-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 05 1 0107-
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 12 1 0107-
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (C) 		1-73237-445-4 01 1 0107-
281 INSULATOR; NOISE
(B) 		1-71907-170-1 01 1 0107-
281 INSULATOR; NOISE
(B) 		1-71907-171-2 01 1 0107-
281 INSULATOR; NOISE
(A) 		1-71907-455-0 01 1 0107-
281 INSULATOR; NOISE
EXC. CENTER SEAT DELETE(SP9) (D) 		1-73237-541-3 01 1 0107-0408
281 INSULATOR; NOISE
EXC. CENTER SEAT DELETE(SP9) (E) 		1-73237-895-2 01 1 0409-
308 FASTENER; MUD GUARD
(A) 		1-09470-007-0 08 1 0107-
308 FASTENER; MUD GUARD
(B) ID=6X6 OD=8 		1-09987-194-0 02 1 0107-

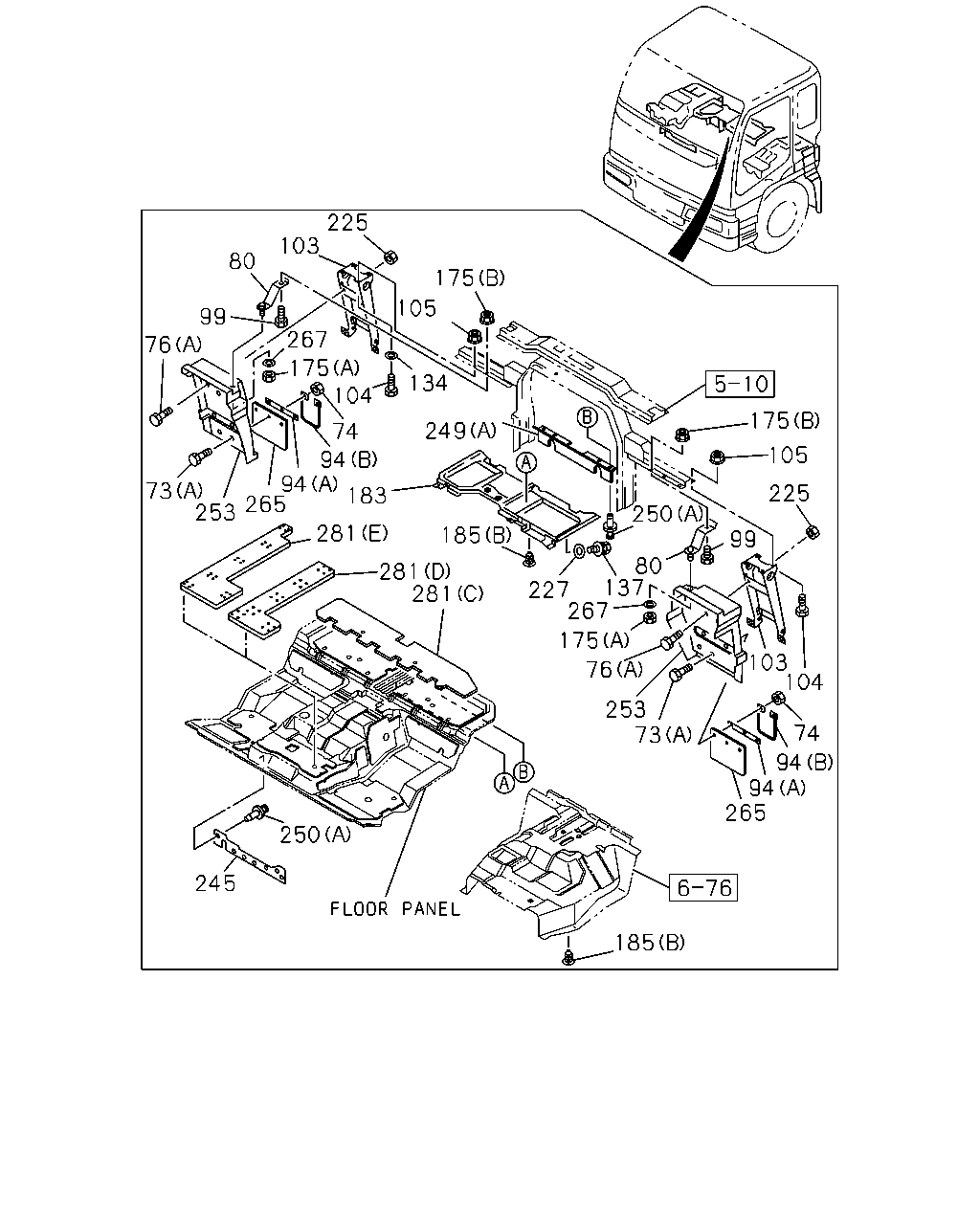

çizim 78789
185 265 94 94 250 245 73 104 74 103 253 76 175 267 227 137 80 99 225 105 175 250 185 281 281 281 183 253 265 94 94 74 104 134 249 105 175 225 103 80 99 76 73 175 267
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28280-816-0 08 1 0107-0512
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 08 1 0601-
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 06 1 0107-
74 NUT
M8 FLANGE 		0-91150-108-0 02 1 0107-0602
74 NUT
M8 FLANGE 		0-91180-108-0 02 1 0603-
74 NUT
M8 FLANGE 		0-91150-108-0 06 1 0107-0602
74 NUT
M8 FLANGE 		0-91180-108-0 06 1 0603-
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0107-
76 BOLT; MUD GUARD
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0107-
76 BOLT; MUD GUARD
(C) M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 0107-
80 BRACKET; MUD GUARD STAY 1-79931-159-1 02 1 0107-
94 RETAINER; FLAP RUBBER
(A) 		1-79931-091-2 02 1 0107-
94 RETAINER; FLAP RUBBER
EXC. SILENCER SINGLE VERTICAL<N28> (B) 		1-79931-194-0 02 1 0107-
99 BOLT; STAY TO MUD GUARD
M10X20 FLANGE 		0-28681-020-0 02 1 0107-0512
99 BOLT; STAY TO MUD GUARD
M10X20 FLANGE 		0-28651-020-0 02 1 0601-
103 BRACKET ASM; RR MUD FLAP 1-79931-307-1 01 1 0107-
103 BRACKET ASM; RR MUD FLAP 1-79931-308-1 01 1 0107-
104 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 06 1 0107-0512
104 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 06 1 0601-
105 NUT; BRKT
M10 FLANGE 		0-91150-210-0 06 1 0107-0602
105 NUT; BRKT
M10 FLANGE 		0-91180-210-0 06 1 0603-
134 WASHER; PL
ID=10.5 OD=26 		9-09160-710-0 02 1 0107-
137 BOLT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0107-
175 NUT; STAY FIX
(A) M8 FLANGE 		0-91150-108-0 02 1 0107-0602
175 NUT; STAY FIX
(A) M8 FLANGE 		0-91180-108-0 02 1 0603-
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91150-210-0 02 1 0107-0602
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91180-210-0 02 1 0603-
183 INSULATOR; HEAT,BED PAN 1-71907-526-4 01 1 0107-
185 CLIP; HEAT INSULATOR
(B) ID=6.2 L=11.4 		8-97808-623-0 06 1 0401-
185 CLIP; HEAT INSULATOR
(C) ID=6.2 L=11.4 		8-97808-623-0 09 1 0107-0202
185 CLIP; HEAT INSULATOR
(C) ID=6.2 L=11.4 		8-97808-623-0 10 1 0203-
185 CLIP; HEAT INSULATOR
(A) ID=6.2 L=11.4 		8-97808-623-0 19 1 0107-
185 CLIP; HEAT INSULATOR
(B) ID=6.2 L=11.4 		8-97808-623-0 06 1 0107-0312
185 CLIP; HEAT INSULATOR
(B) ID=6.2 L=11.4 		8-97808-623-0 06 1 0107-0312
185 CLIP; HEAT INSULATOR
(B) ID=6.2 L=11.4 		8-97808-623-0 05 1 0401-
225 NUT; MUD GUARD
M8 FLANGE 		0-91150-108-0 08 1 0107-0602
225 NUT; MUD GUARD
M8 FLANGE 		0-91180-108-0 08 1 0603-
227 SEAL; MUD GUARD
T=2.0 		8-94279-641-0 01 1 0107-
245 RUBBER; SHUTTER,RAD 1-79937-982-1 01 1 0107-
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 0107-
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 0107-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0107-
249 RUBBER; SHUTTER
(F) 		1-79937-965-1 01 1 0107-
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 0107-
249 RUBBER; SHUTTER
(E) 		1-79937-967-1 01 1 0107-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0107-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 07 1 0107-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 01 1 0107-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 04 1 0107-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 05 1 0107-
253 GUARD; MUD 1-79931-065-7 01 1 0107-
253 GUARD; MUD 1-79931-067-7 01 1 0107-
265 RUBBER; FLAP,REAR 1-79930-978-0 02 1 0107-
267 WASHER; PL,STAY
ID=8.4 OD=26 		9-09164-808-0 02 1 0107-0605
267 WASHER; PL,STAY
ID=8.4 OD=26 		0-91614-808-0 02 1 0606-
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (C) 		1-73237-445-4 01 1 0107-
281 INSULATOR; NOISE
(B) 		1-71907-170-1 01 1 0107-
281 INSULATOR; NOISE
(B) 		1-71907-171-2 01 1 0107-
281 INSULATOR; NOISE
(A) 		1-71907-455-0 01 1 0107-
281 INSULATOR; NOISE
EXC. CENTER SEAT DELETE(SP9) (D) 		1-73237-541-3 01 1 0107-0408
281 INSULATOR; NOISE
EXC. CENTER SEAT DELETE(SP9) (E) 		1-73237-895-2 01 1 0409-

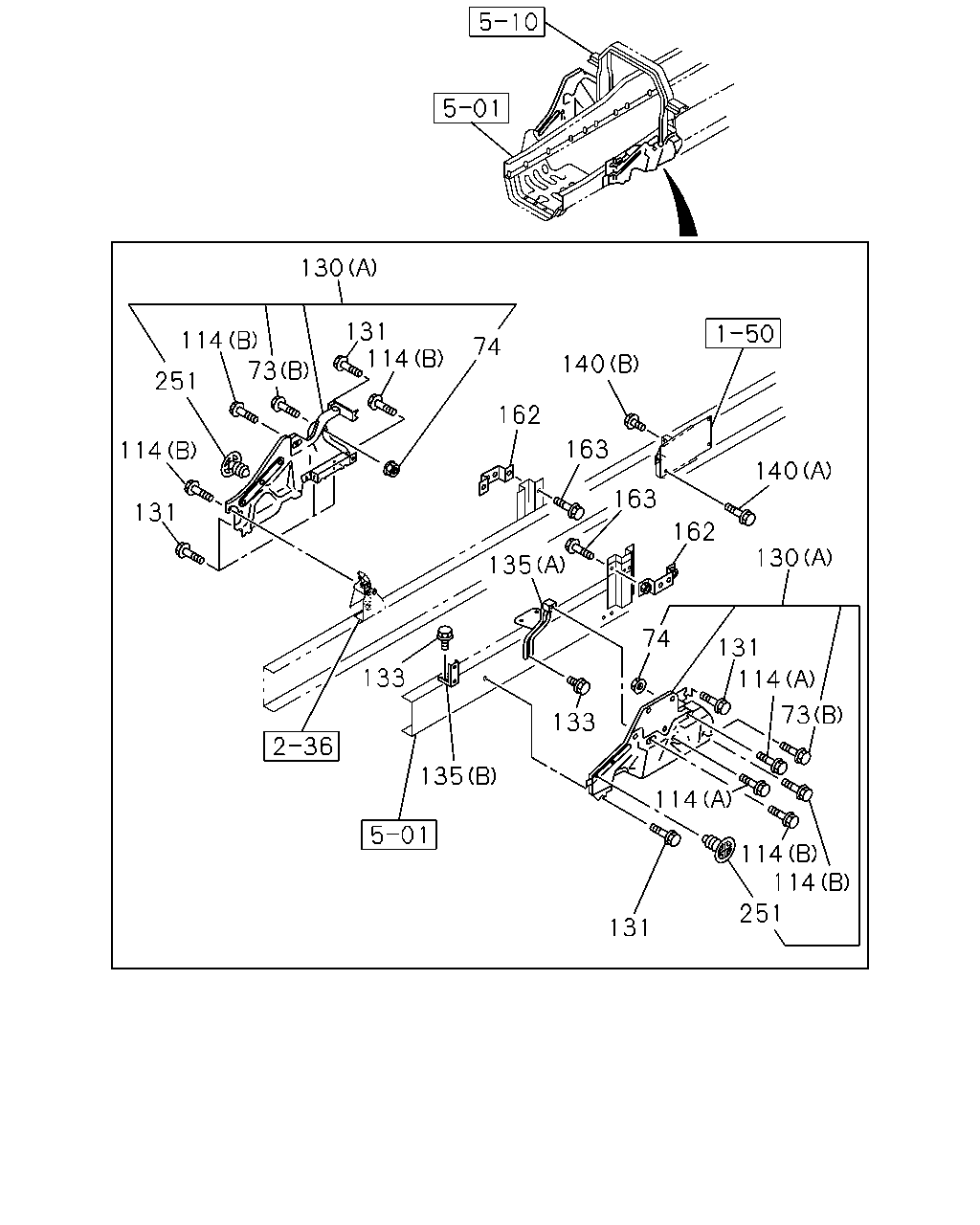

çizim 79261
251 114 114 131 114 73 114 131 74 133 135 133 135 163 162 140 130 163 140 162 74 114 131 130 73 114 251 114 131
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28280-816-0 08 1 0107-0512
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 08 1 0601-
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 06 1 0107-
74 NUT
M8 FLANGE 		0-91150-108-0 02 1 0107-0602
74 NUT
M8 FLANGE 		0-91180-108-0 02 1 0603-
74 NUT
M8 FLANGE 		0-91150-108-0 06 1 0107-0602
74 NUT
M8 FLANGE 		0-91180-108-0 06 1 0603-
114 BOLT
(A) M8X20 FLANGE 		0-28680-820-0 05 1 0107-0512
114 BOLT
(A) M8X20 FLANGE 		0-28650-820-0 05 1 0601-
114 BOLT
(B) M8X22 W/LK&PL WASHER 		1-09030-042-0 05 1 0107-
130 PANEL; SHUTTER NOISE
(A) 		1-53192-782-7 01 1 0107-
130 PANEL; SHUTTER NOISE
(A) 		1-53192-790-5 01 1 0107-
130 PANEL; SHUTTER NOISE
(D) 		1-79937-919-2 01 1 0107-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-959-2 01 1 0107-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-960-4 01 1 0107-
130 PANEL; SHUTTER NOISE
(C) 		1-79937-969-3 01 1 0107-
131 BOLT; PANEL
M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0107-
133 BOLT; FRAME
M8X25 FLANGE 		0-28680-825-0 04 1 0107-0512
133 BOLT; FRAME
M8X25 FLANGE 		0-28650-825-0 04 1 0601-
135 BRACKET; SIDE PANEL
(B) 		1-53441-507-0 01 1 0107-
135 BRACKET; SIDE PANEL
(A) 		1-53441-508-0 01 1 0107-0107
135 BRACKET; SIDE PANEL
(A) 		1-53441-598-1 01 1 0107-
140 BOLT; SIDE PANEL
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0107-0512
140 BOLT; SIDE PANEL
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
140 BOLT; SIDE PANEL
(B) M8X30 FLANGE 		0-28680-830-0 02 1 0107-0512
140 BOLT; SIDE PANEL
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0601-
162 BRACKET 1-53441-520-0 02 1 0107-
163 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 04 1 0107-0512
163 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 0601-
251 CLIP; NOISE INSULATOR 8-94279-048-0 14 1 0107-
