Isuzu WW
▶
TRUCKS
▶
FTR
▶
10627 - FTR-LHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-50 - AIR CONDITIONING SYSTEM; FRONT
▶
8-50 — AIR CONDITIONING SYSTEM; FRONT
(#1005) — 39 parça
Tümü
A - FTR6MC
B - FTR6MF
◀

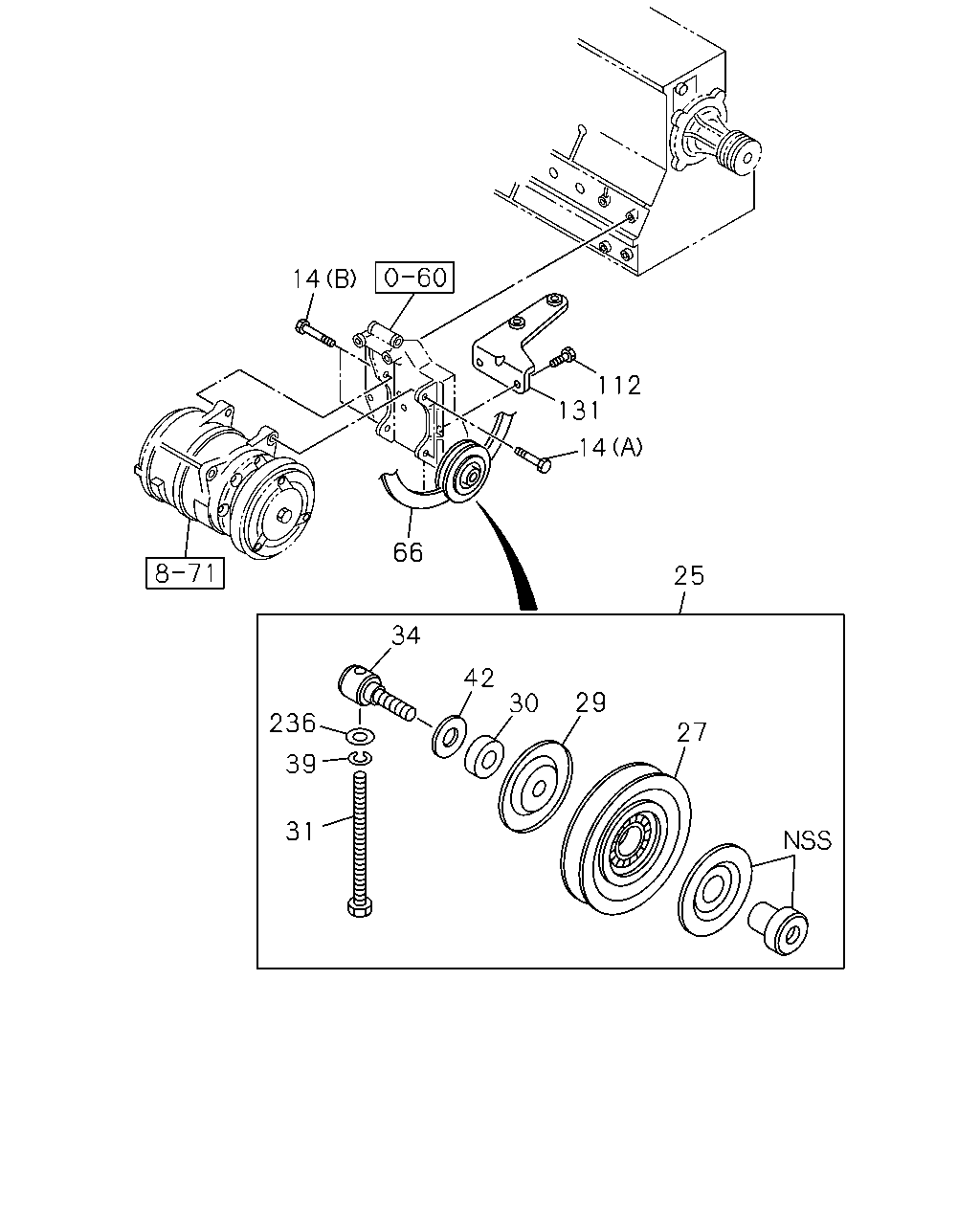

[850A] NO.2 (16 parça)
[850A] NO.1 (23 parça)
▶
14
112
14
131
66
25
34
42
30
29
27
236
39
31
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
14
BOLT; CMPR
AIR CON MANUAL CONTROL(C60) (A) M10X30 FLANGE
0-28081-030-0
02
1
9202-9411
●
●
14
BOLT; CMPR
AIR CON MANUAL CONTROL(C60) (A) M10X35 FLANGE
0-28681-035-0
02
1
9412-
●
●
14
BOLT; CMPR
AIR CON MANUAL CONTROL(C60) (B) M10X45 FLANGE
0-28081-045-0
02
1
9202-
●
●
25
PULLEY ASM; IDLER,CMPR
AIR CON MANUAL CONTROL(C60)
8-94399-957-0
01
1
9202-
●
●
27
PULLEY; IDLE,A/C
AIR CON MANUAL CONTROL(C60)
1-83579-116-0
01
1
9202-
●
●
29
COVER; DUST,IDLE PULLEY
AIR CON MANUAL CONTROL(C60)
9-13369-603-0
01
1
9202-
●
●
30
COLLAR; IDLE PULLEY
AIR CON MANUAL CONTROL(C60)
1-83579-144-0
01
1
9202-
●
●
31
BOLT; ADJ,IDLE PULLEY
AIR CON MANUAL CONTROL(C60)
1-83579-143-0
01
1
9202-
●
●
34
SHAFT; IDLE PULLEY
AIR CON MANUAL CONTROL(C60)
1-83579-236-0
01
1
9202-
●
●
39
WASHER; LK,ADJ BOLT
AIR CON MANUAL CONTROL(C60) ID=8.2
9-09150-608-0
01
1
9202-
●
●
42
WASHER; PULLEY
AIR CON MANUAL CONTROL(C60)
8-97014-636-0
01
1
9202-
●
●
66
BELT; A/C CMPR
AIR CON MANUAL CONTROL(C60) L=1082
1-13671-256-0
01
1
9202-
●
●
112
BOLT; STAY
AIR CON MANUAL CONTROL(C60) M8X16 FLANGE
0-28080-816-0
02
1
9202-
●
●
131
STAY; CMPR BRKT
AIR CON MANUAL CONTROL(C60)
8-94396-990-0
01
1
9202-9410
●
●
131
STAY; CMPR BRKT
AIR CON MANUAL CONTROL(C60)
8-94393-451-0
01
1
9411-
●
●
236
WASHER; PL,ADJ BOLT
AIR CON MANUAL CONTROL(C60)
1-09503-216-0
01
1
9202-
●
●
213
73
277
72
71
69
70
166
166
280
276
202
202
283
282
281
206
205
154
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
69
WASHER; PL,EVAP
AIR CON MANUAL CONTROL(C60) OD=20
1-09509-047-0
01
1
9202-
●
●
69
WASHER; PL,EVAP
AIR CON MANUAL CONTROL(C60) OD=14
1-09509-048-0
02
1
9202-
●
●
70
NUT; EVAP,A/C
AIR CON MANUAL CONTROL(C60) M6 FLANGE
1-09984-141-0
03
1
9202-
●
●
71
COVER; EVAP,A/C
EXC. AIR CON MANUAL CONTROL(C60)
1-71997-460-1
01
1
9202-
●
●
72
SEAL; COVER,EVAP
EXC. AIR CON MANUAL CONTROL(C60)
1-71998-221-0
01
1
9202-
●
●
73
NUT; COVER,A/C EVAP
EXC. AIR CON MANUAL CONTROL(C60) M6 FLANGE
1-09984-141-0
02
1
9202-
●
●
154
BRACKET; STAY
AIR CON MANUAL CONTROL(C60)
1-83571-421-0
01
1
9202-
●
●
166
BRACKET; FLEX HOSE
(B) L=200
1-71118-359-3
01
1
9202-
●
●
166
BRACKET; FLEX HOSE
AIR CON MANUAL CONTROL(C60) (A) L=85
1-83571-397-2
01
1
9202-
●
●
202
BOLT; CLIP,FLEX HOSE
AIR CON MANUAL CONTROL(C60) M6X20 W/LK&PL WASHER
1-09980-493-0
02
1
9202-
●
●
205
CLIP; BAND,DRAIN HOSE
AIR CON MANUAL CONTROL(C60) ID=35 L=35
1-09700-908-0
01
1
9202-
●
●
206
BOLT; CLIP BRKT
AIR CON MANUAL CONTROL(C60) M8X20 FLANGE
0-28080-820-0
01
1
9202-
●
●
213
BOLT; FLEX HOSE TO CMPR
AIR CON MANUAL CONTROL(C60) M8X25 FLANGE
0-28080-825-0
02
1
9202-
●
●
213
BOLT; FLEX HOSE TO CMPR
AIR CON MANUAL CONTROL(C60) M10X40 W/LK&PL WASHER
9-01961-040-0
01
1
9202-9204
●
●
213
BOLT; FLEX HOSE TO CMPR
AIR CON MANUAL CONTROL(C60) M10X40 W/LK&PL WASHER
0-50141-040-0
01
1
9205-
●
●
276
CLIP; FLEX HOSE
AIR CON MANUAL CONTROL(C60)
1-83574-116-0
01
1
9202-
●
●
277
WASHER; EVAP COVER
EXC. AIR CON MANUAL CONTROL(C60) OD=14
1-09509-048-0
02
1
9202-
●
●
280
BOLT; BRKT,A/C FLEX HOSE
M6X20 W/LK&PL WASHER
1-09980-493-0
02
1
9202-
●
●
280
BOLT; BRKT,A/C FLEX HOSE
AIR CON MANUAL CONTROL(C60) M6X16 W/LK&PL WASHER
1-09980-497-0
02
1
9202-
●
●
281
STAY; EVAP
AIR CON MANUAL CONTROL(C60)
1-65680-446-0
01
1
9202-
●
●
282
BOLT; STAY,EVAP
AIR CON MANUAL CONTROL(C60) M6X16 W/LK&PL WASHER
9-01960-616-0
01
1
9202-9204
●
●
282
BOLT; STAY,EVAP
AIR CON MANUAL CONTROL(C60) M6X16 W/LK&PL WASHER
0-50140-616-0
01
1
9205-
●
●
283
NUT; STAY,EVAP
AIR CON MANUAL CONTROL(C60) M6 FLANGE
5-09440-004-0
01
1
9202-
●
●
