◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10867 - EXR RHD FUEL TANK 400L ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-31 - FRONT DOOR GLASS AND REGULATOR ▶
6-31 — FRONT DOOR GLASS AND REGULATOR (#10047) — 61 parça

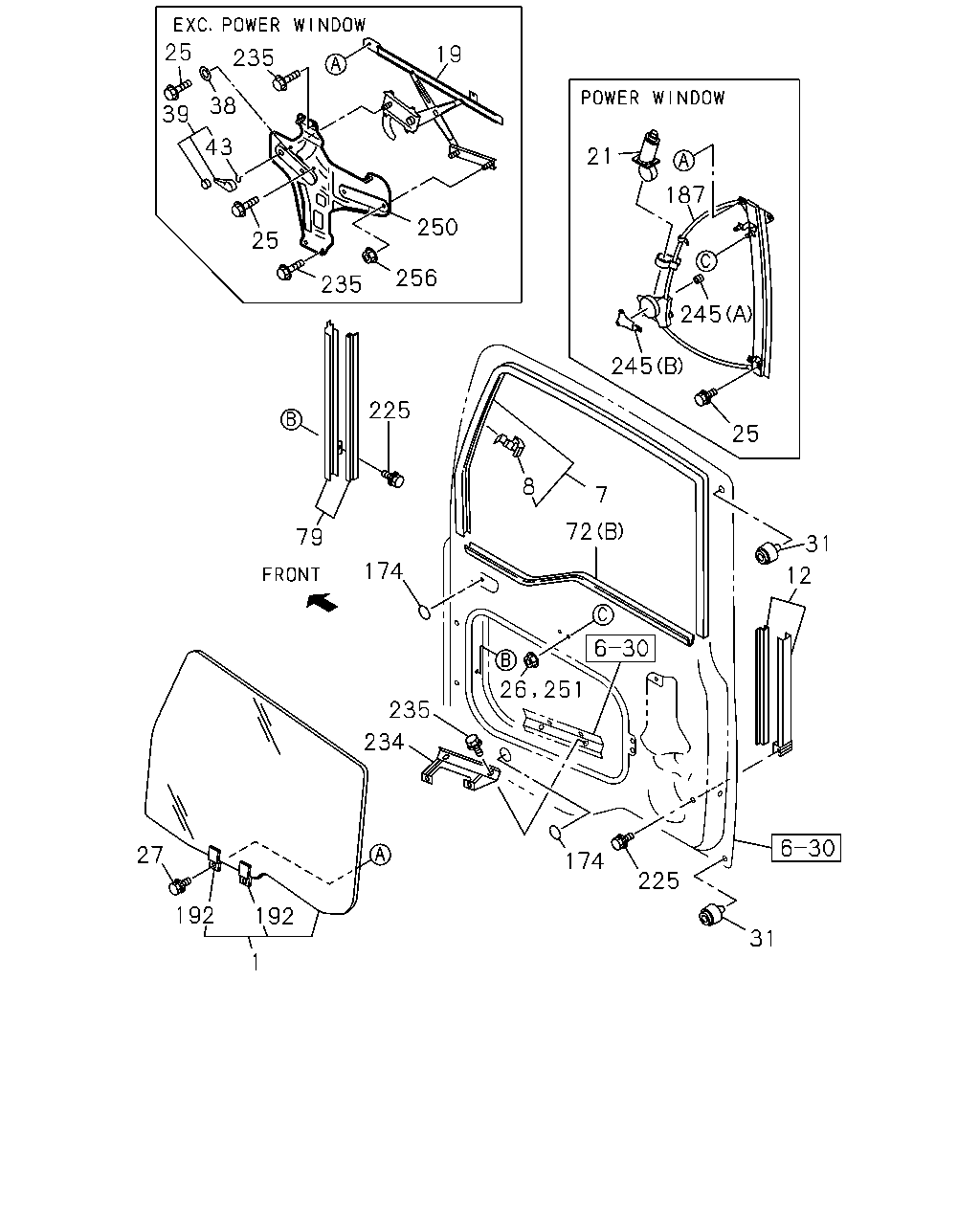

çizim 19421
31 225 174 192 1 192 27 234 235 26 251 72 7 25 31 12 8 174 79 225 256 250 235 25 43 38 39 25 235 19 21 187 245 245
BalonParca AdiParca NoAdetTipApplied Date
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76148-095-2 01 1 0107-
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76167-177-2 01 1 0107-
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76148-094-2 01 1 0107-
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76167-174-2 01 1 0107-
7 GLASS RUN; FRT DOOR 1-74318-021-8 01 1 0107-
7 GLASS RUN; FRT DOOR 1-74318-022-8 01 1 0107-
8 CLIP; GLASS GUIDE 1-74318-029-1 02 1 0107-
12 CHANNEL; GLASS RUN,FRT 1-74338-070-3 01 1 0107-
12 CHANNEL; GLASS RUN,FRT 1-74338-071-3 01 1 0107-
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A30> 		1-74418-134-4 01 1 0107-
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A30> 		1-74418-144-4 01 1 0107-
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-176-0 01 1 0107-
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-177-0 01 1 0107-
25 BOLT; WINDOW REG
EXC. POWER WINDOW<A30> M6X12 W/LK&PL WASHER 		8-94279-200-0 08 1 0107-
25 BOLT; WINDOW REG
POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 10 1 0107-0405
25 BOLT; WINDOW REG
POWER WINDOW<A30> M6X16 FLANGE 		0-28080-616-0 10 1 0406-0512
25 BOLT; WINDOW REG
POWER WINDOW<A30> M6X16 FLANGE 		0-28050-616-0 10 1 0601-
26 NUT; FLANGE,WINDOW REG
POWER WINDOW<A30> M6 FLANGE 		1-09984-141-0 06 1 0107-
27 BOLT; GLASS FIX
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 0107-
31 STOPPER; RUBBER,DOOR INNER 1-09983-169-0 04 1 0107-
38 WASHER; PL,WINDOW REG
EXC. POWER WINDOW<A30> ID=6.4 OD=14 T=1 		1-09985-187-0 04 1 0107-
39 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW<A30> BLACK 		8-94371-427-0 02 1 0107-
43 CLIP; REG HANDLE,FRT DOOR
EXC. POWER WINDOW<A30> 		8-94220-591-0 02 1 0107-
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-088-9 01 1 0107-
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-089-9 01 1 0107-
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-091-6 01 1 0107-
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-092-6 01 1 0107-
79 CHANNEL; DOOR GLASS,FRT 1-74338-068-3 01 1 0107-
79 CHANNEL; DOOR GLASS,FRT 1-74338-069-3 01 1 0107-
174 SEAL; LOCATION HOLE
POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 14 1 0107-0212
174 SEAL; LOCATION HOLE
POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 16 1 0301-
174 SEAL; LOCATION HOLE
EXC. POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 20 1 0107-0212
174 SEAL; LOCATION HOLE
EXC. POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 22 1 0301-
174 SEAL; LOCATION HOLE
EXC. POWER WINDOW<A30> OD=52 BLACK 		1-76798-041-0 02 1 0107-
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74418-178-3 01 1 0107-
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74418-179-3 01 1 0107-
192 HOLDER; DOOR GLASS 1-74427-170-0 04 1 0107-
225 BOLT; FRT CHANNEL
M6X10 FLANGE 		0-28080-610-0 04 1 0107-0512
225 BOLT; FRT CHANNEL
M6X10 FLANGE 		0-28050-610-0 04 1 0601-
234 BRACKET; OK WINDOW 1-74998-057-4 01 1 0107-
234 BRACKET; OK WINDOW 1-74998-062-4 01 1 0107-
235 BOLT; BRKT
EXC. POWER WINDOW<A30> M6X16 FLANGE 		0-28080-616-0 08 1 0406-0512
235 BOLT; BRKT
EXC. POWER WINDOW<A30> M6X16 FLANGE 		0-28050-616-0 08 1 0601-
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0107-0405
235 BOLT; BRKT
EXC. POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0107-0405
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0406-
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> (A) 		1-74417-074-0 02 1 0107-
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> (B) 		1-74418-180-0 01 1 0107-
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> (B) 		1-74418-181-0 01 1 0107-
250 BRACKET; REGULATOR
EXC. POWER WINDOW<A30> 		1-74418-148-0 01 1 0107-
250 BRACKET; REGULATOR
EXC. POWER WINDOW<A30> 		1-74418-149-0 01 1 0107-
251 NUT; BRKT
EXC. POWER WINDOW<A30> M6 FLANGE 		1-09984-141-0 04 1 0107-
256 NUT
EXC. POWER WINDOW<A30> M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 0107-
çizim 20087
72 132 129 72 132 129
BalonParca AdiParca NoAdetTipApplied Date
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-088-9 01 1 0107-
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-089-9 01 1 0107-
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-091-6 01 1 0107-
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-092-6 01 1 0107-
129 SEAL; DOOR,SUB UPR 1-76718-198-0 01 1 0107-
129 SEAL; DOOR,SUB UPR 1-76718-199-0 01 1 0107-
132 CLIP; SEAL,DOOR
NATURAL 		1-09987-253-1 06 1 0107-
132 CLIP; SEAL,DOOR
YELLOW 		1-09987-254-1 06 1 0107-
