Isuzu WW
▶
TRUCKS
▶
EXR
▶
10867 - EXR RHD FUEL TANK 400L
▶
5 - Frame, Cab Mounting
▶
5-20 - BATTERY CARRIER
▶

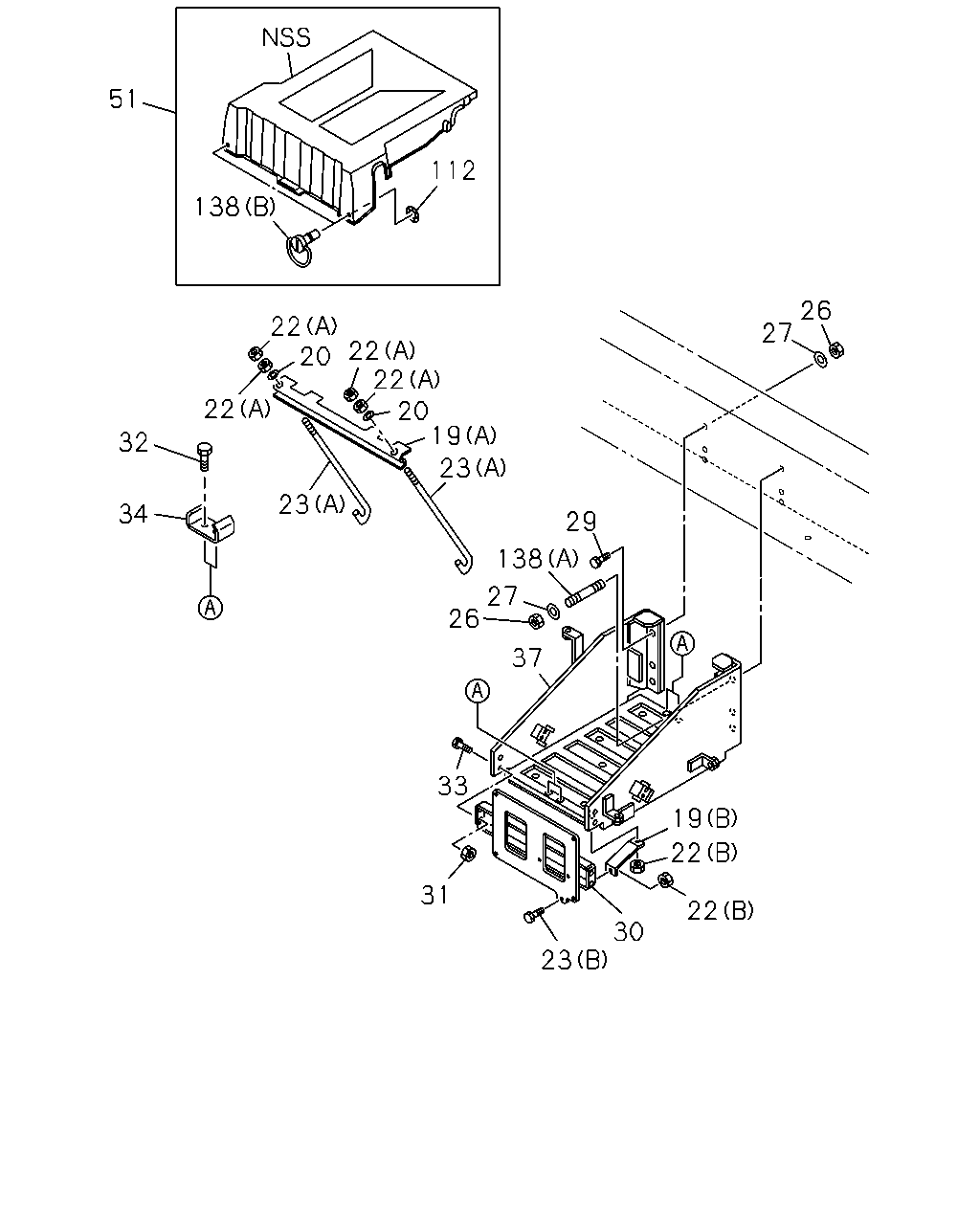

5-20 — BATTERY CARRIER
(#10039) — 30 parça
22
20
22
22
32
34
23
23
19
20
22
138
22
30
23
31
33
37
26
27
138
29
27
26
22
19
112
51
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
19
STAY; BATTERY
(A)
1-53618-039-2
01
1
0107-
19
STAY; BATTERY
(B)
1-53618-061-0
01
1
0107-
20
WASHER; PL,STAY
ID=8.4 OD=22
9-09164-708-0
02
1
0107-0605
20
WASHER; PL,STAY
ID=8.4 OD=22
0-91614-708-0
02
1
0606-
22
NUT; STAY
(B) M8 FLANGE
0-91150-108-0
02
1
0107-0602
22
NUT; STAY
(B) M8 FLANGE
0-91180-108-0
02
1
0603-
22
NUT; STAY
(A) M8
9-09110-408-0
04
1
0107-0512
22
NUT; STAY
(A) M8
0-91110-508-0
04
1
0601-
23
BOLT; STAY
(B) M8X20 FLANGE
0-28680-820-0
01
1
0107-0512
23
BOLT; STAY
(B) M8X20 FLANGE
0-28650-820-0
01
1
0601-
23
BOLT; STAY
(A) L=250
1-53616-108-0
02
1
0107-
26
NUT; BRKT
M14
9-99110-514-0
04
1
0107-0512
26
NUT; BRKT
M14
0-91110-514-0
04
1
0601-
27
WASHER; LK,BRKT
ID=14.2
9-09150-514-0
04
1
0107-0603
27
WASHER; LK,BRKT
ID=14.2
0-91510-514-0
04
1
0604-
29
BOLT; BRKT TO FRAME
M14X40
0-20801-440-0
02
1
0107-0512
29
BOLT; BRKT TO FRAME
M14X40
0-20851-440-0
02
1
0601-
30
PLATE; BATTERY
1-53619-128-1
01
1
0107-
31
NUT; PLATE
M8 FLANGE
0-91150-108-0
02
1
0204-0602
31
NUT; PLATE
M8 FLANGE
0-91180-108-0
02
1
0603-
32
BOLT; PLATE TO SPACER
EXC. BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> M8X16 FLANGE
0-28080-816-0
04
1
0107-0512
32
BOLT; PLATE TO SPACER
EXC. BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> M8X16 FLANGE
0-28050-816-0
04
1
0601-
33
BOLT; PLATE TO BRKT
M8X16 FLANGE
0-28080-816-0
04
1
0107-0512
33
BOLT; PLATE TO BRKT
M8X16 FLANGE
0-28050-816-0
04
1
0601-
34
SPACER; BATTERY BRKT
EXC. BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4>
1-53619-084-0
02
1
0107-
37
BRACKET; BATTERY
1-53610-153-0
01
1
0107-
51
COVER; BATTERY
1-53612-067-0
01
1
0107-
112
RETAINER; BATTERY
1-53616-139-0
02
1
0107-
138
STUD
(B)
1-53616-142-0
02
1
0107-
138
STUD
(A) M14X48 L=75
1-09300-094-0
02
1
0107-
