◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10867 - EXR RHD FUEL TANK 400L ▶ 5 - Frame, Cab Mounting ▶ 5-16 - OIL PUMP; CAB TILT ▶
5-16 — OIL PUMP; CAB TILT (#10037) — 125 parça

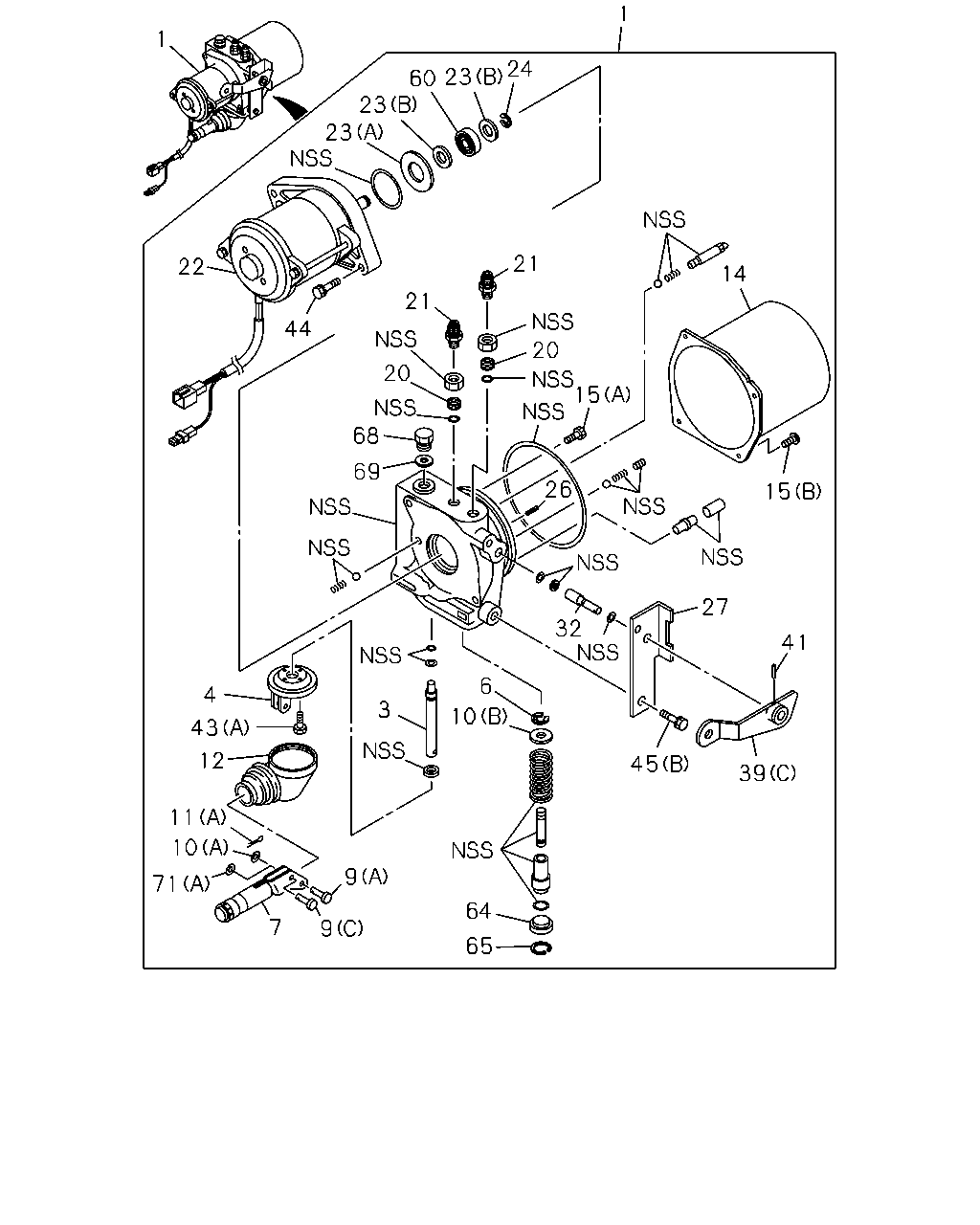

çizim 20504
22 23 23 60 23 24 1 1 21 21 44 20 68 69 4 43 12 11 10 71 9 7 9 64 65 3 10 6 32 45 39 41 27 15 26 15 20 14
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP; OIL,CAB TILT
MANUAL CAB TILT<SHK> 		1-53458-916-0 01 1 0107-
1 PUMP; OIL,CAB TILT
AUTO CAB TILT<WV2> 		1-53458-927-0 01 1 0107-
3 PISTON; MANUAL
AUTO CAB TILT<WV2> 		1-53458-842-0 01 1 0107-
4 BRACKET; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-566-0 01 1 0107-
6 RING; SNAP
AUTO CAB TILT<WV2> 		1-53458-411-0 01 1 0107-
7 SOCKET; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-565-1 01 1 0107-
9 PIN; OIL PUMP
AUTO CAB TILT<WV2> (B) L=27.7 		1-09987-141-0 02 1 0107-
9 PIN; OIL PUMP
AUTO CAB TILT<WV2> (A) 		1-53458-060-0 01 1 0107-
9 PIN; OIL PUMP
AUTO CAB TILT<WV2> (C) 		1-53458-844-0 01 1 0107-
10 WASHER; OIL PUMP
AUTO CAB TILT<WV2> (A) 		1-53458-013-0 01 1 0107-
10 WASHER; OIL PUMP
AUTO CAB TILT<WV2> (B) 		1-53458-561-0 01 1 0107-
10 WASHER; OIL PUMP
AUTO CAB TILT<WV2> (C) ID=8.4 OD=22 		9-09160-708-0 02 1 0107-0605
10 WASHER; OIL PUMP
AUTO CAB TILT<WV2> (C) ID=8.4 OD=22 		0-91610-708-0 02 1 0606-
11 PIN; SPLIT,OIL PUMP
AUTO CAB TILT<WV2> (A) 		1-53458-058-0 01 1 0107-
11 PIN; SPLIT,OIL PUMP
AUTO CAB TILT<WV2> (B) OD=8 L=17 		9-08223-817-0 02 1 0107-0606
11 PIN; SPLIT,OIL PUMP
AUTO CAB TILT<WV2> (B) OD=8 L=17 		0-82253-817-0 02 1 0607-
12 BOOT; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-560-0 01 1 0107-
14 RESERVOIR; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-432-0 01 1 0107-
15 BOLT; RESERVOIR
AUTO CAB TILT<WV2> (B) M5X8 		1-53458-005-0 04 1 0107-
15 BOLT; RESERVOIR
AUTO CAB TILT<WV2> (A) M5X8 		1-53458-433-0 02 1 0107-
20 FILTER; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-048-0 02 1 0107-
21 CONNECTOR; OIL PUMP
AUTO CAB TILT<WV2> M12 		1-53458-941-0 02 1 0107-
22 MOTOR; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-731-0 01 1 0107-
23 WASHER; MOTOR
AUTO CAB TILT<WV2> (A) 		1-53458-018-0 01 1 0107-
23 WASHER; MOTOR
AUTO CAB TILT<WV2> (B) 		1-53458-045-0 02 1 0107-
24 RING; SNAP,MOTOR
AUTO CAB TILT<WV2> 		1-53458-044-0 01 1 0107-
26 PIN; SPR,OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-038-0 01 1 0107-
27 COVER; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-568-0 01 1 0107-
32 VALVE; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-569-0 01 1 0107-
39 LEVER; OIL PUMP
AUTO CAB TILT<WV2> (C) 		1-53458-567-0 01 1 0107-
39 LEVER; OIL PUMP
AUTO CAB TILT<WV2> (A) 		1-53458-775-1 01 1 0107-
39 LEVER; OIL PUMP
AUTO CAB TILT<WV2> (B) 		1-53458-870-0 01 1 0107-
41 PIN; SPR,LEVER
AUTO CAB TILT<WV2> 		1-53458-019-0 01 1 0107-
43 BOLT; LEVER
AUTO CAB TILT<WV2> (B) M8X20 FLANGE 		0-28680-820-0 01 1 0107-0512
43 BOLT; LEVER
AUTO CAB TILT<WV2> (B) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
43 BOLT; LEVER
AUTO CAB TILT<WV2> (C) M10X25 FLANGE 		0-28681-025-0 01 1 0107-0512
43 BOLT; LEVER
AUTO CAB TILT<WV2> (C) M10X25 FLANGE 		0-28651-025-0 01 1 0601-
43 BOLT; LEVER
AUTO CAB TILT<WV2> (A) M5X12 		1-53458-420-0 02 1 0107-
44 BOLT; MOTOR
AUTO CAB TILT<WV2> M6X20 		1-53458-007-0 02 1 0107-
45 BOLT; COVER
MANUAL CAB TILT<SHK> (A) M8X20 FLANGE 		0-28680-820-0 02 1 0107-0107
45 BOLT; COVER
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0108-0512
45 BOLT; COVER
MANUAL CAB TILT<SHK> (A) M8X20 FLANGE 		0-28680-820-0 02 1 0108-0512
45 BOLT; COVER
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
45 BOLT; COVER
MANUAL CAB TILT<SHK> (A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
45 BOLT; COVER
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0107-0107
45 BOLT; COVER
AUTO CAB TILT<WV2> (B) M6X8 		1-53458-004-0 02 1 0107-
45 BOLT; COVER
(A) M8X25 FLANGE 		0-28680-825-0 01 1 0107-0107
60 BEARING; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-423-0 01 1 0107-
64 SLEEVE; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-572-0 01 1 0107-
65 RING; SNAP,SLEEVE
AUTO CAB TILT<WV2> 		1-53458-570-0 01 1 0107-
68 PLUG; FILLER
AUTO CAB TILT<WV2> 		1-53458-428-0 01 1 0107-
69 GASKET; FILLER PLUG
AUTO CAB TILT<WV2> 		1-53458-427-0 01 1 0107-
71 NUT; PUSH
AUTO CAB TILT<WV2> (A) 		1-53458-845-0 01 1 0107-
71 NUT; PUSH
AUTO CAB TILT<WV2> (B) ID=9.9 PUSH NUT 		8-97022-566-0 01 1 0107-

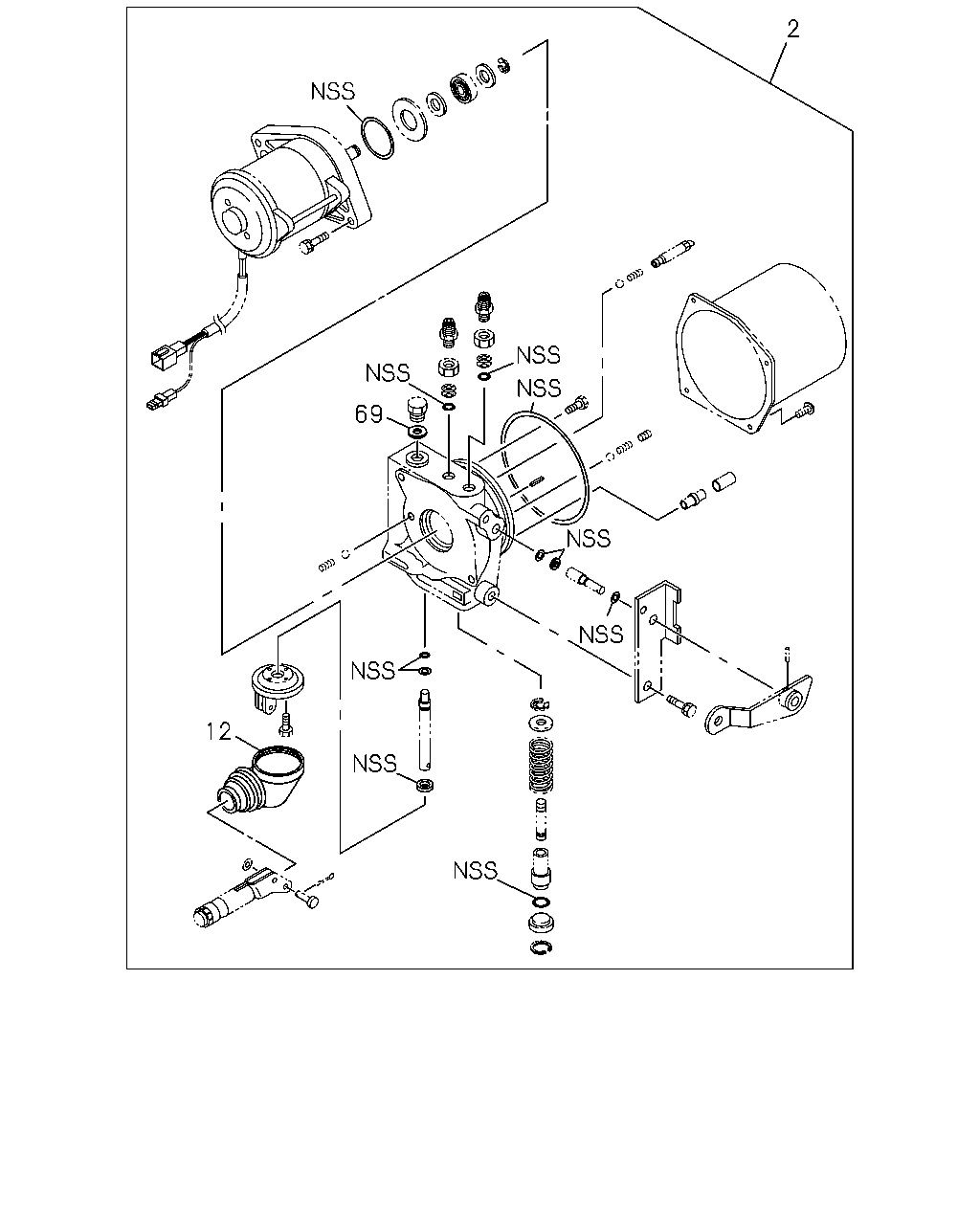

çizim 75429
69 12 2
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; OIL PUMP
AUTO CAB TILT<WV2> 		1-85579-058-0 01 1 0107-
12 BOOT; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-560-0 01 1 0107-
69 GASKET; FILLER PLUG
AUTO CAB TILT<WV2> 		1-53458-427-0 01 1 0107-

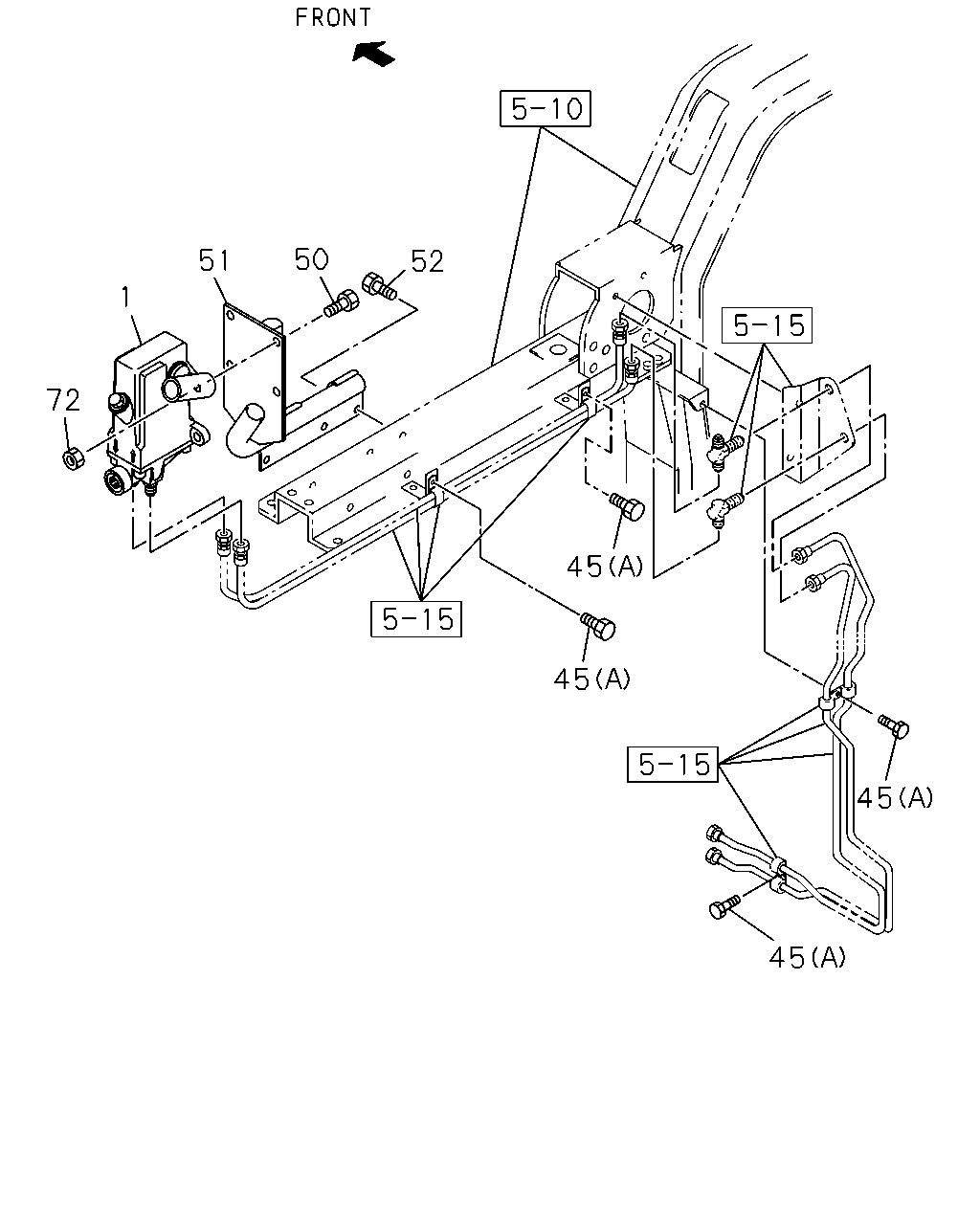

çizim 78924
72 1 51 50 52 45 45 45 45
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP; OIL,CAB TILT
MANUAL CAB TILT<SHK> 		1-53458-916-0 01 1 0107-
1 PUMP; OIL,CAB TILT
AUTO CAB TILT<WV2> 		1-53458-927-0 01 1 0107-
45 BOLT; COVER
MANUAL CAB TILT<SHK> (A) M8X20 FLANGE 		0-28680-820-0 02 1 0107-0107
45 BOLT; COVER
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0108-0512
45 BOLT; COVER
MANUAL CAB TILT<SHK> (A) M8X20 FLANGE 		0-28680-820-0 02 1 0108-0512
45 BOLT; COVER
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
45 BOLT; COVER
MANUAL CAB TILT<SHK> (A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
45 BOLT; COVER
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0107-0107
45 BOLT; COVER
AUTO CAB TILT<WV2> (B) M6X8 		1-53458-004-0 02 1 0107-
45 BOLT; COVER
(A) M8X25 FLANGE 		0-28680-825-0 01 1 0107-0107
50 BOLT; OIL PUMP
MANUAL CAB TILT<SHK> M10X30 FLANGE 		0-28681-030-0 04 1 0107-0512
50 BOLT; OIL PUMP
MANUAL CAB TILT<SHK> M10X30 FLANGE 		0-28651-030-0 04 1 0601-
50 BOLT; OIL PUMP
AUTO CAB TILT<WV2> M10X16 FLANGE 		0-28081-016-0 02 1 0107-0512
50 BOLT; OIL PUMP
AUTO CAB TILT<WV2> M10X16 FLANGE 		0-28051-016-0 02 1 0601-
51 BRACKET; OIL PUMP
MANUAL CAB TILT<SHK> 		1-53458-966-0 01 1 0107-
51 BRACKET; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-690-0 01 1 0107-
52 BOLT; BRKT
MANUAL CAB TILT<SHK> M8X20 FLANGE 		0-28680-820-0 03 1 0107-0512
52 BOLT; BRKT
MANUAL CAB TILT<SHK> M8X20 FLANGE 		0-28650-820-0 03 1 0601-
52 BOLT; BRKT
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28680-820-0 02 1 0107-0512
52 BOLT; BRKT
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28650-820-0 02 1 0601-
72 NUT; OIL PUMP
MANUAL CAB TILT<SHK> M10 FLANGE 		0-91150-210-0 04 1 0107-0602
72 NUT; OIL PUMP
MANUAL CAB TILT<SHK> M10 FLANGE 		0-91180-210-0 04 1 0603-

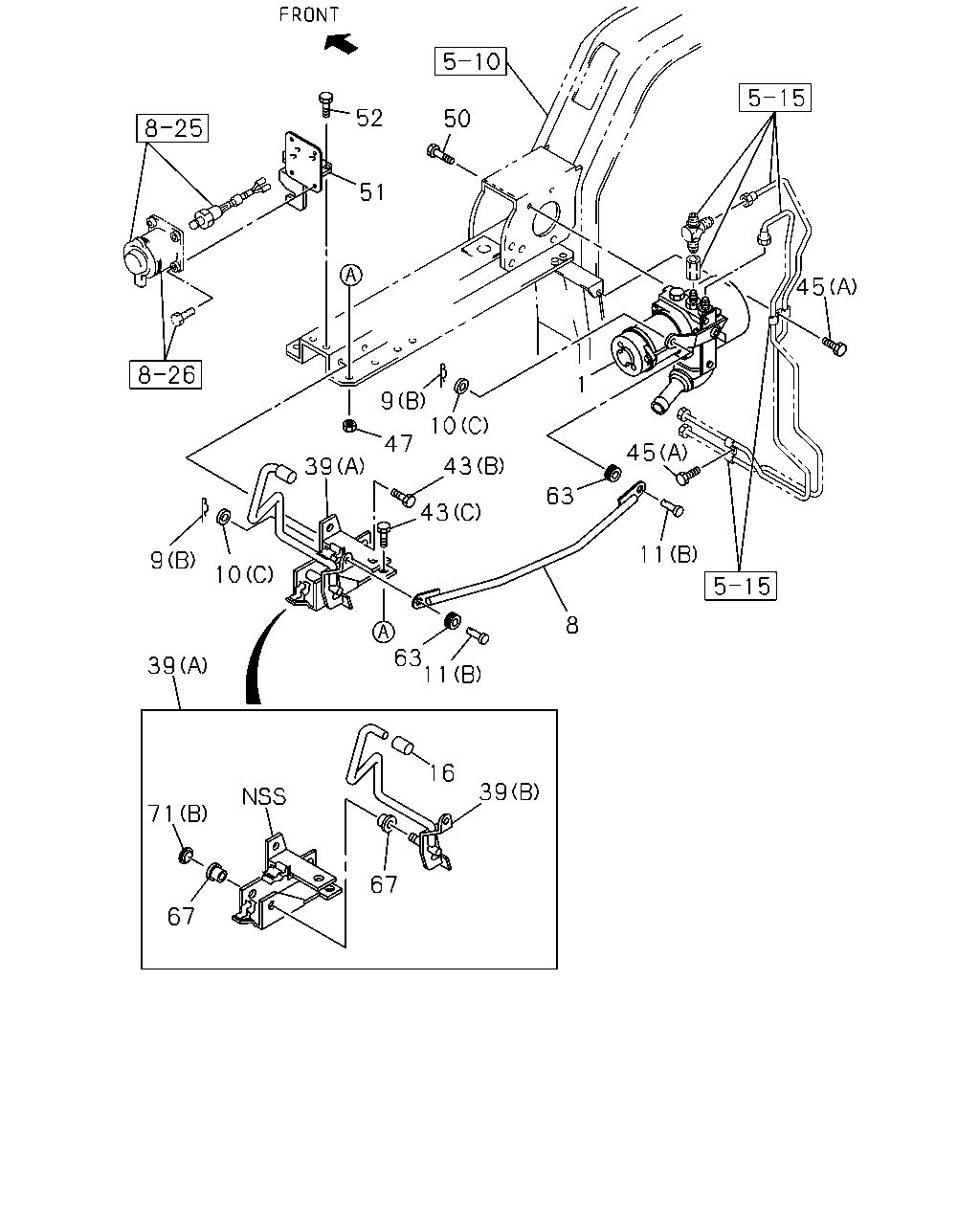

çizim 78981
52 51 50 10 43 43 47 9 39 10 9 39 71 67 67 16 39 8 11 63 11 45 63 1 45
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP; OIL,CAB TILT
MANUAL CAB TILT<SHK> 		1-53458-916-0 01 1 0107-
1 PUMP; OIL,CAB TILT
AUTO CAB TILT<WV2> 		1-53458-927-0 01 1 0107-
8 LINK; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-726-0 01 1 0107-
9 PIN; OIL PUMP
AUTO CAB TILT<WV2> (B) L=27.7 		1-09987-141-0 02 1 0107-
9 PIN; OIL PUMP
AUTO CAB TILT<WV2> (A) 		1-53458-060-0 01 1 0107-
9 PIN; OIL PUMP
AUTO CAB TILT<WV2> (C) 		1-53458-844-0 01 1 0107-
10 WASHER; OIL PUMP
AUTO CAB TILT<WV2> (A) 		1-53458-013-0 01 1 0107-
10 WASHER; OIL PUMP
AUTO CAB TILT<WV2> (B) 		1-53458-561-0 01 1 0107-
10 WASHER; OIL PUMP
AUTO CAB TILT<WV2> (C) ID=8.4 OD=22 		9-09160-708-0 02 1 0107-0605
10 WASHER; OIL PUMP
AUTO CAB TILT<WV2> (C) ID=8.4 OD=22 		0-91610-708-0 02 1 0606-
11 PIN; SPLIT,OIL PUMP
AUTO CAB TILT<WV2> (A) 		1-53458-058-0 01 1 0107-
11 PIN; SPLIT,OIL PUMP
AUTO CAB TILT<WV2> (B) OD=8 L=17 		9-08223-817-0 02 1 0107-0606
11 PIN; SPLIT,OIL PUMP
AUTO CAB TILT<WV2> (B) OD=8 L=17 		0-82253-817-0 02 1 0607-
16 CAP
AUTO CAB TILT<WV2> ID=9.0 		8-94207-303-0 01 1 0107-
39 LEVER; OIL PUMP
AUTO CAB TILT<WV2> (C) 		1-53458-567-0 01 1 0107-
39 LEVER; OIL PUMP
AUTO CAB TILT<WV2> (A) 		1-53458-775-1 01 1 0107-
39 LEVER; OIL PUMP
AUTO CAB TILT<WV2> (B) 		1-53458-870-0 01 1 0107-
43 BOLT; LEVER
AUTO CAB TILT<WV2> (B) M8X20 FLANGE 		0-28680-820-0 01 1 0107-0512
43 BOLT; LEVER
AUTO CAB TILT<WV2> (B) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
43 BOLT; LEVER
AUTO CAB TILT<WV2> (C) M10X25 FLANGE 		0-28681-025-0 01 1 0107-0512
43 BOLT; LEVER
AUTO CAB TILT<WV2> (C) M10X25 FLANGE 		0-28651-025-0 01 1 0601-
43 BOLT; LEVER
AUTO CAB TILT<WV2> (A) M5X12 		1-53458-420-0 02 1 0107-
45 BOLT; COVER
MANUAL CAB TILT<SHK> (A) M8X20 FLANGE 		0-28680-820-0 02 1 0107-0107
45 BOLT; COVER
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0108-0512
45 BOLT; COVER
MANUAL CAB TILT<SHK> (A) M8X20 FLANGE 		0-28680-820-0 02 1 0108-0512
45 BOLT; COVER
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
45 BOLT; COVER
MANUAL CAB TILT<SHK> (A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
45 BOLT; COVER
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0107-0107
45 BOLT; COVER
AUTO CAB TILT<WV2> (B) M6X8 		1-53458-004-0 02 1 0107-
45 BOLT; COVER
(A) M8X25 FLANGE 		0-28680-825-0 01 1 0107-0107
47 NUT; LEVER
AUTO CAB TILT<WV2> M10 FLANGE 		0-91150-210-0 01 1 0107-0602
47 NUT; LEVER
AUTO CAB TILT<WV2> M10 FLANGE 		0-91180-210-0 01 1 0603-
50 BOLT; OIL PUMP
MANUAL CAB TILT<SHK> M10X30 FLANGE 		0-28681-030-0 04 1 0107-0512
50 BOLT; OIL PUMP
MANUAL CAB TILT<SHK> M10X30 FLANGE 		0-28651-030-0 04 1 0601-
50 BOLT; OIL PUMP
AUTO CAB TILT<WV2> M10X16 FLANGE 		0-28081-016-0 02 1 0107-0512
50 BOLT; OIL PUMP
AUTO CAB TILT<WV2> M10X16 FLANGE 		0-28051-016-0 02 1 0601-
51 BRACKET; OIL PUMP
MANUAL CAB TILT<SHK> 		1-53458-966-0 01 1 0107-
51 BRACKET; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-690-0 01 1 0107-
52 BOLT; BRKT
MANUAL CAB TILT<SHK> M8X20 FLANGE 		0-28680-820-0 03 1 0107-0512
52 BOLT; BRKT
MANUAL CAB TILT<SHK> M8X20 FLANGE 		0-28650-820-0 03 1 0601-
52 BOLT; BRKT
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28680-820-0 02 1 0107-0512
52 BOLT; BRKT
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28650-820-0 02 1 0601-
63 GROMMET
AUTO CAB TILT<WV2> ID=10 OD=23 T=8 		1-09983-010-0 02 1 0107-
67 BUSHING
AUTO CAB TILT<WV2> T=6 OD=17.5 		9-33659-249-0 02 1 0107-
71 NUT; PUSH
AUTO CAB TILT<WV2> (A) 		1-53458-845-0 01 1 0107-
71 NUT; PUSH
AUTO CAB TILT<WV2> (B) ID=9.9 PUSH NUT 		8-97022-566-0 01 1 0107-
