◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10867 - EXR RHD FUEL TANK 400L ▶ 5 - Frame, Cab Mounting ▶ 5-15 - CAB MOUNTING; CAB SIDE ▶
5-15 — CAB MOUNTING; CAB SIDE (#10036) — 156 parça

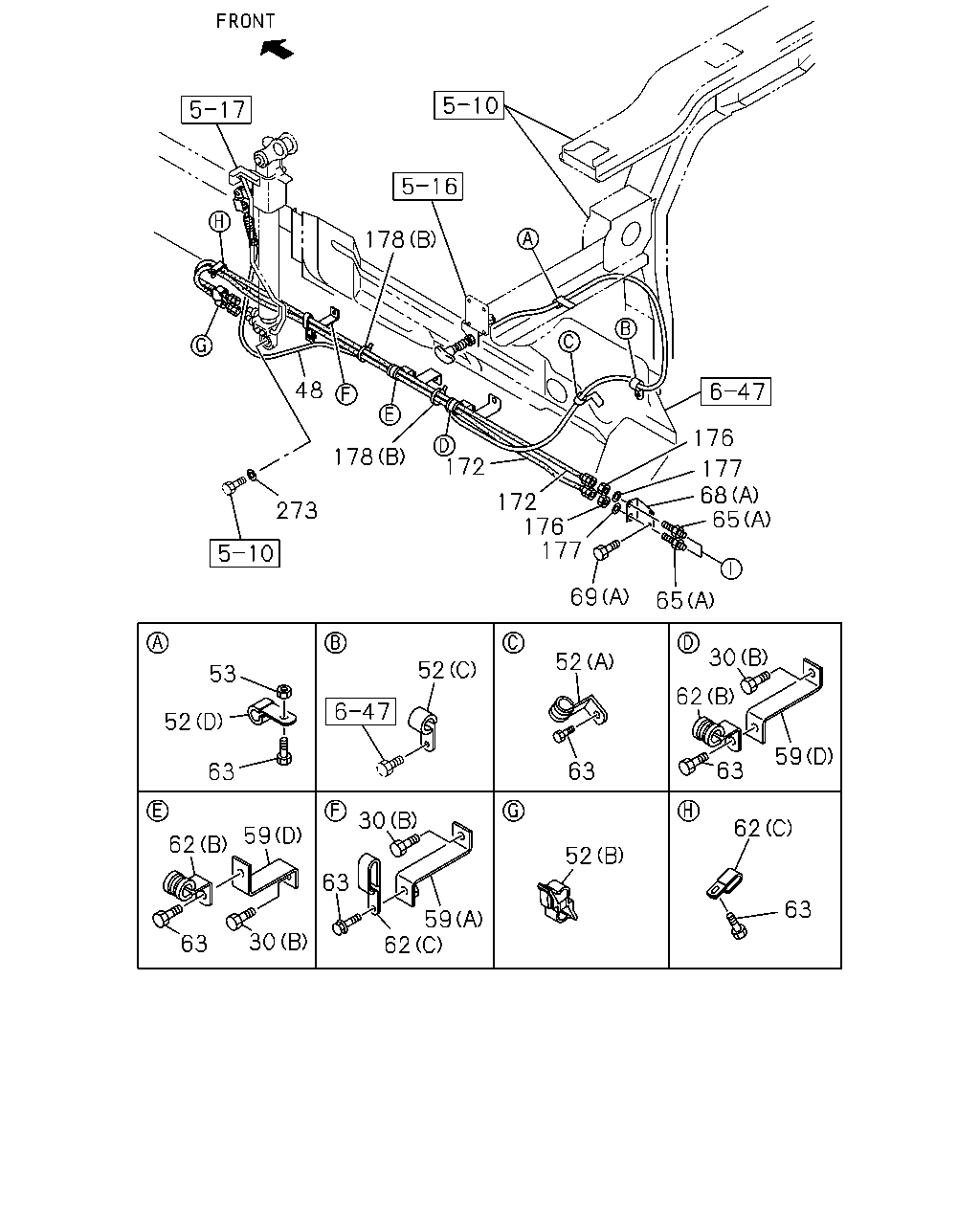

çizim 22605
178 48 273 53 52 63 62 59 63 30 63 30 62 59 52 63 52 30 62 63 59 62 63 52 65 65 68 177 176 69 177 176 172 172 178
BalonParca AdiParca NoAdetTipApplied Date
30 BOLT; BRKT FIX
(B) M8X30 FLANGE 		0-28680-830-0 03 1 0107-0512
30 BOLT; BRKT FIX
(B) M8X30 FLANGE 		0-28650-830-0 03 1 0601-
30 BOLT; BRKT FIX
MANUAL CAB TILT<SHK> (C) M10X20 FLANGE 		0-28681-020-0 02 1 0107-0512
30 BOLT; BRKT FIX
MANUAL CAB TILT<SHK> (C) M10X20 FLANGE 		0-28651-020-0 02 1 0601-
30 BOLT; BRKT FIX
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0107-0512
30 BOLT; BRKT FIX
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
48 CABLE ASM; CONT
L=2457 		1-62500-730-0 01 1 0107-
52 CLIP; CONT CABLE
(A) ID=6 H=20 L=20 		1-09700-603-0 01 1 0107-
52 CLIP; CONT CABLE
(B) ID=6-10 & 10-14 		1-09709-201-1 01 1 0107-
52 CLIP; CONT CABLE
(C) ID=7 L=20 		9-09524-635-0 01 1 0107-0606
52 CLIP; CONT CABLE
(C) ID=7 L=20 		0-95234-635-0 01 1 0607-
52 CLIP; CONT CABLE
(D) ID=7 L=50 		9-09524-685-0 01 1 0107-0606
52 CLIP; CONT CABLE
(D) ID=7 L=50 		0-95234-685-0 01 1 0607-
53 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0107-0602
53 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-
59 BRACKET; CLIP
(A) 		1-47476-200-0 01 1 0107-
59 BRACKET; CLIP
MANUAL CAB TILT<SHK> (B) 		1-53458-915-0 02 1 0107-
59 BRACKET; CLIP
(C) 		1-47477-317-0 01 1 0107-
59 BRACKET; CLIP
(D) L=90 		1-82699-856-0 02 1 0107-
62 CLIP; OIL PIPE
(C) ID=9X2 L=16 		9-09534-825-0 02 1 0107-0606
62 CLIP; OIL PIPE
MANUAL CAB TILT<SHK> (C) ID=9X2 L=16 		9-09534-825-0 02 1 0107-0606
62 CLIP; OIL PIPE
(C) ID=9X2 L=16 		0-95324-825-0 02 1 0607-
62 CLIP; OIL PIPE
MANUAL CAB TILT<SHK> (C) ID=9X2 L=16 		0-95324-825-0 02 1 0607-
62 CLIP; OIL PIPE
(A) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 0107-
62 CLIP; OIL PIPE
(B) ID=18 H=23 L=28 		1-09700-860-0 02 1 0107-
62 CLIP; OIL PIPE
MANUAL CAB TILT<SHK> (D) L=140 		5-09707-031-0 03 1 0107-
63 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 04 1 0606-
63 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 06 1 0107-0512
63 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 06 1 0601-0605
63 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0606-
65 UNION; OIL PIPE
MANUAL CAB TILT<SHK> (B) M12 ELBOW 		9-09225-206-1 01 1 0107-0607
65 UNION; OIL PIPE
MANUAL CAB TILT<SHK> (B) M12 ELBOW 		0-92125-206-0 01 1 0608-
65 UNION; OIL PIPE
MANUAL CAB TILT<SHK> (C) M12 3WAY 		9-09228-606-1 01 1 0107-0607
65 UNION; OIL PIPE
MANUAL CAB TILT<SHK> (C) M12 3WAY 		0-92138-606-0 01 1 0608-
65 UNION; OIL PIPE
(A) M12 L=66.5 		9-09223-306-1 02 1 0107-0607
65 UNION; OIL PIPE
(A) M12 L=66.5 		0-92113-306-0 02 1 0608-
68 BRACKET; UNION
MANUAL CAB TILT<SHK> (B) 		1-53458-935-0 01 1 0107-
68 BRACKET; UNION
(A) 		1-47478-383-0 01 1 0107-
69 BOLT; BRKT
MANUAL CAB TILT<SHK> (B) M10X30 FLANGE 		0-28681-030-0 02 1 0107-0512
69 BOLT; BRKT
MANUAL CAB TILT<SHK> (B) M10X30 FLANGE 		0-28651-030-0 02 1 0601-
69 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 02 1 0107-0512
69 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0601-
172 HOSE; FLEX,OIL TILT
L=1600 		1-09365-052-1 02 1 0107-
176 NUT; UNION
M12 		9-09840-280-0 02 1 0107-
176 NUT; UNION
MANUAL CAB TILT<SHK> M12 		9-09840-280-0 02 1 0107-
177 WASHER; LK,UNION
ID=12.2 		9-09150-512-0 02 1 0107-0603
177 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 02 1 0604-
178 CLIP; FLEX HOSE
(B) L=140 		5-09707-031-1 02 1 0107-
178 CLIP; FLEX HOSE
(A) ID=8 H=20 L=20 		1-09700-604-0 02 1 0107-
273 WASHER; PL,OIL CYL
ID=10.5 OD=32 		9-09164-810-0 01 1 0107-0605
273 WASHER; PL,OIL CYL
ID=10.5 OD=32 		0-91614-810-0 01 1 0606-

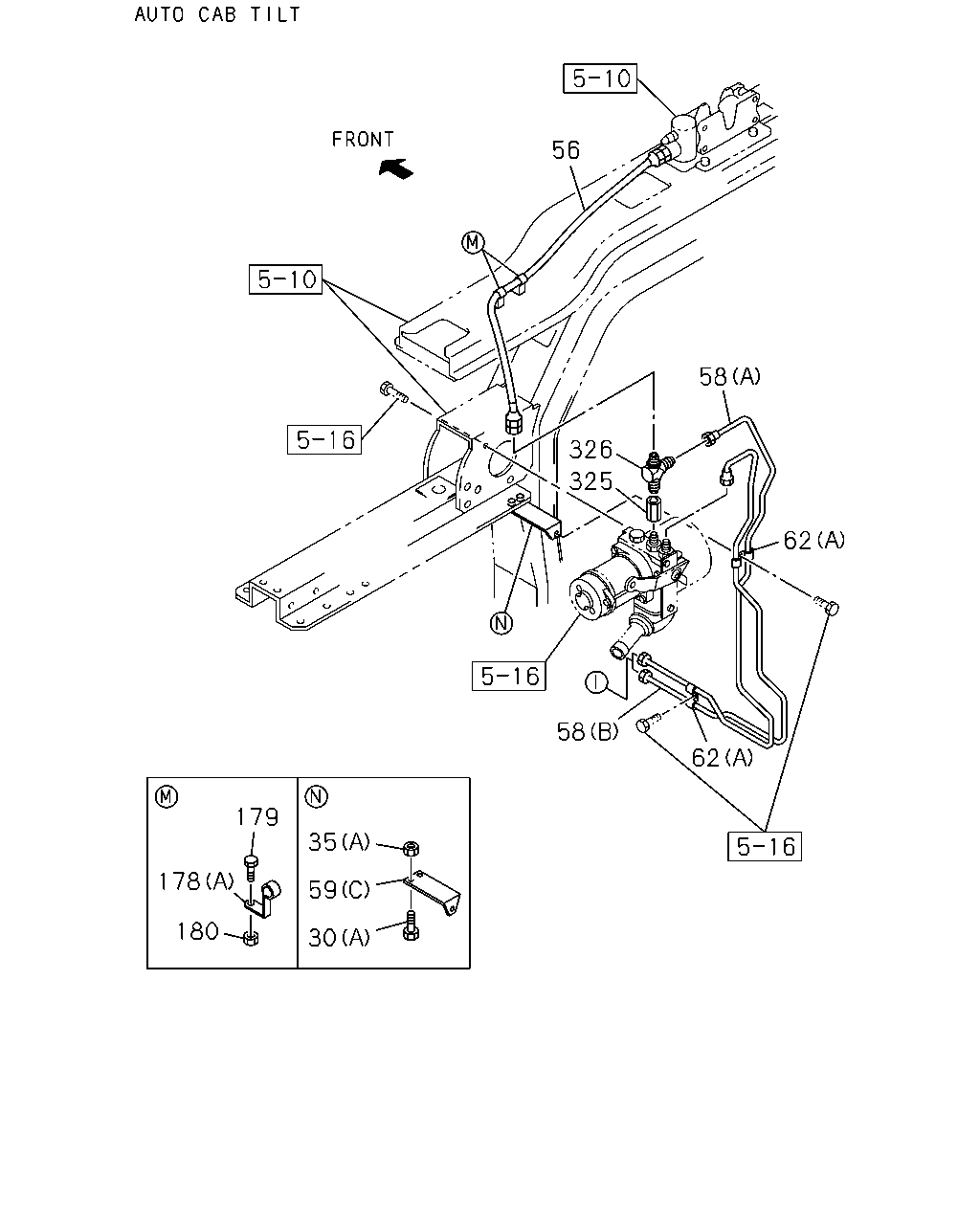

çizim 75249
62 58 35 59 30 180 178 179 62 325 326 58 56
BalonParca AdiParca NoAdetTipApplied Date
30 BOLT; BRKT FIX
(B) M8X30 FLANGE 		0-28680-830-0 03 1 0107-0512
30 BOLT; BRKT FIX
(B) M8X30 FLANGE 		0-28650-830-0 03 1 0601-
30 BOLT; BRKT FIX
MANUAL CAB TILT<SHK> (C) M10X20 FLANGE 		0-28681-020-0 02 1 0107-0512
30 BOLT; BRKT FIX
MANUAL CAB TILT<SHK> (C) M10X20 FLANGE 		0-28651-020-0 02 1 0601-
30 BOLT; BRKT FIX
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0107-0512
30 BOLT; BRKT FIX
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
35 NUT; BRKT
MANUAL CAB TILT<SHK> (B) M10 FLANGE 		0-91150-210-0 02 1 0107-0602
35 NUT; BRKT
MANUAL CAB TILT<SHK> (B) M10 FLANGE 		0-91180-210-0 02 1 0603-
35 NUT; BRKT
(A) M8 FLANGE 		0-91150-108-0 02 1 0107-0602
35 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 0603-
56 HOSE; FLEX,OIL PIPE
L=750 		1-09365-058-0 01 1 0107-
58 PIPE; OIL,POWER UNIT
MANUAL CAB TILT<SHK> (A) 		1-49163-288-0 01 1 0107-
58 PIPE; OIL,POWER UNIT
MANUAL CAB TILT<SHK> (B) 		1-49163-289-0 01 1 0107-
58 PIPE; OIL,POWER UNIT
AUTO CAB TILT<WV2> (A) 		1-49163-338-0 01 1 0107-
58 PIPE; OIL,POWER UNIT
AUTO CAB TILT<WV2> (B) 		1-49163-344-0 01 1 0107-
59 BRACKET; CLIP
(A) 		1-47476-200-0 01 1 0107-
59 BRACKET; CLIP
MANUAL CAB TILT<SHK> (B) 		1-53458-915-0 02 1 0107-
59 BRACKET; CLIP
(C) 		1-47477-317-0 01 1 0107-
59 BRACKET; CLIP
(D) L=90 		1-82699-856-0 02 1 0107-
62 CLIP; OIL PIPE
(C) ID=9X2 L=16 		9-09534-825-0 02 1 0107-0606
62 CLIP; OIL PIPE
MANUAL CAB TILT<SHK> (C) ID=9X2 L=16 		9-09534-825-0 02 1 0107-0606
62 CLIP; OIL PIPE
(C) ID=9X2 L=16 		0-95324-825-0 02 1 0607-
62 CLIP; OIL PIPE
MANUAL CAB TILT<SHK> (C) ID=9X2 L=16 		0-95324-825-0 02 1 0607-
62 CLIP; OIL PIPE
(A) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 0107-
62 CLIP; OIL PIPE
(B) ID=18 H=23 L=28 		1-09700-860-0 02 1 0107-
62 CLIP; OIL PIPE
MANUAL CAB TILT<SHK> (D) L=140 		5-09707-031-0 03 1 0107-
178 CLIP; FLEX HOSE
(B) L=140 		5-09707-031-1 02 1 0107-
178 CLIP; FLEX HOSE
(A) ID=8 H=20 L=20 		1-09700-604-0 02 1 0107-
179 BOLT; CLIP,FLEX HOSE
M8X20 FLANGE 		0-28680-820-0 02 1 0107-0512
179 BOLT; CLIP,FLEX HOSE
M8X20 FLANGE 		0-28650-820-0 02 1 0601-
180 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0107-0602
180 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603-
325 ADAPTER; PUMP
AUTO CAB TILT<WV2> M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 0107-
326 UNION; PUMP
AUTO CAB TILT<WV2> M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 0107-

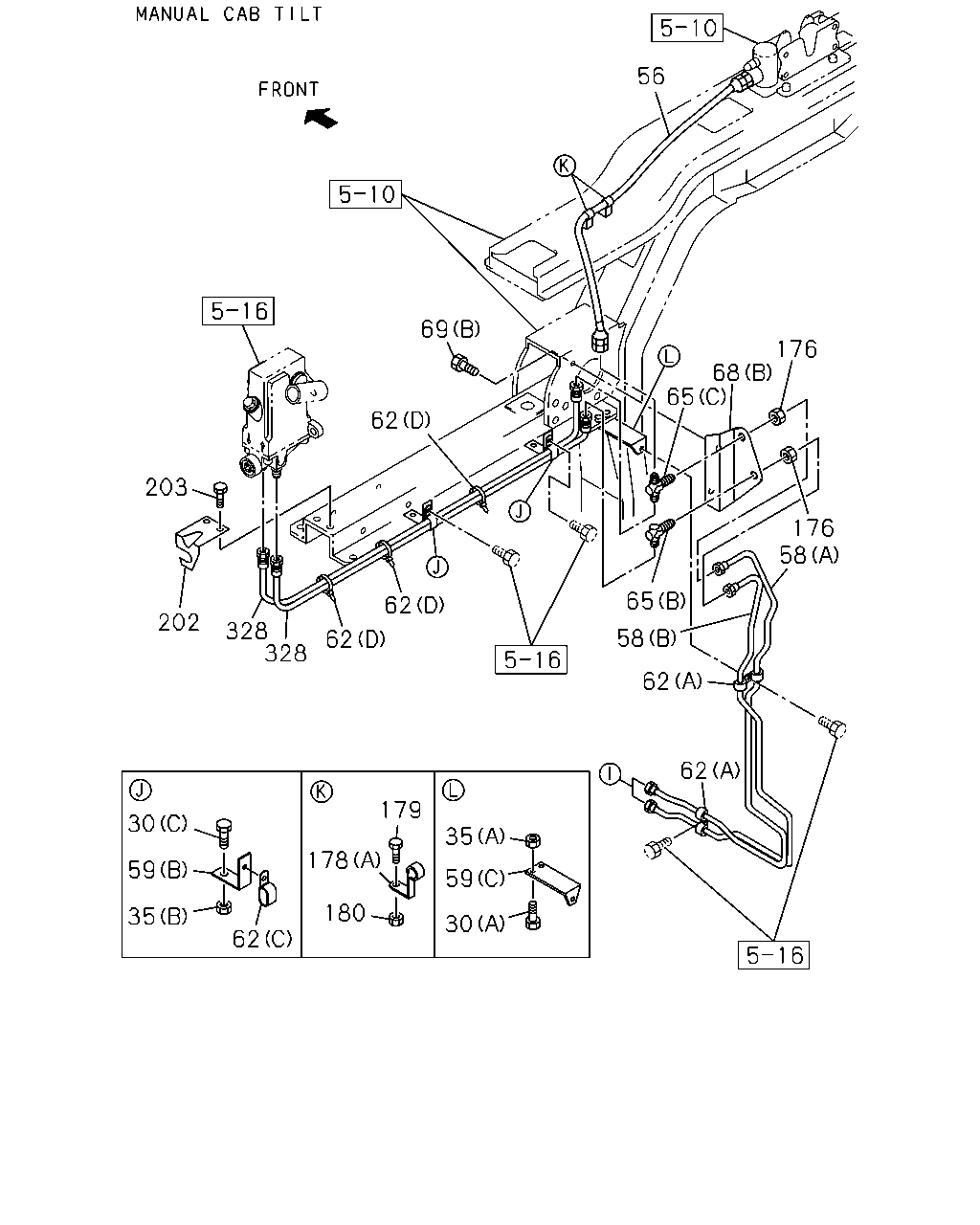

çizim 78764
62 30 59 35 178 180 179 35 59 30 62 328 328 62 62 62 58 65 58 176 176 68 65 69 62 203 202 56
BalonParca AdiParca NoAdetTipApplied Date
30 BOLT; BRKT FIX
(B) M8X30 FLANGE 		0-28680-830-0 03 1 0107-0512
30 BOLT; BRKT FIX
(B) M8X30 FLANGE 		0-28650-830-0 03 1 0601-
30 BOLT; BRKT FIX
MANUAL CAB TILT<SHK> (C) M10X20 FLANGE 		0-28681-020-0 02 1 0107-0512
30 BOLT; BRKT FIX
MANUAL CAB TILT<SHK> (C) M10X20 FLANGE 		0-28651-020-0 02 1 0601-
30 BOLT; BRKT FIX
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0107-0512
30 BOLT; BRKT FIX
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
35 NUT; BRKT
MANUAL CAB TILT<SHK> (B) M10 FLANGE 		0-91150-210-0 02 1 0107-0602
35 NUT; BRKT
MANUAL CAB TILT<SHK> (B) M10 FLANGE 		0-91180-210-0 02 1 0603-
35 NUT; BRKT
(A) M8 FLANGE 		0-91150-108-0 02 1 0107-0602
35 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 0603-
56 HOSE; FLEX,OIL PIPE
L=750 		1-09365-058-0 01 1 0107-
58 PIPE; OIL,POWER UNIT
MANUAL CAB TILT<SHK> (A) 		1-49163-288-0 01 1 0107-
58 PIPE; OIL,POWER UNIT
MANUAL CAB TILT<SHK> (B) 		1-49163-289-0 01 1 0107-
58 PIPE; OIL,POWER UNIT
AUTO CAB TILT<WV2> (A) 		1-49163-338-0 01 1 0107-
58 PIPE; OIL,POWER UNIT
AUTO CAB TILT<WV2> (B) 		1-49163-344-0 01 1 0107-
59 BRACKET; CLIP
(A) 		1-47476-200-0 01 1 0107-
59 BRACKET; CLIP
MANUAL CAB TILT<SHK> (B) 		1-53458-915-0 02 1 0107-
59 BRACKET; CLIP
(C) 		1-47477-317-0 01 1 0107-
59 BRACKET; CLIP
(D) L=90 		1-82699-856-0 02 1 0107-
62 CLIP; OIL PIPE
(C) ID=9X2 L=16 		9-09534-825-0 02 1 0107-0606
62 CLIP; OIL PIPE
MANUAL CAB TILT<SHK> (C) ID=9X2 L=16 		9-09534-825-0 02 1 0107-0606
62 CLIP; OIL PIPE
(C) ID=9X2 L=16 		0-95324-825-0 02 1 0607-
62 CLIP; OIL PIPE
MANUAL CAB TILT<SHK> (C) ID=9X2 L=16 		0-95324-825-0 02 1 0607-
62 CLIP; OIL PIPE
(A) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 0107-
62 CLIP; OIL PIPE
(B) ID=18 H=23 L=28 		1-09700-860-0 02 1 0107-
62 CLIP; OIL PIPE
MANUAL CAB TILT<SHK> (D) L=140 		5-09707-031-0 03 1 0107-
65 UNION; OIL PIPE
MANUAL CAB TILT<SHK> (B) M12 ELBOW 		9-09225-206-1 01 1 0107-0607
65 UNION; OIL PIPE
MANUAL CAB TILT<SHK> (B) M12 ELBOW 		0-92125-206-0 01 1 0608-
65 UNION; OIL PIPE
MANUAL CAB TILT<SHK> (C) M12 3WAY 		9-09228-606-1 01 1 0107-0607
65 UNION; OIL PIPE
MANUAL CAB TILT<SHK> (C) M12 3WAY 		0-92138-606-0 01 1 0608-
65 UNION; OIL PIPE
(A) M12 L=66.5 		9-09223-306-1 02 1 0107-0607
65 UNION; OIL PIPE
(A) M12 L=66.5 		0-92113-306-0 02 1 0608-
68 BRACKET; UNION
MANUAL CAB TILT<SHK> (B) 		1-53458-935-0 01 1 0107-
68 BRACKET; UNION
(A) 		1-47478-383-0 01 1 0107-
69 BOLT; BRKT
MANUAL CAB TILT<SHK> (B) M10X30 FLANGE 		0-28681-030-0 02 1 0107-0512
69 BOLT; BRKT
MANUAL CAB TILT<SHK> (B) M10X30 FLANGE 		0-28651-030-0 02 1 0601-
69 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 02 1 0107-0512
69 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0601-
176 NUT; UNION
M12 		9-09840-280-0 02 1 0107-
176 NUT; UNION
MANUAL CAB TILT<SHK> M12 		9-09840-280-0 02 1 0107-
178 CLIP; FLEX HOSE
(B) L=140 		5-09707-031-1 02 1 0107-
178 CLIP; FLEX HOSE
(A) ID=8 H=20 L=20 		1-09700-604-0 02 1 0107-
179 BOLT; CLIP,FLEX HOSE
M8X20 FLANGE 		0-28680-820-0 02 1 0107-0512
179 BOLT; CLIP,FLEX HOSE
M8X20 FLANGE 		0-28650-820-0 02 1 0601-
180 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0107-0602
180 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603-
202 BRACKET; CABLE END
MANUAL CAB TILT<SHK> 		1-53458-911-0 01 1 0107-
203 BOLT; BRKT,CABLE END
MANUAL CAB TILT<SHK> M8X20 FLANGE 		0-28680-820-0 02 1 0107-0512
203 BOLT; BRKT,CABLE END
MANUAL CAB TILT<SHK> M8X20 FLANGE 		0-28650-820-0 02 1 0601-
328 HOSE; OIL
MANUAL CAB TILT<SHK> 		1-09365-112-0 02 1 0107-

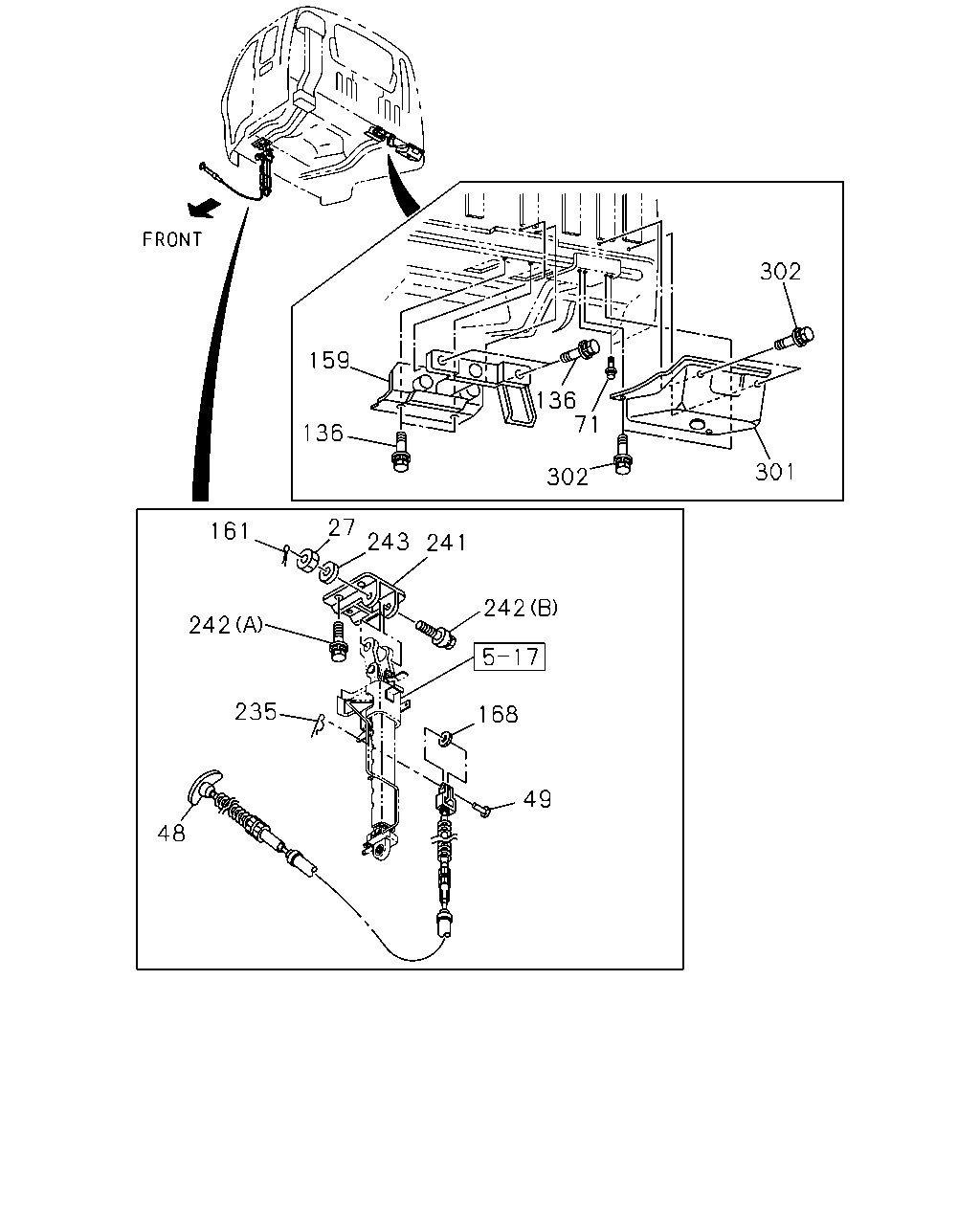

çizim 79494
27 243 241 242 168 49 48 235 242 161 136 159 302 71 136 301 302
BalonParca AdiParca NoAdetTipApplied Date
27 NUT; OIL CYL
M14 		9-99116-414-0 01 1 0107-0604
27 NUT; OIL CYL
M14 SLOTTED 		0-91116-514-0 01 1 0605-
48 CABLE ASM; CONT
L=2457 		1-62500-730-0 01 1 0107-
49 PIN; JAW FIX
OD=6 L=17 		9-08223-617-0 01 1 0107-0606
49 PIN; JAW FIX
OD=6 L=17 		0-82253-617-0 01 1 0607-
71 BOLT
M10X25 W/LK&PL WASHER 		8-94279-220-0 02 1 0107-0204
71 BOLT
M10X25 W/LK&PL WASHER 		1-09980-488-0 02 1 0205-
136 BOLT; CAB LK
M8X24.5 W/LK&PL WASHER 		8-94279-217-0 04 1 0107-
159 PIN 1-79717-627-1 01 1 0107-
161 PIN; SPLIT
OD=2.8 L=25 		9-08113-025-0 01 1 0107-0606
161 PIN; SPLIT
OD=2.8 L=25 		0-81123-025-0 01 1 0607-
168 WASHER; PL
ID=6.4 		9-09160-506-0 01 1 0107-
235 PIN; SNAP
L=21.2 		8-94157-840-0 01 1 0107-
241 BRACKET; POWER CYL UPR,CAB TILT 1-53458-338-1 01 1 0107-
242 BOLT; POWER CYL BRKT,CAB TILT
(A) M10X30 W/SP WASHER 		1-09980-546-0 05 1 0107-
242 BOLT; POWER CYL BRKT,CAB TILT
(B) M14X70 		1-53458-633-0 01 1 0107-
243 WASHER; LK,POWER CYL BRKT
ID=14.2 		9-09150-514-0 01 1 0107-0603
243 WASHER; LK,POWER CYL BRKT
ID=14.2 		0-91510-514-0 01 1 0604-
301 BRACKET; RR MTG,CAB 1-62570-866-1 02 1 0107-
302 BOLT; BRKT,CAB
M10X25 W/LK&PL WASHER 		8-94279-220-0 08 1 0107-0204
302 BOLT; BRKT,CAB
M10X25 W/LK&PL WASHER 		1-09980-488-0 08 1 0205-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
