5-01 — FRAME AND OTHER PARTS (#10034) — 82 parça

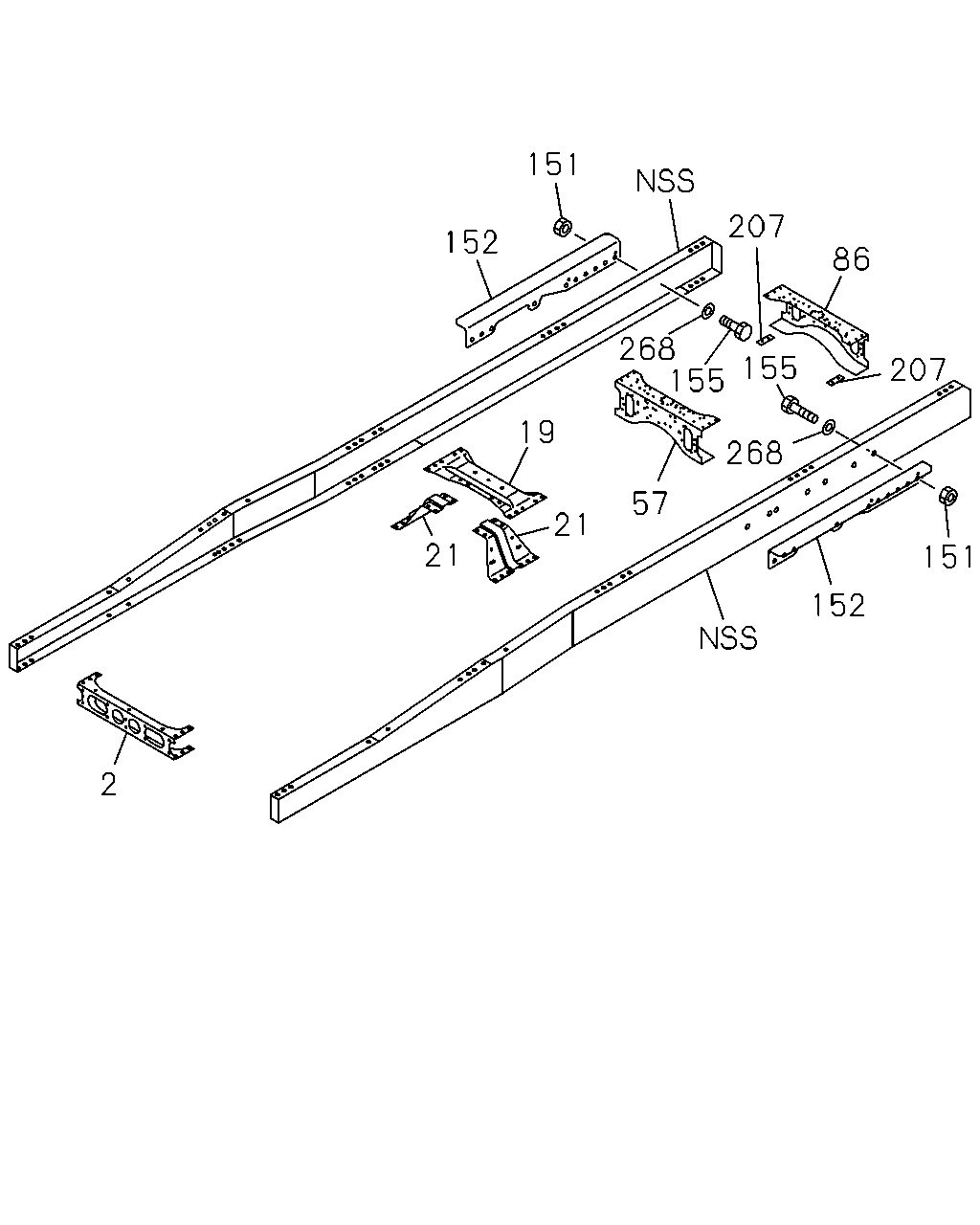

çizim 75129
152 151 207 207 86 155 155 268 268 152 151 57 19 21 21 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 MEMBER; CROSS,1ST 1-53181-526-4 01 1 0107- ● ●
19 MEMBER; CROSS,2ND 1-53174-231-1 01 1 0107- ● ●
21 GUSSET; 2ND CROSS 1-53164-212-0 02 1 0107- ● ●
57 MEMBER; CROSS,RR SUSP FRT 1-53181-319-8 01 1 0107- ● ●
86 MEMBER; CROSS,RR SUSP RR 1-53181-319-8 01 1 0107- ● ●
151 NUT; OUTRIGGER
M16 		9-99110-516-0 AR 1 0107-0512 ● ●
151 NUT; OUTRIGGER
M16 		0-91110-516-0 AR 1 0601- ● ●
152 OUTRIGGER 1-53456-373-1 01 1 0107-0502 ●
152 OUTRIGGER 1-53456-441-0 01 1 0503- ●
152 OUTRIGGER 1-53456-374-1 01 1 0107-0502 ●
152 OUTRIGGER 1-53456-442-0 01 1 0503- ●
152 OUTRIGGER 1-53456-298-3 01 1 0107- ●
152 OUTRIGGER 1-53456-299-3 01 1 0107- ●
155 BOLT; OUTRIGGER
M16X50 		9-92061-650-0 AR 1 0107-0512 ● ●
155 BOLT; OUTRIGGER
M16X50 		0-20951-650-0 AR 1 0601- ● ●
207 SPACER; 4TH C/MBR 1-53168-171-1 02 1 0107- ● ●
268 WASHER; PL,OUTRIGGER
ID=17 OD=30 		9-09851-935-0 AR 1 0107- ● ●

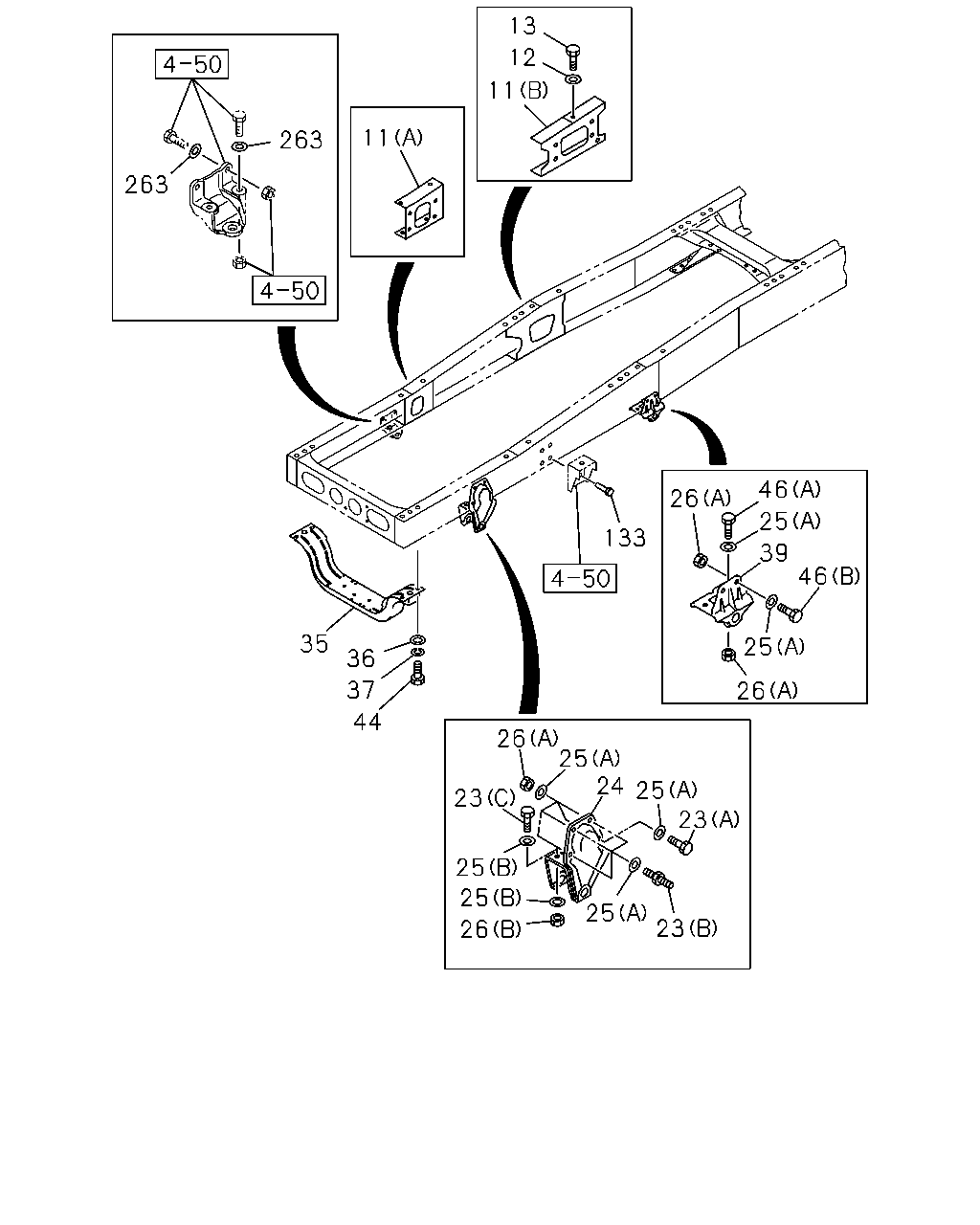

çizim 77811
263 263 11 11 12 13 35 44 37 36 26 133 46 25 46 39 26 25 25 24 25 26 23 25 25 26 25 23 23
BalonParca AdiParca NoAdetTipApplied Date A B
11 BRACKET; ENG MTG
(A) 		1-53219-783-1 01 1 0107- ● ●
11 BRACKET; ENG MTG
(A) 		1-53219-784-1 01 1 0107- ● ●
11 BRACKET; ENG MTG
(B) 		1-53219-867-0 01 1 0107- ● ●
11 BRACKET; ENG MTG
(B) 		1-53219-868-1 01 1 0107- ● ●
12 WASHER; PL,BRKT,ENG MTG
ID=15 		9-09651-069-0 AR 1 0107- ● ●
13 BOLT; BRKT,ENG MTG
M14X40 		9-92061-440-0 AR 1 0107-0512 ● ●
13 BOLT; BRKT,ENG MTG
M14X40 		0-20951-440-0 AR 1 0601- ● ●
23 BOLT; BRKT,SPR
(B) M12X35,M14X45 L=100 		1-09029-075-0 AR 1 0107- ● ●
23 BOLT; BRKT,SPR
(A) M14X40 		9-92061-440-0 AR 1 0107-0512 ● ●
23 BOLT; BRKT,SPR
(A) M14X40 		0-20951-440-0 AR 1 0601- ● ●
23 BOLT; BRKT,SPR
(C) M16X50 		9-92061-650-0 AR 1 0107-0512 ● ●
23 BOLT; BRKT,SPR
(C) M16X50 		0-20951-650-0 AR 1 0601- ● ●
24 BRACKET; FRT SPR,FRT 1-53351-219-0 01 1 0107- ● ●
24 BRACKET; FRT SPR,FRT 1-53351-220-0 01 1 0107- ● ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-223-0 AR 1 0107- ● ●
25 WASHER; PL,BRKT
(A) ID=15 		9-09651-069-0 AR 1 0107- ● ●
26 NUT; BRKT,SPR
(B) M16 		9-99110-516-0 AR 1 0107-0512 ● ●
26 NUT; BRKT,SPR
(B) M16 		0-91110-516-0 AR 1 0601- ● ●
26 NUT; BRKT,SPR
(A) M14 		9-99110-514-0 AR 1 0107-0512 ● ●
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 AR 1 0601- ● ●
35 MEMBER; UNDER 1-53174-263-2 01 1 0107- ● ●
36 WASHER; PL,UNDER MBR
ID=17 		9-09164-516-0 AR 1 0107- ● ●
37 WASHER; LK,UNDER MBR
ID=16.2 		9-09150-816-0 AR 1 0107-0603 ● ●
37 WASHER; LK,UNDER MBR
ID=16.2 		0-91510-816-0 AR 1 0604- ● ●
39 BRACKET; FRT SPR,RR 1-53352-146-0 01 1 0107- ● ●
39 BRACKET; FRT SPR,RR 1-53352-147-0 01 1 0107- ● ●
44 BOLT; UNDER MBR
M16X45 		9-92061-645-0 AR 1 0107- ● ●
46 BOLT; BRKT FIX
(B) M14X40 		9-92061-440-0 AR 1 0107-0512 ● ●
46 BOLT; BRKT FIX
(B) M14X40 		0-20951-440-0 AR 1 0601- ● ●
46 BOLT; BRKT FIX
(A) M14X50 		9-92061-450-0 AR 1 0107-0512 ● ●
46 BOLT; BRKT FIX
(A) M14X50 		0-20951-450-0 AR 1 0601- ● ●
133 RIVET; BRKT
D13X36 PLATED TAPER END 		9-06771-336-0 08 1 0107-0607 ● ●
133 RIVET; BRKT
D13X36 PLATED TAPER END 		0-67901-336-0 08 1 0608- ● ●
263 WASHER; PL,SUB FRAME
ID=15 		9-09651-069-0 AR 1 0107- ● ●

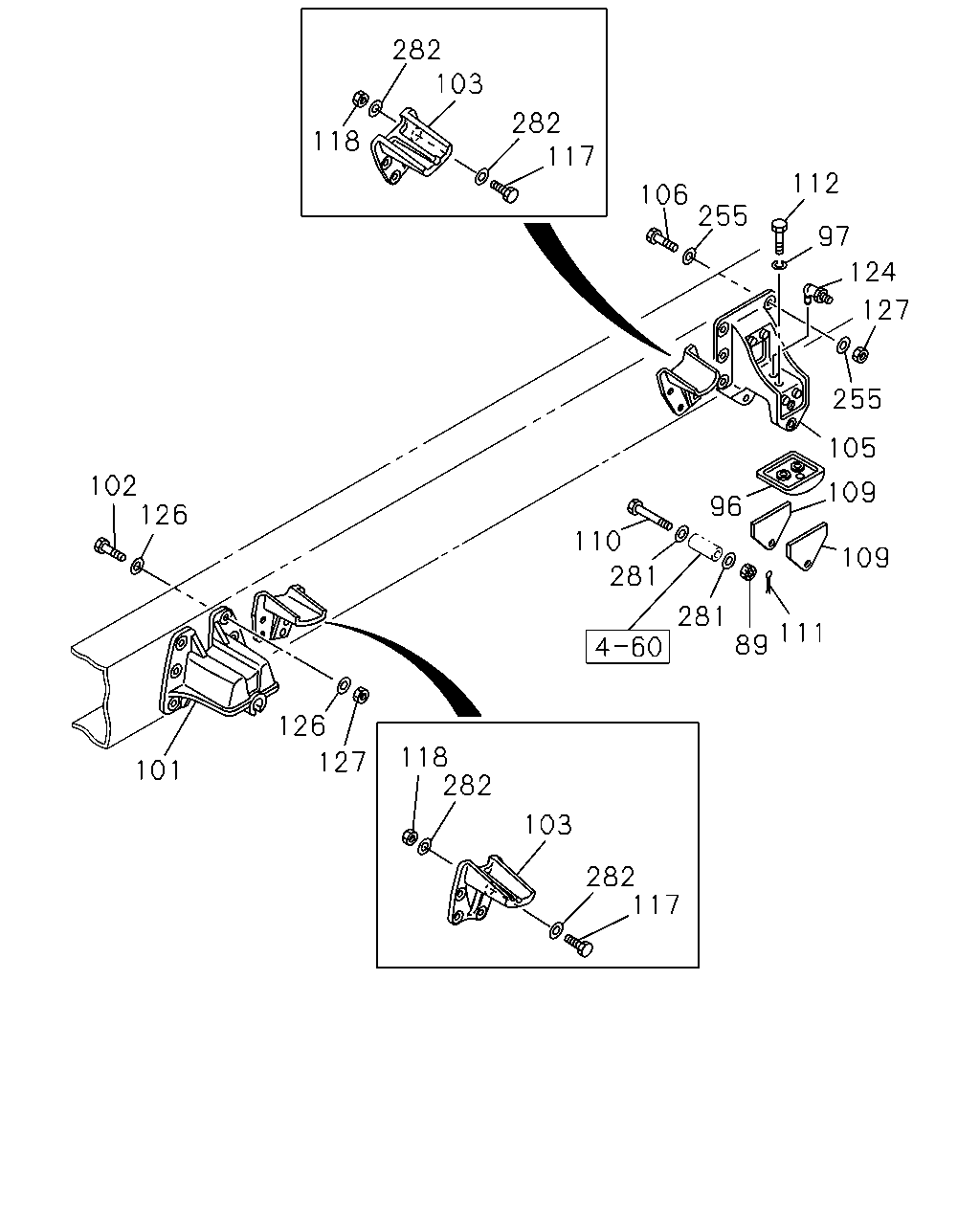

çizim 78303
118 282 117 282 103 106 112 255 124 97 127 255 105 96 110 281 281 89 111 109 109 117 282 103 282 118 127 126 101 126 102
BalonParca AdiParca NoAdetTipApplied Date A B
89 NUT; LEAF SPR STOPPER
M14 		9-99116-414-0 AR 1 0107-0603 ● ●
89 NUT; LEAF SPR STOPPER
M14 SLOTTED 		0-91116-514-0 AR 1 0604- ● ●
96 PAD; RR SPR 1-53359-047-0 02 1 0107- ● ●
97 WASHER; LK,PAD
ID=14.2 		9-09150-514-0 AR 1 0107-0603 ● ●
97 WASHER; LK,PAD
ID=14.2 		0-91510-514-0 AR 1 0604- ● ●
101 BRACKET; RR SPR,FRT 1-53353-081-2 02 1 0107- ● ●
102 BOLT; BRKT,RR SPR
M14X50 		9-92061-450-0 AR 1 0107-0512 ● ●
102 BOLT; BRKT,RR SPR
M14X50 		0-20951-450-0 AR 1 0601- ● ●
103 STOPPER; SUB SPR 1-53356-057-0 04 1 0107- ● ●
105 BRACKET; RR SPR,RR 1-53354-066-2 02 1 0107- ● ●
106 BOLT; BRKT
M14X50 		9-92061-450-0 AR 1 0107-0512 ● ●
106 BOLT; BRKT
M14X50 		0-20951-450-0 AR 1 0601- ● ●
109 SHIM; RR SPR
T=4.5 		1-53359-061-1 02 1 0107- ● ●
109 SHIM; RR SPR
T=3.2 		1-53359-062-1 02 1 0107- ● ●
110 BOLT; LEAF SPR STOPPER 1-09000-007-0 AR 1 0107- ● ●
111 PIN; SPLIT,LEAF SPR STOPPER
OD=2.8 L=28 		9-08113-028-0 02 1 0107-0606 ● ●
111 PIN; SPLIT,LEAF SPR STOPPER
OD=2.8 L=28 		0-81123-028-0 02 1 0607- ● ●
112 BOLT; PAD
M14X35 		9-92061-435-0 AR 1 0107-0512 ● ●
112 BOLT; PAD
M14X35 		0-20951-435-0 AR 1 0601- ● ●
117 BOLT; STOPPER
M14X40 		9-92061-440-0 AR 1 0107-0512 ● ●
117 BOLT; STOPPER
M14X40 		0-20951-440-0 AR 1 0601- ● ●
118 NUT; STOPPER
M14 		9-99110-514-0 AR 1 0107-0512 ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 AR 1 0601- ● ●
124 NIPPLE; GREASE
PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0107-0512 ● ●
124 NIPPLE; GREASE
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0601- ● ●
126 WASHER; PL,BRKT
ID=15 		9-09651-069-0 AR 1 0107- ● ●
127 NUT; BRKT
M14 		9-99110-514-0 AR 1 0107-0512 ● ●
127 NUT; BRKT
M14 		0-91110-514-0 AR 1 0601- ● ●
255 WASHER; PL,BRKT
ID=15 		9-09651-069-0 AR 1 0107- ● ●
281 WASHER; LEAF SPR STOPPER
ID=15 OD=30 		9-09160-614-0 AR 1 0107- ● ●
282 WASHER; PL,STOPPER
ID=15 		9-09651-069-0 AR 1 0107- ● ●
