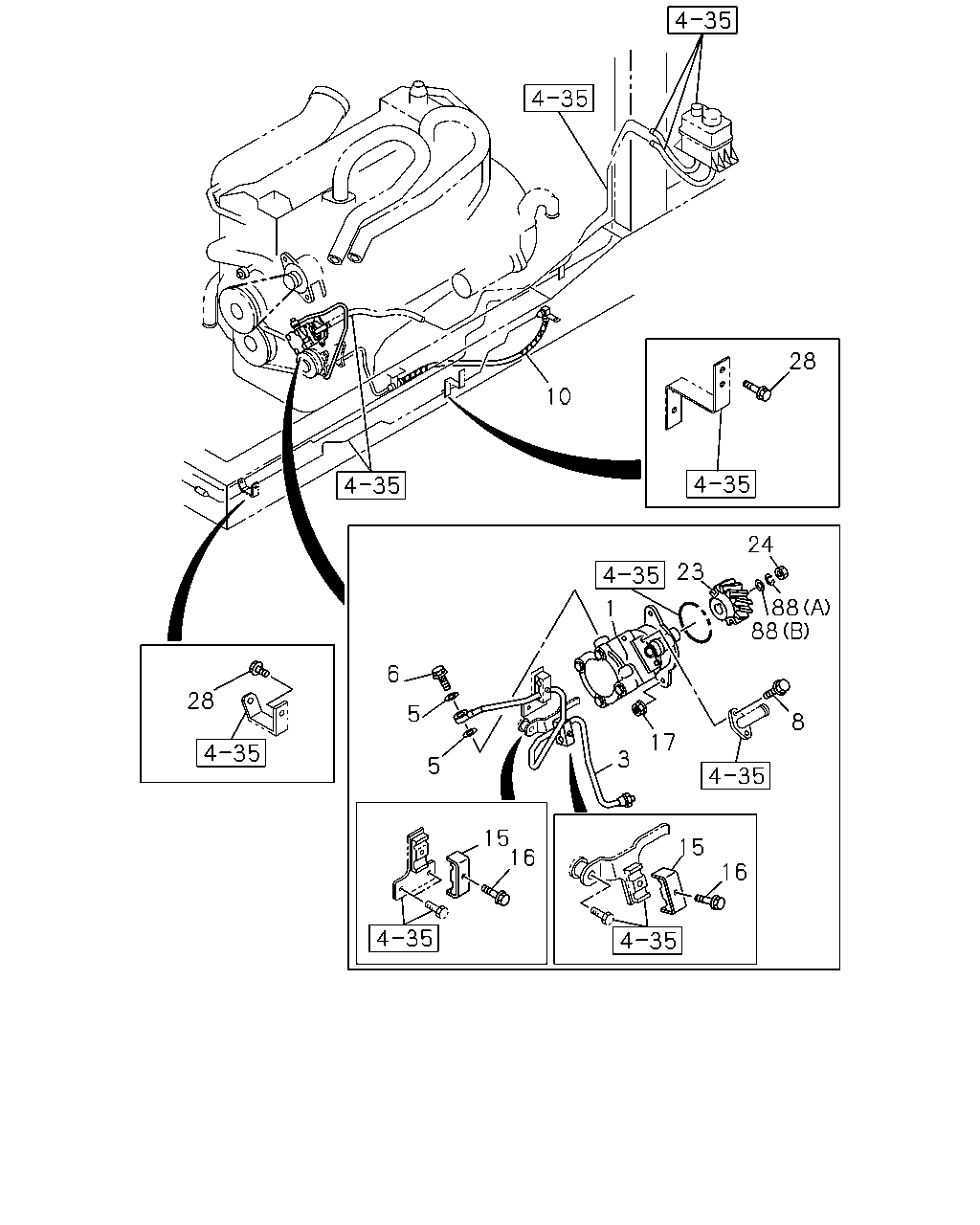

4-36 — POWER STEERING CONTROL; ENGINE SIDE (#10025) — 22 parça

10 28 23 24 88 8 88 17 3 5 5 6 28 15 16 15 16 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. STRG VARIABLE CONTROL<TFY>	1-19500-563-2	01	1	0107-
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. EXC. STRG VARIABLE CONTROL<TFY>	1-19500-561-2	01	1	0107-
3	PIPE; OIL,CHARGE,P/S STRG VARIABLE CONTROL<TFY>	1-13313-637-1	01	1	0107-
3	PIPE; OIL,CHARGE,P/S EXC. STRG VARIABLE CONTROL<TFY>	1-13313-773-1	01	1	0107-
5	GASKET; EYE BOLT,POWER STRG PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.2 OD=24.4	1-09630-087-0	02	1	0107-
6	BOLT; EYE,P/S PIPE M18X36	1-09675-174-0	01	1	0107-0306
6	BOLT; EYE,P/S PIPE M18X36	1-09675-205-0	01	1	0307-
8	BOLT; OIL PIPE M8X16 FLANGE	0-28080-816-0	02	1	0107-0512
8	BOLT; OIL PIPE M8X16 FLANGE	0-28050-816-0	02	1	0601-
10	HOSE; FLEX,P/S OIL PUMP,INL L=430	1-09365-045-0	01	1	0107-
15	CLIP; OIL PIPE SUCTION	1-09701-195-3	02	1	0107-
16	BOLT; STAY,P/S OIL PUMP M6X35 FLANGE	0-28680-635-0	02	1	0107-0512
16	BOLT; STAY,P/S OIL PUMP M6X35 FLANGE	0-28650-635-0	02	1	0601-
17	NUT; POWER STRG PUMP M10 FLANGE	0-91150-110-0	02	1	0107-0602
17	NUT; POWER STRG PUMP M10 FLANGE	0-91180-110-0	02	1	0603-
23	GEAR; OIL PUMP Z=20	1-19581-038-0	01	1	0107-0202
23	GEAR; OIL PUMP Z=20	1-19581-041-0	01	1	0203-
24	NUT; GEAR,P/S PUMP M16	9-19519-112-0	01	1	0107-
28	BOLT; BRKT,FLEX HOSE,P/S M8X30 FLANGE	0-28680-830-0	02	1	0107-0512
28	BOLT; BRKT,FLEX HOSE,P/S M8X30 FLANGE	0-28650-830-0	02	1	0601-
88	WASHER; GEAR,P/S PUMP (B)	1-19519-293-0	01	1	0107-
88	WASHER; GEAR,P/S PUMP (A)	9-09150-016-0	01	1	0107-
