◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10867 - EXR RHD FUEL TANK 400L ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-31 - STEERING COLUMN AND SHAFT ▶
4-31 — STEERING COLUMN AND SHAFT (#10022) — 40 parça

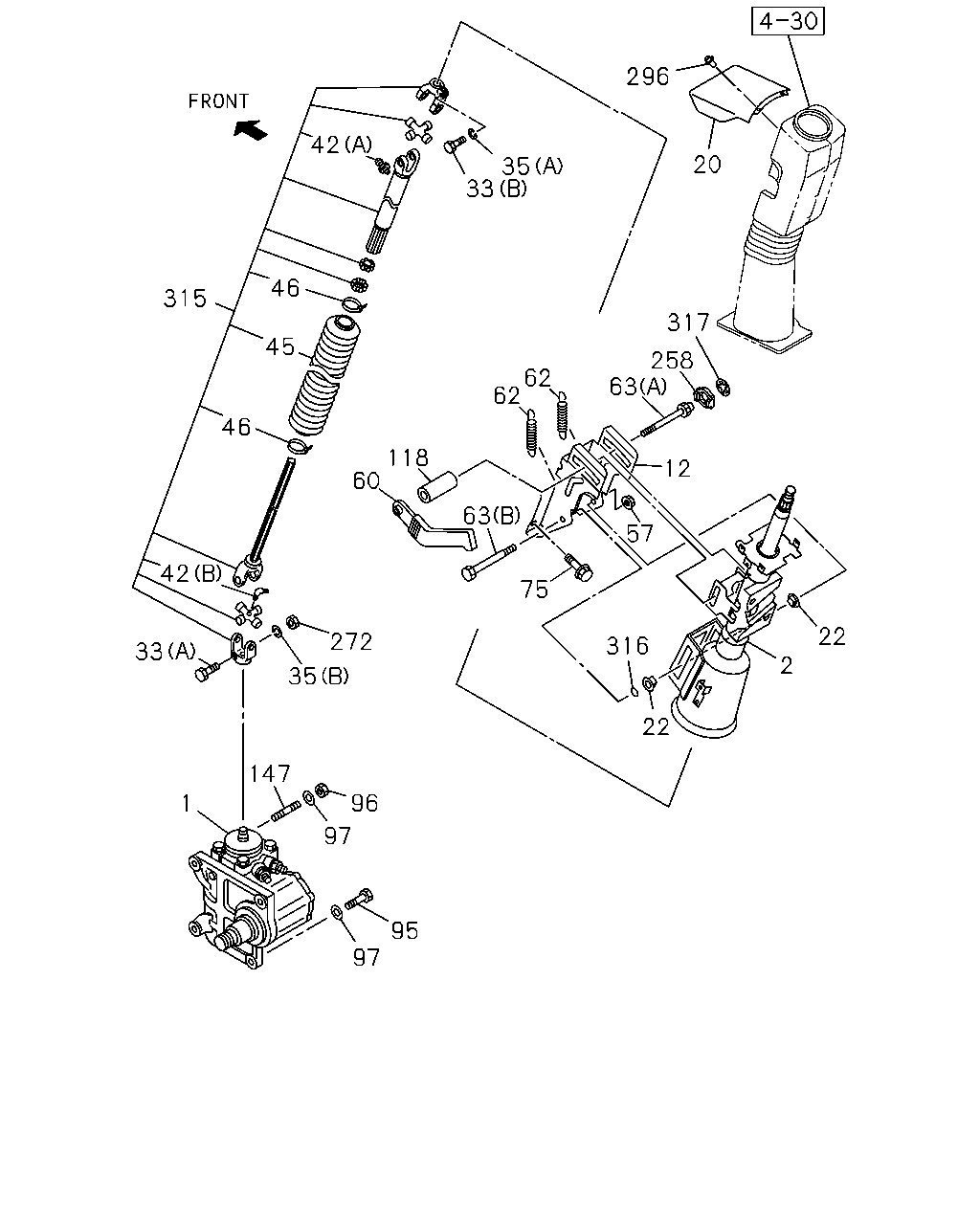

çizim 22032
296 20 35 33 42 315 46 46 45 60 118 62 62 63 75 272 35 33 42 1 147 97 96 97 95 22 316 2 22 57 12 63 258 317
BalonParca AdiParca NoAdetTipApplied Date
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. STRG VARIABLE CONTROL<TFY> 		1-44000-863-1 01 1 0107-0401
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. STRG VARIABLE CONTROL<TFY> 		1-44000-903-0 01 1 0402-
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. EXC. STRG VARIABLE CONTROL<TFY> 		1-44000-858-1 01 1 0107-0401
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. EXC. STRG VARIABLE CONTROL<TFY> 		1-44000-902-0 01 1 0402-
2 SHAFT ASM; STRG 1-44130-689-0 01 1 0107-
12 BRACKET; LWR,STRG COLUMN 1-44227-143-0 01 1 0107-
20 COVER; STRG SHAFT 1-72438-121-3 01 1 0107-
22 BUSHING; STRG COLUMN 1-44227-150-0 02 1 0107-
33 BOLT; STRG SHAFT TO UNIT
(A) M10X50 		1-09000-489-0 01 1 0107-
33 BOLT; STRG SHAFT TO UNIT
(B) 		1-44139-153-0 01 1 0107-
35 WASHER; LK,STRG SHAFT
(A) 		1-44139-154-0 01 1 0107-
35 WASHER; LK,STRG SHAFT
(B) ID=10.2 		9-09150-810-0 01 1 0107-0603
35 WASHER; LK,STRG SHAFT
(B) ID=10.2 		0-91510-810-0 01 1 0604-
42 NIPPLE; GREASE,SLEEVE YOKE
(A) STRAIGHT 		1-44135-375-0 01 1 0107-
42 NIPPLE; GREASE,SLEEVE YOKE
(B) ELBOW 		1-44135-376-0 01 1 0107-
45 BOOT; STRG SHAFT 1-44139-155-0 01 1 0107-
46 CLIP; BOOT 1-44139-156-0 02 1 0107-
57 NUT; ADJ BOLT 1-44227-151-0 01 1 0107-
60 LEVER; ADJ,STRG COLUMN 1-44227-144-0 01 1 0107-
62 SPRING; LK,LEVER 1-44227-153-0 02 1 0107-0111
62 SPRING; LK,LEVER 1-44227-153-0 01 1 0112-
63 BOLT; ADJ LEVER,TILT STRG
(A) 		1-44227-145-0 01 1 0107-
63 BOLT; ADJ LEVER,TILT STRG
(B) 		1-44227-149-0 01 1 0107-
75 BOLT; STRG COLUMN
M8X20 FLANGE 		0-28680-820-0 04 1 0107-0512
75 BOLT; STRG COLUMN
M8X20 FLANGE 		0-28650-820-0 04 1 0601-
95 BOLT; STRG UNIT
M18X65 		1-09000-583-0 03 1 0107-0409
95 BOLT; STRG UNIT
M18X60 		9-91066-860-0 03 1 0410-
96 NUT; STRG UNIT
M18 		9-99110-518-0 01 1 0107-0512
96 NUT; STRG UNIT
M18 		0-91110-518-0 01 1 0601-
97 WASHER; PL,STRG UNIT
ID=18 		9-09851-862-0 04 1 0107-
118 NUT; LEVER,TILT BOLT 1-44227-146-0 01 1 0107-0506
118 NUT; LEVER,TILT BOLT 1-44227-163-0 01 1 0507-
147 STUD; STRG UNIT
M18X49 L=76 		1-09300-107-0 01 1 0107-
258 STOPPER; STRG COLUMN,TILT & TELESCOPIC 1-44227-147-0 01 1 0107-
272 NUT; SHAFT TO YOKE
M10 		9-09110-510-0 01 1 0107-0512
272 NUT; SHAFT TO YOKE
M10 		0-91110-510-0 01 1 0601-
296 CLIP; COVER
D6X12.5 		8-94146-425-0 02 1 0107-
315 JOINT; SPLINE 1-44135-345-1 01 1 0107-
316 RING 1-44227-152-0 01 1 0107-
317 NUT; PUSH 1-44227-148-0 01 1 0107-
