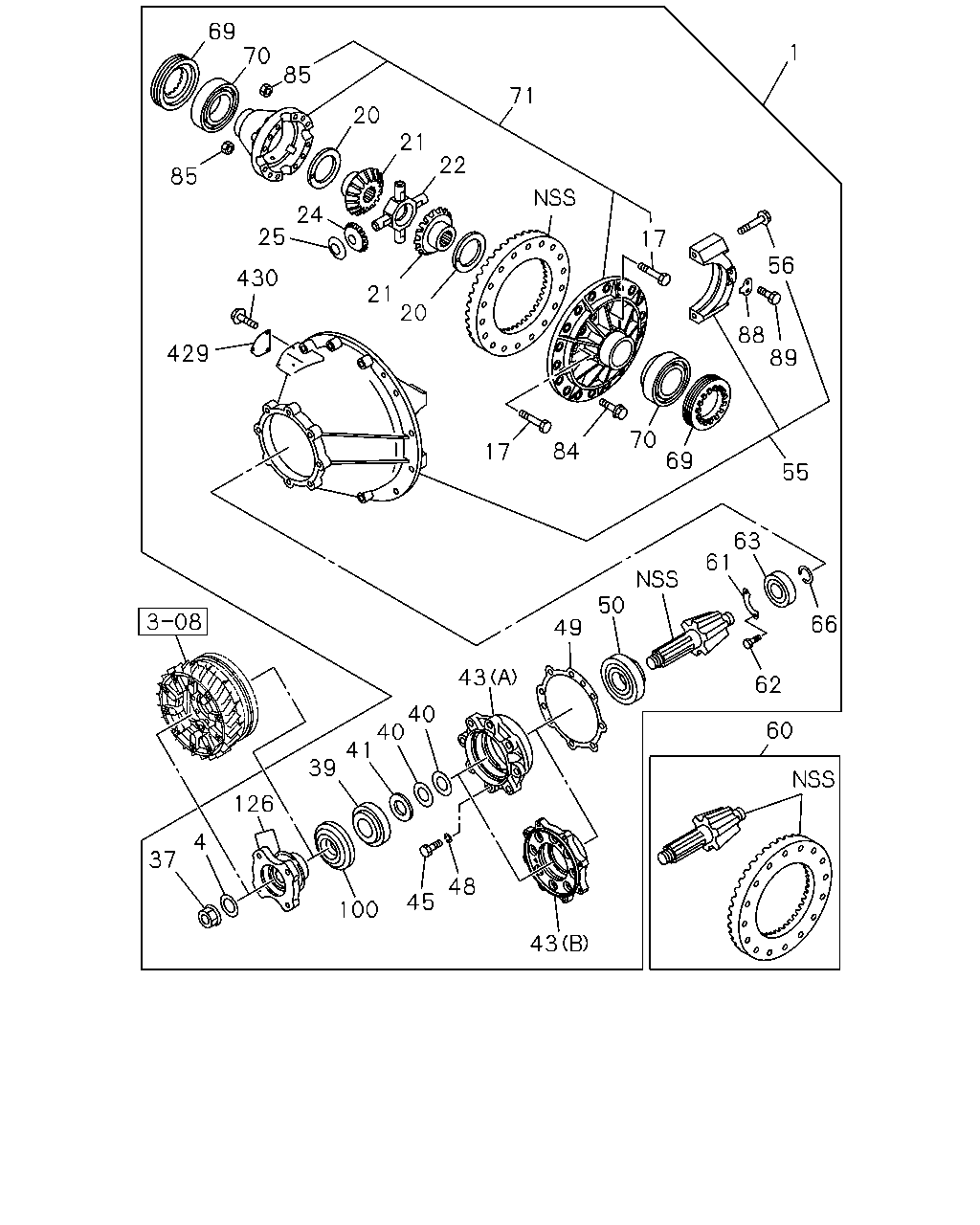

4-25 — REAR FINAL DRIVE (#10020) — 140 parça

1 71 22 21 20 85 70 69 85 430 25 24 429 21 20 17 56 88 89 70 84 17 55 69 63 61 66 62 60 43 48 45 100 37 4 126 39 41 40 40 43 49 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> 39/8	1-41002-694-0	01	1	0107-0312	●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> 39/8	1-41002-996-0	01	1	0401-	●
1	DRIVE ASM; FINAL,RR EXC. BRAKE SYSTEM RETARDER<RE2> 39/8	1-41002-395-0	01	1	0107-	●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> 41/8	1-41002-693-0	01	1	0107-0312		●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> 41/8	1-41002-995-0	01	1	0401-		●
1	DRIVE ASM; FINAL,RR EXC. BRAKE SYSTEM RETARDER<RE2> 41/8	1-41002-394-0	01	1	0107-		●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> 41/9	1-41002-695-0	01	1	0107-0312			●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> 41/9	1-41002-998-0	01	1	0401-			●
1	DRIVE ASM; FINAL,RR EXC. BRAKE SYSTEM RETARDER<RE2> 41/9	1-41002-396-0	01	1	0107-			●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> 41/10	1-41002-697-0	01	1	0107-0312				●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> 41/10	1-41003-002-0	01	1	0401-				●
1	DRIVE ASM; FINAL,RR EXC. BRAKE SYSTEM RETARDER<RE2> 41/10	1-41002-398-0	01	1	0107-				●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> 43/11	1-41002-698-0	01	1	0107-0312					●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> 43/11	1-41003-003-0	01	1	0401-					●
1	DRIVE ASM; FINAL,RR EXC. BRAKE SYSTEM RETARDER<RE2> 43/11	1-41002-399-0	01	1	0107-					●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> 39/9	1-41002-696-0	01	1	0107-0312						●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> 39/9	1-41003-001-0	01	1	0401-						●
1	DRIVE ASM; FINAL,RR EXC. BRAKE SYSTEM RETARDER<RE2> 39/9	1-41002-397-0	01	1	0107-						●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> 41/11	1-41002-699-0	01	1	0107-0312							●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> 41/11	1-41003-019-0	01	1	0401-							●
1	DRIVE ASM; FINAL,RR EXC. BRAKE SYSTEM RETARDER<RE2> 41/11	1-41002-304-0	01	1	0107-							●
4	GASKET; FLANGE,FINAL PINION ID=57	1-09623-386-0	01	1	0107-	●	●	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING M16X141 FLANGE	1-09070-013-0	08	1	0107-	●	●	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING M16X105 FLANGE	1-09070-014-0	04	1	0107-	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=2.8	1-41562-270-1	AR	1	0107-	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=2.9	1-41562-271-1	AR	1	0107-	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.0	1-41562-272-1	AR	1	0107-	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.1	1-41562-273-1	AR	1	0107-	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.2	1-41562-274-1	AR	1	0107-	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.3	1-41562-275-1	AR	1	0107-	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.4	1-41562-276-1	AR	1	0107-	●	●	●	●	●	●	●
21	GEAR; SIDE,DIFF Z=16	1-41561-114-0	02	1	0107-0405	●	●	●	●	●	●	●
21	GEAR; SIDE,DIFF Z=16	1-41561-142-0	02	1	0406-	●	●	●	●	●	●	●
22	SPIDER; DIFF PINION OD=35	1-41521-052-0	01	1	0107-	●	●	●	●	●	●	●
24	GEAR; PINION,DIFF Z=10	1-41551-034-0	04	1	0107-0405	●	●	●	●	●	●	●
24	GEAR; PINION,DIFF Z=10	1-41551-045-0	04	1	0406-	●	●	●	●	●	●	●
25	WASHER; THRUST,PINION T=1.6	1-41552-003-0	04	1	0107-	●	●	●	●	●	●	●
37	NUT; DRIVING PINION M46 FLANGE	1-09449-071-0	01	1	0107-	●	●	●	●	●	●	●
39	BEARING; FINAL PINION NSK	1-09812-075-0	01	1	0107-	●	●	●	●	●	●
39	BEARING; FINAL PINION JTEKT	1-09812-076-1	01	1	0107-	●	●	●	●	●	●
39	BEARING; FINAL PINION NSK	1-09812-073-1	01	1	0107-							●
39	BEARING; FINAL PINION JTEKT	1-09812-074-1	01	1	0107-							●
40	SHIM; FINAL PINION T=3.25	1-41229-245-0	AR	1	0107-	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.26	1-41229-246-0	AR	1	0107-	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.27	1-41229-247-0	AR	1	0107-	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.28	1-41229-248-0	AR	1	0107-	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.29	1-41229-249-0	AR	1	0107-	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.30	1-41229-250-0	AR	1	0107-	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.31	1-41229-251-0	AR	1	0107-	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.32	1-41229-252-0	AR	1	0107-	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.33	1-41229-253-0	AR	1	0107-	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.34	1-41229-254-0	AR	1	0107-	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.35	1-41229-255-0	AR	1	0107-	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.25	1-41229-309-0	AR	1	0107-							●
40	SHIM; FINAL PINION T=3.26	1-41229-310-0	AR	1	0107-							●
40	SHIM; FINAL PINION T=3.27	1-41229-311-0	AR	1	0107-							●
40	SHIM; FINAL PINION T=3.28	1-41229-312-0	AR	1	0107-							●
40	SHIM; FINAL PINION T=3.29	1-41229-313-0	AR	1	0107-							●
40	SHIM; FINAL PINION T=3.30	1-41229-314-0	AR	1	0107-							●
40	SHIM; FINAL PINION T=3.31	1-41229-315-0	AR	1	0107-							●
40	SHIM; FINAL PINION T=3.32	1-41229-316-0	AR	1	0107-							●
40	SHIM; FINAL PINION T=3.33	1-41229-317-0	AR	1	0107-							●
40	SHIM; FINAL PINION T=3.34	1-41229-336-0	AR	1	0107-							●
40	SHIM; FINAL PINION T=3.35	1-41229-337-0	AR	1	0107-							●
41	SPACER; FINAL DRIVE PINION BRG T=7.60	1-41229-237-0	AR	1	0107-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.80	1-41229-238-0	AR	1	0107-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.00	1-41229-239-0	AR	1	0107-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.20	1-41229-240-0	AR	1	0107-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.40	1-41229-241-0	AR	1	0107-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.60	1-41229-242-0	AR	1	0107-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.80	1-41229-243-0	AR	1	0107-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=9.00	1-41229-244-0	AR	1	0107-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.8	1-41229-302-0	AR	1	0107-0202							●
41	SPACER; FINAL DRIVE PINION BRG T=7.8	1-41229-363-0	AR	1	0203-							●
41	SPACER; FINAL DRIVE PINION BRG T=8.0	1-41229-303-0	AR	1	0107-0202							●
41	SPACER; FINAL DRIVE PINION BRG T=8.0	1-41229-364-0	AR	1	0203-							●
41	SPACER; FINAL DRIVE PINION BRG T=8.2	1-41229-304-0	AR	1	0107-0202							●
41	SPACER; FINAL DRIVE PINION BRG T=8.2	1-41229-365-0	AR	1	0203-							●
41	SPACER; FINAL DRIVE PINION BRG T=8.4	1-41229-305-0	AR	1	0107-0202							●
41	SPACER; FINAL DRIVE PINION BRG T=8.4	1-41229-366-0	AR	1	0203-							●
41	SPACER; FINAL DRIVE PINION BRG T=8.6	1-41229-306-0	AR	1	0107-0202							●
41	SPACER; FINAL DRIVE PINION BRG T=8.6	1-41229-367-0	AR	1	0203-							●
41	SPACER; FINAL DRIVE PINION BRG T=8.8	1-41229-307-0	AR	1	0107-0202							●
41	SPACER; FINAL DRIVE PINION BRG T=8.8	1-41229-368-0	AR	1	0203-							●
41	SPACER; FINAL DRIVE PINION BRG T=9.0	1-41229-308-0	AR	1	0107-0202							●
41	SPACER; FINAL DRIVE PINION BRG T=9.0	1-41229-369-0	AR	1	0203-							●
43	CAGE; FINAL PINION BRAKE SYSTEM RETARDER<RE2> (B)	1-41151-087-0	01	1	0107-	●	●	●	●	●	●
43	CAGE; FINAL PINION EXC. BRAKE SYSTEM RETARDER<RE2> (A) T=82	1-41151-057-0	01	1	0107-	●	●	●	●	●	●
43	CAGE; FINAL PINION BRAKE SYSTEM RETARDER<RE2> (B)	1-41151-095-0	01	1	0107-							●
43	CAGE; FINAL PINION EXC. BRAKE SYSTEM RETARDER<RE2> (A)	1-41151-079-0	01	1	0107-							●
45	BOLT; FINAL PINION CAGE M16X55	0-16806-655-0	08	1	0107-	●	●	●	●	●	●
45	BOLT; FINAL PINION CAGE M16X35	0-23801-635-0	08	1	0107-							●
48	WASHER; LK,FINAL PINION ID=16.2	9-09150-516-0	08	1	0107-0603	●	●	●	●	●	●	●
48	WASHER; LK,FINAL PINION ID=16.2	0-91510-516-0	08	1	0604-	●	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-077-0	AR	1	0107-	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=1.000	1-41154-078-0	AR	1	0107-	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-079-0	AR	1	0107-	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-080-0	AR	1	0107-	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-092-0	AR	1	0107-							●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-093-0	AR	1	0107-							●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-094-0	AR	1	0107-							●
49	SHIM; FINAL PINION CAGE T=1.00	1-41154-095-0	AR	1	0107-							●
50	BEARING; FINAL PINION NSK	1-09812-073-1	01	1	0107-	●	●	●	●	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-074-1	01	1	0107-	●	●	●	●	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-229-0	01	1	0107-							●
55	CARRIER; DIFF	1-41110-117-0	01	1	0107-	●	●	●	●	●	●
55	CARRIER; DIFF	1-41110-112-0	01	1	0107-							●
56	BOLT; BRG CAP M20X125 FLANGE	1-09070-015-0	04	1	0107-	●	●	●	●	●	●	●
60	GEAR SET; FINAL DRIVE,RR 39/8	1-41210-618-0	01	1	0107-	●
60	GEAR SET; FINAL DRIVE,RR 41/8	1-41210-617-0	01	1	0107-		●
60	GEAR SET; FINAL DRIVE,RR 41/9	1-41210-619-0	01	1	0107-			●
60	GEAR SET; FINAL DRIVE,RR 41/10	1-41210-621-0	01	1	0107-				●
60	GEAR SET; FINAL DRIVE,RR 43/11	1-41210-622-0	01	1	0107-					●
60	GEAR SET; FINAL DRIVE,RR 39/9	1-41210-620-0	01	1	0107-						●
60	GEAR SET; FINAL DRIVE,RR 41/11	1-41210-570-0	01	1	0107-							●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-008-0	01	1	0107-	●	●	●	●	●	●
62	BOLT; RET M8X16	0-20800-816-0	02	1	0107-0512	●	●	●	●	●	●
62	BOLT; RET M8X16	0-20850-816-0	02	1	0601-	●	●	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-152-0	01	1	0107-	●	●	●	●	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-153-0	01	1	0107-	●	●	●	●	●	●
63	BEARING; PINION PILOT	1-09810-244-0	01	1	0107-							●
66	RING; SNAP,PILOT BRG OD=45.9	1-09588-061-0	01	1	0107-	●	●	●	●	●	●
66	RING; SNAP,PILOT BRG ID=41.9	1-09588-075-1	01	1	0107-							●
69	NUT; ADJ,DIFF CAGE	1-41121-050-0	01	1	0107-	●	●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-051-0	01	1	0107-	●	●	●	●	●	●	●
70	BEARING; DIFF CAGE JTEKT ID=110 OD=170 T=38	1-09812-226-0	02	1	0107-	●	●	●	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-253-0	01	1	0107-	●	●	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-251-0	01	1	0107-							●
84	BOLT; FINAL DRIVE GEAR M18X38 FLANGE	1-09009-049-1	18	1	0107-	●	●	●	●	●	●	●
85	NUT; DIFF CAGE SETTING M16	9-99110-516-0	12	1	0107-0512	●	●	●	●	●	●	●
85	NUT; DIFF CAGE SETTING M16	0-91110-516-0	12	1	0601-	●	●	●	●	●	●	●
88	PLATE; LK,ADJ NUT T=3.2	1-41124-026-0	02	1	0107-	●	●	●	●	●	●	●
89	BOLT; LK PLATE M10X20 FLANGE	0-28781-020-0	04	1	0107-0512	●	●	●	●	●	●	●
89	BOLT; LK PLATE M10X20 FLANGE	0-28751-020-0	04	1	0601-	●	●	●	●	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-322-0	01	1	0107-	●	●	●	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-616-0	01	1	0107-							●
126	COUPLING; DRIVING PINION EXC. BRAKE SYSTEM RETARDER<RE2>	1-37245-343-0	01	1	0107-	●	●	●	●	●	●	●
429	PLATE; DUMMY	1-41279-014-0	01	1	0107-	●	●	●	●	●	●	●
430	BOLT; PLATE,DUMMY M8X20 FLANGE	0-28680-820-0	03	1	0107-0512	●	●	●	●	●	●	●
430	BOLT; PLATE,DUMMY M8X20 FLANGE	0-28650-820-0	03	1	0601-	●	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
