8-28 — CHASSIS ELECTRICAL (#1002) — 53 parça
çizim 93968
46 45 49 44 33 35 39 37 34 34 36 41 38
BalonParca AdiParca NoAdetTipApplied Date A B
33 VALVE; MAG,PTO CONT
PTO CONTROL AIR LINK TYPE<SEC>,PTO CONTROL<SV6> 		1-82563-154-0 01 1 9202- ● ●
34 CONNECTOR; MAG VLV,INL PORT
EXHAUST BRAKE<NF8> PTO CONTROL AIR LINK TYPE<SEC>,PTO CONTROL<SV6> (A) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 9202- ● ●
34 CONNECTOR; MAG VLV,INL PORT
PTO CONTROL AIR LINK TYPE<SEC>,PTO CONTROL<SV6> EXC. EXHAUST BRAKE<NF8>,DUAL AIR GAUGE<UG2> (A) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 9202- ● ●
34 CONNECTOR; MAG VLV,INL PORT
PTO CONTROL AIR LINK TYPE<SEC>,PTO CONTROL<SV6> DUAL AIR GAUGE<UG2> EXC. EXHAUST BRAKE<NF8> (A) PT1/4 & M12 ELBOW 		1-09650-117-1 01 1 9202-9302 ● ●
34 CONNECTOR; MAG VLV,INL PORT
PTO CONTROL AIR LINK TYPE<SEC>,PTO CONTROL<SV6> DUAL AIR GAUGE<UG2> EXC. EXHAUST BRAKE<NF8> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9303- ● ●
34 CONNECTOR; MAG VLV,INL PORT
PTO CONTROL AIR LINK TYPE<SEC>,PTO CONTROL<SV6> (B) M20 & PT1/4 ELBOW 		1-09660-137-0 01 1 9202-9302 ● ●
34 CONNECTOR; MAG VLV,INL PORT
PTO CONTROL AIR LINK TYPE<SEC>,PTO CONTROL<SV6> (B) M20 & PT1/4 ELBOW 		1-09660-681-0 01 1 9303- ● ●
35 BRACKET; MAG VLV,PTO CONT
PTO CONTROL AIR LINK TYPE<SEC>,PTO CONTROL<SV6> 		1-82569-110-3 01 1 9202- ● ●
36 BOLT; MAG VLV,PTO CONT
PTO CONTROL AIR LINK TYPE<SEC>,PTO CONTROL<SV6> M8X22 FLANGE 		0-28010-822-0 02 1 9202-9204 ● ●
36 BOLT; MAG VLV,PTO CONT
PTO CONTROL AIR LINK TYPE<SEC>,PTO CONTROL<SV6> M8X22 FLANGE 		0-28080-822-0 02 1 9205-9207 ● ●
36 BOLT; MAG VLV,PTO CONT
PTO CONTROL AIR LINK TYPE<SEC>,PTO CONTROL<SV6> M8X25 FLANGE 		0-28080-825-0 02 1 9208- ● ●
37 NUT; MAG VLV,PTO CONT
PTO CONTROL AIR LINK TYPE<SEC>,PTO CONTROL<SV6> M8 		9-09110-408-0 02 1 9202- ● ●
38 CLIP; MAG VLV HARNESS
PTO CONTROL AIR LINK TYPE<SEC>,PTO CONTROL<SV6> L=63 		1-09700-418-1 01 1 9202- ● ●
39 BOLT; BRKT,MAG VLV
PTO CONTROL AIR LINK TYPE<SEC>,PTO CONTROL<SV6> M8X30 FLANGE 		0-28010-830-0 02 1 9202-9204 ● ●
39 BOLT; BRKT,MAG VLV
PTO CONTROL AIR LINK TYPE<SEC>,PTO CONTROL<SV6> M8X30 FLANGE 		0-28080-830-0 02 1 9205- ● ●
41 NUT; BRKT,MAG VLV
PTO CONTROL AIR LINK TYPE<SEC>,PTO CONTROL<SV6> M8 		9-09110-408-0 02 1 9202- ● ●
44 HORN; HIGH NOTE 1-83410-053-1 01 1 9202- ● ●
45 HORN; LOW NOTE 1-83410-054-1 01 1 9202- ● ●
46 BOLT; HORN TO BODY
M8X25 FLANGE 		0-28080-825-0 02 1 9202- ● ●
49 NUT; HORN TO BODY
FRONT STABILIZER SHAFT<F59> M8 		9-09110-408-0 01 1 9202-9210 ● ●
49 NUT; HORN TO BODY
FRONT STABILIZER SHAFT<F59> M8 FLANGE 		5-09440-005-0 01 1 9211- ● ●
49 NUT; HORN TO BODY
EXC. FRONT STABILIZER SHAFT<F59> M8 		9-09110-408-0 02 1 9202-9210 ● ●
49 NUT; HORN TO BODY
EXC. FRONT STABILIZER SHAFT<F59> M8 FLANGE 		5-09440-005-0 02 1 9211- ● ●

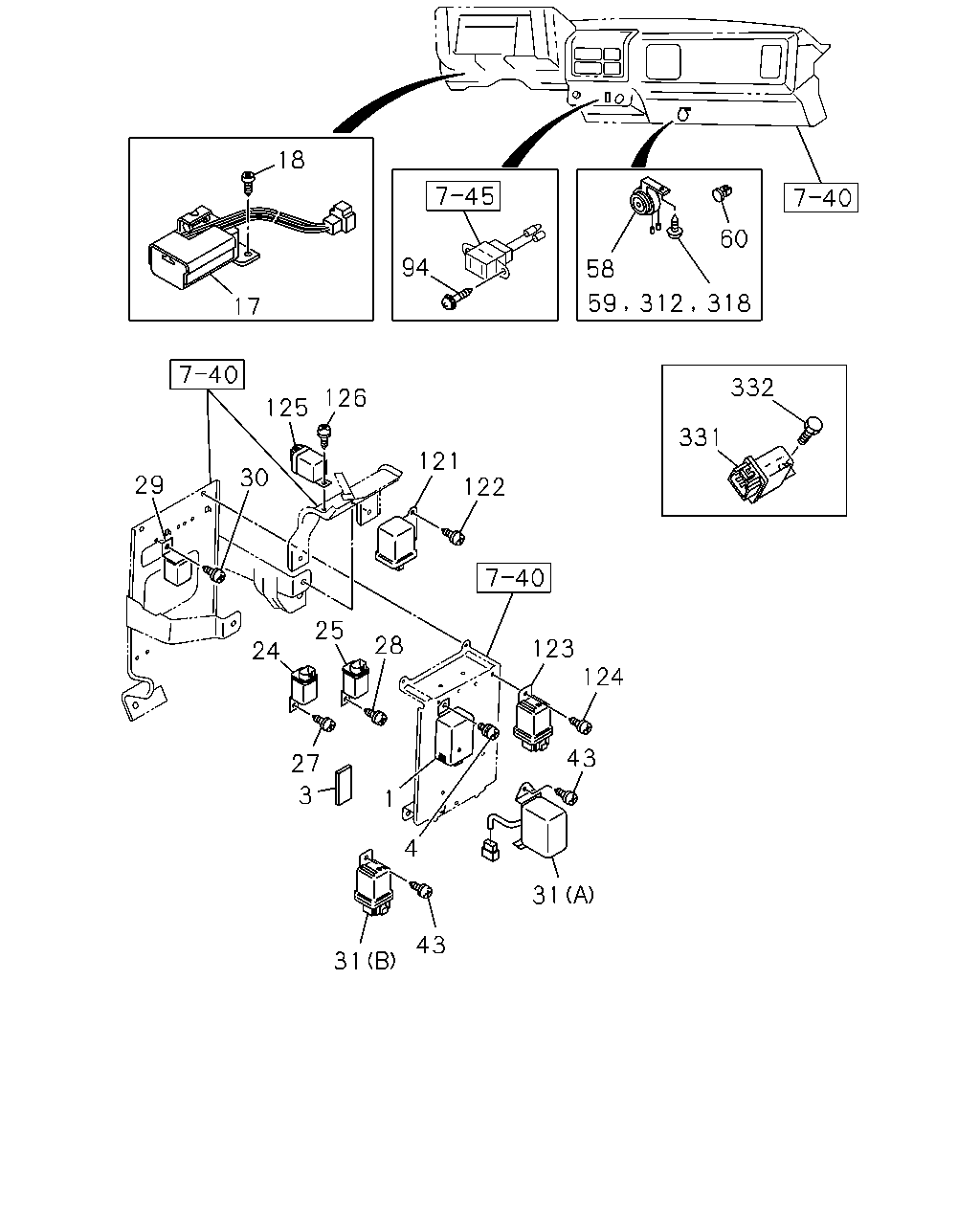

çizim 94294
18 60 94 58 59 312 318 17 332 126 125 331 121 122 30 29 25 28 123 124 24 43 27 3 1 4 31 43 31
BalonParca AdiParca NoAdetTipApplied Date A B
1 UNIT; FLASHER 1-83470-034-1 01 1 9202- ● ●
3 SEAL; SILENT,RELAY 1-73368-001-0 01 1 9202- ● ●
4 SCREW; FLASHER UNIT
M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9202- ● ●
17 TIMER; SEAT BELT
SAUDI ARABIA EQUIPMENT(WH1) 		1-82550-183-1 01 1 9202- ● ●
18 SCREW; TIMER
SAUDI ARABIA EQUIPMENT(WH1) M5X14 TAPPING W/PL WASHER 		0-74100-514-0 02 1 9202- ● ●
24 RELAY; LIGHTING
24V 		1-82550-176-0 02 1 9202- ● ●
25 RELAY; TAIL LAMP
24V 		1-82550-176-0 01 1 9202- ● ●
27 SCREW; SET,LIGHTING RELAY
M5X14 TAPPING W/PL WASHER 		0-74100-514-0 02 1 9202- ● ●
28 SCREW; SET,TAIL LAMP RELAY
M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9202- ● ●
29 RELAY; HORN 1-83420-001-0 01 1 9202- ● ●
30 SCREW; HORN RELAY TO DASH SIDE
M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9202- ● ●
31 RELAY; PTO CONT
PTO CONTROL AIR LINK TYPE<SEC>,PTO CONTROL<SV6> (A) 24V 		1-82550-187-1 01 1 9202- ● ●
31 RELAY; PTO CONT
PTO CONTROL AIR LINK TYPE<SEC>,PTO CONTROL<SV6> (B) 24V 12.5A JIDECO 		1-82550-197-0 01 1 9202- ● ●
43 SCREW; PTO RELAY
PTO CONTROL AIR LINK TYPE<SEC>,PTO CONTROL<SV6> M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9202- ● ●
43 SCREW; PTO RELAY
PTO CONTROL AIR LINK TYPE<SEC>,PTO CONTROL<SV6> M5X14 TAPPING W/PL WASHER 		0-74100-514-0 02 1 9202- ● ●
58 BUZZER; AIR PRESSURE WARNING 1-83460-022-0 01 1 9202- ● ●
59 SCREW; BUZZER
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9202- ● ●
60 GROMMET; SCREW,BUZZER
D=7X7 L=7.5 		5-09983-007-0 01 1 9202- ● ●
94 SCREW; CONSENT TO BLIND PNL
M5X14 W/PL WASHER 		5-09981-050-0 02 1 9202- ● ●
121 RELAY; PARKING BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82550-070-0 01 1 9202-9403 ● ●
121 RELAY; PARKING BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82550-285-0 01 1 9404- ● ●
122 SCREW; PARKING BRK RELAY
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9202- ● ●
123 RELAY; HTR
HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 24V 		1-82550-176-0 01 1 9202- ● ●
124 SCREW; SET,HTR RELAY
HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9202- ● ●
125 RELAY; STROKE,BRAKE LINING WARNING 5-82550-046-0 01 1 9202- ● ●
126 SCREW; STROKE RELAY,BRAKE LINING WARNI
M6X16 W/LK&PL WASHER 		1-09981-141-0 01 1 9202- ● ●
312 BOLT; BUZZER
M6X14 W/LK&PL WASHER 		8-94279-142-0 01 1 9309-9501 ● ●
318 SCREW; BUZZER
SAUDI ARABIA EQUIPMENT(WH1) M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9202- ● ●
331 RELAY; A/C
AIR CON MANUAL CONTROL(C60) 24V 		1-82550-176-0 01 1 9202- ● ●
332 SCREW; A/C RELAY
AIR CON MANUAL CONTROL(C60) M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9202- ● ●
