3-77 — BRAKE PIPING; AIR,REAR (#10012) — 160 parça

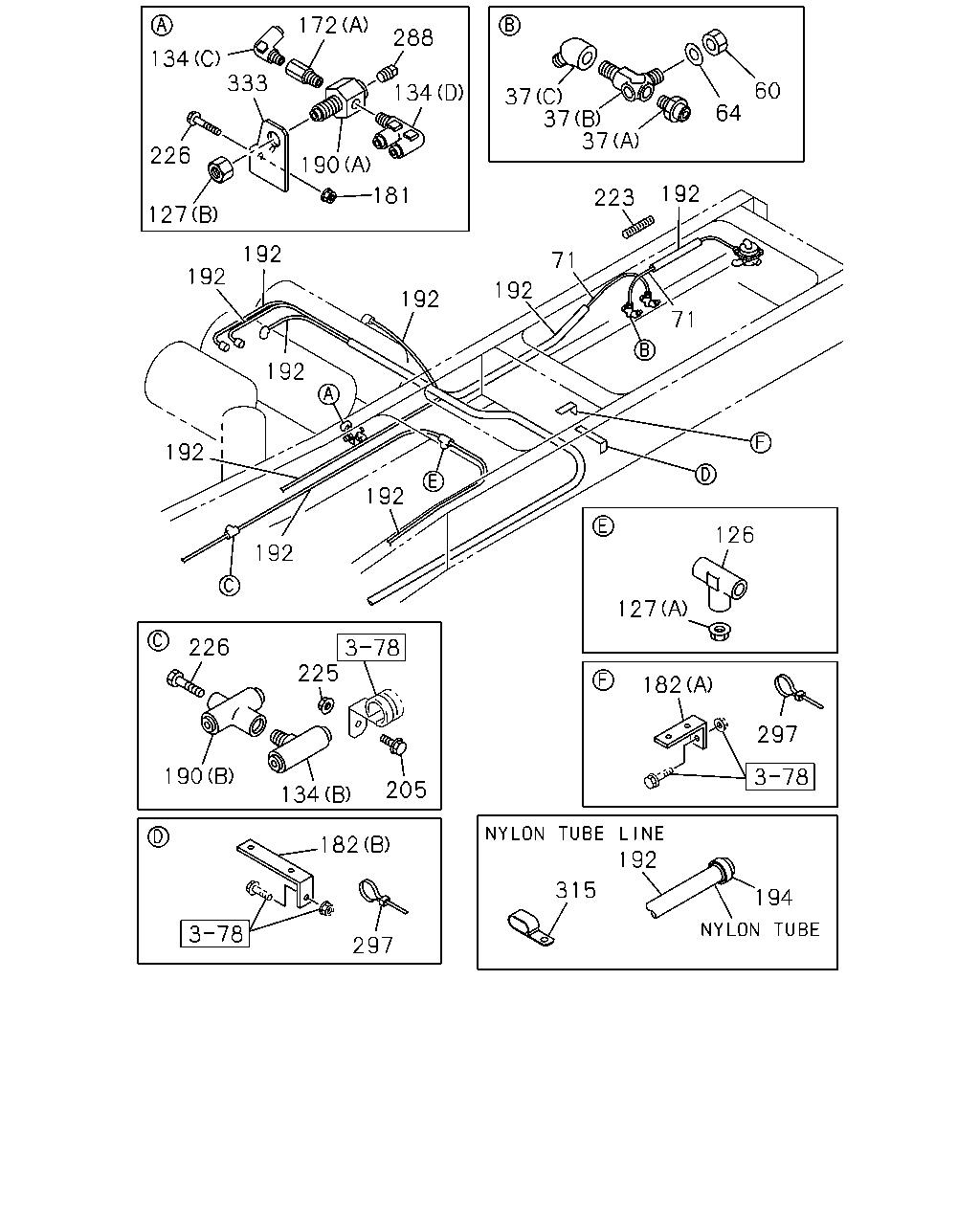

çizim 22943
134 172 333 226 181 190 127 134 288 192 192 192 192 192 192 192 192 192 194 190 60 64 37 37 37 71 223 71 126 127 182 297 192 315 297 182 134 205 225 226
BalonParca AdiParca NoAdetTipApplied Date
37 UNION; AIR PIPE
EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) M27 & PT3/8 STRAIGHT 		1-09650-250-0 02 1 0107-
37 UNION; AIR PIPE
EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) 		1-09650-251-1 02 1 0107-
37 UNION; AIR PIPE
EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) R3/8 ELBOW 45 DEGREES 		1-09664-209-0 02 1 0107-
60 NUT; NIPPLE,AIR PIPE
EXC. ANTILOCK BRAKE SYSTEM(BFA) M20 		9-99111-420-0 02 1 0107-0512
60 NUT; NIPPLE,AIR PIPE
EXC. ANTILOCK BRAKE SYSTEM(BFA) M20 		0-91111-520-0 02 1 0601-
64 GASKET; FLEX HOSE
ANTILOCK BRAKE SYSTEM(BFA) ID=11 OD=18 		9-09572-510-0 06 1 0107-
64 GASKET; FLEX HOSE
EXC. ANTILOCK BRAKE SYSTEM(BFA) ID=17.5 		9-09572-515-0 02 1 0107-
64 GASKET; FLEX HOSE
EXC. ANTILOCK BRAKE SYSTEM(BFA) ID=17.5 		9-09572-515-0 02 1 0107-
71 HOSE; FLEX,RWD RR
ANTILOCK BRAKE SYSTEM(BFA) L=630 		0-07847-630-1 03 1 0107-0605
71 HOSE; FLEX,RWD RR
ANTILOCK BRAKE SYSTEM(BFA) L=630 		0-57847-630-1 03 1 0606-
71 HOSE; FLEX,RWD RR
EXC. ANTILOCK BRAKE SYSTEM(BFA) L=550 		0-07909-550-0 02 1 0107-0607
71 HOSE; FLEX,RWD RR
EXC. ANTILOCK BRAKE SYSTEM(BFA) L=550 		0-57909-550-0 02 1 0608-
126 UNION; NYLON TUBE
DIN8X2 & M8 2WAY 		1-09661-133-0 01 1 0107-
127 NUT; UNION
(A) M8X20 FLANGE 		0-28080-820-0 01 1 0107-0512
127 NUT; UNION
(A) M8X20 FLANGE 		0-28050-820-0 01 1 0601-
127 NUT; UNION
(B) M22 		9-09111-422-0 01 1 0107-0512
127 NUT; UNION
(B) M22 		0-91111-522-0 01 1 0601-
134 CONNECTOR
ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0107-
134 CONNECTOR
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0107-
134 CONNECTOR
(B) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0107-
134 CONNECTOR
(D) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 0107-
172 ADAPTER; UNION
(A) PT3/8 		1-48319-058-0 01 1 0107-
172 ADAPTER; UNION
EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & M20 STRAIGHT 		1-09660-877-0 02 1 0107-
181 NUT; TUBE UNION
M8 FLANGE 		0-91150-108-0 02 1 0107-0602
181 NUT; TUBE UNION
M8 FLANGE 		0-91180-108-0 02 1 0603-
182 BRACKET; TUBE CLIP
(A) L=60 H=30 		1-47477-716-1 01 1 0107-
182 BRACKET; TUBE CLIP
(B) L=90 		1-47477-755-1 01 1 0107-
190 UNION; 3 WAY
(A) 		1-09661-064-0 01 1 0107-
190 UNION; 3 WAY
(B) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0107-
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 0107-
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 0107-0606
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0107-
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0107-
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0607-
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0607-
194 SLEEVE; TUBE
ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE SYSTEM RETARDER<RE2> ID=10 OD=14 L=30 		9-09956-682-0 01 1 0107-
194 SLEEVE; TUBE
BRAKE SYSTEM RETARDER<RE2> EXC. ANTILOCK BRAKE SYSTEM(BFA) ID=23 OD=27 L=40 		1-09337-015-0 03 1 0107-
205 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0107-0512
205 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0601-
205 BOLT; TUBE CLIP
M8X16 FLANGE 		0-28080-816-0 02 1 0107-0512
205 BOLT; TUBE CLIP
M8X16 FLANGE 		0-28050-816-0 02 1 0601-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 0107-0606
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 0107-0606
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87410-094-0 AR 1 0107-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87410-096-0 AR 1 0107-0606
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0607-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0607-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87411-029-0 AR 1 0607-
225 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 01 1 0107-0602
225 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-
226 BOLT; UNION
M8X20 FLANGE 		0-28080-820-0 01 1 0107-0512
226 BOLT; UNION
M8X20 FLANGE 		0-28050-820-0 01 1 0601-
226 BOLT; UNION
M8X30 FLANGE 		0-28680-830-0 02 1 0107-0512
226 BOLT; UNION
M8X30 FLANGE 		0-28650-830-0 02 1 0601-
226 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0107-
288 PLUG
PT1/4 		9-99204-513-0 01 1 0107-
297 CLIP; BAND
ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE SYSTEM RETARDER<RE2> L=140 		5-09707-031-1 01 1 0107-
297 CLIP; BAND
L=250 		1-09707-126-0 02 1 0107-
315 CLIP
ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE SYSTEM RETARDER<RE2> ID=11X2 L=20 		1-09700-871-0 01 1 0107-
333 BRACKET; CONNECTOR 1-47478-839-1 01 1 0107-

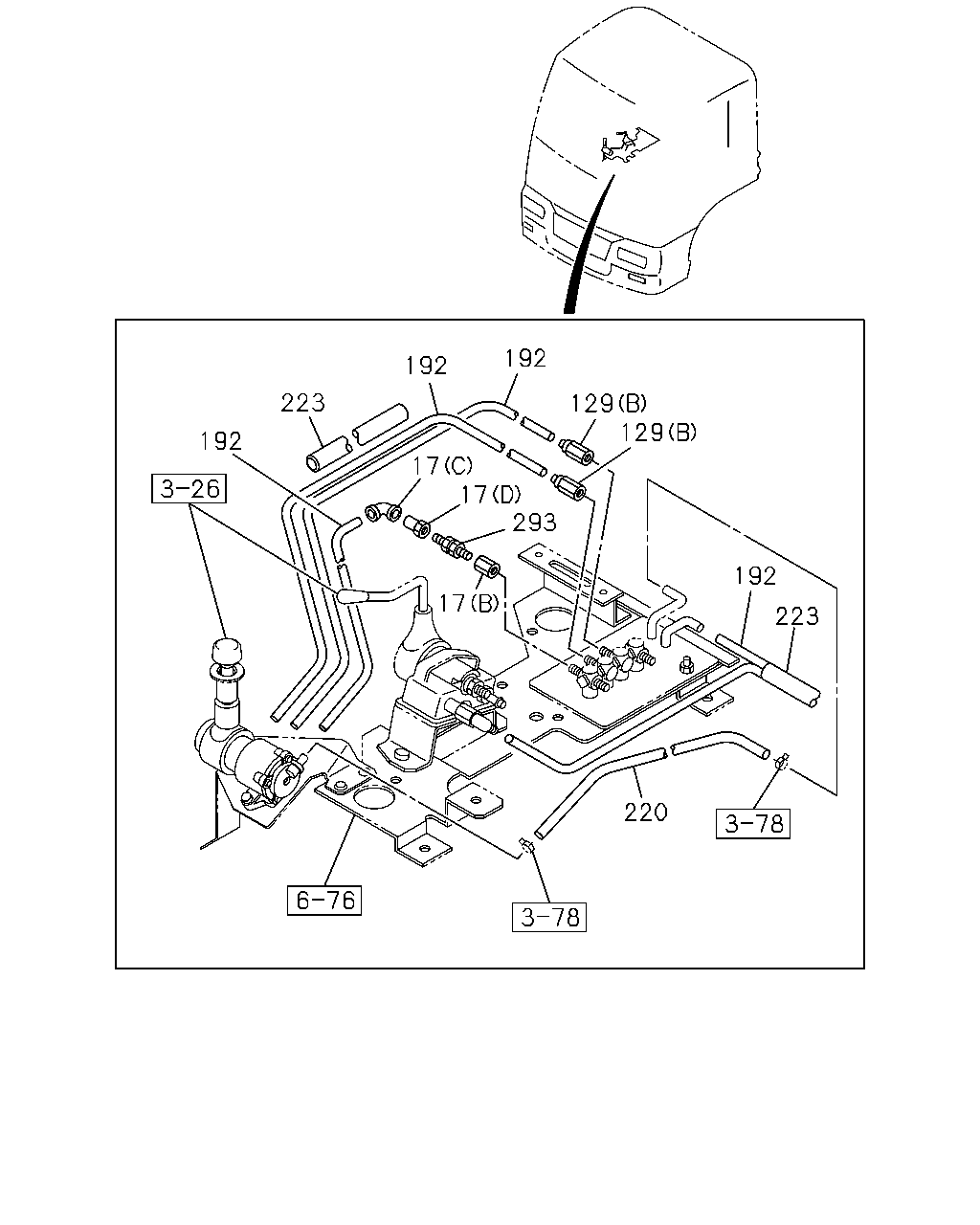

çizim 75645
192 192 17 223 192 129 17 129 293 17 192 223 220
BalonParca AdiParca NoAdetTipApplied Date
17 UNION; AIR PIPE
(B) M16 & RC3/8 STRAIGHT 		1-09660-882-0 01 1 0107-
17 UNION; AIR PIPE
(C) DIN12 ID=15.4 ELBOW 		1-09661-079-1 01 1 0107-
17 UNION; AIR PIPE
(D) 		1-09661-083-0 01 1 0107-
17 UNION; AIR PIPE
(A) 		1-47470-609-0 01 1 0107-
129 CONNECTOR; NYLON TUBE
(B) DIN8 & M14 STRAIGHT 		1-09660-874-0 04 1 0107-
129 CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0107-0111
129 CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0107-0111
129 CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0112-0210
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 0107-
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 0107-0606
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0107-
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0107-
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0607-
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0607-
220 HOSE; VINYL,EXH,PARKING BRK VLV
ISUZU M/T<X9A> L=480 SERVICED BY L=10000 		9-09914-701-0 01 1 0107-
220 HOSE; VINYL,EXH,PARKING BRK VLV
TRANSMISSION-ZF 16S221 OD(Y1U) L=650 SERVICED BY L=10000 		9-09914-701-0 01 1 0107-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 0107-0606
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 0107-0606
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87410-094-0 AR 1 0107-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87410-096-0 AR 1 0107-0606
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0607-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0607-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87411-029-0 AR 1 0607-
293 VALVE; CHECK 1-48410-479-0 01 1 0107-0107
293 VALVE; CHECK 1-48410-479-0 01 1 0107-0107
293 VALVE; CHECK 1-48410-479-1 01 1 0108-

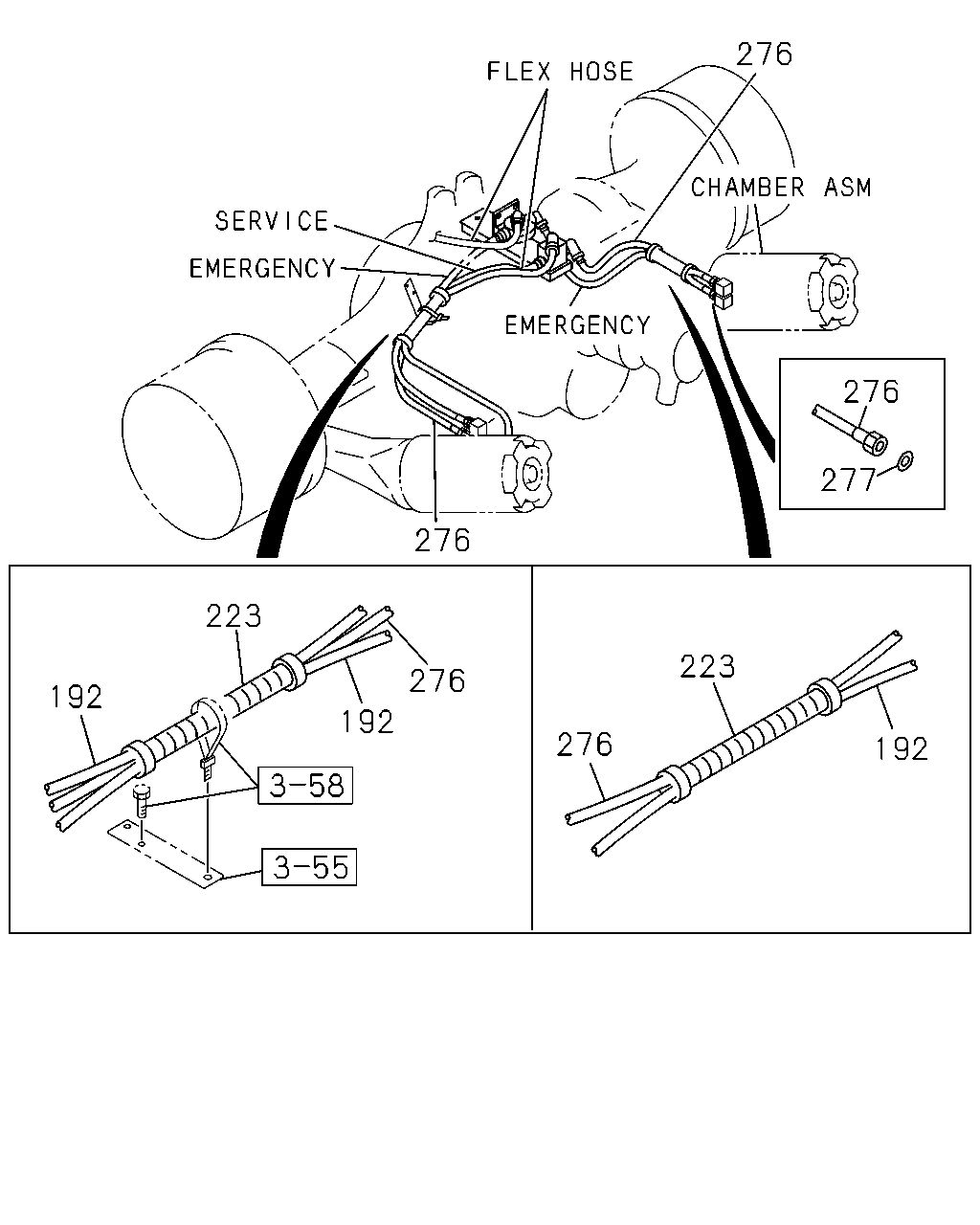

çizim 78655
276 276 277 223 276 192 192 223 276 276 192
BalonParca AdiParca NoAdetTipApplied Date
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 0107-
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 0107-0606
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0107-
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0107-
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0607-
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0607-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 0107-0606
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 0107-0606
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87410-094-0 AR 1 0107-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87410-096-0 AR 1 0107-0606
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0607-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0607-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87411-029-0 AR 1 0607-
276 HOSE; SERVO
BRAKE SYSTEM RETARDER<RE2> EXC. ANTILOCK BRAKE SYSTEM(BFA) L=490 		0-07846-490-1 01 1 0107-0605
276 HOSE; SERVO
BRAKE SYSTEM RETARDER<RE2> EXC. ANTILOCK BRAKE SYSTEM(BFA) L=490 		0-57846-490-1 01 1 0606-
276 HOSE; SERVO
BRAKE SYSTEM RETARDER<RE2> EXC. ANTILOCK BRAKE SYSTEM(BFA) L=770 		0-07846-770-1 01 1 0107-
277 GASKET; HOSE SERVO
BRAKE SYSTEM RETARDER<RE2> EXC. ANTILOCK BRAKE SYSTEM(BFA) ID=11 OD=18 		9-09572-510-0 04 1 0107-
çizim 78943
46 172 90 50 50 79 67 172 46 10 10 71 71 64 64 64 71 262 100 175 67 330 134
BalonParca AdiParca NoAdetTipApplied Date
10 CONNECTOR; FLEX HOSE
ANTILOCK BRAKE SYSTEM(BFA) 		1-09650-360-1 02 1 0107-
46 NIPPLE; AIR PIPE
ANTILOCK BRAKE SYSTEM(BFA) DIN12 & M16 STRAIGHT 		1-09660-876-0 02 1 0107-
50 NUT; UNION BRKT
ANTILOCK BRAKE SYSTEM(BFA) M14 FLANGE 		0-91150-114-0 02 1 0107-
64 GASKET; FLEX HOSE
ANTILOCK BRAKE SYSTEM(BFA) ID=11 OD=18 		9-09572-510-0 06 1 0107-
64 GASKET; FLEX HOSE
EXC. ANTILOCK BRAKE SYSTEM(BFA) ID=17.5 		9-09572-515-0 02 1 0107-
64 GASKET; FLEX HOSE
EXC. ANTILOCK BRAKE SYSTEM(BFA) ID=17.5 		9-09572-515-0 02 1 0107-
67 NUT; HOSE BRKT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91150-108-0 04 1 0107-0602
67 NUT; HOSE BRKT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 04 1 0603-
71 HOSE; FLEX,RWD RR
ANTILOCK BRAKE SYSTEM(BFA) L=630 		0-07847-630-1 03 1 0107-0605
71 HOSE; FLEX,RWD RR
ANTILOCK BRAKE SYSTEM(BFA) L=630 		0-57847-630-1 03 1 0606-
71 HOSE; FLEX,RWD RR
EXC. ANTILOCK BRAKE SYSTEM(BFA) L=550 		0-07909-550-0 02 1 0107-0607
71 HOSE; FLEX,RWD RR
EXC. ANTILOCK BRAKE SYSTEM(BFA) L=550 		0-57909-550-0 02 1 0608-
79 BOLT; HOSE BRKT
ANTILOCK BRAKE SYSTEM(BFA) M8X25 FLANGE 		0-28680-825-0 02 1 0107-0512
79 BOLT; HOSE BRKT
ANTILOCK BRAKE SYSTEM(BFA) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
90 BRACKET; PIPE UNION
ANTILOCK BRAKE SYSTEM(BFA) 		1-47475-611-4 01 1 0107-
100 NUT; UNION
ANTILOCK BRAKE SYSTEM(BFA) M14 FLANGE 		0-91150-114-0 01 1 0107-
134 CONNECTOR
ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0107-
134 CONNECTOR
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0107-
134 CONNECTOR
(B) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0107-
134 CONNECTOR
(D) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 0107-
172 ADAPTER; UNION
(A) PT3/8 		1-48319-058-0 01 1 0107-
172 ADAPTER; UNION
EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & M20 STRAIGHT 		1-09660-877-0 02 1 0107-
175 BOLT; HOSE BRKT
ANTILOCK BRAKE SYSTEM(BFA) M8X25 FLANGE 		0-28680-825-0 02 1 0107-0512
175 BOLT; HOSE BRKT
ANTILOCK BRAKE SYSTEM(BFA) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
262 BRACKET
ANTILOCK BRAKE SYSTEM(BFA) (C) 		1-47478-212-0 01 1 0107-
262 BRACKET
(B) 		1-79996-143-0 01 1 0107-
262 BRACKET
(A) 		1-79996-144-0 01 1 0107-
330 UNION; FLEX HOSE
ANTILOCK BRAKE SYSTEM(BFA) 		1-09650-360-1 01 1 0107-

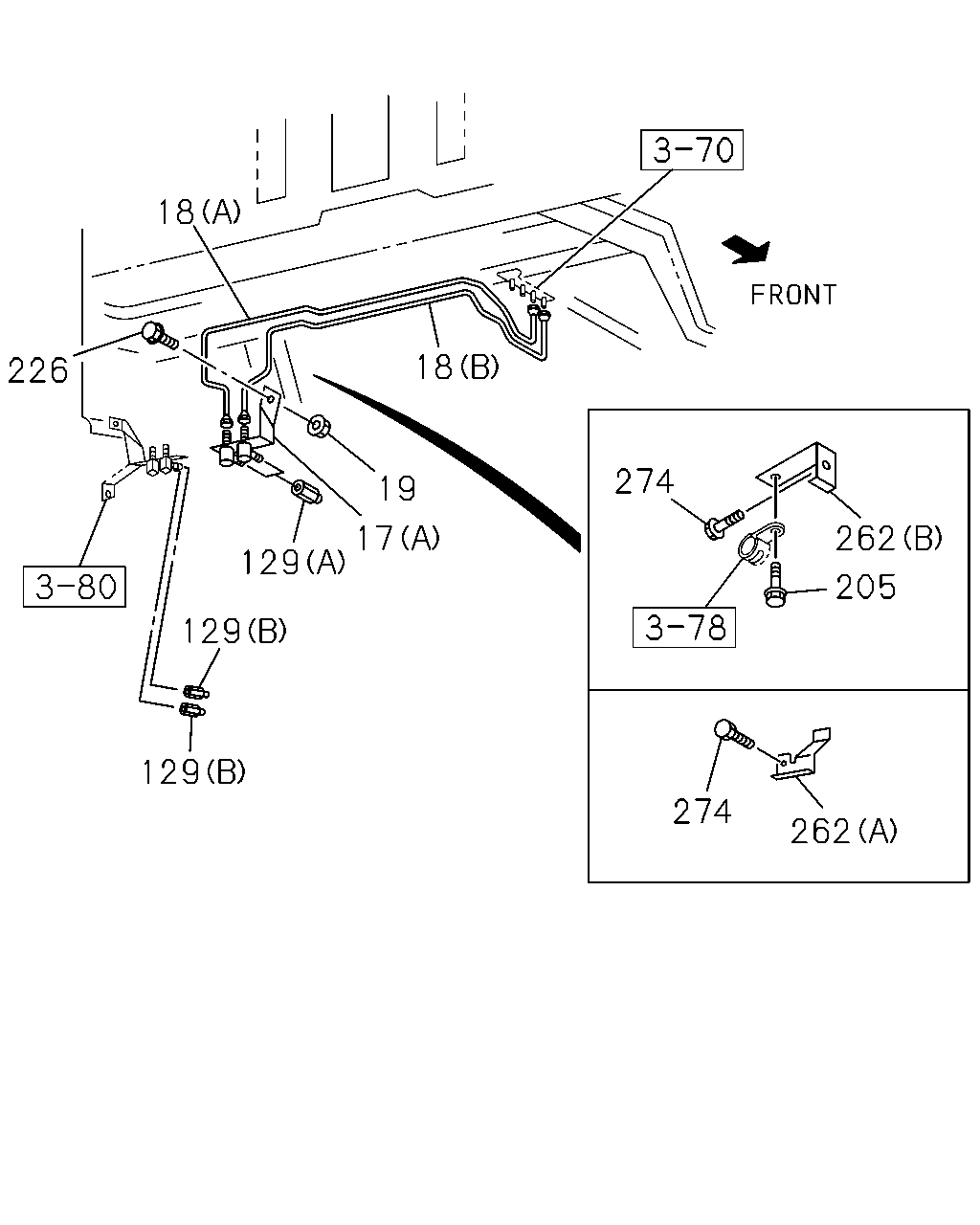

çizim 78963
274 262 205 129 129 17 18 19 274 262 18 226 129
BalonParca AdiParca NoAdetTipApplied Date
17 UNION; AIR PIPE
(B) M16 & RC3/8 STRAIGHT 		1-09660-882-0 01 1 0107-
17 UNION; AIR PIPE
(C) DIN12 ID=15.4 ELBOW 		1-09661-079-1 01 1 0107-
17 UNION; AIR PIPE
(D) 		1-09661-083-0 01 1 0107-
17 UNION; AIR PIPE
(A) 		1-47470-609-0 01 1 0107-
18 PIPE; AIR,UNION TO UNION
BAGGAGE BOX CAB RR SIDE<TBM> (A) L=1885 		1-49121-759-1 01 1 0107-
18 PIPE; AIR,UNION TO UNION
BAGGAGE BOX CAB RR SIDE<TBM> (B) L=1937 		1-49122-060-1 01 1 0107-
18 PIPE; AIR,UNION TO UNION
EXC. BAGGAGE BOX CAB RR SIDE<TBM> (A) L=1749 		1-49121-758-1 01 1 0107-
18 PIPE; AIR,UNION TO UNION
EXC. BAGGAGE BOX CAB RR SIDE<TBM> (B) L=1845 		1-49122-059-1 01 1 0107-
19 NUT; PIPE UNION
M8 		9-09110-408-0 01 1 0107-0512
19 NUT; PIPE UNION
M8 		0-91110-508-0 01 1 0601-
129 CONNECTOR; NYLON TUBE
(B) DIN8 & M14 STRAIGHT 		1-09660-874-0 04 1 0107-
129 CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0107-0111
129 CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0107-0111
129 CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0112-0210
205 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0107-0512
205 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0601-
205 BOLT; TUBE CLIP
M8X16 FLANGE 		0-28080-816-0 02 1 0107-0512
205 BOLT; TUBE CLIP
M8X16 FLANGE 		0-28050-816-0 02 1 0601-
226 BOLT; UNION
M8X20 FLANGE 		0-28080-820-0 01 1 0107-0512
226 BOLT; UNION
M8X20 FLANGE 		0-28050-820-0 01 1 0601-
226 BOLT; UNION
M8X30 FLANGE 		0-28680-830-0 02 1 0107-0512
226 BOLT; UNION
M8X30 FLANGE 		0-28650-830-0 02 1 0601-
226 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0107-
262 BRACKET
ANTILOCK BRAKE SYSTEM(BFA) (C) 		1-47478-212-0 01 1 0107-
262 BRACKET
(B) 		1-79996-143-0 01 1 0107-
262 BRACKET
(A) 		1-79996-144-0 01 1 0107-
274 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 0107-0512
274 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 0601-
274 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0107-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
