3-70 — BRAKE PIPING; AIR,AIR MASTER (#10010) — 172 parça

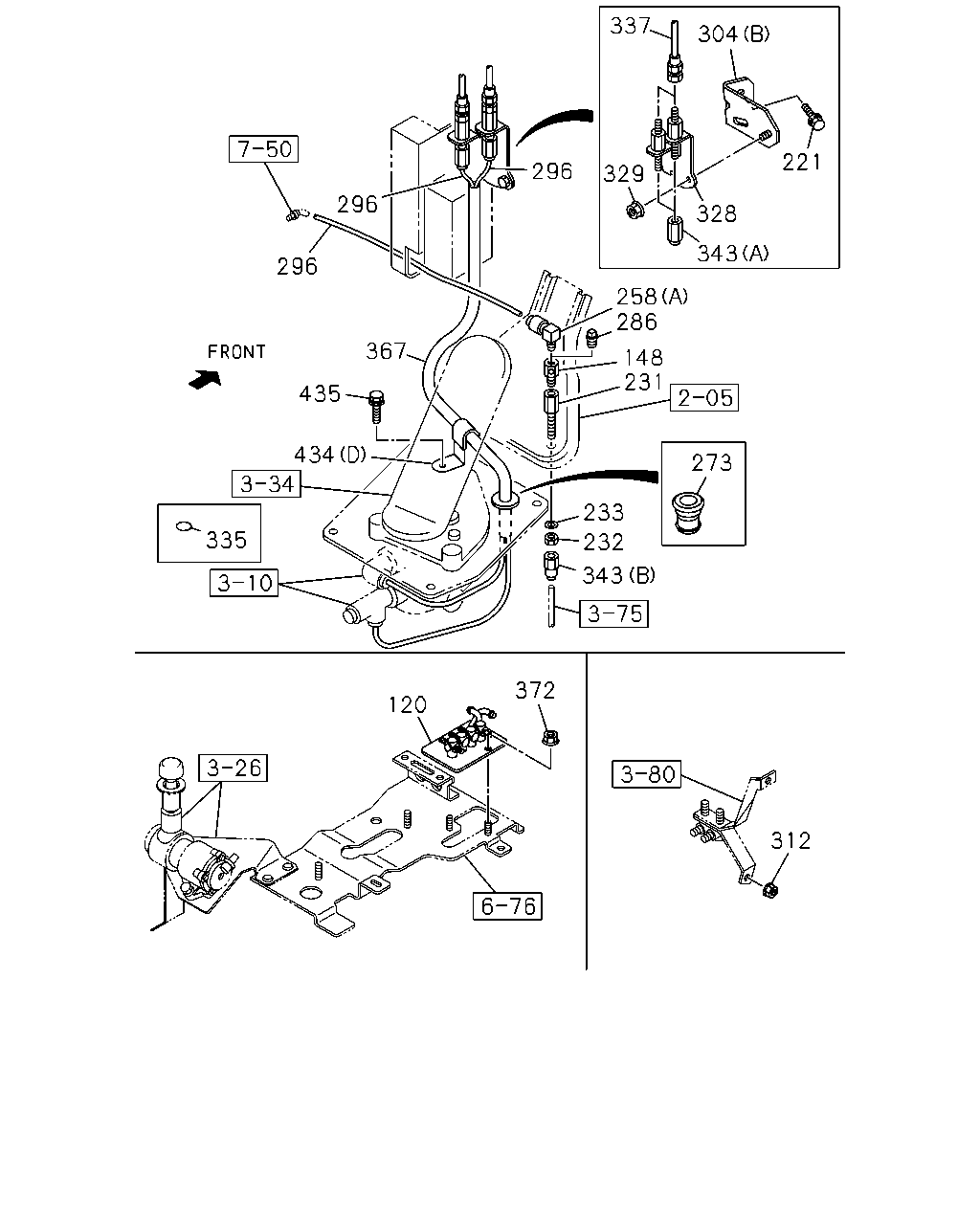

çizim 75265
296 296 367 337 304 221 329 296 328 343 258 286 148 231 273 233 343 232 120 372 312 335 434 435
BalonParca AdiParca NoAdetTipApplied Date
120 CONNECTOR; AIR PIPE 1-47470-604-0 01 1 0107-
148 CONNECTOR; UNION
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) 		8-94338-417-0 01 1 0107-
221 BOLT; BRKT
EXC. FULL FLOATING CAB(W16) M10X35 FLANGE 		0-28681-035-0 02 1 0111-0512
221 BOLT; BRKT
EXC. FULL FLOATING CAB(W16) M10X35 FLANGE 		0-28651-035-0 02 1 0601-
221 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0107-0512
221 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601-
221 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 01 1 0107-0512
221 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 0601-
221 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0107-
231 UNION; AIR PIPE
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09656-713-2 01 1 0107-
231 UNION; AIR PIPE
DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) 		1-09656-713-2 01 1 0107-
232 NUT; UNION,AIR PIPE
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 H=8 		1-09400-029-0 01 1 0107-
232 NUT; UNION,AIR PIPE
DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) M10 H=8 		1-09400-029-0 01 1 0107-
233 WASHER; LK,UNION,AIR PIPE
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2 		9-09150-510-0 01 1 0107-0603
233 WASHER; LK,UNION,AIR PIPE
DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) ID=10.2 		9-09150-510-0 01 1 0107-0603
233 WASHER; LK,UNION,AIR PIPE
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2 		0-91510-510-0 01 1 0604-
233 WASHER; LK,UNION,AIR PIPE
DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) ID=10.2 		0-91510-510-0 01 1 0604-
258 CONNECTOR; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) (A) DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 0107-0302
258 CONNECTOR; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) (A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0303-
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0107-
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> (C) PT3/8 & PT3/8 		1-09661-303-0 01 1 0107-
258 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) (D) 		1-48319-059-0 01 1 0107-
273 GROMMET 1-09332-135-0 01 1 0107-
286 PLUG; AIR PIPE
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		9-09204-510-0 01 1 0107-
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-0 AR 1 0107-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0107-
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 0107-0212
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0107-0212
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0301-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0301-
304 BRACKET; UNION
(A) 		1-47477-045-0 01 1 0107-
304 BRACKET; UNION
(B) 		1-71117-211-0 01 1 0107-
312 NUT; UNION
M8 		9-09110-408-0 01 1 0107-0512
312 NUT; UNION
M8 		0-91110-508-0 01 1 0601-
328 UNION; AIR PIPE 1-47470-442-0 01 1 0107-
329 NUT; UNION,AIR PIPE
M6 FLANGE 		0-91150-106-0 01 1 0107-0602
329 NUT; UNION,AIR PIPE
M6 FLANGE 		0-91180-106-0 01 1 0603-
335 SEAL; UNION
EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=30 BLACK 		1-76798-035-0 01 1 0107-
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=520 		0-07210-520-0 02 1 0107-0605
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=520 		0-57210-520-0 02 1 0606-
343 UNION; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) (B) 		1-09661-382-0 01 1 0107-
343 UNION; NYLON TUBE
(A) 		1-09660-796-1 02 1 0107-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 0107-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 0107-0202
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0203-
372 NUT
M8 FLANGE 		0-91150-108-0 02 1 0107-0602
372 NUT
M8 FLANGE 		0-91180-108-0 02 1 0603-
434 CLIP
(A) D=24 L=21 		1-09700-380-0 02 1 0107-
434 CLIP
(B) ID=6 H=20 L=20 		1-09700-603-0 01 1 0107-
434 CLIP
(C) L=250 		1-09707-126-0 01 1 0107-
434 CLIP
(D) ID=17 		8-94449-734-1 01 1 0107-
435 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0107-0512
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0601-
435 BOLT; CLIP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0107-
çizim 75839
434 84 296 435 123
BalonParca AdiParca NoAdetTipApplied Date
84 UNION; NYLON TUBE
DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0107-
123 BRACKET; UNION
EXC. FULL FLOATING CAB(W16) (B) 		1-53458-994-0 01 1 0111-
123 BRACKET; UNION
(A) 		1-47477-045-0 01 1 0107-
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-0 AR 1 0107-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0107-
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 0107-0212
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0107-0212
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0301-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0301-
434 CLIP
(A) D=24 L=21 		1-09700-380-0 02 1 0107-
434 CLIP
(B) ID=6 H=20 L=20 		1-09700-603-0 01 1 0107-
434 CLIP
(C) L=250 		1-09707-126-0 01 1 0107-
434 CLIP
(D) ID=17 		8-94449-734-1 01 1 0107-
435 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0107-0512
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0601-
435 BOLT; CLIP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0107-

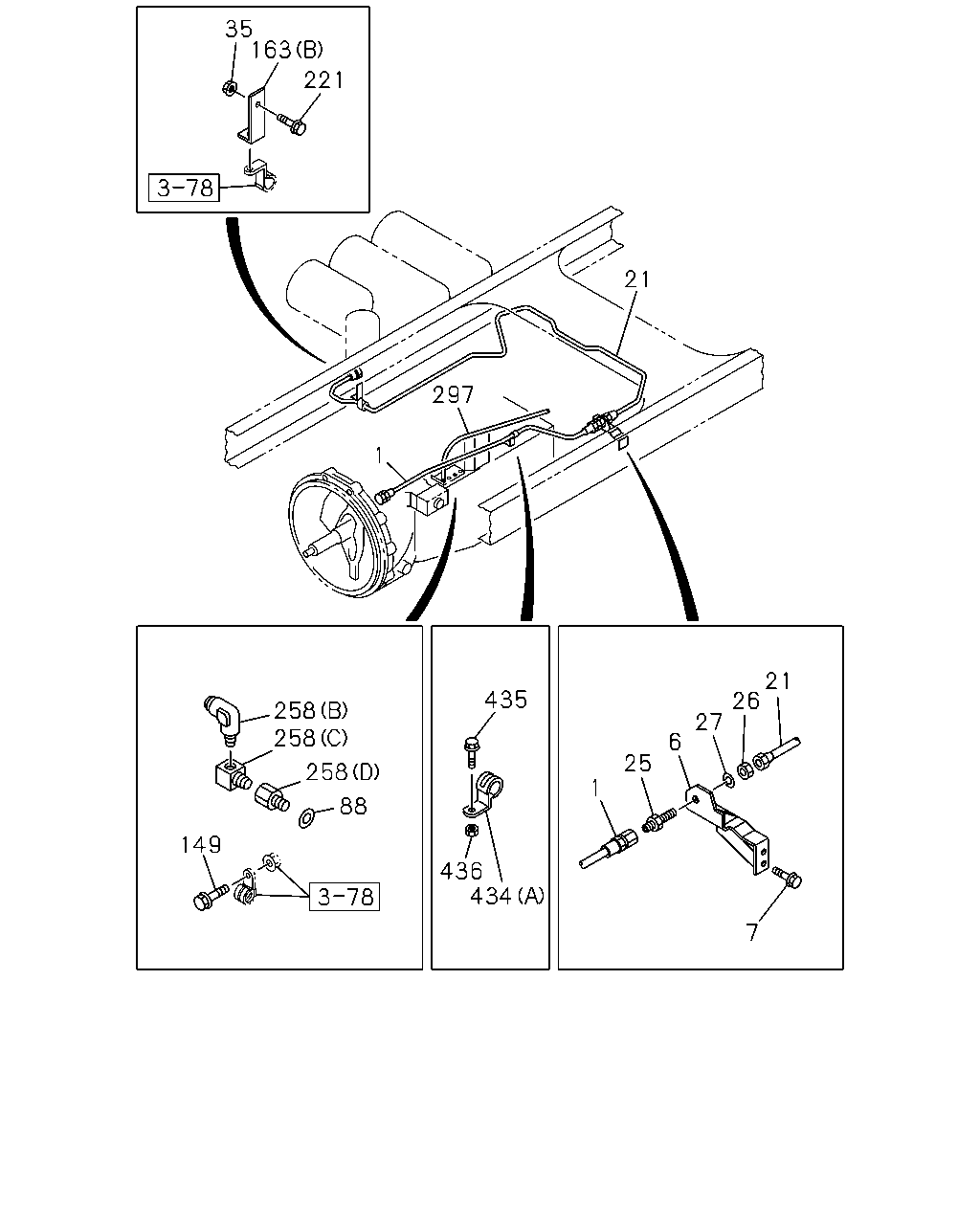

çizim 76917
35 163 221 21 297 1 435 258 258 258 88 149 434 436 25 1 6 27 26 21 7
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
L=1050 		1-09363-789-0 01 1 0107-
6 BRACKET; FLEX HOSE,AIR TANK 1-47478-719-1 01 1 0107-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28680-830-0 02 1 0107-0512
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 0601-
21 PIPE; AIR,UNION TO AIR DRYER 1-49123-185-0 01 1 0107-
25 VALVE; CHECK 1-48320-042-1 01 1 0107-0410
25 VALVE; CHECK 1-48320-057-0 01 1 0411-
26 NUT; CHECK VLV
M22 		9-09111-422-0 01 1 0107-0512
26 NUT; CHECK VLV
M22 		0-91111-522-0 01 1 0601-
27 WASHER; LK,CHECK VLV
ID=22.5 		9-09150-522-0 01 1 0107-0603
27 WASHER; LK,CHECK VLV
ID=22.5 		0-91510-522-0 01 1 0604-
35 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0107-0602
35 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603-
88 GASKET; NYLON TUBE
MJD7S M/T(Y2Y) ID=14.2 OD=23.0 		9-09572-014-0 01 1 0107-
149 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 0107-0512
149 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0601-
163 BRACKET; AIR PIPE
(A) 		1-47478-213-0 01 1 0107-
163 BRACKET; AIR PIPE
(B) 		1-34656-009-0 01 1 0107-
221 BOLT; BRKT
EXC. FULL FLOATING CAB(W16) M10X35 FLANGE 		0-28681-035-0 02 1 0111-0512
221 BOLT; BRKT
EXC. FULL FLOATING CAB(W16) M10X35 FLANGE 		0-28651-035-0 02 1 0601-
221 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0107-0512
221 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601-
221 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 01 1 0107-0512
221 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 0601-
221 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0107-
258 CONNECTOR; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) (A) DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 0107-0302
258 CONNECTOR; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) (A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0303-
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0107-
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> (C) PT3/8 & PT3/8 		1-09661-303-0 01 1 0107-
258 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) (D) 		1-48319-059-0 01 1 0107-
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 0107-0212
297 TUBE; NYLON
SERVICED BY L=8000 OD=12 		1-87410-072-0 AR 1 0107-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0107-0212
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0301-
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0301-
434 CLIP
(A) D=24 L=21 		1-09700-380-0 02 1 0107-
434 CLIP
(B) ID=6 H=20 L=20 		1-09700-603-0 01 1 0107-
434 CLIP
(C) L=250 		1-09707-126-0 01 1 0107-
434 CLIP
(D) ID=17 		8-94449-734-1 01 1 0107-
435 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0107-0512
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0601-
435 BOLT; CLIP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0107-
436 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0107-0602
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603-
436 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0107-0602
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-

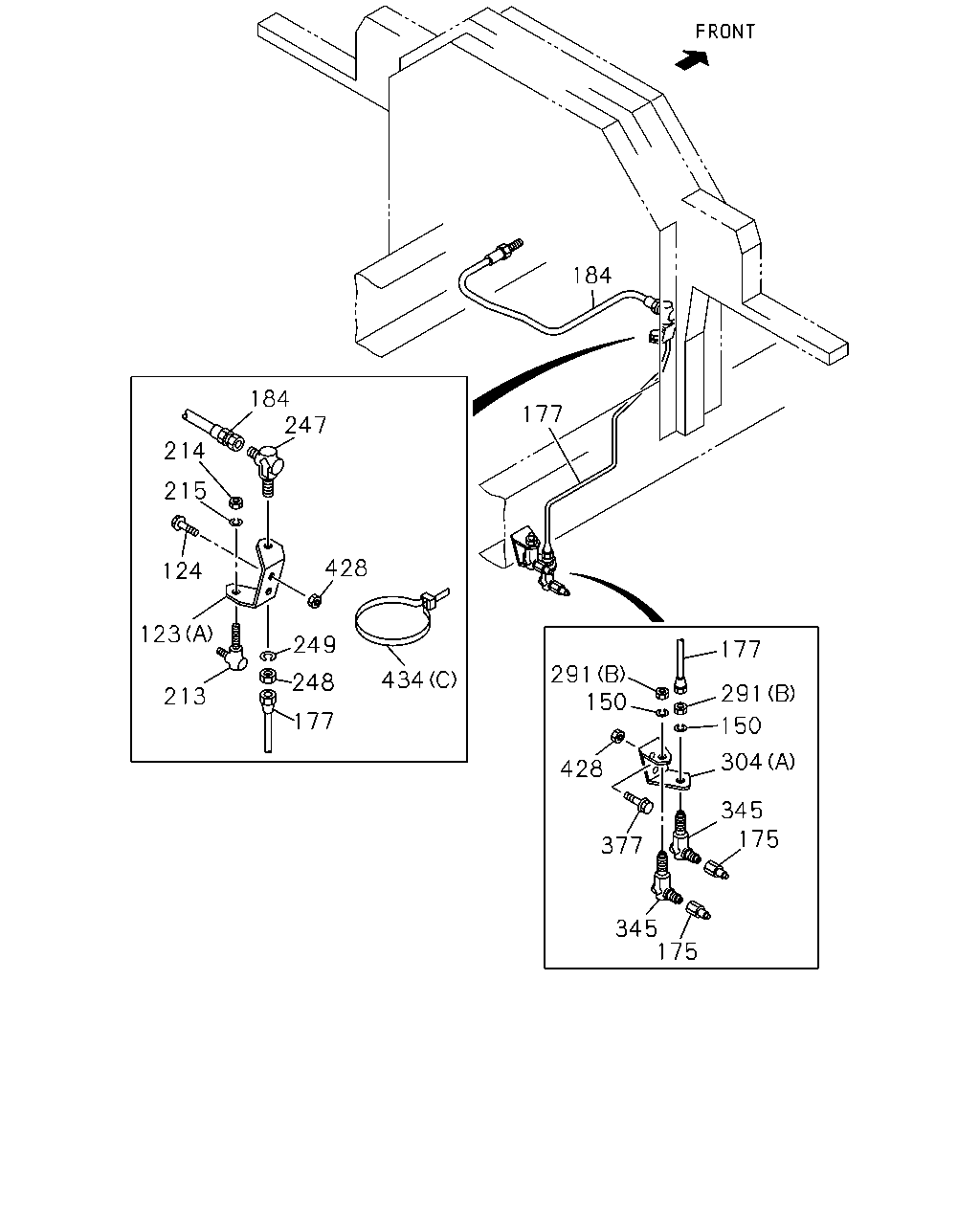

çizim 77357
291 177 291 150 428 377 150 304 345 175 345 175 177 184 184 214 247 428 249 434 248 177 213 123 215 124
BalonParca AdiParca NoAdetTipApplied Date
123 BRACKET; UNION
EXC. FULL FLOATING CAB(W16) (B) 		1-53458-994-0 01 1 0111-
123 BRACKET; UNION
(A) 		1-47477-045-0 01 1 0107-
124 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0107-0512
124 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601-
150 WASHER; LK,UNION
ID=12.2 		9-09150-512-0 02 1 0107-0603
150 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 02 1 0604-
175 CONNECTOR; AIR PIPE
DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 0107-
177 PIPE; AIR,UNION TO UNION
L=687 SERVICED BY L=700 		1-47428-811-0 01 1 0107-
184 HOSE; FLEX,AIR GOV
L=800 		1-09363-652-0 01 1 0107-
213 UNION; AIR PIPE
FULL FLOATING CAB(W16) M12 3WAY 		9-09228-906-1 01 1 0107-0607
213 UNION; AIR PIPE
FULL FLOATING CAB(W16) M12 3WAY 		0-92138-906-0 01 1 0608-
213 UNION; AIR PIPE
EXC. FULL FLOATING CAB(W16) M12 ELBOW 		9-09225-206-1 01 1 0107-0607
213 UNION; AIR PIPE
EXC. FULL FLOATING CAB(W16) M12 ELBOW 		0-92125-206-0 01 1 0608-
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0107-
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		9-09150-512-0 01 1 0107-0603
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		0-91510-512-0 01 1 0604-
247 UNION; AIR PIPE
M12 ELBOW 		9-09225-206-1 01 1 0107-0607
247 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 0608-
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 0107-
249 WASHER; LK,PIPE UNION
ID=12.2 		9-09150-512-0 01 1 0107-0603
249 WASHER; LK,PIPE UNION
ID=12.2 		0-91510-512-0 01 1 0604-
291 NUT; UNION
(A) M22 		9-09111-422-0 01 1 0107-0512
291 NUT; UNION
(A) M22 		0-91111-522-0 01 1 0601-
291 NUT; UNION
(B) M12 		9-09840-280-0 02 1 0107-
304 BRACKET; UNION
(A) 		1-47477-045-0 01 1 0107-
304 BRACKET; UNION
(B) 		1-71117-211-0 01 1 0107-
345 UNION; AIR PIPE
M12 ELBOW 		9-09225-206-1 02 1 0107-0607
345 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 02 1 0608-
377 BOLT; BRKT FIX
M8X35 FLANGE 		0-28680-835-0 02 1 0107-0512
377 BOLT; BRKT FIX
M8X35 FLANGE 		0-28650-835-0 02 1 0601-
428 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0107-0602
428 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-
434 CLIP
(A) D=24 L=21 		1-09700-380-0 02 1 0107-
434 CLIP
(B) ID=6 H=20 L=20 		1-09700-603-0 01 1 0107-
434 CLIP
(C) L=250 		1-09707-126-0 01 1 0107-
434 CLIP
(D) ID=17 		8-94449-734-1 01 1 0107-

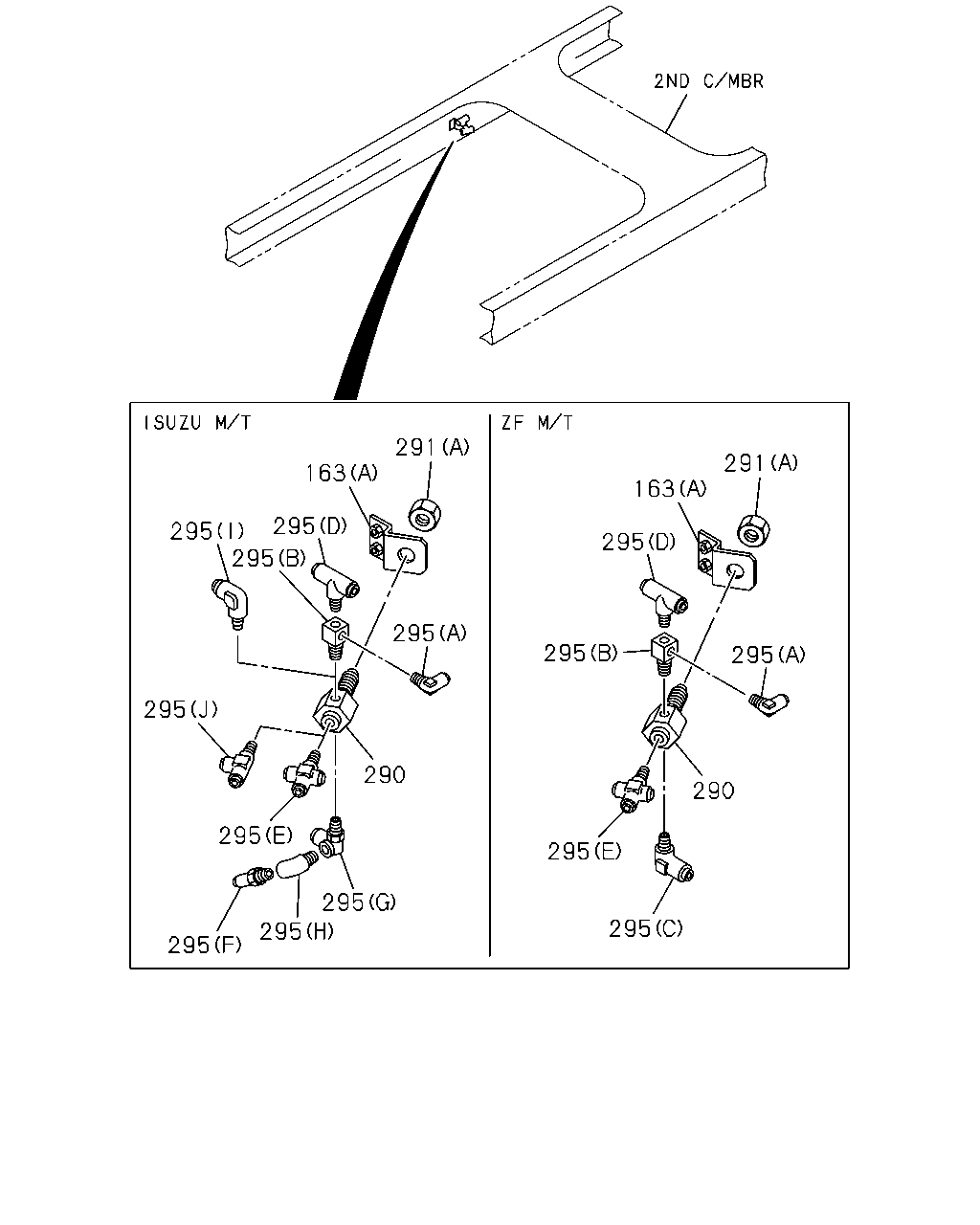

çizim 79000
291 291 163 295 295 295 295 290 295 295 295 295 295 290 295 295 163 295 295 295
BalonParca AdiParca NoAdetTipApplied Date
163 BRACKET; AIR PIPE
(A) 		1-47478-213-0 01 1 0107-
163 BRACKET; AIR PIPE
(B) 		1-34656-009-0 01 1 0107-
290 UNION; AIR PIPE 1-09661-064-0 01 1 0107-
291 NUT; UNION
(A) M22 		9-09111-422-0 01 1 0107-0512
291 NUT; UNION
(A) M22 		0-91111-522-0 01 1 0601-
291 NUT; UNION
(B) M12 		9-09840-280-0 02 1 0107-
295 CONNECTOR; NYLON TUBE
BRAKE SYSTEM RETARDER<RE2> (B) PT3/8 3WAY 		1-09661-300-0 01 1 0107-
295 CONNECTOR; NYLON TUBE
ZF M/T<X9E> (C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0107-
295 CONNECTOR; NYLON TUBE
(D) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0107-
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) (E) 		1-09661-061-0 01 1 0107-
295 CONNECTOR; NYLON TUBE
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (E) 		1-09661-061-0 01 1 0107-
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0107-
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0107-
295 CONNECTOR; NYLON TUBE
TRANSMISSION-ZF 16S221 OD(Y1U) BRAKE SYSTEM RETARDER<RE2> (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0107-
295 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) EXC. BRAKE SYSTEM RETARDER<RE2> (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0107-
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (J) 		1-09661-073-0 01 1 0107-
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (F) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0107-
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (G) DIN12 & R3/8 ELBOW 		1-09661-233-0 01 1 0107-
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (H) R1/4 & RC1/4 		1-09664-211-0 01 1 0107-
295 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) (I) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0107-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
