8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#1001) — 21 parça

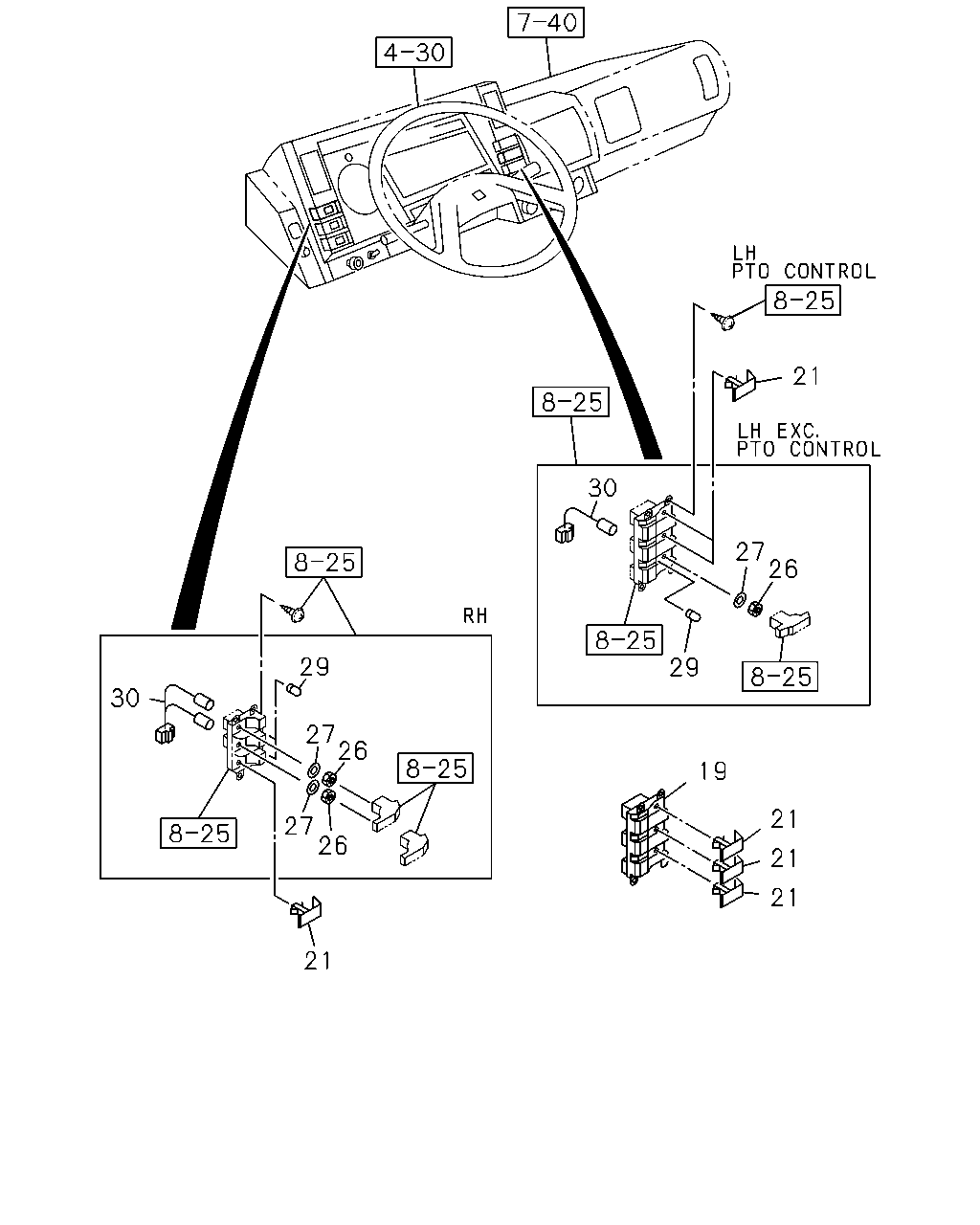

çizim 92532
21 30 27 26 29 29 30 27 26 19 21 27 26 21 21 21
BalonParca AdiParca NoAdetTipApplied Date A B
19 BASE; SW,METER CLUSTER
EXC. PTO CONTROL AIR LINK TYPE<SEC>,PTO CONTROL<SV6> BLACK 		1-82353-008-0 01 1 9202- ● ●
21 COVER; HOLE 1-82359-038-0 01 1 9202- ● ●
21 COVER; HOLE
PTO CONTROL AIR LINK TYPE<SEC>,PTO CONTROL<SV6> 		1-82359-038-0 02 1 9202- ● ●
21 COVER; HOLE
EXC. PTO CONTROL AIR LINK TYPE<SEC>,PTO CONTROL<SV6> 		1-82359-038-0 03 1 9202- ● ●
26 NUT; METER SW
M12 		1-09400-066-0 03 1 9202- ● ●
26 NUT; METER SW
PTO CONTROL AIR LINK TYPE<SEC>,PTO CONTROL<SV6> M12 		1-09400-066-0 01 1 9202- ● ●
27 WASHER; WAVE,SW 1-09550-006-0 03 1 9202- ● ●
27 WASHER; WAVE,SW
PTO CONTROL AIR LINK TYPE<SEC>,PTO CONTROL<SV6> 		1-09550-006-0 01 1 9202- ● ●
29 BULB; METER SW
24V 1.2W 		1-82194-027-0 03 1 9202- ● ●
29 BULB; METER SW
PTO CONTROL AIR LINK TYPE<SEC>,PTO CONTROL<SV6> 24V 1.2W 		1-82194-027-0 01 1 9202- ● ●
30 CORD ASM; METER SW 1-82359-058-0 01 1 9202- ● ●
30 CORD ASM; METER SW
PTO CONTROL AIR LINK TYPE<SEC>,PTO CONTROL<SV6> 		1-82359-024-0 01 1 9202- ● ●

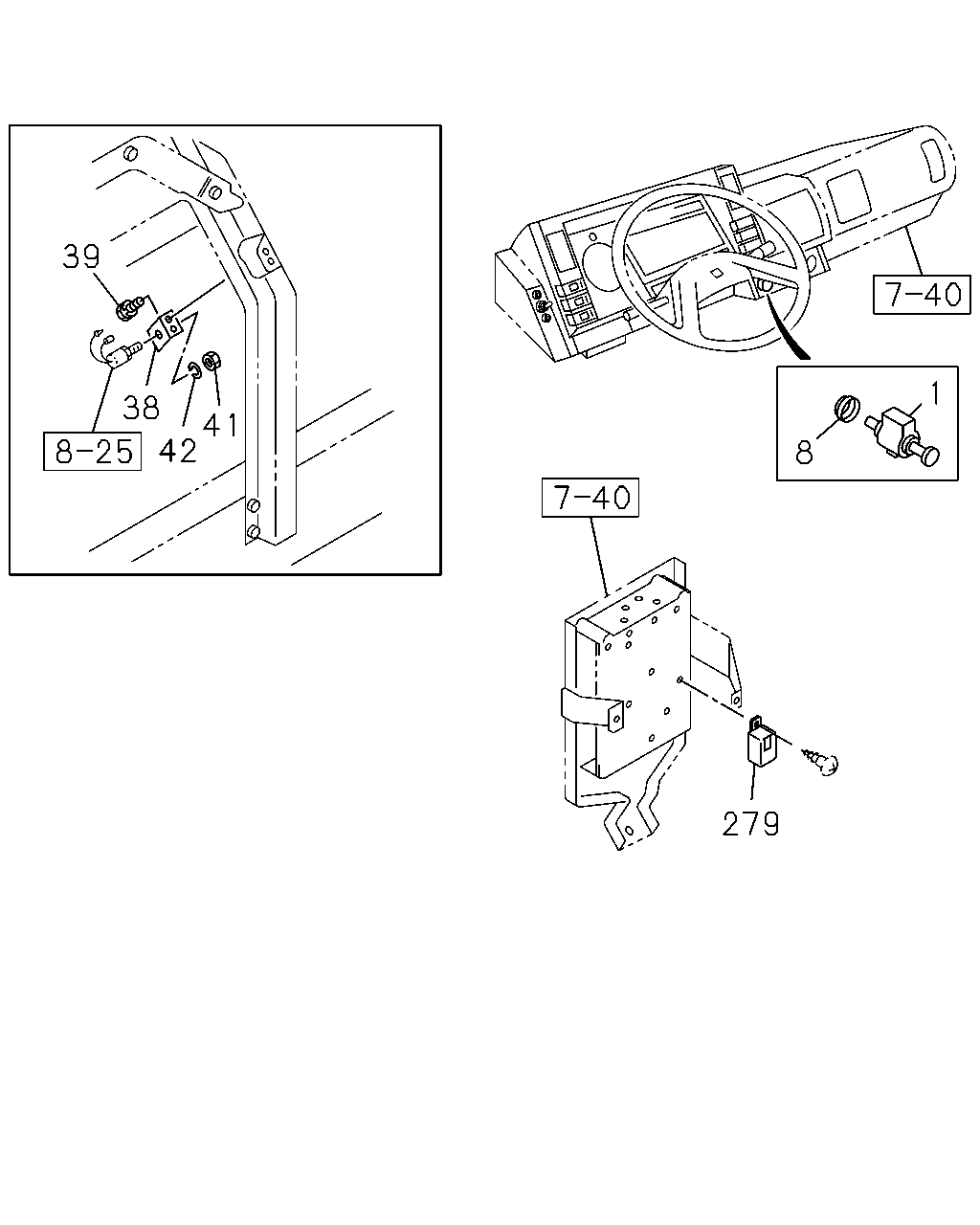

çizim 94413
39 1 38 41 42 8 279
BalonParca AdiParca NoAdetTipApplied Date A B
1 LIGHTER; CIGAR 1-84190-023-0 01 1 9202- ● ●
8 PANEL; GUIDE,CIGAR LIGHTER 8-94232-213-1 01 1 9202- ● ●
38 BRACKET; SW,STARTER SUB
EXC. ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> 		1-82699-137-0 01 1 9202-9203 ● ●
38 BRACKET; SW,STARTER SUB
EXC. ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> 		1-82699-351-0 01 1 9204- ● ●
39 BOLT; BRKT,STARTER SUB SW
M8X18 		0-28010-818-0 02 1 9202-9204 ● ●
39 BOLT; BRKT,STARTER SUB SW
M8X20 FLANGE 		0-28080-820-0 02 1 9205- ● ●
41 NUT; SUB STARTER SW 9-82755-020-0 01 1 9202- ● ●
42 WASHER; LK,SUB STARTER SW
ID=14.2 		9-09150-514-0 01 1 9202- ● ●
279 BUZZER ASM; SEAT BELT WARNING
SAUDI ARABIA EQUIPMENT(WH1) 12V 		5-83460-004-1 01 1 9202- ● ●
