◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10867 - EXR RHD FUEL TANK 400L ▶ 3 - Brakes, Brake System ▶ 3-58 - FIXING PARTS; OIL PIPING ▶
3-58 — FIXING PARTS; OIL PIPING (#10009) — 9 parça

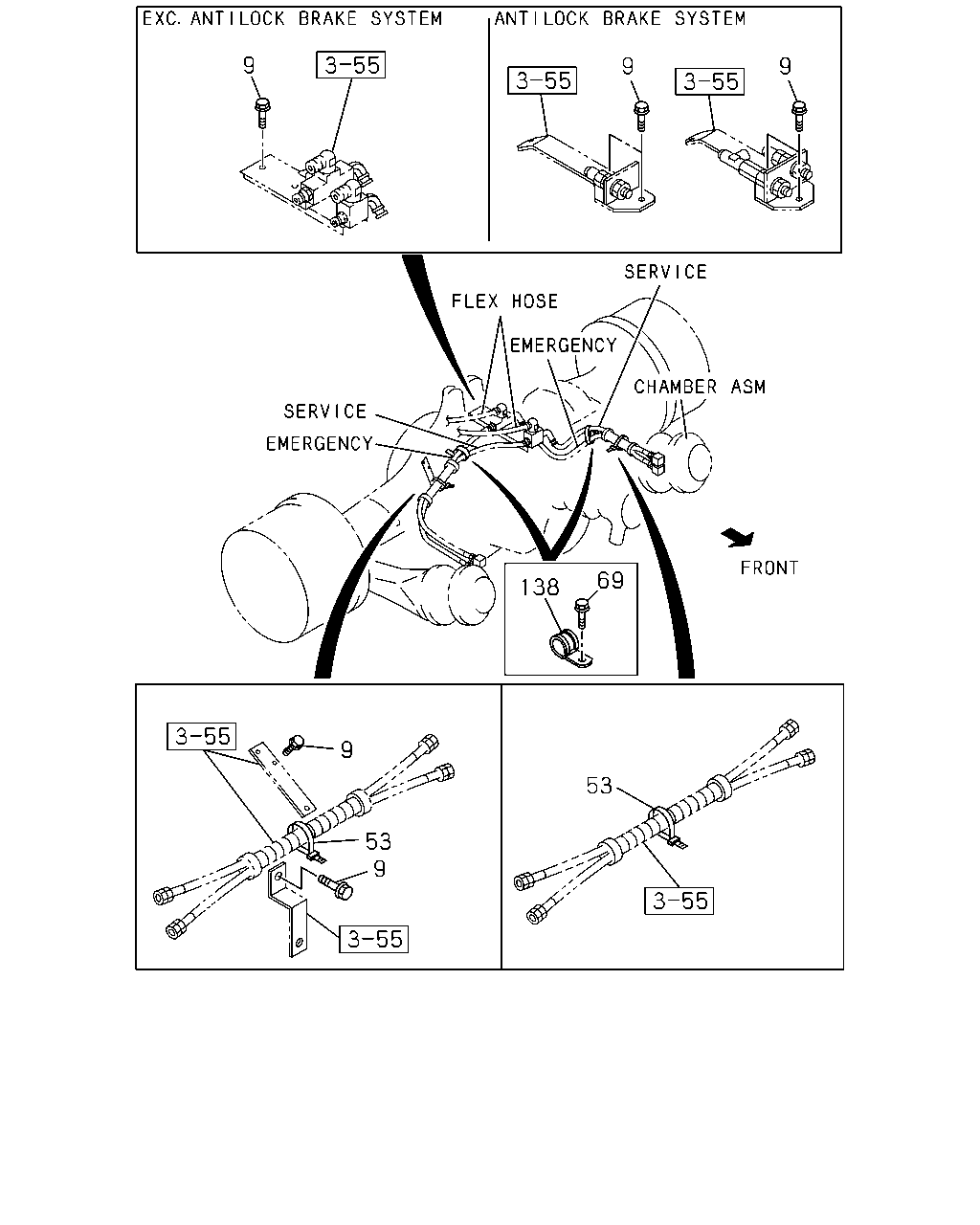

çizim 79310
9 9 9 9 53 9 53 138 69
BalonParca AdiParca NoAdetTipApplied Date
9 BOLT; BRKT
BRAKE SYSTEM RETARDER<RE2> EXC. ANTILOCK BRAKE SYSTEM(BFA) M8X16 FLANGE 		0-28080-816-0 01 1 0107-0512
9 BOLT; BRKT
BRAKE SYSTEM RETARDER<RE2> EXC. ANTILOCK BRAKE SYSTEM(BFA) M8X16 FLANGE 		0-28050-816-0 01 1 0601-
9 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 04 1 0107-0512
9 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 04 1 0601-
53 CLIP; UNION
BRAKE SYSTEM RETARDER<RE2> EXC. ANTILOCK BRAKE SYSTEM(BFA) L=250 		1-09707-126-0 03 1 0107-
53 CLIP; UNION
EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE SYSTEM RETARDER<RE2> L=250 		1-09707-126-0 01 1 0107-
69 BOLT; CLIP
ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE SYSTEM RETARDER<RE2> M8X16 FLANGE 		0-28080-816-0 02 1 0107-0512
69 BOLT; CLIP
ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE SYSTEM RETARDER<RE2> M8X16 FLANGE 		0-28050-816-0 02 1 0601-
138 CLIP; TUBE
ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE SYSTEM RETARDER<RE2> ID=35 L=33 		1-09700-945-0 02 1 0107-
