Sayfa 3-26 - Isuzu EPC

3-26 — TRAILER CONTROL (#10002) — 264 parça

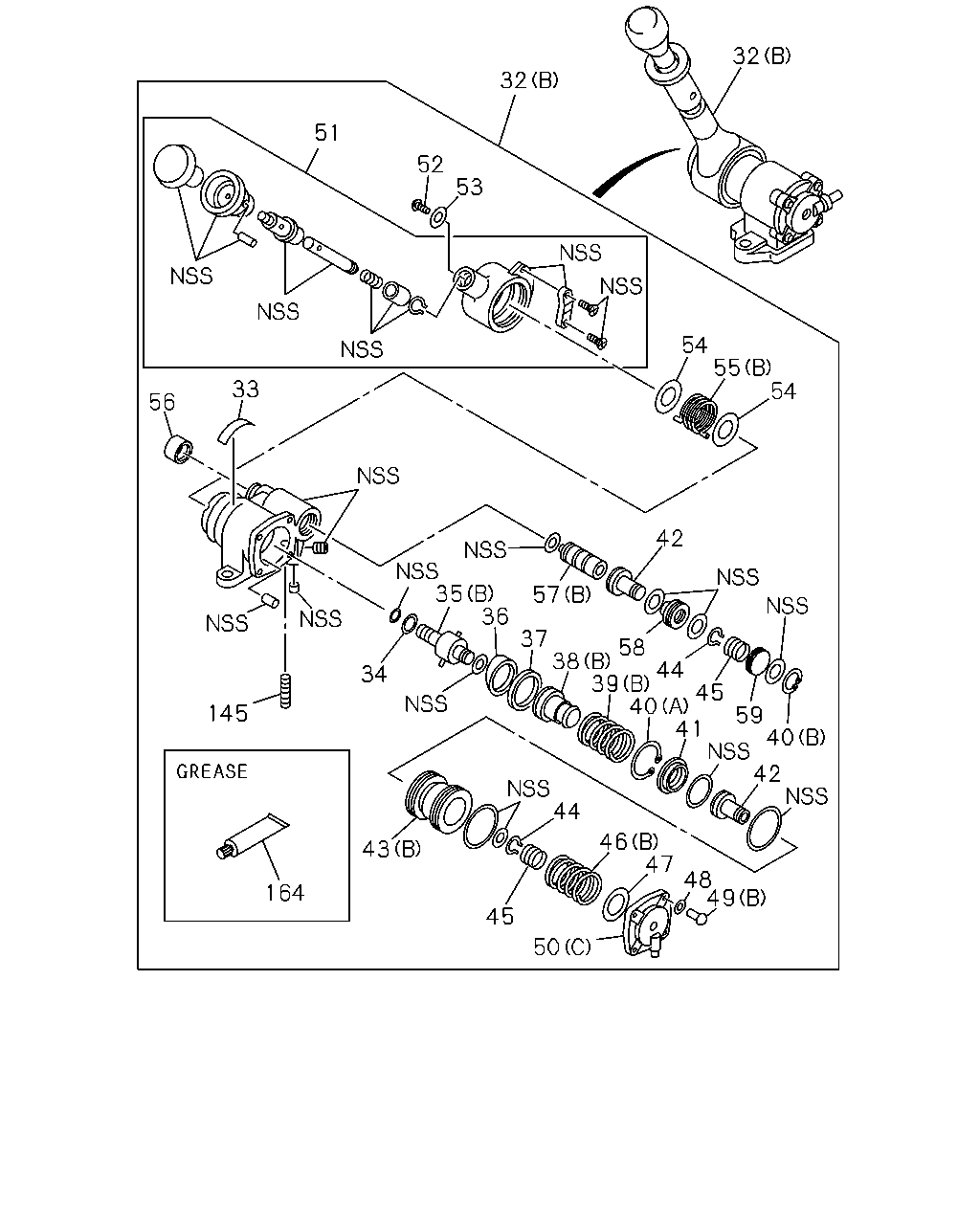

32 32 51 53 52 33 56 54 55 54 42 40 59 45 44 58 57 35 38 37 36 39 42 41 40 44 47 46 49 48 50 45 43 164 145 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	VALVE; BRK,HAND CONT MJD7S M/T(Y2Y) (B)	1-48460-315-0	01	1	0107-0108
32	VALVE; BRK,HAND CONT MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (B)	1-48460-315-0	01	1	0109-
32	VALVE; BRK,HAND CONT TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (A)	1-48460-341-0	01	1	0107-0108
32	VALVE; BRK,HAND CONT TRANSMISSION-ZF 16S221 OD(Y1U) (A)	1-48460-341-1	01	1	0109-
33	PLATE; CAUTION MJD7S M/T(Y2Y)	1-48469-081-0	01	1	0107-0108
33	PLATE; CAUTION MJD7S M/T(Y2Y),MJX16P M/T(Y3Z)	1-48469-081-0	01	1	0109-
34	SHIM; CAM HOLDER	1-48469-055-0	AR	1	0107-
35	HOLDER; CAM MJD7S M/T(Y2Y) (B)	1-48469-054-0	01	1	0107-0108
35	HOLDER; CAM MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (B)	1-48469-054-0	01	1	0109-
35	HOLDER; CAM TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (A)	1-48469-207-0	01	1	0107-0108
35	HOLDER; CAM TRANSMISSION-ZF 16S221 OD(Y1U) (A)	1-48469-207-0	01	1	0109-
36	RING; CAM MJD7S M/T(Y2Y)	1-48469-056-0	01	1	0107-0108
36	RING; CAM MJD7S M/T(Y2Y),MJX16P M/T(Y3Z)	1-48469-056-0	01	1	0109-
37	GUIDE; CAM RING MJD7S M/T(Y2Y)	1-48469-058-0	01	1	0107-0108
37	GUIDE; CAM RING MJD7S M/T(Y2Y),MJX16P M/T(Y3Z)	1-48469-058-0	01	1	0109-
38	SEAT; EXH VLV MJD7S M/T(Y2Y) (B)	1-48469-057-0	01	1	0107-0108
38	SEAT; EXH VLV MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (B)	1-48469-057-0	01	1	0109-
38	SEAT; EXH VLV TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (A)	1-48469-172-0	01	1	0107-0108
38	SEAT; EXH VLV TRANSMISSION-ZF 16S221 OD(Y1U) (A)	1-48469-172-0	01	1	0109-0302
38	SEAT; EXH VLV TRANSMISSION-ZF 16S221 OD(Y1U) (A)	1-48469-211-0	01	1	0303-
39	SPRING; RETURN,CAM RING MJD7S M/T(Y2Y) (B)	1-48469-063-0	01	1	0107-0108
39	SPRING; RETURN,CAM RING MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (B)	1-48469-063-0	01	1	0109-
39	SPRING; RETURN,CAM RING TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (A)	1-48469-150-0	01	1	0107-0108
39	SPRING; RETURN,CAM RING TRANSMISSION-ZF 16S221 OD(Y1U) (A)	1-48469-150-0	01	1	0109-
40	RING; SNAP MJD7S M/T(Y2Y) (A)	1-48469-067-0	01	1	0107-0108
40	RING; SNAP MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (A)	1-48469-067-0	01	1	0109-
40	RING; SNAP MJD7S M/T(Y2Y) (B)	1-48469-079-0	01	1	0107-0108
40	RING; SNAP MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (B)	1-48469-079-0	01	1	0109-
41	SEAT; FEED VLV MJD7S M/T(Y2Y)	1-48469-066-0	01	1	0107-0108
41	SEAT; FEED VLV MJD7S M/T(Y2Y),MJX16P M/T(Y3Z)	1-48469-066-0	01	1	0109-
42	VALVE; FEED MJD7S M/T(Y2Y)	1-48469-065-0	02	1	0107-0108
42	VALVE; FEED MJD7S M/T(Y2Y),MJX16P M/T(Y3Z)	1-48469-065-0	02	1	0109-
43	PISTON; HAND BRK VLV MJD7S M/T(Y2Y) (B)	1-48469-064-0	01	1	0107-0108
43	PISTON; HAND BRK VLV MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (B)	1-48469-064-0	01	1	0109-
43	PISTON; HAND BRK VLV TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (A)	1-48469-151-0	01	1	0107-0108
43	PISTON; HAND BRK VLV TRANSMISSION-ZF 16S221 OD(Y1U) (A)	1-48469-151-0	01	1	0109-0302
44	RING; SNAP,FEED VLV MJD7S M/T(Y2Y)	1-48469-068-0	02	1	0107-0108
44	RING; SNAP,FEED VLV MJD7S M/T(Y2Y),MJX16P M/T(Y3Z)	1-48469-068-0	02	1	0109-
45	SPRING; FEED VLV MJD7S M/T(Y2Y)	1-48469-070-0	02	1	0107-0108
45	SPRING; FEED VLV MJD7S M/T(Y2Y),MJX16P M/T(Y3Z)	1-48469-070-0	02	1	0109-
46	SPRING; MAIN,PISTON MJD7S M/T(Y2Y) (B)	1-48469-071-0	01	1	0107-0108
46	SPRING; MAIN,PISTON MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (B)	1-48469-071-0	01	1	0109-
46	SPRING; MAIN,PISTON TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (A)	1-48469-173-0	01	1	0107-0108
46	SPRING; MAIN,PISTON TRANSMISSION-ZF 16S221 OD(Y1U) (A)	1-48469-173-0	01	1	0109-
47	SHIM; MAIN SPRING	1-48469-072-0	AR	1	0107-
48	WASHER; COVER MJD7S M/T(Y2Y)	1-48469-074-0	04	1	0107-0108
48	WASHER; COVER MJD7S M/T(Y2Y),MJX16P M/T(Y3Z)	1-48469-074-0	04	1	0109-
49	SCREW; COVER MJD7S M/T(Y2Y) (B)	1-48469-075-0	04	1	0107-0108
49	SCREW; COVER MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (B)	1-48469-075-0	04	1	0109-
49	SCREW; COVER TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (A)	1-48469-169-0	04	1	0107-0108
49	SCREW; COVER TRANSMISSION-ZF 16S221 OD(Y1U) (A)	1-48469-169-0	04	1	0109-
50	COVER; HAND BRK VLV MJD7S M/T(Y2Y) (C)	1-48469-073-0	01	1	0107-0108
50	COVER; HAND BRK VLV MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (C)	1-48469-073-0	01	1	0109-
50	COVER; HAND BRK VLV TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (A)	1-48469-153-0	01	1	0107-0108
50	COVER; HAND BRK VLV TRANSMISSION-ZF 16S221 OD(Y1U) (A)	1-48469-153-0	01	1	0109-
50	COVER; HAND BRK VLV TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (B)	1-48469-196-0	01	1	0107-0108
50	COVER; HAND BRK VLV TRANSMISSION-ZF 16S221 OD(Y1U) (B)	1-48469-196-0	01	1	0109-
51	HANDLE ASM; HAND BRK VLV MJD7S M/T(Y2Y)	1-48469-060-0	01	1	0107-0108
51	HANDLE ASM; HAND BRK VLV MJD7S M/T(Y2Y),MJX16P M/T(Y3Z)	1-48469-060-0	01	1	0109-
52	SCREW; HANDLE	1-48469-062-0	01	1	0107-
53	WASHER; HANDLE	1-48469-061-0	01	1	0107-
54	SEAT; SPRING MJD7S M/T(Y2Y)	1-48469-082-0	02	1	0107-0108
54	SEAT; SPRING MJD7S M/T(Y2Y),MJX16P M/T(Y3Z)	1-48469-082-0	02	1	0109-
55	SPRING; RETURN,HANDLE MJD7S M/T(Y2Y) (B)	1-48469-059-0	01	1	0107-0108
55	SPRING; RETURN,HANDLE MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (B)	1-48469-059-0	01	1	0109-
55	SPRING; RETURN,HANDLE TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (A)	1-48469-155-0	01	1	0107-0108
55	SPRING; RETURN,HANDLE TRANSMISSION-ZF 16S221 OD(Y1U) (A)	1-48469-155-0	01	1	0109-
56	BOOT; PLUNGER MJD7S M/T(Y2Y)	1-48469-080-0	01	1	0107-0108
56	BOOT; PLUNGER MJD7S M/T(Y2Y),MJX16P M/T(Y3Z)	1-48469-080-0	01	1	0109-
57	PLUNGER; HAND BRK VLV MJD7S M/T(Y2Y) (B)	1-48469-076-0	01	1	0107-0108
57	PLUNGER; HAND BRK VLV MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (B)	1-48469-076-0	01	1	0109-
57	PLUNGER; HAND BRK VLV TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (A)	1-48469-180-0	01	1	0107-0108
57	PLUNGER; HAND BRK VLV TRANSMISSION-ZF 16S221 OD(Y1U) (A)	1-48469-180-0	01	1	0109-
58	HOLDER; FEED VLV MJD7S M/T(Y2Y)	1-48469-077-0	01	1	0107-0108
58	HOLDER; FEED VLV MJD7S M/T(Y2Y),MJX16P M/T(Y3Z)	1-48469-077-0	01	1	0109-
59	HOLDER; SPRING MJD7S M/T(Y2Y)	1-48469-078-0	01	1	0107-0108
59	HOLDER; SPRING MJD7S M/T(Y2Y),MJX16P M/T(Y3Z)	1-48469-078-0	01	1	0109-
145	STUD; HAND BRK VLV MJD7S M/T(Y2Y)	1-48469-069-0	01	1	0107-0108
145	STUD; HAND BRK VLV MJD7S M/T(Y2Y),MJX16P M/T(Y3Z)	1-48469-069-0	01	1	0109-
164	GREASE; HAND BRK VLV MJD7S M/T(Y2Y)	1-48469-084-0	01	1	0107-0108
164	GREASE; HAND BRK VLV MJD7S M/T(Y2Y),MJX16P M/T(Y3Z)	1-48469-084-0	01	1	0109-

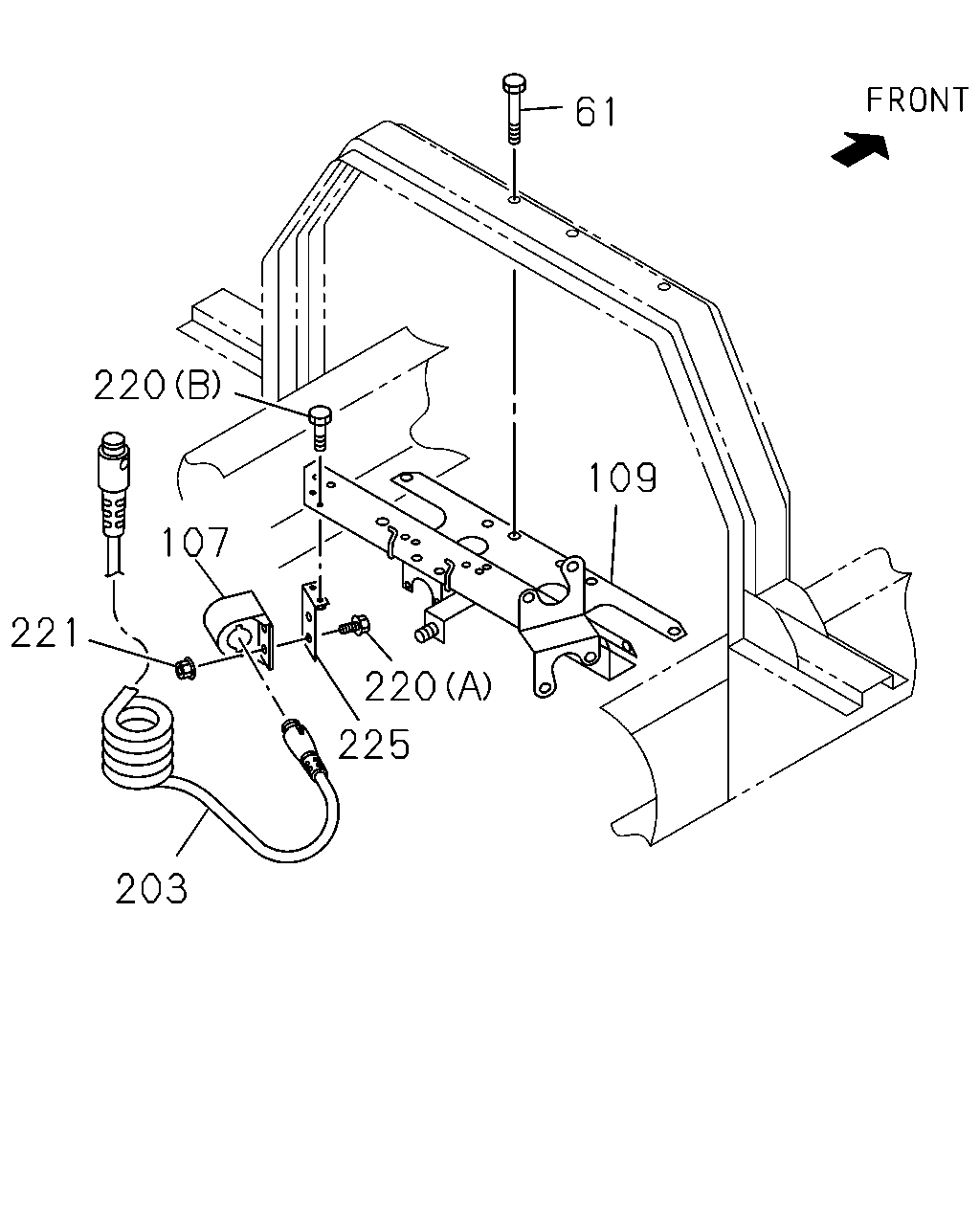

61 220 107 220 225 203 221 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
61	BOLT; STEP BOARD M10X25 FLANGE	0-28681-025-0	08	1	0107-0311
61	BOLT; STEP BOARD M10X30 FLANGE	0-28681-030-0	08	1	0312-0512
61	BOLT; STEP BOARD M10X30 FLANGE	0-28651-030-0	08	1	0601-
107	HANGER; JUMPER HOSE	1-57550-022-0	01	1	0107-
109	BRACKET; HOSE HANGER ANTILOCK BRAKE SYSTEM(BFA)	1-53497-671-0	01	1	0107-
109	BRACKET; HOSE HANGER EXC. ANTILOCK BRAKE SYSTEM(BFA)	1-53497-672-0	01	1	0107-0201
109	BRACKET; HOSE HANGER EXC. ANTILOCK BRAKE SYSTEM(BFA)	1-53497-683-1	01	1	0202-
203	CABLE; JUMPER L=4000	1-82659-186-2	01	1	0107-
220	BOLT; HANGER (A) M6X16 FLANGE	0-28680-616-0	02	1	0107-0512
220	BOLT; HANGER (A) M6X16 FLANGE	0-28650-616-0	02	1	0601-
220	BOLT; HANGER (B) M8X25 FLANGE	0-28680-825-0	02	1	0107-0512
220	BOLT; HANGER (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-
221	NUT; HANGER M6 FLANGE	0-91150-106-0	02	1	0107-0602
221	NUT; HANGER M6 FLANGE	0-91180-106-0	02	1	0603-
225	BRACKET; HANGER	1-82698-002-0	01	1	0107-

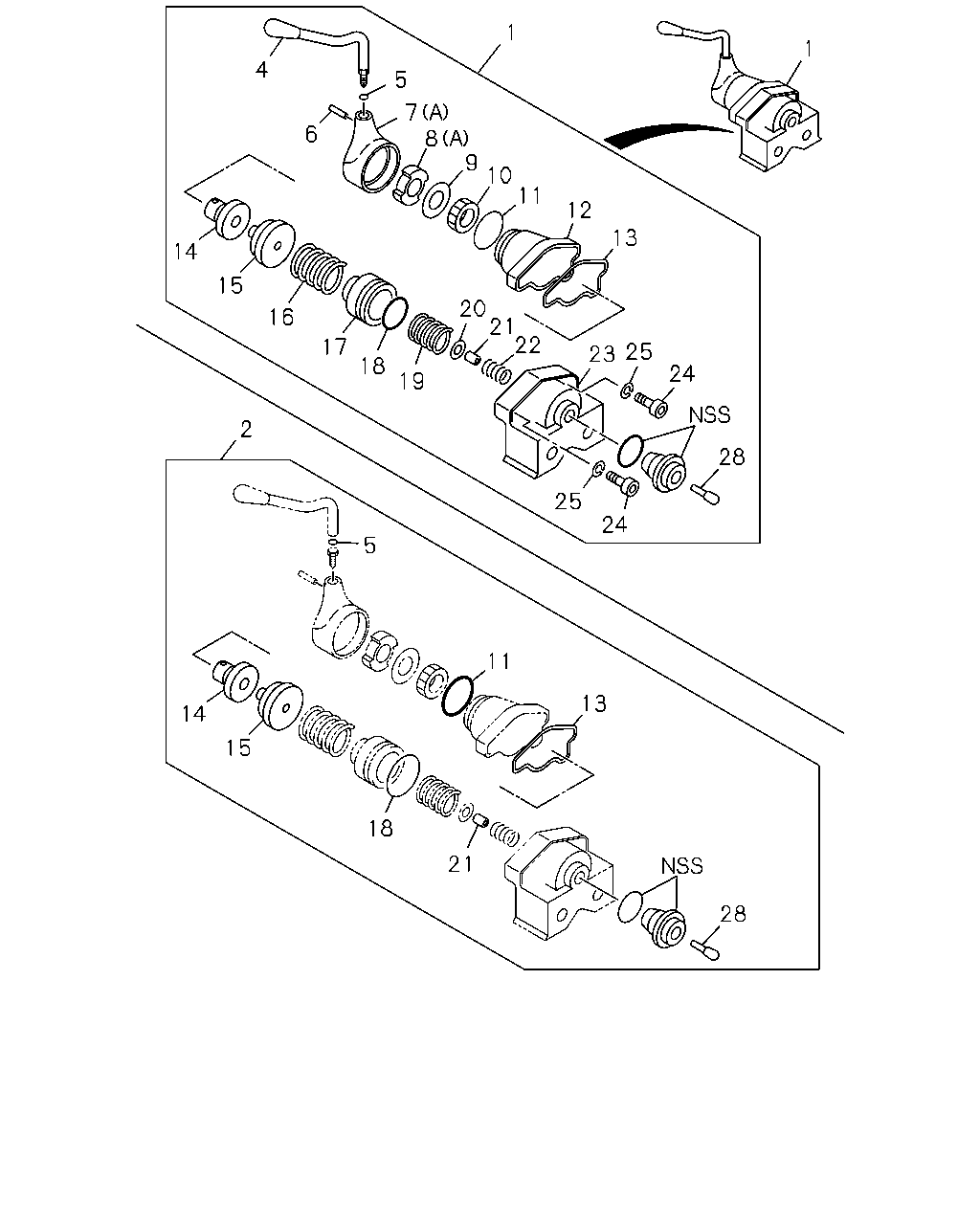

1 1 4 5 6 7 8 9 10 11 12 13 23 25 24 25 24 28 2 16 15 14 17 18 19 20 21 22 5 11 13 14 15 18 21 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE ASM; HAND BRK	1-48100-848-0	01	1	0107-
2	REPAIR KIT; HAND BRK VLV	1-85576-181-0	01	1	0107-
4	HANDLE ASM; BRK VLV	1-48119-517-0	01	1	0107-
5	GASKET; HANDLE	1-48119-128-0	01	1	0107-
6	PIN; SPR	1-48119-143-0	01	1	0107-
7	HEAD; BRK VLV TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (B)	1-48469-209-0	01	1	0107-0108
7	HEAD; BRK VLV TRANSMISSION-ZF 16S221 OD(Y1U) (B)	1-48469-209-0	01	1	0109-
7	HEAD; BRK VLV (A)	1-48119-131-0	01	1	0107-
8	STOPPER; BRK VLV TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (B)	1-48469-200-0	01	1	0107-0108
8	STOPPER; BRK VLV TRANSMISSION-ZF 16S221 OD(Y1U) (B)	1-48469-200-0	01	1	0109-
8	STOPPER; BRK VLV (A)	1-48119-239-0	01	1	0107-
9	WASHER; LK,ADJ	1-48119-123-0	01	1	0107-
10	RING; ADJ	1-48119-122-0	01	1	0107-
11	GASKET; HD TO COVER	1-48119-130-0	01	1	0107-
12	COVER; BRK VLV	1-48129-097-0	01	1	0107-
13	GASKET; BODY TO COVER	1-48119-120-0	01	1	0107-
14	FOLLOWER; CAM	1-48129-135-0	01	1	0107-
15	CAM; FOLLOWER	1-48129-134-0	01	1	0107-
16	SPRING; GRUDUATING	1-48129-101-0	01	1	0107-
17	PISTON; SPR	1-48129-095-0	01	1	0107-
18	GASKET; BODY	1-48129-096-0	01	1	0107-
19	SPRING; PISTON	1-48129-094-0	01	1	0107-
20	GUIDE; VLV	1-48129-090-0	01	1	0107-
21	VALVE; IN & EXH	1-48121-017-0	01	1	0107-
22	SPRING; VLV	1-48123-024-0	01	1	0107-
23	BODY; BRK VLV	1-48111-060-0	01	1	0107-
24	BOLT; EXH VLV	1-48129-092-0	02	1	0107-
25	WASHER; LK,EXH VLV	1-48129-093-0	02	1	0107-
28	STEM ASM; BRK VLV	1-48129-089-0	01	1	0107-

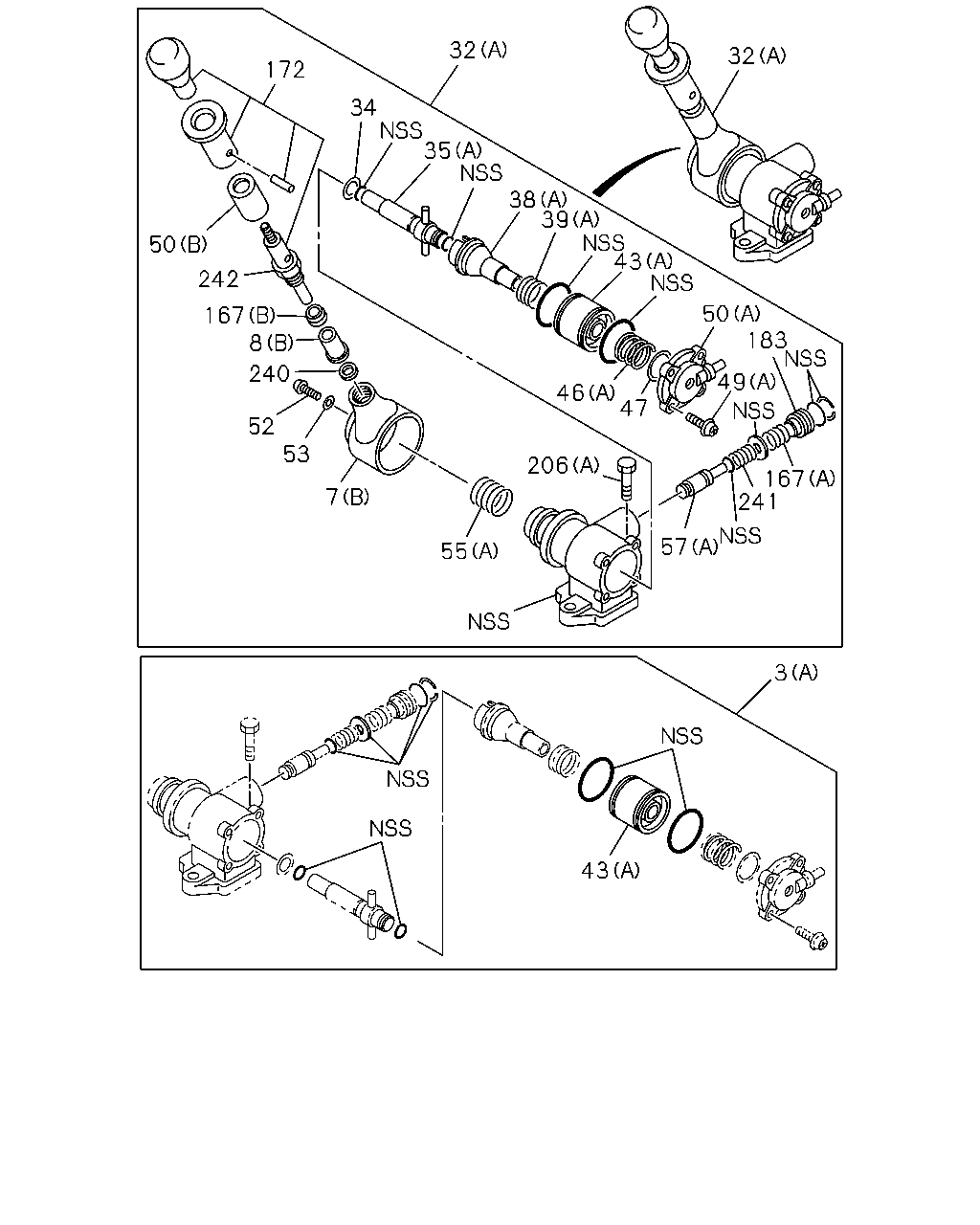

172 32 34 50 167 242 240 8 52 7 53 55 43 3 57 206 47 46 183 167 241 49 50 43 39 38 35 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

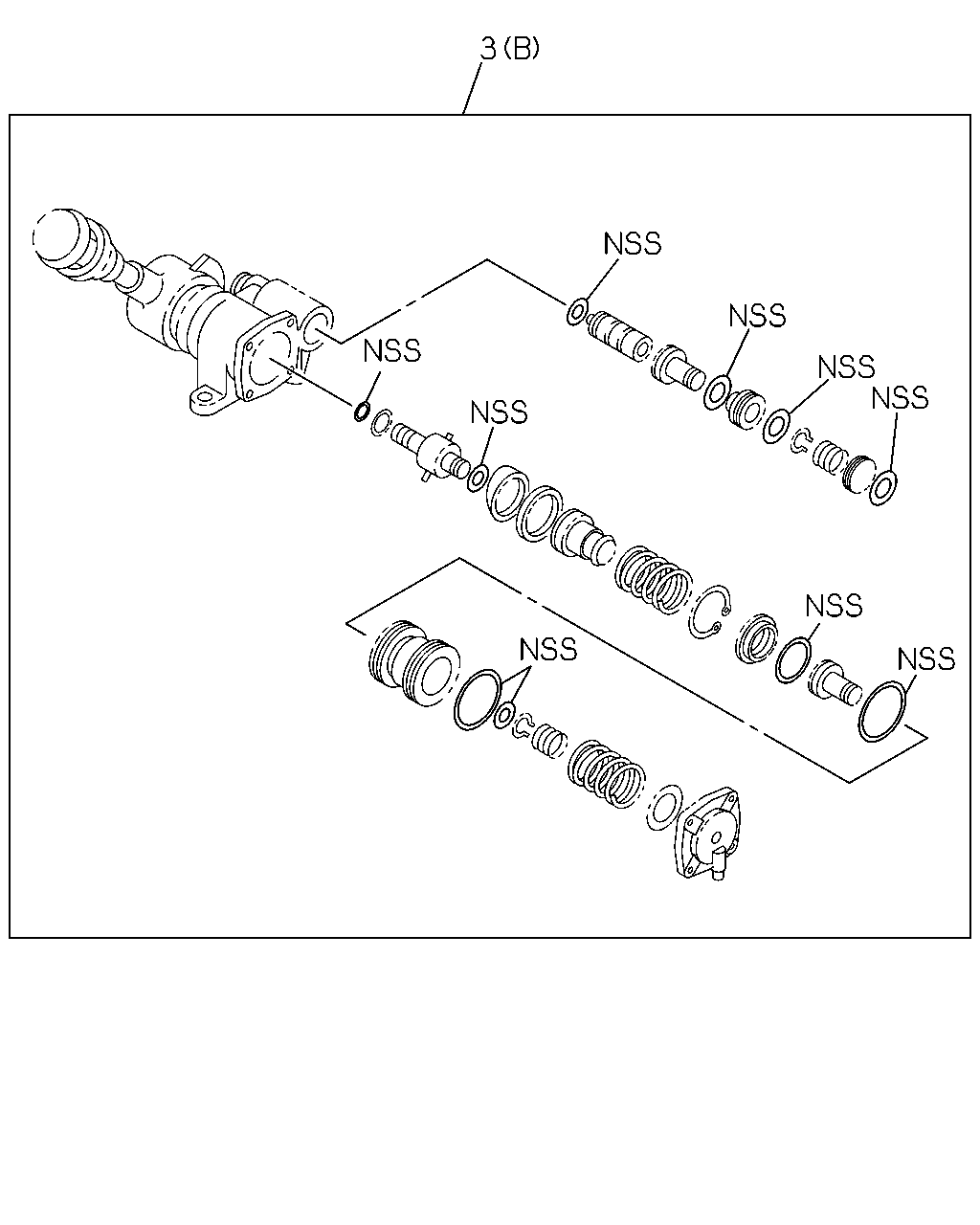

3	REPAIR KIT; HAND BRK VLV MJD7S M/T(Y2Y) (B)	1-48469-083-0	01	1	0107-0108
3	REPAIR KIT; HAND BRK VLV MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (B)	1-48469-083-0	01	1	0109-
3	REPAIR KIT; HAND BRK VLV TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (A)	1-85576-245-0	01	1	0107-0108
3	REPAIR KIT; HAND BRK VLV TRANSMISSION-ZF 16S221 OD(Y1U) (A)	1-85576-245-0	01	1	0109-0302
3	REPAIR KIT; HAND BRK VLV TRANSMISSION-ZF 16S221 OD(Y1U) (A)	1-85576-376-0	01	1	0303-
7	HEAD; BRK VLV TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (B)	1-48469-209-0	01	1	0107-0108
7	HEAD; BRK VLV TRANSMISSION-ZF 16S221 OD(Y1U) (B)	1-48469-209-0	01	1	0109-
7	HEAD; BRK VLV (A)	1-48119-131-0	01	1	0107-
8	STOPPER; BRK VLV TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (B)	1-48469-200-0	01	1	0107-0108
8	STOPPER; BRK VLV TRANSMISSION-ZF 16S221 OD(Y1U) (B)	1-48469-200-0	01	1	0109-
8	STOPPER; BRK VLV (A)	1-48119-239-0	01	1	0107-
32	VALVE; BRK,HAND CONT MJD7S M/T(Y2Y) (B)	1-48460-315-0	01	1	0107-0108
32	VALVE; BRK,HAND CONT MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (B)	1-48460-315-0	01	1	0109-
32	VALVE; BRK,HAND CONT TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (A)	1-48460-341-0	01	1	0107-0108
32	VALVE; BRK,HAND CONT TRANSMISSION-ZF 16S221 OD(Y1U) (A)	1-48460-341-1	01	1	0109-
34	SHIM; CAM HOLDER	1-48469-055-0	AR	1	0107-
35	HOLDER; CAM MJD7S M/T(Y2Y) (B)	1-48469-054-0	01	1	0107-0108
35	HOLDER; CAM MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (B)	1-48469-054-0	01	1	0109-
35	HOLDER; CAM TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (A)	1-48469-207-0	01	1	0107-0108
35	HOLDER; CAM TRANSMISSION-ZF 16S221 OD(Y1U) (A)	1-48469-207-0	01	1	0109-
38	SEAT; EXH VLV MJD7S M/T(Y2Y) (B)	1-48469-057-0	01	1	0107-0108
38	SEAT; EXH VLV MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (B)	1-48469-057-0	01	1	0109-
38	SEAT; EXH VLV TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (A)	1-48469-172-0	01	1	0107-0108
38	SEAT; EXH VLV TRANSMISSION-ZF 16S221 OD(Y1U) (A)	1-48469-172-0	01	1	0109-0302
38	SEAT; EXH VLV TRANSMISSION-ZF 16S221 OD(Y1U) (A)	1-48469-211-0	01	1	0303-
39	SPRING; RETURN,CAM RING MJD7S M/T(Y2Y) (B)	1-48469-063-0	01	1	0107-0108
39	SPRING; RETURN,CAM RING MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (B)	1-48469-063-0	01	1	0109-
39	SPRING; RETURN,CAM RING TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (A)	1-48469-150-0	01	1	0107-0108
39	SPRING; RETURN,CAM RING TRANSMISSION-ZF 16S221 OD(Y1U) (A)	1-48469-150-0	01	1	0109-
43	PISTON; HAND BRK VLV MJD7S M/T(Y2Y) (B)	1-48469-064-0	01	1	0107-0108
43	PISTON; HAND BRK VLV MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (B)	1-48469-064-0	01	1	0109-
43	PISTON; HAND BRK VLV TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (A)	1-48469-151-0	01	1	0107-0108
43	PISTON; HAND BRK VLV TRANSMISSION-ZF 16S221 OD(Y1U) (A)	1-48469-151-0	01	1	0109-0302
46	SPRING; MAIN,PISTON MJD7S M/T(Y2Y) (B)	1-48469-071-0	01	1	0107-0108
46	SPRING; MAIN,PISTON MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (B)	1-48469-071-0	01	1	0109-
46	SPRING; MAIN,PISTON TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (A)	1-48469-173-0	01	1	0107-0108
46	SPRING; MAIN,PISTON TRANSMISSION-ZF 16S221 OD(Y1U) (A)	1-48469-173-0	01	1	0109-
47	SHIM; MAIN SPRING	1-48469-072-0	AR	1	0107-
49	SCREW; COVER MJD7S M/T(Y2Y) (B)	1-48469-075-0	04	1	0107-0108
49	SCREW; COVER MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (B)	1-48469-075-0	04	1	0109-
49	SCREW; COVER TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (A)	1-48469-169-0	04	1	0107-0108
49	SCREW; COVER TRANSMISSION-ZF 16S221 OD(Y1U) (A)	1-48469-169-0	04	1	0109-
50	COVER; HAND BRK VLV MJD7S M/T(Y2Y) (C)	1-48469-073-0	01	1	0107-0108
50	COVER; HAND BRK VLV MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (C)	1-48469-073-0	01	1	0109-
50	COVER; HAND BRK VLV TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (A)	1-48469-153-0	01	1	0107-0108
50	COVER; HAND BRK VLV TRANSMISSION-ZF 16S221 OD(Y1U) (A)	1-48469-153-0	01	1	0109-
50	COVER; HAND BRK VLV TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (B)	1-48469-196-0	01	1	0107-0108
50	COVER; HAND BRK VLV TRANSMISSION-ZF 16S221 OD(Y1U) (B)	1-48469-196-0	01	1	0109-
52	SCREW; HANDLE	1-48469-062-0	01	1	0107-
53	WASHER; HANDLE	1-48469-061-0	01	1	0107-
55	SPRING; RETURN,HANDLE MJD7S M/T(Y2Y) (B)	1-48469-059-0	01	1	0107-0108
55	SPRING; RETURN,HANDLE MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (B)	1-48469-059-0	01	1	0109-
55	SPRING; RETURN,HANDLE TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (A)	1-48469-155-0	01	1	0107-0108
55	SPRING; RETURN,HANDLE TRANSMISSION-ZF 16S221 OD(Y1U) (A)	1-48469-155-0	01	1	0109-
57	PLUNGER; HAND BRK VLV MJD7S M/T(Y2Y) (B)	1-48469-076-0	01	1	0107-0108
57	PLUNGER; HAND BRK VLV MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (B)	1-48469-076-0	01	1	0109-
57	PLUNGER; HAND BRK VLV TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (A)	1-48469-180-0	01	1	0107-0108
57	PLUNGER; HAND BRK VLV TRANSMISSION-ZF 16S221 OD(Y1U) (A)	1-48469-180-0	01	1	0109-
167	SPRING; VALVE TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (A)	1-48469-177-0	01	1	0107-0108
167	SPRING; VALVE TRANSMISSION-ZF 16S221 OD(Y1U) (A)	1-48469-177-0	01	1	0109-
167	SPRING; VALVE TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (B)	1-48469-184-0	01	1	0107-0108
167	SPRING; VALVE TRANSMISSION-ZF 16S221 OD(Y1U) (B)	1-48469-184-0	01	1	0109-
172	KNOB; VALVE TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z)	1-48469-210-0	01	1	0107-0108
172	KNOB; VALVE TRANSMISSION-ZF 16S221 OD(Y1U)	1-48469-210-0	01	1	0109-
183	RETAINER; VALVE TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z)	1-48469-185-0	01	1	0107-0108
183	RETAINER; VALVE TRANSMISSION-ZF 16S221 OD(Y1U)	1-48469-185-0	01	1	0109-
206	BOLT; HAND BRK VALVE (B) M10X20 W/LK WASHER	0-50041-020-0	02	1	0302-0512
206	BOLT; HAND BRK VALVE (B) M10X20 W/LK WASHER	0-50541-020-0	02	1	0601-
206	BOLT; HAND BRK VALVE TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (A)	1-48469-160-0	01	1	0107-0108
206	BOLT; HAND BRK VALVE TRANSMISSION-ZF 16S221 OD(Y1U) (A)	1-48469-160-0	01	1	0109-
240	RING; STOPPER TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z)	1-48469-208-0	01	1	0107-0108
240	RING; STOPPER TRANSMISSION-ZF 16S221 OD(Y1U)	1-48469-208-0	01	1	0109-
241	SPRING; RETURN TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z)	1-48469-182-0	01	1	0107-0108
241	SPRING; RETURN TRANSMISSION-ZF 16S221 OD(Y1U)	1-48469-182-0	01	1	0109-
242	NUT; LK TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z)	1-48469-179-0	01	1	0107-0108
242	NUT; LK TRANSMISSION-ZF 16S221 OD(Y1U)	1-48469-179-0	01	1	0109-

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	REPAIR KIT; HAND BRK VLV MJD7S M/T(Y2Y) (B)	1-48469-083-0	01	1	0107-0108
3	REPAIR KIT; HAND BRK VLV MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (B)	1-48469-083-0	01	1	0109-
3	REPAIR KIT; HAND BRK VLV TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (A)	1-85576-245-0	01	1	0107-0108
3	REPAIR KIT; HAND BRK VLV TRANSMISSION-ZF 16S221 OD(Y1U) (A)	1-85576-245-0	01	1	0109-0302
3	REPAIR KIT; HAND BRK VLV TRANSMISSION-ZF 16S221 OD(Y1U) (A)	1-85576-376-0	01	1	0303-

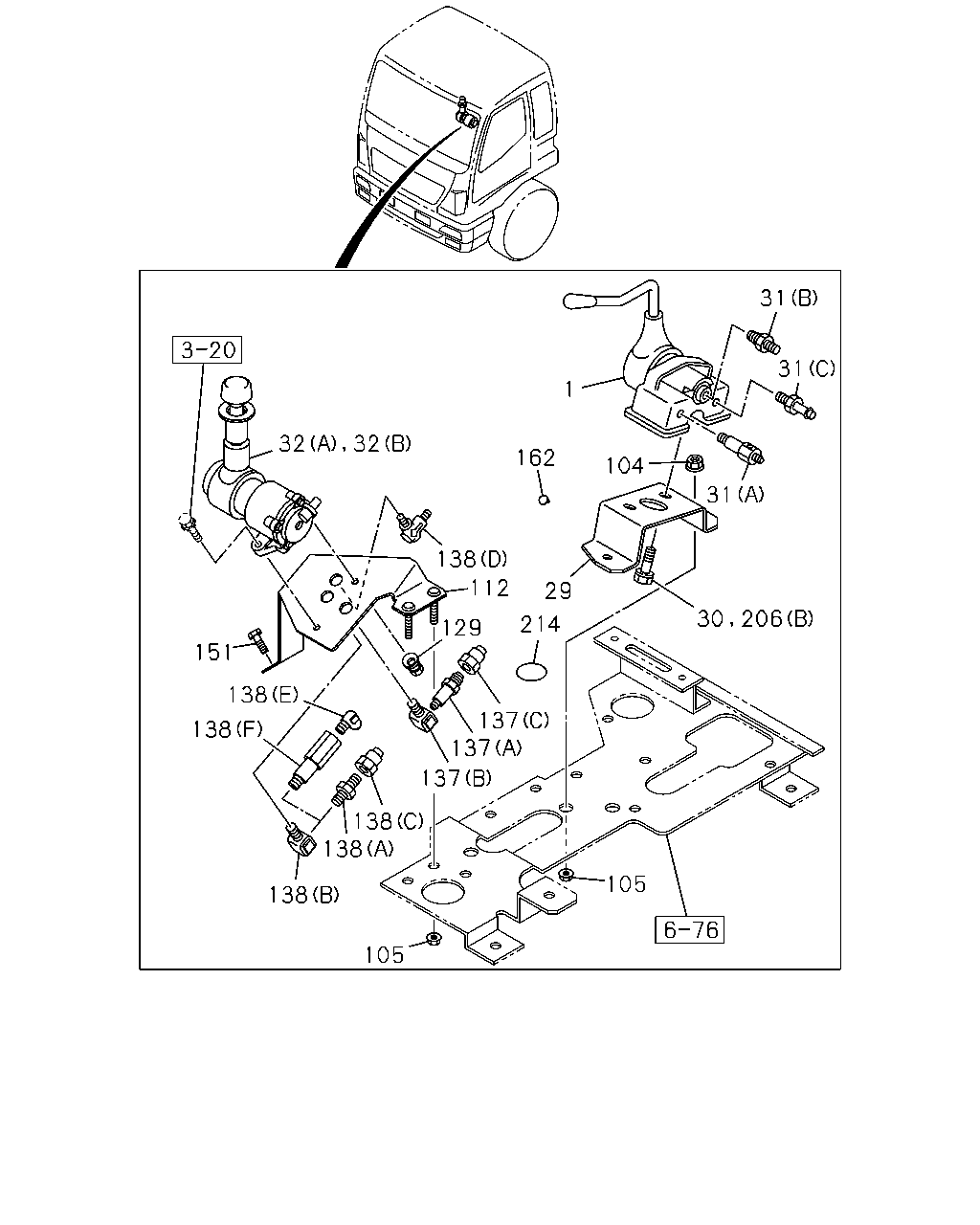

32 32 1 162 104 31 31 31 29 112 138 151 138 138 138 138 138 137 137 129 214 137 30 206 105 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE ASM; HAND BRK	1-48100-848-0	01	1	0107-
29	BRACKET; HAND BRK	1-79997-357-1	01	1	0107-
30	BOLT; BRKT,HAND BRK VLV M10X20 W/LK WASHER	0-50041-020-0	02	1	0107-0301
31	CONNECTOR; HAND BRK VLV (A) M14	1-09656-391-2	01	1	0107-
31	CONNECTOR; HAND BRK VLV (C) L=45	8-94338-874-0	01	1	0107-
31	CONNECTOR; HAND BRK VLV (B) M16 & PT1/4 STRAIGHT	9-09231-810-1	01	1	0107-0607
31	CONNECTOR; HAND BRK VLV (B) M16 & PT1/4 STRAIGHT	0-92121-810-0	01	1	0608-
32	VALVE; BRK,HAND CONT MJD7S M/T(Y2Y) (B)	1-48460-315-0	01	1	0107-0108
32	VALVE; BRK,HAND CONT MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (B)	1-48460-315-0	01	1	0109-
32	VALVE; BRK,HAND CONT TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (A)	1-48460-341-0	01	1	0107-0108
32	VALVE; BRK,HAND CONT TRANSMISSION-ZF 16S221 OD(Y1U) (A)	1-48460-341-1	01	1	0109-
104	BOLT; BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0107-0301
105	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	0107-0602
105	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0603-
112	BRACKET; CONT VLV TRANSMISSION-ZF 16S221 OD(Y1U)	1-79996-387-0	01	1	0107-
112	BRACKET; CONT VLV ISUZU M/T<X9A>	1-79996-336-1	01	1	0107-
129	NUT; VLV M8 FLANGE	0-91150-108-0	01	1	0107-0602
129	NUT; VLV M8 FLANGE	0-91180-108-0	01	1	0603-
137	CONNECTOR; SUPPLY ISUZU M/T<X9A> (A) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	0107-
137	CONNECTOR; SUPPLY TRANSMISSION-ZF 16S221 OD(Y1U) (A)	1-09650-352-1	01	1	0107-
137	CONNECTOR; SUPPLY TRANSMISSION-ZF 16S221 OD(Y1U) (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0107-
137	CONNECTOR; SUPPLY (B) PT1/4 2WAY	1-09660-693-0	01	1	0107-
138	CONNECTOR; DELIVERY TRANSMISSION-ZF 16S221 OD(Y1U) (F)	1-09660-335-1	01	1	0107-
138	CONNECTOR; DELIVERY TRANSMISSION-ZF 16S221 OD(Y1U) (E) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0107-
138	CONNECTOR; DELIVERY ISUZU M/T<X9A> (A) M14	1-09656-391-2	01	1	0107-
138	CONNECTOR; DELIVERY (D) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0107-
138	CONNECTOR; DELIVERY (B) PT1/4 2WAY	1-09660-693-0	01	1	0107-
138	CONNECTOR; DELIVERY ISUZU M/T<X9A> (C) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0107-
151	BOLT; VLV BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0107-0409
151	BOLT; VLV BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0410-
162	SWITCH; PARKING BRK VLV	1-72447-390-0	01	1	0107-
206	BOLT; HAND BRK VALVE (B) M10X20 W/LK WASHER	0-50041-020-0	02	1	0302-0512
206	BOLT; HAND BRK VALVE (B) M10X20 W/LK WASHER	0-50541-020-0	02	1	0601-
206	BOLT; HAND BRK VALVE TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (A)	1-48469-160-0	01	1	0107-0108
206	BOLT; HAND BRK VALVE TRANSMISSION-ZF 16S221 OD(Y1U) (A)	1-48469-160-0	01	1	0109-
214	SEAL; COVER,HAND BRK OD=25 BLACK	1-76798-019-0	02	1	0107-

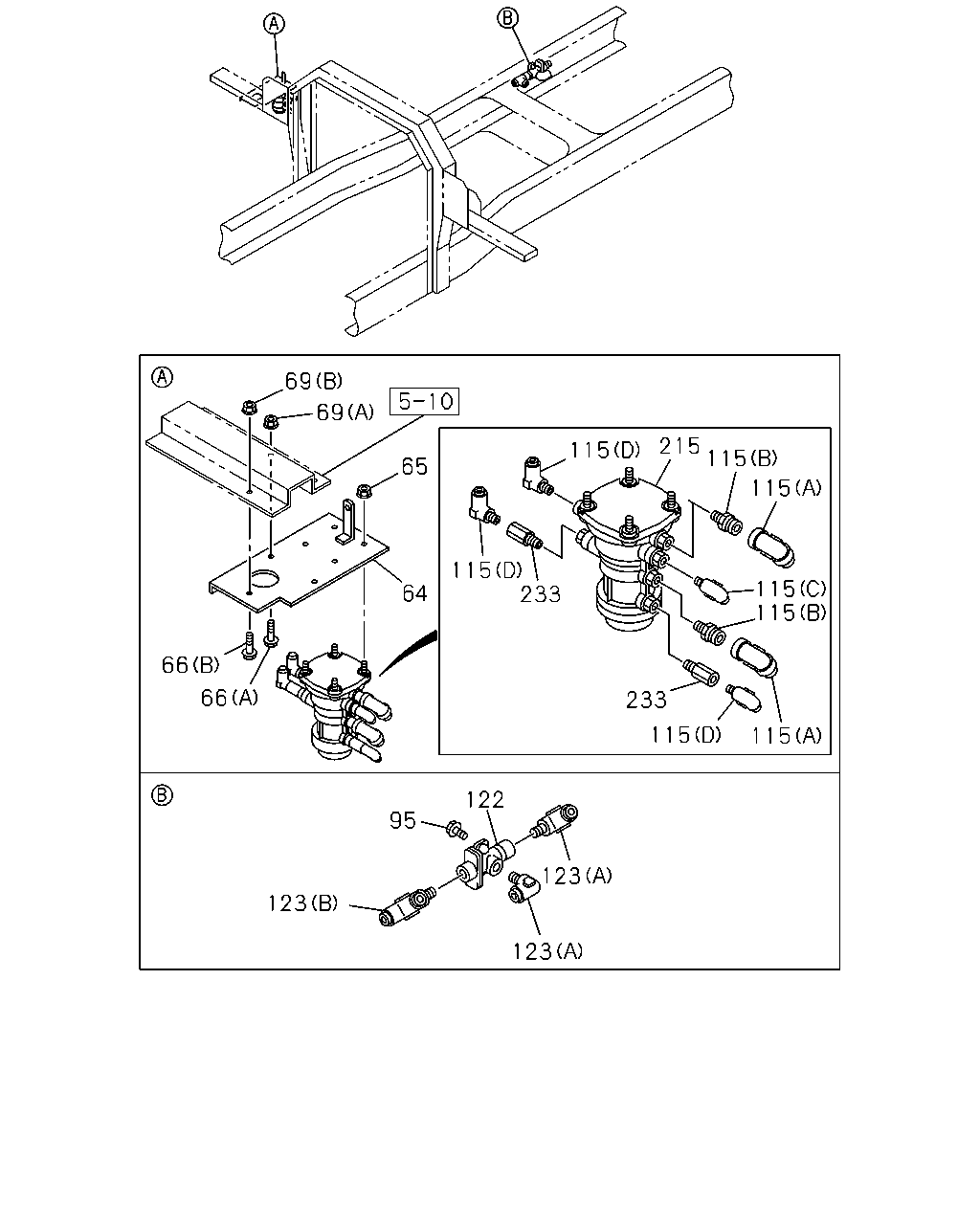

69 65 69 115 64 233 115 215 115 115 115 115 233 115 115 122 95 123 123 123 66 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
64	BRACKET; RELAY VLV	1-48495-219-1	01	1	0107-
65	NUT; RELAY VLV M8 FLANGE	0-91150-108-0	04	1	0107-0602
65	NUT; RELAY VLV M8 FLANGE	0-91180-108-0	04	1	0603-
66	BOLT; VLV BRKT (A) M8X25 FLANGE	0-28680-825-0	01	1	0107-0512
66	BOLT; VLV BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-
66	BOLT; VLV BRKT (B) M10X25 FLANGE	0-28681-025-0	02	1	0107-0512
66	BOLT; VLV BRKT (B) M10X25 FLANGE	0-28651-025-0	02	1	0601-
69	NUT; VLV BRKT (A) M8 FLANGE	0-91150-108-0	01	1	0107-0602
69	NUT; VLV BRKT (A) M8 FLANGE	0-91180-108-0	01	1	0603-
69	NUT; VLV BRKT (B) M10 FLANGE	0-91150-210-0	02	1	0107-0602
69	NUT; VLV BRKT (B) M10 FLANGE	0-91180-210-0	02	1	0603-
95	BOLT; BRKT,DOUBLE CHECK VLV M8X16 FLANGE	0-28080-816-0	02	1	0107-0512
95	BOLT; BRKT,DOUBLE CHECK VLV M8X16 FLANGE	0-28050-816-0	02	1	0601-
115	CONNECTOR; DUAL RELAY VLV (A) DIN8 ELBOW	1-09660-924-1	02	1	0107-
115	CONNECTOR; DUAL RELAY VLV (B)	1-09660-948-0	02	1	0107-
115	CONNECTOR; DUAL RELAY VLV (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0107-
115	CONNECTOR; DUAL RELAY VLV (D) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0107-
122	VALVE ASM; DOUBLE CHECK	1-48410-531-0	01	1	0107-
123	CONNECTOR; DBL CHECK VLV (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0107-
123	CONNECTOR; DBL CHECK VLV (B) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	0107-
215	VALVE; TRAILER CONT	1-48210-684-0	01	1	0107-
233	ADAPTER; VLV PT3/8	1-48319-058-0	02	1	0107-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
