3-20 — AIR TANK (#10000) — 144 parça

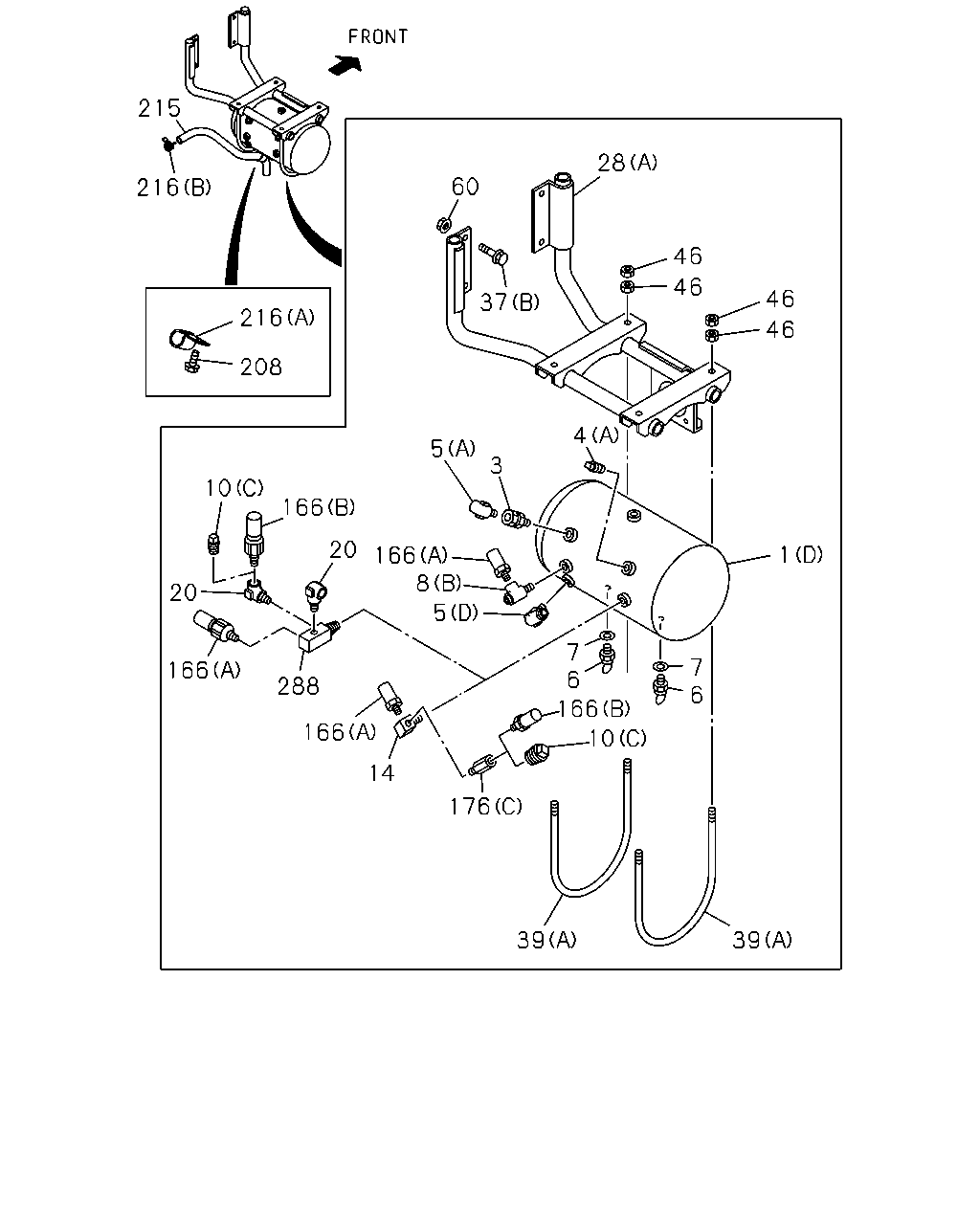

215 216 216 208 10 20 166 288 166 5 8 166 20 166 14 176 39 39 1 46 46 46 46 28 60 37 5 3 4 7 6 7 6 166 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR (A)	1-48370-710-0	01	1	0107-
1	TANK ASM; AIR (B)	1-48370-712-0	01	1	0107-
1	TANK ASM; AIR (D)	1-48370-714-0	01	1	0107-
1	TANK ASM; AIR (C)	1-48370-942-1	01	1	0107-
3	VALVE; CHECK,AIR TANK	1-48320-013-2	01	1	0107-
4	CONNECTOR; FLARE (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0107-
4	CONNECTOR; FLARE (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	0107-
5	UNION; AIR TANK (B)	1-09660-778-1	02	1	0107-
5	UNION; AIR TANK (C) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0107-
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0107-
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0107-
5	UNION; AIR TANK (D) DIN6 & R3/8 ELBOW	1-09661-234-0	01	1	0107-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	0107-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0107-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0107-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0107-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	05	1	0107-
8	CONNECTOR; AIR TANK (A) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	02	1	0107-
8	CONNECTOR; AIR TANK (B)	1-09661-027-0	01	1	0107-
10	PLUG; AIR TANK (A)	1-09604-106-0	02	1	0107-
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	03	1	0107-
10	PLUG; AIR TANK EXC. FULL FLOATING CAB(W16) (C) PT1/4	9-99204-513-0	01	1	0107-0605
10	PLUG; AIR TANK EXC. FULL FLOATING CAB(W16) (C) PT1/4	9-99204-513-0	01	1	0606-
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<W47> (C) PT1/4	9-99204-513-0	01	1	0606-
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<W47> (B) PT3/8	9-09204-517-0	01	1	0107-0605
14	UNION; 3 WAY,AIR TANK PT1/4 & M12 ELBOW	1-09656-665-0	01	1	0107-0207
20	NIPPLE; AIR TANK TIRE INFLATOR DEVICE<W47> PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0107-0207
20	NIPPLE; AIR TANK PT1/4 2WAY	1-09660-693-0	01	1	0208-
20	NIPPLE; AIR TANK TIRE INFLATOR DEVICE<W47> PT1/4 2WAY	1-09660-693-0	01	1	0208-
28	BRACKET; AIR TANK (A)	1-48317-820-2	01	1	0107-
28	BRACKET; AIR TANK (B)	1-48317-856-0	01	1	0107-
28	BRACKET; AIR TANK (C)	1-48317-868-0	01	1	0107-
37	BOLT; AIR TANK (A) M8X20 FLANGE	0-28680-820-0	02	1	0107-0512
37	BOLT; AIR TANK (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
37	BOLT; AIR TANK (B) M10X35 FLANGE	0-28681-035-0	04	1	0107-0512
37	BOLT; AIR TANK (B) M10X35 FLANGE	0-28651-035-0	04	1	0601-
37	BOLT; AIR TANK (B) M12X40 FLANGE	0-28681-240-0	08	1	0107-0512
37	BOLT; AIR TANK (B) M12X40 FLANGE	0-28651-240-0	08	1	0601-
39	U-BOLT; AIR TANK (A) L=250	1-48317-308-0	02	1	0107-
39	U-BOLT; AIR TANK (B)	1-48317-675-0	06	1	0107-
46	NUT; U-BOLT M8	9-09110-408-0	08	1	0107-0512
46	NUT; U-BOLT M8	0-91110-508-0	08	1	0601-
46	NUT; U-BOLT M8	9-09110-408-0	24	1	0107-0512
46	NUT; U-BOLT M8	0-91110-508-0	24	1	0601-
60	NUT; AIR TANK FIX M10 FLANGE	0-91150-210-0	02	1	0107-0602
60	NUT; AIR TANK FIX M10 FLANGE	0-91180-210-0	02	1	0603-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK FULL FLOATING CAB(W16) (B) 650KPA	1-48340-059-1	01	1	0107-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK (A) 530KPA	1-48340-054-1	05	1	0107-
176	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8	1-09664-210-0	02	1	0107-
176	ADAPTER (B) PT1/4 & PT3/8 2WAY	1-09660-809-0	03	1	0107-
176	ADAPTER (C) M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	0107-0207
208	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0107-0512
208	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0601-
215	PIPE; VINYL L=500 SERVICED BY L=3000	0-03566-300-0	01	1	0107-
216	CLIP; PIPE,VINYL (A) ID=24 L=32	1-09700-766-1	01	1	0107-
216	CLIP; PIPE,VINYL (B) ID=21	8-94242-034-0	01	1	0107-
288	CONNECTOR; PRESSURE UNIT PT1/4 4WAY	1-09660-358-0	01	1	0208-

241

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	241	BOLT; SET,CONT VLV M8X30 W/LK&PL WASHER	0-50140-830-0	01	1	0107-0512
	241	BOLT; SET,CONT VLV M8X30 W/LK&PL WASHER	0-50640-830-0	01	1	0601-

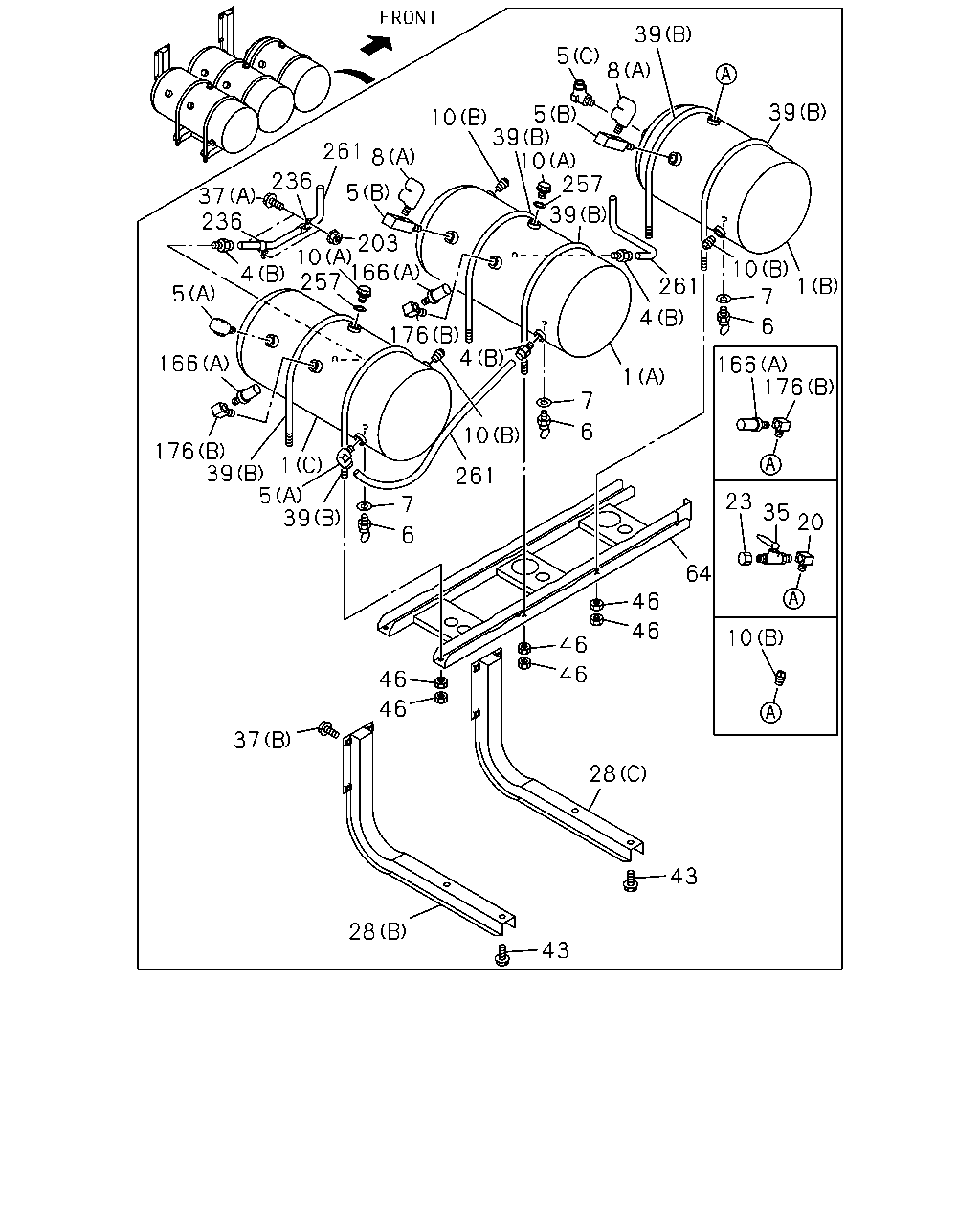

43 43 28 28 37 46 46 46 46 46 46 10 64 23 35 20 176 166 6 7 1 10 261 4 7 1 6 10 261 7 6 5 176 166 5 4 257 10 203 176 10 8 261 236 37 236 5 39 5 5 10 8 257 39 166 4 1 39 39 39 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR (A)	1-48370-710-0	01	1	0107-
1	TANK ASM; AIR (B)	1-48370-712-0	01	1	0107-
1	TANK ASM; AIR (D)	1-48370-714-0	01	1	0107-
1	TANK ASM; AIR (C)	1-48370-942-1	01	1	0107-
4	CONNECTOR; FLARE (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0107-
4	CONNECTOR; FLARE (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	0107-
5	UNION; AIR TANK (B)	1-09660-778-1	02	1	0107-
5	UNION; AIR TANK (C) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0107-
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0107-
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0107-
5	UNION; AIR TANK (D) DIN6 & R3/8 ELBOW	1-09661-234-0	01	1	0107-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	0107-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0107-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0107-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0107-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	05	1	0107-
8	CONNECTOR; AIR TANK (A) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	02	1	0107-
8	CONNECTOR; AIR TANK (B)	1-09661-027-0	01	1	0107-
10	PLUG; AIR TANK (A)	1-09604-106-0	02	1	0107-
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	03	1	0107-
10	PLUG; AIR TANK EXC. FULL FLOATING CAB(W16) (C) PT1/4	9-99204-513-0	01	1	0107-0605
10	PLUG; AIR TANK EXC. FULL FLOATING CAB(W16) (C) PT1/4	9-99204-513-0	01	1	0606-
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<W47> (C) PT1/4	9-99204-513-0	01	1	0606-
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<W47> (B) PT3/8	9-09204-517-0	01	1	0107-0605
20	NIPPLE; AIR TANK TIRE INFLATOR DEVICE<W47> PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0107-0207
20	NIPPLE; AIR TANK PT1/4 2WAY	1-09660-693-0	01	1	0208-
20	NIPPLE; AIR TANK TIRE INFLATOR DEVICE<W47> PT1/4 2WAY	1-09660-693-0	01	1	0208-
23	CAP; COCK,AIR TANK TIRE INFLATOR DEVICE<W47>	9-48319-102-0	01	1	0107-
28	BRACKET; AIR TANK (A)	1-48317-820-2	01	1	0107-
28	BRACKET; AIR TANK (B)	1-48317-856-0	01	1	0107-
28	BRACKET; AIR TANK (C)	1-48317-868-0	01	1	0107-
35	COCK; AIR,AIR TANK TIRE INFLATOR DEVICE<W47>	1-09680-099-0	01	1	0107-
37	BOLT; AIR TANK (A) M8X20 FLANGE	0-28680-820-0	02	1	0107-0512
37	BOLT; AIR TANK (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
37	BOLT; AIR TANK (B) M10X35 FLANGE	0-28681-035-0	04	1	0107-0512
37	BOLT; AIR TANK (B) M10X35 FLANGE	0-28651-035-0	04	1	0601-
37	BOLT; AIR TANK (B) M12X40 FLANGE	0-28681-240-0	08	1	0107-0512
37	BOLT; AIR TANK (B) M12X40 FLANGE	0-28651-240-0	08	1	0601-
39	U-BOLT; AIR TANK (A) L=250	1-48317-308-0	02	1	0107-
39	U-BOLT; AIR TANK (B)	1-48317-675-0	06	1	0107-
43	BOLT; STAY,AIR TANK,MAIN M12X25 FLANGE	0-28681-225-0	04	1	0107-0512
43	BOLT; STAY,AIR TANK,MAIN M12X25 FLANGE	0-28651-225-0	04	1	0601-
46	NUT; U-BOLT M8	9-09110-408-0	08	1	0107-0512
46	NUT; U-BOLT M8	0-91110-508-0	08	1	0601-
46	NUT; U-BOLT M8	9-09110-408-0	24	1	0107-0512
46	NUT; U-BOLT M8	0-91110-508-0	24	1	0601-
64	STAY; AIR TANK,MAIN	1-48317-819-1	01	1	0107-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK FULL FLOATING CAB(W16) (B) 650KPA	1-48340-059-1	01	1	0107-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK (A) 530KPA	1-48340-054-1	05	1	0107-
176	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8	1-09664-210-0	02	1	0107-
176	ADAPTER (B) PT1/4 & PT3/8 2WAY	1-09660-809-0	03	1	0107-
176	ADAPTER (C) M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	0107-0207
203	NUT M8 FLANGE	0-91150-108-0	01	1	0107-0602
203	NUT M8 FLANGE	0-91180-108-0	01	1	0603-
236	CLIP; BAND ID=14 H=50 L=20	1-09700-843-0	02	1	0107-
257	GASKET; PLUG ID=14	1-09630-145-0	02	1	0107-
261	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0107-0212
261	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0301-

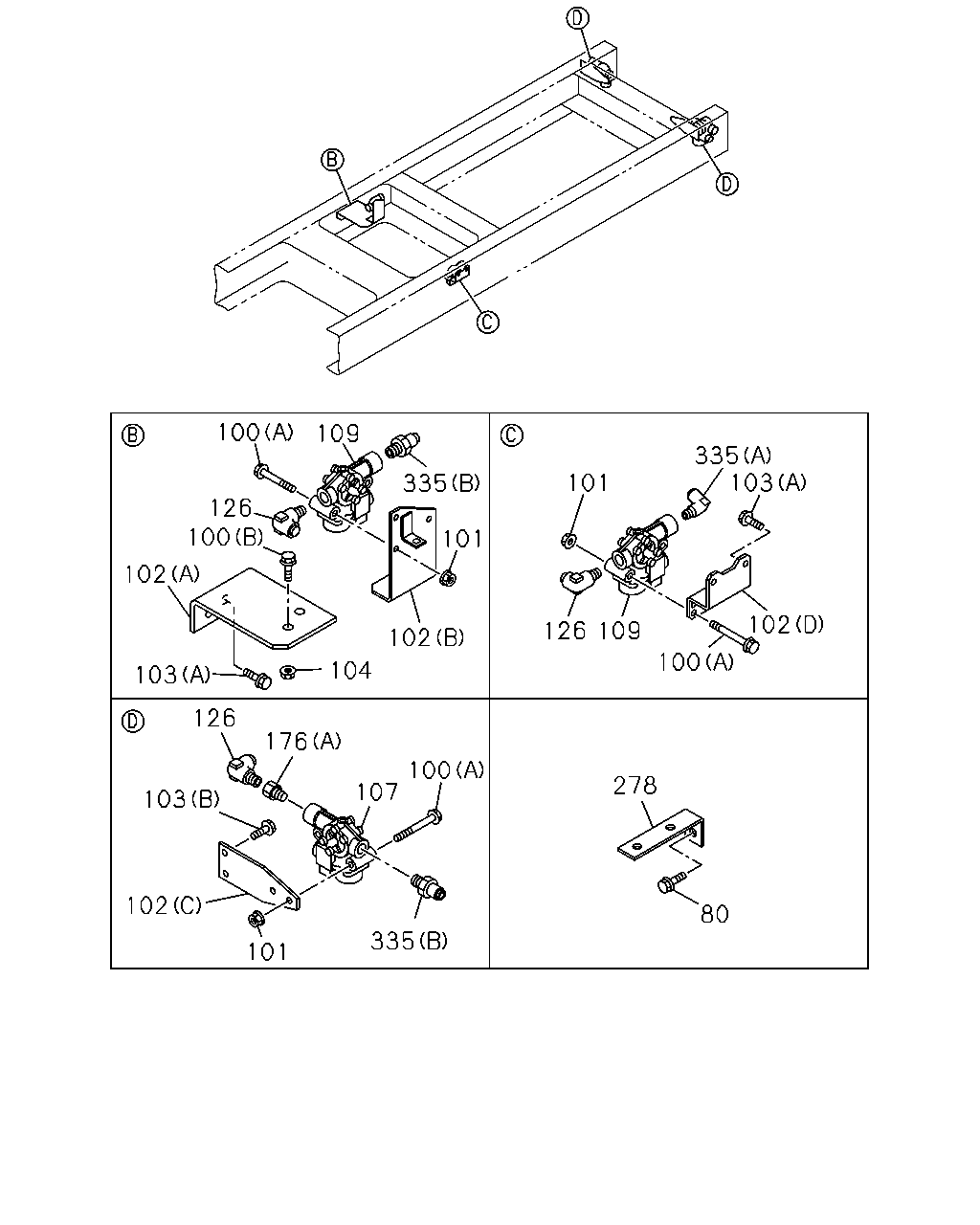

101 335 102 103 126 176 107 100 278 126 101 109 100 103 335 102 80 101 102 104 103 102 100 126 100 109 335

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
80	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	01	1	0212-0512
80	BOLT; BRKT M8X20 FLANGE	0-28050-820-0	01	1	0601-
100	BOLT; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (A) M8X80 FLANGE	0-28080-880-0	08	1	0107-0512
100	BOLT; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (A) M8X80 FLANGE	0-28050-880-0	08	1	0601-
100	BOLT; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (B) M8X20 FLANGE	0-28680-820-0	02	1	0107-0512
100	BOLT; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-
101	NUT; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91150-108-0	16	1	0107-0602
101	NUT; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	16	1	0603-
102	BRACKET; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (D)	1-47478-827-0	01	1	0107-
102	BRACKET; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (C)	1-47478-304-0	02	1	0107-
102	BRACKET; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (A)	1-47479-028-0	01	1	0107-
102	BRACKET; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (B)	1-47479-029-1	01	1	0107-
103	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) (A) M8X25 FLANGE	0-28680-825-0	04	1	0107-0512
103	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) (A) M8X25 FLANGE	0-28650-825-0	04	1	0601-
103	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) (B) M8X30 FLANGE	0-28680-830-0	04	1	0107-0512
103	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) (B) M8X30 FLANGE	0-28650-830-0	04	1	0601-
104	NUT; BRKT ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91150-108-0	02	1	0107-0602
104	NUT; BRKT ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	02	1	0603-
107	MODULATOR; RR ANTILOCK BRAKE SYSTEM(BFA)	1-48210-880-0	02	1	0107-
109	MODULATOR; FRT ANTILOCK BRAKE SYSTEM(BFA)	1-48210-880-0	02	1	0107-
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0107-
176	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8	1-09664-210-0	02	1	0107-
176	ADAPTER (B) PT1/4 & PT3/8 2WAY	1-09660-809-0	03	1	0107-
176	ADAPTER (C) M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	0107-0207
278	BRACKET; CONNECTOR L=90 B=25	1-47476-630-0	01	1	0212-
335	CONNECTOR; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0107-
335	CONNECTOR; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	0107-
