8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#1000) — 30 parça

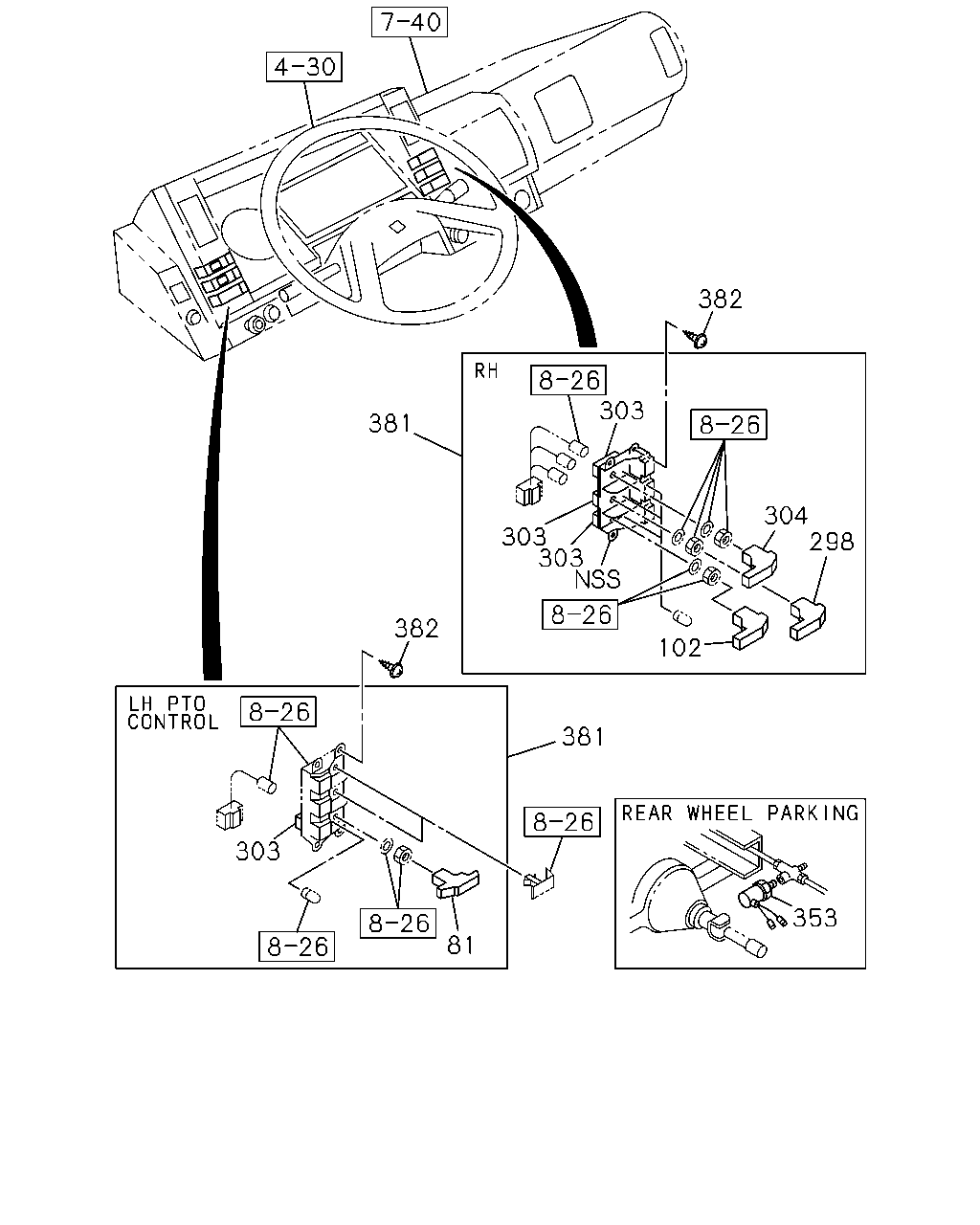

382 303 381 304 298 303 303 382 102 381 303 353 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
81	KNOB ASM; PTO PTO CONTROL AIR LINK TYPE<SEC>,PTO CONTROL<SV6>	1-82356-073-0	01	1	9202-	●	●
81	KNOB ASM; PTO TRANSMISSION FRONT PTO(RC2) PTO CONTROL<SV6>	1-82356-080-0	01	1	9202-		●
102	KNOB ASM; FOG LAMP	1-82356-031-0	01	1	9202-	●	●
298	KNOB ASM; PARKING LAMP	1-82356-028-0	01	1	9202-	●	●
303	SWITCH; MICRO PTO	1-82350-128-0	01	1	9202-	●	●
303	SWITCH; MICRO FOG	1-82350-091-0	01	1	9202-	●	●
303	SWITCH; MICRO PARKING	1-82350-127-0	01	1	9202-	●	●
303	SWITCH; MICRO HAZARD	1-82350-181-0	01	1	9202-	●	●
304	KNOB ASM; HAZARD	1-82356-068-0	01	1	9202-	●	●
353	SWITCH ASM; PARKING BRAKE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-82410-138-0	01	1	9202-9502	●	●
353	SWITCH ASM; PARKING BRAKE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-82410-163-0	01	1	9503-	●	●
381	SWITCH ASM; METER CLUSTER SIDE	1-82350-171-0	01	1	9202-	●	●
381	SWITCH ASM; METER CLUSTER SIDE PTO CONTROL AIR LINK TYPE<SEC>,PTO CONTROL<SV6>	1-82350-138-0	01	1	9202-	●	●
381	SWITCH ASM; METER CLUSTER SIDE TRANSMISSION FRONT PTO(RC2) PTO CONTROL<SV6>	1-82350-141-0	01	1	9202-		●
382	SCREW; SW,METER CLUSTER SIDE M5X14 W/PL WASHER	5-09981-050-0	08	1	9202-	●	●

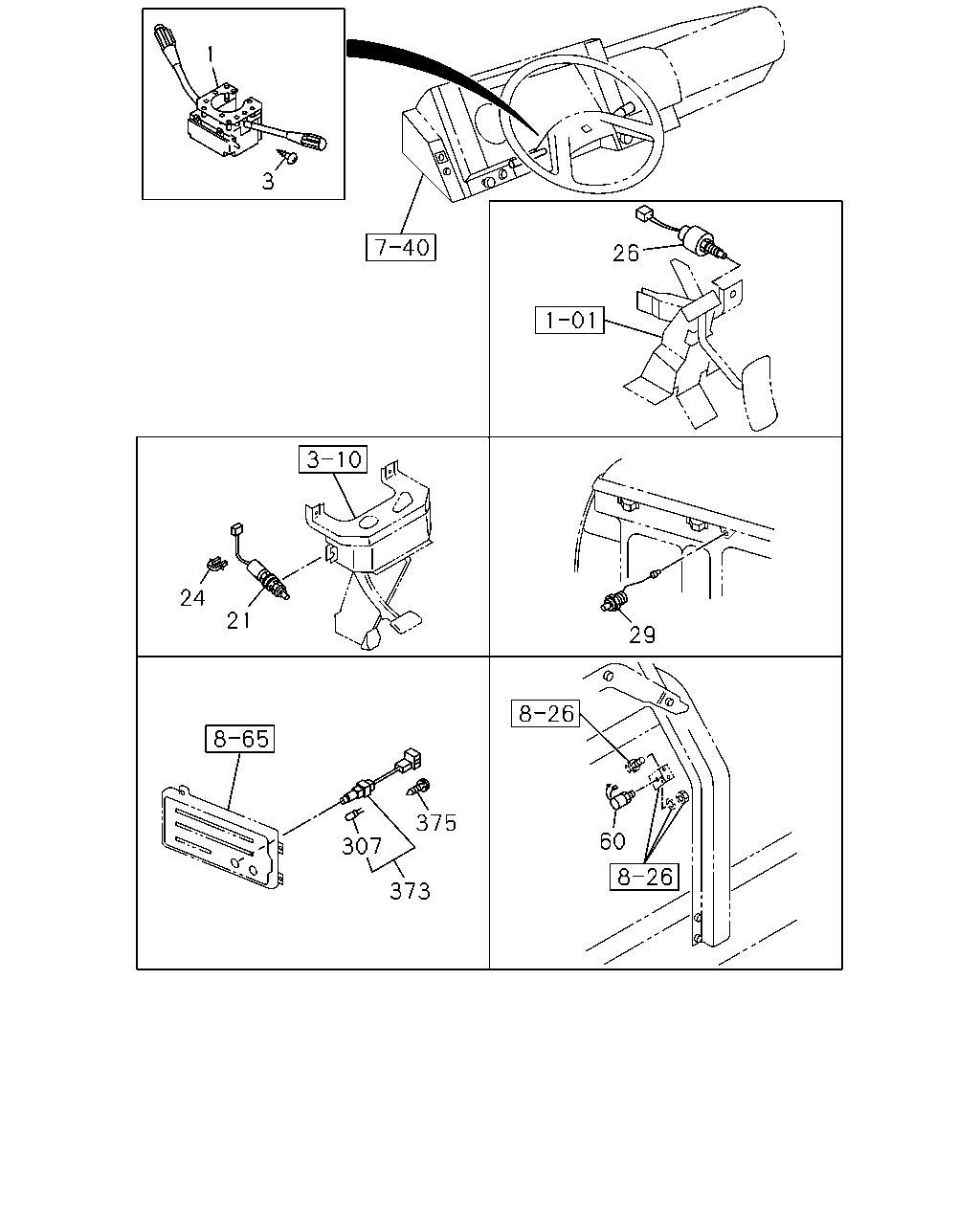

1 3 26 24 21 29 375 60 307 373

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SWITCH; COMB EXHAUST BRAKE<NF8>	1-82360-312-2	01	1	9202-9409	●	●
1	SWITCH; COMB EXHAUST BRAKE<NF8>	1-82360-394-0	01	1	9410-	●	●
1	SWITCH; COMB EXC. EXHAUST BRAKE<NF8>	1-82360-326-1	01	1	9202-9409	●	●
1	SWITCH; COMB EXC. EXHAUST BRAKE<NF8>	1-82360-398-0	01	1	9410-	●	●
3	SCREW; COMB SW M5X12 TAPPING W/PL WASHER	0-74105-512-0	03	1	9202-9409	●	●
3	SCREW; COMB SW M5X12 TAPPING W/PL WASHER	0-74105-512-0	04	1	9410-	●	●
21	SWITCH; CLU EXHAUST BRAKE<NF8>	1-82380-009-3	01	1	9202-	●	●
21	SWITCH; CLU PTO CONTROL AIR LINK TYPE<SEC>,PTO CONTROL<SV6> EXC. EXHAUST BRAKE<NF8>	1-82380-009-3	01	1	9202-	●	●
24	CLIP; CLU SW,EXH BRK	1-09987-161-0	01	1	9202-	●	●
26	SWITCH; ACCEL EXHAUST BRAKE<NF8>	1-82380-009-3	01	1	9202-	●	●
29	SWITCH; DOOR	1-82440-091-0	01	1	9202-	●	●
60	SWITCH; IGNITION SUB	1-82380-065-0	01	1	9202-	●	●
307	BULB ASM; SW AIR CON MANUAL CONTROL(C60) 28V 1.4W	1-82194-082-0	01	1	9202-	●	●
373	SWITCH; A/C AIR CON MANUAL CONTROL(C60)	1-82340-206-0	01	1	9202-	●	●
375	SCREW; A/C SW AIR CON MANUAL CONTROL(C60) M5X14 W/PL WASHER	5-09981-050-0	02	1	9202-	●	●
